ESV-RF3402Recessed Wireless Window or Door Magnetic Contact

Mounting Locations Recessed Wireless Window or Door Magnetic Contact Installation Instructions www.boschsecuritysystems.com© 2004 Bosch Security SystemsF01U000844B RF3402 Compliance Parts List 1 Tools Needed ULFCC NoticeThis device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesirable operation. Changes or modifi cations not expressly approved by Bosch Security Systems can void the user’s authority to operate the equipment.Specifi cations -20 °C to +65°C (-4°F to +149°F)For UL Listed installations, the temperature range is 0 °C to +40°C (+32°F to +104°F) Battery Life: 5 years Frequency: 304.00 MHz Compatible Receiver: RF3224 Humidity: 95° non-condensing © 2004 Bosch Security SystemsF01U000844B 2 1 Control Panel Programming Use the number on your RF3402 to program the point transmitter into the control panel. Battery Installation 12345 6 Installation 5 Flush Mount Surface Mount 4 32 Flush Mount Only - Countersink Recommended batteries:Duracell DLCR2Eveready EL1CR2Sanyo CR2 Surface and Flush Mount 7 Note: Install the magnet assembly on the the moving part of the door or window and the transmitter housing on the fi xed part.

RJB DR AUTHDATECHANGE# XXX REVNO X ECR# XXX REVISION RECORD ACCEPTED DRAWINGB10/14/04LAL BOSCH DATE DRAWN: DRAWING TITLE SCALE BOSCH SECURITY SYSTEMS 130 PERINTON PARKWAY FAIRPORT, NEW YORK, 14450-9199 USA (585) 223 4060 FAX (585) 223 9180 PART NO. F01U000848B 10/14/04 BLOCK DIAGRAM RF3402 SHEET 1 OF 1 DRAWING NUMBER DRAWN BY: LAL APPR BY: AF01U000848 Rev. B Microcontroller Voltage reference for low battery measurement RF Oscillator 304MHz RF Power Amplifier Reed Switch Cap Tamper Switch Oscillator Modulation Antenna

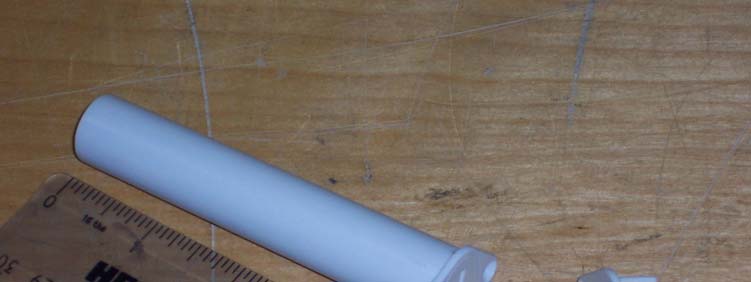

Retlif Testing Laboratories Test Report No. R-10620 FCC ID: ESV-RF3402

LOTRF3402 FCC ID: ESV-RF3402 XXX NOTE: 1. Replace * with inguide revision REF. F01U000844 * FOR CHINA USE LABEL 4998122470 RJB ECR# DR AUTHDATESYMREVISION RECORD ACCEPTED DRAWINGB10/14/04LAL BOSCH DATE DRAWN: DRAWING TITLE SCALE BOSCH SECURITY SYSTEMS 130 PERINTON PARKWAY FAIRPORT, NEW YORK, 14450-9199 USA (585) 223 4060 FAX (585) 223 9180 PART NO. F01U000843B 10/14/04 Dwg-RF3402 BOSCH GP Info SHEET 1 OF 1 DRAWING NUMBER DRAWN BY: LAL APPR BY: AF01U000843 Rev. B MADE IN CHINA

Retlif Testing Laboratories Test Report No. R-10620 FCC ID: ESV-RF3402 Retlif Testing Laboratories Test Report No. R-10620 FCC ID: ESV-RF3402

Retlif Testing Laboratories R Test Report No. R-10620 FCC ID: ESV-RF3402 APPLICANT Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, NY 14450 MANUFACTURER Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, NY 14450 TEST SPECIFICATION:FCC Rules and Regulations Part 15, Subpart C, Para. 15.231 TEST PROCEDURE:ANSI C63.4:2001 TEST SAMPLE DESCRIPTION BRANDNAME: Bosch Security Systems, Inc.MODEL: RF3402 TYPE: Pulsed Transmitter POWER REQUIREMENTS: 3 VDC via a CR2 Lithium Battery FREQUENCY OF OPERATION: 304 MHz TESTS PERFORMED Para. 15.231(b), Fundamental & Harmonics Para. 15.231(b), Spurious Case Para. 15.231(c), Occupied Bandwidth Para. 15.35, Duty Cycle Determination REPORT OF MEASUREMENTS Applicant: Bosch Security Systems, Inc. Device:Pulsed Transmitter FCC ID: ESV-RF3402 Power Requirements: 3 VDC via a CR2 Lithium Battery Applicable Rule Section:Part 15, Subpart C, Section 15.231 Retlif Testing Laboratories R Test Report No. R-10620 FCC ID: ESV-RF3402 REPORT OF MEASUREMENTS (continued) TEST RESULTS 15.231 (a):This device is used as a Remote Control/Security device. 15.231 (a)(1) & (a)(2) The transmitter is manually operated and ceases transmission within 5 seconds of activation. 15.231 (a)(3):The transmitter does perform periodic transmissions at intervals greater than once per hour (Every 65 minutes). 15.231 (b):The fundamental field strength did not exceed 5560 μV/M (Average) at a test distance of 3 meters. In addition, the requirements of section 15.35 for averaging pulsed emissions and for limiting peak emissions were met. The field strength of harmonic and spurious emissions did not exceed 556 μV/M (AVERAGE). DETERMINATION OF FIELD STRENGTH LIMITS The field strength limits shown below are found in Section 15.231. Frequency Limit F1=2603750=L1 Fo=304Lo F2=47012500 =L2 The formula below was utilized to determine the limits: Limit = L1 + [(Fo-F1)(L2-L1)/(F2-F1)] Solving yields: Fundamental Limit= 5560 μV/M (AVERAGE) @ 3 Meters Harmonic Limit= 556 μV/M (AVERAGE) @ 3 Meters Bandwidth= 760 kHz Retlif Testing Laboratories R Test Report No. R-10620 FCC ID: ESV-RF3402 DUTY CYCLE DETERMINATION The unit’s RF output was directly coupled to the input of the spectrum analyzer. The analyzer was set for a frequency span of 0Hz. The sweep time was then adjusted in order to display one full pulse train. The transmitter on time was then summed and compared to the time for one full cycle in order to obtain the duty cycle. (See plots for additional information) Transmitter On Time=15.0 milliseconds (maximum) Transmitter Cycle Time =110 milliseconds Transmitter Duty Cycle =15.0 % CALCULATION: Duty Cycle (15/100)=15 % Correction Factor = 20 log(0.15)=-16.5 dB Retlif Testing Laboratories R Test Report No. R-10620 FCC ID: ESV-RF3402 SPECTRUM ANALYZER DESENSITIZATION CONSIDERATIONS Due to the nature of the emissions being measured, care was taken to ensure that the resolution bandwidth of the spectrum analyzer was adequate to provide accurate measurements. The following formula was utilized: Setting pulse desensitization equal to zero and utilizing the minimum observed pulse width of 15 milliseconds yields a minimum required bandwidth of 44 Hz. FCC specified bandwidths of 100 kHz and 1MHz were utilized below and above 1GHz, respectively. GENERAL NOTES 1.All readings were taken utilizing a peak detector function at a test distance of 3 meters. 2.The duty cycle was applied to the peak readings in order to determine the average value of the emissions. 3.All measurements were made with new 3V CR2 Lithium Battery. 4.The frequency range was scanned from 30 MHz to 3.04 GHz. All emissions not reported were more than 20 dB below the specified limit. Retlif Testing Laboratories R Test Report No. R-10620 FCC ID: ESV-RF3402 EQUIPMENT LIST FCC Part 15 Subpart C 15.231;Radiated Emissions. ENTypeManufacturerDescriptionModel No.Cal DateDue 067Open Area Test SiteRetlif3 MeterRNY10/1/200310/1/2006 128Double Ridged GuideElectro-Mechanics1 GHz - 18 GHz31056/21/20046/21/2005 133Broadband Pre-AmplifierElectro-Metrics10 kHz - 1 GHz, 26dBBPA-10006/12/20046/12/2005 206B6.0 dB AttenuatorTexscan0 - 1.0 GHzFP-50 - 6 dB6/12/20046/12/2005 543PreamplifierHewlett Packard1.0 GHz - 26.5 GHz8449B7/27/20047/27/2005 617Interference AnalyzerElectro-Metrics10 kHz - 1 GHzEMC-3010/5/200410/5/2005 723H.P. FilterMini-Circuits1 GHzBHP-10007/14/20047/14/2005 763Spectrum AnalyzerAgilent30 Hz - 13.2 GHzE4405B7/9/20047/9/2005 767BiconilogEMCO26 - 2000 MHz3142B10/7/200410/7/2005 Retlif Testing Laboratories R Test Report No. R-10364-1 FCC ID: ESV-RF3402 FCC 15.231(b) FUNDAMENTAL & HARMONICS Retlif Testing Laboratories R Test Report No. R-10364-1 FCC ID: ESV-RF3402 FCC 15.231(b) SPURIOUS CASE Retlif Testing Laboratories R Test Report No. R-10364-1 FCC ID: ESV-RF3402 FCC 15.231(c) OCCUPIED BANDWIDTH Retlif Testing Laboratories R Test Report No. R-10364-1 FCC ID: ESV-RF3402 FCC 15.231(c) DUTY CYCLE

Retlif Testing Laboratories Test Report No. R-10620 FCC ID: ESV-RF3402
