EUGDR-435TScanning Transceiver

VHF FM Mobile Transceiver DR-135T/E DR-235T UHF FM Mobile Transceiver DR-435T/E Instruction Manual Thank you for purchasing your new Alinco transceiver. This instruction manual contains important safety and operating instructions. Please read this manual carefully before using the product and keep it for future reference. 1 Contents Before operating the transceiver ...................................... 3 Introduction ........................................................................ 3 1. New and Innovative Features ........................................ 4 2. Standard Accessories ................................................... 5 3. Initial Installation ............................................................ 6 For a base station set up ....................................................................... 6 For a mobile station set up .................................................................... 7 External power supply control & Power lamp functions ......................... 8 Power supply voltage display function ................................................... 8 4. Part Names and Functions ............................................ 9 Front Panel ............................................................................................ 9 Rear Panel ........................................................................................... 10 Display ................................................................................................. 11 Microphone .......................................................................................... 12 5. Basic Operations .......................................................... 13 Turning the unit on and off ................................................................... 13 Audio Volume level setting .................................................................. 13 Squelch level setting ............................................................................ 13 VFO mode ........................................................................................... 14 [Change frequency by the channel step] ................................ 14 [Change frequency by 1 MHz step] ........................................ 14 Changing the channel step .................................................................. 15 REPEATER (DUPLEX) Operation ....................................................... 15 CTCSS / DCS setting .......................................................................... 16 Memory Mode ...................................................................................... 17 [Memory programming] ........................................................... 17 [Programmable data in the memory channel] ......................... 18 CALL mode .......................................................................................... 19 To receive signals ................................................................................ 19 To transmit ........................................................................................... 20 6. Parameter Setting Mode .............................................. 21 Channel Step setting ........................................................................... 22 Scan Type ............................................................................................ 22 Beep Sound ......................................................................................... 22 Time-Out-Timer .................................................................................... 23 TOT Penalty ......................................................................................... 23 APO - Auto Power OFF ....................................................................... 24 Tone-Burst-Frequency ......................................................................... 24 Busy-Channel-Lock-Out ...................................................................... 24 Theft Alarm .......................................................................................... 24 Alphanumeric Tag ................................................................................ 25 Dimmer ................................................................................................ 25 2 Contents 7. Advanced Operations .................................................. 26 SCANNING FUNCTION ...................................................................... 26 [VFO Scan] ............................................................................. 26 [Memory scan] ........................................................................ 26 • Program scan ....................................................................... 27 • Tone Scan ............................................................................. 27 • DCS scan ............................................................................. 28 KEY-LOCK FUNCTION ....................................................................... 28 TONE BURST ...................................................................................... 28 AM Mode Reception(DR235T only) .................................................... 29 WIDE / NARROW (Reduction of the Mic Gain/Deviation) ................... 29 AUTO-DIALER ..................................................................................... 30 THEFT ALARM .................................................................................... 31 CABLE CLONE ................................................................................... 33 8. PACKET OPERATION .................................................. 34 [To operate packet using EJ-41U] ........................................... 34 [To operate packet using an external TNC] ............................. 36 [To operate APRS ® ] ................................................................ 37 [SET UP] ................................................................................. 38…

Text truncated - open the document above for the full version.

COMPANY NAME: ALINCO, INC. EUT: DJ-135T CLIENT REFERENCE NUMBER: QRTL00- WORK ORDER NUMBER: 2000197 FCC ID: EUG DJ-135T Scanning Receiver Certification Report Page 35 of 36 APPENDIX K: AGENT AUTHORIZATION LETTER COMPANY NAME: ALINCO, INC. EUT: DJ-135T CLIENT REFERENCE NUMBER: QRTL00- WORK ORDER NUMBER: 2000197 FCC ID: EUG DJ-135T Scanning Receiver Certification Report Page 36 of 36

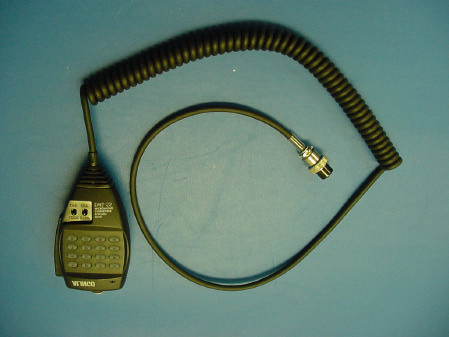

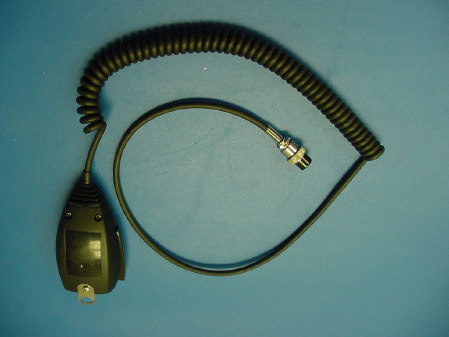

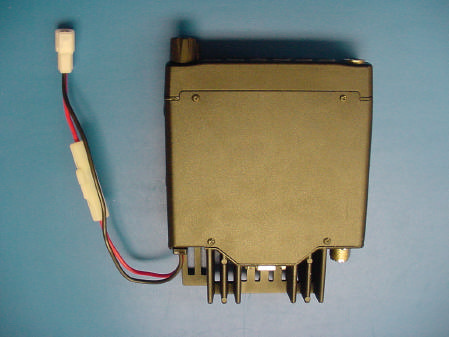

Front View of EUT Rear View of EUT Left Side Of EUT Right Side Of EUT Top Of EUT Bottom Of EUT Front View of Microphone Back View of Microphone

COMPANY NAME: ALINCO, INC. EUT: DR-435T WORK ORDER NUMBER: 2000447 FCC ID: EUG DR-435T Scanning Receiver Certification Report Page 18 of 33 APPENDIX A: LABEL INFORMATION COMPANY NAME: ALINCO, INC. EUT: DR-435T WORK ORDER NUMBER: 2000447 FCC ID: EUG DR-435T Scanning Receiver Certification Report Page 19 of 33 FIGURE 1: FCC ID FIGURE 2: LOCATION OF LABELS ON EUT Alinco, Inc. DR-435T Industry Canada: XXXXX FCC ID: EUGDR-435T This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Modification of this device to receive cellular radio-telephone service signals is prohibited under FCC rules and federal law.

COMPANY NAME: ALINCO, INC. EUT: DR-435T W ORK ORDER NUMBER: 2000447 FCC ID: EUG DR-435T Scanning Receiver Certification Report Page 14 of 33 4.1 38dB Rejection Test A signal generator was connected to the receiver under test, and the output of the receiver was connected to an audio analyzer. A FM signal was applied to the receiver antenna input with a 1kHz tone modulated at 8 kHz deviation, and adjusted with the audio analyzer to produce a 12 dB SINAD. This was done across the receiver bands to determine a reference level. The reference level used was that with the highest sensitivity in all of the bands. The output of the signal generator was then adjusted to a level 40 dB above the reference level established and set to a low, medium and high frequency in both the mobile and base cellular bands. (Mobile = 824.04 MHz through 848.97 MHz, Base = 881.50 MHz through 893. 97 MHz). The squelch of the receiver was then set to a minimum threshold level and scanning began from the lowest to the highest channel. Whenever the receiver stopped and “un-squelched” that frequency was noted as a response. After all the frequencies of responses were noted, the signal generator was set to measure the sensitivity at each of these response frequencies. This measurement was the reference sensitivity for the particular received frequency measured. The audio analyzer measurement was used to measure the 12 dB SINAD and that is the spurious value. The difference between the reference sensitivity and the spurious value is the rejection ratio and must be at least 38 dB. Frequencies used on the Signal Generator were 824.04, 836.50, 848.97 MHz for the Mobile and 881.50, 869.04, 893.97 MHz for the Base. The DR-435T unit reference level used was –45.0 dBm from the signal generator, this was determined from the highest sensitivity from 500 MHz at –85.0 dBm measurement of 12dB SINAD. The DR-435T unit was scanned from 350 to 511.995 MHz for all channels (manufacturers spec.). Signals that were noted as responses were checked with the signal generator off and if they still existed as a response were determined as ambient signals and removed from the response list. There were no signals detected for the 38 dB rejection test requirements. HP 8648C Signal Generator (1kHz tone/8kHz FM deviation) Antenna Input EUT Audio out HP 8903B Audio Analyzer External 13VDC power adapter COMPANY NAME: ALINCO, INC. EUT: DR-435T WORK ORDER NUMBER: 2000447 FCC ID: EUG DR-435T Scanning Receiver Certification Report Page 15 of 33 38dB Rejection Cellular Band (869.04- 893.97) Date: 11/22/00 Temp: 74°°F Humidity: 33% Model: DR-435T Table 1 Frequency Injected 869.04MHz Frequency Detected (MHz) Level 12dB SINAD at 869.04MHz Level 12dB at frequency detected Rejection Margin No Frequencies Detected N/A N/A N/A N/A Table 2 Frequency Injected 881.50MHz Frequency Detected (MHz) Level 12dB SINAD at 881.50MHz Level 12dB at frequency detected Rejection Margin No Frequencies Detected N/A N/A N/A N/A Table 3 Frequency Injected 893.97MHz Frequency Detected (MHz) Level 12dB SINAD at 893.97MHz Level 12dB at frequency detected Rejection Margin No Frequencies Detected N/A N/A N/A N/A COMPANY NAME: ALINCO, INC. EUT: DR-435T WORK ORDER NUMBER: 2000447 FCC ID: EUG DR-435T Scanning Receiver Certification Report Page 16 of 33 38dB Rejection Mobile Band (824.04- 848.97) Date: 11/22/00 Temp: 74°°F Humidity: 33% Model: DR-435T Table 1 Frequency Injected 824.04MHz Frequency Detected (MHz) Level 12dB SINAD at 824.04MHz Level 12dB at frequency detected Rejection Margin No Frequencies Detected N/A N/A N/A N/A Table 2 Frequency Injected 836.50MHz Frequency Detected (MHz) Level 12dB SINAD at 836.50MHz Level 12dB at frequency detected Rejection Margin No Frequencies Detected N/A N/A N/A N/A Table 3 Frequency Injected 848.97MHz Frequency Detected (MHz) Level 12dB SINAD at 848.97MHz Level 12dB at frequency detected Rejection Margin No Frequencies Detected N/A N/A N/A N/A

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441  APPLICATION FOR FCC CLASS B CERTIFICATION SCANNING RECEIVER Alinco, Inc. 438 Amapola Ave. Suite 130 Torrance, CA 90501 MODEL: DR-435T FCC ID: EUG DR-435T November 25, 2000 REPORT PREPARED BY: EMI Technician: E. Szrajer Administrative Writer: E. Szrajer Rhein Tech Laboratories, Inc. Document Number: 2000447 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. This report concerns (check one): Original Grant: X Class II Change: Equipment Type: Scanning Receiver Deferred grant requested per 47 CFR 0.457 (d) (1) (ii)? Yes: No: X If yes, defer until: Date Company name agrees to notify the Commission by: (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X If no, assumed Part 15, subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision.. COMPANY NAME: ALINCO, INC. EUT: DR-435T WORK ORDER NUMBER: 2000447 FCC ID: EUG DR-435T Scanning Receiver Certification Report Page 2 of 33 TABLE OF CONTENTS 1.0 GENERAL INFORMATION....................................................................................................................................3 1.1 STANDARDS REFERENCED..........................................................................................................................................3 1.2 BASIC INFORMATION ON THE EUT............................................................................................................................3 1.3 MODIFICATIONS.............................................................................................................................................................4 1.4 RELATED SUBMITTAL(S)/GRANT(S)..........................................................................................................................4 1.5 TEST METHODOLOGY...................................................................................................................................................4 1.6 TEST FACILITY...............................................................................................................................................................4 2.0 SYSTEM TEST CONFIGURATION.....................................................................................................................5 2.1 JUSTIFICATION...............................................................................................................................................................5 2.2 EXERCISING THE EUT..................................................................................................................................................5 2.3 TEST SYSTEM DETAILS................................................................................................................................................5 2.4 TEST SYSTEM CONFIGURATION PHOTOGRAPHS....................................................................................................6 2.5 EMISSIONS EQUIPMENT LIST......................................................................................................................................7 2.6 RADIATED TEST METHODOLOGY...............................................................................................................................8 3.0 CONDUCTED EMISSION DATA..........................................................................................................................9 TABLE 1: Conducted Emissions: (380.85 MHz)...........................................................................................................9 TABLE 2: Conducted Emissions: (431 MHz)...............................................................................................................10 TABLE 3: Conducted Emissions: (481.15 MHz).........................................................................................................11 4.0 RADIATED EMISSION DATA.............................................................................................................................12 TABLE 4: Radiated Emissions: (380.85 MHz).............................................................................................................12 TABLE 5: Radiated Emissions: (431 MHz)..................................................................................................................12 TABLE 6: Radiated Emissions: (481.15 MHz).............................................................................................................13 4.1 38DB REJECTION TEST.....................................................................................................................................14 5.0 CONFORMANCE STATEMENT.........................................................................................................................17 APPENDIX LISTING APPENDIX A: LABEL INFORMATION.............................................................................................................................18 APPENDIX B: PRODUCT DESCRIPTION......................................................................................................................20 APPENDIX C: SCHEMATICS..............................................................................................................................................21 APPENDIX D: BLOCK DIAGRAM OF DJ-196T............................................................................................................22 APPENDIX E: EXTERNAL PHOTOS................................................................................................................................23 APPENDIX F: INTERNAL PHOTOS...................................................................…

Text truncated - open the document above for the full version.

COMPANY NAME: ALINCO, INC. EUT: DR-435T WORK ORDER NUMBER: 2000447 FCC ID: EUG DR-435T Scanning Receiver Certification Report Page 26 of 33 APPENDIX H: TEST PICTURES COMPANY NAME: ALINCO, INC. EUT: DR-435T WORK ORDER NUMBER: 2000447 FCC ID: EUG DR-435T Scanning Receiver Certification Report Page 27 of 33 Conducted Configuration Photographs COMPANY NAME: ALINCO, INC. EUT: DR-435T WORK ORDER NUMBER: 2000447 FCC ID: EUG DR-435T Scanning Receiver Certification Report Page 28 of 33 Radiated Configuration Photographs COMPANY NAME: ALINCO, INC. EUT: DR-435T WORK ORDER NUMBER: 2000447 FCC ID: EUG DR-435T Scanning Receiver Certification Report Page 29 of 33 38dB Rejection Configuration Photograph
