EZS1412VDKiB Ekey

Ekey Module Cover Control Module Owner’s Manual (R1.00) PAGE-1 Product Description: The Ekey module provides vehicle access without requiring a key fob. The Ekey didigal key sharing solution provides: • Seamless Integration with the vehicle to maintain OEM security and convenience features without giving up a key. • Replicates all functions of OEM remote control. • No interaction required for user authentication – app seamlessly runs authentication in background • Multiple installation applications • Secure connection with Smartphone to authenticate users – 256-bit encryption. EKey System Overview Figure 1 EKey System Diagram Ekey Module Cover Control Module Owner’s Manual (R1.00) PAGE-2 Government Regulations This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio / TV technician for help. To satisfy FCC RF exposure compliance requirements, the device and its antenna must maintain a separation distance of 20 cm or more from the person’s body, except for the hand and wrists, to satisfy RF exposure compliance. WARNING!: Changes or modifications not expressly approved by VOXX Electronics. could avoid user's authority to operate the equipment. This device complies with Industry Canada license-exempt RSS-247 standards. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme avec Industrie Canada exempts de licence standards RSS-247. Son fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne doit pas provoquer d'interférences et 2. Cet appareil doit accepter toute interférence, y compris celles pouvant causer un mauvais fonctionnement de l'appareil.” Health Canada RF Exposure Warning: This device complies with Health Canada’s Safety Code. The installer of this device should ensure that RF radiation is not emitted in excess of the Heath Canada’s requirement. The device must maintain a separation distance of 20cm or more from the person’s body, except for the hands and wrists. Information can be obtained at: http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/radio_guide-lignes_direct/index-eng.php Lignes Directrices de Santé Canada sur l’exposition aux radiofréquences: Cet appareil est conforme avec Santé Canada Code de sécurité 6. Le programme d’installation de cet appareil doit s’assurer que les rayonnements RF n’est pas émis au-delà des limites établies par Santé Canada. L’emplacement de l'appareil doit se situer à une distance de 20cm ou plus par rapport au corps de la personne, à l’exception des mains et des poignets. Les informations peuvent être obtenues à l’adresse Internet suivante: http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/radio_guide-lignes_direct/index-fra.php Ekey Module Cover Control Module Owner’s Manual (R1.00) PAGE-3 Warranty Information LIMITED ONE-YEAR CONSUMER WARRANTY For a period of ONE YEAR from the date of purchase of a VOXX Electronics product, Voxx Electronics. (“Voxx”) promises to the original purchaser, to repair or replace with a comparable reconditioned piece, the security or remote start accessory piece (hereinafter the “Part”), which proves to be defective in workmanship or material under normal use, provided the following conditions are met: the Part was purchased from an authorized VOXX Electronics dealer; and the Part is returned to VOXX Electronics, postage prepaid, along with a clear, legible copy of the receipt or bill of sale bearing the following information: consumer’s name, address, telephone number, the authorized licensed dealer’s name and complete product and Part description. This warranty is nontransferable and is automatically void if the Part has been modified or used in a manner contrary to its intended purpose or the Part has been damaged by accident, unreasonable use, neglect, improper service, installation, or other causes not arising out of defect in materials or construction. TO THE MAXIMUM EXTENT ALLOWED BY LAW, EXCEPT AS STATED ABOVE, ALL WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE AND WARRANTY OF NONINFRINGEMENT OF INTELLECTUAL PROPERTY, ARE EXPRESSLY EXCLUDED; AND VOXX Electronics NEITHER ASSUMES NOR AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS. VOXX Electronics HEREBY DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING DEALERS OR INSTALLERS. VOXX Electronics IS NOT OFFERING A GUARANTEE OR INSURANCE AGAINST VANDALISM, DAMAGE, OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS, AND VOXX Electronics x HEREBY DIS…

Text truncated - open the document above for the full version.

VoxxElectronicsCorporation * theapplicantmustdesignateacontactlocatedintheUnitedStatesforpurposesofactingasthe applicant’sagentforserviceofprocess,regardlessofwhethertheapplicantisadomesticorforeign entity.AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforserviceofprocess. U.S.AgentDesignationforServiceofProcess- CertificationAttestationLetter 5/15/2024 TO:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 ATTN.:ReviewingEngineer FCCID:EZS1412VD FRNofapplicant:0006819940 Persection2.911(d)(7)oftheFCCrules,VoxxElectronicsCorporation(“theapplicant”)certifies thattheequipmentforwhichauthorizationissoughtisdesignatedtothefollowingU.S.agent* forserviceofprocess: CompanyName:VoxxElectronicsCorporation FCCRegistrationNumber(FRN):0006819940 PhysicalU.S.CompanyAddress:2365PontiacRoad,AuburnHills,Michigan48326-USA ContactPerson:JosephA.Santavicca AgentEmailAddress:[email protected] Theabovecontactpersonacceptstheobligationforserviceofprocess. Theapplicantacceptstomaintainanagentfornolessthanoneyearafterthegranteehas terminatedallmarketingandimportationortheconclusionofanyCommission-related proceedinginvolvingtheequipment. ApplicantSigned: Signed: Printedname:JosephA.Santavicca Title:SVPofEngineering CompanyName:VoxxElectronicsCorporation Date:5/15/2024 AgentSigned(ifdifferentfromApplicant): Signed: Printedname:JosephA.Santavicca Title:SVPofEngineering CompanyName:VoxxElectronicsCorporation Date:5/15/2024

VoxxElectronicsCorporation CoveredEquipmentCertificationAttestationLetter 5/15/2024 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA ATTN.:ReviewingEngineer FCCID:EZS1412VD VoxxElectronicsCorporation(“theapplicant”)certifiesthattheequipmentforwhich authorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. VoxxElectronicsCorporation(“theapplicant”)certifiesthat,asofthedateofthefilingof theapplication,theapplicantisnotidentifiedontheCoveredListasanentityproducing “covered”equipment. Signed: Printedname:JosephA.Santavicca Title:SVPofEngineering CompanyName:VoxxElectronicsCorporation Date:5/15/2024

VoxxElectronicsCorporation DATE:2024-5-15 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:EZS1412VD ProductName:KiBEkey RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommission’srules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: Schematics BillOfMaterial(BOM) Blockdiagram  Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. Datedthis 2024-5-15 By: JosephA.Santavicca SignaturePrinted Title: SVPofEngineering Onbehalfof: VoxxElectronicsCorporation Telephone: (1) 248307-3830

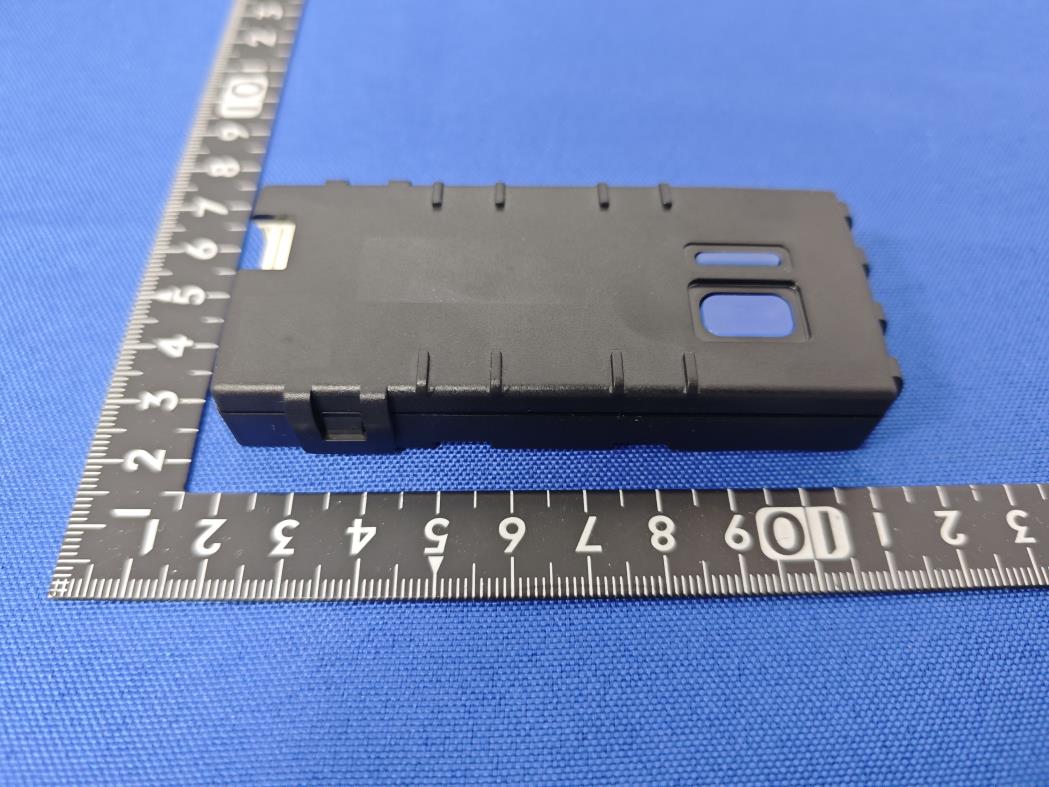

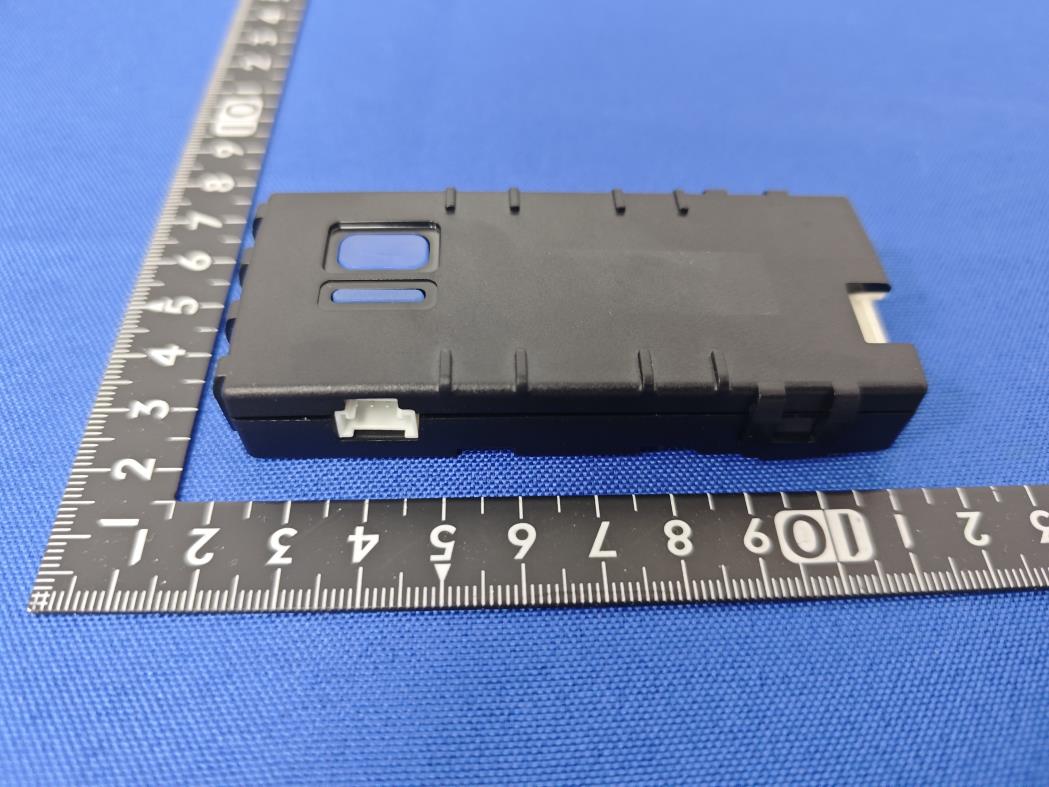

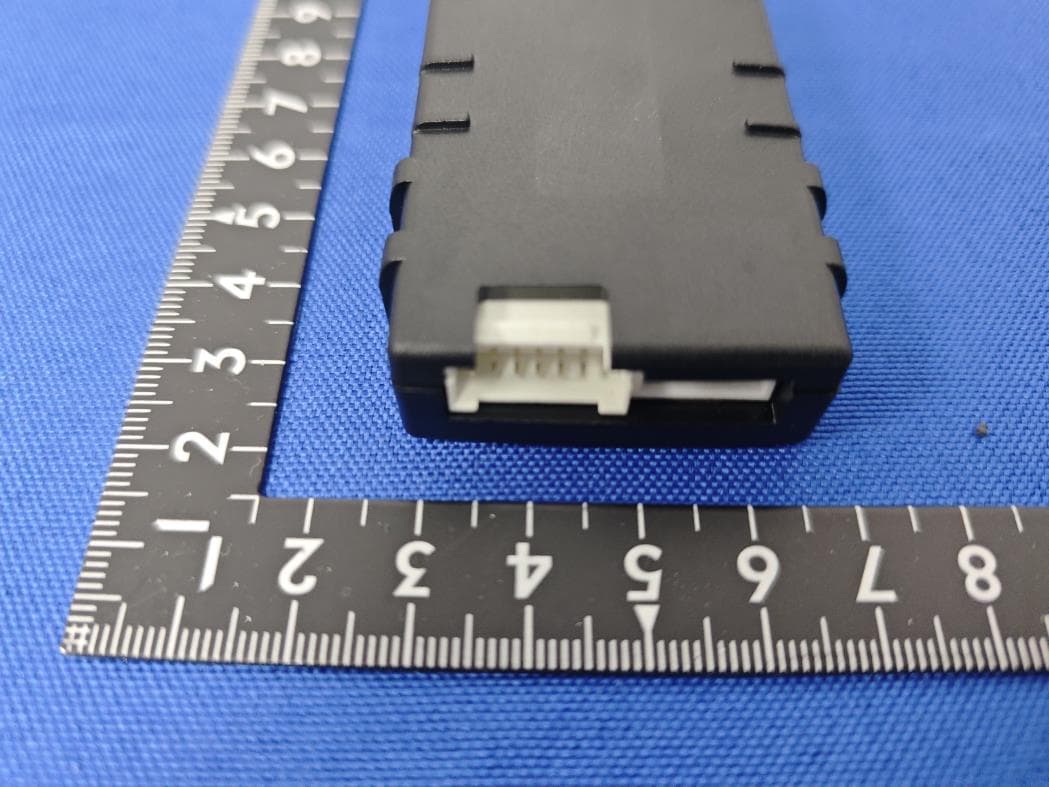

JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 3 EUT External Photos JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 3 JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 3 ------End------

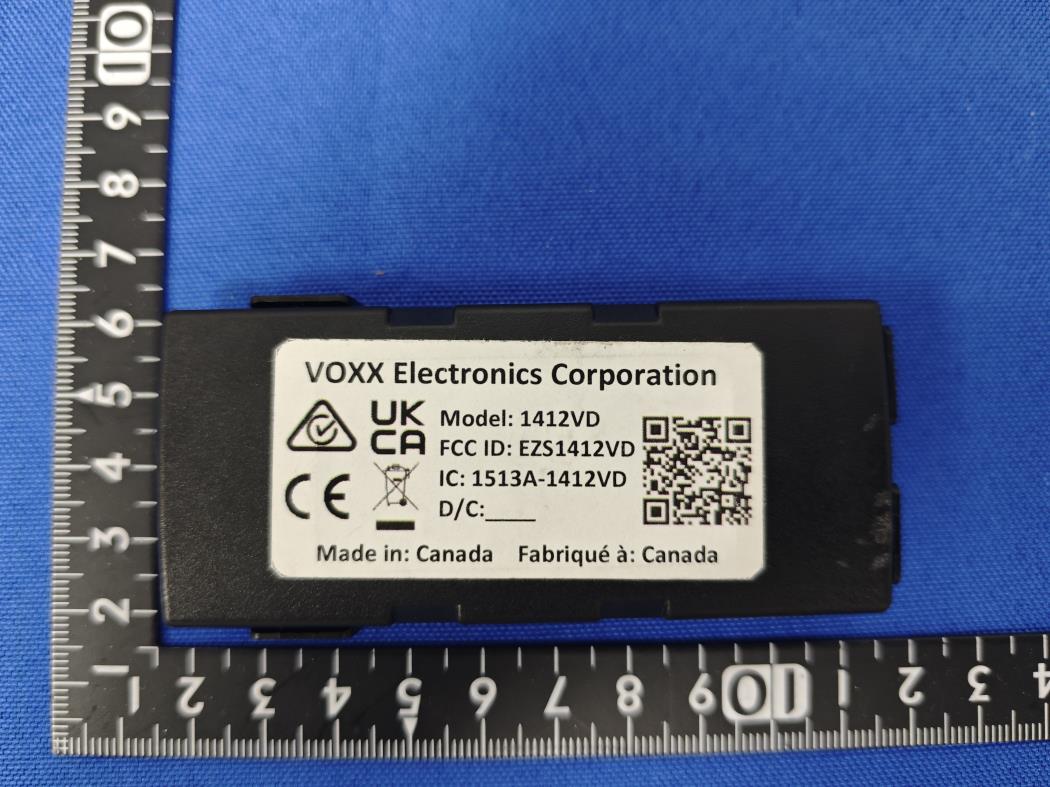

labellocation labellocation

JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 3 EUT Internal Photos JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 3 JianYan Testing Group Shenzhen Co., Ltd. JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 3 ------End------

JianYan Testing Group Shenzhen Co., Ltd. Report No.: JYTSZ-R12-2400422 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in above the application standard version. Test results reported herein relate only to the item(s) tested. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Cover Page RF Exposure Evaluation Report Report No.: JYTSZ-R12-2400422 Applicant: Voxx Electronics Corporation Address of Applicant: 2365 Pontiac Road, Auburn Hills, Michigan 48326 - USA Equipment Under Test (EUT) Product Name: KiB Ekey Model No.: 1412VD Trade mark: N/A FCC ID: EZS1412VD Applicable standards: FCC CFR Title 47 Part 2 (§2.1091) Date of sample receipt: 17 Apr., 2024 Date of Test: 18 Apr., to 25 Jun., 2024 Date of report issue: 09 Jul., 2024 Test Result: PASS Project by: Date: 09 Jul., 2024 Project Engineer Reviewed by: Date: 09 Jul., 2024 Senior Engineer Approved by: Date: 09 Jul., 2024 Manager Report No.: JYTSZ-R12-2400422 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-177-C Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 7 Version 1 Version No. Date Description 00 26 Jun., 2024 Original 01 09 Jul., 2024 Updated reports on pages 4 and 7. Report No.: JYTSZ-R12-2400422 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-177-C Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 7 Contents 2 Page Cover Page ............................................................................................................................................................. 1 Version ........................................................................................................................................................... 2 1 Contents ......................................................................................................................................................... 3 2 General Information ...................................................................................................................................... 4 3 Client Information ................................................................................................................................... 4 3.1 General Description of E.U.T. ................................................................................................................ 4 3.2 Operating Modes .................................................................................................................................... 4 3.3 Additions to, deviations, or exclusions from the method ........................................................................ 4 3.4 Laboratory Facility .................................................................................................................................. 5 3.5 Laboratory Location ................................................................................................................................ 5 3.6 Technical Requirements Specification ....................................................................................................... 6 4 Limits ...................................................................................................................................................... 6 4.1 Test Procedure ....................................................................................................................................... 6 4.2 Result ..................................................................................................................................................... 7 4.3 Conclusion .............................................................................................................................................. 7 4.4 Report No.: JYTSZ-R12-2400422 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-177-C Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 4 of 7 General Information 3 Client Information 3.1 Applicant: Voxx Electronics Corporation Address: 2365 Pontiac Road, Auburn Hills, Michigan 48326 - USA Manufacturer: Nutek Coropration Address: no. 167, Lane 235, Bauchiau Rd, Xindian District, New Taeipi City 23145, Taiwan Factory: Voxx Automotive Corporation Address: 2351 J. Lawson Blvd, Orlando, FL 32824 - USA General Description of E.U.T. 3.2 Product Name: KiB Ekey Model No.: 1412VD Operation Frequency: BLE: 2402MHz~2480MHz UHF: 312.1MHz~315.12MHz; 433.58MHz~433.92MHz; 902.365MHz~903.417MHz Modulation technology: BLE: GFSK UHF: FSK, OOK Antenna Type: PCB Antenna Antenna gain: BLE: 1.1 dBi (declare by Applicant); UHF: -9.7 dBi (declare by Applicant) Test Sample Condition: The test samples were provided in good working order with no visible defects. Operating Modes 3.3 Operating mode Detail description BLE mode Keep the EUT in continuously transmitting in BLE mode UHF mode Keep the EUT in continuously transmitting in UHF mode Additions to, deviation…

Text truncated - open the document above for the full version.

JianYan Testing Group Shenzhen Co., Ltd. Report No.: JYTSZ-R12-2400420 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in above the application standard version. Test results reported herein relate only to the item(s) tested. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Cover Page FCC RF Test Report (BLE) Report No.: JYTSZ-R12-2400420 Applicant: Voxx Electronics Corporation Address of Applicant: 2365 Pontiac Road, Auburn Hills, Michigan 48326 - USA Equipment Under Test (EUT) Product Name: KiB Ekey Model No.: 1412VD Trade Mark: N/A FCC ID: EZS1412VD Applicable Standards: FCC CFR Title 47 Part 15C (§15.247) Date of Sample Receipt: 17 Apr., 2024 Date of Test: 18 Apr., to 21 Jun., 2024 Date of Report Issued: 25 Jun., 2024 Test Result: PASS Project by: Date: 25 Jun., 2024 Project Engineer Reviewed by: Date: 25 Jun., 2024 Senior Engineer Approved by: Date: 25 Jun., 2024 Manager Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-148-C1 Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 25 Version 1 Version No. Date Description 00 25 Jun., 2024 Original Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-148-C1 Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 25 Contents 2 Page Cover Page ............................................................................................................................................................. 1 Version ........................................................................................................................................................... 2 1 Contents ......................................................................................................................................................... 3 2 General Information ...................................................................................................................................... 4 3 Client Information ................................................................................................................................... 4 3.1 General Description of E.U.T. ................................................................................................................ 4 3.2 Test Mode and Test Environment .......................................................................................................... 5 3.3 Description of Test Auxiliary Equipment ................................................................................................ 5 3.4 Measurement Uncertainty ...................................................................................................................... 5 3.5 Additions to, Deviations, or Exclusions from the Method ....................................................................... 5 3.6 Laboratory Facility .................................................................................................................................. 6 3.7 Laboratory Location ................................................................................................................................ 6 3.8 Test Instruments List .............................................................................................................................. 6 3.9 Measurement Setup and Procedure ........................................................................................................... 8 4 Test Channel .......................................................................................................................................... 8 4.1 Test Setup .............................................................................................................................................. 8 4.2 Test Procedure ..................................................................................................................................... 10 4.3 Test Results ................................................................................................................................................. 11 5 Summary .............................................................................................................................................. 11 5.1 Clause and Data Summary .............................................................................................................. 11 5.1.1 Test Limit .......................................................................................................................................... 12 5.1.2 Antenna requirement ............................................................................................................................ 13 5.2 Emissions in Restricted Frequency Bands ........................................................................................... 14 5.3 Emissions in Non-restricted Frequency Bands .................................................................................... 22 5.4 Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Report Template No.: JYTSZ4b-…

Text truncated - open the document above for the full version.

Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 19 Test Data Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 2402 Ant1 -0.42 30 Pass NVNT BLE 2442 Ant1 -0.73 30 Pass NVNT BLE 2480 Ant1 -0.993 30 Pass Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 19 Test Graphs Power NVNT BLE 2402MHz Ant1 Power NVNT BLE 2442MHz Ant1 Power NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 19 Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 4 of 19 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) limit Verdic NVNT BLE 2402 Ant1 0.655 0.5 Pass NVNT BLE 2442 Ant1 0.659 0.5 Pass NVNT BLE 2480 Ant1 0.659 0.5 Pass Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 5 of 19 Test Graphs -6dB Bandwidth NVNT BLE 2402MHz Ant1 -6dB Bandwidth NVNT BLE 2442MHz Ant1 -6dB Bandwidth NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 6 of 19 Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 7 of 19 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 2402 Ant1 1.023 NVNT BLE 2442 Ant1 1.019 NVNT BLE 2480 Ant1 1.016 Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 8 of 19 Test Graphs OBW NVNT BLE 2402MHz Ant1 OBW NVNT BLE 2442MHz Ant1 OBW NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 9 of 19 Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 10 of 19 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT BLE 2402 Ant1 -15.666 8 Pass NVNT BLE 2442 Ant1 -14.767 8 Pass NVNT BLE 2480 Ant1 -14.796 8 Pass Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 11 of 19 Test Graphs PSD NVNT BLE 2402MHz Ant1 PSD NVNT BLE 2442MHz Ant1 PSD NVNT BLE 2480MHz Ant1 Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 12 of 19 Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 13 of 19 Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT BLE 2402 Ant1 -65.87 -20 Pass NVNT BLE 2480 Ant1 -60.76 -20 Pass Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 14 of 19 Test Graphs Band Edge NVNT BLE 2402MHz Ant1 Ref Band Edge NVNT BLE 2402MHz Ant1 Emission Band Edge NVNT BLE 2480MHz Ant1 Ref Report No.: JY…

Text truncated - open the document above for the full version.

Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 19 Test Data Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 2402 Ant1 0.048 30 Pass NVNT BLE 2442 Ant1 -0.242 30 Pass NVNT BLE 2480 Ant1 -0.502 30 Pass Report No.: JYTSZ-R12-2400420 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZR2404019 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shen…

Text truncated - open the document above for the full version.
