510-10644-01 (2020-10-27)© 2020 Directed, All rights reserved. G6867T Digital (D2D) Control Center (DS4 / DS4+) Install Guide 2 Product Description The G6867T control center is compatible with the following modules: DS4 and DS4+. Control CenterLEDButton Mounting the Control Center Note Once this replacement control center has been installed, all remote controls must be paired with your system. See Remote Pair- ing for details and follow the instructions for your remote control type. The control center’s position should be discussed with the vehicle owner prior to installation since the antenna, with built-in status LED and Valet/Program, must be visible/accessible to the customer. The best position to locate the control center is centered high on the front windshield. It can be mounted vertically or horizontally relative to the wind- shield. Metallic window tint can also affect range negatively, so this should be a consideration when determining the mounting location. After you determine the best mounting location, follow these steps: Clean the mounting area with a quality glass cleaner or alcohol to remove any dirt or residue. Plug the cable into the control center. Mount the control center with double-sided tape. Route the cable down the window pillar to the control module and plug the cable in the control module. 3 CONTROL CENTER CABLE CONTROL MODULE Remote Pairing Prepare the vehicle system to be Paired with a new remote 1. Open at least one vehicle door. 2. Tu r n the key to the ON position. 3. Within 5 seconds press and release the Control button on the Control Center one time. 4. Within 5 seconds, press and hold the Control button on the Control Center. The status LED begins flashing in single flash sequence and the siren/horn sounds once to confirm the system is ready for remote pairing. Release the button. 5. Locate your remote control model below and follow the instructions. System Pairing will exit if: • The ignition is turned off • The open door is closed • 60 seconds lapses with no actions Note: Make sure the remote to be paired with the system is set for the desired Car 1 or Car 2 operation. 4 LCD Remote Control: 1. Press and hold the AUX button for 8 seconds, the remote beeps once, Main Menu is displayed. Release the AUX button. 2. Press the AUX or AUX buttons until Pair is displayed. 3. Press and hold the AUX button until the remote beeps 3 times then release the AUX button. The remote is now ready to pair with the system. 4. Press the AUX button. 5. Wait several seconds for feedback as the remote generates a security encryption and sends it to the Control Center. If pairing is successful the siren/horn sounds and the remote emits several tones. The screen displays if the Pairing is successful or failed with corresponding text. If pairing fails repeat step 4. To exit pairing mode on the remote: • Press and release the A U A U XX button. • Wait 30 seconds without pressing a command button on the remote. Responder LED or Companion Remote Control: 1. Press and hold the AUX button for 8 seconds. The transmit LED will come on solid. Release the AUX button. 2. Press and hold the AUX until the transmit LED flashes 3 times then comes on solid. 3. Press the AUX button. 4. Wait several seconds for feedback as the remote generates a security encryption and sends it to the Control Center. If pairing is successful the siren/horn sounds and the 2-way remote emits several tones (the com- panion remote does not generate tones). If pairing is not successful press and release the AUX button once and then repeat steps 2 and 3. To exit pairing mode on the remote: • Press and release the AUX button once, then press and hold until the transmit LED shuts off. • Wait 30 seconds without pressing a command button on the remote control. 5 GOVERNMENT REGULATIONS This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference re- ceived, including interference that may cause undesirable operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio fre- quency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television, which can be determined by turning the equipment OFF and ON, the user is encour- aged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for help. To satisfy FCC RF exposure compliance requirements, the device and its an- tenna must maintain a separation distance of 20 cm or more from the person’s body, except for the hand and wrists, to satisfy RF exposure compliance. WARNING! : Changes or modifications not expressly approved by Directed Inc. could void user’s authority to operate the equipment. This device complies with Industry Canada licence-exempt RSS-247 standards. Operation is subject to the following two conditions: (1) this device may not cause interference, and 6 (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme avec Industrie Canada exempts de licence stan- dards RSS-247. Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas pro…

Text truncated - open the document above for the full version.

2365 Pontiac Road • Auburn Hills, MI 48326 • Phone: (248) 583-9620 • Fax: (248) 583-3014 • www.voxxelectronics.com 10/27/2020 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 FCC ID: EZSG6867 Model: G6867T Request for Permanent Confidentiality Pursuant to Sections 0.457(d) and 0.459 of the Commission’s rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description  Bill of Materials These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated: 10/27/2020 Signed: Printed name: Joseph A. Santavicca Title: Senior Vice President of Engineering On behalf of: VOXX Electronics Corp.

2365 Pontiac Road • Auburn Hills, MI 48326 • Phone: (248) 583-9620 • Fax: (248) 583-3014 • www.voxxelectronics.com Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I appoint Jenny Gibbs of Nemko USA, Inc. 2650 FM 407, Suite 255P Bartonville, TX 76226, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with VOXX Electronics Corporation, at 2365 Pontiac Road, Auburn Hills, MI 48326 United States. Dated this 27 th Day of October 20 20 Agency agreement expiration date: 10-27-2021 By: Joseph A. Santavicca Signature Printed Title: Senior Vice President of Engineering On behalf of : VOXX Electronics Corp. Telephone: 248-307-3830

                        !"                            #        " "   $%%        #    &'()*+' , -.//0123415267158974:7452671 ;<=>?<?<><@A<<'! B +C& >D E>;=>?<?<F*+& GG FHH       I&)JAK>   L      #           "  L  " L #   >        "    "      "          IM+))MK       IMMK#       >CC    '      EIM  MKE!"    G     ;?>?<?<>   * "  L  IML  MKE'CC>  G   NOP G #    '   CE "   E !"  " "     $%%   "   "          >     # >! >      IG" "    >   >     >   L"K>  QR   E!"   >  G L  H H# H     L  G "&      R" L  ?OP "  G   #  >G   S$TE?       #   >    # L                         E   LG "     L    L   #   "             #  > "   #    " L    " $%<    "G " "  RG   E!"       R "         #      "                        !    "#   $%&'  (   #    )            #     **+#  #     , - .// )        "       0   1 ,2    ) #   **2    )) )     2  "#    2 3      )  + #     2 #                     4   .//     # ))     # 5 2  -   5 -  /  5 -  5 - 5 )) 5   5 6 5 -  #                 2      2   2   )   -7         4     #      #      ! #    2#  2   )         +      6 )  2#   #       #    "#   #  8 9:9  -     "#     2 2 )      #   2        ; )        # "#        ;7#  <)  0=;<=1  6 >  6     );"   ) )**   #     =   2      )    #          2   # #            **) !    )  #  2 )    ##       # )      #      ))    )       !      2   " # 2    )       #          )             2  "#    #   )     2    "  27  !  7      2#)    )       )2   )               # #  =                     ! " # #   " # #$  % # # & #'     #   (! #  #&) !   !  # $ ((*   &+,  $  - .     . ! #    $ !  #&$ #  #$   (   -    $   ) #  &$  * !   -  #     $  #  $/0.! #   &( 1     !   (# )2  (  $  !   )!** )# ) ( 3  "*# (# (  #     $       #  (.-     & !! #  -  #   )(. -           # &!  (      &    &  &#(.-  )4 ( (# $   $ &# # ((   &(        (.-  )4 (# # $      -(# #      &1   2 /,.5( 6#&    2 &07$0,0 ,  6   &   &(    ")4 (# #   #"6  # $    #(   ./7  -    &1 (  $   &1& '   #   (   8#&  #&-8- & ( #       &1 …

Text truncated - open the document above for the full version.

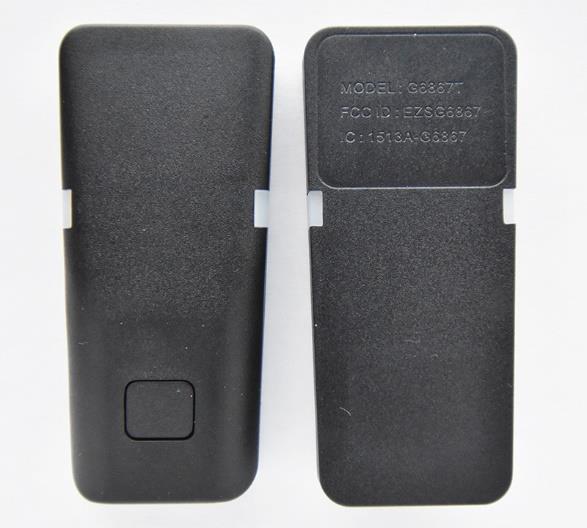

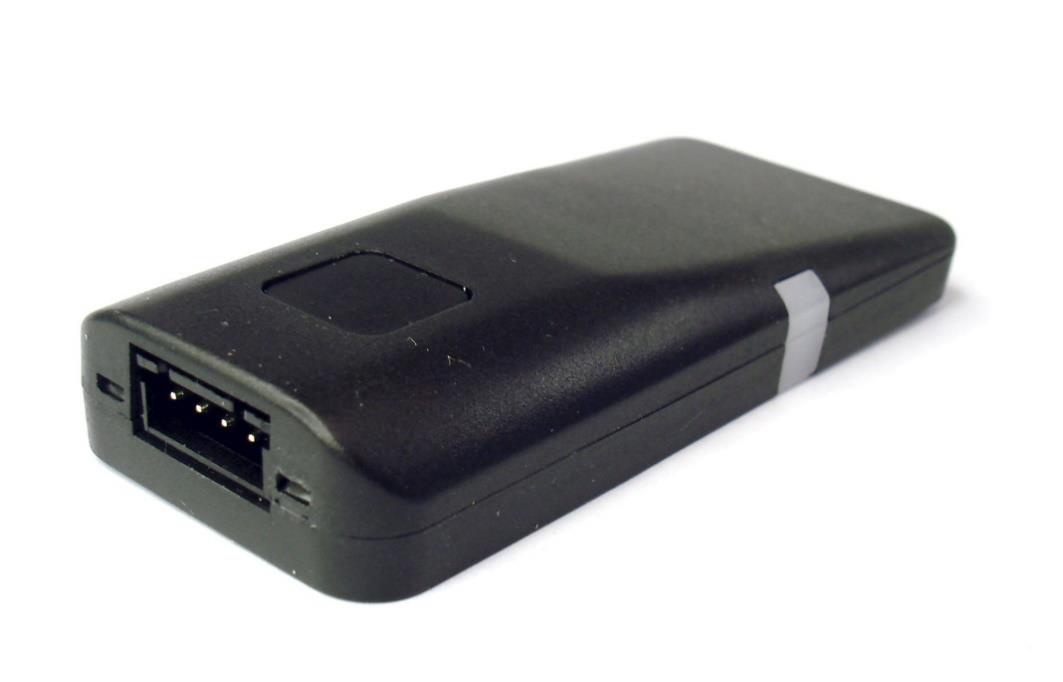

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation External photos.docx; Date: May 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL External photos 407733-8RADWL Date of issue: March 25, 2021 Applicant: VOXX DEI Canada Ltd. Product: 915MHz Remote Start In Vehicle Transceiver Unit Model: G6867T FCC ID: IC Registration number: EZSG6867 1513A-G6867 Section 1: External photos Report reference ID: 407733-8RADWL Page 2 of 4 Section 1. External photos 1.1 Top and bottom view Section 1: External photos Report reference ID: 407733-8RADWL Page 3 of 4 1.2 Connector end view Section 1: External photos Report reference ID: 407733-8RADWL Page 4 of 4 1.3 Antenna end view

G6867T G6867T IVU NGRF D2D Responsible: Di-Luan Le Page 1 of 3 This is a Controlled Document Printed Copy for Reference Only Revision: V1.1 Rev. Date: 10/13/2020 Company Confidential All data and information contained in or disclosed by this document is proprietary, confidential and privileged information of Directed Electronics, Inc., and all rights therein are expressly reserved. By accepting this material, the recipient agrees that this material and the information contained therein is held in confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without the express written permission of Directed Electronics, Inc. Label on the G6867T IVU Date: 10/13/2020 Document Release: version: 1.1 Part number: N/A G6867T G6867T IVU NGRF D2D Responsible: Di-Luan Le Page 2 of 3 This is a Controlled Document Printed Copy for Reference Only Revision: V1.1 Rev. Date: 10/13/2020 Company Confidential Molded FCC ID, IC number and Model number on the G6867T enclosure G6867T G6867T IVU NGRF D2D Responsible: Di-Luan Le Page 3 of 3 This is a Controlled Document Printed Copy for Reference Only Revision: V1.1 Rev. Date: 10/13/2020 Company Confidential Label Close-up View End of document.

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation Internal photos.docx; Date: May 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL Internal photos 407733-7RADWL Date of issue: March 25, 2021 Applicant: VOXX DEI Canada Ltd. Product: 915MHz Remote Start In Vehicle Transceiver Unit Model: G6867T FCC ID: IC Registration number: EZSG6867 1513A-G6867 Section 1: Internal photos Report reference ID: 407733-7RADWL Page 2 of 3 Section 1. Internal photos 1.1 PCB top and bottom view Section 1: Internal photos Report reference ID: 407733-7RADWL Page 3 of 3 1.2 PCB top and bottom view with enclosure

Choose Scandinavian trust www.nemko.com KDB 447498 D01 General RF Exposure Guidance v06 (October 23, 2015) 1. Declaration of RF exposure compliance for exemption from routine evaluation limits FCC ID: EZSG6867 Product Marketing Name (PMN) 915MHz Remote Start In Vehicle Transceiver Unit Model number: G6867T Manufacturer: VOXX DEI Canada Ltd. 4.3.1. Standalone SAR test exclusion considerations: During normal operation, user extremities can come within 20 cm of the internal antenna and therefore product is considered as “Portable”. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at Test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) ÷ (min. test separation distance, mm)] × [ √ 퐹(퐺퐻푧)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where • F(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to section 4.1(f) is applied to determine SAR test exclusion As per customer, the G6867T is installed by an accredited installer, it only has an installation guide but no user’s guide for end-user. The user does not use the push button on the G6867T but only the key fob buttons. However, if the key fob is lost or malfunctioning, and the user opens the car with his/her mechanical key, the alarm system (if armed) will start, and the car won’t start with the mechanical key. The user can reset the system by pushing this button on the G6867T and he/she can start the engine with the mechanical key. In such a case, the separation distance between the user and the antenna is 5 cm as per client declaration. At 907 MHz, The exemption limit for extremity is: 158 mW * 2.5 = 395 mW Measured conducted output power: 20.95 dBm, Antenna gain: 3 dBi EIRP [W] = 10 (Power [dBm] + Antenna gain [dBi])/10 = 10 (20.95 + 3)/10 = 248.3 mW, As per KDB 447498 section 6.3, EUT is considered as devices that transmit only intermittently in data mode, without any voice support. According to EUT’s operational description, in worst-case, the HHU sends user’s commands (99.6ms) to the IVU and listen to the IVU confirmation (100.4ms). With a 50 % transmission duty factor as conservative evaluation, Average EIRP = 248.3 * 50% = 124.2 mW The calculation is below the threshold, therefore the product exempt from the SAR test requirements. Margin for compliance: 270.8 mW As per equation : [(max. power of channel, including tune-up tolerance, mW) ÷ (min. test separation distance, mm)] × [ √ 퐹(퐺퐻푧)] = = (125 mW ÷ 50 mm) × √ 0.907 퐺퐻푧 = 2.4 which is ≤ 7.5 FCC SAR Exemption per KDB 447498 Choose Scandinavian trust www.nemko.com 2. Attestation ATTESTATION: I attest that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned departmental standard(s), and that the radio equipment identified in this application has been subject to all applicable test conditions specified in the departmental standards and all of the requirements of the standards have been met. Signature: Date: March 25, 2021 Name: Redwanul Rasel, EMC Specialist

2365 Pontiac Road • Auburn Hills, MI 48326 • Phone: (248) 583-9620 • Fax: (248) 583-3014 • www.voxxelectronics.com 3/12/2021 Nemko Canada Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 FCC ID: EZSG6867 Model: G6867T Technical brief for the G6867T 50% duty cycle VOXX DEI DS4/DS4+ Car Remote Start System consists of one In-Vehicle Unit (object of this filling) and one or more remote key fobs (HHU – Hand Held Unit). The IVU G6867T cannot be used alone, the user must possess an HHU to send commands. There are never RF connections happening between unpaired HHU&IVU. The IVU has only 2 mechanisms for transmission. They are independent from each other, but mechanism #1 has priority: #1 A response message immediately after receiving a command sent by a paired HHU product: Next to receiving a command from the HHU, the IVU’s answer is sent to the HHU and may be repeated up to 5 times maximum and over different channels, but these repeated TX/RX cycles are halted by the HHU whenever the answer from the previous transmitted burst is already well received by the HHU. A TX/RX cycle consists of sending IVU’s answer (99.6ms) to the HHU and listening to the HHU confirmation (100.4ms). The TX duty cycle is therefore 49.8% on a TX/RX cycle of 200ms. In normal application, the IVU may answer to HHU commands about 2 to 10 times a day, according to user’s need. That is about 1 second of total transmission time at max, and with an average of 2.5 bursts per command sent. #2 A broadcast message sent to a paired HHU on a scheduled time slot: There are only two cases where the IVU can send something without HHU requesting anything: a) to report an alarm or status change, and b) to send a synchronization burst to the HHU. 2365 Pontiac Road • Auburn Hills, MI 48326 • Phone: (248) 583-9620 • Fax: (248) 583-3014 • www.voxxelectronics.com The TX/RX cycle remains the same 99.6/100.4ms, thus with a duty cycle of 49.8%. On average there is a synchronous time slot available every 3 seconds, but in practice most of the time all slots are unused by the IVU, because of no alarm or no status change. Synchronization bursts are initially spacing at few seconds, then exponentially lengthening the period until stabilizing at 1 burst at every 40 minutes. Dated: 3/12/2021 Signed: Printed name: Paulo Setti Title: Hardware Director, VOXX DEI Canada Ltd. On behalf of: VOXX Electronics Corp.

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation FCC 15.247, RSS-247 Issue 2; Date: April, 2020 SCC Accredited LAB LAB Accrédité CCN TM Choose Scandinavian trust RADIO TEST REPORT – 407733-1TRFWL Type of assessment: Final product testing Applicant: VOXX DEI Canada Ltd. Product: Model: 915MHz Remote Start In Vehicle Transceiver Unit G6867T FCC ID: ISED Registration number: EZSG6867 1513A-G6867 Specifications:  FCC 47 CFR Part 15 Subpart C, §15.247  RSS-247, Issue 2, Feb 2017, Section 5 Date of issue: March 25, 2021 Redwanul Rasel, EMC/RF Specialist Tested by Signature Yong Huang, EMC/RF Specialist Reviewed by Signature Report reference ID: 407733-1TRFWL Page 2 of 38 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road Ottawa, Ontario Canada K1V 1H2 Tel: +1 613 737 9680 Fax: +1 613 737 9691 Montréal site: 292 Labrosse Avenue Pointe-Claire, Québec Canada H9R 5L8 Tel: +1 514 694 2684 Fax: +1 514 694 3528 Cambridge site: 1-130 Saltsman Drive Cambridge, Ontario Canada N3E 0B2 Tel: +1 519 650 4811 Almonte site: 1500 Peter Robinson Road West Carleton, Ontario Canada K0A 1L0 Tel: +1 613 256-9117 Test site registration Organization Recognition numbers and location FCC/ISED FCC: CA2040; IC: 2040A-4 (Ottawa/Almonte); FCC: CA2041; IC: 2040G-5 (Montreal); CA0101 (Cambridge) Website www.nemko.com Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 407733-1TRFWL Page 3 of 38 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Report summary ................................................................................................................................................................................. 4 1.1 Test specifications .................................................................................................................................................................................................... 4 1.2 Test methods ............................................................................................................................................................................................................ 4 1.3 Exclusions ................................................................................................................................................................................................................. 4 1.4 Statement of compliance .......................................................................................................................................................................................... 4 1.5 Test report revision history ....................................................................................................................................................................................... 4 Engineering considerations ................................................................................................................................................................. 5 2.1 Modifications incorporated in the EUT for compliance ............................................................................................................................................ 5 2.2 Technical judgment .................................................................................................................................................................................................. 5 2.3 Deviations from laboratory tests procedures ........................................................................................................................................................... 5 Test conditions ................................................................................................................................................................................... 6 3.1 Atmospheric conditions ............................................................................................................................................................................................ 6 3.2 Power supply range .................................................................................................................................................................................................. 6 Measurement uncertainty .................................................................................................................................................................. 7 4.1 Uncertainty of measurement ................................................................................................................................................................................... 7 Information provided by the applicant .........................................................................................................................................…

Text truncated - open the document above for the full version.

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation setup photos.docx; Date: May 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL Setup photos 407733-9RADWL Date of issue: March 25, 2021 Applicant: VOXX DEI Canada Ltd. Product: 915MHz Remote Start In Vehicle Transceiver Unit Model: G6867T FCC ID: IC Registration number: EZSG6867 1513A-G6867 Section 1: setup photos Report reference ID: -407733-9RADWL Page 2 of 3 Section 1. Setup photos 1.1 Radiated Front view Section 1: setup photos Report reference ID: -407733-9RADWL Page 3 of 3 1.2 Radiated back view
