EZSG7857915MHz Remote Start Handheld Key fob

Models G7857VV G7857VX G7857VA Owner’s Guide G7857V 2021 01 iii © 2021 Directed. All rights reserved. Congratulations Congratulations on the purchase of your state-of-the-art Directed Digi- tal System. Reading this Owner’s Guide prior to using your system will help maximize the use its many features. For more information please visit us online (see back cover for URL). For any additional questions please contact your authorized Directed dealer or Directed at 1-800- 753-0600. Additional support is also available at: http://support. directed.com. Important information Government Regulations and Safety information Read the Government Regulations and Warning! Safety First sections of this manual prior to operating this system. Warning! Failure to heed this information can result in death, personal injury or property damage and may also result in the illegal use of the system beyond its intended purpose. Your Warranty Your system comes with a warranty. The warranty terms are detailed at the end of this guide. Make sure that you receive the proof of purchase from your dealer, indicating the product was installed by an autho- rized Directed dealer. G7857V 2021 01 iv © 2021 Directed. All rights reserved. Replacement remote controls Please see your authorized dealer or visit us at www.directedstore. com to order additional remote controls. Remote control RPNs (Re- placement Part Numbers) are found on the back of the device. Contents Congratulations .................................................................................................iii Important information ........................................................................................iii Government Regulations and Safety information .....................................iii Your Warranty .....................................................................................iii Replacement remote controls .................................................................iv Getting Started ....................................................................................................4 Charging the remote control: .................................................................4 Keys to using this manual ......................................................................4 Responder LE 2-Way Remote Control ....................................................................6 Control Center ....................................................................................................7 Using your System ...............................................................................................8 Commands and Confirmations ..............................................................8 Performing Commands .........................................................................8 Remote Control Command table ............................................................9 Fault Condition Alerts ...........................................................................9 Basic Commands (Direct Access) ........................................................................10 Arm .................................................................................................10 Disarm .............................................................................................11 Remote Start ......................................................................................11 AUX/Trunk ........................................................................................11 Advanced Commands: (Level 1) .........................................................................12 Silent Arm .........................................................................................12 Runtime Reset ....................................................................................13 AUX 1 ..............................................................................................13 Temperature Request ..........................................................................13 Advanced Commands: (Level 2) .........................................................................14 Sensor Bypass ...................................................................................14 Alarm/System Valet ..........................................................................14 Timer Start* ......................................................................................15 AUX 2 ..............................................................................................15 Arm Status ........................................................................................15 Advanced Commands: (Level 3) .........................................................................16 Sensor Silent Arm* ............................................................................16 Smart Start** ....................................................................................16 AUX 3 ..............................................................................................17 Runtime Remaining ............................................................................17 Advanced Commands: (Level 4) .........................................................................18 Full Silent Arm* .................................................................................18 Start Valet** ....................................................................................18 AUX 4 ..............................................................................................19 Remote Control Configuration ............................................................................19 Remote Features ...............................................................................19 Car 2 ...............................................................................................22 Remote Beep .....................................................................................22 Sensor Adjust .......................................…

Text truncated - open the document above for the full version.

2365 Pontiac Road • Auburn Hills, MI 48326 • Phone: (248) 583-9620 • Fax: (248) 583-3014 • www.voxxelectronics.com Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I appoint Jenny Gibbs of Nemko USA, Inc. 2650 FM 407, Suite 255P Bartonville, TX 76226, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with VOXX Electronics Corporation, at 2365 Pontiac Road, Auburn Hills, MI 48326 United States. Dated this 27 th Day of October 20 20 Agency agreement expiration date: 10-27-2021 By: Joseph A. Santavicca Signature Printed Title: Senior Vice President of Engineering On behalf of : VOXX Electronics Corp. Telephone: 248-307-3830

                        !"                            #        " "   $%%        #    &'()*+' , -.//0123415267158974:7452671 ;<=>?<?<><@A<<'! B +C& >D E>;=>?<?<F*+& GG FHH       I&)JAK>   L      #           "  L  " L #   >        "    "      "          IM+))MK       IMMK#       >CC    '      EIM  MKE!"    G     ;?>?<?<>   * "  L  IML  MKE'CC>  G   NOP G #    '   CE "   E !"  " "     $%%   "   "          >     # >! >      IG" "    >   >     >   L"K>  QR   E!"   >  G L  H H# H     L  G "&      R" L  ?OP "  G   #  >G   S$TE?       #   >    # L                         E   LG "     L    L   #   "             #  > "   #    " L    " $%<    "G " "  RG   E!"       R "         #      "                        !    "#   $%&'  (   #    )            #     **+#  #     , - .// )        "       0   1 ,2    ) #   **2    )) )     2  "#    2 3      )  + #     2 #                     4   .//     # ))     # 5 2  -   5 -  /  5 -  5 - 5 )) 5   5 6 5 -  #                 2      2   2   )   -7         4     #      #      ! #    2#  2   )         +      6 )  2#   #       #    "#   #  8 9:9  -     "#     2 2 )      #   2        ; )        # "#        ;7#  <)  0=;<=1  6 >  6     );"   ) )**   #     =   2      )    #          2   # #            **) !    )  #  2 )    ##       # )      #      ))    )       !      2   " # 2    )       #          )             2  "#    #   )     2    "  27  !  7      2#)    )       )2   )               # #  =                     ! " # #   " # #$  % # # & #'     #   (! #  #&) !   !  # $ ((*   &+,  $  - .     . ! #    $ !  #&$ #  #$   (   -    $   ) #  &$  * !   -  #     $  #  $/0.! #   &( 1     !   (# )2  (  $  !   )!** )# ) ( 3  "*# (# (  #     $       #  (.-     & !! #  -  #   )(. -           # &!  (      &    &  &#(.-  )4 ( (# $   $ &# # ((   &(        (.-  )4 (# # $      -(# #      &1   2 /,.5( 6#&    2 &07$0,0 ,  6   &   &(    ")4 (# #   #"6  # $    #(   ./7  -    &1 (  $   &1& '   #   (   8#&  #&-8- & ( #       &1 …

Text truncated - open the document above for the full version.

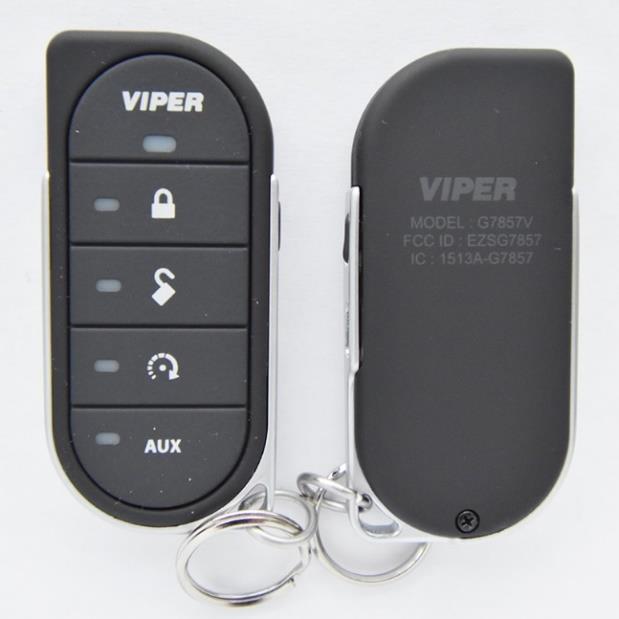

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation External photos.docx; Date: May 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL External photos 407733-15RADWL Date of issue: March 25, 2021 Applicant: VOXX DEI Canada Ltd. Product: 915MHz Remote Start Handheld Key fob Model: G7857V FCC ID: IC Registration number: EZSG7857 1513A-G7857 Section 1: External photos Report reference ID: 407733-15RADWL Page 2 of 3 Section 1. External photos 1.1 Front and rear view Section 1: External photos Report reference ID: 407733-15RADWL Page 3 of 3 1.2 Side view

G7857V G7857V 2-Way LED HHU VIPER BRANCH Responsible: Di-Luan Le Page 1 of 3 This is a Controlled Document Printed Copy for Reference Only Revision: V1.1 Rev. Date: 10/13/2020 Company Confidential All data and information contained in or disclosed by this document is proprietary, confidential and privileged information of Directed Electronics, Inc., and all rights therein are expressly reserved. By accepting this material, the recipient agrees that this material and the information contained therein is held in confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without the express written permission of Directed Electronics, Inc. Label on the G7857 2-Way LED HHU Viper Branch Date: 10/13/2020 Document Release: version: 1.1 Part number: N/A G7857V G7857V 2-Way LED HHU VIPER BRANCH Responsible: Di-Luan Le Page 2 of 3 This is a Controlled Document Printed Copy for Reference Only Revision: V1.1 Rev. Date: 10/13/2020 Company Confidential Molded FCC ID, IC number and Model number on the G7857V enclosure G7857V G7857V 2-Way LED HHU VIPER BRANCH Responsible: Di-Luan Le Page 3 of 3 This is a Controlled Document Printed Copy for Reference Only Revision: V1.1 Rev. Date: 10/13/2020 Company Confidential Label Close-up View End of document.

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation Internal photos.docx; Date: May 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL Internal photos 407733-14RADWL Date of issue: March 25, 2021 Applicant: VOXX DEI Canada Ltd. Product: 915MHz Remote Start Handheld Key fob Model: G7857V FCC ID: IC Registration number: EZSG7857 1513A-G7857 Section 1: Internal photos Report reference ID: 407733-14RADWL Page 2 of 3 Section 1. Internal photos 1.1 PCB top and bottom view Section 1: Internal photos Report reference ID: 407733-14RADWL Page 3 of 3 1.2 PCB top and bottom view with enclosure

Choose Scandinavian trust www.nemko.com KDB 447498 D01 General RF Exposure Guidance v06 (October 23, 2015) 1. Declaration of RF exposure compliance for exemption from routine evaluation limits FCC ID: EZSG7857 Product Marketing Name (PMN) 915MHz Remote Start Handheld Key fob Model number: G7857V Manufacturer: VOXX DEI Canada Ltd. 4.3.1. Standalone SAR test exclusion considerations: During normal operation, user extremities can come within 20 cm of the internal antenna and therefore product is considered as “Portable”. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at Test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) ÷ (min. test separation distance, mm)] × [ √ 퐹(퐺퐻푧)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where • F(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to section 4.1(f) is applied to determine SAR test exclusion As per customer, the G7857 is a hand held key fob. The separation distance between the user and the antenna is 2 cm. At 907 MHz, The exemption limit for extremity is: 63 mW * 2.5 = 157.5 mW Measured conducted output power: 21.10 dBm, Antenna gain: 3 dBi EIRP [W] = 10 (Power [dBm] + Antenna gain [dBi])/10 = 10 (21.10 + 3)/10 = 257.0 mW, As per KDB 447498 section 6.3, EUT is considered as devices that transmit only intermittently in data mode, without any voice support. According to EUT’s operational description, in worst-case, the HHU sends user’s commands (99.6ms) to the IVU and listen to the IVU confirmation (100.4ms). With a 50 % transmission duty factor as conservative evaluation, Average EIRP = 257.0 * 50% = 128.5 mW The calculation is below the threshold, therefore the product exempt from the SAR test requirements. Margin for compliance: 29.0 mW As per equation : [(max. power of channel, including tune-up tolerance, mW) ÷ (min. test separation distance, mm)] × [ √ 퐹(퐺퐻푧)] = (129 mW ÷ 20 mm) × √ 0.907 퐺퐻푧 = 6.1 which is ≤ 7.5 FCC SAR Exemption per KDB 447498 Choose Scandinavian trust www.nemko.com 2. Attestation ATTESTATION: I attest that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned departmental standard(s), and that the radio equipment identified in this application has been subject to all applicable test conditions specified in the departmental standards and all of the requirements of the standards have been met. Signature: Date: March 25, 2021 Name: Redwanul Rasel, EMC Specialist

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation FCC 15.247, RSS-247 Issue 2; Date: April, 2020 SCC Accredited LAB LAB Accrédité CCN TM Choose Scandinavian trust RADIO TEST REPORT – 407733-2TRFWL Type of assessment: Final product testing Applicant: VOXX DEI Canada Ltd. Product: Model: 915MHz Remote Start Handheld Key fob G7857V FCC ID: ISED Registration number: EZSG7857 1513A-G7857 Specifications:  FCC 47 CFR Part 15 Subpart C, §15.247  RSS-247, Issue 2, Feb 2017, Section 5 Date of issue: March 25, 2021 Redwanul Rasel, EMC/RF Specialist Tested by Signature Yong Huang, EMC/RF Specialist Reviewed by Signature Report reference ID: 407733-2TRFWL Page 2 of 38 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road Ottawa, Ontario Canada K1V 1H2 Tel: +1 613 737 9680 Fax: +1 613 737 9691 Montréal site: 292 Labrosse Avenue Pointe-Claire, Québec Canada H9R 5L8 Tel: +1 514 694 2684 Fax: +1 514 694 3528 Cambridge site: 1-130 Saltsman Drive Cambridge, Ontario Canada N3E 0B2 Tel: +1 519 650 4811 Almonte site: 1500 Peter Robinson Road West Carleton, Ontario Canada K0A 1L0 Tel: +1 613 256-9117 Test site registration Organization Recognition numbers and location FCC/ISED FCC: CA2040; IC: 2040A-4 (Ottawa/Almonte); FCC: CA2041; IC: 2040G-5 (Montreal); CA0101 (Cambridge) Website www.nemko.com Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 407733-2TRFWL Page 3 of 38 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Report summary ................................................................................................................................................................................. 4 1.1 Test specifications .................................................................................................................................................................................................... 4 1.2 Test methods ............................................................................................................................................................................................................ 4 1.3 Exclusions ................................................................................................................................................................................................................. 4 1.4 Statement of compliance .......................................................................................................................................................................................... 4 1.5 Test report revision history ....................................................................................................................................................................................... 4 Engineering considerations ................................................................................................................................................................. 5 2.1 Modifications incorporated in the EUT for compliance ............................................................................................................................................ 5 2.2 Technical judgment .................................................................................................................................................................................................. 5 2.3 Deviations from laboratory tests procedures ........................................................................................................................................................... 5 Test conditions ................................................................................................................................................................................... 6 3.1 Atmospheric conditions ............................................................................................................................................................................................ 6 3.2 Power supply range .................................................................................................................................................................................................. 6 Measurement uncertainty .................................................................................................................................................................. 7 4.1 Uncertainty of measurement ................................................................................................................................................................................... 7 Information provided by the applicant ................................................................................................................................................ 8 5…

Text truncated - open the document above for the full version.

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation setup photos.docx; Date: May 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL Setup photos 407733-16RADWL Date of issue: March 25, 2021 Applicant: VOXX DEI Canada Ltd. Product: 915MHz Remote Start Handheld Key fob Model: G7857V FCC ID: IC Registration number: EZSG7857 1513A-G7857 Section 1: setup photos Report reference ID: -407733-16RADWL Page 2 of 3 Section 1. Setup photos 1.1 Radiated Front view Section 1: setup photos Report reference ID: -407733-16RADWL Page 3 of 3 1.2 Radiated back view
