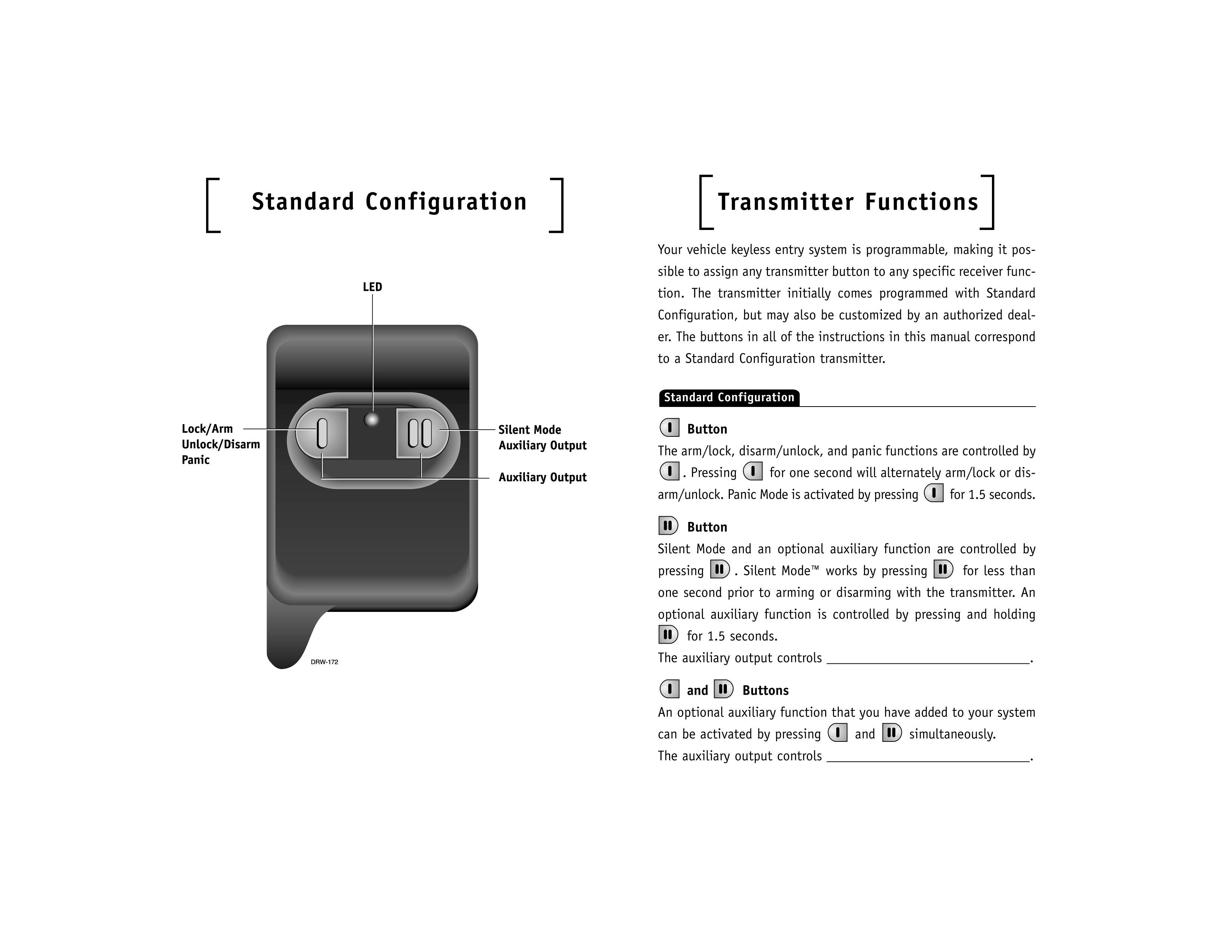

EZS469Two-button remote conrtol transmitter

Directed Electronics, Inc. 2560 Progress Street • •• • Vista, CA 92083-8491 • •• • Phone: 760-598-6200 • •• • Fax: 760-598-6400 Date: 06/25/01 Block Diagram for FCC ID: EZS469 BATTERY VOLT 12 PUSH BUTTON SWI TCH 12 PUSH BUTTON SWI TCH ANTENNA OSCILLATORDIGITAL ENCODER RF OSCILLATOR FUNCTIONAL BLOCK DIAGRAM

Directed Electronics, Inc. 2560 Progress Street • •• • Vista, CA 92083-8491 • •• • Phone: 760-598-6200 • •• • Fax: 760-598-6400 Date: 06/25/01 External Photo of case for FCC ID: EZS469

Date: 06/25/01 Labeling Info for FCC ID: EZS469 Back side of Transmitter Case

Directed Electronics, Inc. 2560 Progress Street • •• • Vista, CA 92083-8491 • •• • Phone: 760-598-6200 • •• • Fax: 760-598-6400 Date: 06/25/01 Internal Photo of Circuit Board for FCC ID: EZS469

Directed Electronics, Inc. 2560 Progress Street • •• • Vista, CA 92083-8491 • •• • Phone: 760-598-6200 • •• • Fax: 760-598-6400 Date: 06/25/01 Schematic for FCC ID: EZS469 1234 A B C D 4 321 D C B A Code Alarm - GM Transmitter A Title: Size:Number:Revision: Date: File: Sheetof Drwn By 13-May-1999 O:\ENGR\DRAWPEND\469T\DT9A.SCH 11 A Directed Electronics Inc. 2560 Progress Street Vista, CA 92083 Phone: 760-598-6200 Fax: 760-598-6400 DT9A Appd By Chkd By Dat e Dat e Dat e R9 100 TR2 H10 C2 2P (3E) R7 4.7K 1 OUT 5 8 SW 1 2 SW 2 3 VS S VD D IC1 GM C5 0.001UF 1 34 2 SW1 TACK 315MHZ R3 1.5K C1 0.001U 1 23 XTAL RFM R2 10K C3 8P (R02073) (12C508A) PCB R1 150 1 34 2 SW2 TACK R4 10K R5 10K R8 4.7K TR1 A812 (M6,M7) D2 5.1V 12V D32001 D1 LED R6 47 C4 N/A

TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 619 546 3999 FAX 619 546 0364 Report No. 9223-06 Page 1 of 10 Rev.No 1.0 EMC EMISSION - TEST REPORT UNITED STATES STANDARD 47 CFR PART 15, SUBPART B Test Report File No.: 9223-06 Date of Issue: 06 May 1999 Model / Serial No.: 469T / N/A Product Type: Code-GM Transmitter Applicant: DIRECTED ELECTRONICS, INC. Manufacturer: DIRECTED ELECTRONICS, INC. License holder: DIRECTED ELECTRONICS, INC. Address: 2560 Progress Street : Vista, CA 92083 Test Result: nn Positiveoo Negative Test Project Number Reference(s): 9223-06 Total pages - Test Report:10 TÜV Product Service, Inc. is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service reports apply only to the specific sample tested under stated test conditions. It is the manufacturer’s responsibility to assure the continued compliance of production units of this model. TÜV Product Service, Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service, Inc. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service, Inc. and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 619 546 3999 FAX 619 546 0364 Report No. 9223-06 Page 2 of 10 Rev.No 1.0 DIRECTORY - EMISSIONS Test Report Pages Test Report1 - 10 Directory2 Test Regulations3 General Remarks and Summary10 Equipment Conducted Emissions10/150/450 kHz - 30 MHz5 Radiated Emissions30 MHz - 1000 MHz6 Equivalent Radiated Emissions30 MHz - 3.144 GHz7 Technical Documentation Test Data Sheets and Test Setup Drawing(s)TD1 Appendices Appendix A A1 Test Setups (Photographs) Appendix B B1 Product Information Form(s) Appendix C C1 Change History Appendix D D1 Supplemental Information TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 619 546 3999 FAX 619 546 0364 Report No. 9223-06 Page 3 of 10 Rev.No 1.0 EMISSIONS TEST REGULATIONS : The emissions tests were performed according to the following regulations: o - EN 50081-1 / 1991 o - EN 55011 / 1991o - Group 1o - Group 2 o - Class Ao - Class B o - EN 55013 / 1990 o - EN 55014 / 1987o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55014 / 1993o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55015 / 1987 o - EN 55015 / A1:1990 o - EN 55015 / 1993 o - EN 55022 / 1987o - Class Ao - Class B o - EN 55022 / 1998o - Class Ao - Class B o - BS o - VCCIo - Class A ITEo - Class B ITE n - 47 CFR Part 15, Subpart B o - 107(b) n- 107(a) o - 107(e) o - Class A o - Class B o - 109(b) n- 109(a) o - 109(g) o - Class A o - Class B n - 231(b) o - AS/NZS 3548: 1995o - Class Ao - Class B o - CISPR 11 (1990) o - Group 1o - Group 2 o - Class Ao - Class B o - CISPR 22 (1998) o - Class Ao - Class B TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 619 546 3999 FAX 619 546 0364 Report No. 9223-06 Page 4 of 10 Rev.No 1.0 Environmental Conditions In The Laboratory: Actual Temperature:: 23 °C Relative Humidity:: 50 % Atmospheric Pressure:: 100.0 kPa Power Supply Utilized: Power supply system: Battery Symbol Definitions: n -Applicable o -Not Applicable TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 619 546 3999 FAX 619 546 0364 Report No. 9223-06 Page 5 of 10 Rev.No 1.0 Emissions Test Conditions: CONDUCTED EMISSIONS (Interference Voltage) The CONDUCTED EMISSIONS (INTERFERENCE VOLTAGE) measurements were performed at the following test location: n - Test not performed - see remarks o - SR-2, Shielded Room, 12’ x 24’ x 10’, Metal Chamber o - SR-3, Shielded Room, 12’ x 20’ x 8’, Metal Chamber o - SR-4, Shielded Room, 10’ x 17’ x 8’, Copper Screen Chamber o - SR-5, Shielded Room, 16’ x 28’ x 15’, Metal, Semi-Anechoic Chamber o - CSR-1, Shielded Room, 10’ x 7’ x 7’, Metal Chamber Test Equipment Used : Model No.Prop. No.DescriptionManufacturerSerial No.Cal Date NM-7A, NM-17/27, NM-37/57, NM-67, CCA-7, & H/P 9836 HP-1B Computer 156, 162-166 Automated RFI Measurement System (ARMS), NO. 1 Eaton/Ailtech(multiple) NM-17/27, NM-37/57, CA-7, and H/P 9826 Computer 168, 170, 177, 178 Automated RFI Measurement System (ARMS), NO. 2 Eaton/Ailtech(multiple) H/P Spectrum Analyzer, Model 8568B; Display Section RF Analyzer Section; H/P 85650A, Quasi-Peak Adapter H/P Computer System, Model 310 with HP 85869A Software 187, 188Automated RFI Measurement System (ARMS) Various(multiple) LISN-3, 50 A262-263Power Mains Network (LISN), 50 μH/250 μH/50 Ω/0.25 μF Fischer Custom Communications, Inc. 3-4 LISN-3, 50 A264, 265Power Mains Network (LISN), 50 μH/250 μH/50 Ω/0.25 μF Fischer Custom Communications, Inc. 5-6 LISN-2, 25 A413Power Mains Network (LISN), 50 μH/250 μH/50 Ω/0.25 μF Fischer Custom Communications, Inc. 7 LISN-2, 25 A--Power Mains Network (LISN), 50 μH/250 μH/50 Ω/0.25 μF Fischer Custom Communications, Inc. 7 FCC-LISN-50-25-2553Power Mains Network (LISN), 50 μH/250 μH/50 Ω/0.25 μF Fischer Custom Communications, Inc. 112 FCC-LISN-50-25-2552Power Mains Network (LISN), 50 μH/250 μH/50 Ω/0.25 μF Fischer Custom Communications, Inc. 113 8012-50-R-12-BNC266 LISN, 50 μH/50 Ω/0.1 μF Solar Electronics Co.-- 9252-50-R-24-BNC458 LISN, 50 μH /250 μH/50 Ω/ 0.25 μF Solar Electronics Co.941719 9252-50-R-24-BNC457 LISN, 50 μH /250 μH/50 Ω/ 0.25 μF Solar Electronics Co.941720 MDS-21277Absorbing ClampRohde & Schwarz821023 ESHS 20428EMI Test ReceiverRohde & Schwarz837055…
