EZSDEI24171ASK Transmitter

1 NDIYTX 05-06 © 2006 Directed Electronics Each DesignTech system can learn up to 4 transmitters. This programming guide describes how to Auto-program transmitter button operations to your system, and how to delete any lost or stolen transmitters. Transmitter button operations can also be custom programmed to the user's preference or for multiple vehicle control. Please refer to the Owners Manual for a full description of transmitter button operations and custom transmitter button programming. 1.Turn the ignition to the ON position 2.Within 5 seconds, press and release the Momentary Switch ONE time, and then Press and hold it. 3.After 2 seconds the LED will flash on/off one time, pause and repeat to indicate Auto-programming is ready. 4.Within 15 seconds, press the "*" button of the transmitter to be programmed, the Horn/Siren output will pulse once to confirm programming. 5.Repeat Step 4 for each transmitter. 6.Exit programming: Wait 15 seconds or turn the ignition OFF to exit transmitter programming. The Horn/Siren output will pulse 5 times to confirm exit. This operation will delete ALL transmitters from the system memory and can only be performed using a programmed transmitter. If no programmed transmitters are available, one must first be programmed using the above steps 1.Turn the ignition to the ON position 2.Within 5 seconds, begin to press and release the Momentary Switch NINE times, and then Press and hold it. 3.After 2 seconds the LED will flash on/off NINE times, pause and repeat to indicate Delete All Transmitters is ready. 4.Within 15 seconds, press the ANY button of a programmed transmitter, the Horn/Siren output will pulse once to confirm deletion of all transmitters. 5.Wait 15 seconds or turn the ignition OFF to exit transmitter programming. The Horn/Siren output will pulse 5 times to confirm exit. This device complies with Part 15 of FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device. FCC/ID Notice Deleting lost or stolen transmitters Programming the Transmitter Product Description Design Tech Replacement Transmitter Programming Guide 24161, 24171, 26161, 26171, 28161, 28171

Thursday, May 18, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation,including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization expires on 05-18-2007 Sincerely, Minas Minassian RF Engineering Manager

Confidentiality Request FCC ID : EZSDEI 24171 Product : ASK Transmitter Model : 24171-5B; 24161-3B Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Minas Minassian RF Engineering Manager

Compliance Certification Services Inc.

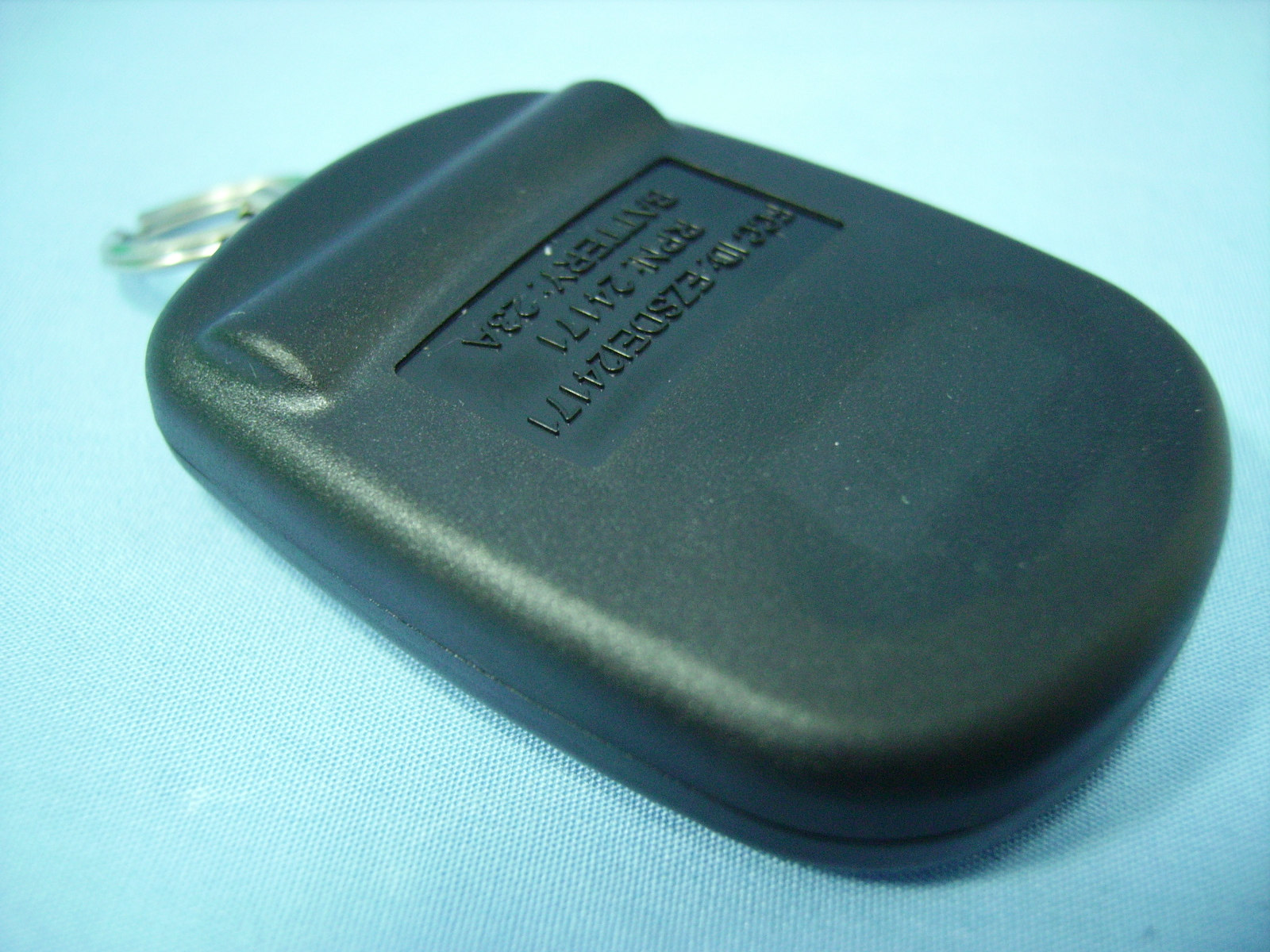

Report No.60508401-RP1 External Photo ( Model :24171-5B ) Compliance Certification Services Inc.

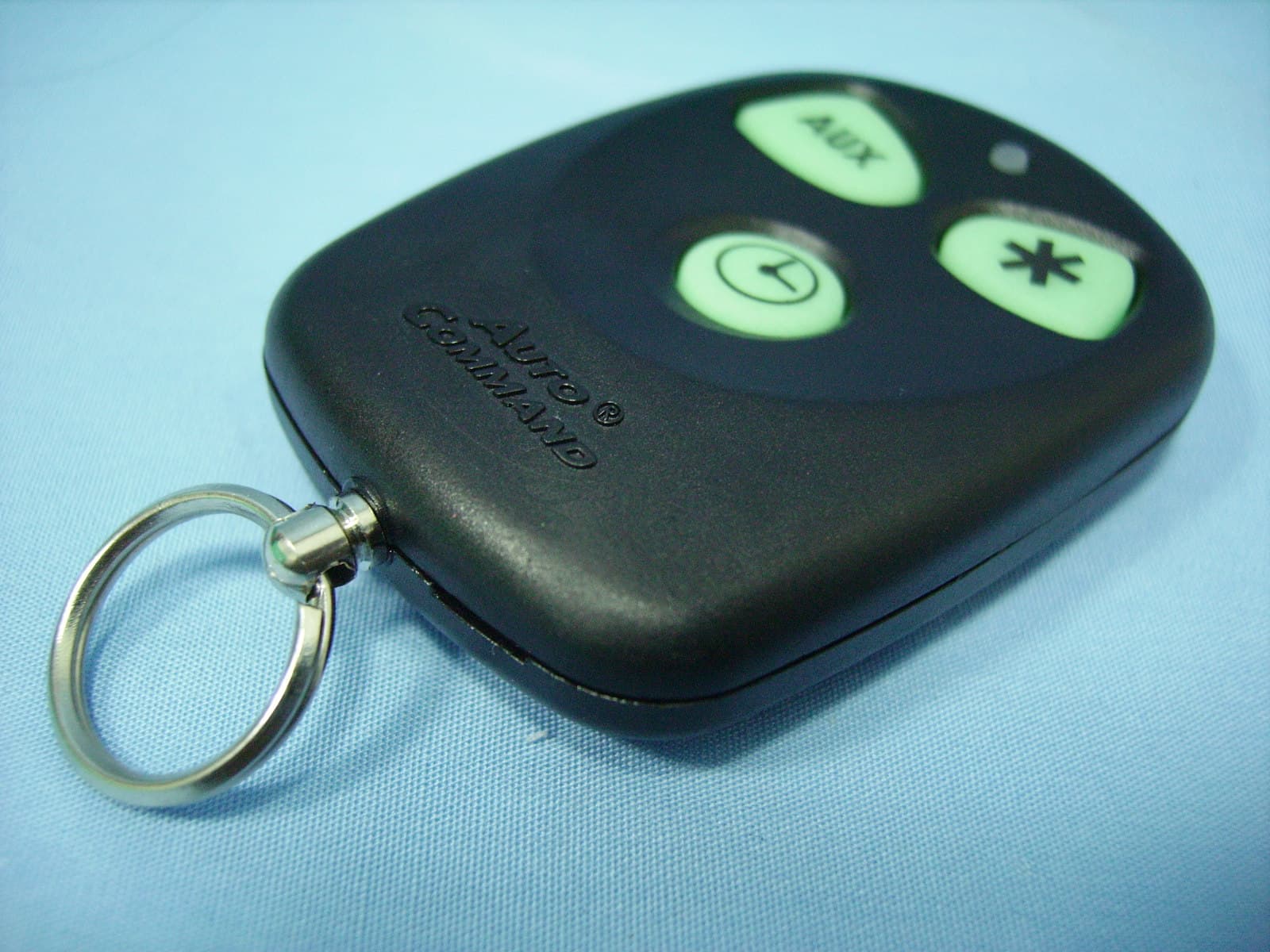

Report No.60508401-RP1 External Photo ( Model :24161-3B )

g Company : Directed Electronics, INC. Model: 24161-3B Product : ASK Transmitter Label Here ASK Transmitter Model No: 24161-3B FCC ID：EZSDEI24171 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan g Company : Directed Electronics, INC. Model: 24171-5B Product : ASK Transmitter Label Here ASK Transmitter Model No: 24171-5B FCC ID：EZSDEI24171 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan

Compliance Certification Services Inc.
Report No.60508401-RP1 Internal Photo( Model :24171-5B ) Compliance Certification Services Inc.
Report No.60508401-RP1 Compliance Certification Services Inc.
Report No.60508401-RP1 Internal Photo( Model :24171-3B ) Compliance Certification Services Inc.
Report No.60508401-RP1

Compliance Certification Services Inc. Report No.: 60508401-RP1 FCC ID: EZSDEI24171 Date of Issue: May 08, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 33 FCC 47 CFR PART 15 SUBPART C TEST REPORT For ASK Transmitter Model: 24171-5B Issued to Directed Electronics, INC. One Viper Way Vista, California, 92081 Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Compliance Certification Services Inc. Report No.: 60508401-RP1 FCC ID: EZSDEI24171 Date of Issue: May 08, 2006 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 10 6.2 SUPPORT EQUIPMENT............................................................................................................ 10 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 11 7.1 20 DB BANDWIDTH .......................................................................................................... 11 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 13 7.3 DUTY CYCLE ..................................................................................................................... 15 7.4 RADIATED EMISSIONS........................................................................................................... 18 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 27 Compliance Certification Services Inc. Report No.: 60508401-RP1 FCC ID: EZSDEI24171 Date of Issue: May 08, 2006 Page 3 1. TEST RESULT CERTIFICATION Applicant: Directed Electronics, INC. One Viper Way Vista, California, 92081 Equipment Under Test: ASK Transmitter Model Number: 24171-5B Data Applies To: 24161-3B Date of Test: May 09, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: May. 18, 2006 May. 18, 2006 Alex Chiu Jeter Wu Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 60508401-RP1 FCC ID: EZSDEI24171 Date of Issue: May 08, 2006 Page 4 2. EUT DESCRIPTION Product ASK Transmitter Model Number 24171-5B Data Applies To 24161-3B Model Difference Switch quantity Power Supply Transmitter: Powered by battery 12Vdc Frequency Range Remote Controller: 433.920 MHz
200 KHz Modulation Technique ASK Modulation Antenna Specification Transmitter: Soldered on PCB Loop Antenna / Gain: 0 dBi (max) Temperature Range 0°C ~ +55°C Remark: This submittal(s) (test report) is intended for FCC ID: EZSDEI24171 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Model Different Item

   External Featurecolor O O Operating Software O O Circuits Design O O PCB Layout O O Model Module O O Power Supply O O Switch quantity X 5 Key button X 3 Key button Remark : “ O ” means all the same. “ X ” means the difference. Note: To add a series model for business necessary. Compliance Certification …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60508401-RP1 FCC ID: EZSDEI24171 Date of Issue: May 08, 2006 Page 28 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos (For TX) (1) X-axis Compliance Certification Services Inc. Report No.: 60508401-RP1 FCC ID: EZSDEI24171 Date of Issue: May 08, 2006 Page 29 Compliance Certification Services Inc. Report No.: 60508401-RP1 FCC ID: EZSDEI24171 Date of Issue: May 08, 2006 Page 30 (2) Y-axi Compliance Certification Services Inc. Report No.: 60508401-RP1 FCC ID: EZSDEI24171 Date of Issue: May 08, 2006 Page 31 Compliance Certification Services Inc. Report No.: 60508401-RP1 FCC ID: EZSDEI24171 Date of Issue: May 08, 2006 Page 32 (3) Z-axis Compliance Certification Services Inc. Report No.: 60508401-RP1 FCC ID: EZSDEI24171 Date of Issue: May 08, 2006 Page 33
