EZSDEI471HSecurity/Remote Control Transmitter

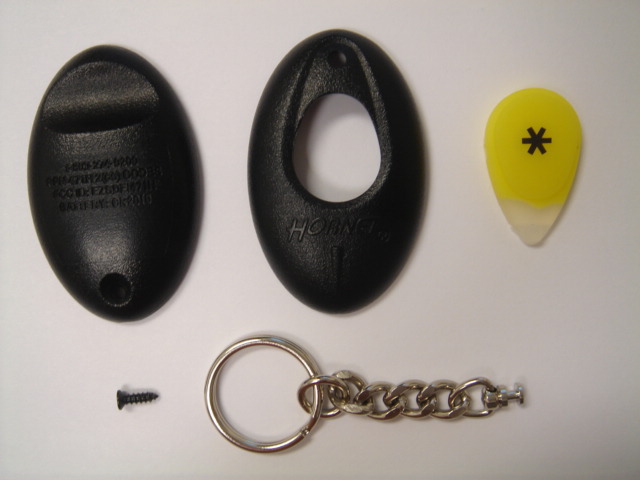

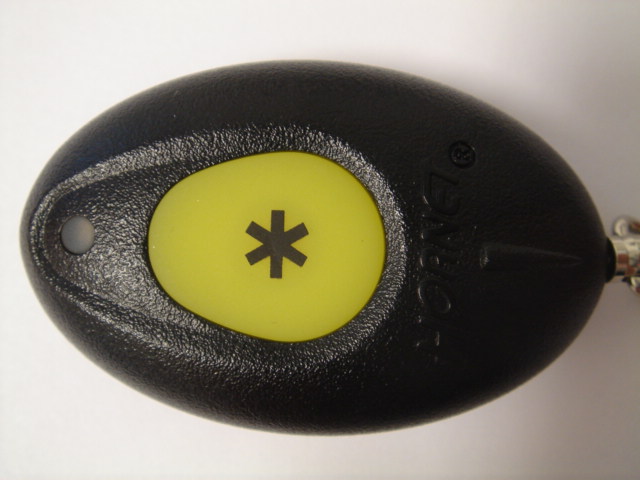

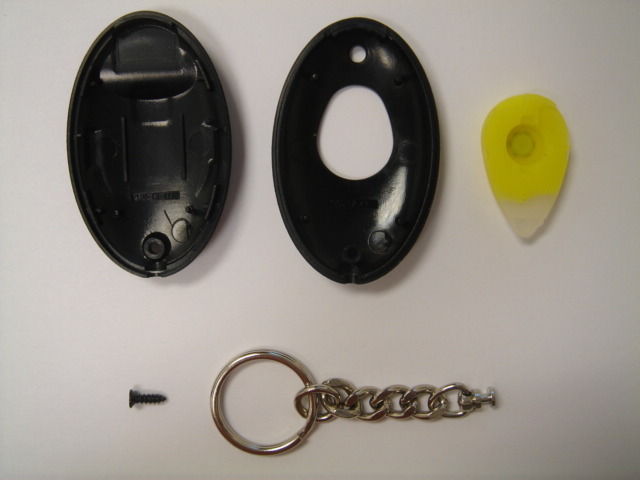

MADE IN CHINA © 2006 Directed Electronics Vista CA 92083 All rights reserved. P/N 471H 06-06 REPLACEMENT TRANSMITTER Model 471H, 1 Button Learning Transmitter The system comes with one programmed trans- mitter. The receiver can store up to 4 different transmitter codes in memory. Additional transmitters can be ordered by contacting your local dealer. Use the following to add a transmitter to the system. The following is a basic sequence of steps to remember whenever programming transmitters: 1. Fuses. Remove both fuses from the control module fuse holders, then re-insert into the fuse holders. 2. Key. Turn the ignition to the ON position. The parking lights will turn On. 3. Program. Press and hold the program button on the control module. The parking lights will flash Off and then back On to ackdowledge program mode. Note: If the parking lights did not flash the transmitter learn was not successful. Return and repeat from step 1 this procedure. To add additional transmitters (within 10-seconds of the first transmitter) press and hold the button on the additional transmitter. FCC/ID Notice This device complies with Part 15 of FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.

1234 A B C D 4 321 D C B A 471H Ti tle : Size:Number: Revis ion: Date Code: File: Sheet of Drwn By X:\ Devel opment\ D2006\402-5691, one but ton rem ot e start (569T)\ SCH_PCB\ 569T.ddb - Documents\Bl ock Diagram\ T4 11 A Directed E lectronics Inc . One Viper Way Vi sta , CA 92081 Phone: 760-598-6200 Fa x: 760-598-6400 Appd By Chkd By Date Date Date 433.92 MHz LED BAT + ( Cl i p) BAT - (PCB) 2 x 3V Batt ery SW1 EncoderRF Oscillator PCB Antenna M inas M inassi an 06/02/ 2006

Friday, June 02, 2006 Chief, Equipment Approval Services Federal Communications Commission P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics for EZSDEI471H. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Minas Minassian RF Engineering Manager

Operating Description The EUT is operated by pressing a momentary switch. The switch activates the digital encoder. The digital encoder sends a Pulse Width Modulated data packet to the RF Oscillator section. The RF Oscillator section transmits the signal with an RF carrier at 433.92MHz via a PCB antenna.
