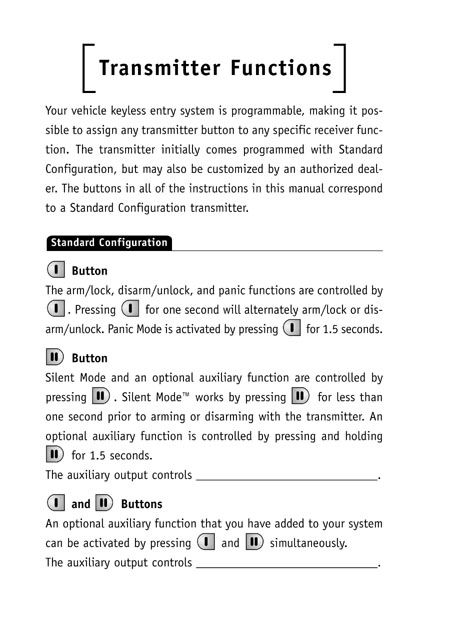

EZSDEI473Venom Remote Control Transmitter

Directed Electronics, Inc. 2560 Progress Street Vista, CA 92083-8491 473 Block Diagram for FCC ID: EZSDEI473 BATTERYVOLT 1 2 PUSH BUTTON SWI TCH 1 2 PUSH BUTTON SWI TCH ANTENNA OSCILLATOR DIGITALENCODER RFOSCILLATOR FUNCTIONAL BLOCK DIAGRAM

Directed Electronics, Inc. 2560 Progress Street • Vista, CA 92083 • 760-598-6200 • FAX: 760-598-6400 05/21/01 Duty Cycle Correction for Intentional Radiators This document shows the duty cycle calculations for the 473T Security/Remote Control transmitter (per Section 15.35 (c). The following lists the formulas involved and screen shots of the radiated signal from a digital Oscilloscope. • Oscilloscope used is the Tektronix TDS 544A w/TEK P6137 10x probe. • Formula for calculating the duty cycle correction: dB = 20 log (DC) Where as DC =(Max. time data is on in 100 ms ÷ 100 ms)(Max. duty cycle) “Max. Time data is on in 100 ms” refers to how many words are transmitted in 100 ms and the length of those words added together. “Max. Duty cycle” refers to the maximum bit length divided by the period of a pulse for the words recorded. • Figure A: 100ms span • Figure B: Span between each bit • Figure C: Max. On time for data. Duty cycle correction for 473T DC= [(750 μs * 12) ÷ 100 ms] = (9ms ÷ 100ms) = 90ms dB= 20 log (DC) = 20 log (90ms) = -20.915 Max. Duty Cycle Credit is –20 dB Credit. Figure C Figure AFigure B

Directed Electronics, Inc. 2560 Progress Street • Vista, CA 92083 • 760-598-6200 • FAX: 760-598-6400 05/21/01 Bandwidth of the emission for Intentional Radiators This document shows the Bandwidth readings for the 473T Security/Remote Control transmitter. The following lists the formulas involved and screen shots of the radiated signal from a Spectrum Analyzer. • Spectrum Analyzer used is the Hewlett Packard 8563E with HP 87405A Preamp. • Method used to determine –20dB Bandwidth as per Section 15.231 (c): CF – 20dB(∆ of points 20dB down) Where as CF =Center Frequency • Figure A: Center Frequency. • Figure B: -20dB down from center. • Figure C: -20db Bandwidth. Bandwidth data for 473T Figure A = Center @ 433.943MHz – 97.33dBuV Figure B = 433.943 MHz – 20dB delta = Delta marker @-20dB down from Center. Figure C = Marker set from Figure B @ - 20dB. = Delta marker set to as close to 0dB across Bandwidth = < 0.25% of 433.943 MHz = < 1.0848575 MHz = 17 kHz from Figure C Figure BFigure A Figure C

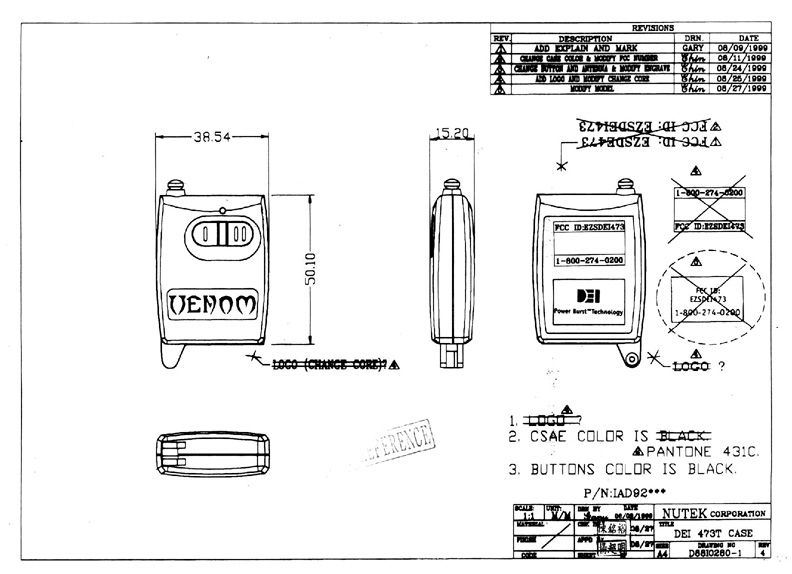

® Directed Electronics, Inc. 2560 Progress Street • Vista, CA 92083-8491 • Tel: 760-598-6200 • Fax: 760-598-6400 Date: 06/01/01 ID Label/Location Information For FCC ID: EZSDEI473

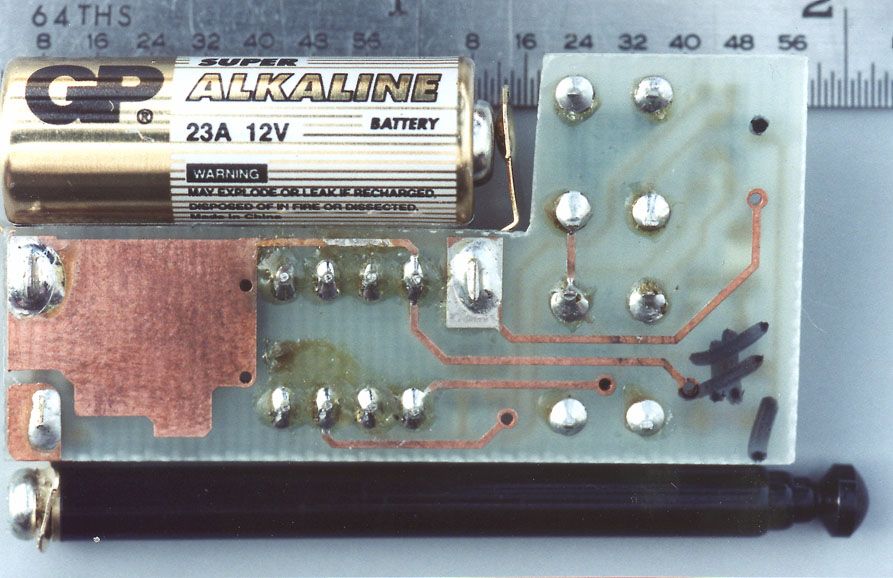

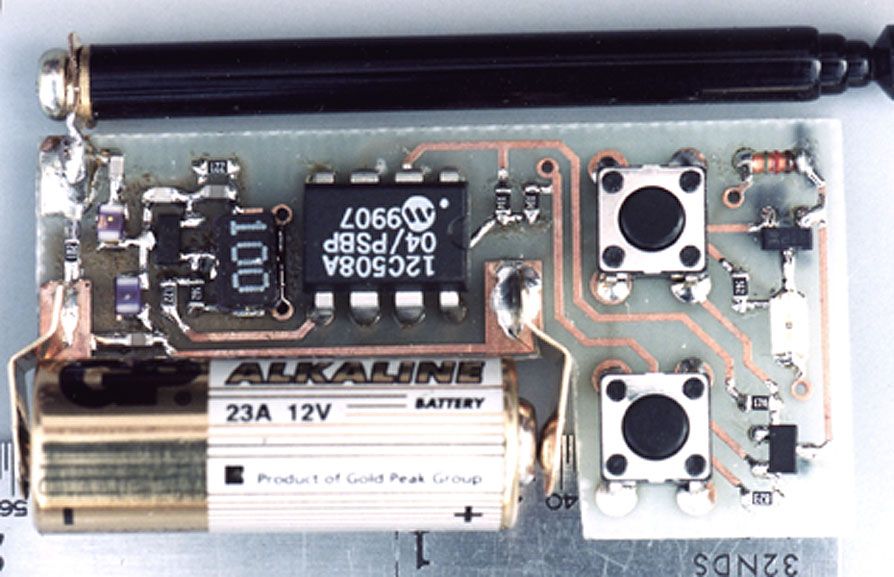

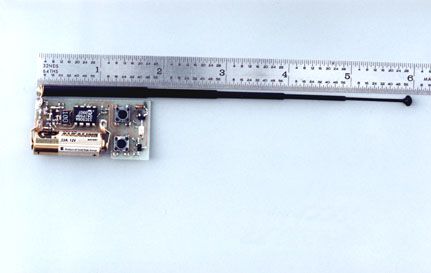

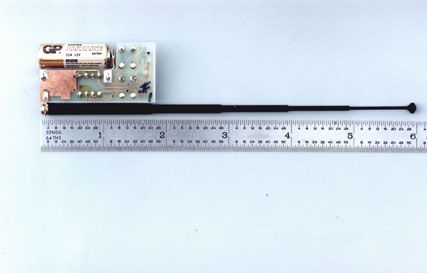

473 Schematic for FCC ID: EZSDEI473 1 2 34 A BC D 4 3 2 1 D CB A Telescopic antenna Transmitter B Title: Size: Number: Revision: Date: File: Sheet of Dr wn By 19-Aug-1999 O:\ENGR\DRAWPEND\473T\473T-X8B.SCH 11 A Directed Electronics Inc. 2560 Progress Street Vista, CA 92083 Phone: 760-598-6200 Fax: 760-598-6400 TLC-X A ppd ByChkd ByDa t eDa t eDa t e 1 OUT 5 8 SW1 2 SW2 3 VSS VDD IC1 GM 13 42 SW1 TACK 434MHZ R55.6K R682K (12C508A) R7 82K 13 42 SW2 TACK R8330KR9330K (M6,M7) D25.6V RLZ5232B 12V D32001 D1LED R11.2K R3220 C13.3p FC215p C3100p L133nH TR1H10 (3E) R25.6K L2100nH Antenna C4 470p F R4200 TR2PN2222 4 12 3 RO2101ASAW- SMD 21 3 DAN202K DIODE-DUAL

TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 619 546 3999 FAX 619 546 0364 Report No. 9392-06 Page 1 of 9 Rev.No 1.0 EMC EMISSION - TEST REPORT UNITED STATES STANDARD 47 CFR PART 15, SUBPART B Test Report File No.: 9392-06 Date of Issue: 11 August 1999 Model / Serial No.: 473 / ---- Product Type: Long Range Transmitter Applicant: DIRECTED ELECTRONICS, INC. Manufacturer: DIRECTED ELECTRONICS, INC. License holder: DIRECTED ELECTRONICS, INC. Address: 2560 Progress Street : Vista, CA 92083 Test Result: nn Positiveoo Negative Test Project Number Reference(s): 9392-06 Total pages - Test Report:9 NOTE: All test equipment used during testing is calibrated and traceable to NIST. TÜV Product Service reports apply only to the specific sample tested under stated test conditions. It is the manufacturer’s responsibility to assure the continued compliance of production units of this model. TÜV Product Service, Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service, Inc. issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service, Inc. and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 619 546 3999 FAX 619 546 0364 Report No. 9392-06 Page 2 of 9 Rev.No 1.0 DIRECTORY - EMISSIONS Test Report Pages Test Report1 - 9 Directory2 Test Regulations3 General Remarks and Summary9 Equipment Conducted Emissions5 Radiated Emissions6 Technical Documentation Test Data Sheets and Test Setup Drawing(s)TD1 Appendices Appendix A A1 Test Setups (Photographs) Appendix B B1 Product Information Form(s) Appendix C C1 Change History Appendix D D1 Supplemental Information TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 619 546 3999 FAX 619 546 0364 Report No. 9392-06 Page 3 of 9 Rev.No 1.0 EMISSIONS TEST REGULATIONS : The emissions tests were performed according to the following regulations: o - EN 50081-1 / 1991 o - EN 55011 / 1991o - Group 1o - Group 2 o - Class Ao - Class B o - EN 55013 / 1990 o - EN 55014 / 1987o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55014 / 1993o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55015 / 1987 o - EN 55015 / A1:1990 o - EN 55015 / 1993 o - EN 55022 / 1987o - Class Ao - Class B o - EN 55022 / 1998o - Class Ao - Class B o - BS o - VCCIo - Class A ITEo - Class B ITE n - 47 CFR Part 15, Subpart B o - 107(b) n - 107(a) o - 107(e) o - Class A o - Class B o - 109(b) n - 109(a) o - 109(g) o - Class A o - Class B n - 231(b) o - AS/NZS 3548: 1995o - Class Ao - Class B o - CISPR 11 (1990) o - Group 1o - Group 2 o - Class Ao - Class B o - CISPR 22 (1998) o - Class Ao - Class B TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 619 546 3999 FAX 619 546 0364 Report No. 9392-06 Page 4 of 9 Rev.No 1.0 Environmental Conditions In The Laboratory: Actual Temperature:: 23 °C Relative Humidity:: 50 % Atmospheric Pressure:: 100.0 kPa Power Supply Utilized: Power supply system: 12 Vdc Symbol Definitions: n -Applicable o -Not Applicable TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 619 546 3999 FAX 619 546 0364 Report No. 9392-06 Page 5 of 9 Rev.No 1.0 Emissions Test Conditions: CONDUCTED EMISSIONS (Interference Voltage) The CONDUCTED EMISSIONS (INTERFERENCE VOLTAGE) measurements were performed at the following test location: n - Test not performed - see remarks o - SR-2, Shielded Room, 12’ x 24’ x 10’, Metal Chamber o - SR-3, Shielded Room, 12’ x 20’ x 8’, Metal Chamber o - SR-4, Shielded Room, 20’ x 28’ x 16’, Metal, Anechoic Chamber o - SR-5, Shielded Room, 16’ x 28’ x 15’, Metal, Semi-Anechoic Chamber o - CSR-1, Shielded Room, 10’ x 7’ x 7’, Metal Chamber Test Equipment Used : Model No.Prop. No.DescriptionManufacturerSerial No. Cal Due Date NM-7A, NM-17/27, NM-37/57, NM-67, CCA-7, & H/P 9836 HP-1B Computer 156, 162-166 Automated RFI Measurement System (ARMS), NO. 1 Eaton/Ailtech(multiple) LISN-3, 50 A262-263Power Mains Network (LISN), 50 μH/250 μH/50 Ω/0.25 μF Fischer Custom Communications, Inc. 3-4 LISN-2, 25 A--Power Mains Network (LISN), 50 μH/250 μH/50 Ω/0.25 μF Fischer Custom Communications, Inc. 7 FCC-LISN-50-25-2553Power Mains Network (LISN), 50 μH/250 μH/50 Ω/0.25 μF Fischer Custom Communications, Inc. 112 FCC-LISN-50-25-2552Power Mains Network (LISN), 50 μH/250 μH/50 Ω/0.25 μF Fischer Custom Communications, Inc. 113 8012-50-R-12-BNC266 LISN, 50 μH/50 Ω/0.1 μF Solar Electronics Co.-- 9252-50-R-24-BNC458 LISN, 50 μH /250 μH/50 Ω/ 0.25 μF Solar Electronics Co.941719 9252-50-R-24-BNC457 LISN, 50 μH /250 μH/50 Ω/ 0.25 μF Solar Electronics Co.941720 CAT-2059820 dB AttenuatorMini-Circuits-- CAT-2061520 dB AttenuatorMini-Circuits-- Remarks: EUT battery operated. One year calibration cycle for all test equipment. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 619 546 3999 FAX 619 546 0364 Report No. 9392-06 Page 6 of 9 Rev.No 1.0 Emissions Test Conditions: RADIATED EMISSIONS (Electric Field) The RADIATED EMISSIONS (ELECTRIC FIELD) measurements were tested in a horizontal and vertical polarization at the following test location : nn - Test not performed - see remarks n - Roof (Small Open Area Test Site) (Calibration Due Date: 28 May 2000) o - Canyon #1 (10- and 30-Meter Open Area Test Site), Carroll Canyon, San Diego (Calibration Due Date: 21 July 1999) o - Canyon #2 (3- and 10-Meter Open Area Test Site), Carroll Canyon, San Diego (Calib…
