EZSDEI4892 Way LCD Security

The Science of Security ™ featuring CClliiffffoorrdd RReessppoonnddeerr PN 489X Compatible with the following systems: 1100..55 Standard Configuration A remote that has been programmed to an standard configuration will use separate buttons for arm and disarm similar to a factory keyless entry. Using the expanded configuration, the transmitter buttons are assigned to the following functions: Lock Icon Button The lock icon button arms and locks the system. Unlock Icon Button The unlock icon button disarms and unlocks the system. AUX Icon Buttons The AUX icon button operates channel 2. Siren (or Star) Icon Button The siren (or star) icon button operates Panic only. Unlock and Lock (or Star) Icon Buttons When pressed together, the lock and unlock (or star) icon buttons operate channel 3. P Button (on the back of the transmitter) Used for mult-car selection and also to enter the Transmitter's programming menu. (See Security/ Remote Start manual for details). FCC/ID Notice This device complies with Part 15 of FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION!Changes or modifications not expressly approved by the party responsible for compli- ance could void the user's authority to oper- ate this device. MADE IN TAIWAN © 2004 Directed Electronics, Inc. Vista CA 92081 All rights reserved. 11/04 P/N 489X 11-04 REPLACEMENT TRANSMITTER Model 489X, 4 Button Responder, HF, Stealth Code Remote 1.Door.Open a door. 2.Key.Turn the key to the ON position. 3.Choose.Within 5 seconds press and release the Valet/Program button the number of times corre- sponding to the desired channel listed below. Once you have selected the channel, press the Valet/Program button once more and hold it. The LED will flash the same number of times as the channel selected and the siren (if connected) will chirp to confirm the selected channel. Do NOT release the button. 4.Transmit.While holding the Valet/program button, press the button from the transmitter you wish to assign to that channel. The unit will chirp (if horn or siren connected) to confirm that the transmitter has been taught to the receiver 5.Release.Once the code is learned you can release the Valet/Program button and remove the key. The following Learn Routine can be used to program this replacement transmitter to the system. In order to enter the Learn Routine, the system’s Valet/Program switch must be plugged into the BLUE port. Channel Number Function without remote start 1Auto-learn Standard Configuration 11Delete All Transmitters P/N 489P Python Responder 2-Way Transmitter featuring Replacement Transmitter Compatible with the following systems: PPyytthhoonn 990000 MADE IN TAIWAN © 2004 Directed Electronics, Inc. Vista CA 92081 All rights reserved. P/N 489P 11/04 REPLACEMENT TRANSMITTER Model 489P, 4 Button Responder, HF, Stealth Code Remote The following Learn Routine can be used to program this replacement transmitter to the system. In order to enter the Learn Routine, the system’s Valet/Program switch must be plugged into the BLUE port. 1.Door.Open a door. 2.Key.Turn the key to the ON position. 3.Choose.Within 5 seconds press and release the Valet/Program button the number of times corre- sponding to the desired channel listed below. Once you have selected the channel, press the Valet/Program button once more and hold it. The LED will flash the same number of times as the channel selected and the siren (if connected) will chirp to confirm the selected channel. Do NOT release the button. 4.Transmit.While holding the Valet/program button, press the button from the transmitter you wish to assign to that channel. The unit will chirp (if horn or siren connected) to confirm that the transmitter has been taught to the receiver 5.Release.Once the code is learned you can release the Valet/Program button and remove the key. Channel NumberFunction without remote start 1Auto-learn Standard Configuration 11Delete All Transmitters Standard Configuration A remote that has been programmed to an standard configuration will use separate buttons for arm and disarm similar to a factory keyless entry. Using the expanded configuration, the transmitter buttons are assigned to the following functions: Lock Icon Button The lock icon button arms and locks the system. Unlock Icon Button The unlock icon button disarms and unlocks the system. AUX Icon Buttons The AUX icon button operates channel 2. Siren (or Star) Icon Button The siren (or star) icon button operates Panic only. Unlock and Lock (or Star) Icon Buttons When pressed together, the lock and unlock (or star) icon buttons operate channel 3. P Button (on the back of the transmitter) For multi-car selection and also Used to enter the Transmitter's programming menu. (See Security/ Remote Start manual for details). FCC/ID Notice This device complies with Part 15 of FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION!Changes or modifications not expressly approved by the party responsible for compli- ance could void the user's authority to oper- ate this device. P/N 489V P/N 489V Replacement Transmitter featuring Replacement Transmitter Compatible with the following systems: VViippeerr 55000000 viper responder 2-way transmitter viper responder 2-way transmitter MADE IN TAIWAN © 2004 Directed Electronics, Inc. Vista CA 92081 All rights reserved. P/N 489V 11/04 REPLACEMENT TRANSMITTER Model 489V, 4 Button Responder, HF, Stealth Code Remote The following Learn Routine can be used to program this replacement transmitter to the system. In order to enter the Learn Routine, the system’s Valet/Program switch must be plugged into the BLUE port. 1.Door.Open a door. 2.Key.…

Text truncated - open the document above for the full version.

SW1 SW2 SW3 SW4 MI CROCONTROLLER DC - DC CHARGE PUMP BUZZER DRI VER BUZZER 3.3V BATT BATT3.3V 1.5V BATTERY BATT LNA MATC H ING CIRCUIT MATC HING CIRCUIT SAW FILTER 433.92MHz MATC H ING CIRCUIT MIX CERAMIC FILTER 10.7MHz IF A MP LPF + - DATA SLICER 13.2256 MHz CRYSTAL PLL SYNTHESIZER IF DATA OUT MATC H ING CIRCUIT PA PLL C ONTROL ASK IN ON 13.56MHz S? SW SPDT ANTENNA CONTROL BOARD RF DAUGHTER BOARD RECEI VER TRANSMITTER 433.92MHz 48 9 HHU BLOCK DIAGRAM MIXER AND IMAGE REJ ECT POWER DOWN LCD DI SPLA Y CIRCUIT +3. 3V 3.3V 3.3V SW5 +3. 3V Program Switch

Wednesday, April 27, 2005 TÜV America, Inc. TCB 10040 Mesa Rim Road San Diego, CA 92121 Dear Sir or Madam: We, Directed Electronics Incorporated, hereby authorize TÜV Product Service (10040 Mesa Rim Road, San Diego, CA 92121, Tel. (619) 546-3999) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization expires on 04/27/06. Sincerely, Mark Rutledge Vice President of Engineering Tuesday, April 26, 2005 Chief, Equipment Approval Services Federal Communications Commission P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics and operating description for EZSDEI489. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Mark Rutledge Vice President of Engineering Tuesday, April 26, 2005 TUV Product Services 10040 Mesa Rim Road San Diego, CA 92121 RE: FCC ID EZSDEI489 Dear Sir or Madam, This letter is to address the following for the 489VPX transceivers: 1. Learn routine for replacement transmitters 2. System transmission frequency range 3. Data transmission duty cycle description 4. Manuals 1. Refer to instructions in attached blister pack info card PDF. 2. This transmitter is a single frequency device. It has a crystal controlled PLL which generates the RF carrier. The crystal based oscillator can maintain a center frequency of 433.92MHz within a +/-35KHz tolerance. The receiver operated by this transmitter is a single band receiver tuned to 433.92MHz and only capable of receiving this frequency. 3. The 489VPX is a data transmission device. Its protocol consists of 12 preamble bits (400us each) and 66 data bits (400us or 800us each, they are random) for a total of 78 bits. So the calculation for the duty cycle becomes: (12 x 400us)+(66x800us)= 57.60ms within a 100ms period The worst case scenario calculation is assured by the fact that we used 800us for all 66 data bits as they can be either 400us or 800us. 4. Refer to instructions in attached blister pack info card PDF. Sincerely, Minas Minassian RF Engineer

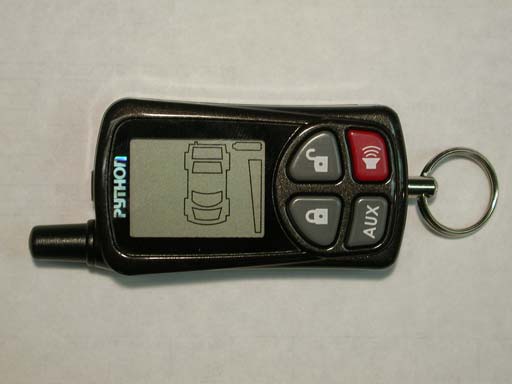

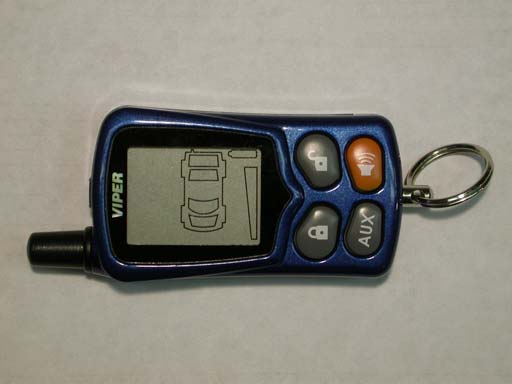

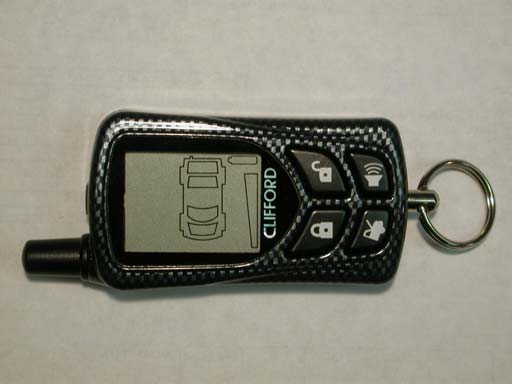

10. Photographs* of the equipment clear enough to reveal: Equipment construction and layout, including meters, and labels for controls and meters; Internal construction defining component placement and chassis assembly. Photo 1 Faceplate of 489X model Photo 2 Back of 489X model 5 Photo 3 Faceplate of 489V model Photo 4 Back of 489V model 6 Photo 5 Faceplate of 489P model Photo 6 Back of 489P model 7

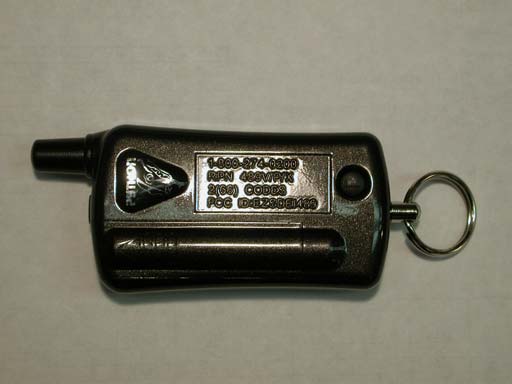

1. FCC ID label Label statement is on separate piece of paper included with transmitter and in the user manual.. FCC ID is located on back of unit.

Photo 7 Main PCB and RF daughterboard PCB assemblies in top plastic case housing. Photo 8 Main PCB top and bottom 8 Photo 9 RF daughterboard PCB top and bottom Photo 9 Exploded view of plastic case assembly 9

Report No. SC502013-08 Page 1 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 MEASUREMENT AND TECHNICAL REPORT DIRECTED ELECTRONICS INCORPORATED 1 Viper Way Vista, CA 92081 DATE: 27 April 2005 This Report Concerns: Original Grant: X Class II Change: Equipment Type: 2 Way LCD Security, Models 489V, 489P, 489X Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X Company Name agrees to notify the Commission by: N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X* (*) FCC Part 15, Paragraph(s) 15.209(a), 15231(a), 15231(b), 15231(c) Report Prepared by: TÜV AMERICA, INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 Fax: 858 546 0364 Report No. SC502013-08 Page 2 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 TABLE OF CONTENTS Pages 1.0 GENERAL INFORMATION 3 - 7 1.1 Product Description 3 - 6 1.2 Related Submittal Grant 7 1.3 Tested System Details 7 1.4 Test Methodology 7 1.5 Test Facility 7 2.0 SYSTEM TEST CONFIGURATION 8 2.1 Justification 8 2.2 EUT Exercise Software 8 2.3 Special Accessories 8 2.4 Equipment Modifications 8 2.5 Configuration of Test System 8 3.0 RADIATED EMISSIONS EQUIPMENT/DATA DEACTIVATION EQUIPMENT/DATA FIELD STRENGTH OF EMISSIONS EQUIPMENT/DATA EMISSION BANDWIDTH EQUIPMENT/DATA 9 - 15 4.0 ATTESTATION STATEMENT 16 Report No. SC502013-08 Page 3 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.0 GENERAL INFORMATION 1.1 Product Description PLEASE COMPLETE THIS DOCUMENT IN FULL, ENTERING N/A IN THE FIELD IS NO APPLICABLE. Applicant -- NOTE: This information will be input into your test report as shown below Company: Directed Electronics, Inc. Address: 1 Viper Way ` Vista, CA 92081 Contact: Minas Minassian Position: RF Engineer Phone: (760) 598-6200 Fax: (760) 598-6400 E-mail Address: [email protected] General Equipment Description -- NOTE: This information will be input into your test report as shown below. EUT Description: Hand held keyfob transceiver for car alarm and convenience systems. EUT Name: 2 Way LCD Security Model No.: 489V, 489P, 489X Serial No.: -- Product Options: -- Configurations to be tested: 1 EUT Specifications and Requirements Length : 2.51" Width: 1.41" Height: 0.72" Weight: 1.1oz Report No. SC502013-08 Page 4 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 Power Requirements Regulations require testing to be performed at typical power ratings in the countries of intended use. (i.e., European power is typically 230 VAC 50 Hz or 400 VAC 50 Hz, single and three phase, respectively) Voltage: 1.5V (AAA Battery) (If battery powered, make sure battery life is sufficient to complete testing.) # of Phases: -- Current (Amps/phase(max)): 100mA Current (Amps/phase(nominal)): -- Other: -- Other Special Requirements -- Typical Installation and/or Operating Environment (ie. Hospital, Small Business, Industrial/Factory, etc.) Automotive EUT Power Cable Permanent OR Removable Length (in meters): -- Shielded OR Unshielded Not Applicable EUT Interface Ports and Cables Interface Shielding Type Type Termination Connector Type Port Termination EXAMPLE: RS232 † „ 2 „ † Foil over braid Coaxial Metallized 9- pin D-Sub Characteristic Impedance 6 „ † None Report No. SC502013-08 Page 5 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 EUT Software Revision Level: -- Description: -- EUT Operating Modes to be Tested -- list the operating modes to be used during test. It is recommended the equipment be tested while operating in a typical operation mode. FCC testing of personal computers and/or peripherals requires that a simple program generate a complete line of upper case H’s. Provide a general description of all software, firmware, and PLD algorithms used in the equipment. List all code modules as described above, with the revision level used during testing. Consult with your TÜV Product Service Representative if additional assistance is required. 1. Continuous modulated transmission EUT System Components -- List and describe all components which are part of the EUT. For FCC testing a minimum configuration is required. (ie. Mouse, Printer, Monitor, External Disk Drive, Motherboard, etc.) Description Model # Serial # FCC ID # Keyfob 487V, 487P, 487X N/A EZSDEI489 Support Equipment -- List and describe all support equipment which is not part of the EUT. (i.e. peripherals, simulators, etc) Description Model # Serial # FCC ID # -- Oscillator Frequencies Frequency Derived Frequency Component # / Location Description of Use 13.56MHz 433.92MHz -- Transmitter RF carrier 13.2256MHz 423.22MHz -- Receiver LO 32.76KHz -- -- Microcontroller Report No. SC502013-08 Page 6 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 Power Supply Manufacturer Model # Serial # Type -- Switched-mode: (Frequency) Linear Other: Power Line Filters Manufacturer Model # Location in EUT -- Critical EMI Components (Capacitors, ferrites, etc.) Description Manufacturer Part # or Value Qty Component # / Location -- EMC Critical Detail -- Describe other EMC Design details used to reduce high frequency noise. -- Report No. SC502013-08 Page 7 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.2 Related Submittal Grant None 1.3 Tested System Details The FCC ID’s for all equipment, plus descriptions of all cables used in the tested system are: None 1.4 Test Methodology Purpose of Test: To demonstrate compliance with the following tests. Test Summary Summary of Results Test Description Paragraph Number Low Channel Mid Channel High…
