790XV Installation Guide ® © 2002 Directed Electronics, Inc. Vista, CA N554V 11-02 NOTE:This product is intended for installation by a professional installer only! Any attempt to install this product by any person other than a trained professional may result in severe damage to a vehicle’s electrical system and components. The Bitwriter ® (p/n 998T) requires chip version 1.4 or newer to program this unit. wwwwww..ddiirreecctteecchhss..ccoomm DDiirreeccttFFaaxx 880000--999999--11332299 TTeecchhnniiccaall SSuuppppoorrtt 880000--775533--00880000 These resources are for authorized Directed Dealer use only. This device complies with Part 15 of FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device. Bitwriter™, Code Hopping™, DEI®, Doubleguard®, ESP™, FailSafe®, Ghost Switch™, Learn Routine™, Nite-Lite®, Nuisance Prevention® Circuitry, NPC®, Revenger®, Silent Mode™, Soft Chirp®, Stinger®, Valet®, Vehicle Recovery System®, VRS®, and Warn Away® are all Trademarks or Registered Trademarks of Directed Electronics, Inc.










 2 © 2002 Directed Electronics, Inc. © 2002 Directed Electronics, Inc.3 Table of Contents WWaarrnniinngg!! SSaaffeettyy FFiirrsstt..................................................................44 IInnssttaallllaattiioonn PPooiinnttss ttoo RReemmeemmbbeerr................................55 Before Beginning the Installation ...........5 Finding the Tachometer Wir .................5 Finding the WAIT-TO-START Bulb Wire for Diesels .....................................6 After the Installation ..............................6 Vehicle Anti-Theft Systems (Immobilizers) .......................................6 PPrriimmaarryy HHaarrnneessss ((HH11)) WWiirree CCoonnnneeccttiioonn GGuuiiddee........................................................77 Primary Harness (H1) Wiring Diagram 7 Primary Harness Wire Descriptions .......7 SSeeccoonnddaarryy HHaarrnneessss ((HH22)),, WWiirree CCoonnnneeccttiioonn GGuuiiddee....................................................1122 Secondary Harness (H2) Wiring Diagram...................................12 Secondary Harness Wire Descriptions .12 RReellaayy SSaatteelllliittee KKeeyy SSwwiittcchh IInntteerrffaaccee WWiirree CCoonnnneeccttiioonn GGuuiiddee....................................................1144 Heavy Gauge Relay Satellite Wiring Diagram...................................14 Heavy Gauge Relay Satellite Wire Descriptions ................................14 Remote Start Ribbon Harness Wiring Diagram...................................15 RReemmoottee SSttaarrtt HHaarrnneessss ((HH33)),, WWiirree CCoonnnneeccttiioonn GGuuiiddee....................................................1155 Remote Start Harness (H3) Wiring Diagram...................................15 Remote Start Harness Wire Descriptions ...............................16 NNeeuuttrraall SSaaffeettyy SSwwiittcchh IInntteerrffaaccee ..............................1188 Testing the Neutral Safety Switch .......18 DDoooorr LLoocckk HHaarrnneessss ((HH44)),, WWiirree CCoonnnneeccttiioonn GGuuiiddee ..................................................1199 PPeerriipphheerraall PPlluugg--IInn HHaarrnneessss ..........................................1199 Super Bright LED, 2-Pin WHITE Plug ..19 Valet/Program Switch, 2-Pin BLUE Plug 20 Programmer Interface, 3-Pin Port ........20 Shock Sensor Harness, 4-Pin Connector..20 Mounting the Transceiver ....................21 PPrrooggrraammmmiinngg JJuummppeerrss..........................................................2222 Light Flash Jumper ..............................22 Tach Threshold On/Off .......................22 SSyysstteemm FFeeaattuurreess LLeeaarrnn RRoouuttiinnee................................2233 SSyysstteemm FFeeaattuurreess MMeennuuss........................................................2255 Menu #1 - Basic Features.....................25 Menu #2 - Advanced Features..............25 Menu #3 - Remote Start Features ........26 FFeeaattuurree DDeessccrriippttiioonnss................................................................2266 Menu #1 - Basic Features.....................26 Menu #2 - Advanced Features..............28 Menu #3 - Remote Start Features ........29 TTrraannssmmiitttteerr//RReecceeiivveerr LLeeaarrnn RRoouuttiinnee................3300 TTrraannssmmiitttteerr CCoonnffiigguurraattiioonnss..........................................3322 Standard Configuration .......................32 Single Button Arm/Disarm Configuration ......................................33 TTaacchh LLeeaarrnniinngg....................................................................................3333 SShhuuttddoowwnn DDiiaaggnnoossttiiccss..........................................................3344 MMuullttii--LLeevveell SSeeccuurriittyy AArrmmiinngg......................................3355 NNuuiissaannccee PPrreevveennttiioonn®® CCiirrccuuiittrryy............................3355 RRaappiidd RReessuummee LLooggiicc................................................................3355 TTiimmeerr MMooddee........................................................................................3366 DDiiaaggnnoossttiiccss............................................................................................3366 Arm/Disarm Diagnostics .....................36 System Status Chirps ...........................36 Table of Zones .....................................36 LLoonngg--TTeerrmm EEvveenntt HHiissttoorryy..............................................3377 SSaaffeettyy CChheecckk........................................................................................3388 TTrroouub…

Text truncated - open the document above for the full version.

Monday, October 14, 2002 TÜV America, Inc. TCB 10040 Mesa Rim Road San Diego, CA 92121 RE: FCC ID EZSDEI546 Dear Sir or Madam: We, Directed Electronics Incorporated, hereby authorize TÜV Product Service (10040 Mesa Rim Road, San Diego, CA 92121, Tel. (619) 546-3999) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization expires on 10/14/03. Sincerely, Mark Rutledge Vice President of Engineering Monday, October 14, 2002 TÜV America, Inc. TCB 10040 Mesa Rim Road San Diego, CA 92121 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Operating Description and Block diagrams for EZSDEI546. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Mark Rutledge Vice President of Engineering

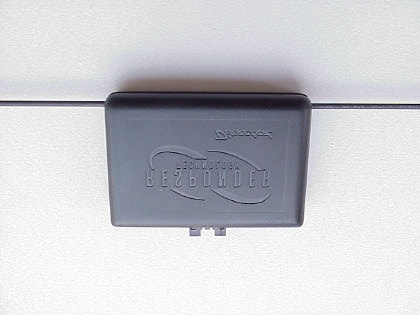

TOP VIEW OF DIPOLE ANTENNA

TOP OF DB17 PCB BOTTOM OF DB17 PCB TOP OF DB17 PCB IN BOTTOM SIDE OF CASE

TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC204450-03A Page 1 of 17 Rev.No 1.0 MEASUREMENT AND TECHNICAL REPORT DIRECTED ELECTRONICS INCORPORATED 1 Viper Way Vista, CA 92083 DATE: 22 October 2002 This Report Concerns: Original Grant: X Class II Change: Equipment Type: 554 IVU, Model 546 Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X Company Name agrees to notify the Commission by: N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X* (*) FCC Part 15, Paragraph(s) 15.231(a), 15.231(b), 15.231(c) Report Prepared by: TÜV AMERICA, INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 546 3999 Fax: 858 546 0364 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC204450-03A Page 2 of 17 Rev.No 1.0 TABLE OF CONTENTS Pages 1.0 GENERAL INFORMATION 3 - 7 1.1 Product Discription 3 - 6 1.2 Related Submittal Grant 7 1.3 Tested System Details 7 1.4 Test Methodology 7 1.5 Test Facility 7 1.6 Part 2 Requirements 7 2.0 SYSTEM TEST CONFIGURATION 8 2.1 Justification 8 2.2 EUT Exercise Software 8 2.3 Special Accessories 8 2.4 Equipment Modifications 8 2.5 Configuration of Test System 8 3.0 DEACTIVATION EQUIPMENT/DATA 9 - 16 RADIATED SPURIOUS EMISSIONS EQUIPMENT/DATA 3.1 Field Strength Calculation EMISSIONS BANDWIDTH EQUIPMENT/DATA DUTY CYCLE MEASUREMENTS EQUIPMENT/DATA 4.0 ATTESTATION STATEMENT 17 TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC204450-03A Page 3 of 17 Rev.No 1.0 1.0 GENERAL INFORMATION 1.1 Product Description General Equipment Description -- NOTE: This information will be input into your test report as shown below. EUT Description: 2 way in-vehicle transceiver for automotive security and remote start systems. EUT Name: 554 IVU Model No.: 546 Serial No.: -- Product Options: -- Configurations to be tested: -- Power Requirements Regulations require testing to be performed at typical power ratings in the countries of intended use. (i.e., European power is typically 230 VAC 50 Hz or 400 VAC 50 Hz, single and three phase, respectively) Voltage: 5V (If battery powered, make sure battery life is sufficient to complete testing.) # of Phases: -- Current (Amps/phase(max)): -- Current (Amps/phase(nominal)): -- Other: -- Other Special Requirements -- Typical Installation and/or Operating Environment (ie. Hospital, Small Business, Industrial/Factory, etc.) Automotive EUT Power Cable Permanent OR n Removable Length (in meters): 3m Shielded OR Unshielded Not Applicable TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC204450-03A Page 4 of 17 Rev.No 1.0 EUT Interface Ports and Cables Interface Shielding Type Type Termination Connector Type Port Termination EXAMPLE: RS232 o n 2 n o Foil over braid Coaxial Metallized 9- pin D-Sub Characteristic Impedance 6 n o 4 pin harness n n 1 n -- -- 4 pin -- 3 n EUT Software. Revision Level: -- Description: -- EUT Operating Modes to be Tested -- list the operating modes to be used during test. It is recommended the equipment be tested while operating in a typical operation mode. FCC testing of personal computers and/or peripherals requires that a simple program generate a complete line of upper case H’s. Provide a general description of all software, firmware, and PLD algorithms used in the equipment. List all code modules as described above, with the revision level used during testing. Consult with your TÜV Product Service Representative if additional assistance is required. 1. CW transmission. EUT System Components -- List and describe all components which are part of the EUT. For FCC testing a minimum configuration is required. (ie. Mouse, Printer, Monitor, External Disk Drive, Motherboard, etc.) Description Model # Serial # FCC ID # Alarm main module and associated harnesses 554V -- -- Support Equipment -- List and describe all support equipment which is not part of the EUT. (i.e. peripherals, simulators, etc) Description Model # Serial # FCC ID # -- TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC204450-03A Page 5 of 17 Rev.No 1.0 Oscillator Frequencies Frequency Derived Frequency Component # / Location Description of Use 433.92 MHz -- -- RF Carrier frequency Power Supply Manufacturer Model # Serial # Type -- Switched-mode: (Frequency) Linear Other: Power Line Filters Manufacturer Model # Location in EUT -- Critical EMI Components (Capacitors, ferrites, etc.) Description Manufacturer Part # or Value Qty Component # / Location -- EMC Critical Detail -- Describe other EMC Design details used to reduce high frequency noise. -- TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC204450-03A Page 6 of 17 Rev.No 1.0 System Configuration Block Diagram -- Provide a line drawing identifying the EUT, simulators, support equipment, I/O cables, power cables, and any other pertinent components to be used during testing. Use a dashed line to separate the equipment in the testing field versus equipment outside testing field. TÜV AMERICA, INC. 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. SC204450-03A Page 7 of 17 Rev.No 1.0 1.2 Related Submittal Grant None 1.3 Tested System Details The FCC ID’s for all equipment, plus descriptions of all cables used in the tested system are: None 1.4 Test Methodology Purpose of Test: To demonstrate compliance with the following tests. TEST FCC CFR 47# PASS/FAIL Deactivation 15.231(a) Pass Radiated Spurious Emissions 15.231(b) Pass Emissions Bandwidth 15.231(c) Pass Duty Cycle Measurements ANSI C63.4, Appendix 14, Para. 10 Pass Both Conducted and Radiated testing were performed according to the procedure…
