SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 May 18, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: EZSDEI6213 We hereby request confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Minas Minassian / Director of Engineering DEI Headquarters, Inc. Tel: (760) 598 6200 Fax: (760) 598 6400 E-mail: [email protected]

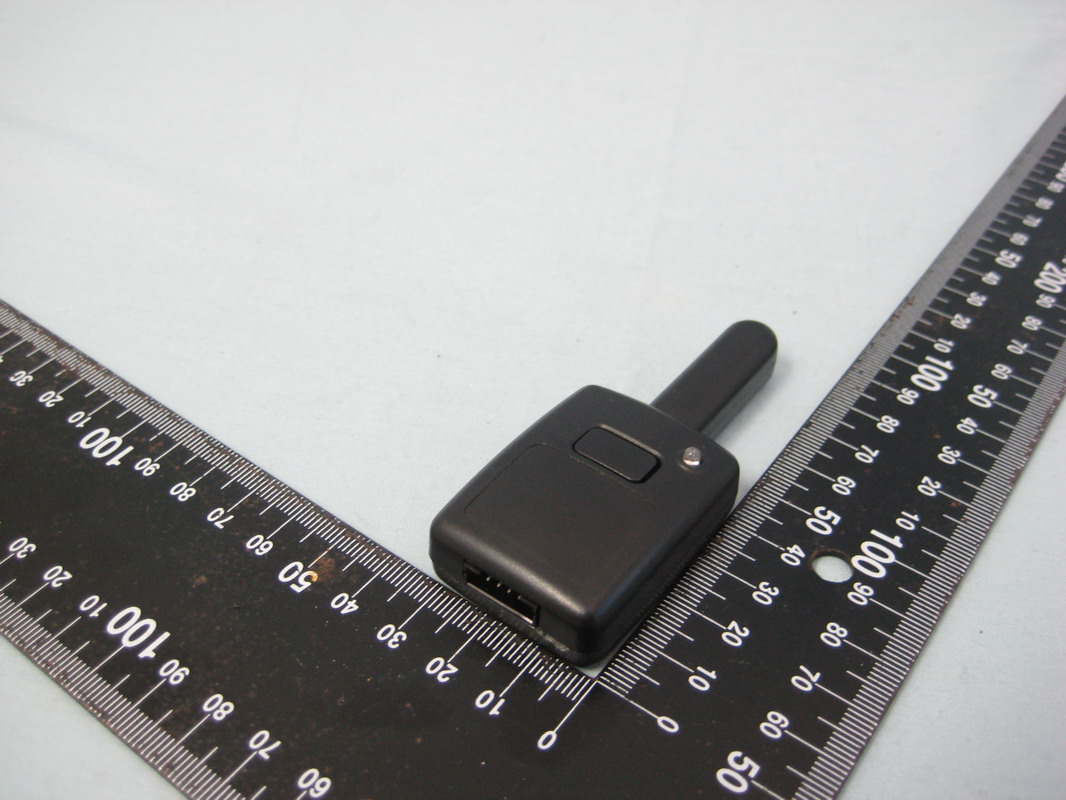

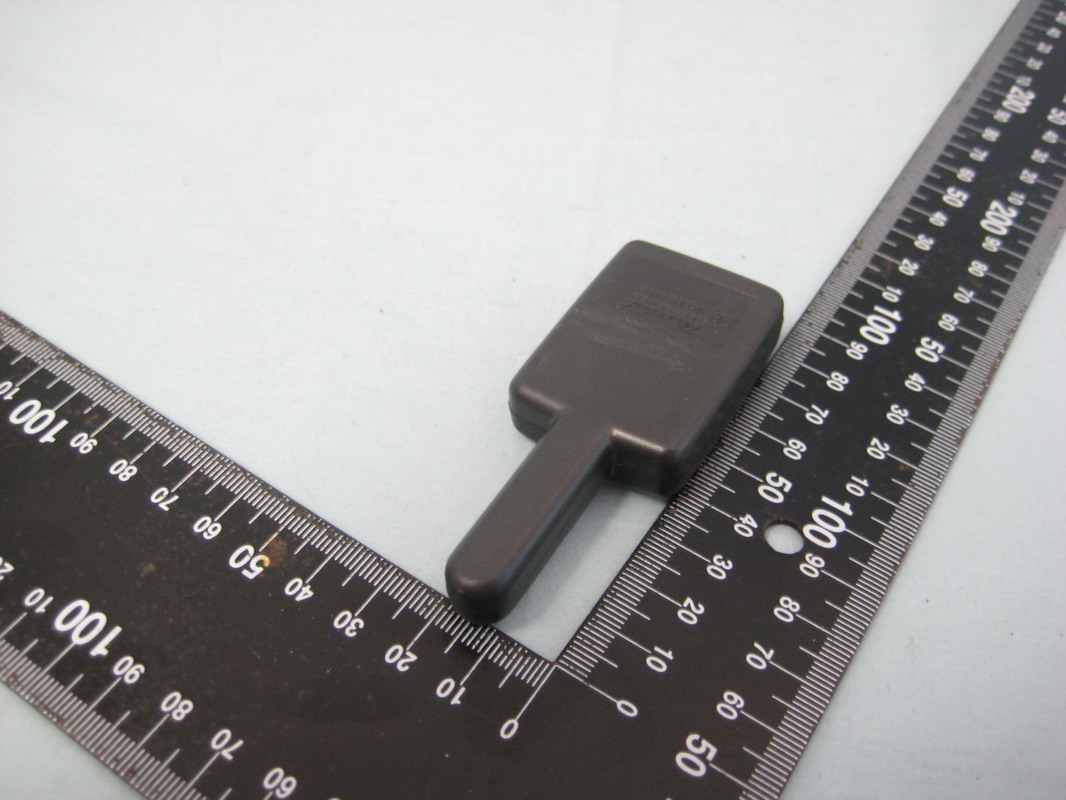

Report No.：10A050701FR FCC ID： EZSDEI6213 Page 22 of 25 Interocean EMC Technology Corp. Test Report 7 Photographs of EUT Front View of EUT Rear View of EUT Report No.：10A050701FR FCC ID： EZSDEI6213 Page 25 of 25 Interocean EMC Technology Corp. Test Report Power Cable

M O D E L : 6 2 1 3 T B O D Y M A T E R I A L : C ± A ± ± B V I C T O R F C C I D : E Z S D E I 6 2 1 3

Report No.：10A050701FR FCC ID： EZSDEI6213 Page 23 of 25 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.：10A050701FR FCC ID： EZSDEI6213 Page 24 of 25 Interocean EMC Technology Corp. Test Report Component View of PCB Board Solder View of PCB Board

Report No.：10A050701FR FCC ID： EZSDEI6213 Page 1 of 25 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.231 TEST REPORT Product： IVU Trade Name： Automate Model Number： 6123T FCC ID： EZSDEI6213 Prepared for DEI Headquarters, Inc. One Viper Way, Vista California United States 92081 TEL.： (760) 598 6200 FAX.： (760) 598 6400 Prepared by Interocean EMC Technology Corp. 244 No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: The test report consists of 25 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test results in the report only to the tested sample. Report No.：10A050701FR FCC ID： EZSDEI6213 Page 3 of 25 Interocean EMC Technology Corp. Test Report Table of Contents 1 Summary of Measurement 4 2 General Information 5 2.1 Description of Equipment Under Test 5 2.2 Details of tested peripheral equipment 6 2.3 Test Facility 7 3 Test specifications 8 3.1 Test standard 8 3.2 Operation mode 8 3.3 Test Equipment 9 4 Radiated emission test 10 4.1 Limits 10 4.2 Calculation of Average Factor 11 4.3 Configuration of Measurement 16 4.4 Test Procedure 16 4.5 Test Result 16 5 Emission bandwidth 19 5.1 Limits 19 5.2 Test Result 19 6 Photographs of Test 21 6.1 Radiated Emission Measurement 21 7 Photographs of EUT 22 Report No.：10A050701FR FCC ID： EZSDEI6213 Page 4 of 25 Interocean EMC Technology Corp. Test Report 1 Summary of Measurement Report Clause Test Parameter Reference Document CFR47 Part15 Results 4 Radiated Emission §15.231(b), 15.209 Pass 5 Emission bandwidth §15.231(c) Pass Report No.：10A050701FR FCC ID： EZSDEI6213 Page 5 of 25 Interocean EMC Technology Corp. Test Report 2 General Information 2.1 Description of Equipment Under Test Product : IVU Model Number : 6123T Applicant : DEI Headquarters, Inc. One Viper Way, Vista California United States 92081 Manufacturer : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan Power Supply : 12Vdc Battery Operating Frequency : 433.92MHz Channel Number : 1 channel Type of Modulation : ASK Antenna description : This device uses Spring antenna. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Receipt Sample : May 07, 2010 Date of Test : May 18, 2010 Product information : Power Cable: Non-shielded Detachable, 3m w/o core Additional Description : 1) The Model Number “6123T” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.：10A050701FR FCC ID： EZSDEI6213 Page 6 of 25 Interocean EMC Technology Corp. Test Report 2.2 Details of tested peripheral equipment N/A Report No.：10A050701FR FCC ID： EZSDEI6213 Page 7 of 25 Interocean EMC Technology Corp. Test Report 2.3 Test Facility Site Description : OATS 2 Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Site 1, 2 Location : No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. Site 3, 4 Location : No. 12, Ruei-Shu Valley, Ruei-Ping Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. Site Filing : z Federal Communication Commissions – USA Registration No.: 96399 (OATS 1 & 2) Registration No.: 518958 (OATS 3 & 4) Designation No.: TW1020 z Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040 Registration No. (OATS 2): R-1041 z Industry Canada (IC) OUR FILE: 46405-4437 Submission: 130946 Registration No. (OATS 1): 4437A-1 Registration No. (OATS 2): 4437A-2 Registration No. (OATS 3): 4437A-3 Registration No. (OATS 4): 4437A-4 Site Accreditation : z Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR22 SL2-R1-E-0026 for CNS13439 / CISPR13 SL2-R2-E-0026 for CNS13439 / CISPR13 SL2-A1-E-0026 for CNS13783-1 / CISPR14-1 SL2-L1-E-0026 for CNS 14115 / CISPR 15 z Taiwan Accreditation Foundation (TAF) Accrditation No.: 1113 z TüV NORD Certificate No: TNTW0801R-02 Report No.：10A050701FR FCC ID： EZSDEI6213 Page 8 of 25 Interocean EMC Technology Corp. Test Report 3 Test specifications 3.1 Test standard The EUT was performed according to FCC Part 15 Subpart C Section 15.231 procedure and setup followed by ANSI C63.4, 2003 requirements. 3.2 Operation mode By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “X axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this report The EUT was operated in continuous transmission mode during all of the tests. X axis mode Y axis mode Z axis mode Report No.：10A050701FR FCC ID： EZSDEI6213 Page 9 of 25 Interocean EMC Technology Corp. Test Report 3.3 Test Equipment Instrument ManufacturerModel Serial No. Next Cal. Date Spectrum Analyzer R&S FSP30 100002 2010/12/08 Spectrum Analyzer R&S FSP40 100478 2011/04/20 Preamplifier Agilent 8449B 3008A01434 2011/04/20 Preamplifier Agilent 83050A 3950A00225 2010/08/10 Preamplifier SCHAFFNER CA30100 2 2010/11/03 Horn Antenna Schwarzbeck BBHA 9120 9120D-583 2011/02/09 Wide Bandwidth Sensor Anritsu MA2491A 728133 2010/11/13 Power Meter Anritsu ML2495A 736010 2010/11/13 Temp & Humidity chamber GIAN FORCE GTH-150-40-2P-U MAA0305-012 2011/05/07 Note: The above equipments are within the valid calibration period. Report No.：10A050701FR FCC ID： EZSDEI6213 Page 10 of 25 Interocean EMC Technology Corp. Test Report 4 Radiated emission test 4.1 Limits According to FCC 15.231(b) requirement: In addition to the provisions of §15.205, the field strength of emissions from intentional radiator operated under this sectio…

Text truncated - open the document above for the full version.

Report No.：10A050701FR FCC ID： EZSDEI6213 Page 21 of 25 Interocean EMC Technology Corp. Test Report 6 Photographs of Test 6.1 Radiated Emission Measurement Front View Rear View
