EZSDEI7113433.92MHz ASK HHU

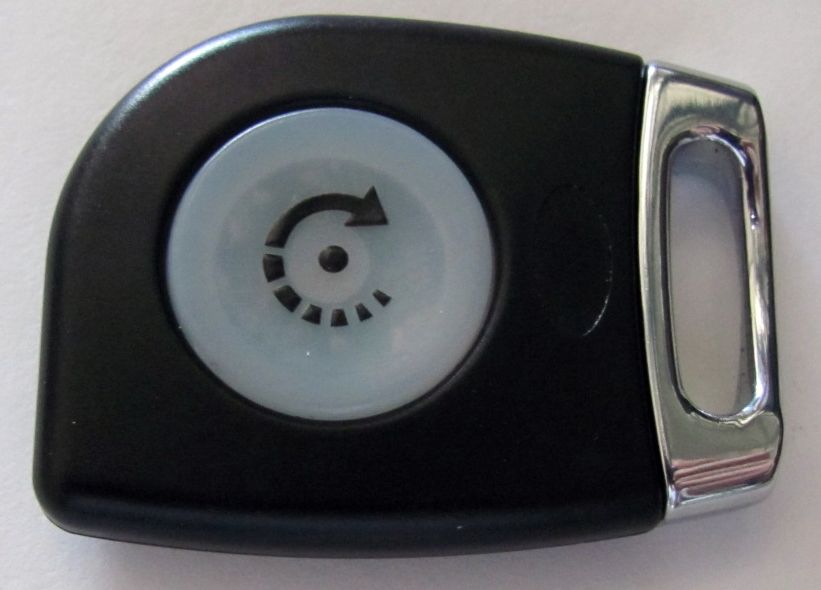

MODEL 7111A Compatible with the following systems. Automate AM6 Automate AM6.2 Replacement Transmitter © 2010 Directed Electronics, Vista, CA 92081. All rights reserved. REPLACEMENT TRANSMITTER Model 7111A 1-button Remote Control To enter Remote Control learn routine: 1. Turn the key to the On position. 2. Within 10 seconds, press and release the Program button the number of times that corresponds to the selected channel listed below. After you select the channel, press the Program button once more and Hold it. The LED on the main unit flashes the number of times as the selected channel, and the horn (if connected) honks the same number of times as confirmation. Do NOT release the Program button. 3. While holding the Program button press the button on the Remote. The horn (if connected) sounds to confirm the Remote has been taught to the receiver. 4. Release the Program button and remove the key. Standard configuration To Remote Start the vehicle • Press and release the Remote button for 1-sec- ond. The parking lights turn on to confirm Remote Start operation. To shutdown Remote Start • Press and hold the Remote button for 3-seconds. Car finder (Remote Start must not be active) • Press and hold the Remote button for 3-seconds. The parking lights flash for about 10 seconds. To unlock the doors (Remote Start must be active) • Press and release the Remote button for 1-sec- ond. Refer to Owner's Guide for more details. FCC/ID Notice This device complies with Part 15 of FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada license- exempt RSS standarad (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. CAUTION! Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux condi- tions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The following Learn Routine can be used to program this replacement transmitter to the system. Channel NumberFunction 1Auto learn 2 (4113A) 8 (4101A) Delete all transmitters P/N 7111A 04/10 MADE IN CHINA Logo, Directed Electronics w-driven.eps Logo, Directed with designed in USA.eps Logo, Directed with Distributed By.eps Directed Logo Usage

DATE 24/08/2011 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: EZSDEI7113 Product Name: 7113A Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  Parts List These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 24 Day of 08 2011 By: Minas Minassian Signature Printed Title: RF Engineering Manager On behalf of : DEI Headquarters, Inc. Telephone: (760) 598-6200 x 1231

BODY MATERIAL : PC/ABS MT-11010 0.2 A ± B ± C ± Top/Bottom housing BLACK SOFT RUBBER PAINT RUBBER KEYPAD：TRANSLUCENT MILKY WHITE BLACK PAINTING+PU coating ICON：WHITE CHANGE CORE：CAVE=0mm, MT11010 ENGRAVING：CAVE=0.1mm CHANGE CORE：CAVE=0mm, MT11010 ENGRAVING：CAVE=0.1mm Metal key chian hook：Chrome Key chian P/N：MA15000 1-800-274-0200 MODEL: 7113A IC: 1513A-7113 FCC ID: EZSDEI7113 BATTERY: CR2016 LASER ENGRAVING 1-800-274-0200 RPN: 7113A IC: 1513A-7113A FCC ID: EZSDEI7113 BATTERY: CR2016

15.231.doc - Date: June, 2011 www.nemko.com Compliance test report ID 180662-1TRFWL Date of issue September 30, 2011 FCC 47 CFR Part 15, Subpart C, Chapter 15.231 Periodic operation in the band 40.66–40.70 MHz and above 70 MHz Applicant DEI Headquarters, Inc. Product Remote control transceiver Model 7113A FCC ID EZSDEI7113 Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation Report reference ID: 180662-1TRFWL Page 2 of 19 Test location Nemko Canada Inc. 303 River Road Ottawa, ON, K1V 1H2 Canada Telephone +1 613 737 9680 Facsimile +1 613 737 9691 Toll free +1 800 563 6336 Website www.nemko.com Tested by Andrey Adelberg, Senior Wireless/EMC Specialist Reviewed by September 30, 2011 David Duchesne, Senior EMC/Wireless Specialist Date Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 180662-1TRFWL Page 3 of 19 Table of contents Section 1: Report summary ......................................................................................................................................................... 4 Section 2: Summary of test results ............................................................................................................................................. 5 Section 3: Equipment under test (EUT) details .......................................................................................................................... 6 Section 4: Engineering considerations ....................................................................................................................................... 7 Section 5: Test conditions ........................................................................................................................................................... 8 Section 6: Measurement uncertainty .......................................................................................................................................... 9 Section 7: Test equipment ......................................................................................................................................................... 10 Section 8: Testing data ............................................................................................................................................................... 11 8.1 Clause 15.231(a) Conditions for intentional radiators to comply with periodic operation ........................................... 11 8.2 Clause 15.231(b) Field strength of emissions ............................................................................................................ 12 8.3 Clause 15.231(c) Emission bandwidth....................................................................................................................... 16 Section 9: Block diagrams of test setups ................................................................................................................................. 17 Section 10: EUT setups and photos .......................................................................................................................................... 18 Section 1 Report summary Report reference ID: 180662-1TRFWL Page 4 of 19 Section 1: Report summary 1.1 Applicant DEI Headquarters, Inc. 5764 Rue Pare Montreal, QC H4P 2M2, Canada 1.2 Test specifications FCC 47 CFR Part 15, Subpart C, Chapter 15.231 Periodic operation in the band 40.66–40.70 MHz and above 70 MHz 1.3 Statement of compliance In the configuration tested, the EUT was found compliant. Testing was completed against all relevant requirements of the test standard. Results obtained indicate that the product under test complies in full with the requirements tested. The test results relate only to the items tested. See “Summary of test results” for full details. 1.4 Test report revision history Revision # Details of changes made to test report TRF Original report issued Section 2: Summary of test results Report reference ID: 180662-1TRFWL Page 5 of 19 Section 2: Summary of test results 2.1 FCC Part 15 Subpart C – Intentional Radiators, test results Part Test description Verdict §15.207(a) Conducted limits N/A 1 §15.231(a) Conditions for intentional radiators to comply with periodic operation Pass §15.231(b) Field strength of emissions Pass §15.231(c) Emission bandwidth Pass §15.231(d) Requirements for devices operating within 40.66–40.70 MHz band N/A 2 §15.231(e) Conditions for intentional radiators to comply with periodic operation N/A 3 Notes: 1 The EUT is a battery powered device 2 The EUT transmits at 433 MHz range 3 The EUT is not periodically operated device Section 3 Equipment under test (EUT) details Report reference ID: 180662-1TRFWL Page 6 of 19 Section 3: Equipment under test (EUT) details 3.1 Sample information Receipt date July 7, 2011 Nemko sample ID number 1 3.2 EUT information Product name Remote Control Transceiver Model 7113A Serial number None FCC ID number EZSDEI7113 3.3 Technical information Operating frequency 433.9 MHz Modulation type OOK Occupied bandwidth 106…
