EZSDEI7141Security/Remote Control Transmitter

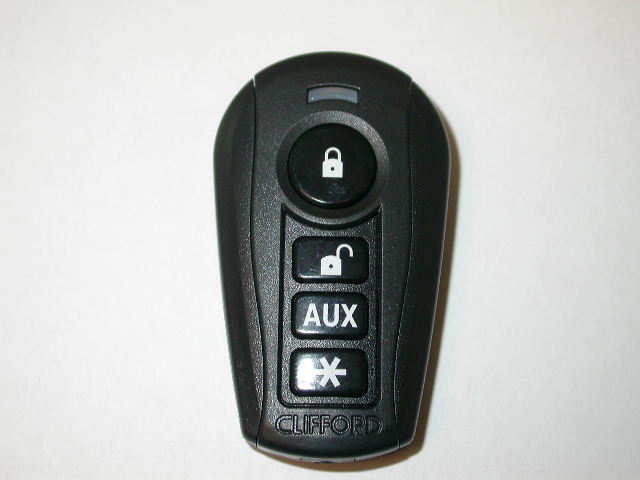

Compatible with the following systems: Python 502Python 702Python 902 Replacement Transmitter REPLACEMENT TRANSMITTERModel 7141P, 4 Button, Stealth Code RemoteThe following Learn Routine can be used to program this replacement transmitter to the system. In order to enter the Learn Routine, the system’s Valet/Program switch must be plugged into the BLUE port. 1. Door. Open a door. 2. Key. Turn the key to the ON position. 3. Choose. Within 5 seconds press and release the Valet/Program button the number of times corre-sponding to the desired channel listed below. Once you have selected the channel, press the Valet/Program button once more and hold it. The LED will flash the same number of times as the channel selected and the siren (if connected) will chirp to confirm the selected channel. Do NOT release the button. 4. Transmit. While holding the Valet/program button, press the button from the transmitter you wish to assign to that channel. The unit will chirp (if horn or siren connected) to confirm that the transmitter has been taught to the receiver 5. Release. Once the code is learned you can release the Valet/Program button and remove the key. Channel Number Function with remote start without remote start 1 7 Auto-learn Standard Configuration 2 8 Auto-learn Single-Button Configuration 11 9 Delete All Transmitters Standard Configuration A remote that has been programmed to an standard configuration will use separate buttons for arm and disarm similar to a factory keyless entry. Using the expanded configuration, the transmitter buttons are assigned to the following functions: Lock Icon Button The lock icon button arms and locks the system. Unlock Icon Button The unlock icon button disarms and unlocks the system. AUX Icon Buttons The AUX icon button operates channel 2. Siren (or Star) Icon Button The siren (or star) icon button operates Panic only. Unlock and Lock (or Star) Icon Buttons When pressed together, the lock and unlock (or star) icon buttons operate channel 3.P Button (on the back of the transmitter)Used to enter the Transmitter's programming menu. (See Security/ Remote Start manual for details). FCC/ID NoticeThis device complies with Part 15 of FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause unde-sired operation.CAUTION! Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device. MADE IN TAIWAN © 2006 Directed Electronics, Vista CA 92081 All rights reserved. P/N 7141P 10-06 P/N 7141P Python 1-Way Transmitter

1234 A B C D 4 321 D C B A 7141V PX A Title : Size:Number: Revis ion: Date Code: File: Sheet of Drwn By X:\ Devel opment\ 5574,4btn_434mHz TX\ SCH_PCB\ 4 Butt on\434TX.ddb - Documents\Bl ock Di agram\7141 Block 11 A Directed E lectronics Inc . One V iper Way Vi sta , CA 92081 Phone: 760-598-6200 Fax: 760-598-6400 Appd By Chkd By Date Date Date 433.92 MHz Bl ue LED BAT + ( Cl i p) BAT - (PCB) 6V (2 x 3V) SW2 SW1 EncoderRF Oscillator PCB Antenna M inas M inassi an 10/04/ 2006 SW3 SW4

Tuesday, October 10, 2006 TÜV America, Inc. 10040 Mesa Rim Road San Diego, CA 92121 Dear Sir or Madam: We, Directed Electronics Incorporated, hereby authorize TÜV Product Service (10040 Mesa Rim Road, San Diego, CA 92121, Tel. (619) 546-3999) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization expires on 10/10/07. Sincerely, Minas Minassian RF Engineering Manager Monday, October 09, 2006 Chief, Equipment Approval Services Federal Communications Commission P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics for EZSDEI7141. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Minas Minassian RF Engineering Manager

The EUT is operated by pressing a momentary switch. The switch activates the digital encoder. The digital encoder sends a Pulse Width Modulated data packet to the RF Oscillator section. The RF Oscillator section transmits the signal with an RF carrier at 433.92MHz via a PCB antenna.

Report No. SC603047-08 Page 1 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 MEASUREMENT AND TECHNICAL REPORT DEI 1 Viper Way Vista, CA 92083 DATE: 13 July 2006 This Report Concerns: Original Grant: X Class II Change: Equipment Type: Keyfob Transmitter, Model 7141 VPX Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X Company Name agrees to notify the Commission by: N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X* (*) FCC Part 15, Paragraph(s) 15.231(a), 15.231(b), 15.231(c); 15.35(c) Report Prepared by: TÜV AMERICA, INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 Fax: 858 546 0364 Report No. SC603047-08 Page 2 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 TABLE OF CONTENTS Pages 1.0 GENERAL INFORMATION 3 2.0 SYSTEM TEST CONFIGURATION 5 3.0 EQUIPMENT/DATA DEACTIVATION DUTY CYCLE RADIATED SPURIOUS EMISSIONS EMISSION BANDWIDTH 6-15 4.0 ATTESTATION STATEMENT 16 Report No. SC603047-08 Page 3 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.0 GENERAL INFORMATION 1.1 Product Description General Equipment Description EUT Description: Hand held keyfob transmitter for car alarm and convenience systems. Model No.: 7141VPX Serial No.: N/A Product Options: N/A Configurations to be tested: 1 EUT Specifications and Requirements Length : 2.28" Width: 1.34" Height: 0.51" Weight: 0.7oz Power Requirements Voltage: 6V (2 x CR2016) (If battery powered, make sure battery life is sufficient to complete testing.) # of Phases: N/A Typical Installation and/or Operating Environment Automotive EUT Power Cable: Not Applicable EUT Interface Ports and Cables: None EUT Software: N/A EUT Operating Modes to be Tested: Continuous modulated transmission EUT System Components Description Model # Serial # FCC ID # Keyfob 7141VPX N/A EZSDEI7141 Oscillator Frequencies Frequency Derived Frequency Component # / Location Description of Use 433.92MHz 433.92MHz Transmitter RF carrier Power Supply: N/A Power Line Filters: N/A Critical EMI Components (Capacitors, ferrites, etc.) : N/A Report No. SC603047-08 Page 4 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.2 Related Submittal Grant None 1.3 Tested System Details The FCC ID’s for all equipment, plus descriptions of all cables used in the tested system are: None 1.4 Test Methodology Purpose of Test: To demonstrate compliance with the following tests. SUMMARY Test Description Paragraph Number Pass/Fail/Summary Deactivation 15.231(a) Pass / See data records Duty Cycle 15.231(b)(2); 15.35(c); ANSI C63.4 Pass / -5.35 dB Radiated Spurious Emissions 15.231(b) / 15.205 Pass / 2.1 dB @ 1301.76 MHz Bandwidth 15.231(c) Pass / 140 kHz Testing was performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8-M1983. 1.5 Test Facility The open area test site and conducted measurement data were tested by: TÜV AMERICA, INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 Fax: 858 546 0364 The Test Site Data and performance comply with ANSI C63.4 and are registered with the FCC, 7435 Oakland Mills Road, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. SC603047-08 Page 5 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 2.0 SYSTEM TEST CONFIGURATION 2.1 Justification The EUT was initially tested for FCC emissions in the following configuration: See Test Setup Photos Exhibit 2.2 EUT Exercise Software None 2.3 Special Accessories None 2.4 Equipment Modifications None 2.5 Configuration of Test System See Test Setup Photos Exhibit Report No. SC603047-08 Page 6 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 3.0 EQUIPMENT DATA Test Conditions: DEACTIVATION: FCC Part 15.231(a) DUTY CYCLE: FCC Part 15.231(b); 15.35(c); ANSI C63.4, Clause 13.1.4.2 RADIATED SPURIOUS EMISISONS: FCC Part 15.231(b) / 15.250 EMISSION BANDWIDTH: FCC Part 15.231(c) The following measurements were performed at the San Diego Testing Facility: † - Test not applicable „ - Roof (Small Open Area Test Site) Test Equipment Used: Model No. Prop. No. Description Manufacturer Serial No. Date Cal’ed E4440A 7500 Spectrum Analyzer Hewlett Packard MY43362168 12/05 3146 6641 Log Periodic Antenna EMCO 106X 06/05 3115 6669 Double Ridge Antenna EMCO 9412-4364 08/05 FF6549-1 777 High Pass Filter Sage 004 Verified AMF-5D-010180-35- 10P 6786 Preamplifier Miteq 549460 Verified Remarks: One year calibration cycle for all test equipment and sites. Report No. SC603047-08 Page 7 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 FCC Part 15.231(a)(1) - Deactivation Report No. SC603047-08 Page 8 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 FCC Part 15.231(b)(2); 15.35(c); ANSI C63.4, Clause 13.1.4.2 – Duty Cycle Report No. SC603047-08 Page 9 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 FCC Part 15.231(b)(2); 15.35(c); ANSI C63.4, Clause 13.1.4.2 – Duty Cycle Report No. SC603047-08 Page 10 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 FCC Part 15.231(b)(2); 15.35(c); ANSI C63.4, Clause 13.1.4.2 – Duty Cycle Report No. SC603047-08 Page 11 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 FCC Part 15.231(b)…
