EZSDEI7151Security/Remote Control Transmitter

Voxx Electronics Corporation

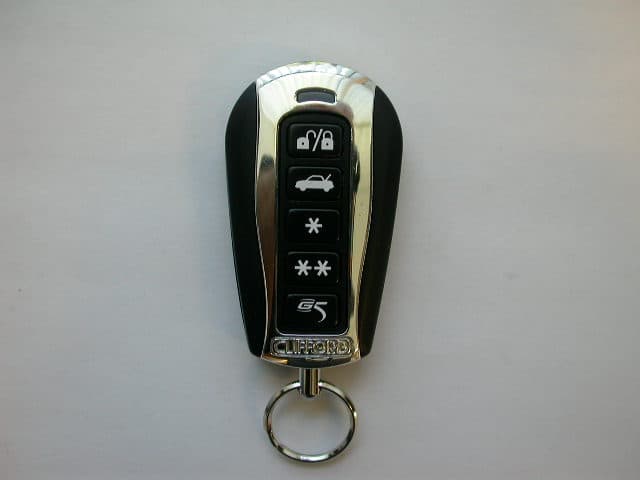

Security/Remote Control Transmitter - FCC ID EZSDEI7151 - Voxx Electronics Corporation
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Dec 25, 2006
Application Purpose
Original Equipment
Date of Application
Nov 09, 2006
Equipment Note
Security/Remote Control Transmitter
Frequency Range
433.92000000 - 433.92000000
Company
Voxx Electronics Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

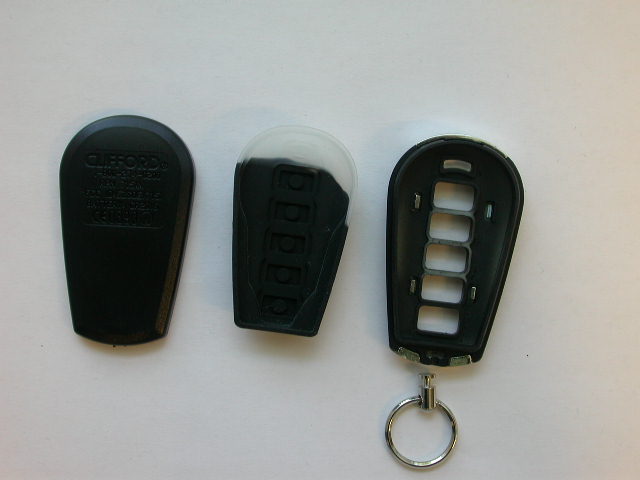

External Photos

↗

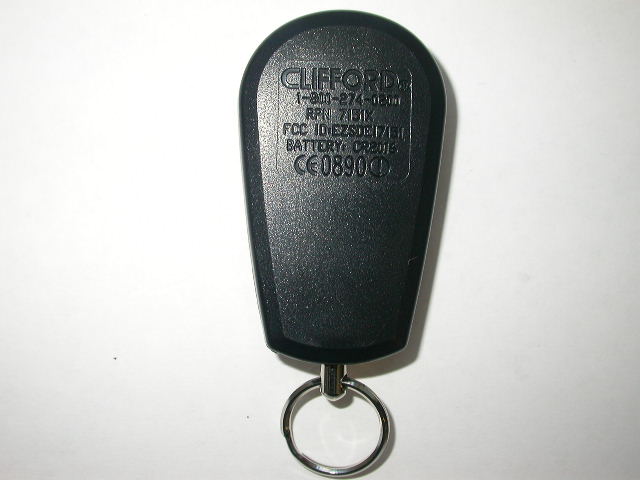

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

The Science of Security ™ Compatible with the following systems: 919562L Clifford Responder PN 7151X REPLACEMENT TRANSMITTER Model 7151X, 5 Button, Stealth Code Remote 11/06P/N 7151X MADE IN TAIWAN ©2006 Directed Electronics. Vista CA 92081 All rights reserved. 1. Ignition ON: Place the key into the ignition and turn to the ON position or start the engine. 2. Enter PIN number: Enter your PIN number using the Plainview 2 valet switch. Note: The Factory default PIN number is written on the back of the system owner’s guide. 3. Press/hold/release: Immediately PRESS and HOLD the * button until you hear one chirp and the Status LED turns on, then RELEASE the * button. 4. PRESS/RELEASE: PRESS and RELEASE the "blank" button once. Pause until you hear one chirp. 5. PRESS/RELEASE: PRESS and RELEASE the * button once. The siren will chirp once as you push the button. 6. TRANSMIT: Press the button on you new trans- mitter. The siren will chirp once to confirm it has received the transmission. 7. TRANSMIT again: Press the button a second time. The siren will chirp twice to confirm it has learned your new transmitter. 8. IGNITION OFF: Turn the ignition off and remove the key: The alarm will chirp three times to indicate exiting transmitter learn routine. 9. TEST TRANSMITTER: Press the button to verify that the transmitter is operating the alarm system. Note: This transmitter auto-learn routine is appli- cable to specific system/transmitter combinations, use the following reference guide or consult your local Clifford dealer for your particular application 904120 transmitter: GP1000T/Arrow 5/Arrow 3/Cyber 2 904065 transmitter: Arrow 5 /Arrow 3 / Cyber 2 904100 transmitter: Concept 100 / Concept 450/ Intelliguard 6000 / Cyber 4 904075 transmitter: All other systems FCC/ID Notice This device complies with Part 15 of FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause unde- sired operation. CAUTION! Changes or modifications not express- ly approved by the party responsible for compli- ance could void the user's authority to operate this device.

Block Diagram

1234 A B C D 4 321 D C B A 7151X A Title : Size:Number: Revis ion: Date Code: File: Sheet of Drwn By X:\ Devel opment\ 7180, G5 Transi ti on, New 5bt tn TX\ SCH_PCB\5 But ton\434TX_5BTN. ddb - Docum ent s\ Block Diagram 11 A Directed E lectronics Inc . One V iper Way Vi sta , CA 92081 Phone: 760-598-6200 Fax: 760-598-6400 Appd By Chkd By Date Date Date 433.92 MHz Bl ue LED BAT + ( Cl i p) BAT - (PCB) 6V (2 x 3V) SW2 SW1 EncoderRF Oscillator PCB Antenna M inas M inassi an 11/06/ 2006 SW3 SW4 SW5

Operational Description

The EUT is operated by pressing a momentary switch. The switch activates the digital encoder. The digital encoder sends a Pulse Width Modulated data packet to the RF Oscillator section. The RF Oscillator section transmits the signal with an RF carrier at 433.92MHz via a PCB antenna.

Test Report

Report No. SC605249-08 Page 1 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 MEASUREMENT AND TECHNICAL REPORT DEI 1 Viper Way Vista, CA 92083 DATE: 07 November 2005 This Report Concerns: Original Grant: X Class II Change: Equipment Type: Hand held keyfob transmitter, Model 7151X Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X Company Name agrees to notify the Commission by: N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X* (*) FCC Part 15, Paragraph(s) 15.205, 15.231(a), 15.231(b), and 15.231(c) Report Prepared by: TÜV AMERICA, INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 Fax: 858 546 0364 Report No. SC605249-08 Page 2 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 TABLE OF CONTENTS Pages 1.0 GENERAL INFORMATION 3 2.0 SYSTEM TEST CONFIGURATION 5 3.0 EQUIPMENT/DATA DEACTIVATION DUTY CYCLE RADIATED SPURIOUS EMISSIONS BANDWIDTH 6 4.0 ATTESTATION STATEMENT 16 Report No. SC605249-08 Page 3 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.0 GENERAL INFORMATION 1.1 Product Description General Equipment Description EUT Description: Hand held keyfob transmitter for car alarm and convenience systems. EUT Name: Hand held keyfob transmitter Model No.: 7151X Serial No.: N/A EUT Specifications and Requirements Length : 2.28" Width: 1.34" Height: 0.51" Weight: 0.7oz Power Requirements Voltage: 6V (2 x CR2016) (If battery powered, make sure battery life is sufficient to complete testing.) # of Phases: N/A Other Special Requirements: Not applicable Typical Installation and/or Operating Environment: Automotive EUT Power Cable: Not applicable EUT Interface Ports and Cables: None EUT Software. : Not applicable EUT Operating Modes to be Tested: Continuous modulated transmission EUT System Components Description Model # Serial # FCC ID # Keyfob 7151X N/A EZSDEI7151 Oscillator Frequencies Frequency Derived Frequency Component # / Location Description of Use 433.92MHz 433.92MHz Transmitter RF carrier Power Supply: Not applicable Power Line Filters: Not applicable Critical EMI Components (Capacitors, ferrites, etc.) : Not applicable System Configuration Block Diagram: No connections or setup, just the self contained key fob Report No. SC605249-08 Page 4 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.2 Related Submittal Grant None 1.3 Tested System Details The FCC ID’s for all equipment, plus descriptions of all cables used in the tested system are: None 1.4 Test Methodology Purpose of Test: To demonstrate compliance with the following tests. Test Description Paragraph Number Pass/Fail Deactivation 15.231(a) Pass Duty Cycle 15.231(b) Pass Radiated Spurious Emissions 15.231(b) / 15.205 Pass Bandwidth 15.231(c) Pass Testing was performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8-M1983. 1.5 Test Facility The open area test site and conducted measurement data were tested by: TÜV AMERICA, INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 Fax: 858 546 0364 The Test Site Data and performance comply with ANSI C63.4 and are registered with the FCC, 7435 Oakland Mills Road, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. SC605249-08 Page 5 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 2.0 SYSTEM TEST CONFIGURATION 2.1 Justification The EUT was initially tested for FCC emissions in the following configuration: See Test Setup Photos Exhibit 2.2 EUT Exercise Software None 2.3 Special Accessories None 2.4 Equipment Modifications None 2.5 Configuration of Test System See Test Setup Photos Exhibit Report No. SC605249-08 Page 6 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 3.0 EQUIPMENT/DATA Test Conditions: DEACTIVATION - FCC Part 15.231(a) RADIATED SPURIOUS EMISSIONS - FCC Part 15.231(a) DUTY CYCLE - FCC Part 15.231(a) BANDWIDTH - FCC Part 15.231(a) The following measurements were performed at the San Diego Testing Facility: † - Test not applicable „ - SR-3, Shielded Room, 12’ x 20’ x 8’, Metal Chamber „ - Roof (Small Open Area Test Site) Test Equipment Used: Model No. Prop. No. Description Manufacturer Serial No. Date Calibrated E4440A 6814 Spectrum Analyzer Agilent MY42510441 02/06 E4440A 7500 Spectrum Analyzer Agilent MY3362168 01/06 FF6549-1 783 900 MHz High Pass Filter Sage 008 Verified* 3115 6669 Horn Antenna Electro Mechanics Co. 9412-434 08/06 3146 6641 Log Periodic Antenna EMCO 1063 07/06 Remarks: One year calibration cycle for all test equipment and sites. (*) Verified Before Use. Report No. SC605249-08 Page 7 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 15.231(a)(1), Deactivation Report No. SC605249-08 Page 8 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 Report No. SC605249-08 Page 9 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 15.231(b)(2), Duty Cycle (pre-amble) Report No. SC605249-08 Page 10 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 15.231(b)(2), Duty Cycle (part of data wad) Report No. SC605249-08 Page 11 of 16 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 15.231(b)(2), Duty Cycle (part of data wad) Report No. SC605249-08 Page 12…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Joseph A. Santavicca(SVP of Engineering)
[email protected]248-307-3830Fax: 248-583-3014

Test Firm

TUV America Inc.Jim Owen
[email protected]8586781435Fax: 8585460364

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231433.92 MHz - 433.92 MHz-
