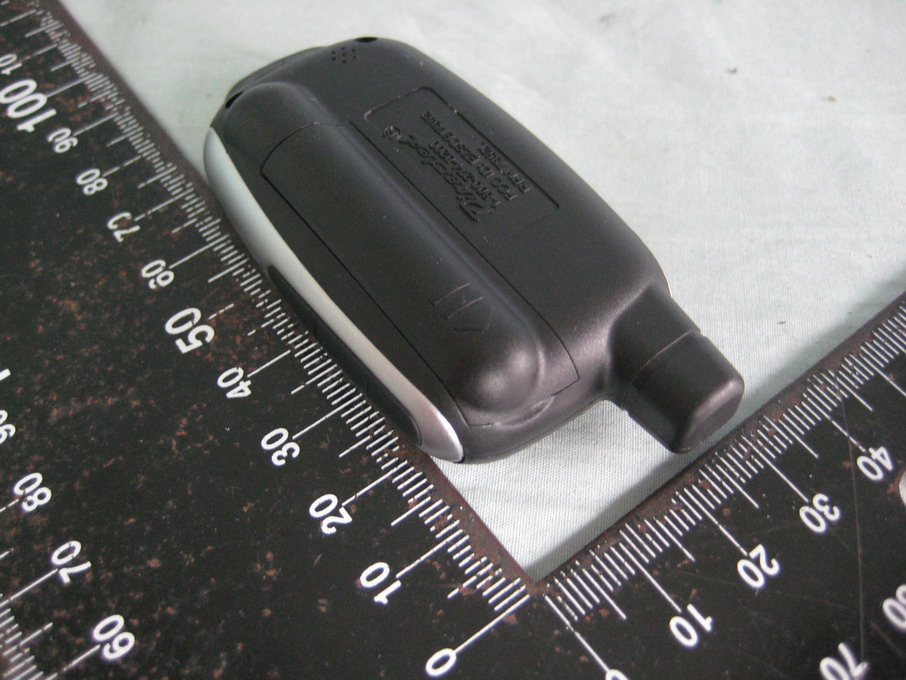

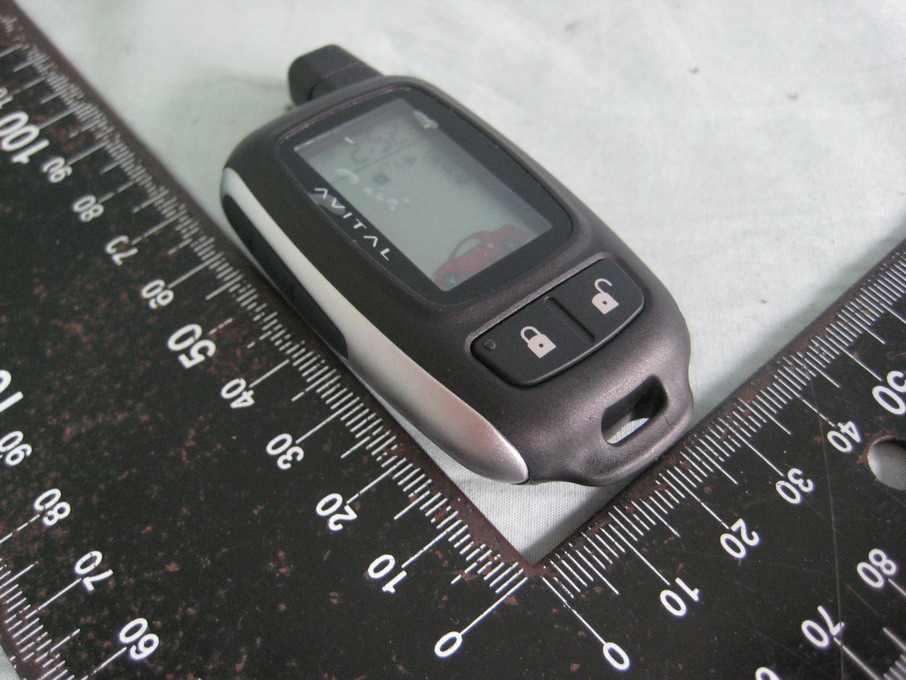

Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 23 of 27 Interocean EMC Technology Corp. Test Report 7 Photographs of EUT Front View of EUT Rear View of EUT Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 24 of 27 Interocean EMC Technology Corp. Test Report Label

Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 23 of 27 Interocean EMC Technology Corp. Test Report 7 Photographs of EUT Front View of EUT Rear View of EUT Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 24 of 27 Interocean EMC Technology Corp. Test Report Label

R SIDE KEYPAD：BLACK+MATT COATING ICON：COOL GRAY 5U L SIDE KEYPAD(for COSMETIC)： BLACK+MATT COATING NO ICON SILVER PRINT TOP KEYPAD：BLACK+MATT COATING ICON：COOL GRAY 5U METAL PLATE： SMOOTH with CHROME SOUND HOLE ENGRAVING RAISED=0.2mm CHANGE CORE(CAVE=0.3mm,MT-11010) BODY MATERIAL : PC/ABS MT-11010 0.2 A ± B ± C ± TOP/BOT HOUSING： NATURALBLACK 1-800-274-0200FCC ID: EZSDEI7352 RPN 7352L R

R SIDE KEYPAD：BLACK+MATT COATING ICON：COOL GRAY 5U L SIDE KEYPAD(for COSMETIC)： BLACK+MATT COATING NO ICON SILVER PRINT TOP KEYPAD：BLACK+MATT COATING ICON：COOL GRAY 5U METAL PLATE： SMOOTH with CHROME SOUND HOLE ENGRAVING RAISED=0.2mm CHANGE CORE(CAVE=0.3mm,MT-11010) BODY MATERIAL : PC/ABS MT-11010 0.2 A ± B ± C ± TOP/BOT HOUSING： NATURALBLACK 1-800-274-0200FCC ID: EZSDEI7352 RPN 7352L R

Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 25 of 27 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 26 of 27 Interocean EMC Technology Corp. Test Report Component View of PCB Board-1 Solder View of PCB Board-1 Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 27 of 27 Interocean EMC Technology Corp. Test Report Component View of PCB Board-2 Solder View of PCB Board-2

Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 25 of 27 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 26 of 27 Interocean EMC Technology Corp. Test Report Component View of PCB Board-1 Solder View of PCB Board-1 Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 27 of 27 Interocean EMC Technology Corp. Test Report Component View of PCB Board-2 Solder View of PCB Board-2

Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 1 of 27 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.231 TEST REPORT Product： Remote Control Trade Name： Avital Model Number： 7352L FCC ID： EZSDEI7352 Prepared for DEI Headquarters, Inc One Viper Way, Vista CA 92081 TEL.： +1 760 599 1331 FAX.： +1 760 598 6400 Prepared by Interocean EMC Technology Corp. No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark: The test report consists of 27 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test results in the report only to the tested sample. Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 2 of 27 Interocean EMC Technology Corp. Test Report Statement of Compliance Applicant: DEI Headquarters, Inc Manufacturer: Nutek Corporation Product: Remote Control Model No.: 7352L Tested Power Supply: 1.5Vdc Battery Date of Final Test: Jul. 25, 2011 Revision of Report: Rev. 00 Configuration of Measurements and Standards Used： FCC Rules and Regulations Part 15 Subpart C 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of IETC. Report Issued: 2011/08/05 Project Engineer: Approved: Elli Chang Jerry Liu Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 3 of 27 Interocean EMC Technology Corp. Test Report Table of Contents 1 Summary of Measurement 4 2 General Information 5 2.1 Description of Equipment Under Test 5 2.2 Details of tested peripheral equipment 6 2.3 Test Facility 7 3 Test specifications 8 3.1 Test standard 8 3.2 Operation mode 8 3.3 Test Equipment 9 4 Radiated emission test 10 4.1 Limits 10 4.2 Calculation of Average Factor 11 4.3 Configuration of Measurement 16 4.4 Test Procedure 16 4.5 Test Result 16 5 Emission bandwidth 19 5.1 Limits 19 5.2 Test Result 19 6 Photographs of Test 21 6.1 Radiated Emission Measurement 21 7 Photographs of EUT 23 Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 4 of 27 Interocean EMC Technology Corp. Test Report 1 Summary of Measurement Report Clause Test Parameter Reference Document CFR47 Part15 Results 4 Radiated Emission §15.231(b), 15.209 Pass 5 Emission bandwidth §15.231(c) Pass Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 5 of 27 Interocean EMC Technology Corp. Test Report 2 General Information 2.1 Description of Equipment Under Test Product : Remote Control Model Number : 7352L Applicant : DEI Headquarters, Inc One Viper Way, Vista CA 92081 Manufacturer : Nutek Corporation NO. 167, Lane 235, Bauchiau Rd., Shindian City, Taipei County 23145, Taiwan Power Supply : 1.5Vdc Battery Operating Frequency : 433.92MHz Channel Number : 1 channel Type of Modulation : ASK Antenna description : This device uses Spring antenna. The antenna is integral to the device, thereby meeting the requirement of FCC 15.203. Date of Test : Jul. 20 ~ 25, 2011 Additional Description : 1) The Model Number “7352L” is representative selected in the test and included in this report. 2) For more detail specification about EUT, please refer to the user’s manual. Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 6 of 27 Interocean EMC Technology Corp. Test Report 2.2 Details of tested peripheral equipment N/A Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 7 of 27 Interocean EMC Technology Corp. Test Report 2.3 Test Facility Site Description : OATS 2 Name of Firm : Interocean EMC Technology Corp. Company web : http://www.ietc.com.tw Site 1, 2, 3 Location : No. 5-2, Lin 1, Tin-Fu, Lin-Kou Dist., New Taipei City, Taiwan 244, R.O.C. Site Filing : z Federal Communication Commissions – USA Registration No.: 96399 (OATS 1 & 2) Registration No.: 518958 (OATS 3) Designation No.: TW1020 z Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Member No.: 1349 Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-1562 Registration No. (OATS 1): R-1040; G-274 Registration No. (OATS 2): R-1041 z Industry Canada (IC) OUR FILE: 46405-4437 Submission: 145171 Registration No. (OATS 1): Site# 4437A-1 Registration No. (OATS 2): Site# 4437A-2 Registration No. (OATS 3): Site# 4437A-3 Site Accreditation : z Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR22 SL2-R1-E-0026 for CNS13439 / CISPR13 SL2-R2-E-0026 for CNS13439 / CISPR13 SL2-A1-E-0026 for CNS13783-1 / CISPR14-1 SL2-L1-E-0026 for CNS 14115 / CISPR 15 z Taiwan Accreditation Foundation (TAF) Accrditation No.: 1113 z TüV NORD Certificate No: TNTW0801R-03 Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 8 of 27 Interocean EMC Technology Corp. Test Report 3 Test specifications 3.1 Test standard The EUT was performed according to FCC Part 15 Subpart C Section 15.231 procedure and setup followed by ANSI C63.4, 2003 requirements. 3.2 Operation mode By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “X axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this report The EUT was operated in continuous transmission mode during all of the tests. X axis mode Y axis mode Z axis mode Report No.：11A072003R-FR FCC ID： EZSDEI7352 Page 9 of 27 Interocean EMC Technology Corp. Test Report 3.3 Test Equipment Instrument ManufacturerModel Serial No. Next Cal. Date Spectrum Analyzer R&S FSP30 100002 2012/01/02 Preamplifier Agilent 8449B 3008A01434 2012/04/28 Horn Antenna Schwarzbeck BBHA 9120 9120D-583 2013/05/01 Horn Antenna COM-POWER AH-118 10081 2012/05/19 Cable HARBOUR 27478LL142 CBL22 2011/09/28 Cable HARBOUR 27478LL142 CBL23 2011/09/28 EMI Test Receiver R&S ESCS30 100127 2011/09/08 Biconical Antenna Schwarzbeck VHA 9103 2484 2011/10/08 Log Antenna Schwarz…
