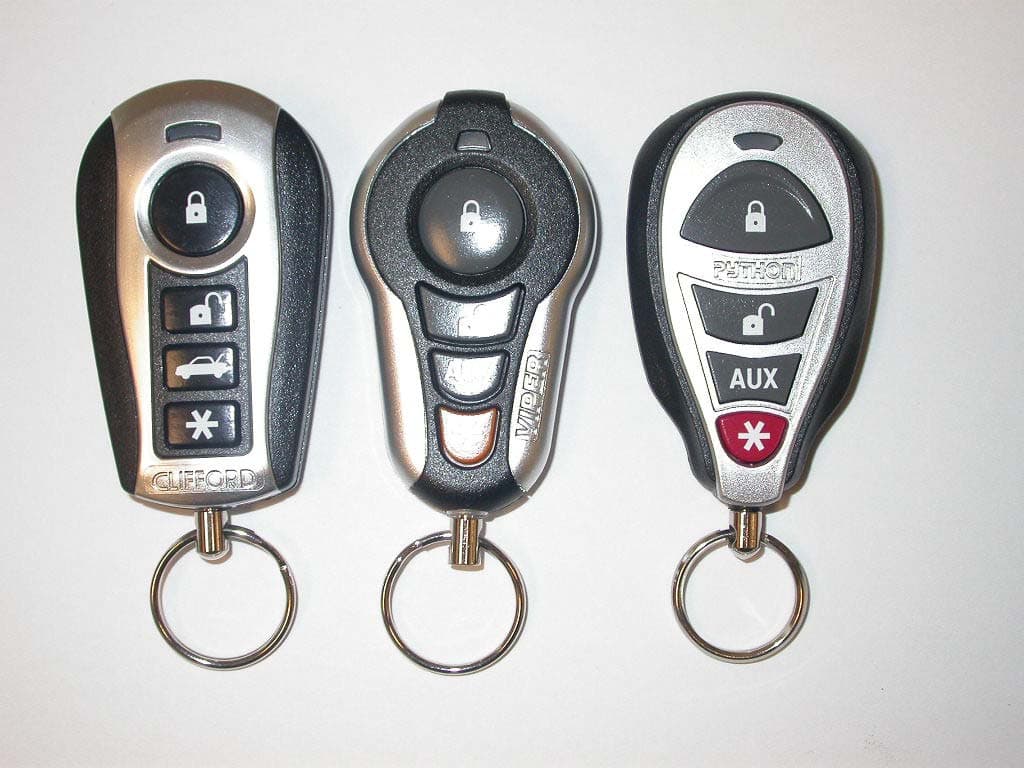

EZSDEI7642Vehicle Remote Control Transmitter

Compatible with the following systems: Python 950 Python 990 Replacement Transmitter Compatible with P/N 7642P Python Responder SST Companion Transmitter REPLACEMENT TRANSMITTER Model 7642P, 4 Button Companion Remote for Responder SST MADE IN CHINA ©2007 Directed Electronics, Vista CA 92081 All rights reserved. P/N 7642P 2007-07 The following Learn Routine can be used to program this replacement transmitter to the system. In order to enter the Learn Routine, the system’s Valet/Program switch must be plugged into the bLuE port. 1. Door. Open a door. 2. Key. Turn the key to the ON position. 3. Choose. Within 5 seconds press and release the Valet/Program button once. Press the Valet/ Program button once more and hold it. The LED will flash one time and the siren (if connected) will chirp to confirm the selected channel. Do NOT release the button. 4. Transmit. While holding the Valet/program button, press the arm button from the transmitter you wish to assign to that channel. The unit will chirp (if horn or siren connected) to confirm that the transmitter has been taught to the receiver 5. Release. Once the code is learned you can release the Valet/Program button and remove the key. Standard Configuration A remote that has been programmed to a standard configuration that will use separate buttons for arm and disarm similar to a factory keyless entry. using this configuration, the transmitter buttons are assigned to the following functions: Lock Icon Button The lock icon button arms and locks the system. Unlock Icon Button The unlock icon button disarms and unlocks the system. AUX Icon Buttons The AuX icon button operates channel 2. Star Icon Button The star icon button operates Remote Start. FCC/ID Notice This device complies with Part 15 of FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION! Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.

The Science of Security ™ Clifford 1-Way Transmitter PN 7642X Compatible with the following systems: 20.5X 50.5X Compatible with REPLACEMENT TRANSMITTER Model 7642X, 4 Button Companion Remote for Responder SST 2007-07 P/N 7642X MADE IN CHINA ©2007 Directed Electronics. Vista CA 92081 All rights reserved. The following Learn Routine can be used to program this replacement transmitter to the system. In order to enter the Learn Routine, the system’s Valet/Program switch must be plugged into the bLue port. 1. Door. Open a door. 2. Key. Turn the key to the ON position. 3. Choose. Within 5 seconds press and release the Valet/Program button once. Press the Valet/ Program button once more and hold it. The LeD will flash one time and the siren (if connected) will chirp to confirm the selected channel. Do NOT release the button. 4. Transmit. While holding the Valet/program button, press the arm button from the transmitter you wish to assign to that channel. The unit will chirp (if horn or siren connected) to confirm that the transmitter has been taught to the receiver 5. Release. Once the code is learned you can release the Valet/Program button and remove the key. Standard Configuration A remote that has been programmed to a stan- dard configuration that will use separate buttons for arm and disarm similar to a factory keyless entry. using this configuration, the transmitter buttons are assigned to the following functions: Lock Icon Button The lock icon button arms and locks the system. Unlock Icon Button The unlock icon button disarms and unlocks the system. AUX Icon Buttons The AuX icon button operates channel 2. Star Icon Button The star icon button operates Remote Start. FCC/ID Notice This device complies with Part 15 of FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired opera- tion. CAUTION! Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.

Thursday, July 26, 2007 Chief, Equipment Approval Services Federal Communications Commission P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics Block diagram Operational description Parts List All the above for EZSDEI7642 The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Minas Minassian RF Engineering Manager

Thursday, August 02, 2007 Chief, Equipment Approval Services Federal Communications Commission P.O. Box 358315 Pittsburgh, PA 15251-5315 Dear Sir or Madam: We, Directed Electronics Inc. Headquarters, inc. hereby authorize NEMKO USA, Inc. (11696 Sorrento Valley Rd., Suite F, San Diego, CA 92121, (858) 755-5585) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization expires on 8/02/08. Sincerely, Minas Minassian RF Engineering Manager

FCC ID: EZSDEI7642 IC: 1513A-7642 FCC ID: EZSDEI7642 IC: 1513A-7642

FCC ID: EZSDEI7642 IC: 1513A-7642

FCC ID: EZSDEI7642 IC: 1513A-7642 FCC ID: EZSDEI7642 IC: 1513A-7642

Nemko USA, Inc. 11696 Sorrento Valley Rd., Suite F San Diego, CA 92121-1024 Phone (858) 755-5525 Fax (858) 452-1810 FCC Part 15 Subpart C, 15.247 : 02/08/2007 Certification Test Report: 2007 076353-2 FCC Project number: 6353-2 Equipment Under Test (EUT): Keyfob Model: 7642V, 7642P, 7642X FCC ID: EZSDEI7642 IC: 1513A-7642 In Accordance With: FCC Part 15 Subpart C, 15.247 RSS-210, Issue 6 September 2005 For: Directed Electronics, Inc. One Viper Way Vista, CA 92081 USA Tested By: Nemko USA Inc. 11696 Sorrento Valley Road, Suite F San Diego, CA 92121 Authorized By: FR Fleury FR Fleury, Manager Date: J ULY 30, 2007 Total Number of Pages: 34 Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 IC: 1513A-7642 Report Number: 2007 076353-2 FCC FCC ID: EZSDEI7642 Specification: FCC Part 15 Subpart C, 15.247 Page 2 of 34 2.1. Section 1. Summary of Test Results General All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15; Subpart C and RSS-210, Issue 6 September 2005. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC and IC. The assessment summary is as follows: Apparatus Assessed: Keyfob 7642V, 7642P, 7642X Specifications: FCC Part 15 Subpart C, 15.247 RSS-210, Issue 6 September 2005 Date Received in Laboratory: July 20, 2007 Compliance Status: Complies Exclusions: None Non-compliances: None Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 IC: 1513A-7642 Report Number: 2007 076353-2 FCC FCC ID: EZSDEI7642 Specification: FCC Part 15 Subpart C, 15.247 Page 3 of 34 Report Release History: REVISION DATE COMMENTS - July 30, 2007 Prepared By: Alan Laudani - July 30, 2007 Initial Release: F. Fleury Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko USA Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. TESTED BY: Date: July 30, 2007 Alan Laudani, EMC Test Engineer Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 IC: 1513A-7642 Report Number: 2007 076353-2 FCC FCC ID: EZSDEI7642 Specification: FCC Part 15 Subpart C, 15.247 Page 4 of 34 TABLE OF CONTENTS 2.1. Section 1. Summary of Test Results................................................................ 2 Section 2: Equipment Under Test ................................................................................ 5 2.1 Product Identification........................................................................................................................ 5 2.2 Technical Specifications of the EUT ................................................................................................ 5 Section 3: Test Conditions ........................................................................................... 6 3.1 Specifications ................................................................................................................................... 6 3.2 Deviations From Laboratory Test Procedures ................................................................................. 6 3.3 Test Environment ............................................................................................................................. 6 3.4 Test Equipment ................................................................................................................................ 7 Section 4: Observations ............................................................................................... 8 4.1 Modifications Performed During Assessment .................................................................................. 8 4.2 Record Of Technical Judgements.................................................................................................... 8 4.3 EUT Parameters Affecting Compliance ........................................................................................... 8 4.4 Test Deleted ..................................................................................................................................... 8 4.5 Additional Observations ................................................................................................................... 8 Section 5: Results Summary ........................................................................................ 9 5.1 Test Results ..................................................................................................................................... 9 Appendix A: Test Results........................................................................................... 10 20 dB Bandwidth ......................................................................................................................................... 10 Time of Occupancy ..................................................................................................................................... 14 Channel Separation .................................................................................................................................... 17 Frequency Plan ........................................................…
