EZSDEI904200Security/Remote Control Transmitter

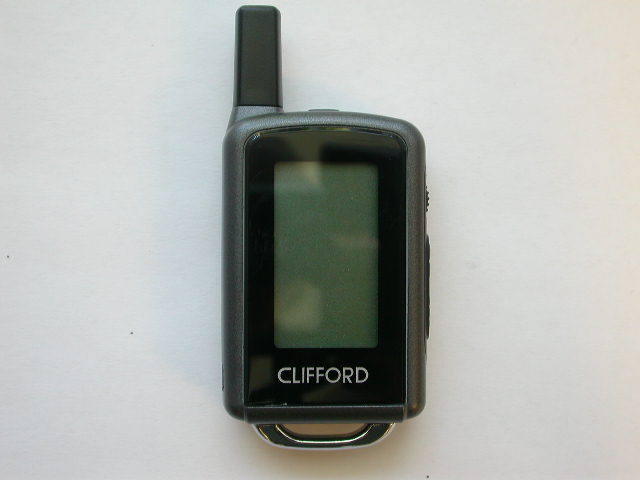

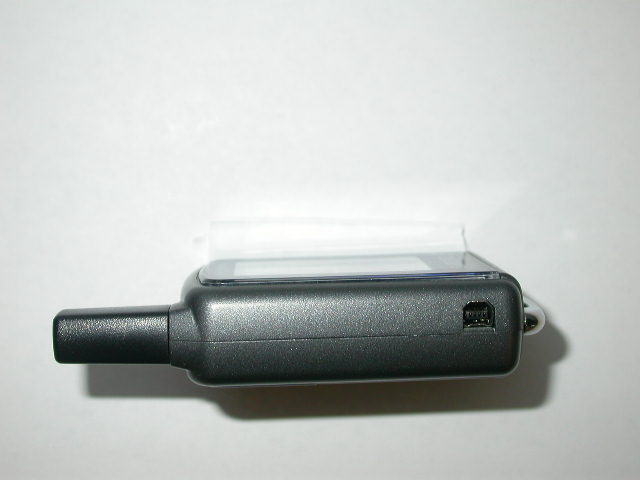

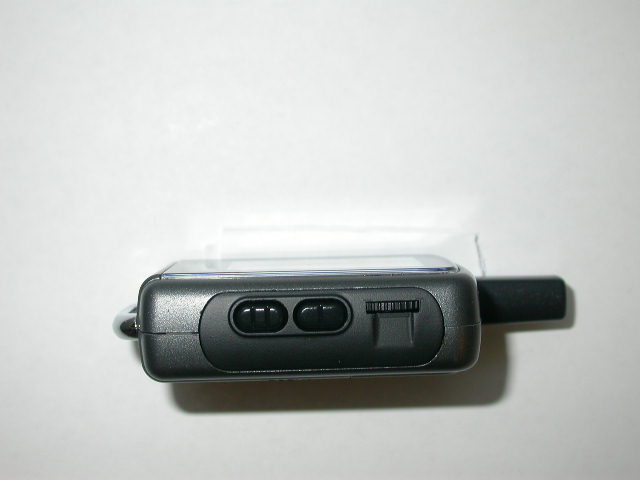

The Science of Security ™ Clifford Responder PN 904200 Compatible with the following systems: 20.5X 50.5X REPLACEMENT TRANSMITTER Model 904200, 4 Button Responder, SST, Stealth Code Remote 11/06 P/N 904200 MADE IN TAIWAN ©2006 Directed Electronics. Vista CA 92081 All rights reserved. 1. Ignition ON: Place the key into the ignition and turn to the ON position or start the engine. 2. Enter PIN number: Enter your PIN number using the Plainview 2 valet switch. Note: The Factory default PIN number is written on the back of the system owner’s guide. 3. Press/hold/release: Immediately PRESS and HOLD the * button until you hear one chirp and the Status LED turns on, then RELEASE the * button. 4. PRESS/RELEASE: PRESS and RELEASE the "blank" button once. Pause until you hear one chirp. 5. PRESS/RELEASE: PRESS and RELEASE the * button once. The siren will chirp once as you push the button. 6. TRANSMIT: Press the button on you new trans- mitter. The siren will chirp once to confirm it has received the transmission. 7. TRANSMIT again: Press the button a second time. The siren will chirp twice to confirm it has learned your new transmitter. 8. IGNITION OFF: Turn the ignition off and remove the key: The alarm will chirp three times to indicate exiting transmitter learn routine. 9. TEST TRANSMITTER: Press the button to verify that the transmitter is operating the alarm system. Note: This transmitter auto-learn routine is appli- cable to specific system/transmitter combinations, use the following reference guide or consult your local Clifford dealer for your particular application 904120 transmitter: GP1000T/Arrow 5/Arrow 3/Cyber 2 904065 transmitter: Arrow 5 /Arrow 3 / Cyber 2 904100 transmitter: Concept 100 / Concept 450/ Intelliguard 6000 / Cyber 4 904075 transmitter: All other systems FCC/ID Notice This device complies with Part 15 of FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. HHU, hand held unit To satisfy FCC RF exposure compliance require- ments, this device should be used in hand-held, hand operated configurations only. The device and its antenna must maintain a separation distance of 20 cm or more from the person’s body, except for the hand and wrists, to satisfy RF exposure compliance. This device is designed to be used in a person’s hands and its operating configurations do not support normal transmissions while it is carried in pockets or holsters next to a persons’ body. CAUTION! Changes or modifications not express- ly approved by the party responsible for compli- ance could void the user's authority to operate this device.

Report No. SC606222-08 Page 1 of 81 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 MEASUREMENT AND TECHNICAL REPORT DEI HEADQUARTERS, INC. 1 Viper Way Vista, CA 92083 DATE: 06 November 2006 This Report Concerns: Original Grant: X Class II Change: Equipment Type: Menu Transmitter, Model 904200 Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X Company Name agrees to notify the Commission by: N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X 1 ( 1 ) FCC Part 15, Paragraph(s) 15.247(a), 15.247(b), 15.247(c), 15.107(a) 2 , 15.109(a), and 15.209(a) ( 1 ) Industry Canada RSS-Gen sections 4 and 7; RSS 210, Annexes 2 and 8. Report Prepared by: TÜV AMERICA, INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 Fax: 858 546 0364 ( 2 ) Pages 59 through 80 reference SC601231 test report. This data was tested in June 2006. Remaining tests were performed in November 2006. Report No. SC606222-08 Page 2 of 81 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 TABLE OF CONTENTS Pages 1.0 GENERAL INFORMATION 3 2.0 SYSTEM TEST CONFIGURATION 6 3.0 EQUIPMENT/DATA BANDWIDTH CHANNEL SEPARATION TIME OF OCCUPANCY NUMBER OF HOPPING CHANNELS PEAK OUTPUT POWER BANDEDGE RF CONDUCTED EMISSIONS RADIATED SPURIOUS EMISSIONS RECEIVER SPURIOUS EMISSIONS CONDUCTED EMISSIONS 7 4.0 ATTESTATION STATEMENT 81 Report No. SC606222-08 Page 3 of 81 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.0 GENERAL INFORMATION 15.17 Product Description General Equipment Description EUT Description: Hand held keyfob transceiver for car alarm and convenience systems. EUT Name: Menu Transmitter Model No.: 904200 Serial No.: N/A EUT Specifications and Requirements Length : 3.42” Width: 1.58” Height: 0.76” Weight: N/A Power Requirements: Voltage: 3.7V Li-Ion (If battery powered, make sure battery life is sufficient to complete testing.) # of Phases: N/A Typical Installation and/or Operating Environment: Automotive EUT Power Cable: Not applicable EUT Interface Ports and Cables: Not applicable EUT Software: Not applicable EUT Operating Modes to be Tested: 1. Continuous modulated transmission 2. The System is a 25 channel frequency hopping design and is intended for use under FCC part 15.247 EUT System Components: Description Model # Serial # FCC ID # Keyfob 904200 N/A EZSDEI904200 Oscillator Frequencies Frequency Derived Frequency Component # / Location Description of Use 16MHz 909.546MHz to 918.780MHz Transmitter RF carrier 8MHz MCU clock 32KHz For low power polling mode timer Power Supply Manufacturer Model # Serial # Type Semdicar Technology Corporation TC-FU-USB Switched-mode: (Frequency) Power Line Filters: Not applicable Critical EMI Components (Capacitors, ferrites, etc.) : Not applicable System Configuration Block Diagram: No connections or setup, just the self contained keyfob Report No. SC606222-08 Page 4 of 81 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.2 Related Submittal Grant None 15.17 Tested System Details The FCC ID’s for all equipment, plus descriptions of all cables used in the tested system are: None 15.17 Test Methodology Purpose of Test: To demonstrate compliance with the following tests. Test Description Paragraph Number Pass/Fail Bandwidth 15.247(a)(1)(i) RSS Gen 4.4.1 Pass Channel Separation 15.247(a)(1) RSS 210, Annex 8, A8.1 Pass Time of Occupancy 15.247(a)(1)(i) RSS Gen 4.3 Pass Number of Hopping Channels 15.247(a)(1)(i) RSS 210, Annex 8, A8.1 Pass Peak Output Power 15.247(b)(1) RSS Gen 4.6; RSS 210 Annex 8, A8.4 Pass Bandedge 15.247(c) RSS Gen 4.4.2 Pass RF Conducted Emissions 15.247(c) RSS Gen 7.2.2 Pass Radiated Spurious Emissions – Restricted Bands (1GHz to 25GHz) 15.247(c)/15.209(a) RSS Gen 7.2.3.2; RSS 210, Annex 2, A2.9 Pass Radiated Emissions (30-1000 MHz) 15.109(a) RSS Gen 7.2 Pass Conducted Emissions 15.107(a) RSS-Gen 7.2 Pass Testing was performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8-M1983. Report No. SC606222-08 Page 5 of 81 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.5 Test Facility The open area test site and conducted measurement data were tested by: TÜV AMERICA, INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 Fax: 858 546 0364 The Test Site Data and performance comply with ANSI C63.4 and are registered with the FCC, 7435 Oakland Mills Road, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. SC606222-08 Page 6 of 81 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 2.0 SYSTEM TEST CONFIGURATION 2.5 Justification The EUT was initially tested for FCC emissions in the following configuration: See Test Setup Photos Exhibit 2.2 EUT Exercise Software None 2.3 Special Accessories None 2.5 Equipment Modifications None 2.5 Configuration of Test System See Test Setup Photos Exhibit Report No. SC606222-08 Page 7 of 81 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 3.0 EQUIPMENT/DATA Test Conditions: BANDWIDTH: FCC Part 15.247(a)(1)(i) and RSS-Gen 4.4.1 CHANNEL SEPARATION: FCC 15.247(a)(1) and RSS-210, Annex 8.1 TIME OF OCCUPANCY: FCC Part 15.247(a)(1)(i) and RSS-Gen 4.3 NUMBER OF HOPPING CHANNELS: FCC Part 15.247(a)(1)(i) and RSS-210, Annex 8.1 PEAK OUTPUT POWER: FCC Part 15.247(b)(1) and RSS-Gen 4.6 BANDEDGE: FCC Part 15.247(c) and RSS-Gen 4.4.2 RF CONDUCTED EMISSIONS: FCC Part 15.247(c) and RSS-Gen 7.2.2 RADIATED SPURIOUS EMISSIONS: FCC Part 15.209(…
