ADCP-75-192 Preliminary Issue D October 2005 Digivance    CXD Multi-Band Distributed Antenna System Installation and Operation Manual 1343155 Rev 1 ADCP-75-192 Preliminary Issue D October 2005 Digivance    CXD Multi-Band Distributed Antenna System Installation and Operation Manual 1343155 Rev 1 ADCP-75-192 • Issue D • October 2005 • Preface Page ii COPYRIGHT  2005, ADC Telecommunications, Inc. All Rights Reserved Printed in the U.S.A. REVISION HISTORY ISSUE DATE REASON FOR CHANGE Issue D 10/2005 Original release LIST OF CHANGES The technical changes incorporated into this issue are listed below. SECTION IDENTIFIER DESCRIPTION OF CHANGE - - Original release TRADEMARK INFORMATION ADC and Digivance are registered trademarks of ADC Telecommunications, Inc. DISCLAIMER OF LIABILITY Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. This publication may be verified at any time by contacting ADC’s Technical Assistance Center at 1-800-366-3891, extension 73476 (in U.S.A. or Canada) or 952-917-3476 (outside U.S.A. and Canada), or by e-mail to [email protected]. ADC Telecommunications, Inc. P.O. Box 1101, Minneapolis, Minnesota 55440-1101 In U.S.A. and Canada: 1-800-366-3891 Outside U.S.A. and Canada: (952) 917-3475 Fax: (952) 917-1717 ADCP-75-192 • Issue D • October 2005 • Preface Page iii  2005, ADC Telecommunications, Inc. TABLE OF CONTENTS Content Page FRONT MATTER ABOUT THIS MANUAL.......................................................................v RELATED PUBLICATIONS.....................................................................v ADMONISHMENTS........................................................................vi GENERAL SAFETY PRECAUTIONS...............................................................vi SAVE WORKING DISTANCES..................................................................vii COMPLIANCE STATEMENT..................................................................viii ACRONYMS AND ABBREVIATIONS.............................................................viii SECTION 1 OVERVIEW 1 INTRODUCTION....................................................................1-1 2 DIGIVANCE CXD SYSTEM OVERVIEW......................................................1-1 2.1 Basic Components.............................................................1-2 2.2 General Description............................................................1-2 2.3 Local Service Interface..........................................................1-3 2.4 Remote NOC Interface..........................................................1-4 3 SYSTEM FUNCTIONS AND FEATURES......................................................1-4 3.1 Fiber Optic Transport...........................................................1-4 3.2 Control and Monitoring Software...................................................1-5 3.3 Fault Detection and Alarm Reporting.................................................1-5 3.4 Powering...................................................................1-5 3.5 Equipment Mounting and Configuration...............................................1-6 3.6 RAN Subsystem Assemblies......................................................1-6 3.7 HUB Subsystem Assemblies......................................................1-9 3.8 Communication Interfaces.......................................................1-12 SECTION 2 DESCRIPTION 1 INTRODUCTION....................................................................2-1 1.1 Digital Chassis...............................................................2-1 1.2 RF Chassis..................................................................2-3 1.3 Radio Access Node............................................................2-4 2 ELEMENTS COMMON TO HUB AND RAN....................................................2-5 2.1 CPU.......................................................................2-5 2.2 STF2......................................................................2-7 2.3 SIF.......................................................................2-9 3 RAN...........................................................................2-11 3.1 RDC.....................................................................2-11 3.2 RUC.....................................................................2-13 3.3 RF Assembly Module..........................................................2-14 ADCP-75-192 • Issue D • October 2005 • Preface Page iv  2005, ADC Telecommunications, Inc. TABLE OF CONTENTS Content Page 3.4 CompactPCI Power Supply.......................................................2-16 4 HUB............................................................................2-16 4.1 Full Band HDC (FBHDC) ........................................................2-16 4.2 Forward Simulcast Module, FSC...................................................2-18 4.3 Hub Upconverter Module, HUC....................................................2-20 4.4 Reverse Simulcast Module, RSC...................................................2-21 4.5 Hub Reference Module, HRM.....................................................2-23 4.6 Ethernet Switch..............................................................2-25 4.7 BTS Interface Module, BIM.......................................................2-25 4.8 Attenuator Shelf .............................................................2-26 4.9 Specifications...............................................................2-27 SECTION 3 NETWORK AND SYSTEM INSTALLATION AND SETUP 1 INTRODUCTION...............................…

Text truncated - open the document above for the full version.

Attn: Director of Certification

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 2, 2005 RE: FCC ID: F8I--DCX8001A_ATCB002890 Attention: Joel Schneider I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the manual and operational description describe this device as a multi-band device operating in the 850MHz and 1900MHz bands. Please note that this application is only for the 850MHz system. Please note that the manual and other documentation does not clearly separate the 850MHz from the 1900MHz versions. Please explain and please clearly identify the separate systems. Please confirm that this device does not have capability of operating at 1900MHz. If the device does operate in the 1900MHz band, please correct the 731 and please provide all appropriate test data. If this device does not operate in the 1900MHz band, then the manual and other documentation must appropriately address this specific device. 2. Please note that the manual also indicates that this device operates in the Part 90 iDEN service. Please explain and please clearly identify this device and the FCC rules under which it operates.If the device does operate in the iDEN service, please provide a corrected 731 and all appropriate test data. If this device does not operate in the iDEN service, then the manual and othe documentation must appropriately address this specific device. 3. Please note that other documentation indicates CDMA2000. If the CDMA2000 modulation is for the 900MHz EU version, please clearly specify. Alternately additional testing as mentioned in items 2,4, 6 and 7 below may be indicated. 4. Please note that section 7.1 of the manual indicates that AMPS is also an available modulation. If AMPS is a modulation type, please provide that necessary data for AMPS mode; alternately, please explain how the provided data meets AMPS requirements. 5. Please note that the output power for each type emissions designator is required to be on the grant. Please note that only a CW signal was used to measure output power for this device. While this may be OK for FM, it is not appropriate for GSM or CDMA type modulations. Please provide the conducted antenna terminal output powers for all emissions types. 6. As the device accepts multiple inputs, please clarify if the power out of the device listed on the 731 is a composite of multichannels or per carrier. 7. The operational description indicates that this device works not only with conventional CDMA but has CDMA200 capabilities. Please note that CDMA2000 has both 1x EV-DO and cdma2000 3x standards. Cdma2000 3x is part of what the ITU has termed IMT-2000 CDMA MC (Multi Carrier). It uses less that 5 MHz spectrum (3x 1.25 MHz channels) to give speeds of over 2 Mbps. Cdma2000 1x with lower data speed is considered to be a 2.5G technology Please note that the type CDMA2000 modulation scheme used in this device has not been defined. Please note also that the device in question needs to provide the appropriate CDMA200 occupied bandwidths commensurate with the modulation types available in in the device. Please provide the appropriate CDMA2000 occupied bandwidth plots. Alternately, this device would not be approved for CDMA2000 operation and the operational description would have to be changed to remove this option. Please advise as to how the applicant wishes to proceed. 8. Please note that the FCC has designated F9W as the appropriate emissions designator for CDMA and W-CDMA. Please correct the 731 to reflect the accepted emissions designators. 9. Please note that band edge compliance and out of band compliance must be shown for each emissions type. Please note that CW is only acceptable for FM modulation and is not acceptable for GSM or CDMA type modulations. Please provide the appropriate band edge compliance data for the type modulations requested. 10. Please note that as long as there are no radiated spurious emissions within 20dB of the limit field strength data from an OATS can be used to justify not making antenna substitution measurements. Please note that the radiated spurious emissions test data on pages 31 through 46 of the test z Page 2 November 2, 2005 report are ambiguous as they do not provide information as to the modulation type used. Please also note that all modulation types must be tested. Please provide measured data for all modulation types used in the device. If any emissions from the OATS field strength data is within 20dB of the limit (-13dBm) please provide antenna substitution data for those emissions in accordance with TIA603. 11. Please note that the email form the applicant stated that this system was to be used with a maximum antenna gain of 5.5dBi. Please note that the MPE reports state that the maximum gain is 17.87dBi and 20.87dBi. Please explain and please provide an MPE report that represents the actual device and antenna. 12. Please note that compliance is unclear on the conducted emissions plots as the trace from 15GHz to 20GHz appears to frequencies that are over the limit in places. It is not possible to tell if these are signals from the EUT and thus making the EUT is non-compliant, or if these signals are actually noise floor. Please clearly show compliance of the EUT at these frequencies Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 26, 2005 RE: ADC Telecommunications FCC ID: F8I-DCX8001A I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The RF Pout listed on Form 731 does not match the maximum noted in either the Test Report or the RF Exposure evaluation. Please correct. 2.) FYI: I await your photos, schematics and parts list. 3.) Please note that all Licensed radio transmitters must include a Tune Up procedure. If no user or field serviceable controls are available, then a description of how the equipment is adjusted in the factory is required. FCC is concerned with how RF power and frequency will be maintained and controlled. If desired, this Tune Up procedure can be held Confidential, but must be included on the Confidentiality Request letter William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

TÜV America Inc. Phone: (651) 631-2487 1775 Old Highway 8 NW Fax: (651) 638-0285 Suite 104 E-mail: [email protected] New Brighton, MN 55112 www.TUVamerica.com Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of TÜV SÜD Group. 26 October 2005 American TCB 6731 Whittier Avenue McLean VA 22101 RE: ADC Telecommunications Response to 10252005 Comments FCC ID: F8I-DCX8001A In response to your comments on the above submittal from October 25, 2005. 1.) The RF Pout listed on Form 731 does not match the maximum noted in either the Test Report or the RF Exposure evaluation. Please correct. RESPONSE: We have corrected the error on the RF Exposure Letter (and uploaded) so now both the RF Exposure letter and Form 731 indicate 39.13 dBm (8.18 Watts). The Test Report shows 40.47 dBm (11.14 Watts). The reason the FCC report for EIRP (Effective Isotropic Radiated Power) states 40.47 is because the FCC tests the output power with a single carrier through the system in a "max input = max output" format. The number used in the RF Exposure letter and Form 731 was taken from the Industry Canada method, per RSS-131 Section 4.3 (noted below...numbers are example only). Set the two generator frequencies f1 and f2 such that they and their third-order intermodulation product frequencies, f3= 2f1-f2 and f4 = 2f2 - f1, are all within the passband of the DUT. For enhancers rated 500 watts or less: Raise the input level to the DUT until the greater level of the intermodulation products at the enhancer output terminals, Po3 or Po4, equals -43 dBW. Record all signal levels and their frequencies. Calculate the mean output power (Pmean) under this testing condition using Pmean = Po1 + 3 dB. Pmean = +43.13 dBm or 20.56 Watts 2.) FYI: I await your photos, schematics and parts list. RESPONSE: Photo, Schematic, and Parts List files have been uploaded. 3.) Please note that all Licensed radio transmitters must include a Tune Up procedure. If no user or field serviceable controls are available, then a description of how the equipment is adjusted in the factory is required. FCC is concerned with how RF power and frequency will be maintained and controlled. If desired, this Tune Up procedure can be held Confidential, but must be included on the Confidentiality Request letter RESPONSE: Our apologies. This was overlooked on the initial upload. The Tune-Up Procedure information has now been uploaded. Please let us know if further information is required. Jolene Murphy Senior Technical Writer TÜV America Inc Tel: 651 638 0271 Fax: 651 638 0285 [email protected]

TÜV America Inc. Phone: (651) 631-2487 1775 Old Highway 8 NW Fax: (651) 638-0285 Suite 104 E-mail: [email protected] New Brighton, MN 55112 www.TUVamerica.com Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of TÜV SÜD Group. 01 November 2005 American TCB 6731 Whittier Avenue McLean VA 22101 RE: ADC Telecommunications Response to 10282005 Comments FCC ID: F8I-DCX8001A In response to your comments on the above submittal from October 28, 2005. 1. Please note that the manual and operational description describe this device as a multi-band device operating in the 850MHz and 1900MHz bands. Please note that this application is only for the 850MHz system. Please note that the manual and other documentation does not clearly separate the 850MHz from the 1900MHz versions. Please explain and please clearly identify the separate systems. Please confirm that this device does not have capability of operating at 1900MHz. If the device does operate in the 1900MHz band, please correct the 731 and please provide all appropriate test data. If this device does not operate in the 1900MHz band, then the manual and other documentation must appropriately address this specific device. RESPONSE: New Theory of Operation is being submitted. The following statement has been added to the manual: Each respective SMR, Cellular, and PCS system in this CXD platform is singularly FCC and IC approved. Information in this manual explains applicable portions of these systems. 2. Please note that the manual also indicates that this device operates in the Part 90 iDEN service. Please explain and please clearly identify this device and the FCC rules under which it operates.If the device does operate in the iDEN service, please provide a corrected 731 and all appropriate test data. If this device does not operate in the iDEN service, then the manual and other documentation must appropriately address this specific device. RESPONSE: The top-level product that is sold to the customer to operate within the various frequency blocks pertaining to the systems respect approvals. Each system is approved specifically, in this case we approving the Cellular 800 MHz (869-880 MHz) system. A separate approval for the PCS 1900 MHz (1930-1965) is in progress as well. Each system is approved separately, though documentation has been combined for the ease of customer convenience. The Part 90 system has previously been approved and is not applicable to this submittal. The following statement has been added to the manual: Each respective SMR, Cellular, and PCS system in this CXD platform is singularly FCC and IC approved. Information in this manual explains applicable portions of these systems. 3. Please note that other documentation indicates CDMA2000. If the CDMA2000 modulation is for the 900MHz EU version, please clearly specify. Alternately additional testing as mentioned in items 2,4, 6 and 7 below may be indicated. RESPONSE: Additional CDMA2000 test information is provided. See “800 MHz Conducted Emissions CDMA2000”. TÜV America Inc. Phone: (651) 631-2487 1775 Old Highway 8 NW Fax: (651) 638-0285 Suite 104 E-mail: [email protected] New Brighton, MN 55112 www.TUVamerica.com Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of TÜV SÜD Group. 4. Please note that section 7.1 of the manual indicates that AMPS is also an available modulation. If AMPS is a modulation type, please provide that necessary data for AMPS mode; alternately, please explain how the provided data meets AMPS requirements. RESPONSE: AMPS signal testing is conducted using the FM modulation shown in the test data and report. The patented technology of this equipment digitizes the entire designated RF band, digitally transports it over fiber, and reconstructs the signal at full bandwidth, regardless of modulation technology. The EUT is a repeater device, therefore no specific mode is required for operation. F3E modulation designation has been added to the Form 731 and the Operating Description has been revised. 5. Please note that the output power for each type emissions designator is required to be on the grant. Please note that only a CW signal was used to measure output power for this device. While this may be OK for FM, it is not appropriate for GSM or CDMA type modulations. Please provide the conducted antenna terminal output powers for all emissions types. RESPONSE: Additional ERP test information provided in “800 Updated EIRP Limit Test” 6, As the device accepts multiple inputs, please clarify if the power out of the device listed on the 731 is a composite of multichannels or per carrier. RESPONSE: The output power of the equipment is composite. When additional signals are input to the equipment, the gain of each signal must decrease with respect to the maximum output power approved on the grant. 7. The operational description indicates that this device works not only with conventional CDMA but has CDMA200 capabilities. Please note that CDMA2000 has both 1x EV-DO and cdma2000 3x standards. Cdma2000 3x is part of what the ITU has termed IMT-2000 CDMA MC (Multi Carrier). It uses less that 5 MHz spectrum (3x 1.25 MHz channels) to give speeds of over 2 Mbps. Cdma2000 1x with lower data speed is considered to be a 2.5G technology. Please note that the type CDMA2000 modulation scheme used in this device has not been defined. Please note also that the device in question needs to provide the appropriate CDMA200 occupied bandwidths commensurate with the modulation types available in in the device. Please provide the appropriate CDMA2000 occupied bandwidth plots. Alternately, this device would not be approved for CDMA2000 operation and the operational description would have to be changed to remove this option. Please advise as to how the applicant wishes to proceed. RESPONSE: Additional CDMA2000 test information is provided. The CDMA2000 modulation used is 1xRTT. See “800…

Text truncated - open the document above for the full version.

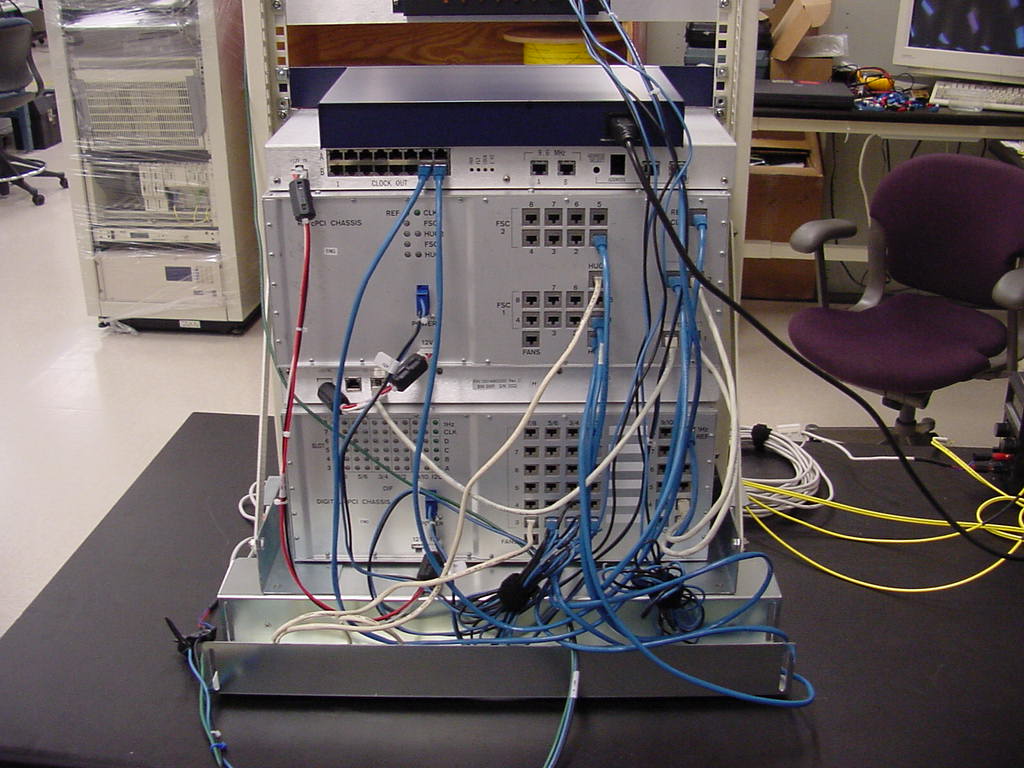

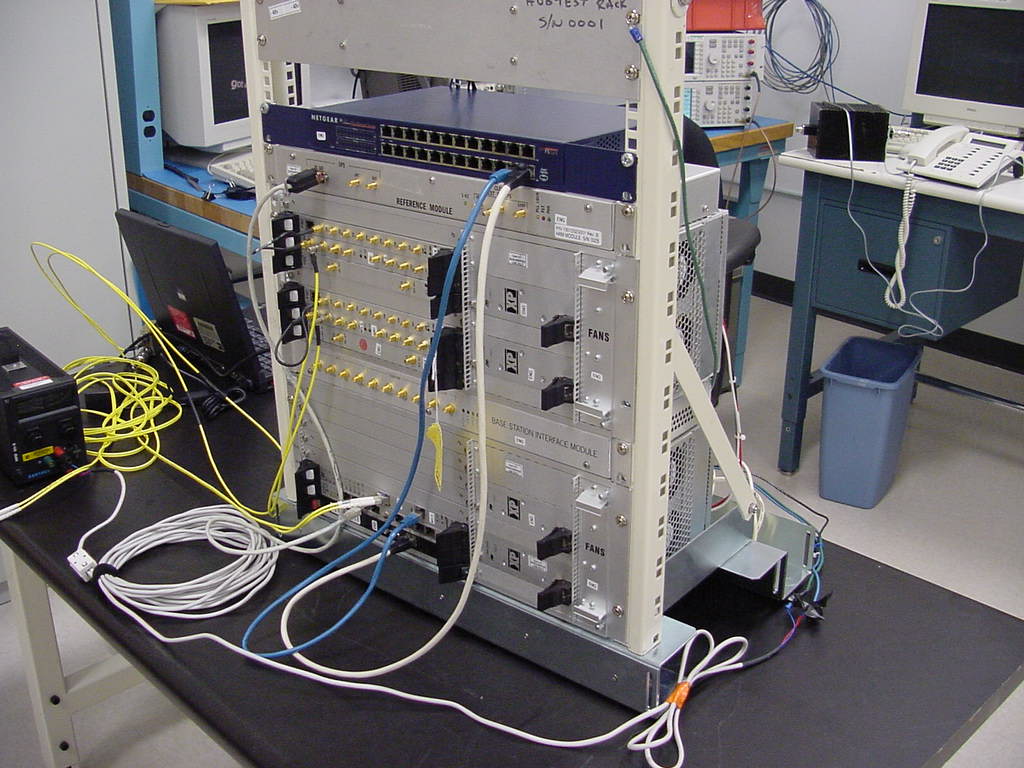

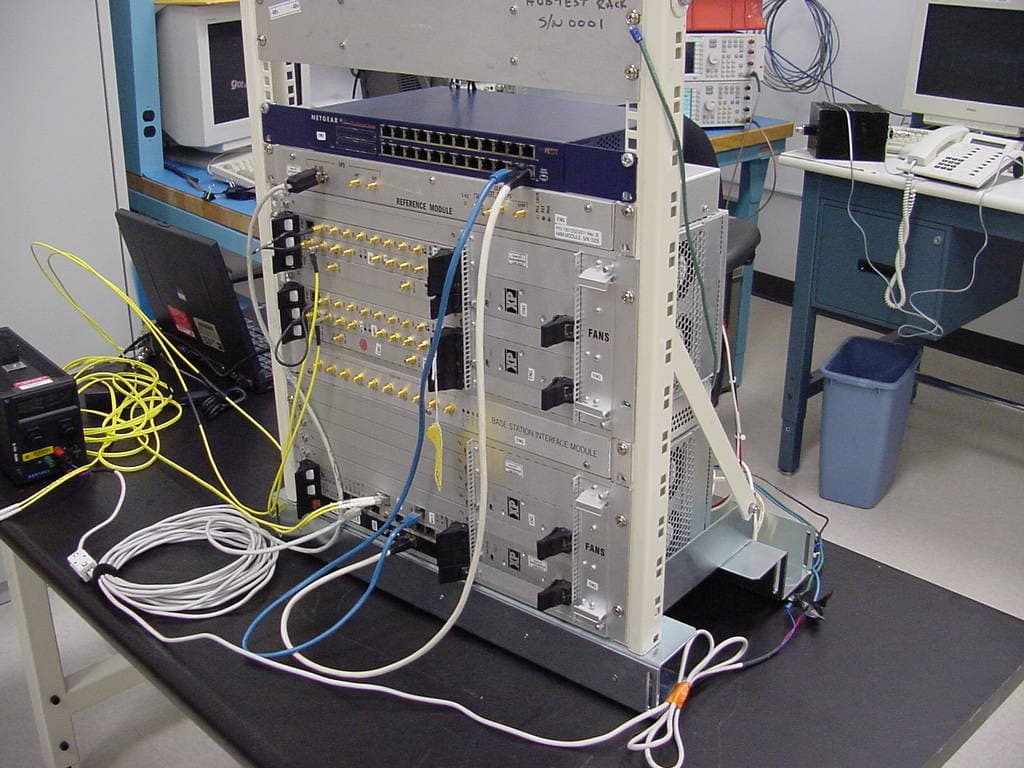

HUB Top, Front and left view HUB Top, Front and right view HUB Rear view RAN Front View RAN Right View RAN Back View RAN Left View RAN Top View RAN Bottom View

INFORMATION ON THIS DOCUMENT IS PROPRIETARY TO ADC AND SHALL NOT BE USED, COPIED, REPRODUCED OR DISCLOSED IN WHOLE OR IN PART WITHOUT WRITTEN CONSENT OF ADC TITLE CXD 800 MHz A Band FCC / IC Identification Label TOLERANCE UNLESS .XX NA OTHERWISE SPECIFIED .XX NA DRAWING NUMBER None A REV DO NOT SCALE DRAWING ENGR. Mark F. Miska SIZE A SHEET 1 OF 1 REV ECO DWN DATE A MFM 10-23-2005 FCC ID: F8I-DCX8001A IC: 1208G-DCX8001A 1 2 1.500 REF R.075 (4) DIE CUT LABEL .750 REF NOTES: 1 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 8 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. 2 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 6 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. MATERIAL: ADC PART NUMBER 1215140 3 LABEL PLACEMENT

HUB Disassembly HUB Disassembly - Closeup View 1 HUB Disassembly - Closeup View 2 RAN Disassembly - Open View RAN Disassembly - Empty View RAN Disassembly - Empty View - Closeup CPU Front CPU back – View 1 CPU back – View 2 Forward Simulcast Card (FSC) Front – View 1 Forward Simulcast Card (FSC) Front – View 2 Forward Simulcast Card (FSC) Back Hub Down Converter (HDC) Front – View 1 Hub Down Converter (HDC) Front – View 2 Hub Down Converter (HDC) Back

HUB System Interface Card (HUBSTF) Front HUB System Interface Card (HUBSTF) Back Hub Up Converter (HUC) Front Hub Up Converter (HUC) back Radio Access Node System Interface Card (RANSTF) Front Radio Access Node System Interface Card (RANSTF) Back RAN Downconverter (RDC) Front RAN Downconverter (RDC) Back Reverse Simulcast Card (RSC) Front Reverse Simulcast Card (RSC) Back RAN Up Converter (RUC) Front RAN Up Converter (RUC) Back Sonet Interface Module (SIF) Front Sonet Interface Module (SIF) Back Base Station Interface Module (BIM) G001 Top - Right Base Station Interface Module (BIM) G001 Top - Left Base Station Interface Module (BIM) G001 Bottom - Right Base Station Interface Module (BIM) G001 Bottom - Left

Broadband 10W LPA 0071-1300 Top Broadband 10W LPA 0071-1300 Bottom Broadband 10W LPA 0071-2300 Top Broadband 10W LPA 0071-2300 Bottom Cherokee Power Supply - Top, Front and Right View Cherokee Power Supply - Top, Back and Left View Cherokee Power Supply - Disassembly View 1 Cherokee Power Supply - Disassembly View 2 Cherokee Power Supply - Board Top Cherokee Power Supply - Board Bottom Digital Power - Power Supply - eFO306-1XX, Top View Digital Power - Power Supply - eFO306-1XX, Output Digital Power - Power Supply - eFO306-1XX, Input Digital Power - Power Supply - eFO306-1XX, ¾ View Digital Power - Power Supply - Board Bottom

Revision: EEffectivity Date: 3/17/05 Production Bill of Material with Reference Designators Parent: 1001583G001 Description: BTS INTERFACE CCA-CELLULAR-2ND GEN Seqn. Qty. UM Opencell Pt. No. Description Rev. Reference Designator 1 89 EA 1900047P036 CAP 0603 0.010UF 5% 25V X7R - C58 - C67, C70 - C81, C83 - C112, C114, C116, C118 C138, C210 - C215, C259 - C266 Vendor 1: Vendor 3: Kemet C0603C103J3RAC Vendor 2: AVX 06033C103JAT2A Vendor 4: 2 1 EA 1900115P002 CAP 0603 0.12UF 10% 10V X5R - C226 Vendor 1: PANASONIC ECJ1VB1A124K Vendor 3: Vendor 2: Vendor 4: 3 2 EA 1900044P034 CAP 0603 0.10UF 10% 16V X7R - C177, C208 Vendor 1: Panasonic ECJ1VB1C104K Vendor 3: Kemet C0603C104K4RAC Vendor 2: AVX 0603YC104KAT2A Vendor 4: Murata GRM39X7R104K016AD 4 20 EA 1900048P024 CAP 0603 1000PF 10% 25V NPO - C35 - C46, C216 - C223 Vendor 1: Vendor 3: Kemet C0603C102K3GAC Vendor 2: AVX 06033A102KAT2A Vendor 4: 5 54 EA 1900052P012 CAP 0603 100PF 5% 50V NPO - C1, C3, C4, C6, C7, C10, C12, C14, C15, C17, C18, C20, C21, C23, C24, C27, C29, C31, C32, C34, C139 - C142, C146, C147, C149, C151, C152, C154, C157 - C159, C161, C164, C165, C167, C169, C172, C174, C200 - C207, C241 - C246 Vendor 1: Panasonic ECUV1H101JCV Vendor 3: Kemet C0603C101J5GAC Vendor 2: AVX 06035A101JAT2A Vendor 4: Murata GRM39COG101J050AD CONFIDENTIAL BIM BOM (pg 1-17 ) Parent: 1001583G001 Description: BTS INTERFACE CCA-CELLULAR-2ND GEN Seqn. Qty. UM Opencell Pt. No. Description Rev. Reference Designator 6 2 EA 1900048P003 CAP 0603 18PF 10% 25V NPO - C189, C190 Vendor 1: Vendor 3: Vendor 2: AVX 06033A180KAT2A Vendor 4: 7 1 EA 1900043P026 CAP 0603 0.022UF 5% 16V X7R - C47 Vendor 1: Vendor 3: Kemet C0603C223J4RAC Vendor 2: AVX 0603YC223JAT2A Vendor 4: 9 31 EA 1900047P010 CAP 0603 68PF 5% 25V NPO - C2, C5, C8, C9, C11, C13, C16, C19, C22, C25, C26, C28, C30, C33, C143 - C145, C148, C150, C153, C155, C156, C160, C162, C163, C166, C168, C170, C171, C173, C175 Vendor 1: Vendor 3: Vendor 2: AVX 06033A680JAT2A Vendor 4: 10 1 EA 1900150P027 CAP 0805 1.0UF 10% 10V X5R - C225 Vendor 1: PANASONIC ECJ2YB1A105K Vendor 3: Vendor 2: Vendor 4: 11 1 EA 1900065P035 CAP 1206 0.68UF 5% 16V X7R - C240 Vendor 1: Vendor 3: Kemet C1206C684J4RAC Vendor 2: AVX 1206YC684JAT2A Vendor 4: Murata GRM42-6X7R684J016AL 12 26 EA 1900155P003 CAP TANT 3216 1.0UF 10% 25V - C48 - C57, C191 - C198, C229 - C236 Vendor 1: AVX TAJA105K025R Vendor 3: VISHAY-SPRAGUE 293D105X9025A2T Vendor 2: KEMET T491A105K025AS Vendor 4: Parent: 1001583G001 Description: BTS INTERFACE CCA-CELLULAR-2ND GEN Seqn. Qty. UM Opencell Pt. No. Description Rev. Reference Designator 13 11 EA 1900185P004 CAP TANT 6032 10UF 20% 25V - C178 - C187, C248 Vendor 1: AVX TAJC106M025R Vendor 3: VISHAY-SPRAGUE 293D106X0025C2T Vendor 2: KEMET T491C106M025AS Vendor 4: 14 1 EA 1900178P001 CAP TANT 6032 4.7UF 10% 20V - C188 Vendor 1: AVX TAJC475K020R Vendor 3: VISHAY-SPRAGUE 293D475X9020C2T Vendor 2: KEMET T491C475K020AS Vendor 4: 15 10 EA 1950013P003 CONN SMA JACK RT BLKHD PCB - J1 - J10 Vendor 1: JOHNSON 142-0701-551 Vendor 3: Vendor 2: MOLEX 73251-220 Vendor 4: 16 8 EA 1908301P004 COUPLER DIRECTIONAL SMT 11DB - U24 - U31 Vendor 1: AVX CP0805A0836EW Vendor 3: Vendor 2: Vendor 4: 18 1 EA 1908000P031 AMP RF SIGE DC-5000 MHZ SMD - U62 Vendor 1: SIRENZA MICRODEVICES SGA-5386 Vendor 3: Vendor 2: Vendor 4: 19 4 EA 1902407P001 DETECTOR TRUPWR LINEAR DC-2.5GHZ - U66 - U69 Vendor 1: Analog Devices AD8361ARM-REEL7 Vendor 3: Vendor 2: Vendor 4: 20 2 EA 1906100P008 DUPLEXER CELLULAR - U74, U75 Vendor 1: MURATA DFYK7836MLDJAC-TT1 Vendor 3: Parent: 1001583G001 Description: BTS INTERFACE CCA-CELLULAR-2ND GEN Seqn. Qty. UM Opencell Pt. No. Description Rev. Reference Designator Vendor 2: Vendor 4: 21 1 EA 1902200P004 EEPROM 2 WIRE SERIAL - U45 Vendor 1: ATMEL AT34C02N-10SI-2.7 Vendor 3: Vendor 2: Vendor 4: 22 6 EA 1906003P005 FILTER RF 836.5 MHZ TX - FL1 - FL6 Vendor 1: SAWTEK 855779 Vendor 3: Vendor 2: Vendor 4: 23 2 EA 1906003P015 FILTER BP SAW 881.5MHZ 25 MHZ BAND 1 FL7, FL8 Vendor 1: SAWTEK 855782 Vendor 3: Vendor 2: Vendor 4: 24 1 EA 1902406P006 PLL FRACTIONAL RF SYNTH 2.6GHZ - U56 Vendor 1: NATIONAL SEMINCONDUCTOR LMX2364TM Vendor 3: Vendor 2: Vendor 4: 25 1 EA 1950203P002 HEADER PCB RT < PTH 1X3 SHRD - J16 Vendor 1: MOLEX 39-30-3035 Vendor 3: Vendor 2: Vendor 4: 26 3 EA 1902801P001 I2C 16 BIT I/O EXPANDER - U40 - U42 Vendor 1: Philips PCF8575TSDB-T Vendor 3: Vendor 2: Vendor 4: Parent: 1001583G001 Description: BTS INTERFACE CCA-CELLULAR-2ND GEN Seqn. Qty. UM Opencell Pt. No. Description Rev. Reference Designator 27 1 EA 1902006P068 IC 4 CHAN I2C MULTIPLEXER - U46 Vendor 1: PHILIPS PCA9544PW Vendor 3: Vendor 2: Vendor 4: 28 1 EA 1902006P081 IC HOT SWAP I2C BUFFER 1 U44 Vendor 1: LINEAR TECHNOLOGY LTC4300-1IMS8 Vendor 3: Vendor 2: Vendor 4: 29 2 EA 1900306P003 IND 0603 10NH 5% MLC 2850MHZ - L22, L23 Vendor 1: Toko LL1608-FH10NJ Vendor 3: Vendor 2: Central Technologies CTLL1608-FH10NJ Vendor 4…
