ADCP-75-158 Preliminary Issue A June 2003 1263478 Rev A Digivance™ 1900 MHz 20 Watt System with Version 2.00.01 EMS Software Installation and Operation Manual 18641-B FCC ID: F8I-DLC1902A ADCP-75-158 Preliminary Issue A June 2003 1263478 Rev A Digivance™ 1900 MHz 20 Watt System with Version 2.00.01 EMS Software Installation and Operation Manual ADCP-75-158 • Preliminary Issue A • June 2003 • Preface Page ii COPYRIGHT © 2003, ADC Telecommunications, Inc. All Rights Reserved Printed in the U.S.A. REVISION HISTORY TRADEMARK INFORMATION ADC and PowerWorx are registered trademarks of ADC Telecommunications, Inc. Digivance is a trademark of ADC Telecommunications, Inc. Procomm Plus is a registered trademark of Quarterdeck Corporation. DISCLAIMER OF LIABILITY Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. This publication may be verified at any time by contacting ADC’s Technical Assistance Center at 1-800-366-3891, extension 73475 (in U.S.A. or Canada) or 952-917-3475 (outside U.S.A. and Canada), or by e-mail to [email protected] ISSUEDATEREASON FOR CHANGE A06/2003Original issue. ADC Telecommunications, Inc. P.O. Box 1101, Minneapolis, Minnesota 55440-1101 In U.S.A. and Canada: 1-800-366-3891 Outside U.S.A. and Canada: (952) 938-8080 Fax: (952) 917-1717 ADCP-75-158 • Preliminary Issue A • June 2003 • Preface Page iii © 2003, ADC Telecommunications, Inc. TABLE OF CONTENTS ContentPage ABOUT THIS MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii RELATED PUBLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii ADMONISHMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii GENERAL SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii STANDARDS CERTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix LIST OF ACRONYMS AND ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix SECTION 1: OVERVIEW 1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2 1900 MHZ 20 WATT SYSTEM OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2.1Basic System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2.2Base Transceiver Station to Host Unit Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.3 Handset Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 2.4Local Service Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4 2.5Remote NOC Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 3SYSTEM FUNCTIONS AND FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 3.1Fiber Optic Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 3.2Control and Monitoring Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 3.3Fault Detection and Alarm Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 3.4Powering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 3.5Equipment Mounting and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 SECTION 2: DESCRIPTION 1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 2HOST UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3 2.1Primary Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 2.2Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 2.3Fault Detection and Alarm Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 2.4RF Signal Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4 2.5RF Signal Level Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 2.6Propagation Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

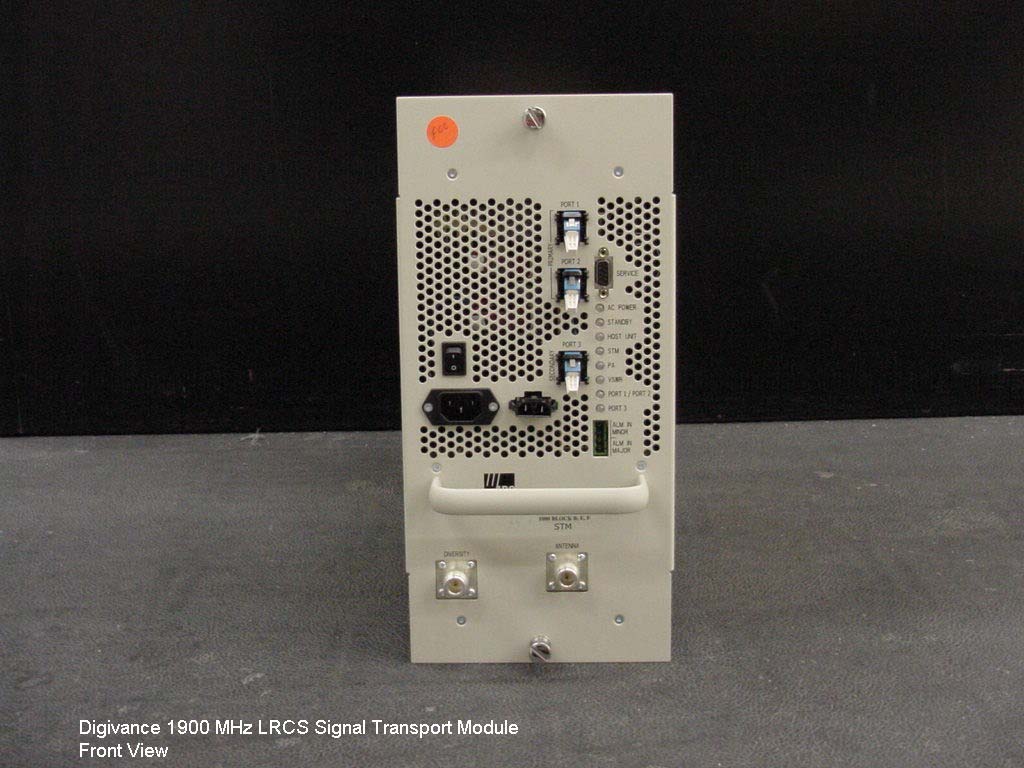

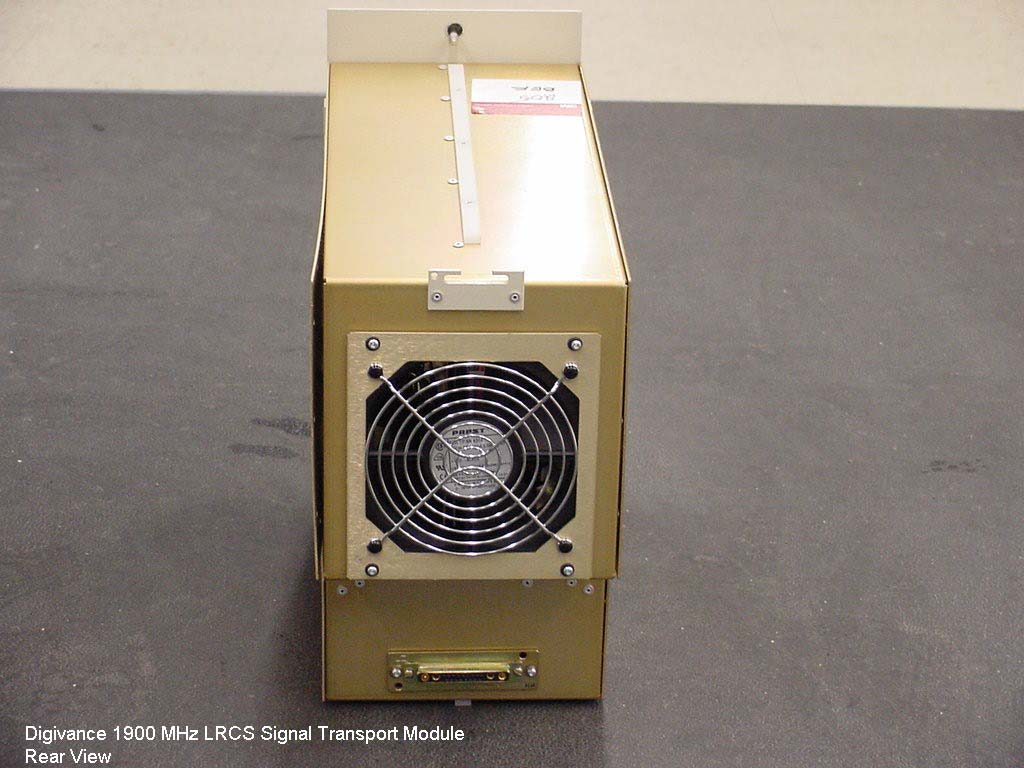

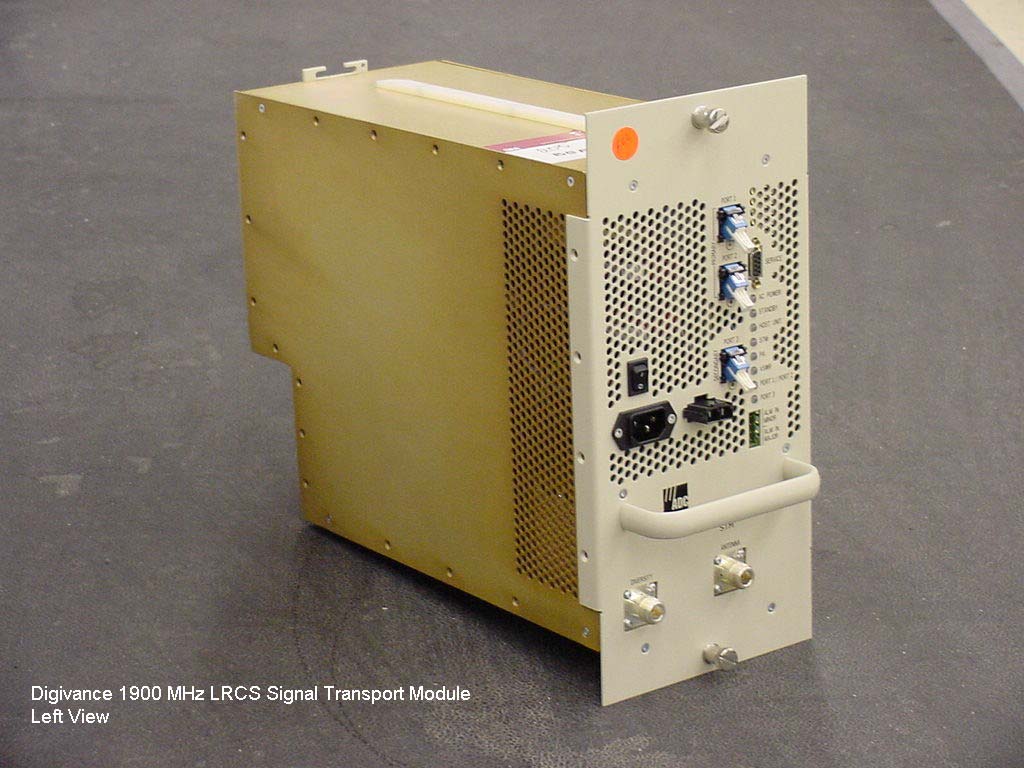

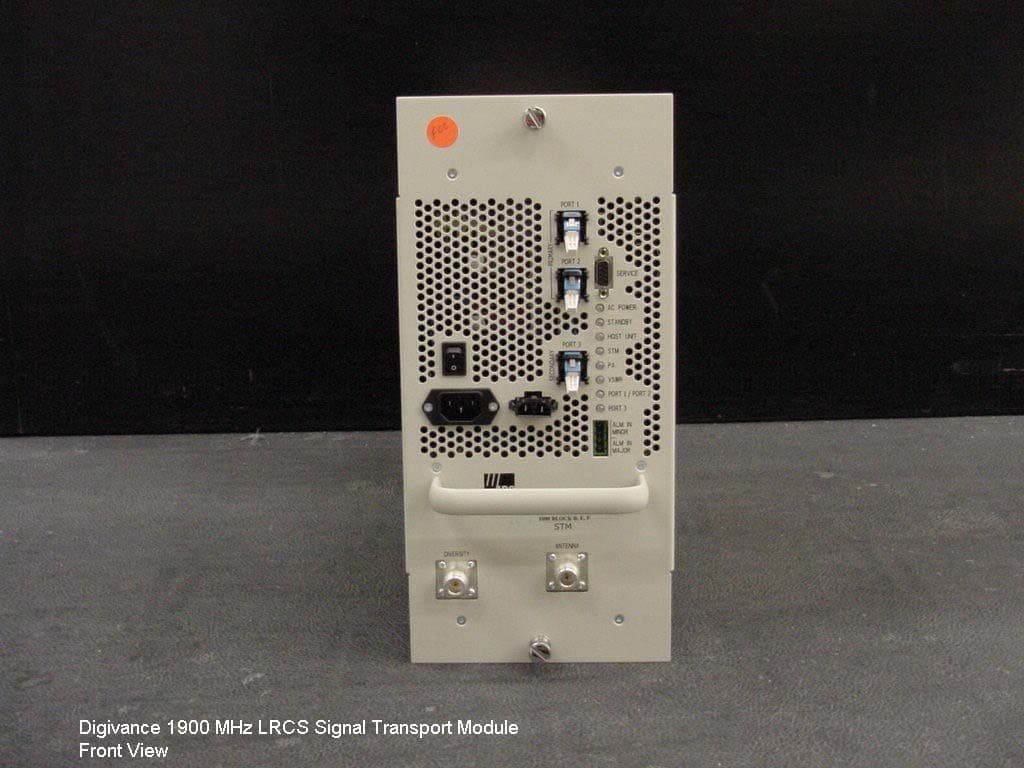

ADCP-75-158 • Preliminary Issue A • June 2003 • Section 2: Description Page 2-10 © 2003, ADC Telecommunications, Inc. 3.6Antenna Cable Connection An N-type female connector is provided on the exterior bottom side of the RU cabinet for connecting the antenna coaxial cable. The exterior N-type connector is on the surge side of a lightning protector that is mounted within the enclosure. On the inside of the enclosure, the protected side of the lightning protector is also equipped with an N-type female connector. A coaxial jumper cable (included with the enclosure) is used for connecting the protected side of the lightning protector to the ANTENNA port on the STM. 3.7AC Power Wiring and Grounding The RU outdoor cabinet is equipped with a stub cable for the AC power connections. The AC power cable provides three wire leads (Load, Neutral, and Ground) that must be connected to a 120 or 240 VAC power source. The AC power cable exits the cabinet though a 3/4-inch NPT threaded hole located on the bottom of the cabinet. The threaded hole accepts a standard 3/4- inch AC conduit fitting. A 3/4-inch to 1/2-inch reducer is also included if 1/2-inch conduit is preferred over 3/4-inch conduit. From the exit point in the bottom of the cabinet, the AC power cable must be routed through conduit to an external AC junction box (not provided) where it can be connected to the AC power wiring. The junction box should be located within two feet of the cabinet and should be equipped with a 120 VAC outlet for powering test equipment and/or power tools. If AC power spikes are likely to occur, the junction box should also include a surge protector to protect the equipment from damage. Three wire nuts are included with the cabinet for completing the AC power wiring connections. The junction box wiring should be connected to the AC power source through a 20 Amp breaker box (not provided). All AC power wiring should be run within conduit. A grounding lug is provided on the underside of the enclosure for connecting a separate grounding wire directly to the cabinet. 3.8Ventilation Vent openings are provided in the door, on the bottom, and on the rear side of the RU cabinet to permit air exchange for cooling. Air enters the cabinet through the openings in the door and bottom. Filters remove dirt particles so that only clean air enters the enclosure. Both the STM and LPA have cooling fans. The STM has a rear mounted fan that pulls air through the module and exhausts it toward the rear of the enclosure. The LPA has a fan on the front that draws air into the module and exhausts it toward the rear of the enclosure. The heated air exits through an opening in the rear side of the enclosure. 3.9User Interface The RU cabinet user interface consists of the various connectors, fittings, mounting slots, and switches that are provided on both the interior and exterior of the enclosure. The user interface points are indicated in Figure 2-4 and described in Ta b l e 2 - 2. FCC ID: F8I-DLC1902A ADCP-75-158 • Preliminary Issue A • June 2003 • Section 2: Description Page 2-11 © 2003, ADC Telecommunications, Inc. Figure 2-4. Remote Unit Outdoor Cabinet User Interface (1) AIR INLET FILTER 18563-B (2) AC POWER CABLE (3) DOOR SWITCH (5) STM MOUNTING SLOT (4) LPA MOUNTING SLOT (6) WDM/CWDM MOUNTING SLOT (8) FIBER SLACK SPOOLS (12) GROUNDING LUG (11) 3/4-INCH NPT THREADED HOLE (10) FIBER CABLE CONNECTOR (7) CWDM POWER CORD BOTTOM VIEW OF CABINET (9) LIGHTNING PROTECTOR ADCP-75-158 • Preliminary Issue A • June 2003 • Section 2: Description Page 2-12 © 2003, ADC Telecommunications, Inc. 4 REMOTE UNIT INDOOR MOUNTING SHELF The RU indoor mounting shelf, shown in Figure 2-5, is a rack-mountable framework that provides the following basic functions: • Supports the various electronic modules (STM and LPA) and accessories (WDM or CWDM) for mounting within a standard 19-inch, WECO or EIA, equipment rack. • Provides the electrical interface connections for the STM and LPA modules. • Provides an AC power cord for powering the STM module • Provides DC power connections for the CWDM module. 4.1Primary Components The RU indoor mounting shelf is a rack-mountable frame assembly that provides mounting slots for the STM, LPA, WDM (accessory), and CWDM (accessory) modules plus connectors and a wiring harness for interfacing the STM and LPA modules. The indoor mounting shelf is designed for mounting in a standard 19-inch, EIA or WECO, equipment rack. The frame assembly is constructed of aluminum and is painted putty white for corrosion protection. Table 2-2. Remote Unit Cabinet User Interface REF NO DEVICEFUNCTIONAL DESCRIPTION 1Air inlet filterReusable filter that prevents the entry of dirt particles when out- side air is pulled into the cabinet for cooling. 2AC power cordProvides AC power to the STM. 3Door switchIndicates to the fault detection and alarm reporting system if the cabinet door is open (major alarm) or closed. 4LPA mounting slotProvides a mounting point for the LPA module. 5STM mounting slotProvides a mounting point for the STM module. 6WDM/CWDM mounting slot Provides a mounting point for either the WDM or CWDM mod- ule. 7CWDM power cordProvides DC power to the CWDM module. 8Fiber slack spoolsProvide a storage place for excess fiber pigtail and patch cord slack. 9Lightning protectorProvides lightning surge protection for the antenna connection. 10Fiber cable connectorProvides both an entry point and strain relief for the fiber optic cable. 113/4-inch NPT threaded hole Provides a connection point for a 3/4-inch AC conduit fitting. 12Grounding lugProvides a connection point for an external grounding cable. ADCP-75-158 • Preliminary Issue A • June 2003 • Section 2: Description Page 2-13 © 2003, ADC Telecommunications, Inc. Figure 2-5. Remote Unit Indoor Mounting Shelf 4.2STM and LPA Module Installation Two mounting slots are provided within the indoor mounting shelf for installing the STM and LPA modules. The mounting slots include tracks that guide ea…

Text truncated - open the document above for the full version.

ADCP-75-158 • Preliminary Issue A • June 2003 • Section 2: Description Page 2-27 © 2003, ADC Telecommunications, Inc. The NOC/NEM interface is a command line interface that is presented at an NOC terminal. The NOC/NEM interface is used for remote control and monitoring operations. The NOC/NEM interface consists of ASCII text strings that are input as standard SET or GET commands which are followed by the action or information required. A text string response is received from the specified system or systems to confirm the requested action or to report the requested information. Examples of several typical NOC-NEM interface commands and the responses received are shown in Figure 2-19. The NOC/NEM interface requires only a VT100 terminal/ emulator or a PC-type computer that is loaded with a communication software such as Procomm Plus. While primarily intended for use at the NOC, the NOC/NEM interface commands may also be input from the EMS computer. Figure 2-19. NOC/NEM Interface Typical Commands 11 SPECIFICATIONS Refer to Table 2-6 for the Digivance 1900 MHz 20 Watt System nominal specifications. All specifications apply after a five minute warm-up period. Table 2-6. 1900 MHz 20 Watt System Nominal Specifications PARAMETERSPECIFICATIONREMARKS Optical - Host and Remote Unit Fiber type9/125, single-mode Number of fibers required Direct With WDM 2 1 The wavelength division multi- plexer (WDM) is an accessory. Forward path wavelength1550 nm Reverse path wavelength1310 nm FCC ID: F8I-DLC1902A ADCP-75-158 • Preliminary Issue A • June 2003 • Section 2: Description Page 2-28 © 2003, ADC Telecommunications, Inc. Optical transmit power output Host Unit Remote Unit 0 dBm +2 dBm Optical budget25 dB For optical BER of 10 –6 Optical receive input–15 dBm maximum Optical connectorsIndustry standard SCHost, remote, and WDM Optical - Host and Remote WDM Passband1310 nm ± 20 nm 1550 nm ± 20 nm Forward path insertion loss Host WDM Remote WDM 0.7 dB 0.3 dB Does not include connector loss Reverse path insertion loss Host WDM Remote WDM 0.3 dB 0.7 dB Does not include connector loss Isolation> 30 dB minimum Return loss (Reflectance)< –50 dBAll input ports RF Forward Path - 1900 MHz System bandwidth 20 MHz AD band, 25 MHz DBE, BEF, and EFC bands Frequency range AD DBE BEF EFC 1930 to 1950 MHz 1945 to 1970 MHz 1950 to 1975 MHz 1965 to 1990 MHz Out-of-band emissions Primary Secondary (see Note 1) –13 dBm per 1 MHz bandwidth from 10 kHz to 20 GHz –98 dBm per 100 kHz from 824 to 849 MHz and from 1850 to 1910 MHz Gain of forward path (Host input to Remote antenna port) 80.5 dB at band center, room temperature, and 0 dB attenua- tion setting Includes power amplifier. Gain flatness Band flatness Channel flatness ± 1.5 dB across freq. range ±1 dB variation across any 1.25 MHz channel Gain variation± 3 dB over temp and unit-to- unit Out-of-band rejection–40 dB at > ±17.5 MHz from 881.5 MHz Propagation delay6 μsExcludes fiber delay Table 2-6. 1900 MHz 20 Watt System Nominal Specifications, continued PARAMETERSPECIFICATIONREMARKS ADCP-75-158 • Preliminary Issue A • June 2003 • Section 2: Description Page 2-29 © 2003, ADC Telecommunications, Inc. Configurable propagation delay Range Step size Up to 63 μs 0.1μs Plus standard propagation delay Spurious In-band self generated Free dynamic range –13 dBm at remote output 60 dB at 30 kHz bandwidth Transmit peak-to-average10 dB Two-tone Intermodulation–55 dBc at remote outputTwo CW tones at 5 Watts each CDMA Intermodulation 885 kHz to 1.25 MHz 1.25 to 1.98 MHz 1.98 to 2.25 MHz –45 dBc per 30 kHz –8 dBm per 30 kHz –55 dBc per 30 kHz Absolute level Nominal composite RF input signal level –40 dBm at 0 dB attenuation –9 dBm at max. attenuation An input signal level of –40 dBm provides maximum output power Configurable input level Range Step size 31 dB 1 ± 0.5 dB ±10% of attenuation monotonic Composite RF Output power40.5 dBm (11 Watts) at remote antenna port with –40 dBm input 20 Watts at power amplifier out- put Configurable RF Output Range Step size 31 dB at remote unit 1 ±0.5 dB ±10% of attenuation monotonic Transmit path insertion loss2.5 dB RF Reverse Path - 1900 MHz System bandwidth A band B band 20 MHz AD band, 25 MHz DBE, BEF, and EFC bands Frequency range AD DBE BEF EFC 1850 to 1870 MHz 1865 to 1890 MHz 1870 to 1895 MHz 1885 to 1910 MHz In band spurs (caused by an indi- vidual out-of-band signal) –75 dBc (1 MHz to 20 GHz and > 10 MHz out-of-band) –120 dBc (1930 to 1990 MHz) –120 dBc (869 to 894 MHz)Required for dual band Propagation delay6 μsExcludes fiber delay Configurable propagation delay Range Step size Up to 63 μs 0.1μs Plus standard propagation delay Table 2-6. 1900 MHz 20 Watt System Nominal Specifications, continued PARAMETERSPECIFICATIONREMARKS ADCP-75-158 • Preliminary Issue A • June 2003 • Section 2: Description Page 2-30 © 2003, ADC Telecommunications, Inc. Gain flatness Band flatness Channel flatness ±1.5 dB across frequency range ±1 dB variation across any 1.25 MHz channel Gain of reverse path Overall gain Gain variation 30 dB at band center at room temperature 3 dB over temperature ALC not invoked ALC not invoked Out-of-band rejection–40 dB at > ±17.5 MHz from 836.6 MHz ALC not invoked Spurious (in-band self gener- ated) –110 dBm referred to inputALC not invoked Intermodulation–62 dBc two tones at –50 dBm System noise figure8 dB at mid-bandALC not invoked Configurable RF output Range Step size 31 dB 1 ±0.5 dB ±10% of attenuation monotonic Blocking dynamic range70 dB Level limiting ALC threshold–40 dBm dB instantaneous Level limiting ALC range30 dB RF Forward and Reverse Path Modulation Accuracy Service/Mod Type/Parameter TDMA/n/4-DQSK/rms EVM GSM/GMSK/rms phase error EDGE/8PSK/rms EVM EIA-97D/CDMA/rho factor 7% 4º 7% .97% Physical/Environmental/ Electrical - Host Unit Dimensions (H×W×D) 3.5 × 17.2 × 15.3 inches (89 × 437 × 389 mm) Dimension for width does not include the mounting brackets which can be installed for either 19- or 23-inch racks. Mounting19- or 23-…

Text truncated - open the document above for the full version.

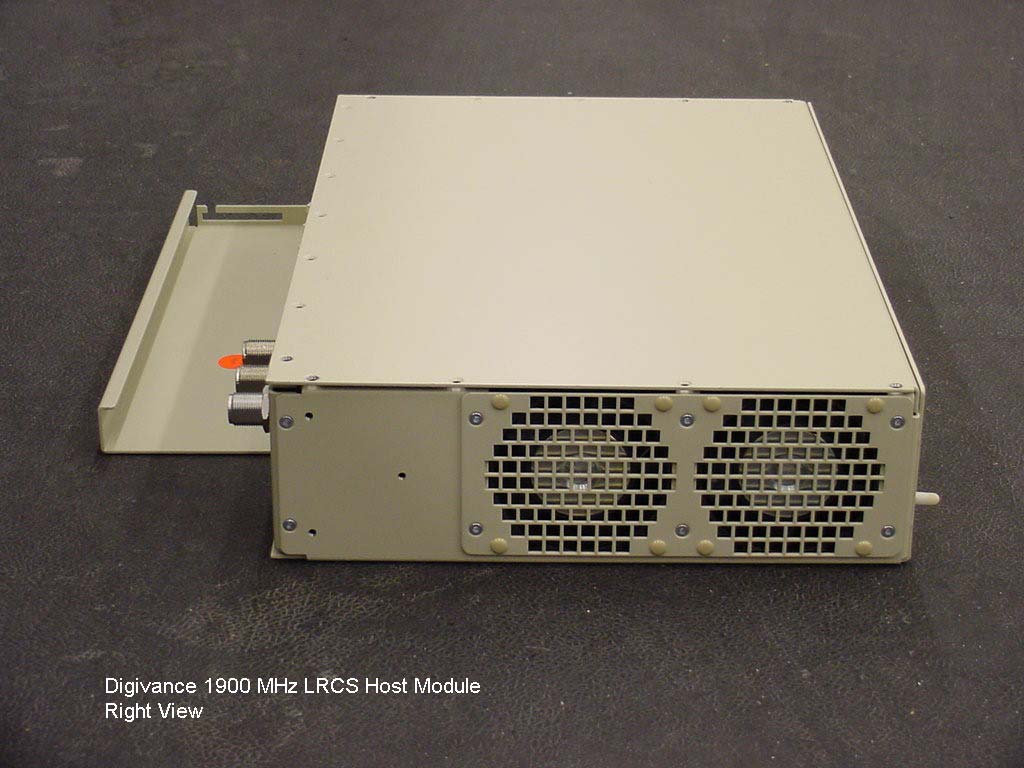

ADCP-75-158 • Preliminary Issue A • June 2003 • Section 3: Host Unit Installation Page 3-8 © 2003, ADC Telecommunications, Inc. 5CHASSIS GROUND CONNECTION A stud is provided on the rear side of the chassis for connecting a grounding wire to the chassis. Use the following procedure to connect the grounding wire to the chassis and to route the grounding wire to an approved earth ground source. 1. Obtain a length of #18 AWG (1.00 mm) insulated stranded copper wire for use as a chassis grounding wire. 2. Terminate one end of the wire with a ring terminal. 3. Locate the chassis ground stud at the rear of the HU as shown in Figure 3-7. Figure 3-7. Chassis Ground Stud 4. Attach the ring end of the wire to the chassis ground stud (see Figure 3-7). 5. Route the free end of the chassis grounding wire to an approved (per local code or practice) earth ground source. 6. Cut the chassis grounding wire to length and connect it to the approved ground source as required by local code or practice. 6 COAXIAL CABLE CONNECTIONS The RF interface between the HU and the BTS is supported through two N-type female connectors mounted on the HU front panel. One connector provides the coaxial cable connection for the forward path (downlink) signal and the other connector provides the coaxial cable connection for the reverse path (uplink) signal. In most installations, it is usually necessary to insert some attenuation in the forward path link between the HU and the BTS. A signal level that is greater than –9 dBm will overdrive and Note: Be sure to maintain reliable grounding. Pay particular attention to ground source connections. 16169-A FCC ID: F8I-DLC1902A ADCP-75-158 • Preliminary Issue A • June 2003 • Section 3: Host Unit Installation Page 3-9 © 2003, ADC Telecommunications, Inc. possibly damage the HU receiver. Refer to Section 4, Subsection 2.3, before completing the forward path connection at the BTS. If the Conditioning Panel or Duplexing Panel is required, refer to the Digivance 800 and 1900 MHz Interface Panels User Manual (ADCP-75-147) for the installation procedures. The HU should be mounted as close as possible to the BTS to minimize cable losses. Use the following procedure to route and connect the forward and reverse path coaxial cables to the HU: 1. Obtain the required lengths of high performance, flexible, low loss 50-ohm coaxial communications cable (RG-400 or equivalent) for all coaxial connections. 2. Route the forward and reverse path coaxial cables between the HU and the BTS interface (per system design plan) and cut to the required length. Allow sufficient slack for dressing and organizing cables at the HU and for installing an external attenuator in the forward path link. 3. Terminate each cable with an N-type male connector following the connector supplier’s recommendations. 4. Connect the forward path cable to the FORWARD RF IN connector on the HU front panel as shown in Figure 3-8. Figure 3-8. Forward and Reverse Path Coaxial Cable Connections 5. Connect the reverse path cable to the REVERSE RF OUT connector on the HU front panel (see Figure 3-8). 6. Dress and secure cables at the HU. 7. Complete all remaining coaxial connections as specified in the system design plan. Note: Do not connect the forward path cable at the BTS until the composite forward path RF signal level is measured and the amount of attenuation required is determined. 18655-A TYPE-N MALE CONNECTOR FORWARD RF IN CONNECTOR (FORWARD PATH) REVERSE RF OUT CONNECTOR (REVERSE PATH) ADCP-75-158 • Preliminary Issue A • June 2003 • Section 3: Host Unit Installation Page 3-10 © 2003, ADC Telecommunications, Inc. 7 OPTICAL CONNECTIONS The optical interface between the HU and the RU is supported by two optical ports. Each optical port consists of an SC optical adapter which is mounted on the HU front panel. Port 1 provides the optical fiber connection for the forward path (downlink) signal. Port 2 provides the optical fiber connection for the reverse path (uplink) signal. The optical connections are dependent on whether or not a WDM host module (accessory) or CWDM host module (accessory) is installed. If the installation does not include either a WDM or CWDM module, proceed to Section 7.1 for the optical connections procedure. If the installation includes a WDM module, proceed to Section 7.2 for the optical connections procedure. If the installation includes a CWDM module, refer to the Digivance System Coarse Wavelength Division Multiplexer User Manual (ADCP-75-142) for the optical connection procedure. 7.1Optical Connections Without WDM or CWDM system Use the following procedure to connect the optical fibers when a WDM or CWDM host module is not installed with the HU: 1. Obtain two patch cords that are of sufficient length to reach from the HU to the fiber distribution panel. 2. Designate one of the patch cords as the forward path link and the other as the reverse path link and attach an identification label or tag next to each connector. 3. Remove the dust caps from the HU optical ports and from the patch cord connectors that will be connected to the HU. 4. Clean each patch cord connector (follow patch cord supplier’s recommendations). 5. Insert the connector into the appropriate optical port as shown in Figure 3-9. 6. Route the patch cords from the HU to the fiber distribution panel. Danger: This equipment uses a Class 1 Laser according to FDA/CDRH rules. Laser radiation can seriously damage the retina of the eye. Do not look into the ends of any optical fiber. Do not look directly into the optical transmitter of any unit or exposure to laser radiation may result. An optical power meter should be used to verify active fibers. A protective cap or hood MUST be immediately placed over any radiating transmitter or optical fiber connector to avoid the potential of dangerous amounts of radiation exposure. This practice also prevents dirt particles from entering the connector. Note: To protect the optical receivers, insert a 15 dB attenua…

Text truncated - open the document above for the full version.

ADCP-75-158 • Preliminary Issue A • June 2003 • Section 4: Operation Page 4-4 © 2003, ADC Telecommunications, Inc. Figure 4-1. Digivance Element Management System Main Window 9. Open the View drop down menu and connect to the Host and Remote pair by selecting “NotNamed/NotNamed”. The HOST Alarms display and the REMOTE Alarms display will open within the main window as shown in Figure 4-2. 10. Verify that the Host and Remote Unit are loaded with the current system software and download the current software to both the Host and the Remote unit if necessary. Refer to Section 2.2 for details. Figure 4-2. Selecting Display Tabs Click to view drop down menu Clicking on the tabs in this list will open the cor- responding display. Host/Remote pair site name FCC ID: F8I-DLC1902A ADCP-75-158 • Preliminary Issue A • June 2003 • Section 4: Operation Page 4-5 © 2003, ADC Telecommunications, Inc. 11. Click on the HOST Config tab and on the REMOTE Config tab (see Figure 4-2). The HOST Config display and the REMOTE Config display will open within the main window. 12. Enter the Site Name and Site Number for both the HOST and the REMOTE unit. Refer to Section 2.4 for details. 13. If the site has multiple host units, reconnect the CAN cables to the HU’s NET IN and NET OUT ports. 14. Verify that no Major (except Major Extern Alarm) or Minor alarms are being reported in either the HOST or REMOTE Alarm displays and that all alarm fields (except Major Extern Alarm) are green. 15. Click on the HOST RF tab (see Figure 4-2). The HOST RF display will open within the main window. 16. Enter the Host Fwd Att (Forward Attenuation) values. This sets the forward input RF signal level at the HU. Refer to Section 2.5 for details. By default, this value is set to 0 dB. If the DRIVE LED on the HU front panel was red, it should turn green when this step is completed. 17. Determine if the RF output power at the STM ANTENNA is at the correct level per channel up to a composite maximum of +40.5 dBm. Refer to Section 2.6 for details. 18. Place the MUTE/NORM/RESET switch (on LPA front panel) in the NORM position. 19. Verify that the STATUS indicator (on LPA front panel) turns from steady green to blinking green. 20. Click on the REMOTE LPA tab (see Figure 4-2). The REMOTE PA display will open within the main window. 21. Enter the Remote Fwd Att value. This adjusts the RF output signal level at the STM ANTENNA port. Refer to Section 2.7 for details. By default this value is set to 0 dB. 22. Click on the HOST RF tab (see Figure 4-2). The HOST RF display will open within the main window. 23. Enter the Host Rev Att (Reverse Attenuation). This sets the reverse output RF signal levels at the HU. Refer to Section 2.8 for details. 24. If a delay adjustment is required per the system design plan, enter the Host Fwd Delay and Host Rev Delay values. By default, the delay values are set to 0. Refer to Section 2.9 for details. 25. If a separate laptop computer loaded with the EMS software was used to initially configure the system, disconnect the laptop computer from the SERVICE connector on the HU front panel. 26. Reconnect the external alarm system or notify the alarm system provider that the turn-up process has been completed. Note: For continuous monitoring of alarms, each HU and RU pair must remain permanently connected to a PC-type desktop computer loaded with the EMS software. When two or more systems are connected together through the CAN interface, only one EMS computer is required to manage the networked HU and RU systems. The EMS computer may be connected to the SERVICE port on any one of the HUs in the network. ADCP-75-158 • Preliminary Issue A • June 2003 • Section 4: Operation Page 4-6 © 2003, ADC Telecommunications, Inc. 2.2Verify/Download HU and RU System Software The HU’s and RU’s may require a system software download if they are not loaded with the current system software. Use the following procedure to check the version number of the system software and if necessary to download the current system software: 1. Click on the HOST Prg Load tab and on the REMOTE Prg Load tab. The HOST Prg Load display and the Remote Prg Load display will open within the EMS main window as shown in Figure 4-3. Figure 4-3. HOST and REMOTE Prg Load Displays 2. Click on the HOST Select button (see Figure 4-3). The Select Control Program File window will open as shown in Figure 4-4. Browse until the folder where the Control Program files are located is selected and the software files are displayed in the window. Click to open Select Control Program window for HOST Click to start down- load to HOST. Click to start down- load to REMOTE. Click to open Select Control Program win- dow for REMOTE. Verify software version before starting download. Verify software version before starting download.

ADCP-75-158 • Preliminary Issue A • June 2003 • Section 4: Operation Page 4-7 © 2003, ADC Telecommunications, Inc. Figure 4-4. Select Control Program File Window 3. Check the software version numbers shown in the Software Info section of the Prg Load display against the version numbers of the software files displayed in the Select Control Program File window. If files in the Select Control Program File window are a later version than those shown in the Prg Load display, proceed with the software download. If the version numbers shown in the Software Info section are the same as the version numbers of the files in the Select Control Program File window, the software download is not required. 4. Select the required file to download and click on the OK button. 5. Click on the HOST Load button (see Figure 4-3) to start the download. 6. Repeat steps 2 through 4 for the REMOTE. 2.3Determine Forward Path Input Signal Level The level of the composite RF input signal at the FORWARD RF IN port at the HU will vary depending on the type of BTS, the cable loss, the number of channels present, and the required forward path composite power. If maximum composite RF output is requi…
