Preliminary ADCP-75-179 Preliminary Issue A September 2004 1304947 Rev 1 (Digivance ® LRCS 800/900 MHz SMR System with Version 3.01 EMS Software (Operation and Maintenance Manual 20025-A ADCP-75-179 Preliminary Issue A September 2004 1304947 Rev 1 Digivance ® LRCS 800/900 MHz SMR System with Version 3.01 EMS Software Operation and Maintenance Manual ADCP-75-179 • Preliminary Issue A • September 2004 • Preface Page ii COPYRIGHT © 2004, ADC Telecommunications, Inc. All Rights Reserved Printed in the U.S.A. REVISION HISTORY LIST OF CHANGES The technical changes incorporated into this issue are listed below. TRADEMARK INFORMATION ADC and Digivance are registered trademarks of ADC Telecommunications, Inc. Stargazer is a registered trademark of ADC DSL Systems, Inc. Procomm Plus is a registered trademark of Quarterdeck Corporation. Acrobat and Adobe are registered trademarks of Adobe Systems, Inc. DISCLAIMER OF LIABILITY Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. This publication may be verified at any time by contacting ADC’s Technical Assistance Center at 1-800-366-3891, extension 73476 (in U.S.A. or Canada) or 952-917-3476 (outside U.S.A. and Canada), or by e-mail to [email protected] ISSUEDATEREASON FOR CHANGE A09/2004Original issue. PAGEIDENTIFIERDESCRIPTION OF CHANGE All Original issue. ADC Telecommunications, Inc. P.O. Box 1101, Minneapolis, Minnesota 55440-1101 In U.S.A. and Canada: 1-800-366-3891 Outside U.S.A. and Canada: (952) 938-8080 Fax: (952) 917-1717 ADCP-75-179 • Preliminary Issue A • September 2004 • Preface Page iii © 2004, ADC Telecommunications, Inc. TABLE OF CONTENTS ContentPage ABOUT THIS MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii RELATED PUBLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii ADMONISHMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii GENERAL SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii STANDARDS CERTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix LIST OF ACRONYMS AND ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix SECTION 1: OVERVIEW 1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2LRCS SYSTEM OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2.1Basic System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2.2Enhanced Base Transceiver Station Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.3Handset Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.4Local Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.5Network Operations Center Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 2.6SNMP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 3SYSTEM FUNCTIONS AND FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7 3.1Fiber Optic Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7 3.2Control and Monitoring Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 3.3Fault Detection and Alarm Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 3.4Powering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 3.5Equipment Mounting and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 SECTION 2: DESCRIPTION 1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 2HOST UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3 2.1Primary Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 2.2Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 2.3Fault Detection and Alarm Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 2.4RF Signal Connections . . . . . . . . . .…

Text truncated - open the document above for the full version.

ADCP-75-179 • Preliminary Issue A • September 2004 • Section 3: Operation Page 3-11 © 2004, ADC Telecommunications, Inc. 2. Click on the HOST Site Name Edit button (see Figure 3-6). The Site Name pop-up screen will open as shown in Figure 3-7. Enter a unique name for the HOST. The name may be up to 32 characters long and must not contain any spaces. The name may include numbers, punctuation, and upper or lower case letters and must always begin with a letter. Click on OK to close the screen and make the changes take effect. Figure 3-7. HOST Site Name Pop-Up Screen 3. Click on the HOST Site Number Edit button (see Figure 3-6). The Site Number pop-up screen will open. Enter any number (must be unique) between 1 and 24 and then click on OK to close the screen and make the changes take effect. 4. Check the REMOTE Site Number field (see Figure 3-6). The REMOTE Site Number does not have to be entered. When the HOST Site Number is entered, the system will automatically enter the same number for the REMOTE Site Number. 5. Click on the REMOTE Site Name Edit button (see Figure 3-6). The Site Name pop-up screen will open. Enter a unique name for the REMOTE. The name may be up to 32 characters long and must not contain any spaces. The name may include numbers, punctuation, and upper or lower case letters and must always begin with a letter. Click on OK to close the screen and make the changes take effect. 6. Open the Tools menu at the top of the main window and then select Refresh Catalog to make the new Host and Remote site names appear in the View menu. 2.5Enter Host Forward Attenuation The HU internal forward path attenuator setting determines the maximum composite output signal level at the STM antenna port. The appropriate attenuation value for any particular system is based on the number of channels the system is transporting and the signal level of the composite forward path signals input at the host units RF IN ports. By default, the forward path attenuator is set to 31 dB. The maximum output power that can be provided by the system is 43.4 dBm (22 Watts). The total forward path gain that is provided by the system (with host and remote forward attenuators set to 0 dB) is 85 dBm. Use the following procedure to set the forward path attenuation to provide the maximum composite output signal level: 1. Click on the HOST RF tab. The HOST RF display will open within the EMS main window as shown in Figure 3-8. ADCP-75-179 • Preliminary Issue A • September 2004 • Section 3: Operation Page 3-12 © 2004, ADC Telecommunications, Inc. Figure 3-8. HOST RF Display 2. Click on the Host Fwd Att Edit button (see Figure 3-8). The Host Fwd Att pop-up screen will open as shown in Figure 3-9. Figure 3-9. Host Fwd Att Pop-Up Screen 3. Obtain the value of the total composite input signal level as determined in step 11 of Section 2.3. 4. Determine the appropriate value to enter for the Host forward path attenuator by subtracting the required system output level (per system design plan) from the system gain (85 dB) and then adding the composite input signal level. The result (see sample calculation) is the amount of attenuation required. Atten = (System Gain) – (Required System Output Power) + (Composite Input Power) 5. Enter the attenuation value and click OK to close the pop-up screen and to make the changes take effect. Click on Edit button to open Host Fwd Att pop-up screen ADCP-75-179 • Preliminary Issue A • September 2004 • Section 3: Operation Page 3-13 © 2004, ADC Telecommunications, Inc. 2.6Determine Output Signal Level at STM Antenna Port The RF output signal level should be measured at the STM ANTENNA port to verify that maximum composite signal level is at the required level. Use the following procedure to determine the power level: 1. Verify that RF ON/OFF switch on the LPA is in the OFF position. 2. Disconnect the antenna cable from the STM ANTENNA port. 3. Connect a spectrum analyzer or RF power meter to the STM ANTENNA port. (Check the input rating of the test equipment. Insert a 30 dB 100 W attenuator if necessary.) 4. Place the RF switch on the LPA in the ON position. 5. If using a spectrum analyzer, proceed to step 6. If using a power meter, measure the composite signal power from the STM and then proceed to step 8. 6. Measure the RF level of a single carrier, such as the control channel, in dBm. Make sure the resolution bandwidth of the spectrum analyzer is 30 kHz. 7. Calculate the total composite signal power using the following formula: P tot = P c + 10Log N Where, P tot is the total composite power in dBm P c is the power per carrier in dBm as measured in step 6, and N is the total number of channels. 8. Record the result measured in step 5 or calculated in step 7. 9. Place the RF switch on the LPA in the OFF position. 10. Disconnect the spectrum analyzer or RF power meter from the STM ANTENNA port. 11. Re-connect the antenna cable to the STM ANTENNA port. 2.7Enter Remote Forward Attenuation The STM internal forward path attenuator setting is used to reduce the power level of the composite output signals at the STM antenna port. The maximum composite output signal level at the STM antenna port is set using the Host internal forward attenuator (see Section 2.5). However, component variations may result in the output power at the STM antenna port being slightly above or below the required power per channel. If this is the case, the STM forward attenuator may be used in conjunction with the Host forward attenuator to add or remove attenuation to produce the required output signal level. If less power is required, the STM forward attenuator may be used to reduce the power level. The default setting is 31 dB. Use the following procedure to change the STM forward attenuation: Note: To comply with Maximum Permissible Exposure (MPE) requirements, the maximum composite output from the antenna cannot exceed 1000 Watts EIRP and the antenna must be permanently installed in a fixed location that provides at …

Text truncated - open the document above for the full version.

11t08t2004 TUV America Inc. TCB 10040 Mesa Rim Road San Diego CA 92121 Re: Request of Confidentiality Pursuant to Sections 0.457(dXlXii) and 0.459 of the Commission's Rules, we hereby request confidential treatment of the accompanying information, provided for the ADC Telecommunications certification submittal, as outlined below: . Schematics, model LPA0800-035-TA01 . Parts List, model LPA0800-035-TA01 Bravo Tech requests that the schematics and parts list are held confidential not only from the public, but also from the applicant (ADC Telecommunications.) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to Bravo Tech Inc and provide unjustified benefits to competitors. Sincerely, Hai Tran, Project Manager Bravo Tech, Inc. Tet: (714) 230-8333 x 122 Fax: (714) 230-8341 Email. [email protected] 6135PhyllisDrive,UnitD Cypress,CA90630 Tel: (7r4)230{333 Fax: (714)230{341 Web:$trtr.t}.r::r.t,|1r'c

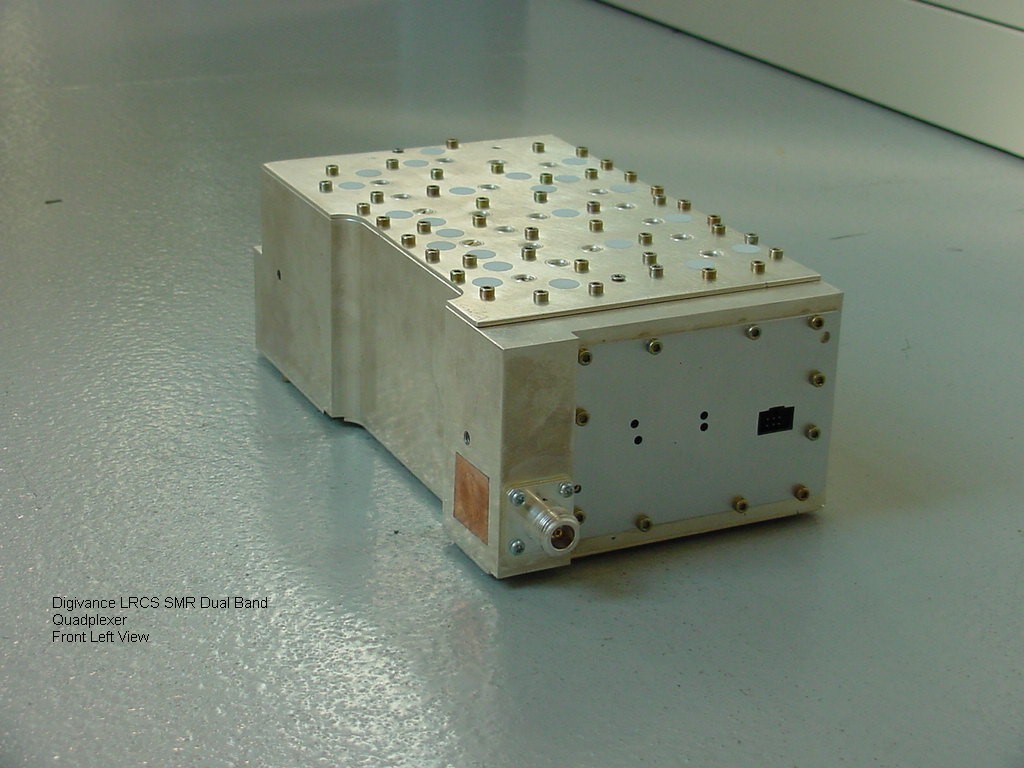

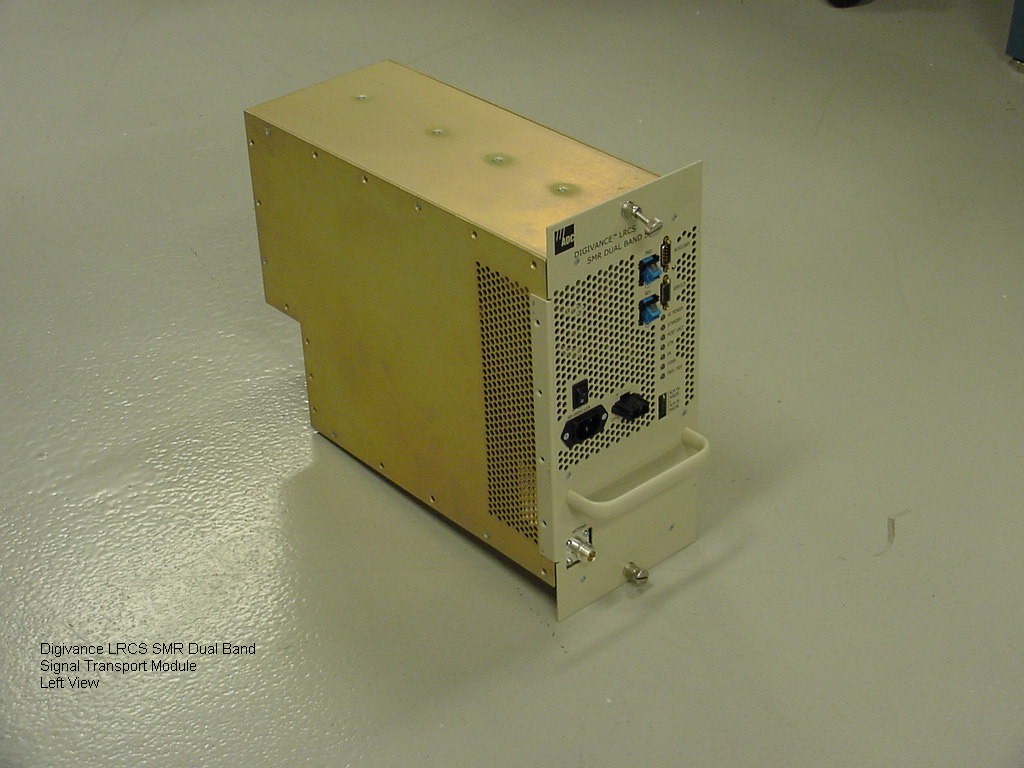

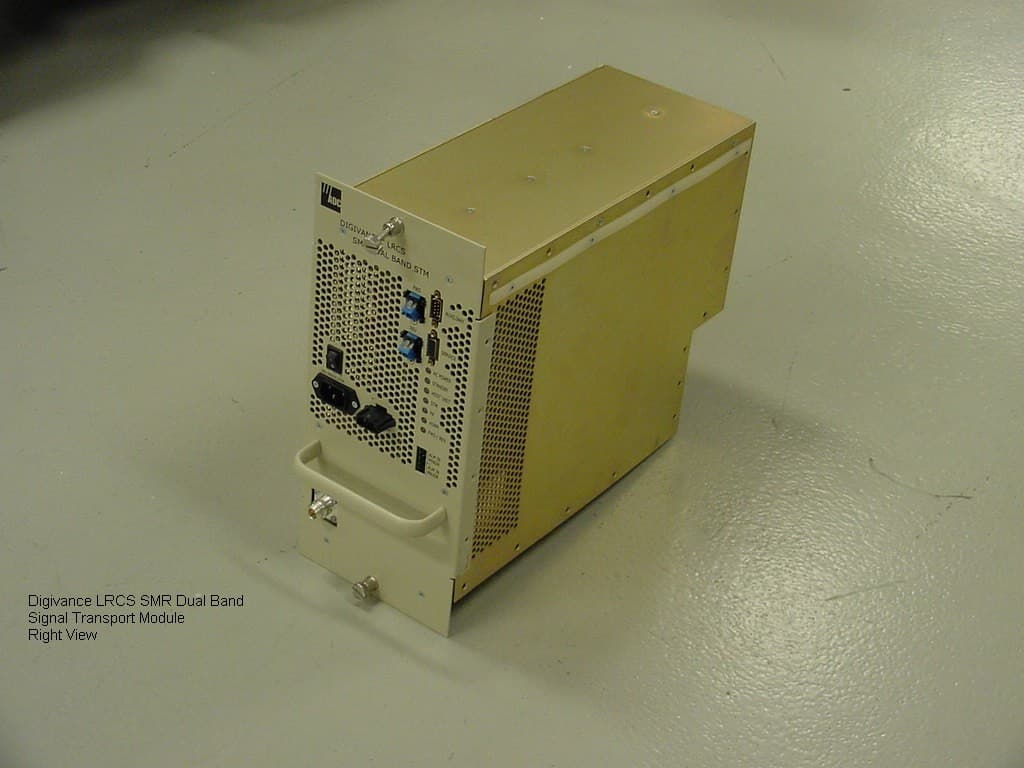

HOST EXTERIOR PHOTOS STM EXTERIOR PHOTOS LPA EXTERIOR PHOTOS QUADPLEXER EXTERIOR PHOTOS

INFORMATION ON THIS DOCUMENT IS PROPRIETARY TO ADC AND SHALL NOT BE USED, COPIED, REPRODUCED OR DISCLOSED IN WHOLE OR IN PART WITHOUT WRITTEN CONSENT OF ADC TITLE SMR 35 Watt Dual Band FCC / IC Identification Label TOLERANCE UNLESS .XX NA OTHERWISE SPECIFIED .XX NA DRAWING NUMBER None A REV DO NOT SCALE DRAWING ENGR. Mark F. Miska SIZE A SHEET 1 OF 1 REV ECO DWN DATE A MFM 10-19-2004 FCC ID: F8I-DLCSMR3D IC: 1208G-DLCSMR3D 1 2 1.500 REF R.075 (4) DIE CUT LABEL .750 REF NOTES: 1 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 8 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. 2 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 6 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. MATERIAL: ADC PART NUMBER 1215140 3 Label ID Placement

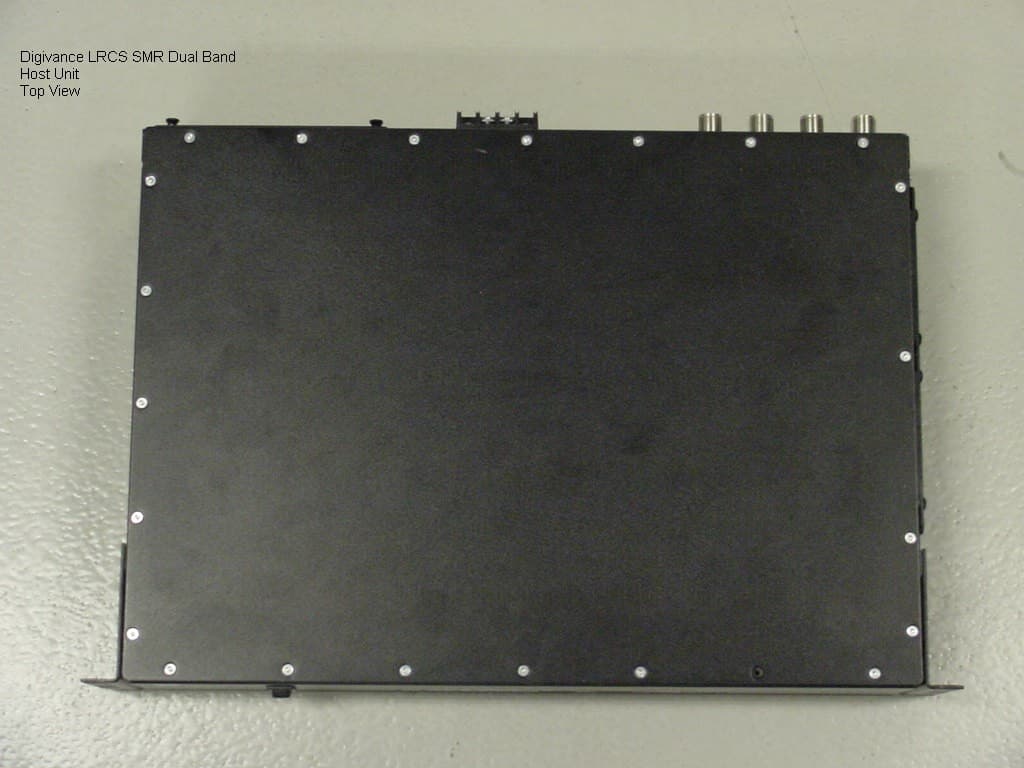

HOST INTERNAL PHOTOS - DISASSEMBLY VIEW HOST INTERNAL PHOTOS - TOP VIEW (See next page for photos of power supply cover removed.) POWER SUPPLY WITH COVER REMOVED HOST INTERNAL PHOTOS - BOTTOM VIEW

LPA INTERNAL PHOTOS

STM INTERNAL PHOTOS - DISASSEMBLY VIEW STM INTERNAL PHOTOS - TOPVIEW STM INTERNAL PHOTOS - BOTTOM VIEW QUADPLEXER INTERNAL PHOTOS

PRODUCT SERVICE TEST RESULT SUMMARY FCC PART 90 MANUFACTURER'S NAME ADC, Incorporated NAME OF EQUIPMENT Digivance LRCS SMR Dual Band System TYPE OF EQUIPMENT Transports RF between a remote antenna and base station MODEL NUMBER DGVL-901600SYS DGVL-901900SYS MANUFACTURER'S ADDRESS P. O. Box 1101 Minneapolis MN 55440-1101 TEST REPORT NUMBER WC404953 TEST DATE 28 October 2004 According to testing performed at TÜV Product Service Inc, the above-mentioned unit is in compliance with the electromagnetic compatibility requirements defined in FCC Part 90. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV Product Service Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the requirements of FCC Part 90. Date: 08 November 2004 Location: Taylors Falls MN J. C. Sausen T. K. Swanson USA Test Engineer Technical Writer TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI Not Transferable File No. WC404953, Page 1 of 56 TÜV PRODUCT SERVICE INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMC EMISSION - T E S T R E P O R T Test Report File Number: WC404953 Date of Issue: 08 November 2004 D I R E C T O R Y Page(s) Exhibit A EIRP Test Data 2 Exhibit B Occupied Bandwidth Test Data 3 - 5 Exhibit C Spurious Conducted Emissions Test Data (FCC Section 90.669) 6 - 18 Exhibit D Spurious Radiated Emissions Test Data 19 - 31 Exhibit E AC Powerline Conducted Emissions Test Data N/A Exhibit F Frequency Stability Test Data (FCC Section 90.213) 32 - 33 Exhibit G Emission Mask Test Data (FCC Section 90.691) N/A Exhibit H Inter-Modulation Test Data 34 - 46 Exhibit I Test Equipment List 47 - 48 Exhibit J Product Information 49 - 55 Exhibit K Test Set-up Diagrams / Measurement Info 56 - 62 Effective Isotropic Radiated Power Test for ADC Inc. Digivance LRCS SMR Dual Band System Model Numbers DGVL-901600SYS and DGVL-901900SYS *Note: The EUT is a fixed repeater and not a base station. This measurement was made as a direct conducted emission measurement. The output from the EUT antenna connector was connected to the spectrum analyzer. The carrier output, below, was conducted using a single CW signal generator. The spectrum analyzer level was offset to compensate for attenuators and cable loss between the EUT and the analyzer. A CW signal was used at the low, mid and high parts of the selected band. The spectrum analyzer level was offset by 51.0 dB to compensate for attenuators and cable loss between the EUT and the analyzer. Band SMR (800 MHz) Carrier Frequency Carrier Output 851.0 MHz 41.67 dBm 858.5 MHz 43.17 dBm 869.0 MHz 40.17 dBm Band SMR (900 MHz) Carrier Frequency Carrier Output 935.0 MHz 41.33 dBm 937.5 MHz 42.67 dBm 940.0 MHz 40.33 dBm File No. WC404953, Page 2 of 56 Occupied Bandwidth Modulation Test for ADC Inc. Digivance LRCS SMR Dual Band System Model Numbers DGVL-901600SYS and DGVL-901900SYS An input/output Occupied Bandwidth test was done with modulation type: 16QAM. The purpose was to determine the amount of distortion added to different types of modulation schemes by the EUT. The following plots show input signals vs. output signals. Results: Pass (see plots) File No. WC404953, Page 3 of 56 File No. WC404953, Page 4 of 56 File No. WC404953, Page 5 of 56 Conducted Emission Limits Test for ADC Inc. Digivance LRCS SMR Dual Band System Model Numbers DGVL-901600SYS and DGVL-901900SYS The out of band emissions were measured directly from the EUT antenna output with a spectrum analyzer from 30 MHz to the 10 th harmonic of the highest carrier frequency. Test signals used are 16 QAM. The different signals were input one at a time to the EUT. In all cases, the out of band emissions were less than –13dBm from the equation (19dBm – [43 + 10log(0.08W)]) Band edge compliance is also demonstrated using a 16 QAM signal at the upper and lower limits of the band and a resolution bandwidth of 300 Hz. Results: Pass (See plots) File No. WC404953, Page 6 of 56 File No. WC404953, Page 7 of 56 File No. WC404953, Page 8 of 56 File No. WC404953, Page 9 of 56 File No. WC404953, Page 10 of 56 File No. WC404953, Page 11 of 56 File No. WC404953, Page 12 of 56 File No. WC404953, Page 13 of 56 File No. WC404953, Page 14 of 56 File No. WC404953, Page 15 of 56 File No. WC404953, Page 16 of 56 File No. WC404953, Page 17 of 56 File No. WC404953, Page 18 of 56 RADIATED EMISSIONS Test Report #: WC404953 Run 1 Test Area: LTS EUT Model #: DGVL-901X00SYS Date: 10/28/2004 EUT Serial #: N/A EUT Power: 60Hz/110VAC Temperature: 22.0 °C Test Method: FCC PART 90 Air Pressure: 97.0 kPa Customer: ADC TELECOM Rel. Hu…

Text truncated - open the document above for the full version.

Conducted Emission Limits Test for ADC Inc. Digivance LRCS SMR Dual Band System Model Numbers DGVL-901600SYS and DGVL-901900SYS RF IN 8563E Spectrum Analyzer RF OUT E4432B Signal Generator BAND SMR-40 dBm EUT Test Set-up Composite Power Meter Attenuator 10 MHz Ref (out) Effective Isotropic Radiated Power Limit Test for ADC Inc. Digivance LRCS SMR Dual Band System Model Numbers DGVL-901600SYS and DGVL-901900SYS RF IN 8563E Spectrum Analyzer RF OUT E4432B Signal Generator BAND SMR-40 dBm EUT Test Set-up Composite Power Meter Attenuator 10 MHz Ref (out) Frequency Tolerance Test for ADC Inc. Digivance LRCS SMR Dual Band System Model Numbers DGVL-901600SYS and DGVL-901900SYS EUT Host is specified for indoor use only with temperature range of 0° to +50° C, and was tested with its range. EUT STM and LPA are specified with a temperature range of -30° to +50° C and were tested with their range. 8888 Multi Meter RF IN Frequency Counter BAND SMR RF OUT E4432B Signal Generator BAND SMR-40 dBm EUT Test Set-up Auto Transformer Temperature Chamber 10 MHz Ref (out) 120 VAC 60 Hz Inter-Modulation Test for ADC Inc. Digivance LRCS SMR Dual Band System Model Numbers DGVL-901600SYS and DGVL-901900SYS RF OUT E4432B Signal Generator BAND SMR-43 dBm RF IN 8563E Spectrum Analyzer RF OUT E4432B Signal Generator BAND SMR-43 dBm EUT Test Set-up Composite Power Meter Attenuator Combiner 10 MHz Ref (out) Occupied Bandwidth Modulation Test for ADC Inc. Digivance LRCS SMR Dual Band System Model Numbers DGVL-901600SYS and DGVL-901900SYS RF IN 8563E Spectrum Analyzer RF OUT E4432B Signal Generator BAND SMR-40 dBm EUT Test Set-up Composite Power Meter Attenuator 10 MHz Ref (out) EMM0094 REV 09.95 TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Large Test Site Notes: 1.Items shown in dotted lines are located on the floor below the test area. It is 5 meters vertically from the ground floor to the test area. 2.50 Hz, 60 Hz, and 400 Hz are power panels for alternating current. 3.The antenna may be positioned horizontally 3, 10 or 30 meters from the center of the turntable. 4.The circle is a 6.7 meter diameter turntable. 5.A ground plane is in the plane of this sheet. 6.The test sample is shown in the azimuthal position representing zero degrees. EUT 50 Hz 400 Hz 60 Hz Antenna 0 270 90 180 Shielded Enclosure Radiated Emissions Test Setup Photos
