F8I-DNYSMR1ADigivance� Street Coverage FleXibility "SCX" - SMR

ADCP-75-187 Issue 1 September 2005 1327044 Rev A (Digivance ® Street-Level Coverage Solution System with Version 3.01 EMS Software (Operation and Maintenance Manual 20576-A ADCP-75-187 Issue 1 September 2005 1327044 Rev A Digivance ® Street-Level Coverage Solution System with Version 3.01 EMS Software Operation and Maintenance Manual ADCP-75-187 • Issue 1 • September 2005 • Preface Page ii COPYRIGHT © 2005, ADC Telecommunications, Inc. All Rights Reserved Printed in the U.S.A. REVISION HISTORY LIST OF CHANGES The technical changes incorporated into this issue are listed below. TRADEMARK INFORMATION ADC and Digivance are registered trademarks of ADC Telecommunications, Inc. OptiTap is a trademark of Corning Incorporated. Stargazer is a registered trademark of ADC DSL Systems, Inc. Procomm Plus is a registered trademark of Quarterdeck Corporation. Acrobat and Adobe are registered trademarks of Adobe Systems, Inc. DISCLAIMER OF LIABILITY Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. This publication may be verified at any time by contacting ADC’s Technical Assistance Center at 1-800-366-3891, extension 73476 (in U.S.A. or Canada) or 952-917-3476 (outside U.S.A. and Canada), or by e-mail to [email protected] ISSUEDATEREASON FOR CHANGE 109/2005Original issue. PAGEIDENTIFIERDESCRIPTION OF CHANGE All Original issue. ADC Telecommunications, Inc. P.O. Box 1101, Minneapolis, Minnesota 55440-1101 In U.S.A. and Canada: 1-800-366-3891 Outside U.S.A. and Canada: (952) 938-8080 Fax: (952) 917-1717 ADCP-75-187 • Issue 1 • September 2005 • Preface Page iii © 2005, ADC Telecommunications, Inc. TABLE OF CONTENTS ContentPage ABOUT THIS MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii RELATED PUBLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii ADMONISHMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii GENERAL SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii STANDARDS CERTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii LIST OF ACRONYMS AND ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix SECTION 1: OVERVIEW 1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2SCS SYSTEM OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2.1Basic SCS System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2.2Enhanced Base Transceiver Station Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.3Subscriber Unit Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.4Local Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.5Network Operations Center Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 2.6SNMP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 3SYSTEM FUNCTIONS AND FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7 3.1Fiber Optic Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7 3.2Control and Monitoring Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 3.3Fault Detection and Alarm Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 3.4Powering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 3.5Equipment Mounting and Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 4DUAL-BAND REMOTE UNIT SCS SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 SECTION 2: DESCRIPTION 1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2HOST UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2.1Primary Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2 2.2Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2.3Fault Detection and Alarm Reporting . . .…

Text truncated - open the document above for the full version.

ADCP-75-187 • Issue 1 • September 2005 • Section 2: DESCRIPTION Page 2-19 © 2005, ADC Telecommunications, Inc. Table 2-6. Interim Single-Band Remote Unit Nominal Specifications PARAMETERSPECIFICATIONREMARKS Physical/Environmental/ Electrical - Remote Unit Dimensions (L×W×D)37.3 × 10.2 × 7.5 inches (947 × 259 × 191 mm) MountingPole, wall, or strand mountedRequires accessory kit for strand mounting Weight79.5 lbs. (36.1 kg)With solar shields installed Weather resistanceNEMA 4X, IEC IP 67Indoor or outdoor installation Lightning protection20 kA IEC 1000-4-5 8/20 μs waveform With external protector (acces- sory) Operating temperature–30º to 50º C (–22º to 122º F) Storage temperature–40º to 70º C (–40º to 158ºF) Humidity10% to 90%No condensation AC power connectorMini 3-pin3-wire power cable included Antenna connector(s)50 ohm N-type (female)50 ohms input/output impedance Optical portOptiTap with APC/SC connector and adapter Voltage input90 to 265 VAC, 47 to 63 Hz 60 to 89 VAC, 47 to 63 Hz Standard Option Power consumption150 Watts Current rating1.25 Amps at 120 VAC .625 Amps at 240 VAC Reliability at 25ºCMTBF - 80,000 hours ADCP-75-187 • Issue 1 • September 2005 • Section 2: DESCRIPTION Page 2-20 © 2005, ADC Telecommunications, Inc. Blank ADCP-75-187 • Issue 1 • September 2005 • Section 3: OPERATION Page 3-1 © 2005, ADC Telecommunications, Inc. SECTION 3: OPERATION 1BEFORE STARTING OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 1.1Tools and Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 1.2Readiness Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 2TURN-UP SYSTEM AND VERIFY OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2 2.1Turn-Up Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 2.2Determine Forward Path Input Signal Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 2.3Enter Site Name and Site Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 2.4Enter Host Forward Attenuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 2.5Determine Output Signal Level at RU Antenna Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11 2.6Enter Remote Forward Attenuation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12 2.7Enter Host Reverse Attenuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14 2.8Enter Host Forward and Reverse Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15 _________________________________________________________________________________________________________ 1 BEFORE STARTING OPERATION This section provides guidelines for turning-up the Digivance system, verifying that all units are operating properly, testing to ensure that all performance requirements are satisfied, and correcting any installation problems. This process assumes that the various units have been installed in accordance with the system design plan. 1.1Tools and Materials The following tools and materials are required in order to complete the procedures in this section: • Portable spectrum analyzer and RF power meter • DC voltmeter • External RF and optical attenuators (if specified in system design plan) • PC-type computer with Digivance Element Management System (EMS) Version 3.01 software installed • Straight-through RS-232 DB-9 interface cable (accessory) • Subscriber unit •Pencil or pen • Writing pad ContentPage ADCP-75-187 • Issue 1 • September 2005 • Section 3: OPERATION Page 3-2 © 2005, ADC Telecommunications, Inc. 1.2Readiness Check Before starting the turn-up process, inspect the complete Digivance system to verify that all components of the system are ready to be powered-up. This will ensure that no units of the system will be damaged during turn-up and that all existing systems will continue to function properly. 1.2.1Host Unit Installation Checks Complete the following checks at the HU prior to starting the turn-up process: 1. Verify that the ON/OFF switch on the HU is in the OFF position (press O). 2. At the fuse panel, install a 3 Amp GMT fuse in the circuit that supplies DC power to the HU. 3. Using a DC voltmeter, verify that the DC voltage level at the HU power terminals is between ± 21 to ± 60 VDC (nominal ± 24 or ± 48 VDC). The DC power provided to the HU can be either polarity. 4. Verify that all electrical and optical connections have been completed and that all optical fibers, coaxial cables, and wires are properly routed and secured. 1.2.2Remote Unit Installation Checks Complete the following checks at the RU prior to starting the turn-up process: 1. Verify that all electrical and optical connections have been completed and that all optical fibers, coaxial cables, and wires are properly routed and secured. 2. At the AC breaker box, make sure the circuit breaker for the circuit that supplies AC power to the RU is in the open (off) position. 2 TURN-UP SYSTEM AND VERIFY OPERATION The process of turning-up the system and verifying operation involves powering up the various system components, verifying that the LED indicators show normal operation, setting the site number and name, adjusting the RF signal levels, and adjusting the path delay. Note: When connecting the equipment to the supply circuit, be sure to check equipment nameplate ratings to avoid overloading circuits…

Text truncated - open the document above for the full version.

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com May 11, 2007 Attn: Application Examiner, Reviewing Engineer Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Technical Description or Theory of Operation, Bill of Materials (BOM’s), and Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Mark Miska Compliance Engineer Tele: 952 403-8340 Fax: 952 403-8858 Email: [email protected]

Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Front View Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Left View Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Right View Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Rear View Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Top View Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Bottom View

VICOR Power Supply Top View VICOR Power Supply Bottom View

Digivance LRCS SMR Dual Band Quadplexer Front Left View Digivance LRCS SMR Dual Band Quadplexer Front Right View Digivance LRCS SMR Dual Band Quadplexer Rear View Digivance LRCS SMR Dual Band Quadplexer Top View Digivance LRCS SMR Dual Band Quadplexer Bottom View Digivance LRCS SMR Dual Band Quadplexer Open Top View Digivance LRCS SMR Dual Band Quadplexer Open Bottom View

Digivance SCX - SMR Remote Unit Left View Digivance SCX - SMR Remote Unit Right View Digivance SCX - SMR Remote Unit Front View Digivance SCX - SMR Remote Unit Rear View Digivance SCX - SMR Remote Unit Bottom View Digivance SCX - SMR Remote Unit Top View Digivance SCX - SMR Remote Unit Open View – Bottom Left Digivance SCX - SMR Remote Unit Open View – Bottom Right Digivance SCX - SMR Remote Unit Open View – Top

INFORMATION ON THIS DOCUMENT IS PROPRIETARY TO ADC AND SHALL NOT BE USED, COPIED, REPRODUCED OR DISCLOSED IN WHOLE OR IN PART WITHOUT WRITTEN CONSENT OF ADC TITLE SCX - SMR FCC Identification Label TOLERANCE UNLESS .XX NA OTHERWISE SPECIFIED .XX NA DRAWING NUMBER None A REV DO NOT SCALE DRAWING ENGR. Mark F. Miska SIZE A SHEET 1 OF 1 REV ECO DWN DATE A MFM 4-25-2007 XXXX-XXXXXXXX FCC ID: F8I-DNYSMR1A 2 1.500 REF R.075 (4) DIE CUT LABEL .750 REF 1,4 - See Note 4 for Model Number NOTES: 1 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 8 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. 2 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 6 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. MATERIAL: ADC PART NUMBER 1215140 3 4 DGVC-901000RU

Digivance SCX - SMR Location of FCC ID

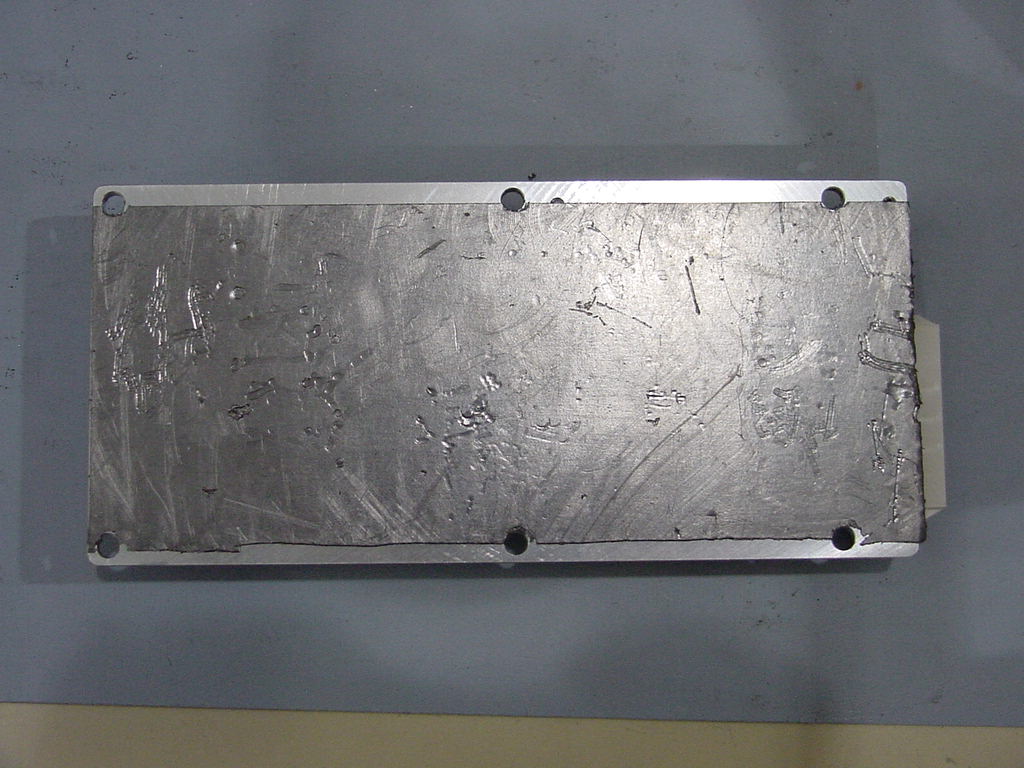

Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Board 4244601E - Rev A Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Back of Board 4244601E - Rev A Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Board 4244601E Rev A Part B_C Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Back of Board 4244601E Rev A Part B_C Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Board 4244602E Rev A Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Back of Board 4244602E Rev A Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Board 4244603E-Rev P2 Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Back of Board 4244603E-Rev P2 Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Universal II 003.JPG Bravo Tech SMR 800/900 Dual Band Linear Power Amplifier - 10 Watt Back of Universal II 003.JPG

Digivance LRCS Power Monitor Board Top View Digivance LRCS Power Monitor Board Bottom View

SMR Dual Band Remote Board Top View SMR Dual Band Remote Board Top View 1 SMR Dual Band Remote Board Top View 2 SMR Dual Band Remote Board Top View 3 SMR Dual Band Remote Board Top View 4 SMR Dual Band Remote Board Top View 5 SMR Dual Band Remote Board Top View 6 SMR Dual Band Remote Board Bottom View SMR Dual Band Remote Board Bottom View 1 SMR Dual Band Remote Board Bottom View 2

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com April 25, 2007 Attn: Application Examiner, Reviewing Engineer Re: Tune-up Procedure The Digivance® Street Coverage FleXibility “SCX” - SMR System, Model Number DGVC- 901000RU, employs a solid-state design that does not require a tune-up procedure. Sincerely, Mark F. Miska Compliance Engineer Tele: 952 403-8340 Fax: 952 403-8858 Email: [email protected]

ADC Telecommunications Test Report Summary FCC CFR 47, Part 90 Private Land Mobile Radio Service Manufacturer: ADC Telecommunications Name of Equipment: Digivance® Street Coverage FleXibility “SCX” Model Number(s): DGVC-901000RU Manufacturer’s Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Report Number: MN070425 Test Date(s): 23 March, 2007 (ETL) 18 April, 2007 (ADC) According to testing performed at Intertek, the above-mentioned unit is in accordance with the applicable electromagnetic compatibility (EMC) portions of the requirements defined in FCC Part 90. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. All testing was done in accordance with the Federal Communications Commission’s CFR 47 Part 90 and the EUT fulfills the requirements of the Federal Communications Commission’s CFR 47 Part 90. Date: 25 April, 2007 Location: Intertek Testing Services (ETL) ADC Telecommunications 7250 Hudson Blvd., Suite 100 5341 12 th Ave E Oakdale, MN 55128 Shakopee, MN 55379 Phone: (651) 730-1188 Phone: (952) 403-8340 Fax: (651) 730-1282 Fax: (952) 403-8858 Testing Conducted by (ADC): And Report Written by: Mark F. Miska Compliance Engineer 1 of 106 MN070425 ADC Telecommunications EMC Emission – T E S T R E P O R T Test Report File Number: MN070425 Date of Issue: 25 April, 2007 Model Number(s): DGVC-901000RU Product Name: Digivance® Street Coverage FleXibility “SCX” Product Type: Outdoor Repeater Applicant: ADC Telecommunications Manufacturer: ADC Telecommunications License Holder: ADC Telecommunications Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Result: ▪ Positive ▫ Negative Test Project Number: 3118541MIN-001 Reference(s) Total pages including Appendices: 106 2 of 106 MN070425 ADC Telecommunications Table of Contents 1.0 Revision Description .............................................................................................. 4 2.0 Documentation..................................................................................................... 4 2.1 Test Regulations ................................................................................................ 4 2.2 Test Operation Mode .......................................................................................... 5 2.3 Configuration of the device under test: ................................................................. 5 2.4 Product Options:................................................................................................ 5 2.5 EUT Specifications and Requirements: .................................................................. 5 2.6 Cables:............................................................................................................. 5 2.7 Power Requirements: ......................................................................................... 5 2.8 Typical Installation and/or Operating Environment:................................................. 5 2.9 Other Special Requirements: ............................................................................... 5 2.10 EUT Software: ................................................................................................ 5 2.11 EUT System Components ................................................................................. 6 2.12 Support Equipment.......................................................................................... 6 2.13 Deviations from standard: ................................................................................ 6 2.14 General Remarks: ........................................................................................... 6 2.15 Summary:...................................................................................................... 6 3.0 Test set-Up drawings and Photos............................................................................ 7 3.1 Test set-up photo, radiated emissions ................................................................... 7 3.2 Test Set-up Drawings ......................................................................................... 8 4.0 Test Results ....................................................................................................... 11 4.1.1 90.635 Limitations on power and antenna height............................................ 11 4.1.2 90.213 Frequency stability........................................................................... 12 4.1.3 90.669 Emission limits................................................................................ 13 5.0 Appendix A........................................................................................................ 14 6.0 Appendix B........................................................................................................ 84 7.0 Appendix C.......................................................................................................105 3 of 106 MN070425 ADC Telecommunications 1.0 REVISION DESCRIPTION Rev Total Pages Date Description A 106 April 25, 2007 Original Release 2.0 DOCUMENTATION 2.1 Test Regulations 90.213 Frequency stability 90.635 Limitations on power and antenna height 90.669 Emission limits The emissions tests were performed according to the following regulations: ▫ FCC Part 22 ▫ FCC Part 24 ▪ FCC Part 90 ▫ IC RSS-131 Issue 2 Environmental Conditions in the lab: ADC ETL Temperature: 26º C 23º C Relative Humidity: 22% 17% Atmospheric Pressure: 98.6 kPa 99.1 kPa Power Supply Utilized: Power Supply System (Remote) : 1 phase, 60 Hz, 120 VAC Power Supply System (Host) : 48 VDC 4 of 106 MN070425 ADC Telecommunications 2.2 Test Operation Mode ▫ Standby ▫ Test Program ▫ Practice Operation ▪ Max composite in and out 2.3 Configuration of the…

Text truncated - open the document above for the full version.

Intermodulation CDMAClose - Upper SMR 800 MHz Span: 1 GHz to 10 GHz RBW/VBW: 1 MHz 57 of 106 MN070425 Intermodulation CDMAApart SMR 800 MHz Intermodulation CDMAApart SMR 800 MHz Center: 860.0 MHz Span: 25 MHz RBW/VBW: 100 kHz Span: 30 MHz to 1 GHz RBW/VBW: 300 kHz 58 of 106 MN070425 Intermodulation CDMAApart SMR 800 MHz Span: 1 GHz to 10 GHz RBW/VBW: 1 MHz 59 of 106 MN070425 Intermodulation CDMAClose - Lower SMR 900 MHz Intermodulation CDMAClose - Lower SMR 900 MHz Center: 937.5 MHz Span: 15 MHz RBW/VBW: 100 kHz Span: 30 MHz to 1 GHz RBW/VBW: 300 kHz 60 of 106 MN070425 Intermodulation CDMAClose - Lower SMR 900 MHz Span: 1 GHz to 10 GHz RBW/VBW: 1 MHz 61 of 106 MN070425 Intermodulation CDMAClose - Upper SMR 900 MHz Intermodulation CDMAClose - Upper SMR 900 MHz Center: 937.5 MHz Span: 15 MHz RBW/VBW: 100 kHz Span: 30 MHz to 1 GHz RBW/VBW: 300 kHz 62 of 106 MN070425 Intermodulation CDMAClose - Upper SMR 900 MHz Span: 1 GHz to 10 GHz RBW/VBW: 1 MHz 63 of 106 MN070425 Intermodulation CDMAApart SMR 900 MHz Intermodulation CDMAApart SMR 900 MHz Center: 937.5 MHz Span: 15 MHz RBW/VBW: 100 kHz Span: 30 MHz to 1 GHz RBW/VBW: 300 kHz 64 of 106 MN070425 Intermodulation CDMAApart SMR 900 MHz Span: 1 GHz to 10 GHz RBW/VBW: 1 MHz 65 of 106 MN070425 Intermodulation iDENClose - Lower SMR 800 MHz Intermodulation iDENClose - Lower SMR 800 MHz Center: 860.0 MHz Span: 25 MHz RBW/VBW: 100 kHz Span: 30 MHz to 1 GHz RBW/VBW: 300 kHz 66 of 106 MN070425 Intermodulation iDENClose - Lower SMR 800 MHz Span: 1 GHz to 10 GHz RBW/VBW: 1 MHz 67 of 106 MN070425 Intermodulation iDENClose - Upper SMR 800 MHz Intermodulation iDENClose - Upper SMR 800 MHz Center: 860.0 MHz Span: 25 MHz RBW/VBW: 100 kHz Span: 30 MHz to 1 GHz RBW/VBW: 300 kHz 68 of 106 MN070425 Intermodulation iDENClose - Upper SMR 800 MHz Span: 1 GHz to 10 GHz RBW/VBW: 1 MHz 69 of 106 MN070425 Intermodulation iDENApart SMR 800 MHz Intermodulation iDENApart SMR 800 MHz Center: 860.0 MHz Span: 25 MHz RBW/VBW: 100 kHz Span: 30 MHz to 1 GHz RBW/VBW: 300 kHz 70 of 106 MN070425 Intermodulation iDENApart SMR 800 MHz Span: 1 GHz to 10 GHz RBW/VBW: 1 MHz 71 of 106 MN070425 Intermodulation iDENClose - Lower SMR 900 MHz Intermodulation iDENClose - Lower SMR 900 MHz Center: 937.5 MHz Span: 15 MHz RBW/VBW: 100 kHz Span: 30 MHz to 1 GHz RBW/VBW: 300 kHz 72 of 106 MN070425 Intermodulation iDENClose - Lower SMR 900 MHz Span: 1 GHz to 10 GHz RBW/VBW: 1 MHz 73 of 106 MN070425 Intermodulation iDENClose - Upper SMR 900 MHz Intermodulation iDENClose - Upper SMR 900 MHz Center: 937.5 MHz Span: 15 MHz RBW/VBW: 100 kHz Span: 30 MHz to 1 GHz RBW/VBW: 300 kHz 74 of 106 MN070425 Intermodulation iDENClose - Upper SMR 900 MHz Span: 1 GHz to 10 GHz RBW/VBW: 1 MHz 75 of 106 MN070425 Intermodulation iDENApart SMR 900 MHz Intermodulation iDENApart SMR 900 MHz Center: 937.5 MHz Span: 15 MHz RBW/VBW: 100 kHz Span: 30 MHz to 1 GHz RBW/VBW: 300 kHz 76 of 106 MN070425 Intermodulation iDENApart SMR 900 MHz Span: 1 GHz to 10 GHz RBW/VBW: 1 MHz 77 of 106 MN070425 Occupied Bandwidth Modulation Test for ADC Inc. Digivance® SCX Model Number DGVC-901000RU Back An input/output Occupied Bandwidth test was done with modulation types: FM, iDEN, and CDMA. The purpose was to determine the amount of distortion added to different types of modulation schemes by the EUT. The following plots show input signals vs. output signals. The resolution bandwidth is reduced to 1% of the estimated emission bandwidth and the video bandwidth is set to 3 times the resolution bandwidth. The markers are moved to the -20 dB points (from the previously established center frequency level) on either side of center frequency. Results: Pass (see plots) 78 of 106 MN070425 Occupied Bandwidth FM Signal Out Occupied Bandwidth FM Signal In Span: 25 kHz RBW: 300 kHz VBW: 1.0 kHz Span: 25 kHz RBW: 300 kHz VBW: 1.0 kHz 79 of 106 MN070425 Occupied Bandwidth iDEN Signal Out Occupied Bandwidth iDEN Signal In Span: 25 kHz RBW: 300 kHz VBW: 1.0 kHz Span: 25 kHz RBW: 300 kHz VBW: 1.0 kHz 80 of 106 MN070425 Occupied Bandwidth CDMA Signal Out Occupied Bandwidth CDMA Signal In Span: 1.4 MHz RBW: 30 kHz VBW: 100 kHz Span: 1.4 MHz RBW: 30 kHz VBW: 100 kHz 81 of 106 MN070425 Frequency Tolerance Test for ADC Inc. Digivance® SCX Model Number DGVC-901000RU Back EUT SMR 800 MHz HOST REMOTE Input Voltage Input Voltage Carrier Frequency Measured Frequency Meets Requirements? 24 VDC 100 VAC 851.200 MHz 851.200 MHz Yes 36 VDC 175 VAC 851.200 MHz 851.200 MHz Yes 48 VDC 250 VAC 851.200 MHz 851.200 MHz Yes 24 VDC 100 VAC 860.000 MHz 860.000 MHz Yes 36 VDC 175 VAC 860.000 MHz 860.000 MHz Yes 48 VDC 250 VAC 860.000 MHz 860.000 MHz Yes 24 VDC 100 VAC 868.800 MHz 868.800 MHz Yes 36 VDC 175 VAC 868.800 MHz 868.800 MHz Yes 48 VDC 250 VAC 868.800 MHz 868.800 MHz Yes Temperature Carrier Frequency Measured Frequency Meets Requirements? -30 Deg. C 851.200 MHz 851.200 MHz Yes -20 Deg. C 851.200 MHz 851.200 MHz Yes -10 Deg. C 851.200 MHz 851.200 MHz Yes 0 Deg. C 851.200 MHz 851.200 MHz Yes 10 Deg. C 851.200 MHz 851.200 MHz Yes 20 Deg. C 851.200 MHz 851.200 MHz Yes 30 Deg. C 851.200 MHz 851.200 MHz Yes 40 Deg. C 851.200 MHz 851.200 MHz Yes 50 Deg. C 851.200 MHz 851.200 MHz Yes -30 Deg. C 860.000 MHz 860.000 MHz Yes -20 Deg. C 860.000 MHz 860.000 MHz Yes -10 Deg. C 860.000 MHz 860.000 MHz Yes 0 Deg. C 860.000 MHz 860.000 MHz Yes 10 Deg. C 860.000 MHz 860.000 MHz Yes 20 Deg. C 860.000 MHz 860.000 MHz Yes 30 Deg. C 860.000 MHz 860.000 MHz Yes 40 Deg. C 860.000 MHz 860.000 MHz Yes 50 Deg. C 860.000 MHz 860.000 MHz Yes -30 Deg. C 868.800 MHz 868.800 MHz Yes -20 Deg. C 868.800 MHz 868.800 MHz Yes -10 Deg. C 868.800 MHz 868.800 MHz Yes 0 Deg. C 868.800 MHz 868.800 MHz Yes 10 Deg. C 868.800 MHz 868.800 MHz Yes 20 Deg. C 868.800 MHz 868.800 MHz Yes 30 Deg. C 868.800 MHz 868.800 MHz Yes 40 Deg. C 868.800 MHz 868.800 MHz Yes 50 Deg. C 868.800 MHz 868.800 MHz Yes 82 of 106 MN070425 Frequency Tolerance Test for ADC Inc. Digivance® SCX Model Number DGVC-901000RU EUT SMR 900 MHz HOST REMOTE I…
