ADCP-75-187 Preliminary Issue 1B November 2005 1346357 Rev 1 Digivance ® Street-Level Coverage Solution 800 MHz, 1900 MHz, and 800/900 MHz SMR System Operation and Maintenance Manual 20576-A ADCP-75-187 Preliminary Issue 1B November 2005 1346357 Rev 1 Digivance ® Street-Level Coverage Solution 800 HHz, 1900 MHz, 800/900 MHz SMR System Operation and Maintenance Manual ADCP-75-187 • Preliminary Issue 1B • November 2005 • Preface Page ii COPYRIGHT © 2005, ADC Telecommunications, Inc. All Rights Reserved Printed in the U.S.A. REVISION HISTORY LIST OF CHANGES The technical changes incorporated into this issue are listed below. TRADEMARK INFORMATION ADC and Digivance are registered trademarks of ADC Telecommunications, Inc. OptiTap is a trademark of Corning Incorporated. Stargazer is a registered trademark of ADC DSL Systems, Inc. Procomm Plus is a registered trademark of Quarterdeck Corporation. Acrobat and Adobe are registered trademarks of Adobe Systems, Inc. DISCLAIMER OF LIABILITY Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. This publication may be verified at any time by contacting ADC’s Technical Assistance Center at 1-800-366-3891, extension 73476 (in U.S.A. or Canada) or 952-917-3476 (outside U.S.A. and Canada), or by e-mail to [email protected] ISSUEDATEREASON FOR CHANGE 1B011/2005Original issue. PAGEIDENTIFIERDESCRIPTION OF CHANGE All Original issue. ADC Telecommunications, Inc. P.O. Box 1101, Minneapolis, Minnesota 55440-1101 In U.S.A. and Canada: 1-800-366-3891 Outside U.S.A. and Canada: (952) 938-8080 Fax: (952) 917-1717 ADCP-75-187 • Preliminary Issue 1B • November 2005 • Preface Page iii © 2005, ADC Telecommunications, Inc. TABLE OF CONTENTS ContentPage ABOUT THIS MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii RELATED PUBLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii ADMONISHMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii GENERAL SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii STANDARDS CERTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix LIST OF ACRONYMS AND ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix SECTION 1: OVERVIEW 1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2SCS SYSTEM OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2.1Basic SCS System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2.2Enhanced Base Transceiver Station Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.3Subscriber Unit Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.4Local Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.5Network Operations Center Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 2.6SNMP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 3SYSTEM FUNCTIONS AND FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7 3.1Fiber Optic Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7 3.2Control and Monitoring Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 3.3Fault Detection and Alarm Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 3.4Powering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 3.5Equipment Mounting and Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 4DUAL-BAND REMOTE UNIT SCS SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 SECTION 2: DESCRIPTION 1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2HOST UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2.1Primary Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2 2.2Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

ADCP-75-187 • Preliminary Issue 1B • November 2005 • Section 2: DESCRIPTION Page 2-18 © 2005, ADC Telecommunications, Inc. Figure 2-9. NOC/NEM Interface Typical Commands The SNMP interface is used for remote control and monitoring operations (except software download and site number assignment). The SNMP interface uses a Management Information Base (MIB) to define a list of identifiers that are supported by the SNMP agent. The SNMP manager communicates with the SNMP agent over a LAN. Directives, based on the MIB identifier, are issued by the SNMP manager to the SNMP agent along with instructions to either get the specified identifier or set the specified identifier. The directive is then executed on the Digivance system by the SNMP agent. The SNMP agent also has the ability to send autonomous messages (called traps) to the SNMP manager to report changes in the status of the managed system. The SNMP manager Stargazer Version 8.0 is available from ADC for use with the LRCS SNMP agent. Other SNMP managers are available from various network management software venders. Refer to the SNMP Agent Software User Manual (see Related Publications section) for additional information. 6 SPECIFICATIONS Refer to the following tables for the system, host unit, and remote unit specifications. All specifications apply after a five minute warm-up period. Ta b l e 2 - 5 – SCS 800/900 MHz SMR system nominal specifications Ta b l e 2 - 6 – SCS 800 MHz system nominal specifications Ta b l e 2 - 7 – SCS 1900 MHz system nominal specifications Ta b l e 2 - 8 – Host Unit nominal specifications Ta b l e 2 - 9 – WDM nominal specifications Ta b l e 2 - 1 0 – Remote Unit nominal specifications ADCP-75-187 • Preliminary Issue 1B • November 2005 • Section 2: DESCRIPTION Page 2-19 © 2005, ADC Telecommunications, Inc. Table 2-5. SCS 800/900 MHz SMR System Nominal Specifications PARAMETERSPECIFICATIONREMARKS Optical - Host and Remote Unit Fiber type9/125, single-mode Number of fibers required1 for single-band remote unit 2 for dual-band RU All SCS remote units include a WDM. Forward path wavelength1550 nm Reverse path wavelength1310 nm Optical transmit power output Host Unit Remote Unit 0 dBm +1.3 dBm (includes WDM inser- tion loss) Optical budget25 dB For optical BER of 10 –6 Optical Receiver Input Maximum –15 dBm Optical connectorsUPC/SC Host unit OptiTap APC/SC Remote unit RF Forward Path - 800/900 MHz System bandwidth18 MHz 5 MHz 800 MHz transmit 900 MHz transmit Frequency range851–869 MHz 935–940 MHz Gain of forward path (Host input to Remote primary antenna port) 77.5 dBAt band center, room tempera- ture, and 0 dB attenuation set- ting. Includes power amplifier. Gain flatness Band flatness Channel flatness ± 2.0 dB across freq. range ± 1.5 dB variation across any 1.25 MHz channel Gain variation± 3 dB over temp and unit-to- unit Propagation delay< 6 μs (typical)Excludes fiber delay Configurable propagation delay Range Step size 0 to 63 μs 0.1μs ± 100 ns Plus standard propagation delay Spurious In-band self generated Dynamic range (noise floor) <–13 dBm at remote output <–60 dBc at 30 KHz bandwidth Transmit peak-to-average> 10 dB Two-tone Intermodulation< –55 dBctwo tones @ 5 Watts each Nominal composite RF input signal level –40 dBm at 0 dB attenuation –9 dBm at max. attenuation –20 dBm is the optimal RF input signal level. Configurable input level Range Step size 31 dB 1 ± 0.5 dB ±10% of attenuation monotonic ADCP-75-187 • Preliminary Issue 1B • November 2005 • Section 2: DESCRIPTION Page 2-20 © 2005, ADC Telecommunications, Inc. Note 1: Per Industry Canada Section 5.3 - The rated output power of this equipment is for single carrier operation. For situations where multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device. Composite RF Output power of both bands (see Note 1at end of table) 38.1 dBm (6.5 Watts) at remote antenna port with –40 dBm input 10 Watts at LPA output Configurable RF Output Range Step size 31 dB at remote unit 1 ± 0.5 dB ± 10% of attenuation monotonic Transmit path insertion loss2.5 dB maximum RF Reverse Path - 800/900 MHz System bandwidth18 MHz 5 MHz 800 MHz receive 900 MHz receive Frequency range806–824 MHz 896–901 MHz Propagation delay< 8 μs (typical)Excludes fiber delay Configurable propagation delay Range Step size Up to 63 μs 0.1μs ±1 100 ns Plus standard propagation delay Gain of reverse path Overall gain Gain variation 30 ± 2 dB at band center at room temperature 3 dB over temperature Gain flatness Band flatness Channel flatness ± 2.0 dB across frequency range ± 1.5 dB variation across any 1.25 MHz channel Out-of-band rejection–40 dB bandwidth at < 30 MHz Spurious (in-band self gener- ated) –110 dBm referred to input Intermodulation–62 dBctwo tones @ –50 dBm System noise figure9 dB at mid-band Configurable RF output Range Step size 31 dB 1 ± 0.5 dB ± 10% of attenuation monotonic Blocking dynamic range70 dB Level limiting ALC threshold–40 dBm ± 3 dB instantaneous Level limiting ALC range27 dB Table 2-5. SCS 800/900 MHz SMR System Nominal Specifications, continued PARAMETERSPECIFICATIONREMARKS ADCP-75-187 • Preliminary Issue 1B • November 2005 • Section 2: DESCRIPTION Page 2-21 © 2005, ADC Telecommunications, Inc. Table 2-6. SCS 800 MHz System Nominal Specifications PARAMETERSPECIFICATIONREMARKS Optical - Host and Remote Unit Fiber type9/125, single-mode Number of fibers required1 for single-band remote unit 2 for dual-band RU All SCS remote units include a WDM. Forward path wavelength1550 nm Reverse path wavelength1310 nm Optical transmit power output Host Unit Remote Unit 0 dBm +1.3 dBm (includes WDM inser- tion loss) Optical budget25 dB For optical BER of 10 –6 Optical Receive Input Maximum –15 dBm Optical connectorsUPC/SC Host unit OptiTa…

Text truncated - open the document above for the full version.

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com May 11, 2007 Attn: Application Examiner, Reviewing Engineer Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Technical Description or Theory of Operation, Bill of Materials (BOM’s), and Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Mark Miska Compliance Engineer Tele: 952 403-8340 Fax: 952 403-8858 Email: [email protected]

Digivance LRCS 1900 MHz Duplexer Front View Digivance LRCS 1900 MHz Duplexer Rear View Digivance LRCS 1900 MHz Duplexer Top View Digivance LRCS 1900 MHz Duplexer Bottom View Digivance LRCS 1900 MHz Duplexer Top Open View Digivance LRCS 1900 MHz Duplexer Bottom Open View

Linear Power Amplifier 10 Watt - PCS Left View Linear Power Amplifier 10 Watt - PCS Right View Linear Power Amplifier 10 Watt - PCS Rear View Linear Power Amplifier 10 Watt - PCS Top View Linear Power Amplifier 10 Watt - PCS Bottom View

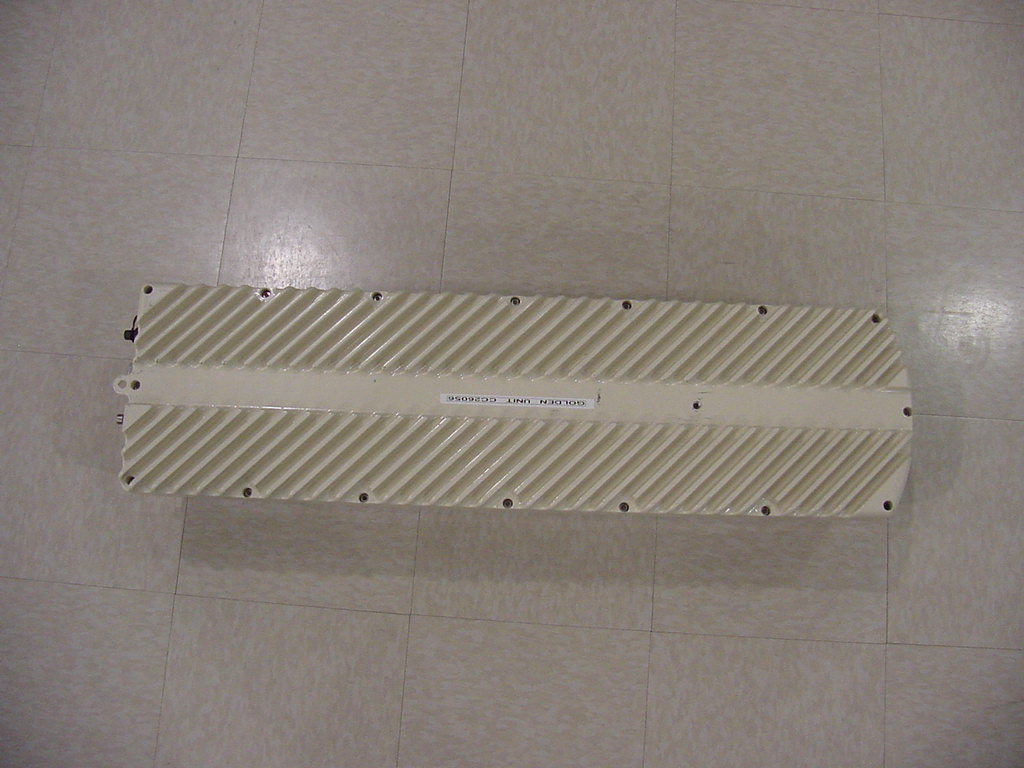

Digivance SCS – PCS/PCS Remote Unit Left View Digivance SCS – PCS/PCS Remote Unit Right View Digivance SCS – PCS/PCS Remote Unit Rear View Digivance SCS – PCS/PCS Remote Unit Bottom View Digivance SCS – PCS/PCS Remote Unit Top View Digivance SCS – PCS/PCS Remote Unit Open View

INFORMATION ON THIS DOCUMENT IS PROPRIETARY TO ADC AND SHALL NOT BE USED, COPIED, REPRODUCED OR DISCLOSED IN WHOLE OR IN PART WITHOUT WRITTEN CONSENT OF ADC TITLE SCS 1900 MHz and 1900 MHz FCC / IC Identification Label TOLERANCE UNLESS .XX NA OTHERWISE SPECIFIED .XX NA DRAWING NUMBER None A REV DO NOT SCALE DRAWING ENGR. Mark F. Miska SIZE A SHEET 1 OF 1 REV ECO DWN DATE A MFM 5-8-2007 XXXX-XXXXXXXX FCC ID: F8I-DSC1902P IC: 1208G-DSC1902P 2 1.500 REF R.075 (4) DIE CUT LABEL .750 REF 1,4 - See Note 4 for Model Numbers NOTES: 1 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 8 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. 2 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 6 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. MATERIAL: ADC PART NUMBER 1215140 3 4 DGVC-4X1X4X1X200SYS

Digivance SCS – PCS/PCS Location of FCC ID

Digivance 1900 MHz Remote Board Top View Digivance 1900 MHz Remote Board Top View 1 Digivance 1900 MHz Remote Board Top View 2 Digivance 1900 MHz Remote Board Top View 3 Digivance 1900 MHz Remote Board Top View 4 Digivance 1900 MHz Remote Board Top View 5 Digivance 1900 MHz Remote Board Top View 6 Digivance 1900 MHz Remote Board Bottom View Digivance 1900 MHz Remote Board Bottom View 1 Digivance 1900 MHz Remote Board Bottom View 2 Digivance 1900 MHz Remote Board Bottom View 3 Digivance 1900 MHz Remote Board Bottom View 4 Digivance 1900 MHz Remote Board Bottom View 5 Digivance 1900 MHz Remote Board Bottom View 6 Digivance Remote Reverse Link Monitor Board Remote – Daughter Card Top View Digivance Remote Reverse Link Monitor Board Remote – Daughter Card Bottom View

Linear Power Amplifier 10 Watt Main Board, Part A – Top Linear Power Amplifier 10 Watt Main Board, Part A - Bottom Linear Power Amplifier 10 Watt Main Board, Part B – Top Linear Power Amplifier 10 Watt Main Board, Part B - Bottom Linear Power Amplifier 10 Watt Driver Board, Part A - Top Linear Power Amplifier 10 Watt Driver Board, Part A - Bottom Linear Power Amplifier 10 Watt Mother Board, Part A - Top Linear Power Amplifier 10 Watt Mother Board, Part A - Bottom Linear Power Amplifier 10 Watt Mother Board, Part B – Top Linear Power Amplifier 10 Watt Mother Board, Part B - Bottom Linear Power Amplifier 10 Watt Control Board, Part A - Top Linear Power Amplifier 10 Watt Control Board, Part A - Bottom Linear Power Amplifier 10 Watt Pilot Tone, Part A - Top Linear Power Amplifier 10 Watt Pilot Tone, Part A - Bottom

Digivance LRCS Power Monitor Board Top View Digivance LRCS Power Monitor Board Bottom View

VICOR Power Supply Top View VICOR Power Supply Bottom View

ADC Telecommunications Test Report Summary FCC CFR 47, Part 24 Subpart E Broadband PCS Manufacturer: ADC Telecommunications Name of Equipment: Digivance® Street Coverage Solution “SCS” Model Number(s): DGVC-4X1X4X1X200SYS Manufacturer’s Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Report Number: MN070508 Test Date(s): 16-17 April, 2007 (ETL) 2 May, 2007 (ADC) According to testing performed at Intertek, the above-mentioned unit is in accordance with the applicable electromagnetic compatibility (EMC) portions of the requirements defined in FCC Part 24. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. All testing was done in accordance with the Federal Communications Commission’s CFR 47 Part 24 and the EUT fulfills the requirements of the Federal Communications Commission’s CFR 47 Part 24. Date: 8 May, 2007 Location: Intertek Testing Services (ETL) ADC Telecommunications 7250 Hudson Blvd., Suite 100 5341 12 th Ave E Oakdale, MN 55128 Shakopee, MN 55379 Phone: (651) 730-1188 Phone: (952) 403-8340 Fax: (651) 730-1282 Fax: (952) 403-8858 Testing Conducted by (ADC): And Report Written by: Mark F. Miska Compliance Engineer Page 1 of 179 MN070508 ADC Telecommunications EMC Emission – T E S T R E P O R T Test Report File Number: MN070508 Date of Issue: 8 May, 2007 Model Number(s): DGVC-4X1X4X1X200SYS Product Name: Digivance® Street Coverage Solution “SCS” Product Type: Outdoor Repeater Applicant: ADC Telecommunications Manufacturer: ADC Telecommunications License Holder: ADC Telecommunications Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Result: ▪ Positive ▫ Negative Test Project Number: 3120522MIN-001 Reference(s) Total pages including Appendices: 179 Page 2 of 179 MN070508 ADC Telecommunications Table of Contents 1.0 Revision Description .............................................................................................. 4 2.0 Documentation..................................................................................................... 4 2.1 Test Regulations ................................................................................................ 4 2.2 Test Operation Mode .......................................................................................... 5 2.3 Configuration of the device under test: ................................................................. 5 2.4 Product Options:................................................................................................ 5 2.5 EUT Specifications and Requirements: .................................................................. 5 2.6 Cables:............................................................................................................. 5 2.7 Power Requirements: ......................................................................................... 5 2.8 Typical Installation and/or Operating Environment:................................................. 5 2.9 Other Special Requirements: ............................................................................... 5 2.10 EUT Software: ................................................................................................ 5 2.11 EUT System Components ................................................................................. 6 2.12 Support Equipment.......................................................................................... 6 2.13 Deviations from standard: ................................................................................ 6 2.14 General Remarks: ........................................................................................... 6 2.15 Summary:...................................................................................................... 6 3.0 Test set-Up drawings and Photos............................................................................ 7 3.1 Test set-up photo, radiated emissions ................................................................... 7 3.2 Test set-up photo, radiated emissions ................................................................... 8 3.3 Test Set-up Drawings ......................................................................................... 9 4.0 Test Results ....................................................................................................... 12 4.1.1 24.232 Power and antenna height limits........................................................ 12 4.1.2 24.235 Frequency Stability.......................................................................... 13 4.1.3 24.238 Emission limitations for broadband PCS equipment............................... 14 5.0 Appendix A........................................................................................................ 15 6.0 Appendix B.......................................................................................................156 7.0 Appendix C.......................................................................................................178 Page 3 of 179 MN070508 ADC Telecommunications 1.0 REVISION DESCRIPTION Rev Total Pages Date Description A 179 May 8, 2007 Original Release 2.0 DOCUMENTATION 2.1 Test Regulations 24.232 Power and antenna height limits 24.235 Frequency stability 24.238 Emission limits for Broadband PCS equipment The emissions tests were performed according to the following regulations: ▫ FCC Part 22 ▪ FCC Part 24 ▫ FCC Part 90 ▫ IC RSS-131 Issue 2 Environmental Conditions in the lab: ADC ETL Temperature: 25º C 24º C Relative Humidity: 23% 31% Atmospheric Pressure: 97.9 kPa 98.5 kPa Power Supply Utilized: Power Supply System (Remote) : 1 phase, 60 Hz, 120 VAC Power Supply System (Host) : 48 VDC Page 4 of 179 MN070508 ADC Telecommunicati…
