ADCP-75-187 Issue 1 September 2005 1327044 Rev A (Digivance ® Street-Level Coverage Solution System with Version 3.01 EMS Software (Operation and Maintenance Manual 20576-A ADCP-75-187 Issue 1 September 2005 1327044 Rev A Digivance ® Street-Level Coverage Solution System with Version 3.01 EMS Software Operation and Maintenance Manual ADCP-75-187 • Issue 1 • September 2005 • Preface Page ii COPYRIGHT © 2005, ADC Telecommunications, Inc. All Rights Reserved Printed in the U.S.A. REVISION HISTORY LIST OF CHANGES The technical changes incorporated into this issue are listed below. TRADEMARK INFORMATION ADC and Digivance are registered trademarks of ADC Telecommunications, Inc. OptiTap is a trademark of Corning Incorporated. Stargazer is a registered trademark of ADC DSL Systems, Inc. Procomm Plus is a registered trademark of Quarterdeck Corporation. Acrobat and Adobe are registered trademarks of Adobe Systems, Inc. DISCLAIMER OF LIABILITY Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. This publication may be verified at any time by contacting ADC’s Technical Assistance Center at 1-800-366-3891, extension 73476 (in U.S.A. or Canada) or 952-917-3476 (outside U.S.A. and Canada), or by e-mail to [email protected] ISSUEDATEREASON FOR CHANGE 109/2005Original issue. PAGEIDENTIFIERDESCRIPTION OF CHANGE All Original issue. ADC Telecommunications, Inc. P.O. Box 1101, Minneapolis, Minnesota 55440-1101 In U.S.A. and Canada: 1-800-366-3891 Outside U.S.A. and Canada: (952) 938-8080 Fax: (952) 917-1717 ADCP-75-187 • Issue 1 • September 2005 • Preface Page iii © 2005, ADC Telecommunications, Inc. TABLE OF CONTENTS ContentPage ABOUT THIS MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii RELATED PUBLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii ADMONISHMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii GENERAL SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii STANDARDS CERTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii LIST OF ACRONYMS AND ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix SECTION 1: OVERVIEW 1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2SCS SYSTEM OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2.1Basic SCS System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2.2Enhanced Base Transceiver Station Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.3Subscriber Unit Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.4Local Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.5Network Operations Center Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5 2.6SNMP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 3SYSTEM FUNCTIONS AND FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7 3.1Fiber Optic Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7 3.2Control and Monitoring Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 3.3Fault Detection and Alarm Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 3.4Powering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 3.5Equipment Mounting and Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 4DUAL-BAND REMOTE UNIT SCS SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 SECTION 2: DESCRIPTION 1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2HOST UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2.1Primary Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2 2.2Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2.3Fault Detection and Alarm Reporting . . .…

Text truncated - open the document above for the full version.

ADCP-75-187 • Issue 1 • September 2005 • Section 2: DESCRIPTION Page 2-19 © 2005, ADC Telecommunications, Inc. Table 2-6. Interim Single-Band Remote Unit Nominal Specifications PARAMETERSPECIFICATIONREMARKS Physical/Environmental/ Electrical - Remote Unit Dimensions (L×W×D)37.3 × 10.2 × 7.5 inches (947 × 259 × 191 mm) MountingPole, wall, or strand mountedRequires accessory kit for strand mounting Weight79.5 lbs. (36.1 kg)With solar shields installed Weather resistanceNEMA 4X, IEC IP 67Indoor or outdoor installation Lightning protection20 kA IEC 1000-4-5 8/20 μs waveform With external protector (acces- sory) Operating temperature–30º to 50º C (–22º to 122º F) Storage temperature–40º to 70º C (–40º to 158ºF) Humidity10% to 90%No condensation AC power connectorMini 3-pin3-wire power cable included Antenna connector(s)50 ohm N-type (female)50 ohms input/output impedance Optical portOptiTap with APC/SC connector and adapter Voltage input90 to 265 VAC, 47 to 63 Hz 60 to 89 VAC, 47 to 63 Hz Standard Option Power consumption150 Watts Current rating1.25 Amps at 120 VAC .625 Amps at 240 VAC Reliability at 25ºCMTBF - 80,000 hours ADCP-75-187 • Issue 1 • September 2005 • Section 2: DESCRIPTION Page 2-20 © 2005, ADC Telecommunications, Inc. Blank ADCP-75-187 • Issue 1 • September 2005 • Section 3: OPERATION Page 3-1 © 2005, ADC Telecommunications, Inc. SECTION 3: OPERATION 1BEFORE STARTING OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 1.1Tools and Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 1.2Readiness Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 2TURN-UP SYSTEM AND VERIFY OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2 2.1Turn-Up Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 2.2Determine Forward Path Input Signal Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 2.3Enter Site Name and Site Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 2.4Enter Host Forward Attenuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 2.5Determine Output Signal Level at RU Antenna Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11 2.6Enter Remote Forward Attenuation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12 2.7Enter Host Reverse Attenuation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14 2.8Enter Host Forward and Reverse Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15 _________________________________________________________________________________________________________ 1 BEFORE STARTING OPERATION This section provides guidelines for turning-up the Digivance system, verifying that all units are operating properly, testing to ensure that all performance requirements are satisfied, and correcting any installation problems. This process assumes that the various units have been installed in accordance with the system design plan. 1.1Tools and Materials The following tools and materials are required in order to complete the procedures in this section: • Portable spectrum analyzer and RF power meter • DC voltmeter • External RF and optical attenuators (if specified in system design plan) • PC-type computer with Digivance Element Management System (EMS) Version 3.01 software installed • Straight-through RS-232 DB-9 interface cable (accessory) • Subscriber unit •Pencil or pen • Writing pad ContentPage ADCP-75-187 • Issue 1 • September 2005 • Section 3: OPERATION Page 3-2 © 2005, ADC Telecommunications, Inc. 1.2Readiness Check Before starting the turn-up process, inspect the complete Digivance system to verify that all components of the system are ready to be powered-up. This will ensure that no units of the system will be damaged during turn-up and that all existing systems will continue to function properly. 1.2.1Host Unit Installation Checks Complete the following checks at the HU prior to starting the turn-up process: 1. Verify that the ON/OFF switch on the HU is in the OFF position (press O). 2. At the fuse panel, install a 3 Amp GMT fuse in the circuit that supplies DC power to the HU. 3. Using a DC voltmeter, verify that the DC voltage level at the HU power terminals is between ± 21 to ± 60 VDC (nominal ± 24 or ± 48 VDC). The DC power provided to the HU can be either polarity. 4. Verify that all electrical and optical connections have been completed and that all optical fibers, coaxial cables, and wires are properly routed and secured. 1.2.2Remote Unit Installation Checks Complete the following checks at the RU prior to starting the turn-up process: 1. Verify that all electrical and optical connections have been completed and that all optical fibers, coaxial cables, and wires are properly routed and secured. 2. At the AC breaker box, make sure the circuit breaker for the circuit that supplies AC power to the RU is in the open (off) position. 2 TURN-UP SYSTEM AND VERIFY OPERATION The process of turning-up the system and verifying operation involves powering up the various system components, verifying that the LED indicators show normal operation, setting the site number and name, adjusting the RF signal levels, and adjusting the path delay. Note: When connecting the equipment to the supply circuit, be sure to check equipment nameplate ratings to avoid overloading circuits…

Text truncated - open the document above for the full version.

Digital Attenuator AA101-80 Gain Set AV101-12 979 MHz Temp Comp Attenuator TVA0300N07 851-869 MHz 935-940 MHz Nextel Dual Band Digivance LRCS Host Forward Path SAW Filter 110 - 128 MHz SAW Filter 39 - 44 MHz 141.6 MHz 35.4 MHz A/D AD6645-80 A/D AD6645-80 MUX HDMP-1032 LPF 180 MHz FPGA* XCV200E * Equalization and level limit detection. 1. Add band separation filtering if necessary 2. Add digital summation 3. Modify level limit detection (reference to summed (option A) or separate (option B) signals) Optical TX (SFP) EC1078 Level Limit LMH6642 UPC3215 128-110 MHz 13.6 -31.6 MHz 8.6 - 3.6 MHz Diff. Amp AD8138 Diff. Amp AD8138 Mixer AD8343 Mixer AD8343 EC1078 Mixer CMY210 FIFO IDT72V263L7 8k × 18 Rev 2 3/9/04 PMW Digital Attenuator AA101-80 Gain Set AV101-12 979 MHz Temp Comp Attenuator TVA0300N07 935-940 MHz LPF 180 MHz EC1078 Level Limit LMH6642 UPC3215 44-39 MHz EC1078 Mixer CMY210 Option B only Option A: combined 800/900 from duplexer Option B: separate 800/900 from duplexer Splitter (Option A only) Note: LMH6642 is replacement for obsolete LM7131 New part/new design New (added) layout Replaces diversity circuitry Existing circuitry Nextel Dual Band Digivance LRCS Remote Forward Path Optical Receiver (SFP) Demux HDMP1034 D/A AD9772 FPGA* D/A AD9772 Mixer AD8343 Mixer AD8343 LPF LPF TCM4-6T TCM4-6T 13.6 - 31.6 MHz 8.6 - 3.6 MHz 141.6 MHz 35.4 MHz TX16-R3T TX16-R3T EC1078 EC1078 SAW Filter 110-128 MHz SAW Filter 39-44 MHz Mixer LT5511 979 MHz UPC3215 Digital Attenuator AA101-80 Mixer LT5511 979 MHz UPC3215 FWD RF Out (to dual band PA) RF SAW 806-824 RF SAW 896-901 *Digital diplexer Rev 1 3/10/04 PMW 128 - 110 MHz 44 - 39 MHz Temp Comp Attenuator TVA0600 EC1078 Combiner New part/new design New (added) layout Replaces diversity circuitry Existing circuitry Gain Set AV101-12 979 MHz Temp Comp Attenuator TVA0300N07 806-824 MHz Nextel Dual Band Digivance LRCS Remote Reverse Path SAW Filter 155-173 MHz SAW Filter 78-83 MHz 141.6 MHz 70.8 MHz A/D AD6645-80 A/D AD6645-80 MUX HDMP-1032 LPF 180 MHz FPGA* XCV200E * Equalization and level limit detection. 1. Add band separation filtering if necessary 2. Add digital summation 3. Modify level limit detection (reference to summed (option A) or separate (option B) signals) Optical TX (SFP) Level Limit LMH6642 UPC3215 173 - 155 MHz 31.4 - 13.4 MHz 12.2 - 7.2 MHz Diff. Amp AD8138 Diff. Amp AD8138 Mixer AD8343 Mixer AD8343 EC1078 Mixer CMY210 FIFO IDT72V263L7 8k × 18 Rev 1 3/9/04 PMW 979 MHz 896-901 MHz Digital Attenuator AV101 HEMT ATF- 54143 EC1078 RF SAW 806-824 Gain Set AV101-12 Temp Comp Attenuator TVA0300N07 LPF 180 MHz Level Limit LMH6642 UPC3215 83 - 78 MHz EC1078 Mixer CMY210 Digital Attenuator AV101 HEMT ATF- 54143 EC1078 RF SAW 806-824 Note: LMH6642 is replacement for obsolete LM7131 LPF LPF New part/new design New (added) layout Replaces diversity circuitry Existing circuitry Nextel Dual Band Digivance LRCS Host Reverse Path Optical Receiver (SFP) Demux HDMP1034 FIFO IDT72V263L7 8k × 18 D/A AD9772 FPGA* D/A AD9772 Mixer AD8343 Mixer AD8343 LPF LPF TCM4-6T TCM4-6T 31.4 - 13.4 MHz 12.2 - 7.2 MHz 141.6 MHz 70.8 MHz TX16-R3T TX16-R3T Temp Comp Attenuator TVA600 Temp Comp Attenuator TVA600 EC1078 EC1078 SAW Filter 155-173 MHz SAW Filter 78-83 MHz Mixer CMY210 979 MHz UPC3215 Digital Attenuator AA101-80 Mixer CMY210 Digital Attenuator AA101-80 979 MHz UPC3215 to 800 MHz BTS Rx to 900 MHz BTS Rx RF SAW 806-824 RF SAW 896-901 *Digital diplexer Rev 2 3/9/04 PMW New part/new design New (added) layout Replaces diversity circuitry Existing circuitry

Digivance Street Coverage Solution (SCS) Host Unit Front View Digivance Street Coverage Solution (SCS) Host Unit Left View Digivance Street Coverage Solution (SCS) Host Unit Right View Digivance Street Coverage Solution (SCS) Host Unit Rear View Digivance Street Coverage Solution (SCS) Host Unit Top View Digivance Street Coverage Solution (SCS) Host Unit Bottom View Digivance Street Coverage Solution (SCS) Remote Unit Bottom Left View Digivance Street Coverage Solution (SCS) Remote Unit Bottom Right View Digivance Street Coverage Solution (SCS) Remote Unit Top View Digivance Street Coverage Solution (SCS) Remote Unit Back View Digivance Street Coverage Solution (SCS) Quadplexer (a.k.a. Power Monitor/filter) Front Left View Digivance Street Coverage Solution (SCS) Quadplexer (a.k.a. Power Monitor/filter) Front Right View Digivance Street Coverage Solution (SCS) Quadplexer (a.k.a. Power Monitor/filter) Rear View Digivance Street Coverage Solution (SCS) Quadplexer (a.k.a. Power Monitor/filter) Top View Digivance Street Coverage Solution (SCS) Quadplexer (a.k.a. Power Monitor/filter) Bottom View Digivance Street Coverage Solution (SCS) Bravo Tech Linear Power Amplifier - 10 Watt Front View Digivance Street Coverage Solution (SCS) Bravo Tech Linear Power Amplifier - 10 Watt Left View Digivance Street Coverage Solution (SCS) Bravo Tech Linear Power Amplifier - 10 Watt Right View Digivance Street Coverage Solution (SCS) Bravo Tech Linear Power Amplifier - 10 Watt Rear View Digivance Street Coverage Solution (SCS) Bravo Tech Linear Power Amplifier - 10 Watt Top View Digivance Street Coverage Solution (SCS) Bravo Tech Linear Power Amplifier - 10 Watt Bottom View

INFORMATION ON THIS DOCUMENT IS PROPRIETARY TO ADC AND SHALL NOT BE USED, COPIED, REPRODUCED OR DISCLOSED IN WHOLE OR IN PART WITHOUT WRITTEN CONSENT OF ADC TITLE SCS 800/900 SMR FCC / IC Identification Label TOLERANCE UNLESS .XX NA OTHERWISE SPECIFIED .XX NA DRAWING NUMBER None A REV DO NOT SCALE DRAWING ENGR. Mark F. Miska SIZE A SHEET 1 OF 1 REV ECO DWN DATE A MFM 8-4-2005 FCC ID: F8I-DSCSMR1A IC: 1208G-DSCSMR1A 1 2 1.500 REF R.075 (4) DIE CUT LABEL .750 REF NOTES: 1 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 8 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. 2 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 6 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. MATERIAL: ADC PART NUMBER 1215140 3

Digivance Street Coverage Solution (SCS) Host Unit Open Top View Digivance Street Coverage Solution (SCS) Host Board Full Top View Digivance Street Coverage Solution (SCS) Host Board Top View - Lower Left Digivance Street Coverage Solution (SCS) Host Board Top View - Lower Right Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) Host Board Top View - Center Right Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) Host Board Top View - Center Left Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) Host Board Top View - Upper Left Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) Host Board Top View - Upper Right Digivance Street Coverage Solution (SCS) Host Board Full Bottom View Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) Host Board Bottom View - Lower Left Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) Host Board Bottom View - Lower Right Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) Host Board Bottom View - Center Right Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) Host Board Bottom View - Center Left Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) Host Board Bottom View - Upper Left Digivance Street Coverage Solution (SCS) Host Board Bottom View - Upper Right

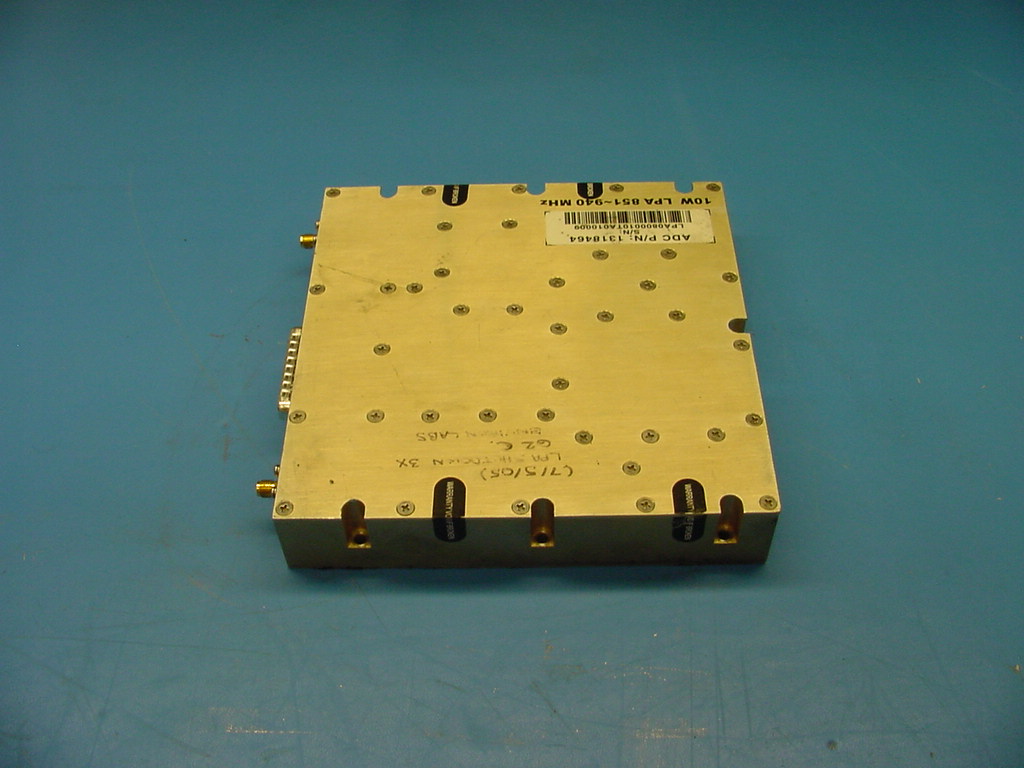

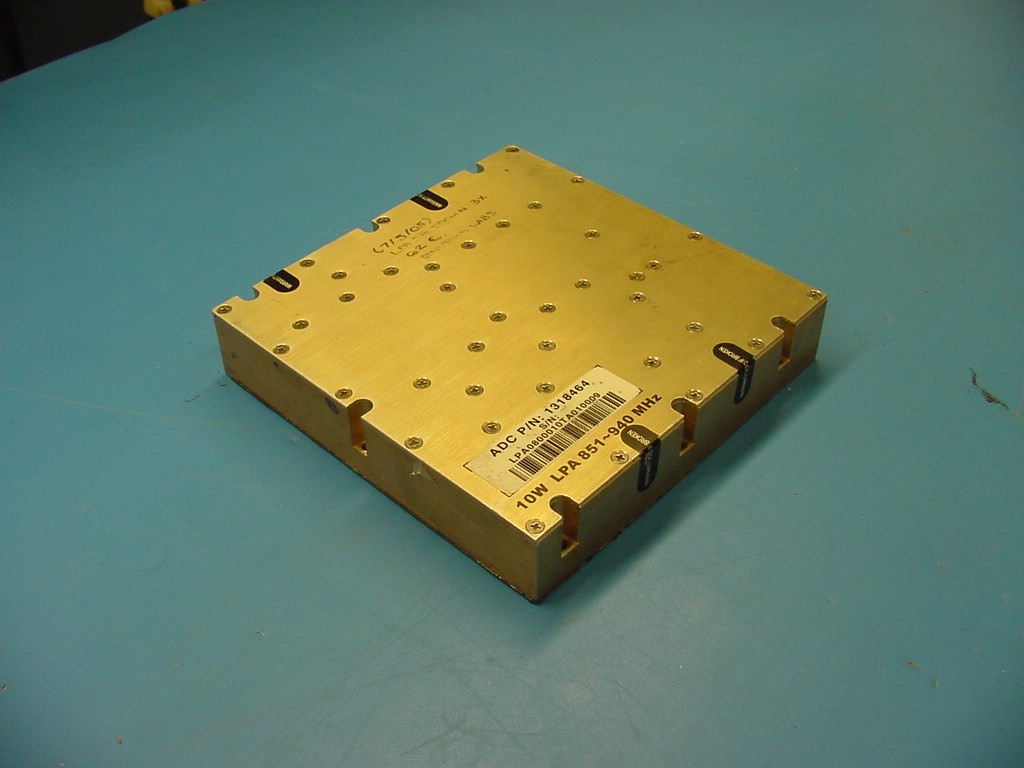

Digivance Street Coverage Solution (SCS) Power Amplifier Universal II 003 Board Front Digivance Street Coverage Solution (SCS) Power Amplifier Universal II 003 Board Back Digivance Street Coverage Solution (SCS) Power Amplifier 4244601E Rev A Board Front Digivance Street Coverage Solution (SCS) Power Amplifier 4244601E Rev A Board Back Digivance Street Coverage Solution (SCS) Power Amplifier 4244601E Rev A Part B_C Board Front Digivance Street Coverage Solution (SCS) Power Amplifier 4244601E Rev A Part B_C Board Back Digivance Street Coverage Solution (SCS) Power Amplifier 4244602E Rev A Board Front Digivance Street Coverage Solution (SCS) Power Amplifier 4244602E Rev A Board Back Digivance Street Coverage Solution (SCS) Power Amplifier 4244603E Rev P2 Board Front Digivance Street Coverage Solution (SCS) Power Amplifier 4244603E Rev P2 Board Back

Open View of the SCS Remote Chassis with designations of components. 1 RF Board, 1 LPA, and 1 Tuned Filter represent 1 Band. Open View of the empty SCS Remote Chassis. Digivance Street Coverage Solution (SCS) STM Board Full Top View Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) STM Board Top View - Lower Left Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) STM Board Top View - Lower Middle Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) STM Board Top View - Lower Right Digivance Street Coverage Solution (SCS) STM Board Top View - Upper Right Digivance Street Coverage Solution (SCS) STM Board Top View - Upper Middle Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) STM Board Top View - Upper Left Digivance Street Coverage Solution (SCS) STM Board Full Bottom View Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) STM Board Bottom View - Lower Left Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) STM Board Bottom View - Lower Middle Digivance Street Coverage Solution (SCS) (labeled as SMR DB in photo) STM Board Bottom View - Lower Right Digivance Street Coverage Solution (SCS) STM Board Bottom View - Upper Right Digivance Street Coverage Solution (SCS) STM Board Bottom View - Upper Middle Digivance Street Coverage Solution (SCS) STM Board Bottom View - Upper Left Digivance Street Coverage Solution (SCS) Quadplexer (a.k.a. Power Monitor / Filter) Open Top View Digivance Street Coverage Solution (SCS) Quadplexer (a.k.a. Power Monitor / Filter) Open Bottom View Digivance SCS Power Monitor Board Top View Digivance SCS Power Monitor Board Bottom View

PRODUCT SERVICE TEST RESULT SUMMARY FCC PART 90 MANUFACTURER'S NAME ADC Inc NAME OF EQUIPMENT Digivance Street Coverage Solution TYPE OF EQUIPMENT Transports RF between a remote antenna and a base station MODEL NUMBER DGVC-901X0000100SYS MANUFACTURER'S ADDRESS P. O. Box 1101 Minneapolis MN 55440-1101 TEST REPORT NUMBER WC503385 TEST DATE 28 June 2005 According to testing performed at TÜV Product Service Inc, the above-mentioned unit is in compliance with the electromagnetic compatibility requirements defined in FCC Part 90. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV Product Service Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the requirements of FCC Part 90. Date: 03 August 2005 Location: Taylors Falls MN G. S. Jakubowski J. T. Schneider USA Test Engineer Senior Engineer TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report does not allow the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI Not Transferable File No. WC503385, Page 1 of 76 TÜV PRODUCT SERVICE INC 19333 Wild Mountain Road Taylors Falls MN 55084-1758 Tel: 651 638 0297 Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMC EMISSION - T E S T R E P O R T Test Report File Number: WC503385 Date of Issue: 03 August 2005 D I R E C T O R Y Page(s) 2.1046 RF Power Output – complies with 90.635 2 2.1049 Occupied Bandwidth – complies with 90.210 3 - 7 2.1051 Spurious Emissions at Antenna Terminals - complies with 90.210 8 - 49 2.1053 Field Strength of Spurious Emissions – complies with 90.210 50 - 57 20 dB Passband 58 - 59 2.1055 Frequency Stability Test Data - complies with 90.213 60 - 61 Test Equipment List 62 - 63 Product Information 64 - 69 Test Setups 70 - 76 Effective Isotropic Radiated Power Test for ADC Inc. Digivance Street Coverage Solution Model Number DGVC-901X0000100SYS *Note: The EUT is a fixed repeater and not a base station. This measurement was made as a direct conducted emission measurement. The output from the EUT antenna connector was connected to the spectrum analyzer. The carrier output, below, was conducted using a single CW signal generator. The spectrum analyzer level was offset to compensate for attenuators and cable loss between the EUT and the analyzer. A CW signal was used at the low, mid and high parts of the selected band. The spectrum analyzer level was offset by 50.6 dB to compensate for attenuators and cable loss between the EUT and the analyzer. Band SMR (800 MHz) Carrier Frequency Carrier Output 851.0 MHz 34.93 dBm 858.5 MHz 35.60 dBm 869.0 MHz 35.43 dBm Band SMR (900 MHz) Carrier Frequency Carrier Output 935.0 MHz 35.10 dBm 937.5 MHz 35.27 dBm 940.0 MHz 35.27 dBm File No. WC503385, Page 2 of 76 Output power max input rating: The input to the Host Unit has a digital attenuation chip (ALC) to provide protection from overdrive with 5-10 millisecond attack time / 100 millisecond decay time and 31 dB of head room, such that single channel operation, or multi-channel operation will not exceed nominal gain of the system. Operation of multiple transmit channels, with 5 Watts per output, is defined in our system manual under section 2.2. All plots are taken at max input level for single carrier operation, or 3 dB below single carrier max input power, for 2 channel (intermodulation) operation. Occupied Bandwidth Modulation Test for ADC Inc. Digivance Street Coverage Solution Model Number DGVC-901X0000100SYS An input/output Occupied Bandwidth test was done with modulation types: FM and 16 QAM. The purpose was to determine the amount of distortion added to different types of modulation schemes by the EUT. The following plots show input signals vs. output signals. Results: Pass (see plots) File No. WC503385, Page 3 of 76 File No. WC503385, Page 4 of 76 File No. WC503385, Page 5 of 76 File No. WC503385, Page 6 of 76 File No. WC503385, Page 7 of 76 Conducted Emission Limits Test for ADC Inc. Digivance Street Coverage Solution Model Number DGVC-901X0000100SYS The out of band emissions were measured directly from the EUT antenna output with a spectrum analyzer from 30 MHz to the 10 th harmonic of the highest carrier frequency. Test signals used are CW, FM, and 16 QAM. The different signals were input one at a time to the EUT. In all cases, the out of band emissions were less than –13dBm from the equation (19dBm – [43 + 10log(0.08W)]) Band edge compliance is also demonstrated using a FM signal at the upper and lower limits of the band and a resolution bandwidth of 300 Hz. Results: Pass (See plots) File No. WC503385, Page 8 of 76 File No. WC503385, Page 16 of 76 File No. WC503385, Page 18 of 76 File No. WC503385, Page 20 of 76 File No. WC503385, Page 22 of 76 File No. WC503385, Page 23 of 76 File No. WC5033…

Text truncated - open the document above for the full version.

Radiated Emissions Test Photos TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Large Test Site Notes: 1. Items shown in dotted lines are located on the floor below the test area. It is 5 meters vertically from the ground floor to the test area. 2. 50 Hz, 60 Hz, and 400 Hz are power panels for alternating current. 3. The antenna may be positioned horizontally 3, 10 or 30 meters from the center of the turntable. 4. The circle is a 6.7 meter diameter turntable. 5. A ground plane is in the plane of this sheet. 6. The test sample is shown in the azimuthal position representing zero degrees. EUT 0 90270 180 60 Hz 50 Hz 400 Hz Shielded Enclosure ANTENNA Conducted Emission Limits Test for ADC Inc. Digivance Street Coverage Solution Model Number DGVC-901X0000100SYS RF IN 8563E Spectrum Analyzer RF OUT E4432B Signal Generator 800/900 SMR 800 Cellular 1900 PCS -40 dBm EUT Test Set-up Composite Power Meter Attenuator 10 MHz Ref (out) Effective Isotropic Radiated Power Limit Test for ADC Inc. Digivance Street Coverage Solution Model Number DGVC-901X0000100SYS RF IN 8563E Spectrum Analyzer RF OUT E4432B Signal Generator 800/900 SMR 800 Cellular 1900 PCS -40 dBm EUT Test Set-up Composite Power Meter Attenuator 10 MHz Ref (out) Frequency Tolerance Test for ADC Inc. Digivance Street Coverage Solution Model Number DGVC-901X0000100SYS EUT Host is specified for indoor use only with temperature range of 0° to +50° C, and was tested with its range. EUT Remote is specified with a temperature range of -30° to +50° C and was tested with its range. 8888 Multi Meter RF IN 800/900 SMR 800 Cellular 1900 PCS RF OUT E4432B Signal Generator -40 dBm EUT Test Set-up Auto Transformer Temperature Chamber 10 MHz Ref (out) 120 VAC 60 Hz 800/900 SMR 800 Cellular 1900 PCS Frequency Counter Inter-Modulation Test for ADC Inc. Digivance Street Coverage Solution Model Number DGVC-901X0000100SYS RF OUT E4432B Signal Generator -43 dBm RF IN 8563E Spectrum Analyzer RF OUT E4432B Signal Generator -43 dBm EUT Test Set-up Composite Power Meter Attenuator Combiner 10 MHz Ref (out) 800/900 SMR 800 Cellular 1900 PCS 800/900 SMR 800 Cellular 190…
