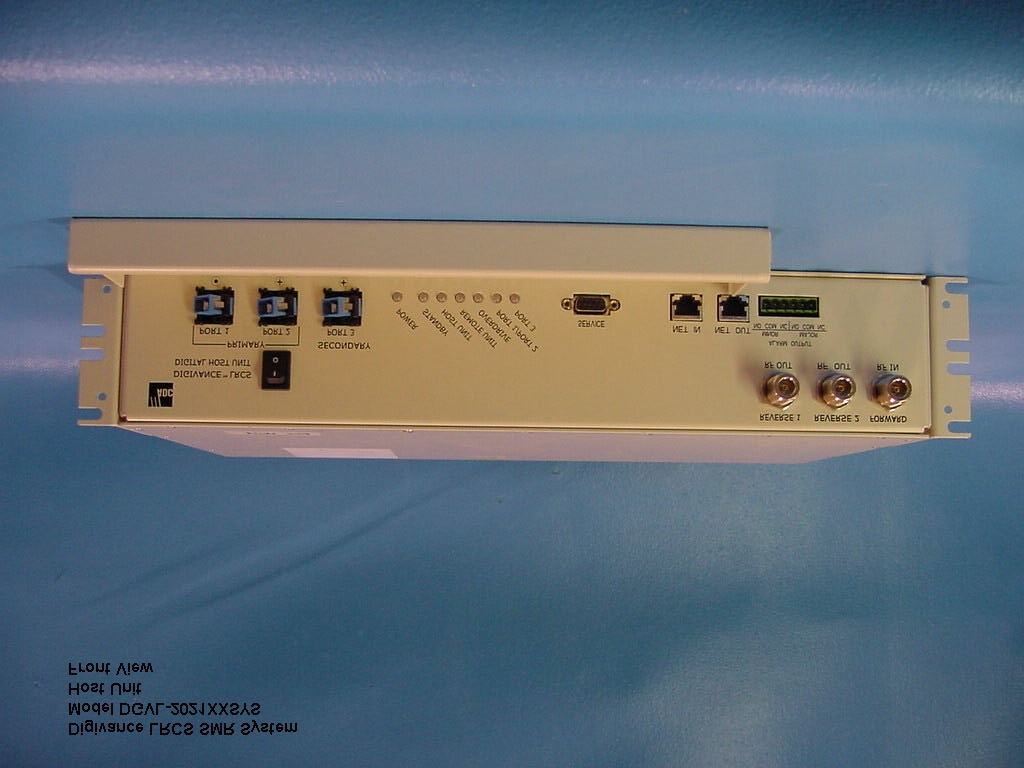

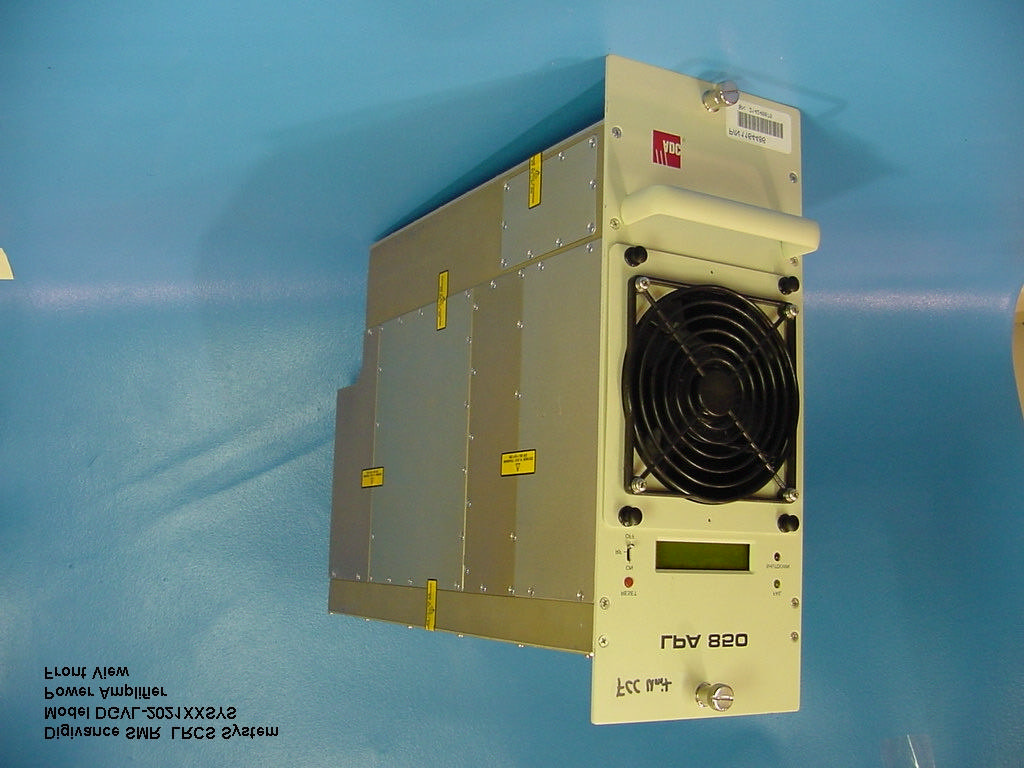

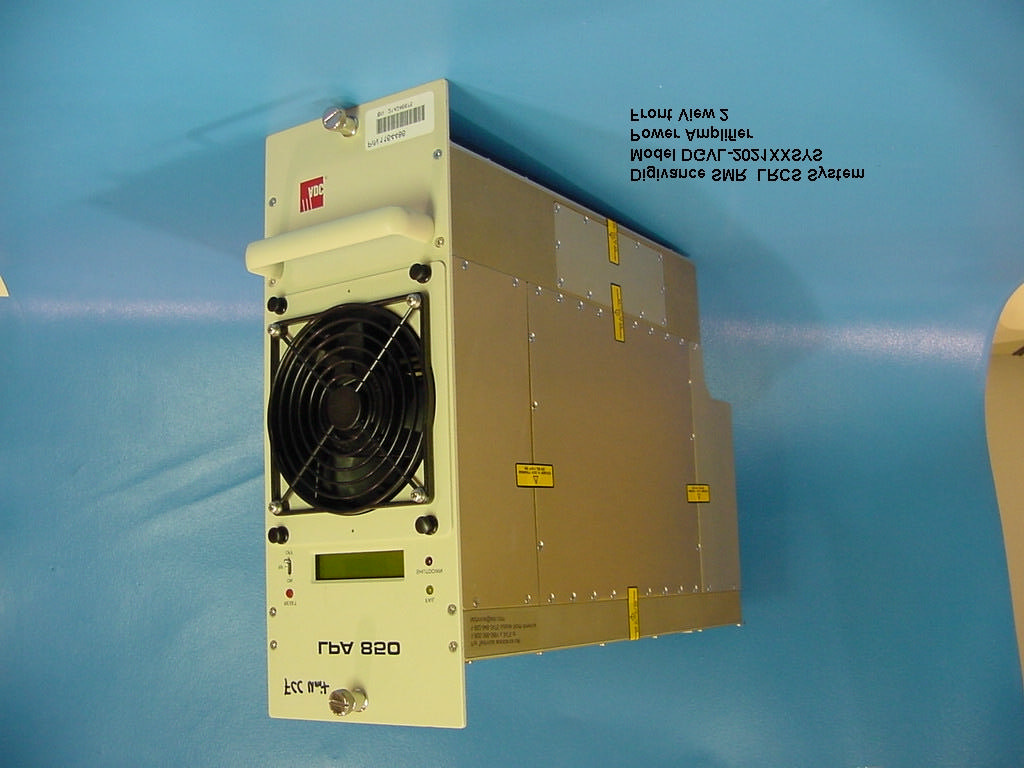

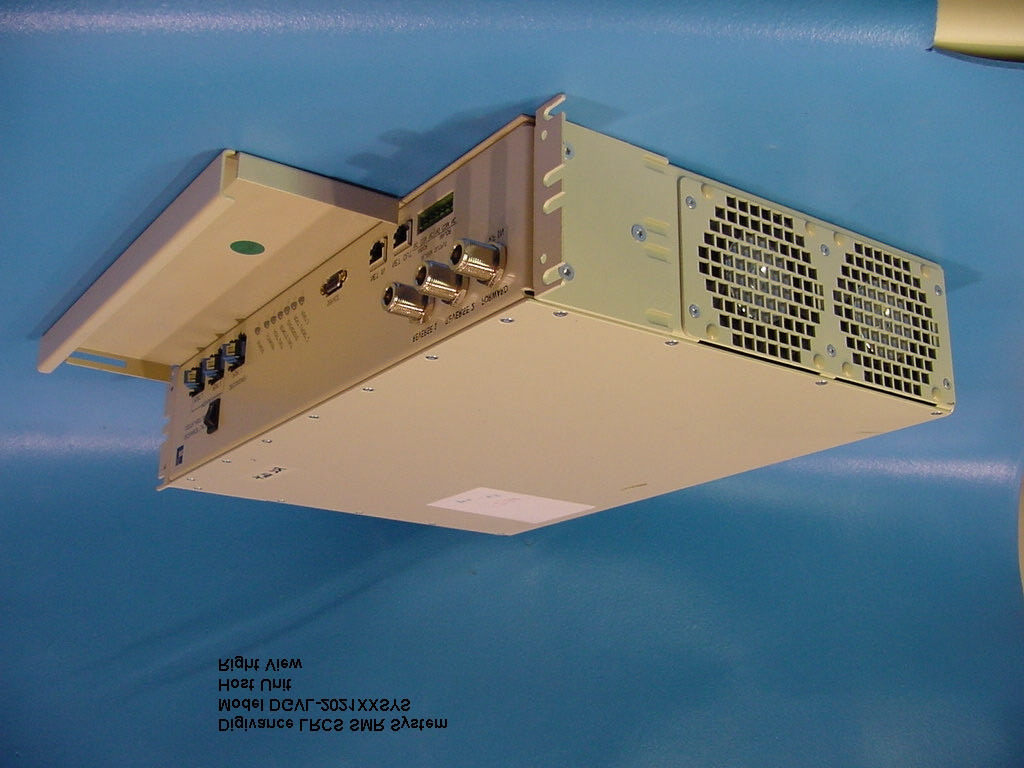

F8I-DVLRCSSMRDigivance Long Range Coverage Solution SMR System

ADCP-75-115 • Issue A • August 2001 1162625 Rev APage 1 © 2001, ADC Telecommunications, Inc. Digivance ™ Long Range Coverage Solution Single Band SMR Remote Unit Installation Instructions INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2UNPACKING AND INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 3STM USER INTERFACE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 4LPA USER INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 5WDM USER INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 6INSTALLATION PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 6.1STM Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 6.2LPA Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 6.3Battery Backup Kit Installation (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 6.4WDM Installation (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ContentPage 16752-A DRAFT FCC ID: F8I-DVLRCSSMR ADCP-75-115 • Issue A • August 2001 Page 2 © 2001, ADC Telecommunications, Inc. 7CABLING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 7.1AC Power Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 7.2Routing Pre-Connectorized Indoor/Outdoor Fiber Optic Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 7.3Antenna Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 7.4Terminating WDM Forward and Reverse Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 8CONNECTORIZING THE DOOR OPEN SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 9FINAL TEST AND ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 10CUSTOMER INFORMATION AND ASSISTANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 _________________________________________________________________________________________________________ INTRODUCTION This publication provides instructions for installing the Digivance Long Range Coverage Solution (LRCS) Single Band Specialized Mobile Radio (SMR) Remote Unit (RU). A more complete description of the RU along with operating and maintenance procedures is provided in the Digivance LRCS Single Band SMR Installation and Operation Manual (ADCP-75-116). The RU is installed in conjunction with the Digivance LRCS Single Band SMR Host Unit (HU). Installation of the RU involves completion of the following basic steps: 1. Unpacking and inspecting the RU modules and optional components 2. Installing the RU cabinet 3. Installing the modules and optional components in the cabinet 4. Installing a 20-Amp AC circuit with service disconnect breaker. 5. Routing a pre-connectorized indoor/outdoor pigtail cable into the cabinet. 6. Connecting the fiber cable pigtal leads to the STM and WDM (if used). 7. Connecting the external coaxial antenna cable(s) to the lightning protector(s) on the underside of the cabinet. 8. Installing internal coaxial jumper cable(s) and between the lightning protector(s) and the STM. 9. Connectorizing the door open switch 10. Applying AC power 11. Performing final tests and adjustments This manual provides information about each of the preceding steps, except step 2. The information required to complete step 2 is contained in the Digivance LRCS Single Band Remote Cabinet Installation Instructions (ADCP-75-117). This manual assumes that the RU installation site has been selected and all of the procedures descibed in the cabinet installation instructions have already been completed. In addition, it assumes that the required OSP fiber optic cables have already been routed between the HU and RU , that the required antennas have been installed (one or two antennas may be required depending on RU configuration), and that a connectorized coaxial cable with an N-type connector has been routed to the underside of the RU for each antenna. ADCP-75-115 • Issue A • August 2001 Page 3 © 2001, ADC Telecommunications, Inc. The ADC-provided RU cable installation loose parts hardware are listed in Ta b l e 1. Revision History Trademark Information ADC is a registered trademark of ADC Telecommunications, Inc. Digivance is a trademark of ADC Telecommunications, Inc. Related Publications Listed below are related manuals and their publication numbers. Copies of these publications can be ordered by contacting the ADC Technical Assistance Center at 1-800-366-3891 (in U.S.A. or Canada) or 952-946-3000, extension 63475 (outside U.S.A. and Canada). Digivance LRCS Single Band SMR Installation and Operation manual75-116 Digivance LRCS Single Band Remote Unit…

Text truncated - open the document above for the full version.

ADCP-75-116 Issue A August 2001 1162643 Rev A (Digivance™ Long Range Coverage Solution Single Band SMR System (Installation and Operation Manual DRAFT FCC ID: F8I-DVLRCSSMR ADCP-75-116 Issue A August 2001 1162643 Rev A (Digivance™ Long Range Coverage Solution Single Band SMR System (Installation and Operation Manual ADCP-75-116 • Issue A • August 2001 • Preface Page ii COPYRIGHT © 2001, ADC Telecommunications, Inc. All Rights Reserved Printed in the U.S.A. REVISION HISTORY TRADEMARK INFORMATION ADC and PowerWorx are registered trademarks of ADC Telecommunications, Inc. Digivance is a trademark of ADC Telecommunications, Inc. Procomm Plus is a registered trademark of Quarterdeck Corporation. DISCLAIMER OF LIABILITY Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. This publication may be verified at any time by contacting ADC’s Tec h ni ca l Assistance Center at 1-800-366-3891, extension 63475 (in U.S.A. or Canada) or 952-946-3475 (outside U.S.A. and Canada), or by e-mail to [email protected] ISSUEDATEREASON FOR CHANGE A07/2001Preliminary ADC Telecommunications, Inc. P.O. Box 1101, Minneapolis, Minnesota 55440-1101 In U.S.A. and Canada: 1-800-366-3891 Outside U.S.A. and Canada: (952) 938-8080 Fax: (952) 946-3292 ADCP-75-116 • Issue A • August 2001 • Preface Page iii © 2001, ADC Telecommunications, Inc. TABLE OF CONTENTS ContentPage ABOUT THIS MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii RELATED PUBLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii ADMONISHMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii GENERAL SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii STANDARDS CERTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix LIST OF ACRONYMS AND ABBREVIATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix SECTION 1: OVERVIEW 1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2SYSTEM OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2.1Basic Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 2.2Base Transceiver Station Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 2.3 Handset Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 2.4Local Service Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3 2.5Remote NOC Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 3SYSTEM FUNCTIONS AND FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 3.1Fiber Optic Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 3.2Control and Monitoring Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 3.3Fault Detection and Alarm Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 3.4Powering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7 3.5Equipment Mounting and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7 SECTION 2: DESCRIPTION 1INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2HOST UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2 2.1Primary Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 2.2Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 2.3Fault Detection and Alarm Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 2.4RF Signal Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3 2.5RF Signal Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4 2.6Optical Link Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4 2.7Controller…

Text truncated - open the document above for the full version.

TÜV MANAGEMENT SERVICEPhone: (651) 631 2487 TÜV PRODUCT SERVICE INC.Fax: (651) 638 0285 1775 Old Highway 8 NW, Suite 104email [email protected] New Brighton MN 55112-1891http:://www.tuvglobal.com Divisions of TÜV America Inc., a subsidiary of TÜV Süddeutschland TÜV PRODUCT SERVICE INC 19333 WILD MOUNTAIN ROAD TAYLORS FALLS, MINNESOTA 55084-1786 ENGINEERING STATEMENT For Certification of ADC Telecommunications Incorporated Digivance Long Range Coverage Solution (LRCS) SMR System Model No: DGVI-202XXXSYS FCC ID: F8I-DVLRCSSMR I am an Electromagnetic Compatibility Engineer for TÜV PRODUCT SERVICE INC, Taylors Falls, Minnesota. My education and experience are a matter of record with the Federal Communications Commission. TÜV PRODUCT SERVICE INC has been authorized by David Conyers, Vice President of Engineering, of ADC Telecommunications Incorporated, to make Certification measurements on the Digivance Long Range Coverage Solution (LRCS) SMR System. These tests were made by me or under my supervision at our Wild River Laboratory which is on file with the FCC under Paragraph 2.948 of the FCC Rules. Test data required by the TCB/FCC is included in this report. It is submitted that the above equipment meets the FCC Part 90 Requirements and Certification is hereby requested. Joel T Schneider Chief Engineer Minnesota Wild River Lab TÜV Product Service [email protected] Dated: 05 September 2001 FCC ID: F8I-DVLRCSSMR - Digivance Long Range Coverage Solution (LRCS) SMR System, Model DGVI-202XXXSYS

FCC ID: F8I-DVLRCSSMR FCC ID: F8I-DVLRCSSMR

Page 1 of 22 FCC ID: F8I-DVLRCSSMR Page 2 of 22 FCC ID: F8I-DVLRCSSMR Page 3 of 22 FCC ID: F8I-DVLRCSSMR Page 4 of 22 FCC ID: F8I-DVLRCSSMR Page 5 of 22 FCC ID: F8I-DVLRCSSMR Page 6 of 22 FCC ID: F8I-DVLRCSSMR Page 7 of 22 FCC ID: F8I-DVLRCSSMR Page 8 of 22 FCC ID: F8I-DVLRCSSMR Page 9 of 22 FCC ID: F8I-DVLRCSSMR Page 10 of 22 FCC ID: F8I-DVLRCSSMR Page 11 of 22 FCC ID: F8I-DVLRCSSMR

Page 12 of 22 FCC ID: F8I-DVLRCSSMR Page 13 of 22 FCC ID: F8I-DVLRCSSMR Page 14 of 22 FCC ID: F8I-DVLRCSSMR Page 15 of 22 FCC ID: F8I-DVLRCSSMR Page 16 of 22 FCC ID: F8I-DVLRCSSMR Page 17 of 22 FCC ID: F8I-DVLRCSSMR Page 18 of 22 FCC ID: F8I-DVLRCSSMR Page 19 of 22 FCC ID: F8I-DVLRCSSMR Page 20 of 22 FCC ID: F8I-DVLRCSSMR Page 21 of 22 FCC ID: F8I-DVLRCSSMR Page 22 of 22 FCC ID: F8I-DVLRCSSMR

FCC ID: F8I-DVLRCSSMR FCC ID: F8I-DVLRCSSMR

Page 1 of 44 FCC ID: F8I-DVLRCSSMR Page 2 of 44 FCC ID: F8I-DVLRCSSMR Page 3 of 44 FCC ID: F8I-DVLRCSSMR Page 4 of 44 FCC ID: F8I-DVLRCSSMR

Page 9 of 44 FCC ID: F8I-DVLRCSSMR Page 10 of 44 FCC ID: F8I-DVLRCSSMR Page 11 of 44 FCC ID: F8I-DVLRCSSMR Page 12 of 44 FCC ID: F8I-DVLRCSSMR Page 13 of 44 FCC ID: F8I-DVLRCSSMR Page 14 of 44 FCC ID: F8I-DVLRCSSMR

Page 15 of 44 FCC ID: F8I-DVLRCSSMR Page 16 of 44 FCC ID: F8I-DVLRCSSMR Page 17 of 44 FCC ID: F8I-DVLRCSSMR Page 18 of 44 FCC ID: F8I-DVLRCSSMR Page 19 of 44 FCC ID: F8I-DVLRCSSMR

Page 22 of 44 FCC ID: F8I-DVLRCSSMR Page 23 of 44 FCC ID: F8I-DVLRCSSMR

Page 20 of 44 FCC ID: F8I-DVLRCSSMR Page 21 of 44 FCC ID: F8I-DVLRCSSMR

Page 22 of 44 FCC ID: F8I-DVLRCSSMR Page 23 of 44 FCC ID: F8I-DVLRCSSMR

Page 25 of 44 FCC ID: F8I-DVLRCSSMR Page 26 of 44 FCC ID: F8I-DVLRCSSMR Page 27 of 44 FCC ID: F8I-DVLRCSSMR Page 28 of 44 FCC ID: F8I-DVLRCSSMR Page 29 of 44 FCC ID: F8I-DVLRCSSMR

Page 30 of 44 FCC ID: F8I-DVLRCSSMR Page 31 of 44 FCC ID: F8I-DVLRCSSMR Page 32 of 44 FCC ID: F8I-DVLRCSSMR Page 33 of 44 FCC ID: F8I-DVLRCSSMR Page 34 of 44 FCC ID: F8I-DVLRCSSMR Page 35 of 44 FCC ID: F8I-DVLRCSSMR Page 36 of 44 FCC ID: F8I-DVLRCSSMR

Page 37 of 44 FCC ID: F8I-DVLRCSSMR Page 38 of 44 FCC ID: F8I-DVLRCSSMR Page 39 of 44 FCC ID: F8I-DVLRCSSMR Page 40 of 44 FCC ID: F8I-DVLRCSSMR

Page 41 of 44 FCC ID: F8I-DVLRCSSMR Page 42 of 44 FCC ID: F8I-DVLRCSSMR Page 43 of 44 FCC ID: F8I-DVLRCSSMR Page 44 of 44 FCC ID: F8I-DVLRCSSMR

Page 5 of 44 FCC ID: F8I-DVLRCSSMR Page 6 of 44 FCC ID: F8I-DVLRCSSMR Page 7 of 44 FCC ID: F8I-DVLRCSSMR Page 8 of 44 FCC ID: F8I-DVLRCSSMR

FCC ID: F8I-DVLRCSSMR

PRODUCT SERVICE TEST RESULT SUMMARY FCC PART 90 MANUFACTURER'S NAMEADC, Incorporated NAME OF EQUIPMENTDigivance Long Range Coverage Solution (SMR) System MODEL NUMBERDGVI-202XXXSYS MANUFACTURER'S ADDRESSP. O. Box 1101 Minneapolis MN 55440-1101 TEST REPORT NUMBERNC105443 TEST DATE17 July, 13 – 16 August 2001 According to testing performed at TÜV Product Service Inc, the above-mentioned unit is in compliance with the electromagnetic compatibility requirements defined in FCC Part 90. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV Product Service Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the requirements of FCC Part 90. Date:27 August 2001 Location:Taylors Falls MNG. S. JakubowskiJ. T. Schneider USATest EngineerChief Engineer TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI Not Transferable FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 1 of 58 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMC EMISSION - T E S T R E P O R T Test Report File Number: NC105443 Date of Issue: 27 August 2001 D I R E C T O R Y Page(s) Exhibit AMax Composite Output Power Test Data (FCC Section 90.635)2 - 5 Exhibit BOccupied Bandwidth Test Data6 - 12 Exhibit CSpurious Conducted Emissions Test Data (FCC Section 90.669)13 - 22 Exhibit DSpurious Radiated Emissions Test Data23 - 25 Exhibit EFrequency Stability Test Data (FCC Section 90.213)26 Exhibit FEmission Mask Test Data (FCC Section 90.691)27 - 29 Exhibit G Inter-Modulation Test Data 30 - 48 Exhibit H Test Equipment List 49 - 50 Exhibit I Product Information 51 - 56 Exhibit J Test Site Diagram / Measurement Info 57 - 58 Max Composite Output Power Test for the ADC Inc. Digivance LRCS SMR System. Model DGVL-202XXXSYS. This measurement was made as a direct conducted emission measurement. The output from the EUT antenna connector was connected to the spectrum analyzer. 6 CW signals were used across the bandwidth of the EUT. The output of each signal was set to the maximum emission level of 5 Watts. The spectrum analyzer level was offset to compensate for attenuators and cable losses between the EUT and analyzer. The maximum specified TX output power from the antenna port is 37dBm (5 Watts) per channel. The maximum number of channels is 6. The maximum composite output power of the system at the antenna port is 44.78 dBm (30 Watts) To meet MPE requirements, the maximum gain antenna would be 60-44.78 = 15.22dBi From the following equations: Peak Output of EUT at antenna Connector (dBm) + Gain of Antenna (dBi) = Peak TX Power (dBm) EIRP 10*Log 10 (Peak TX Power * E 3 Watts) = Peak TX Power (dBm) EIRP 44.78dBm + 15.22dBi = 60dBm EIRP 60dBm EIRP = 1000 Watts EIRP File No. NC105443, Page 2 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 3 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 4 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 5 of 58 FCC ID: F8I-DVLRCSSMR Occupied Bandwidth Modulation Test for ADC Inc. Digivance LRCS SMR System Model DGVL-202XXXSYS. An input/output Occupied Bandwidth test was done with 3 different modulation types: FM (8KHz, 1KHz), TDMA, and CDMA. The purpose was to determine the amount of distortion added to different types of modulation schemes by the EUT. The following plots show input signals vs. output signals. Results: (see plots) File No. NC105443, Page 6 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 7 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 8 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 9 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 10 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 11 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 12 of 58 FCC ID: F8I-DVLRCSSMR Conducted Spurious Emissions Test for ADC Inc. Digivance LRCS SMR System Model: DGVL-202XXXSYS Per FCC CFR 47 Part 90.669 This measurement was made as a direct conducted emission measurement. The output from the EUT antenna connector was connected to the spectrum analyzer. FM (1KHz, 8KHz), TDMA, and CDMA type signals were input to the EUT and a search was made from 30MHz to the 10 th harmonic of the highest fundamental frequency (10 GHz) for any spurious emissions greater than –13dBm from the equation [43+10*Log(P)] Results: Pass (See plots) File No. NC105443, Page 13 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 14 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 15 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 16 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 17 of 58 FCC ID: F8I-DVLRCSSMR File No. NC105443, Page 18 of 58 FCC ID: F8I…

Text truncated - open the document above for the full version.

TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Large Test Site Notes: 1.Items shown in dotted lines are located on the floor below the test area. It is 5 meters vertically from the ground floor to the test area. 2.50 Hz, 60 Hz, and 400 Hz are power panels for alternating current. 3.The antenna may be positioned horizontally 3, 10 or 30 meters from the center of the turntable. 4.The circle is a 6.7 meter diameter turntable. 5.A ground plane is in the plane of this sheet. 6.The test sample is shown in the azimuthal position representing zero degrees. EUT 0 90270 180 60 Hz 50 Hz 400 Hz Shielded Enclosure ANTENNA Page 1 of 8 FCC ID: F8I-DVLRCSSMR ADC Inc. Digivance LRCS SMR System FCC Part 90 Test set-ups Page 2 of 8 FCC ID: F8I-DVLRCSSMR Inter-modulation Test for ADC Inc. DGVL-202XXXSYS System. Signal Generator Signal Generator Combiner AttenuatorEUT Spectrum Analyzer Attenuator Page 3 of 8 FCC ID: F8I-DVLRCSSMR Conducted Spurious Emissions Test for ADC Inc. DGVL-202XXXSYS Signal Generator Attenuator EUT Spectrum Analyzer Page 4 of 8 FCC ID: F8I-DVLRCSSMR EIRP Test for ADC Inc. DGVL-202XXXSYS Signal Generator Attenuator Spectrum Analyzer Signal Generator Signal Generator Signal Generator Signal Generator Combiner Combiner Signal Generator Combiner Combiner Combiner EUT Page 5 of 8 FCC ID: F8I-DVLRCSSMR Band Edge and Adjacent Channel test for ADC Inc. DGVL-202XXXSYS Signal Generator Attenuator EUT Spectrum Analyzer Page 6 of 8 FCC ID: F8I-DVLRCSSMR Input verses Output Occupied Bandwidth Test for ADC Inc. DGVL-202XXXSYS Signal Generator Attenuator EUT Spectrum Analyzer Page 7 of 8 FCC ID: F8I-DVLRCSSMR Frequency Stability Test for ADC Inc. Digivance LRCS SMR System Signal Generator EUT Multimeter Auto Tranformer Temperature Chamber 115VAC 60 Hz Frequency Counter 10MHz Ref (out) DC Power Supply +48VDC Page 8 of 8 FCC ID: F8I-DVLRCSSMR
