F8I-FWURHSMR2FlexWave� URH - SMR

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com Hardware Installation – FlexWave TM URH - Preliminary FlexWave™ URH Operation and Maintenance Manual - Preliminary PRODUCT DESCRIPTION This publication provides basic information about the FlexWave™ URH installation. The FlexWave URH provides the same functionality as the ADC Wireless family of distributed antenna systems (DAS). However, the URH platform implements three single band DAS system capability into one single chassis. The system is comprised of a host and remote chassis with a fiber optic interface. The host chassis is intended for central office equipment enclosure/indoor use. This remote chassis is functional for indoor and outdoor installation. The remote chassis provides the degree of protection specified by NEMA 6 and IP67 as defined by IEC Publication 60529. INSTALLATION OVERVIEW REMOTE ENCLOSURE HOST ENCLOSURE Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com Mounting The FlexWave™ URH host chassis is 19/23 inch equipment rack mountable requiring 3 RU spacing. The Flexwave URH remote chassis has a mounting bracket provided with each unit. The mounting bracket is banded to the pole with three 1.0” wide stainless steel bands. The chassis is then hung from the bracket by means of protrusions and keyhole slots. Once the chassis is in place, it is further secured to the mounting bracket with two 7/16” stainless steel hex bolts. Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com SPECIFICATIONS RF Specification Supported Frequency Blocks 1-3 per Remote Unit; 1-8 per Host Unit Bandwidth 1.5 to 35 MHz non-contiguous Frequency Band Supported 800 Cellular, E-SMR 800/900, 1900 PCS, 1800/2100 AWS (First Release) 700, 1800 & 2500 MHz (Future Releases) Digital Simulcast Up to 8:1 Single Host (can daisy chain Host for higher simulcast) Diversity Receive Yes (Optional) Propagation Delay System Delay <12 microseconds Delay Management Digital (Manual or Automatic) Noise Figure Noise Figure <5 dB Input IP3 >-8 dBm Optical Specifications Optical Budget 10 dB (Standard); 26 dB (Optional) Digital Transport Rate 3.072 Gbps Output Power Output Power per Band 38 dBm (6.5 Watts) Cell/SMR - October '07 43 dBm (20 Watts) PCS – November ‘07 43 dBm (20 Watts) AWS – December ‘07 43 dBm (20 Watts) Cell & SMR – Q2 ‘08 39 dBm (8 Watts) WiMAX – Q2 ‘08 Nominal Passband Gain ~75 dB for 20 Watt System ~70 dB for 6.5 Watt System General Specifications Remote Unit Outside Ambient Temp Rating -40°C to +50°C Storage Temperature -40°C to +70°C Humidity 10% to 90% non-condensing Lightning Protection 20kA IEC 1000-45 8/30 μs Waveform Remote Unit Enclosure IP-65 Mounting Wall, Pole Dimensions 16.45” x 15.6” x 29.38” Weight ≤200 Pounds (No component greater than 80 pounds) Volume 3.66 cubic feet Cooling Passive Convection Optical Connectors Sealed ProAx Impedance 50 Ohm Host Unit Mounting 19- and 23-inch rack Rack Units 3 Rack Units Weight <25 Pounds Host Unit Power Requirements Power Source 21 to 60 VDC floating Remote Unit Power Requirements Power Supply 100-240 VAC Battery Backup UPS Element Management Embedded EMS Yes SNMP Based Management Yes Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com STANDARDS CERTIFICATION FCC: This equipment complies with the applicable sections of Title 47 CFR Part 15 (Host unit), Part 22 (800 MHz Cellular), Part 24 (1900 MHz - PCS), and Part 90 (800/900 - SMR) IC: This equipment complies with the applicable sections of RSS-131. The term “IC:” before the radio certification number only signifies that Industry Canada Technical Specifications were met. The Manufacturer's rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device. Note: To comply with Maximum Permissible Exposure (MPE) requirements, the maximum composite output form the antenna cannot exceed 1000 Watts ERP (Cellular and SMR), the antenna cannot exceed 1640 Watts EIRP (PCS), and the antenna must be permanently installed in a fixed location that provides at least 6 meters (20 feet) of separation from all persons. UL/CUL: This will be installed in a restricted access location. This equipment complies with NEMA Type 6, per UL and CUL 50, Standard for Enclosures for Electrical Equipment. This equipment provides the degree of protection specified by IP67 as defined in IEC Publication 529. Conforms to ANSI/UL Std. 60950. Certified to CAN/CSA STD C22.2 No 60950 FDA/CDRH: This equipment uses a Class 1 LASER according to FDA/CDRH Rules. This product conforms to all applicable standards of 21 CFR Part 1040. Caution: Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com AC Power Wiring Installation A 15-foot connectorized 3-wire cable is provided for the AC power connections. The connectorized end of the cable connects to the AC power port located on the bottom of the enclosure. The stub end of the cable must be routed to an external junction box (not provided) for permanent connection to the AC power system wiring. The socket outlet shall be installed near the equipment and shall be easily accessible. The AC power source must supply 120 or 240 VAC, 50 or 60 Hz, single-phase…

Text truncated - open the document above for the full version.

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com March 25, 2008 Attn: Application Examiner, Reviewing Engineer Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Technical Description or Theory of Operation, Bill of Materials (BOM’s), and Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Mark Miska Compliance Engineer Tele: 952 403-8340 Fax: 952 403-8858 Email: [email protected]

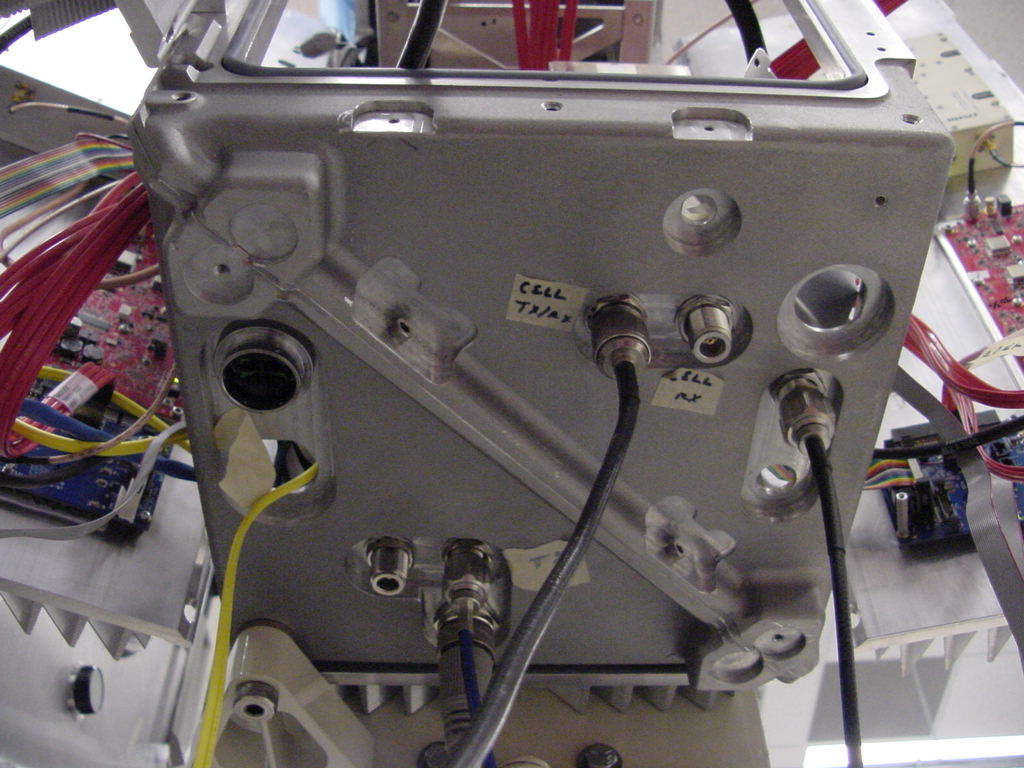

FlexWave™ URH Remote Unit Right View FlexWave™ URH Remote Unit Left View FlexWave™ URH Remote Unit Rear View FlexWave™ URH Remote Unit Top View FlexWave™ URH Remote Unit Bottom View FlexWave™ URH Remote Unit Open Top View FlexWave™ URH Remote Unit Open Rear Door View

INFORMATION ON THIS DOCUMENT IS PROPRIETARY TO ADC AND SHALL NOT BE USED, COPIED, REPRODUCED OR DISCLOSED IN WHOLE OR IN PART WITHOUT WRITTEN CONSENT OF ADC TITLE FlexWave™ URH - SMR FCC / IC Identification Label TOLERANCE UNLESS .XX NA OTHERWISE SPECIFIED .XX NA DRAWING NUMBER None A REV DO NOT SCALE DRAWING ENGR. Mark F. Miska SIZE A SHEET 1 OF 1 REV ECO DWN DATE A MFM 3-25-2008 XXXX-XXXXXXXX FCC ID: F8I-FWURSMR2 2 1.500 REF R.075 (4) DIE CUT LABEL .750 REF 1,4 - See Note 4 for Model Number NOTES: 1 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 8 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. 2 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 6 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. MATERIAL: ADC PART NUMBER 1215140 3 4 FWU-D20000002110RU

FlexWave™ URH - SMR Remote Unit Location of FCC/IC ID (Internal) Location of FCC/IC Label (Internal) FlexWave™ URH Remote Unit Location of FCC/IC ID (External) Location of FCC/IC Label (External)

FlexWave™ URH Duplexer - SMR Front View FlexWave™ URH DART Top View FlexWave™ URH DART Top View – 1 FlexWave™ URH DART Top View - 2 FlexWave™ URH DART Bottom View FlexWave™ URH DART Bottom View - 1 FlexWave™ URH DART Bottom View - 2 FlexWave™ URH RDI Top View FlexWave™ URH RDI Top View – 1 FlexWave™ URH RDI Top View - 2 FlexWave™ URH RDI Bottom View FlexWave™ URH RDI Bottom View - 1 FlexWave™ URH RDI Bottom View - 2 FlexWave™ URH LNA Top View FlexWave™ URH LNA Bottom View FlexWave™ URH Power Monitor Top View FlexWave™ URH Power Monitor Bottom View FlexWave™ URH Duplexer - SMR Right View FlexWave™ URH Duplexer - SMR Left View FlexWave™ URH Duplexer - SMR Rear View FlexWave™ URH Duplexer - SMR Bottom View

FlexWave™ URH RSI Top View FlexWave™ URH Power Supply Top View FlexWave™ URH Power Supply Bottom View FlexWave™ URH SERF Top View FlexWave™ URH SERF Top View – 1 FlexWave™ URH SERF Top View - 2 FlexWave™ URH SERF Top View – 3 FlexWave™ URH SERF Top View - 4 FlexWave™ URH SERF Bottom View FlexWave™ URH SERF Bottom View - 1 FlexWave™ URH SERF Bottom View - 2 FlexWave™ URH SERF Bottom View – 3 FlexWave™ URH SERF Bottom View - 4 FlexWave™ URH RSI Bottom View

ADC Telecommunications Test Report Summary FCC CFR 47, Part 90 Private Land Mobile Radio Service Manufacturer: ADC Telecommunications Name of Equipment: FlexWave™ URH – SMR Model Number(s): FWU-D20000002110RU Manufacturer’s Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Report Number: MN080325 Test Date(s): 19 March, 2008 (ETL) 24 March, 2008 (ADC) According to testing performed at Intertek, the above-mentioned unit is in accordance with the applicable electromagnetic compatibility (EMC) portions of the requirements defined in FCC Part 90. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. All testing was done in accordance with the Federal Communications Commission’s CFR 47 Part 90 and the EUT fulfills the requirements of the Federal Communications Commission’s CFR 47 Part 90. Date: 25 March, 2008 Location: Intertek Testing Services (ETL) ADC Telecommunications 7250 Hudson Blvd., Suite 100 5341 12 th Ave E Oakdale, MN 55128 Shakopee, MN 55379 Phone: (651) 730-1188 Phone: (952) 403-8340 Fax: (651) 730-1282 Fax: (952) 403-8858 Testing Conducted by (ADC): And Report Written by: Mark F. Miska Compliance Engineer 1 of 69 MN080325 ADC Telecommunications EMC Emission – T E S T R E P O R T Test Report File Number: MN080325 Date of Issue: 25 March, 2008 Model Number(s): FWU-D20000002110RU Product Name: FlexWave™ URH – SMR Product Type: Repeater Applicant: ADC Telecommunications Manufacturer: ADC Telecommunications License Holder: ADC Telecommunications Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Result: ▪ Positive ▫ Negative Test Project Number: 3147567MIN-001 Reference(s) Total pages including Appendices: 69 2 of 69 MN080325 ADC Telecommunications Table of Contents 1.0 Revision Description .............................................................................................. 4 2.0 Documentation ..................................................................................................... 4 2.1 Test Regulations ................................................................................................ 4 2.2 Test Operation Mode .......................................................................................... 5 2.3 Configuration of the device under test: ................................................................. 5 2.4 Product Options: ................................................................................................ 5 2.5 EUT Specifications and Requirements: .................................................................. 5 2.6 Cables: ............................................................................................................. 5 2.7 Power Requirements: ......................................................................................... 5 2.8 Typical Installation and/or Operating Environment: ................................................. 5 2.9 Other Special Requirements: ............................................................................... 5 2.10 EUT Software: ................................................................................................ 5 2.11 EUT System Components ................................................................................. 6 2.12 Support Equipment .......................................................................................... 6 2.13 Deviations from standard: ................................................................................ 6 2.14 General Remarks: ........................................................................................... 6 2.15 Summary: ...................................................................................................... 6 3.0 Test set-Up drawings and Photos ............................................................................ 7 3.1 Test set-up photo, radiated emissions ................................................................... 7 3.2 Test set-up photo, radiated emissions ................................................................... 8 3.3 Test Set-up Drawings ......................................................................................... 9 4.0 Test Results ....................................................................................................... 11 4.1.1 90.635 Limitations on power and antenna height ............................................ 11 4.1.2 90.213 Frequency stability ........................................................................... 12 4.1.3 90.669 Emission limits ................................................................................ 13 5.0 Test Equipment .................................................................................................. 14 6.0 Appendix A ........................................................................................................ 15 7.0 Appendix B ........................................................................................................ 54 8.0 Appendix C ........................................................................................................ 68 3 of 69 MN080325 ADC Telecommunications 1.0 REVISION DESCRIPTION Rev Total Pages Date Description A 69 25 March, 2008 Original Release 2.0 DOCUMENTATION 2.1 Test Regulations 90.213 Frequency stability 90.635 Limitations on power and antenna height 90.669 Emission limits The emissions tests were performed according to the following regulations: ▫ FCC Part 22 ▫ FCC Part 24 ▪ FCC Part 90 ▫ IC RSS-131 Issue 2 Environmental Conditions in the lab: ADC ETL Temperature: 22º C 15-35º C Relative Humidity: 23% 30-60% Atmospheric Pressure: 98.8 kPa 86-106 kPa Power Supply Utilized: Power Supply System : 1 phase, 60 Hz, 120 VAC 4 of …
