FlexWave ™ Prism Flexible Outdoor Wireless Coverage and Capacity 10/08 • 106969AE FlexWave ™ Prism FlexWave ™ Prism Flexible Outdoor Wireless Coverage and Capacity 2 www.adc.com • +1-952-938-8080 • 1-800-366-3891 Overview With the increasing popularity and reliance on wireless voice and data services, subscribers expect to have coverage at anytime, anywhere. In addition to increased wireless device usage, wireless service providers implementing 3G technologies have recognized a reduction in coverage patterns within existing coverage footprints, opening coverage “holes” within the network. To resolve this issue, it requires service providers to extend coverage and/or increase capacity within the non-coverage areas. This has been traditionally accomplished by adding new macro cell towers; however, with city centers becoming more congested and local government zoning regulations becoming more stringent, obtaining permits for new macro cell sites is becoming increasingly difficult. The Prism offers service providers a flexible, small form factor solution to extend coverage and capacity where needed, as well as support for the increasing number of protocols and frequencies available today and in the future. Features and Benefits: Flexible Architecture • Supports multiple frequency bands and wireless protocols in one enclosure – Scalable and modular – Multiple non-contiguous segments of 1.5 to 75 MHz each – BTS interface supporting RF and OBSAI/CPRI standards (Future) – Transport rates supporting Dark Fiber and Millimeter Wave – Field upgradeable – User Friendly• Embedded element management system, supporting web based access and SNMP – Fully sealed, maintenance free electronics for harsh outdoor applications – Cost Effective• Efficient use of CAPEX equipment and real estate – FlexWave ™ – ADC’s Next Generation of Wireless Solutions for Improving Wireless Capacity, Coverage, Flexibility and Customer Retention ADC’s FlexWave ™ Prism is the most flexible, scalable and complete solution for addressing coverage and capacity needs for current and emerging wireless networks. The Prism improves wireless network coverage and capacity by extending services from existing cell sites, to hard-to-reach areas by distributing coverage from a centralized radio suite. Utilizing a centralized distributed architecture, service providers are able to recognize significant CAPEX/OPEX savings through a shared Base Station Hotel (multiple BTS co-located together), as well as a shared Remote Radio Transceiver approach. The Prism’s flexibility and scalability offers service providers an optimal solution for multiple applications such as; dense urban centers, dense suburban areas, campuses, enterprise buildings, subways and tunnels. The Prism’s distributed architecture and small form factor allows service providers to cost-effectively increase coverage and capacity in these hard-to-reach areas. 10/08 • 106969AE FlexWave ™ Prism FlexWave ™ Prism Flexible Outdoor Wireless Coverage and Capacity 3 www.adc.com • +1-952-938-8080 • 1-800-366-3891 Application The FlexWave Prism uses patented digital-over-fiber technology to distribute RF to desired locations. The Prism digitizes the entire designated RF band and digitally transports it over dark fiber or millimeter wave links and reconstructs the signal at full bandwidth, regardless of modulation technology, at the remote location. ADC’s digital RF transport allows RF signals to be replicated at full dynamic range, independent of the link length, for improved data throughput. As service providers migrate to 3G and 4G networks, high- data rate broadband services, networks utilizing a Prism backbone will be ready. The Prism offers a flexible architecture to distribute wireless coverage and capacity. Its versatility and small form factor allow service providers to quickly deploy networks in areas where zoning restrictions often hinder installation of traditional macro cell towers and base stations. Centralization of base station capacity can also be realized using the FlexWave Prism. This allows service providers to further benefit by reducing capital expenditures and annual operating costs. System Description The FlexWave Prism is a flexible and cost effective solution for Distributed Antenna System applications: Microcell and/or CPRI/OBSAI Remote Radio Head applications: Next Generation DAS; optimized for multiple frequency bands, scalable RF bandwidth & transport rates• Flexible SeRF technology; serial RF processing, enabling scalable frequency bands and bandwidths• Digitial RF Transport; Digitally transports RF from the BTS to remote locations for distribution of RF signals.• Digital simulcast; signal is digitally combined and split to mulitple remotes• Future enhancements will include: CPRI/OBSAI; flexibility to support BTS interface standards• Microcell; fully contained capacity solution utilizing cost efficient low bit-rate IP backhaul• IP ready platform; smooth integration to IP front/backhaul networks• Base St at io n 1 Base St at io n 2 Base St at io n 3 OBSAI/CPRI to SeRF Converter RF to SeRF Converter RF RF RF to SeRF Converter SeRF Board BackhaulData Multiplexed SeRF over Fi ber Multiplexed SeRF over mm-wave SeRF SeRF SeRF Multiband, pr ot ocol-agnostic Univ er sa l Radio Head Multiplexed SeRF over mm-w ave OBSAI/CPRI HOST REMOTES Sample System Configuration (3 Band 3 Remote Simulcast) 10/08 • 106969AE FlexWave ™ Prism FlexWave ™ Prism Flexible Outdoor Wireless Coverage and Capacity 4 www.adc.com • +1-952-938-8080 • 1-800-366-3891 Host Unit The rack-mountable FlexWave Prism Host Unit is typically located at a Base Station or a facility housing a suite of Base Stations. On the forward path, the Host Unit receives the RF signals from the BTS and digitizes the designated RF bands and digitally transports them over single mode fiber or a millimeter wave link to the Remote Units. On the reverse path, the Host Unit receives the digitized RF signals from the Remote Unit and …

Text truncated - open the document above for the full version.

ADC FlexWave ™ Prism Host, Remote and EMS 5.1 System Reference D-620098-0-20 Rev B Antenna Antenna Antenna Quad Band Remote Unit Host Unit Antenna 77073-001 ADCP-77-073x Issue 2 x 11/2009 ADC Telecommunications, Inc. P.O. Box 1101, Minneapolis, Minnesota 55440-1101 In U.S.A. and Canada: 1-800-366-3891 Outside U.S.A. and Canada: (952) 938-8080 Fax: (952) 917-1717 Copyright © 2009 ADC Telecommunications, Inc. All Rights Reserved. Information contained in this document is company private to ADC Telecommunications, Inc. and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of ADC. Trademark Information ADC is a registered trademark and FlexWave is a trademark of ADC Telecommunications, Inc. No right, license, or interest to such trademarks is granted hereunder, and you agree that no such right, license, or interest shall be asserted by you with respect to such trademark. Other product names mentioned in this practice are used for identification purposes only and may be trademarks or registered trademarks of their respective companies. Disclaimer of Liability Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. Should the content of printed user documentation shipped with product differ from documentation provided on a product CD (inclusive of the associated Help modules), the printed user documentation supersedes the documentation on the product CD. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits, and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. Specific Disclaimer for High-Risk Activities This Software Product is not specifically designed, manufactured, tested or intended for use in high- risk activities including, without restricting the generality of the foregoing, on-line control of aircraft, air traffic, aircraft navigation or aircraft communications; or in the design, construction, operation or maintenance of any nuclear facility. ADC (including its affiliates) and its suppliers specifically disclaim any express or implied warranty of fitness for such purposes or any other purposes. Screenshots in User Documentation Due to concurrent development of this documentation, artwork, and the FlexWave URH EMS product, there may be some minor discrepancies between screenshots contained in this documentation and those actually displayed in the FlexWave URH EMS. These discrepancies will generally be few and minor and should not affect your understanding of FlexWave URH EMS. FlexWave Prism Host, Remote and EMS 5.1 System ReferencePage iii ADCP-77-073 • Issue 2 • 11/2009©2009 ADC Telecommunications, Inc. TABLE OF CONTENTS Preface _______________________________________________ix FlexWave Prism User Documentation........................................................................... x Following the EMS Procedures in This Document...........................................................xi General Safety Precautions .......................................................................................xii Standards Certification ............................................................................................ xiii Part I: FlexWave Prism System Overview ____________1 Chapter 1: FlexWave Prism System _________________________ 3 1.1 Prism System Overview ....................................................................................... 4 1.1.1 Product Features ......................................................................................... 4 1.1.2 Applications ................................................................................................ 5 1.2 Basic System Components.................................................................................... 6 1.3 Multi-Host Systems ........................................................................................... 10 1.4 DART Cards ...................................................................................................... 12 1.4.1 DARTs and Host Units ................................................................................ 13 1.4.2 DARTs and Remote Units ............................................................................ 15 1.5 E911 Support ................................................................................................... 16 1.6 Fiber Optic Transport ......................................................................................... 17 1.7 Timeslots Versus Bandwidth ............................................................................... 19 1.8 Bandwidths ...................................................................................................... 20 1.9 AWS and PCS Band Options ................................................................................ 24 Page ivFlexWave Prism Host, Remote and EMS 5.1 System Reference © 2009 ADC Telecommunications, IncADCP-77-073 • Issue 2 • 11/2009 Chapter 2: Prism System Components ______________________ 27 2.1 FlexWave Prism Family Overview ........................................................................ 28 2.2 FlexWave Prism Host Units ................................................................................. 30 2.2.1 Host Front Panel........................................................................................ 30 2.2.2 Host Network Connection ........................................................................... 33 2.2.3 Host RF Signal Connections......................................................................... 33 2.2.4 Host System Card...................................................................................... 34 2.3 Prism Remote Units ..................................…

Text truncated - open the document above for the full version.

FlexWave Prism Host, Remote and EMS 5.1 System ReferencePage 93 ADCP-77-073 • Issue 2 • 11/2009©2009 ADC Telecommunications, Inc. 4 INSTALLING THE REMOTE UNIT 4.1 Remote Installation Overview ............................................................................. 94 4.1.1 Installation Hardware Provided with Remote.................................................. 94 4.1.2 Required Tools and Materials....................................................................... 95 4.2 Remote Mounting Plans...................................................................................... 96 4.3 Install the Remote............................................................................................. 97 4.3.1 Unpack and Inspect the Remote and Components .......................................... 97 4.3.2 Install the Remote RF Module(s) .................................................................. 98 4.4 Install any 40W RF Module(s) ............................................................................107 4.4.1 Prepare the Remote and RF Module.............................................................108 4.4.2 Remove Module Shelf(s) ............................................................................108 4.4.3 Install the 40W RF Module .........................................................................110 4.4.4 Ground Wire Installation............................................................................118 4.4.5 Network Cable Installation .........................................................................119 4.4.6 Quad Fiber Cable Installation .....................................................................121 4.4.7 Antenna Cable Installation .........................................................................123 4.4.8 AC Power Wiring Installation ......................................................................125 4.4.9 Determine the Circuit Breaker or Fuse for Remote.........................................129 4.4.9.1 Power Consumption ..........................................................................129 4.4.9.2 Power Consumption Tables.................................................................131 4.4.10 Mount the Remote and Power Up ..............................................................132 ContentPage Installing the Remote Unit Page 94FlexWave Prism Host, Remote and EMS 5.1 System Reference © 2009 ADC Telecommunications, IncADCP-77-073 • Issue 2 • 11/2009 4.1REMOTE INSTALLATION OVERVIEW Installation of the Remote consists of the following basic steps: 11 Unpack and inspect your shipment. 22 Install the RF module(s). 33 Connect the ProAx Fiber Cables. 44 Connect external coaxial antenna cables must be routed from the antenna to the Remote TX0/RX0 and RX1 connectors. 55 Install the AC power cable and connect it the Remote’s AC power port and to an external junction box . 4.1.1Installation Hardware Provided with Remote The installation hardware provided with the Remote is listed in Table 4-1. To insure that all connectors and ports remain dust-free during installation, leave all dust caps and dust protectors in place until directed to remove them. Table 4-1.Remote Unit Installation Hardware ItemQuantity AC Power Cable (15 feet/4.6m)1 Quad Fiber Cable Assembly1 (a) (a) If the Remote has more than 2 SFPs, two Quad Fiber Cable Assemblies are required. 3/8-inch hex standoff3 3/8-inch 10-32 phillips screw3 #10 split washer3 Remote Installation Overview FlexWave Prism Host, Remote and EMS 5.1 System ReferencePage 95 ADCP-77-073 • Issue 2 • 11/2009© 2009 ADC Telecommunications, Inc. 4.1.2Required Tools and Materials The following tools are required in order to complete the procedures in this instruction: •• Socket Wrench and 3/8-inch Deep Socket •• Wire cutters •• Wire stripper •• Compression pliers for splicing grounding cable •• Tools for installing exterior AC circuit •• Tool kit for attaching N-Type connectors to coaxial cable •• Fiber cleaning kit The following materials are required in order to complete the installation procedures: •• #6 AWG (4 mm) copper wire and splice •• #10 ring terminal for attaching #6 grounding wire to bottom of unit •• Connector for attaching #6 grounding wire to approved earth ground source •• Junction box, conduit, fasteners, connectors, and wire to install an exterior AC circuit. •• N-Type male connectors •• RJ-45 connector (if making a permanent external network cable connection) Installing the Remote Unit Page 96FlexWave Prism Host, Remote and EMS 5.1 System Reference © 2009 ADC Telecommunications, IncADCP-77-073 • Issue 2 • 11/2009 4.2REMOTE MOUNTING PLANS The FlexWave Prism Remote Unit has a low profile design that requires minimal real estate for installation. The basic dimensions and weights of the Remote are listed in Table 4-2. The Prism Remote should be mounted on a utility pole, mast, or on a flat surface. A mounting kit is available for each unit. Installation consists of securing the bracket to the mounting surface (wood, concrete, or steel) and then hanging the unit from the bracket. The Remote should only be mounted in a restricted access location. Detailed instructions for mounting the FlexWave Prism Remote are in the Remote Unit Mounting Kit Installation Instructions (ADCP-77-077). Table 4-2.Remote Dimensions Remote ConfigurationDepthWidthHeightWeight of Fully Populated Units Single-Band 10.51 " 12.15 " 22.50" < 65 lbs Double Band 10.51 " 12.15 " 30.50" < 96 lbs Triple Band 10.51 " 12.15 " 38.46" < 127 lbs Quad-Band 10.51 " 12.15 " 49.60" <1 65 lbs Install the Remote FlexWave Prism Host, Remote and EMS 5.1 System ReferencePage 97 ADCP-77-073 • Issue 2 • 11/2009© 2009 ADC Telecommunications, Inc. 4.3INSTALL THE REMOTE This chapter guides you through installing a Prism Remote, which requires 63 steps that are divided into 9 sections. Follow the steps in the order in which they are provided. 4.3.1Unpack and Inspect the Remote and Components This section provides instruc…

Text truncated - open the document above for the full version.

FlexWave Prism Host, Remote and EMS 5.1 System ReferencePage 213 ADCP-77-073 • Issue 2 • 11/2009©2009 ADC Telecommunications, Inc. 9 MANAGING HOST UNITS 9.1 Viewing the Host Summary................................................................................214 9.2 Resetting the Host Unit .....................................................................................215 9.3 Viewing Host SeRF Ethernet Ports.......................................................................217 9.4 Decommissioning a DART in a Host.....................................................................220 9.5 Viewing the Host SeRF Summary........................................................................222 9.6 Viewing Host SeRF Optical Ports .........................................................................224 9.7 Viewing Host DART Alarms ................................................................................226 ContentPage Managing Host Units Page 214FlexWave Prism Host, Remote and EMS 5.1 System Reference © 2009 ADC Telecommunications, IncADCP-77-073 • Issue 2 • 11/2009 9.1VIEWING THE HOST SUMMARY This section describes the read-only status indicators in the Host Summary view. For information on setting Host attributes, see “Enter a Host Name, Clock Source, and Linking Mode” on page 147 and “Changing to Built-In Network Mode” on page 186. To open the Host Summary view in the EMS View Frame, in the Function Explorer Tree select System View, and then click on the Host name node. The read-only status indicators are: • SERF—Current summary alarm state of Host SeRF card. Red indicates that a major alarm exists for some component module of the SeRF. Yellow indicates a minor alarm. • DART—Current summary alarm state is indicated by status indicator on same row of page. Red indicates that a major alarm exists for the DART. Yellow indicates a minor alarm. • Host Major Contact Alarm Output—Dry alarm NO/NC contact (labeled ALARM OUTPUTS HOST) on the Host. Current state of major alarm contacts is indicated by Alarm Summary status indicator on same row of page. • Host Minor Contact Alarm Output—Dry alarm NO/NC contact (labeled ALARM OUTPUTS HOST) on the Host. Current state of minor alarm contacts is indicated by Alarm Summary status indicator on same row of page. • Remote Major Contact Alarm Output—Red indicates Host NO/NC major alarm contacts are in an alarm position. These connections are typically wired to a local alarm alert system. This status indicator is red when a major alarm is present on any Remote connected to the Host. • Remote Minor Contact Alarm Output—Red indicates that Host NO/NC minor alarm contacts are in an alarm position. These connections are typically wired to a local alarm alert system. This status indicator is red when a minor alarm is present on any Remote connected to Host. Resetting the Host Unit FlexWave Prism Host, Remote and EMS 5.1 System ReferencePage 215 ADCP-77-073 • Issue 2 • 11/2009© 2009 ADC Telecommunications, Inc. 9.2RESETTING THE HOST UNIT 11 In the Function Explorer Tree, select System View, and then click on the Host name node to open the Host Summary view in the EMS View Frame. 22 Click Reset Unit. Only a user logged in under the admin or a Network Manager account can change Prism system settings t hrough the EMS. Resetting the Host Unit results in a Loss of Service condition for the Host and connected Remotes unt il the Host comes back up. Depending on the system configuration, it can take 5 to 20 minutes for man agement communication to be restored. Managing Host Units Page 216FlexWave Prism Host, Remote and EMS 5.1 System Reference © 2009 ADC Telecommunications, IncADCP-77-073 • Issue 2 • 11/2009 33 In the confirmation dialog, click OK. Once you click OK, the confirmation dialog closes and the Host reboots. It will take some time for the Host to retrieve data from connected Remotes and to reconfigure data on the Remotes. During this time, an alert message displays in the Host Summary view and on any other page where data can be set. Any attempt to SET will fail. You cannot make configuration changes while this message is displayed. Wait until the message clears before continuing with configuration settings. Viewing Host SeRF Ethernet Ports FlexWave Prism Host, Remote and EMS 5.1 System ReferencePage 217 ADCP-77-073 • Issue 2 • 11/2009© 2009 ADC Telecommunications, Inc. 9.3VIEWING HOST SERF ETHERNET PORTS The Host ENET Configurations view is a summary of throughput and number of errors on the twelve Ethernet (ENET) ports on the Host SeRF card. These ports consist of eight ports used for connection to Remotes and four ports used for system management and maintenance functions. 11 In the Function Explorer Tree, select System View,Host-x,SERF,ENET (where -x is the Host name) to open the ENET Configurations view in the EMS View Frame. Managing Host Units Page 218FlexWave Prism Host, Remote and EMS 5.1 System Reference © 2009 ADC Telecommunications, IncADCP-77-073 • Issue 2 • 11/2009 22 (Optional) To enlarge the view, click Full Screen to open a separate window that shows only the ENET Configurations table. 33 To update the counters, click Refresh. The ENET Configurations view lists the Ethernet ports and their corresponding status. •• The row headers in the first column are as follows: – Switch Port—on card processor's connection to the switch on the SeRF card – Craft Port—on card processor's connection to the PHY port labeled Craft – OptEnetPort1-8—Ethernet switch interface to SFP 1-8 – Network Port—Ethernet switch interface to on-card processor – Management Port—switch interface to the PHY port labeled Network •• The column headers, from left to right, are as follows: – Rx Bytes—Receive byte counter. Increments by the byte count of frames received, including those in bad packets, excluding preamble and SFD but including FCS bytes – Rx Pkts—Receive packet counter. Increments for each frame received packet (including bad packets, all unicast, broa…

Text truncated - open the document above for the full version.

Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www.te.com May 23, 2011 Attn: Application Examiner, Reviewing Engineer Re: Attestation Statement I, the undersigned, attest that all testing done under my supervision was done in accordance with the Federal Communications Commission’s CFR 47 Part 27 and that the EUT fulfills the requirements of the Federal Communications Commission’s CFR 47 Part 27. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www.te.com May 23, 2011 Attn: Application Examiner, Reviewing Engineer FCC ID: F8I-PRSM074C Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Technical Description or Theory of Operation, Bill of Materials (BOM’s), and Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www.te.com May 23, 2011 Attn: Application Examiner, Reviewing Engineer Re: Name of EUT on Grant FlexWave™ Prism – 40 Watt 700 Upper C - Band Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

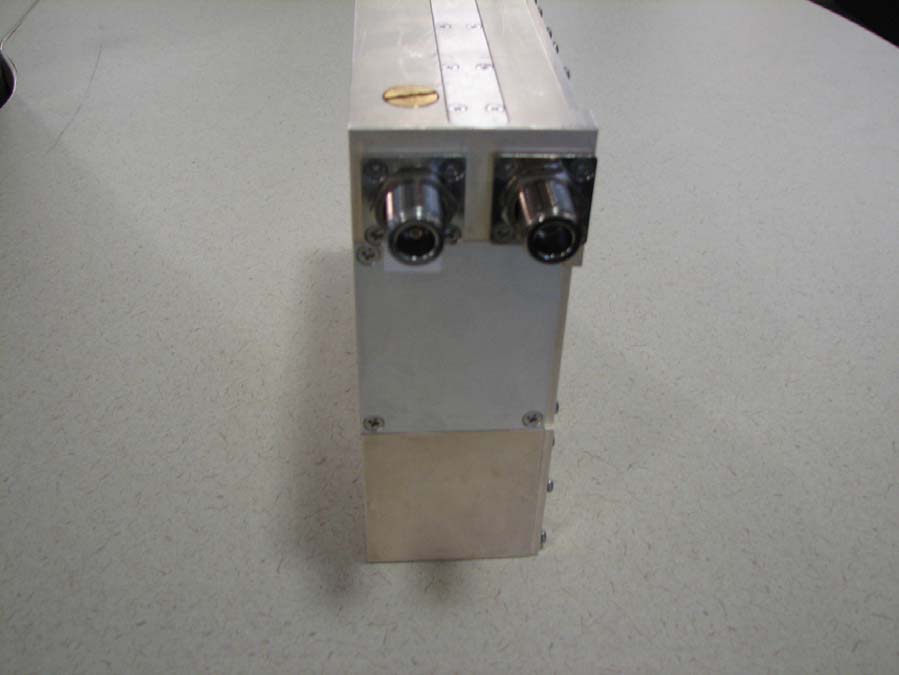

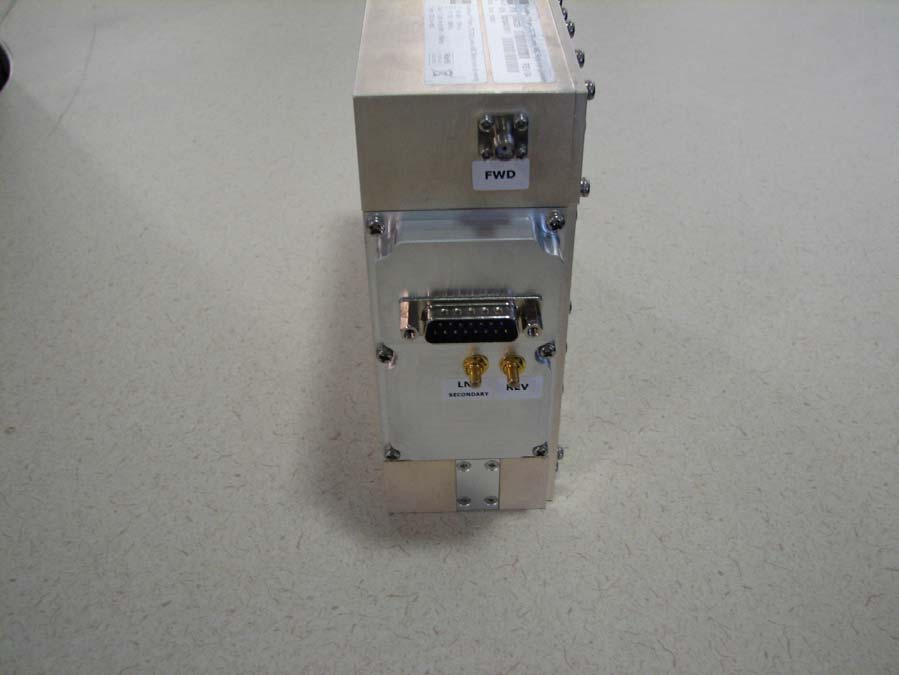

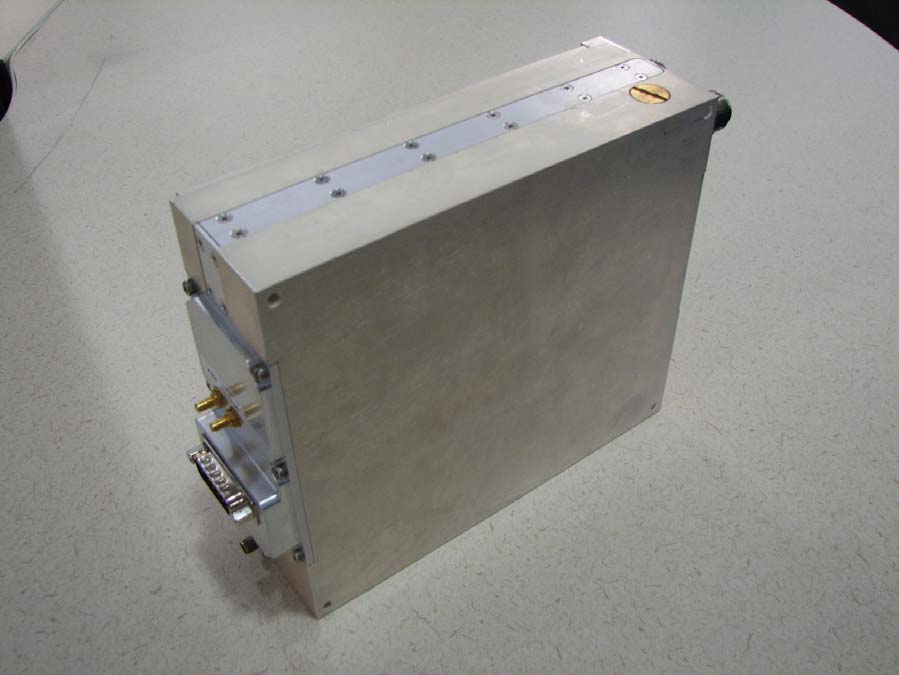

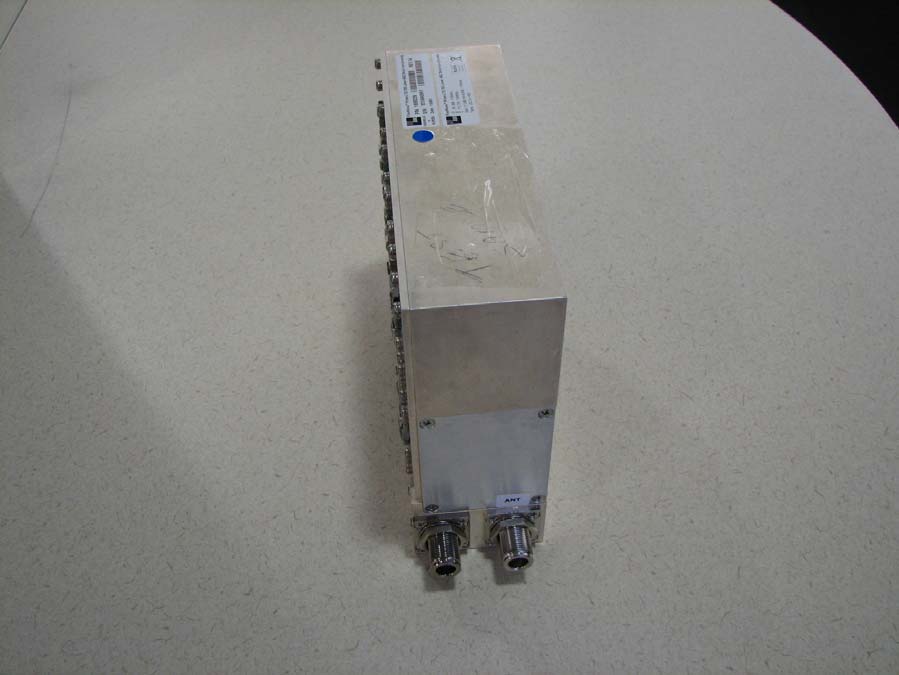

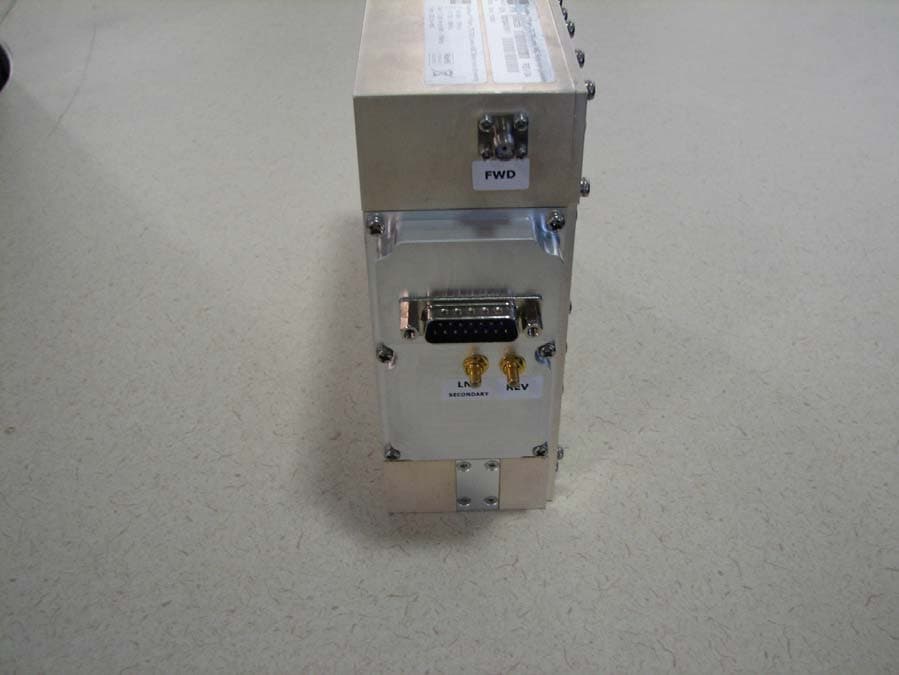

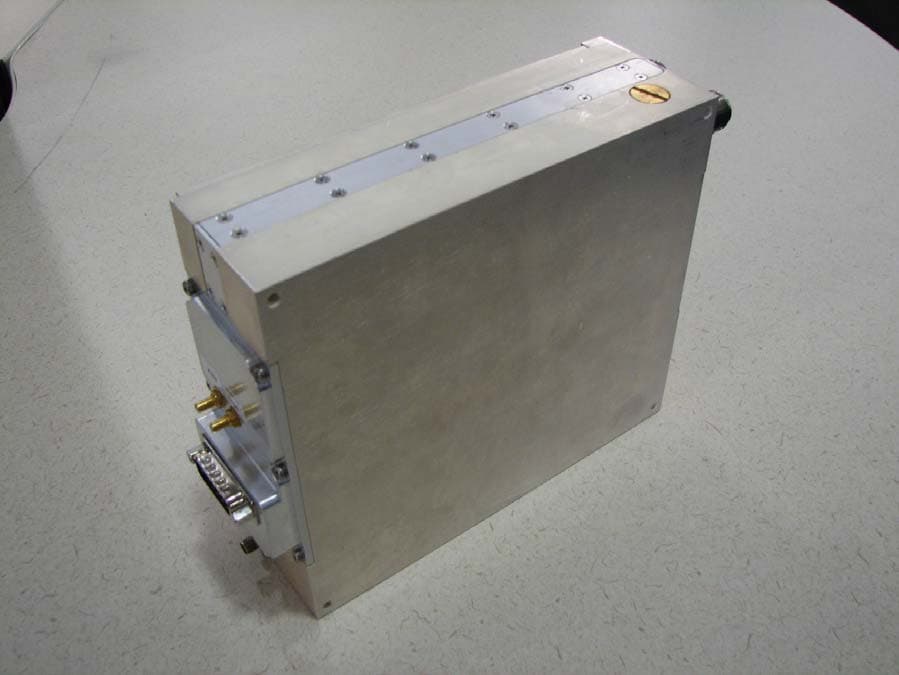

FlexWave™ Prism Duplexer – 700 Upper C Front View FlexWave™ Prism Duplexer - 700 Upper C Right View FlexWave™ Prism Duplexer - 700 Upper C Left View FlexWave™ Prism Duplexer - 700 Upper C Rear View FlexWave™ Prism Duplexer - 700 Upper C Bottom View

INFORMATION ON THIS DOCUMENT IS PROPRIETARY TO ADC AND SHALL NOT BE USED, COPIED, REPRODUCED OR DISCLOSED IN WHOLE OR IN PART WITHOUT WRITTEN CONSENT OF ADC TITLE FlexWave™ Prism – 700MHz 40Watt Upper C Band FCC Identification Label TOLERANCE UNLESS .XX NA OTHERWISE SPECIFIED .XX NA DRAWING NUMBER None A REV DO NOT SCALE DRAWING ENGR. Joshua J. Wittman SIZE A SHEET 1 OF 1 REV ECO DWN DATE A JJW 4-12-2011 - See Note 4 for Model Number R.075 (4) DIE CUT LABEL XXXX-XXXXXXXX FCC ID: F8I-PRSM074C 2 1.500 REF .750 REF 1,4 NOTES: 1 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 8 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. 2 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 6 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. MATERIAL: ADC PART NUMBER 1215140 3 4 FWP-U816100MOD

FlexWave™ URH LNA Top View FlexWave™ URH LNA Bottom View FlexWave™ URH Power Monitor Top View FlexWave™ URH Power Monitor Bottom View

FlexWave™ URH RDI Top View FlexWave™ URH RDI Top View – 1 FlexWave™ URH RDI Top View - 2 FlexWave™ URH RDI Bottom View FlexWave™ URH RDI Bottom View - 1 FlexWave™ URH RDI Bottom View - 2

FlexWave™ URH DART Top View FlexWave™ URH DART Top View – 1 FlexWave™ URH DART Top View - 2 FlexWave™ URH DART Bottom View FlexWave™ URH DART Bottom View - 1 FlexWave™ URH DART Bottom View - 2

FlexWave™ URH RSI Top View FlexWave™ URH RSI Bottom View

FlexWave™ URH SERF Top View FlexWave™ URH SERF Top View – 1 FlexWave™ URH SERF Top View - 2 FlexWave™ URH SERF Top View – 3 FlexWave™ URH SERF Top View - 4 FlexWave™ URH SERF Bottom View FlexWave™ URH SERF Bottom View - 1 FlexWave™ URH SERF Bottom View - 2 FlexWave™ URH SERF Bottom View – 3 FlexWave™ URH SERF Bottom View - 4

FlexWave™ URH Power Supply Top View FlexWave™ URH Power Supply Bottom View

Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www.te.com May 23, 2011 Attn: Application Examiner, Reviewing Engineer Re: Tune-up Procedure The FlexWave™ Prism – 40 Watt 700MHz Upper C - Band model number FWP-U816100MOD employs a solid-state design that does not require a tune-up procedure. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www.te.com May 23, 2011 Attn: Director of Certification Dear Sir or Madam: The following is the SAR calculation for the FlexWave™ Prism – 700 MHz 40 Watt Upper C- Band FCC ID: F8I-PRSM074C using the system’s maximum RF emission. The calculation is based on FCC 47CFR Part 2 and OET 65. Per OET 65: Maximum Permissible Exposure is Freq. (MHz)/1500 = MPE mW/cm 2 751 MHz/1500= 0.5006 mW/cm 2 The following equations determine the distance from the antenna that the power density is ≤ 1.0 mW/cm 2 . To convert to EIRP use the relation: EIRP = ERP X 1.64 +47.25 dBm Transmitter Power (Max) 12.75 dBi Antenna Gain (Max) 47.25 dBm + 12.75 dBi= +60 dBm ERP +60 dBm ERP = 1000 Watts EIRP 1000 Watts EIRP = 1000*10 3 mWatts EIRP 0.5006 mW/cm 2 = 1000*10 3 mW/(4*π*r 2 ) r= SQR(1000*10 3 /4*π 0.5006) r= 398.70 cm or 3.98 Meters In addition, the following statement will be added to our installation/operation manual: To comply with Maximum Permissible Exposure (MPE) requirements, the maximum composite output from the antenna cannot exceed 1000 Watts EIRP and the antenna must be permanently installed in a fixed location that provides at least 6 meters (20 feet) of separation from all persons. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

FCC 27.53 27.53(c)(3) On all frequencies between 763‐775 MHz and 793‐805 MHz, by a factor not less than 76 + 10 log (P) dB in a 6.25 kHz band segment, for base and fixed stations; 27.53(c)(4) On all frequencies between 763‐775 MHz and 793‐805 MHz, by a factor not less than 65 + 10 log (P) dB in a 6.25 kHz band segment, for mobile and portable stations; 27.53(c)(…
