F8I-PSM07L2DFlexWave(TM) Prism-700MHz Lower ABC MIMO

ADC FlexWave ® Prism Element Management System 7.1 User Manual D-620749-0-20 Rev A Antenna Antenna Antenna Quad Band Remote Unit Host Unit Antenna 77073-001 ADCP-77-177  Issue 1  July 2011 Copyright © 2011 ADC Telecommunications, Inc. All Rights Reserved. Information contained in this document is company private to ADC Telecommunications, Inc. and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of ADC. Trademark Information ADC and FlexWave are registered trademarks, and InterReach Spectrum and Universal Radio Head are trademarks of ADC Telecommunications, Inc. No right, license, or interest to such trademarks is granted hereunder, and you agree that no such right, license, or interest shall be asserted by you with respect to such trademark. Other product names mentioned in this practice are used for identification purposes only and may be trademarks or registered trademarks of their respective companies. Disclaimer of Liability Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. Should the content of printed user documentation shipped with product differ from documentation provided on a product CD (inclusive of the associated Help modules), the printed user documentation supersedes the documentation on the product CD. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits, and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. Specific Disclaimer for High-Risk Activities This Software Product is not specifically designed, manufactured, tested or intended for use in high-risk activities including, without restricting the generality of the foregoing, on-line control of aircraft, air traffic, aircraft navigation or aircraft communications; or in the design, construction, operation or maintenance of any nuclear facility. ADC (including its affiliates) and its suppliers specifically disclaim any express or implied warranty of fitness for such purposes or any other purposes. Screenshots in User Documentation Due to concurrent development of this documentation, artwork, and the FlexWave Prism EMS product, there may be some minor discrepancies between screenshots contained in this documentation and those actually displayed in the FlexWave Prism EMS. These discrepancies will generally be few and minor and should not affect your understanding of FlexWave Prism EMS. FlexWave Prism Element Management System 7.1 User ManualPage iii ADCP-77-177 • Issue 1 • July 2011©2011 ADC Telecommunications, Inc. TABLE OF CONTENTS Preface __________________________________________________________ix FlexWave Prism User Documentation ......................................................................................... x EMS Document Overview .........................................................................................................xi Document Cautions and Notes.............................................................................................xi Document Fonts ................................................................................................................xi Document Fonts ................................................................................................................xi Document Graphics .......................................................................................................... xii Abbreviations/Acronyms ........................................................................................................ xiii Part I: FlexWave Prism Hardware _______________________________ 1 Prism System Overview _____________________________________________ 3 Prism System Overview ...........................................................................................................4 Fiber Optic Transport..............................................................................................................10 Host Unit Overview ................................................................................................................11 Fan Module......................................................................................................................11 SeRF II Module ................................................................................................................12 SeRF II Module Ports ...................................................................................................12 SeRF II Module LEDs ...................................................................................................13 Host System II Module ......................................................................................................14 Host System II Module Ports and Connectors ..................................................................14 Host System II Module LEDs.........................................................................................15 DC Power Module .............................................................................................................15 Prism Remote Units................................................................................................................16 PRU Ports and Connectors (Bottom of PRU)..........................................................................17 PRU Status LED (Bottom of PRU) ........................................................................................18 PRU Components..............................................................................................................19 RF Module Capabilities and GUI Representation ....................................................................21 DART Modules .................................................…

Text truncated - open the document above for the full version.

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com March 23, 2012 Attn: Application Examiner, Reviewing Engineer Re: Attestation Statement I, the undersigned, attest that all testing done under my supervision was done in accordance with the Federal Communications Commission’s CFR 47 Part 27 and that the EUT fulfills the requirements of the Federal Communications Commission’s CFR 47 Part 27. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com March 23, 2012 Attn: Application Examiner, Reviewing Engineer FCC ID: F8I-PSM07L2D Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Technical Description or Theory of Operation, Bill of Materials (BOM’s), and Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

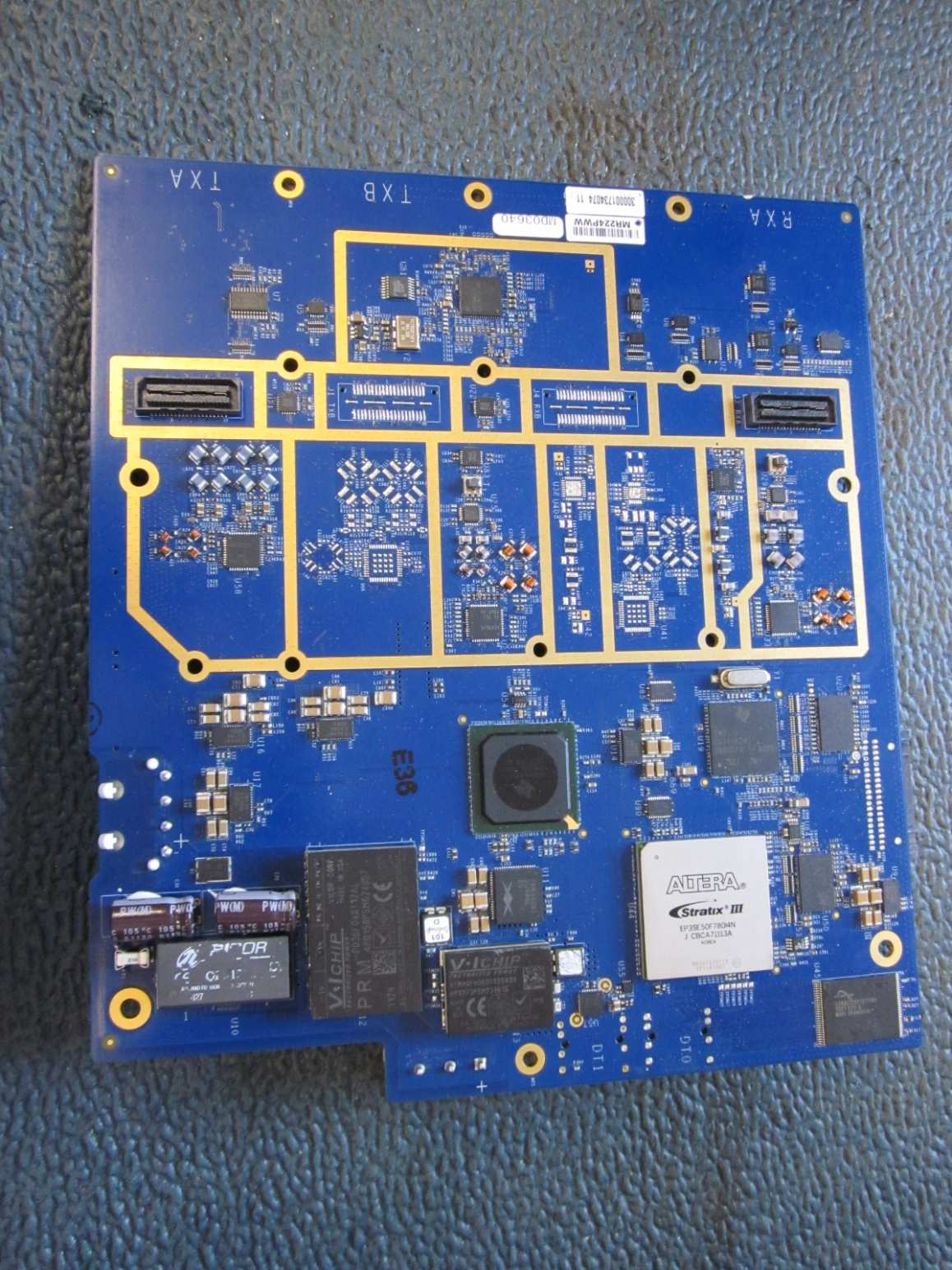

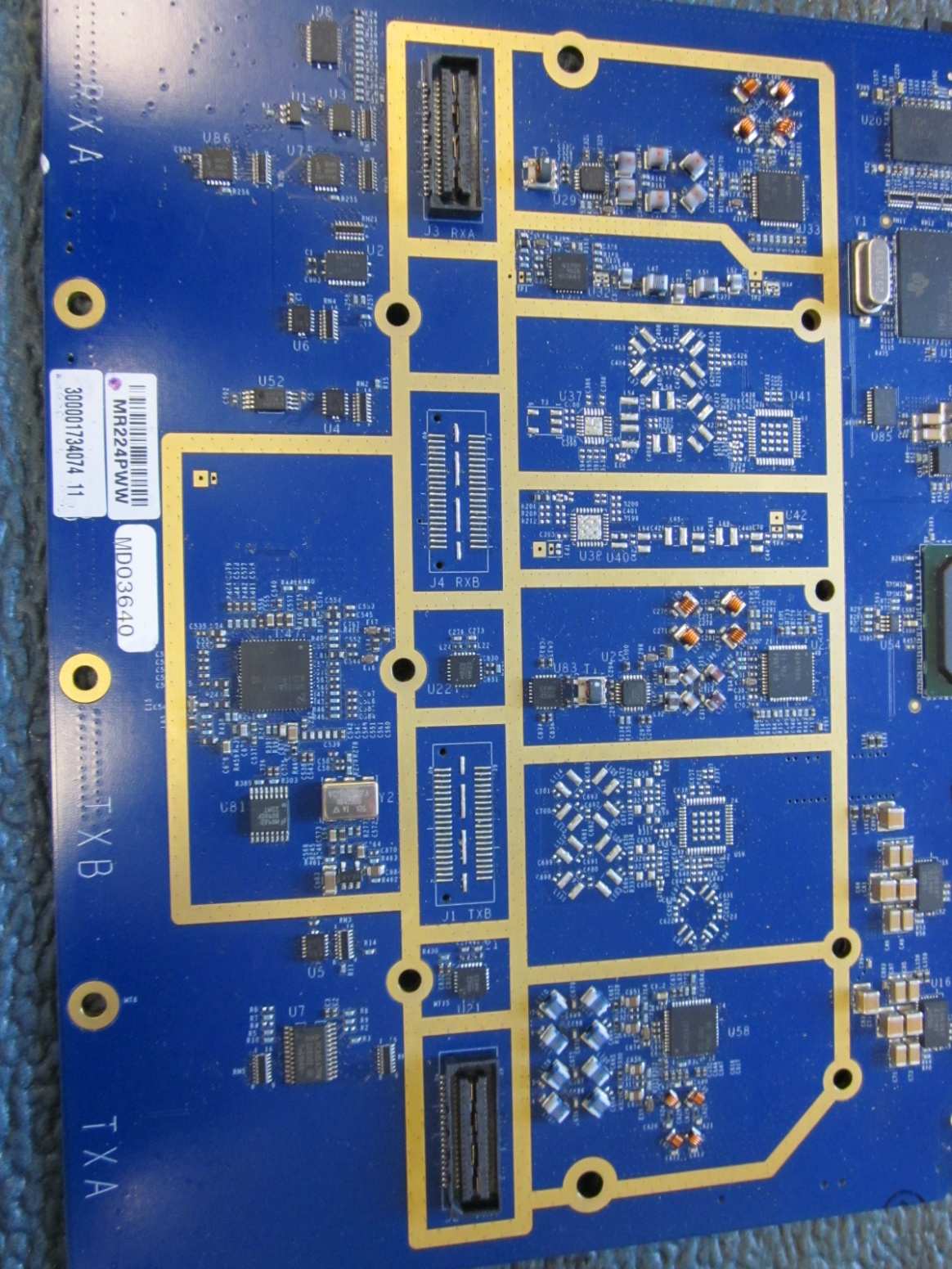

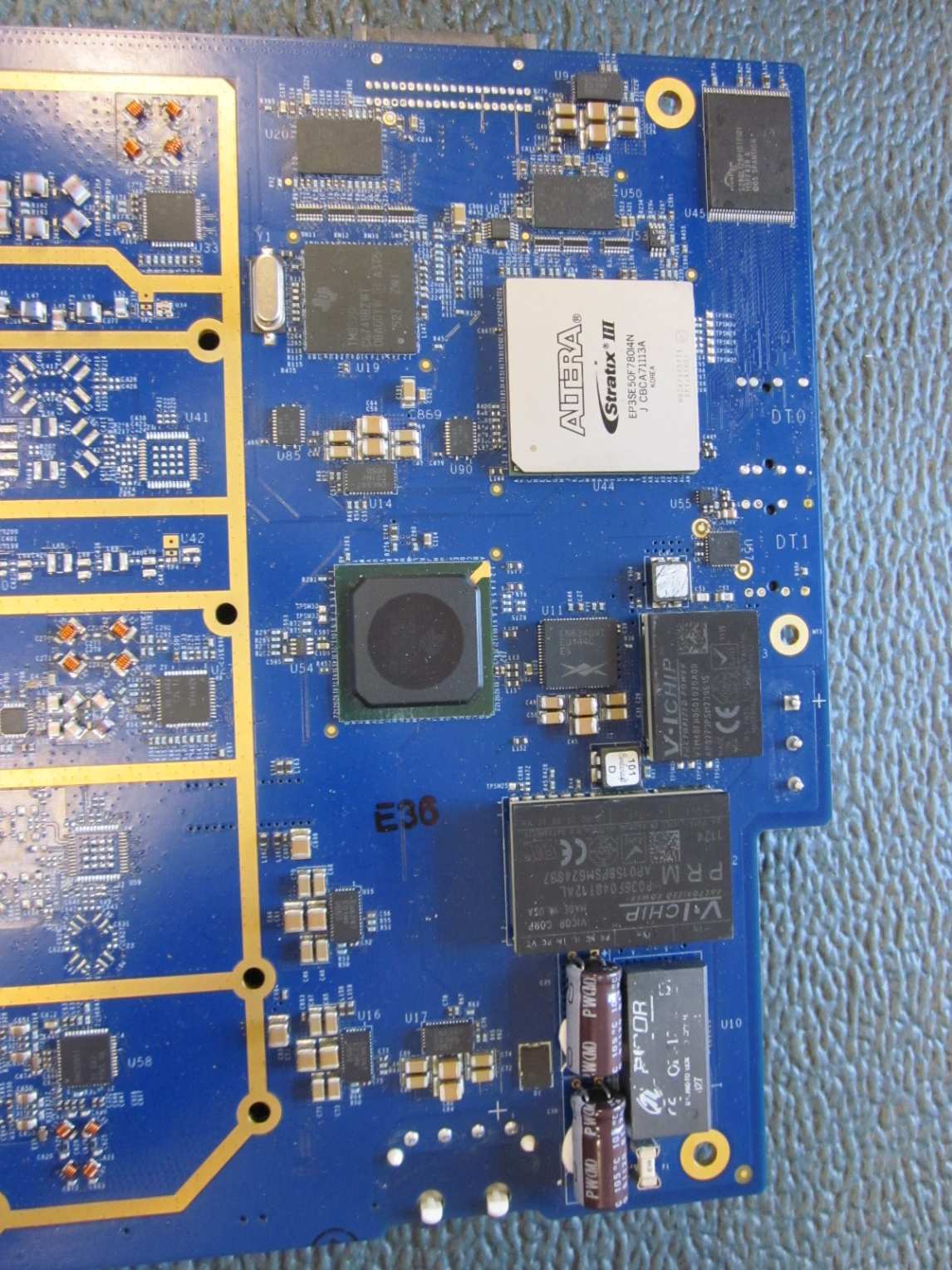

Motherboard – Front #1 Motherboard – Front #2 Motherboard – Front #3 Motherboard – Back #1 Motherboard – Back #2 Motherboard – Back #3 Tx Board – Front Tx Board – Back Rx Board – Front Rx Board – Back Duplexer #1 Duplexer #2 Duplexer #3 LPA #1 LPA #2 LPA #3 RF Module Assembly #1 RF Module Assembly #2 RF Module Assembly #3 RF Module Assembly #4 RF Module Assembly #5 RF Module Assembly #6 RF Module Assembly #7 RF Module Assembly #8

INFORMATION ON THIS DOCUMENT IS PROPRIETARY TO ADC AND SHALL NOT BE USED, COPIED, REPRODUCED OR DISCLOSED IN WHOLE OR IN PART WITHOUT WRITTEN CONSENT OF ADC TITLE FlexWave™ Prism – 700MHz Lower ABC MIMO FCC Identification Label TOLERANCE UNLESS .XX NA OTHERWISE SPECIFIED .XX NA DRAWING NUMBER None A REV DO NOT SCALE DRAWING ENGR. Joshua J. Wittman SIZE A SHEET 1 OF 1 REV ECO DWN DATE A JJW 3-23-2012 - See Note 4 for Model Number R.075 (4) DIE CUT LABEL XXX-XXXXXXXXXX FCC ID: F8I-PSM07L2D 2 1.500 REF .750 REF 1,4 NOTES: 1 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 8 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. 2 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 6 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. MATERIAL: ADC PART NUMBER 1215140 3 4 FWP-L4MT000MOD FCC ID: F8I-PSM07L2D FlexWave™ Prism – 700 Lower ABC MIMO Remote Unit Location of FCC ID Location of FCC Label

Motherboard – Front #1 Motherboard – Front #2 Motherboard – Front #3 Motherboard – Back #1 Motherboard – Back #2 Motherboard – Back #3 Tx Board – Front Tx Board – Back Rx Board – Front Rx Board – Back Duplexer #1 Duplexer #2 Duplexer #3 LPA #1 LPA #2 LPA #3 RF Module Assembly #1 RF Module Assembly #2 RF Module Assembly #3 RF Module Assembly #4 RF Module Assembly #5 RF Module Assembly #6 RF Module Assembly #7 RF Module Assembly #8

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com March 23, 2012 Attn: Director of Certification Dear Sir or Madam: The following is the SAR calculation for the FlexWave™ Prism – 700 MHz Lower ABC MIMO, FCC ID F8I-PSM07L2D using the system’s maximum RF emission. The calculation is based on FCC 47CFR Part 2 and OET 65. Per OET 65: Maximum Permissible Exposure is Freq. (MHz)/1500 = MPE mW/cm 2 737 MHz/1500= 0.4913 mW/cm 2 The following equations determine the distance from the antenna that the power density is ≤ 0.4913 mW/cm 2 . +44.35 dBm Transmitter Power (Max) 15.65 dBi Antenna Gain (Max) 44.35 dBm + 15.65 dBi= +60 dBm ERP +60 dBm ERP = 1000 Watts EIRP 1640 Watts EIRP = 1000*10 3 mWatts EIRP .4913 mW/cm 2 = 1000*10 3 mW/(4*π*r 2 ) r= SQR(1000*10 3 /4*π .4913) r= 402.46 cm or 4.02 Meters In addition, the following statement will be added to our installation/operation manual: To comply with Maximum Permissible Exposure (MPE) requirements, the maximum composite output from the antenna cannot exceed 1000 Watts EIRP and the antenna must be permanently installed in a fixed location that provides at least 6 meters (20 feet) of separation from all persons. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

TEST DATA REPORT Report Number: 100659878MIN-001 Project Number: G100659878 Testing performed on the FWP - L4MT000MOD to 47 CFR, Part 27:2010, Enclosure Spurious Radiated Emissions For ADC Telecommunications Inc. - a TE Connectivity Company Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc. 7250 Hudson Blvd., Suite 100 Oakdale, MN 55128 USA ADC Telecommunications Inc.- a TE Connectivity Company 541 E Trimble Road San Jose, CA 95131 USA Prepared by: Date: March 20, 2012 Simon Khazon Reviewed by: Date: March 20, 2012 Norman Shpilsher This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report No: 100659878MIN-001 Page 2 of 18 TABLE OF CONTENTS 1.0 DESCRIPTION OF THE SAMPLE (EUT).................................................................................3 2.0 TEST SUMMARY..........................................................................................................................4 2.1 Statement of the Measurement Uncertainty.............................................................................. 4 3.0 EQUIPMENT UNDER TEST.......................................................................................................5 3.1 Power Configuration..................................................................................................................... 5 3.2 EUT Configuration......................................................................................................................... 5 3.3 Environmental conditions............................................................................................................. 6 4.0 TEST CONDITIONS AND RESULTS........................................................................................7 4.1 Enclosure Spurious Radiated Emissions................................................................................... 7 5.0 TEST EQUIPMENT.....................................................................................................................18 EMC Report No: 100659878MIN-001 Page 3 of 18 1.0 DESCRIPTION OF THE SAMPLE (EUT) Model: FWP - L4MT000MOD Type of EUT: 700 Lower ABC Band MIMO Frequency Range: 728-746MHz Company: ADC Telecommunications Inc. - a TE Connectivity Company Customer: Sue Cyr Address: 541 E. Trimble Road San Jose, CA 95131 USA Phone: 408-952-2445 Fax: 408-952-2645 e-mail: [email protected] Test Standards: EN 55022:2006 +A1:2007, Class EN 55011:2007 +A2:2007, Group , Class 47 CFR, Part 27:2010, Enclosure Spurious Radiated Emissions ICES-003, Issue 4:2004 EN 55014-1:2006 EN 61326-1:2006 Class for Radiated and Conducted Emissions Basic Immunity Test Requirements Immunity Test Requirements for Industrial Locations EN 60601-1-2:2001 +A1:2006 EN 61000-6-3:2007 EN 61000-6-4:2007 EN 61000-3-2:2006 EN 61000-3-3:1995 +A1:2001 +A2:2006 EN 61000-6-1:2007 EN 61000-6-2:2005 EN 55024:1998 + A1:2001 + A2:2003 Date Sample Submitted: March 19, 2012 Test Work Started: March 20, 2012 Test Work Completed: March 20, 2012 Test Sample Conditions: Damaged Poor (Usable) Good Prototype Production Used EMC Report No: 100659878MIN-001 Page 4 of 18 2.0 TEST SUMMARY Referring to the performance criteria and the operating mode during the tests specified in this report, the equipment complies with the requirements according to the following standards. TEST STANDARD TEST RESULT Part 27 Enclosure Spurious Radiated Emissions Pass 2.1 Statement of the Measurement Uncertainty Note: The measured result in this report is within the specification limits by more than the measurement uncertainty; the measured result indicates that the product tested complies with the specification limit. The expanded uncertainty (k = 2) for radiated emissions from 30 to 1000 MHz has been determined to be: ±4 dB at 10m and ±5.4 dB at 3m The expanded uncertainty (k = 2) for conducted emissions from 150 kHz to 30 MHz has been determined to be: ±2.6 dB EMC Report No: 100659878MIN-001 Page 5 of 18 3.0 EQUIPMENT UNDER TEST 3.1 Power Configuration Rated voltage: 120VAC 230VAC 400VAC Supply Other: Rated current: Amp. Rated frequency: 50Hz 60Hz Number of phases: 1 Phase 3 Phases 3.2 EUT Configuration The equipment under test was operated during the measurement under the following conditions: - Standby - Test program (H - Pattern) - Continuous Operation (see details below) - Specific test program - Operating modes of the EUT: No. Description 1 Continuous transmission of RF signals at 729MHz, 737MHz, and 745MHz into two paths. 2 The EUT antenna ports were terminated. Cables: No. Type Length Designation Note 1 Two RF coax 10m each RF signal cables to the Support Equipment Support equipment/Services: No. Item Description 1 Agilent 8648B (located outside Test site) Signal Generator 2 Prism Host Unit 3 Prism Host 28VDC Power Supply 4 30dB Attenuator (2) General notes: None EMC Report No: 100659878MIN-001 Page 6 of 18 3.3 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric press…

Text truncated - open the document above for the full version.

M N 1 2 0 3 2 8 _ P r i s m _ 7 0 0 M H z _ L o w e r _ A B C _ M I M O Page 1 Test Report Summary FCC CFR 47, Part 27:2009 Wireless Communications Service Manufacturer: ADC Telecommunications Name of Equipment: FlexWave™ Prism – 700MHz Lower ABC MIMO Model Number(s): FWP-L4MT000MOD Manufacturer’s Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Report Number: MN120328 Prism 700MHz Lower ABC MIMO Test Date(s): 20 March, 2012 (Intertek) 21, 22 March, 2012 (ADC) According to testing performed at Intertek, the above-mentioned unit is in accordance with the applicable electromagnetic compatibility (EMC) portions of the requirements defined in FCC Part 27. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. All testing was done in accordance with the Federal Communications Commission’s CFR 47 Part 27 and the EUT fulfills the requirements of the Federal Communications Commission’s CFR 47 Part 27. Date: 28 March, 2012 Location: Intertek Testing Services (INTERTEK) ADC Telecommunications 7250 Hudson Blvd., Suite 100 1187 Park Place Oakdale, MN 55128 Shakopee, MN 55379 Phone: (651) 730-1188 Phone: (952) 403-8322 Fax: (651) 730-1282 Testing Conducted by (ADC): And Report Written by: Joshua J. Wittman Compliance Engineer M N 1 2 0 3 2 8 _ P r i s m _ 7 0 0 M H z _ L o w e r _ A B C _ M I M O Page 2 EMC Emission – T E S T R E P O R T Test Report File Number: MN120328 Prism 700MHz Lower ABC MIMO Date of Issue: 28 March, 2012 Model Number(s): FWP-L4MT000MOD Product Name: FlexWave™ Prism – 700MHz Lower ABC MIMO Product Type: Repeater Applicant: ADC Telecommunications Manufacturer: ADC Telecommunications License Holder: ADC Telecommunications Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Result: ▪ Positive ▫ Negative Test Project Number: 100659878MIN-001 Reference(s) Total pages including Appendices: 58 M N 1 2 0 3 2 8 _ P r i s m _ 7 0 0 M H z _ L o w e r _ A B C _ M I M O Page 3 1.0 TABLE OF CONTENTS 1.0 Table of Contents .................................................................................................... 3 2.0 Revision Description ................................................................................................ 4 3.0 Documentation ....................................................................................................... 4 3.1 Test Regulations .................................................................................................. 4 3.2 Test Operation Mode ............................................................................................. 5 3.3 Configuration of the Device Under Test: .................................................................. 5 3.4 Product Options: .................................................................................................. 5 3.5 EUT Specifications and Requirements: .................................................................... 5 3.6 Cables: ............................................................................................................... 5 3.7 Power Requirements: ........................................................................................... 5 3.8 Typical Installation and/or Operating Environment: .................................................. 5 3.9 Other Special Requirements: ................................................................................. 5 3.10 EUT Software: ................................................................................................... 5 3.11 EUT System Components ................................................................................... 6 3.12 Support Equipment ............................................................................................ 6 3.13 Deviations from Standard: .................................................................................. 6 3.14 General Remarks: ............................................................................................. 6 3.15 Summary: ........................................................................................................ 6 4.0 Test Set-Up Drawings and Photos ............................................................................. 7 4.1 Test Set-up Photo, Radiated Emissions ................................................................... 7 4.2 Test Set-up Photo, Radiated Emissions ................................................................... 9 4.3 Test Set-up Drawings ......................................................................................... 11 5.0 Test Results ......................................................................................................... 13 5.1.1 22.913 Effective Radiated Power Limits ........................................................... 13 5.1.2 22.355 Frequency Tolerance .......................................................................... 14 5.1.3 22.917 Emission Limitations 700MHz Lower ABC .............................................. 15 6.0 Test Equipment .................................................................................................... 16 7.0 Appendix A .......................................................................................................... 17 7.1 Conducted Emission Limits Test ........................................................................... 18 7.2 Conducted Output Power Test .............................................................................. 29 7.3 Frequency Stability Test ...................................................................................... 30 7.4 Intermodulation Test .......................................................................................... 32 7.5 Occupied Bandwi…

Text truncated - open the document above for the full version.
