F8I-PSM1900MFlexWave Prism HDM 1900 MHz MIMO

TECP-77-141  Issue 5  November 2013 300001744178 Rev E Dual-Band Dual-Slot RF Module Single-Slot RF Module Dual-Slot 40W RF Module HDM RF Module FlexWave Prism ® RF Modules for Prism Remote Units Installation Guide Copyright © 2013 TE Connectivity, Inc. All Rights Reserved. Information contained in this document is company private to TE Connectivity Ltd., and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of TE. Trademark Information FlexWave, FlexWave Prism, InterReach Spectrum, InterReach Unison, Universal Radio Head, TE Connectivity, and TE connectivity (logo) are trademarks. All other logos, products and/or company names referred to herein might be trademarks of their respective owners. Disclaimer of Liability Contents herein are current as of the date of publication. TE reserves the right to change the contents without prior notice. Should the content of printed user documentation shipped with product differ from documentation provided on a product CD (inclusive of the associated Help modules), the printed user documentation supersedes the documentation on the product CD. In no event shall TE be liable for any damages resulting from loss of data, loss of use, or loss of profits, and TE further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. Specific Disclaimer for High-Risk Activities This Product is not specifically designed, manufactured, tested or intended for use in high-risk activities including, without restricting the generality of the foregoing, on-line control of aircraft, air traffic, aircraft navigation or aircraft communications; or in the design, construction, operation or maintenance of any nuclear facility. TE (including its affiliates) and its suppliers specifically disclaim any express or implied warranty of fitness for such purposes or any other purposes. FlexWave Prism RF Modules for Prism Remote Units Installation GuidePage 1 TECP-77-141 Issue 5 • 300001744178 Rev E • November 2013©2013 TE Connectivity Ltd. TABLE OF CONTENTS Preface .................................................................................................................................................................2 Revision History......................................................................................................................................................2 FlexWave Prism User Documentation....................................................................................................................3 Document Cautions and Notes ..............................................................................................................................3 Accessing User Documentation on the TE Customer Portal ..................................................................................4 Standards Certification...........................................................................................................................................5 Overview of RF Modules for PRUs ........................................................................................................................6 PRU RF Module Types ............................................................................................................................................7 Prism Remote Unit Single‐ and Dual‐Card RF Modules......................................................................................................8 Prism Remote Unit HDM RF Modules ................................................................................................................................9 Prism Remote Unit Dual‐Slot 40W RF Modules................................................................................................................10 Supported RF Modules.........................................................................................................................................10 RF Module Components .....................................................................................................................................12 Duplexer and Low Noise Amplifier.......................................................................................................................13 Linear Power Amplifiers .......................................................................................................................................13 Digital Processing Module....................................................................................................................................14 Understanding the RF Module Cables.................................................................................................................15 Power Cable Connection......................................................................................................................................15 LVDS Cable Connections.......................................................................................................................................15 RF Cable Connections...........................................................................................................................................15 RF Cable Rules ..................................................................................................................................................................16 RF Module Cables for Single‐Card, Dual‐Card, and HDM RF Modules .............................................................................16 RF Module Cables for Dual‐Slot Installations ...................................................................................................................17 RF Group Assignments for PRUs................................................................................................…

Text truncated - open the document above for the full version.

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com November 13, 2013 Attn: Application Examiner, Reviewing Engineer Re: Attestation Statement I, the undersigned, attest that all testing done under my supervision was done in accordance with the Federal Communications Commission’s CFR 47 Part 24 and that the EUT fulfills the requirements of the Federal Communications Commission’s CFR 47 Part 24. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853A. Equipment: _________Prism HDM 1900 MHz MIMO ________________________________________________________________________ ________________________________________________________________________ _______________________________________________________________ Dated this __14___day of_November__, 2013__. ______ _______________ Signature __Joshua Wittman___________________________________ Name ___Compliance Engineer_____________________________ Title ___ADC Telecommucications, Inc,____________________ Company _____952-403-8322________________________________ Telephone

1(1) Attention: Application Examiner Re: Request for confidentiality Applicant: ADC Telecommunications, Inc. FCC ID: F8I-PSM1900M To whom it may concern, Permanent Confidentiality Request is hereby submitted by ADC Telecommunications, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description • Parts list Rationale for request for confidentiality: ADC Telecommunications, Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. The fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, Joshua J. Wittman Compliance Engineer ADC Telecommunications, Inc.

External Photograph Prism 1900MHz HDM MIMO

INFORMATION ON THIS DOCUMENT IS PROPRIETARY TO ADC AND SHALL NOT BE USED, COPIED, REPRODUCED OR DISCLOSED IN WHOLE OR IN PART WITHOUT WRITTEN CONSENT OF ADC TITLE FlexWave™ Prism – HDM 1900 MIMO FCC Identification Label TOLERANCE UNLESS .XX NA OTHERWISE SPECIFIED .XX NA DRAWING NUMBER None A REV DO NOT SCALE DRAWING ENGR. Joshua J. Wittman SIZE A SHEET 1 OF 1 REV ECO DWN DATE A JJW 11-14-2013 XXXX-XXXXXXXX FCC ID: F8I-PSM1900M 2 1.500 REF R.075 (4) DIE CUT LABEL .750 REF 1,4 - See Note 4 for Model Number NOTES: 1 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 8 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. 2 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 6 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. MATERIAL: ADC PART NUMBER 1215140 3 4 FWP-84MT000MOD FCC ID: F8I-PSM1900M FlexWave™ Prism – 1900 MIMO Remote Unit Location of FCC/IC ID Location of FCC/IC Label

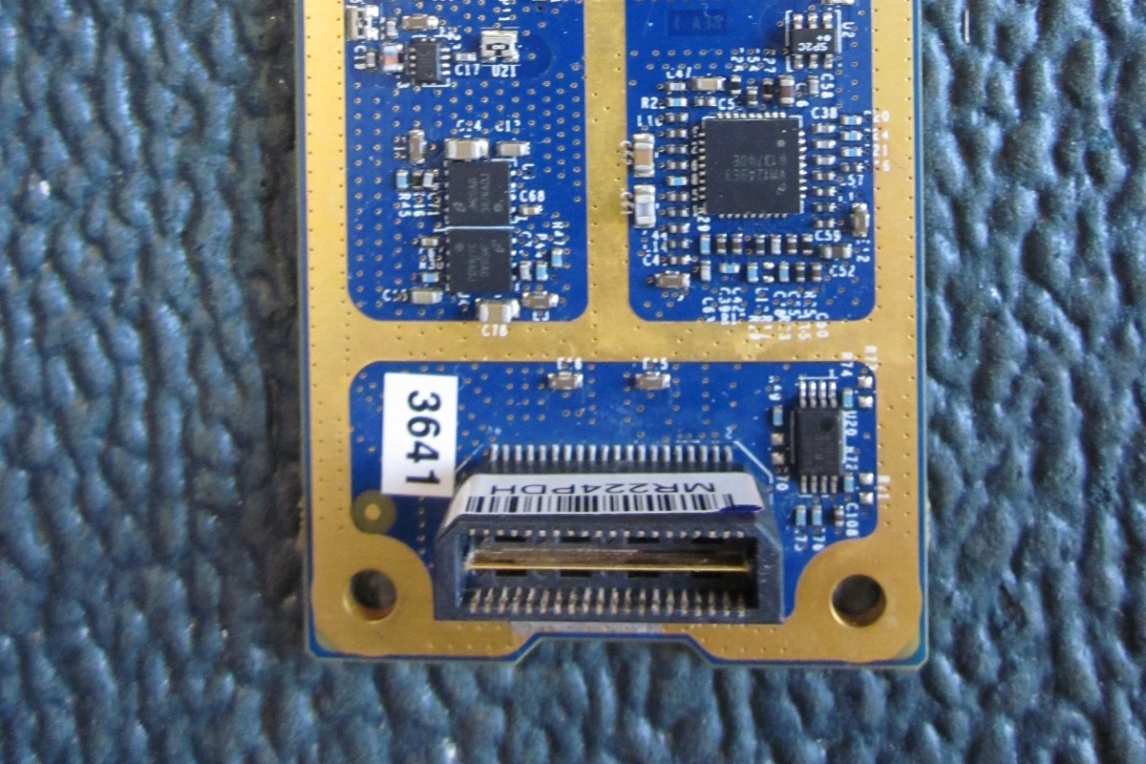

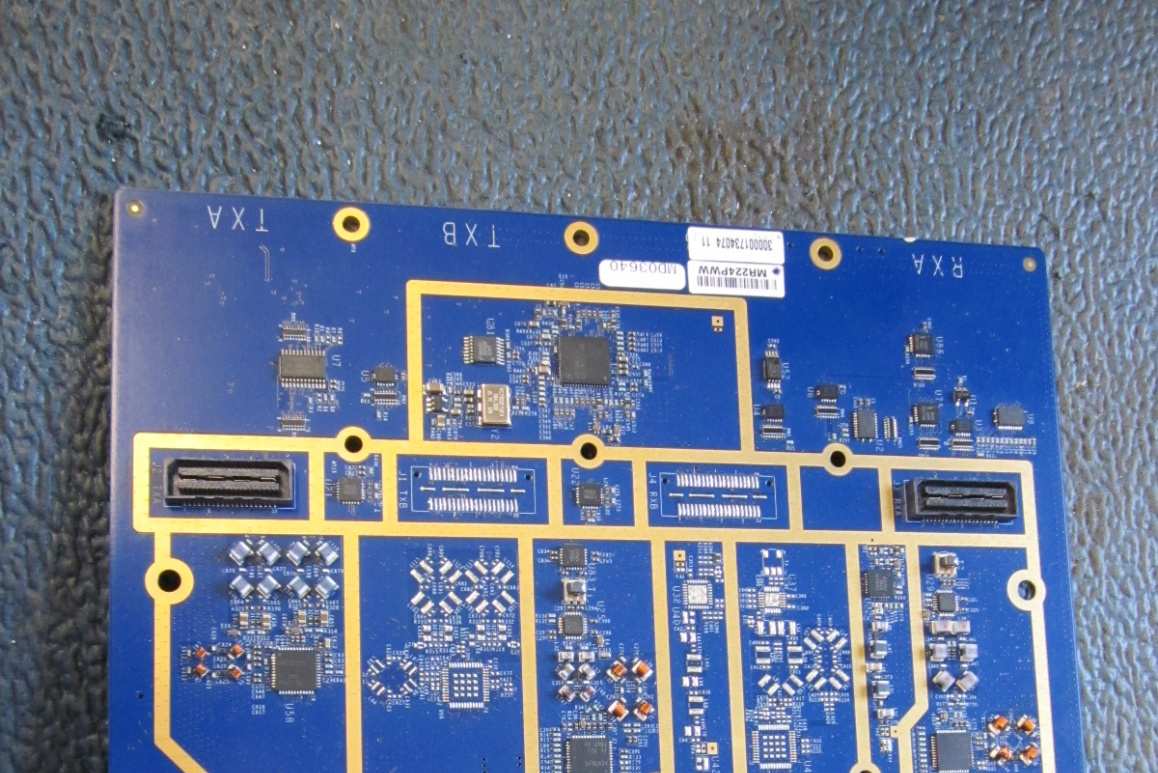

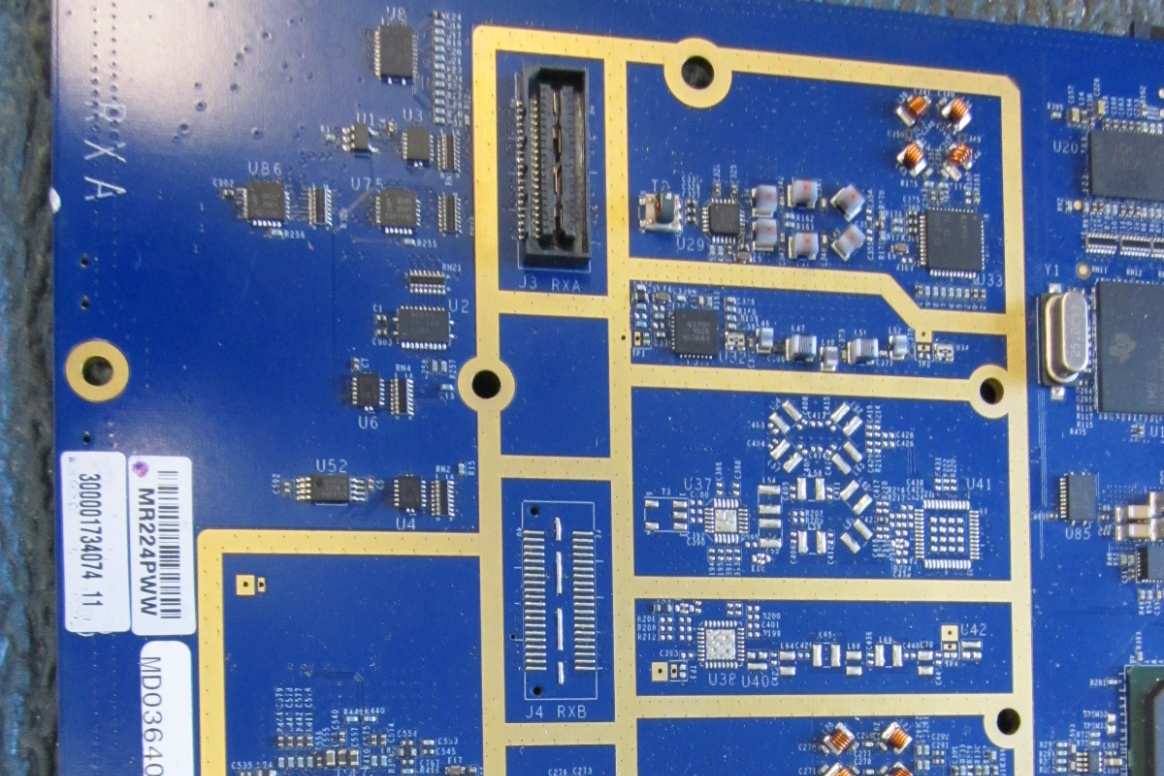

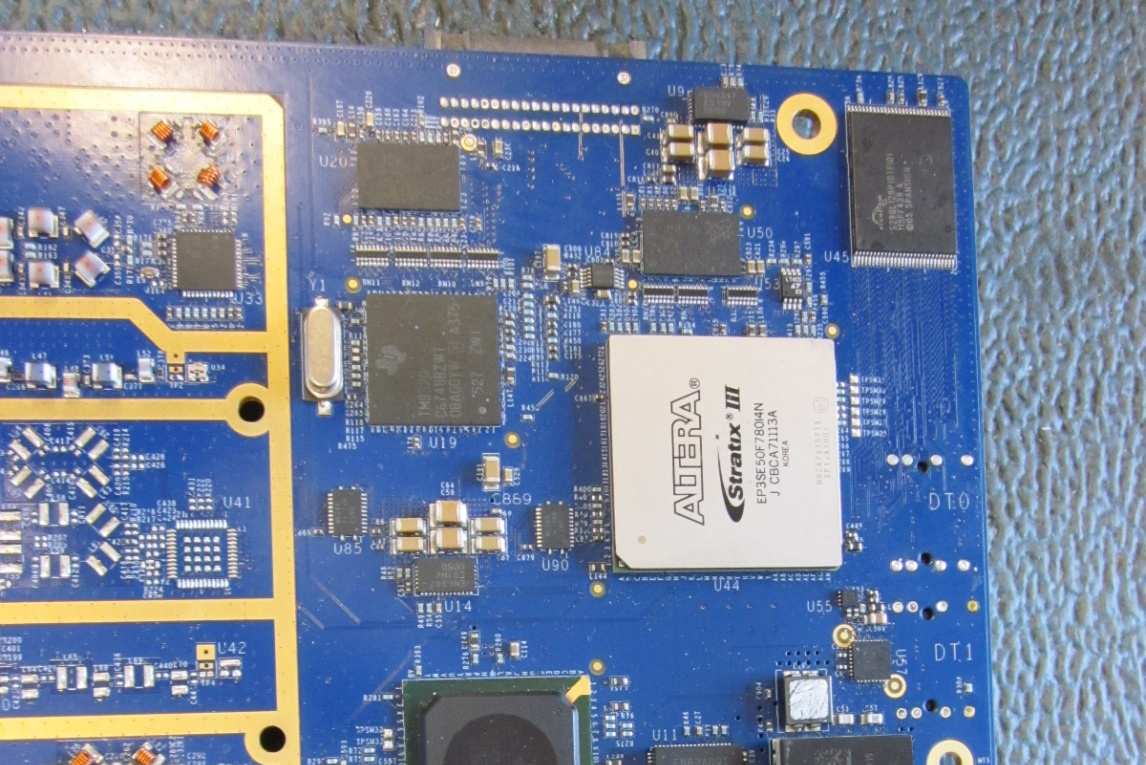

Motherboard – Front #1 Motherboard – Front #2 Motherboard – Front #3 Motherboard – Back #1 Motherboard – Back #2 Motherboard – Back #3 Tx Board – Front Tx Board – Back Rx Board – Front Rx Board – Back Duplexer #1 Duplexer #2 Duplexer #3 LPA #1 LPA #2 LPA #3 RF Module Assembly #1 RF Module Assembly #2 RF Module Assembly #3 RF Module Assembly #4 RF Module Assembly #5 RF Module Assembly #6 RF Module Assembly #7 RF Module Assembly #8

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com November 13, 2013 Attn: Application Examiner, Reviewing Engineer Re: Tune-up Procedure The FlexWave™ Prism – HDM 1900 MIMO model number FWP-84MT000MOD employs a solid-state design that does not require a tune-up procedure. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

Mailing Address: 1187 Park Place, Shakopee, Minnesota 55379 www . te.com November 13, 2013 Attn: Director of Certification Dea r Sir or Madam: The following is the SAR calculation for the FlexWave™ Prism – HDM 1900 MIMO, using the system’s maximum RF emission. The calculation is based on FCC 47CFR Part 2 and OET 65. Per OET 65: Maximum Permissible Exposure is 1.0 mW/cm 2 over 30 minutes. 1500 MHz - 100,000 MHz The following equations determine the distance from the antenna that the power density is ≤ 1.0 mW/cm 2 . To convert to EIRP use the relation: EIRP = ERP X 1.64 +47. 05 dBm Transmitter Total P o w er (Max) 15.1 dBi Antenna Gain (Max) 47.05 dBm + 15.1 dBi= +62.15 dBm EIRP +62.15 dBm EIRP = 1640 Watts EIRP 1640 Watts EIRP = 1640*10 3 mWatts EIRP 1.0 mW/cm 2 = 1640*10 3 mW/(4*π*r 2 ) r= SQR(1640*10 3 /4*π 1.0) r= 361.35 cm or 3.61 Meters In addition, the following statement will be added to our installation/operation manual: To comply with Maximum Permissible Exposure (MPE) requirements, the maximum composite output from the antenna cannot exceed 1640 Watts EIRP and the antenna must be permanently installed in a fixed location that provides at least 6 meters (20 feet) of separation from all persons. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

M N 1 3 1 1 1 5 _ F C C _ P r i s m _ H D M _ 1 9 0 0 _ M I M O _ F C C - I D : F 8 I - P S M 1 9 0 0M Page 1 Test Report Summary FCC CFR 47, Part 24 Subpart E Broadband PCS Manufacturer: ADC Telecommunications, Inc Name of Equipment: FlexWave™ Prism – HDM 1900 MHz MIMO RF Module Model Number(s): FWP-84MT000MOD Manufacturer’s Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Report Number: MN131115_FCC_Prism_HDM 1900 FCC-ID: F8I-PSM1900M Test Date(s): 01 November, 2013 (Intertek) 25, 30, 31 October & 1, 2, 6, 7, 8 November, 2012 (ADC) According to testing performed at Intertek, the above-mentioned unit is in accordance with the applicable electromagnetic compatibility (EMC) portions of the requirements defined in FCC Part 24. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. All testing was done in accordance with the Federal Communications Commission’s CFR 47 Part 24. The EUT fulfills the requirements of the Federal Communications Commission’s CFR 47 Part 24. Date: 15 November, 2013 Location: Intertek Testing Services (INTERTEK) ADC Telecommunications 7250 Hudson Blvd., Suite 100 1187 Park Place Oakdale, MN 55128 Shakopee, MN 55379 Phone: (651) 730-1188 Phone: (952) 403-8322 Fax: (651) 730-1282 Testing Conducted by (ADC): And Report Written by: Joshua J. Wittman Compliance Engineer M N 1 3 1 1 1 5 _ F C C _ P r i s m _ H D M _ 1 9 0 0 _ M I M O _ F C C - I D : F 8 I - P S M 1 9 0 0M Page 2 EMC Emission – T E S T R E P O R T Test Report File Number: MN131115_FCC_Prism_HDM 1900 MIMO FCC-ID: F8I-PSM1900M Date of Issue: 15 November, 2013 Model Number(s): FWP-84MT000MOD Product Name: FlexWave™ Prism – HDM 1900 MHz MIMO RF Module Product Type: Industrial Booster/Repeater Applicant: ADC Telecommunications, Inc Manufacturer: ADC Telecommunications, Inc License Holder: ADC Telecommunications, Inc Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Result: ▪ Positive ▫ Negative Test Project Number: 101415209MIN-001 Reference(s) Total pages including Appendices: 101 M N 1 3 1 1 1 5 _ F C C _ P r i s m _ H D M _ 1 9 0 0 _ M I M O _ F C C - I D : F 8 I - P S M 1 9 0 0M Page 3 1.0 TABLE OF CONTENTS 1.0 Table of Contents .................................................................................................... 3 2.0 Revision Description ................................................................................................ 4 3.0 Documentation ....................................................................................................... 4 3.1 Test Regulations .................................................................................................. 4 3.2 Summary: ........................................................................................................... 5 3.3 Test Operation Mode ............................................................................................. 5 3.4 Configuration of the Device Under Test: .................................................................. 5 3.5 Product Options: .................................................................................................. 5 3.6 EUT Specifications and Requirements: .................................................................... 5 3.7 Cables: ............................................................................................................... 5 3.8 Power Requirements: ........................................................................................... 6 3.9 Typical Installation and/or Operating Environment: .................................................. 6 3.10 Other Special Requirements: .............................................................................. 6 3.11 EUT Software: ................................................................................................... 6 3.12 EUT System Components ................................................................................... 6 3.13 Deviations from Standard: .................................................................................. 6 3.14 General Remarks: ............................................................................................. 7 4.0 Test Set-Up Drawings and Photos ............................................................................. 8 4.1 Test Set-up Photo, Radiated Emissions ................................................................... 8 4.2 Test Set-up Drawings ........................................................................................... 9 5.0 Test Equipment .................................................................................................... 11 6.0 Test Results ......................................................................................................... 12 6.1 FCC 22.917 & 24.238 Emissions Limits – Band Edge ............................................... 12 6.2 FCC 2.1049, 22.917, & 24.238 – Occupied Bandwidth ............................................ 21 6.3 FCC 2.1046, 22.913, & 24.232 Power Limits – Output Power ................................... 30 6.4 FCC 2.1051, 22.917, & 24.238 Emissions Limits – Spurious Emissions at Antenna ...... 32 6.5 FCC 2.1055, 22.355, & 24.235 – Frequency Stability .............................................. 97 7.0 Appendix B .......................................................................................................... 99 8.0 Appendix C ........................................................................................................ 101 M N 1 3 1 1 1 5 _ F C C _ P r i s m _ H D M _ 1 9 0 0 _ M I M O _ F C C - I D : F 8 I - P S M 1 9 0 0M Page 4 2.0 REVISION DESCRIPTION Rev Total Pages Date Description A 101 15 November, 2013 Original Release …

Text truncated - open the document above for the full version.

TEST REPORT Report Number: 101415209MIN-001 Project Number: G101415209 Testing performed on the FWP – 84MT000MOD to 47 CFR, Part 24:2010, Enclosure Spurious Radiated Emissions For ADC Telecommunications Inc. - a TE Connectivity Company Test Performed by: Test Authorized by: Intertek Testing Services NA, Inc. 7250 Hudson Blvd., Suite 100 Oakdale, MN 55128 USA ADC Telecommunications Inc.- a TE Connectivity Company 541 E Trimble Road San Jose, CA 95131 USA Prepared by: Date: November 12, 2013 Ivaylo Nadarliyski Reviewed by: Date: November 12, 2013 Norman Shpilsher This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report No: 101415209MIN-001 Page 2 of 22 TABLE OF CONTENTS 1.0 DESCRIPTION OF THE SAMPLE (EUT) ................................................................................. 3 2.0 TEST SUMMARY .......................................................................................................................... 4 2.1 Statement of the Measurement Uncertainty .............................................................................. 4 3.0 EQUIPMENT UNDER TEST ....................................................................................................... 5 3.1 Power Configuration ..................................................................................................................... 5 3.2 EUT Configuration ......................................................................................................................... 5 3.3 Environmental conditions ............................................................................................................. 6 4.0 TEST CONDITIONS AND RESULTS ........................................................................................ 7 4.1 Enclosure Spurious Radiated Emissions ................................................................................... 7 5.0 TEST EQUIPMENT ..................................................................................................................... 22 EMC Report No: 101415209MIN-001 Page 3 of 22 1.0 DESCRIPTION OF THE SAMPLE (EUT) Model: FWP – 84MT000MOD Type of EUT: 1900 PCS MIMO RF Module Serial Number / Intertek Sample ID: 1930MHz-1995MHz Company: ADC Telecommunications Inc. - a TE Connectivity Company Customer: Sue Cyr Address: 541 E. Trimble Road San Jose, CA 95131 USA Phone: 408-952-2445 Fax: 408-952-2645 e-mail: [email protected] Test Standards: EN 55022:2006 +A1:2007, Class EN 55011:2007 +A2:2007, Group , Class 47 CFR, Part 24:2010, Enclosure Spurious Radiated Emissions ICES-003, Issue 4:2004 EN 55014-1:2006 EN 61326-1:2006 Class for Radiated and Conducted Emissions Basic Immunity Test Requirements Immunity Test Requirements for Industrial Locations EN 60601-1-2:2001 +A1:2006 EN 61000-6-3:2007 EN 61000-6-4:2007 EN 61000-3-2:2006 EN 61000-3-3:1995 +A1:2001 +A2:2006 EN 61000-6-1:2007 EN 61000-6-2:2005 EN 55024:1998 + A1:2001 + A2:2003 Date Sample Submitted: November 1, 2013 Test Work Started: November 1, 2013 Test Work Completed: November 1, 2013 Test Sample Conditions: Damaged Poor (Usable) Good Prototype Production Used EMC Report No: 101415209MIN-001 Page 4 of 22 2.0 TEST SUMMARY Referring to the performance criteria and the operating mode during the tests specified in this report, the equipment complies with the requirements according to the following standards. TEST STANDARD TEST RESULT Part 24 Enclosure Spurious Radiated Emissions Pass 2.1 Statement of the Measurement Uncertainty Note 1: The measured result in this report is within the specification limits by more than the measurement uncertainty; the measured result indicates that the product tested complies with the specification limit. The expanded uncertainty (k = 2) for radiated emissions from 30 to 1000 MHz has been determined to be: ±4 dB at 10m and ±5.4 dB at 3m The expanded uncertainty (k = 2) for conducted emissions from 150 kHz to 30 MHz has been determined to be: ±2.6 dB EMC Report No: 101415209MIN-001 Page 5 of 22 3.0 EQUIPMENT UNDER TEST 3.1 Power Configuration Rated voltage: 120VAC 230VAC 400VAC Supply Other: Rated current: Amp. Rated frequency: 50Hz 60Hz Number of phases: 1 Phase 3 Phases 3.2 EUT Configuration The equipment under test was operated during the measurement under the following conditions: - Standby - Test program (H - Pattern) - Continuous Operation (see details below) - Specific test program Operating modes of the EUT: No. Description 1 Continuous transmission of RF signals at 1931MHz, 1962MHz and 1994MHz into two paths. 2 The EUT antenna ports were terminated. Cables: No. Type Length Designation Note 1 Two RF coax 10m each RF signal cables to the Support Equipment Support equipment/Services: No. Item Description 1 Agilent 8648B (located outside Test site) Signal Generator 2 Prism Host Unit 3 Prism Host 28VDC Power Supply 4 30dB Attenuator (2) General notes: None EMC Report No: 101415209MIN-001 Page 6 of 22 3.3 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa EMC Report No: 101415209MIN-001 …
