Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com November 18, 2013 Attn: Application Examiner, Reviewing Engineer Re: Tune-up Procedure The FlexWave™ Prism – 700 MHz Lower ABC/Upper C - Band model number FWP- L4MTU4MMOD employs a solid-state design that does not require a tune-up procedure. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com November 18, 2013 Attn: Application Examiner, Reviewing Engineer FCC ID: F8I-PSM7A7UD Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Technical Description or Theory of Operation, Bill of Materials (BOM’s), and Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

External Photograph Prism 700MHz HDM Lower ABC Upper C

INFORMATION ON THIS DOCUMENT IS PROPRIETARY TO ADC AND SHALL NOT BE USED, COPIED, REPRODUCED OR DISCLOSED IN WHOLE OR IN PART WITHOUT WRITTEN CONSENT OF ADC TITLE FlexWave™ Prism – 700MHz HDM Lower ABC/Upper C FCC Identification Label TOLERANCE UNLESS .XX NA OTHERWISE SPECIFIED .XX NA DRAWING NUMBER None A REV DO NOT SCALE DRAWING ENGR. Joshua J. Wittman SIZE A SHEET 1 OF 1 REV ECO DWN DATE A JJW 11-15-2013 - See Note 4 for Model Number R.075 (4) DIE CUT LABEL XXX-XXXXXXXXXX FCC ID: F8I-PSM7A7UD 2 1.500 REF .750 REF 1,4 NOTES: 1 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 8 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. 2 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 6 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. MATERIAL: ADC PART NUMBER 1215140 3 4 FWP-L4MTU4MMOD FCC ID: F8I-PSM7A7UD FlexWave™ Prism – 700 Lower ABC/Upper C Module Remote Unit Location of FCC ID Location of FCC Label

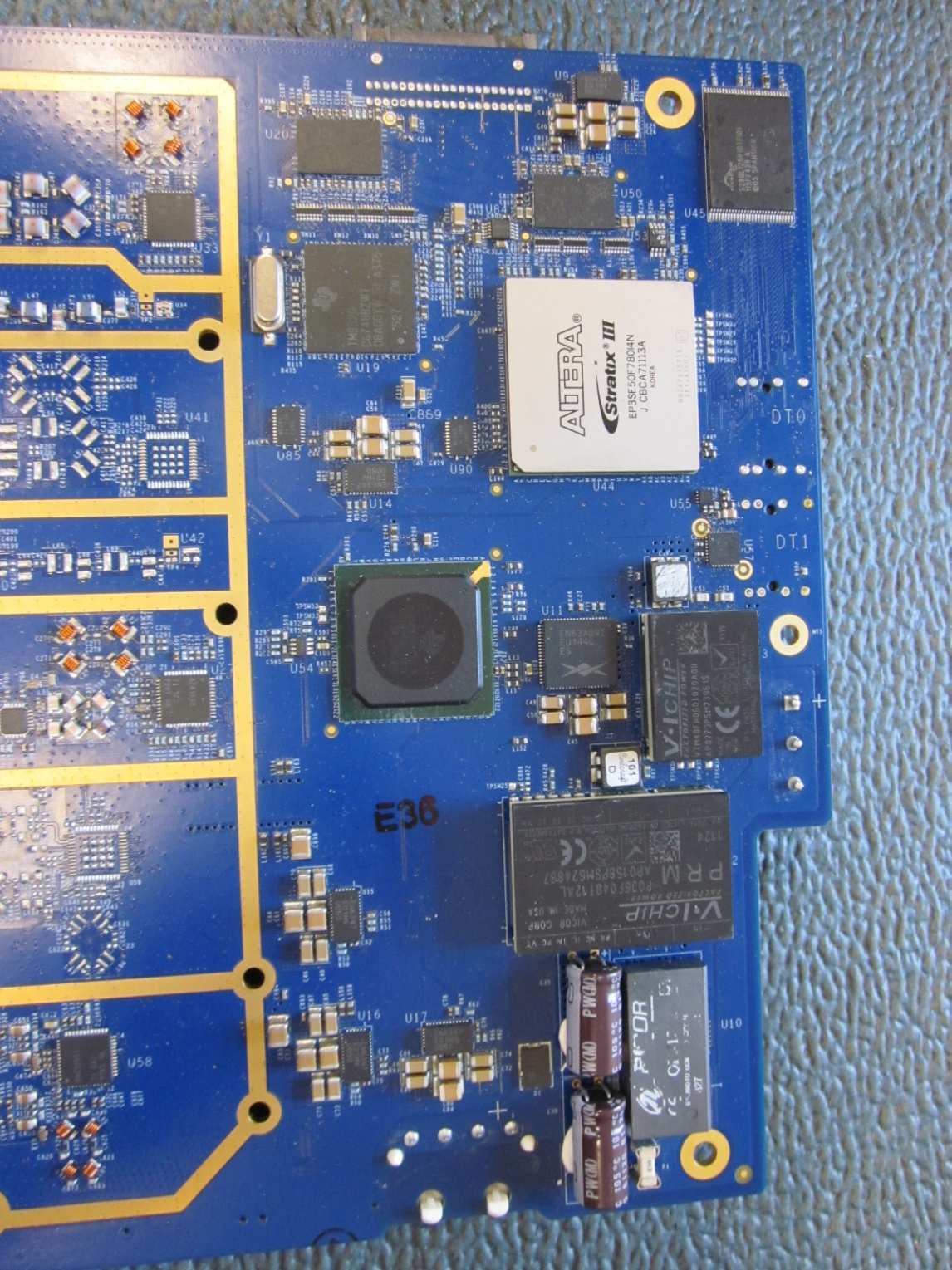

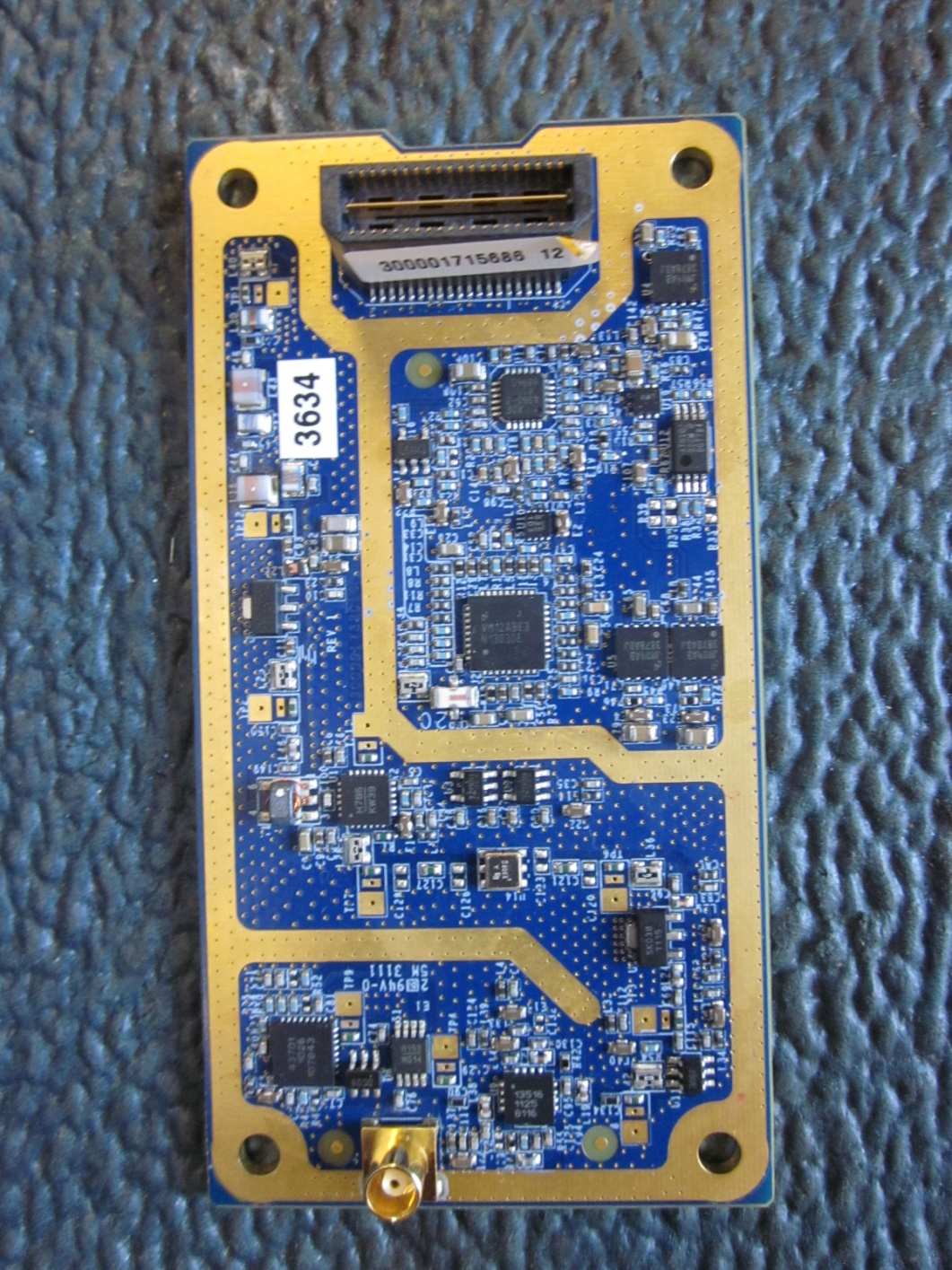

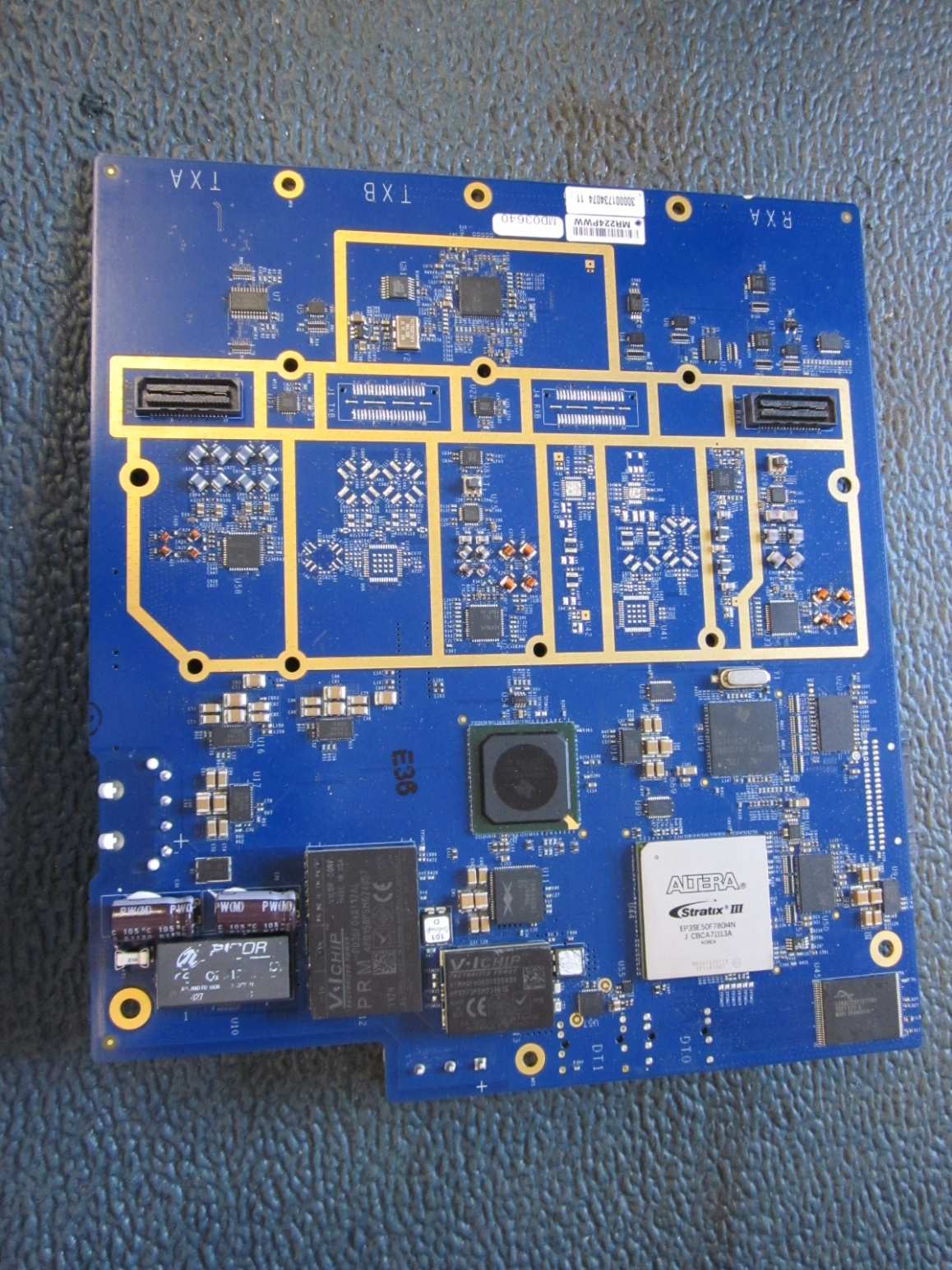

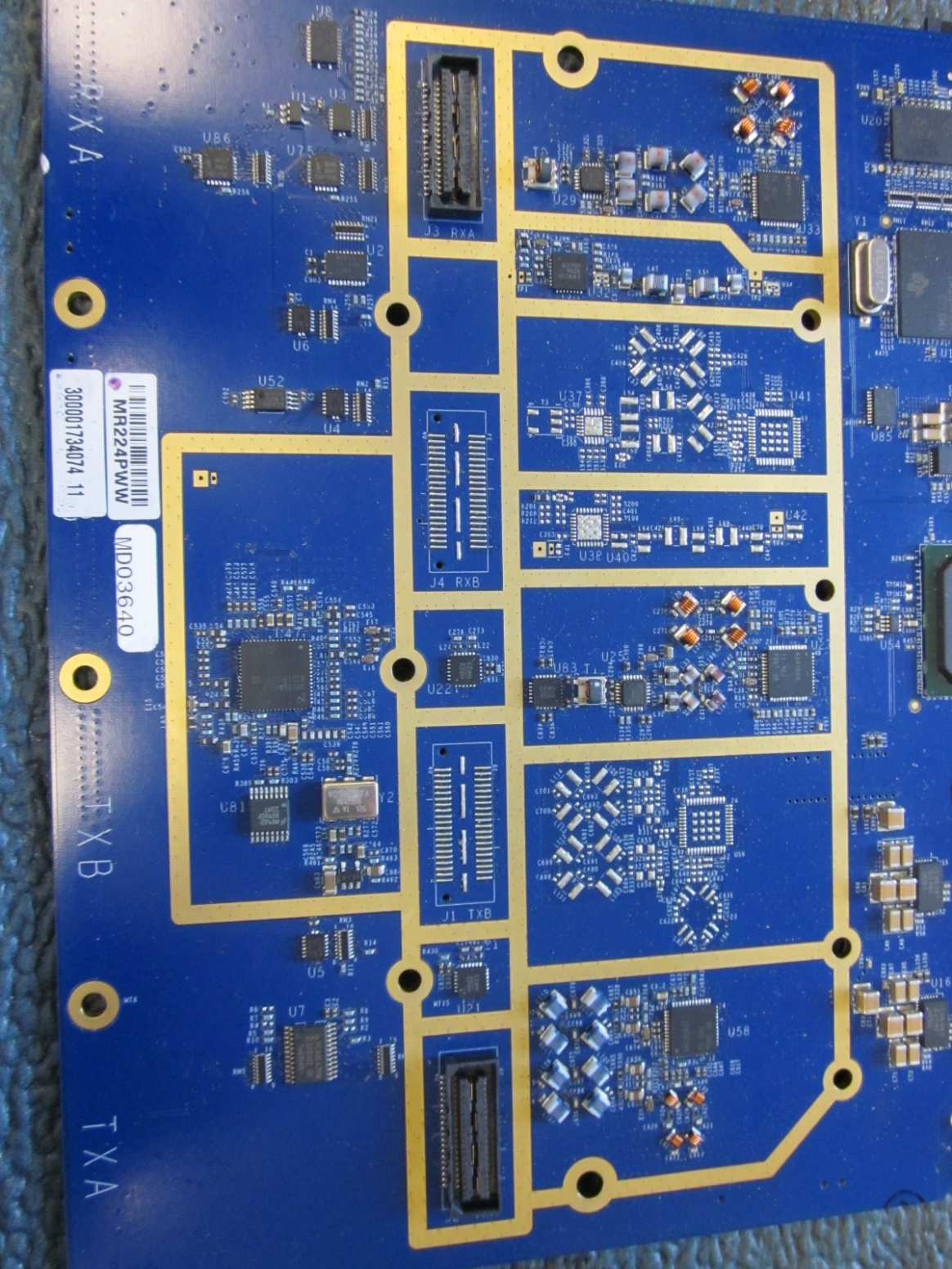

Motherboard – Front #1 Motherboard – Front #2 Motherboard – Front #3 Motherboard – Back #1 Motherboard – Back #2 Motherboard – Back #3 Tx Board – Front Tx Board – Back Rx Board – Front Rx Board – Back Duplexer #1 Duplexer #2 Duplexer #3 LPA #1 LPA #2 LPA #3 RF Module Assembly #1 RF Module Assembly #2 RF Module Assembly #3 RF Module Assembly #4 RF Module Assembly #5 RF Module Assembly #6 RF Module Assembly #7 RF Module Assembly #8

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com December 11, 2013 Attn: Director of Certification Dear Sir or Madam: The following is the Maximum Permissive Exposure (MPE) calculation for the FlexWave™ Prism – 700 MHz Lower ABC/Upper C, FCC ID: F8I-PSM7A7UD using the system’s maximum RF emission. The calculation is based on FCC 47CFR Part 2 and OET 65. Per OET 65: Maximum Permissible Exposure is Freq. (MHz)/1500 = MPE mW/cm 2 1) For Lower ABC (Freq. 737 MHz) MPE = 737 / 1500 = 0.4913 mW/cm 2 = 4.913 W/m 2 The following equations determine the distance from the antenna that the Power Density (S) is: S ≤ 4.913 W/m 2 . The Maximum Conducted Transmitter Power (P) is 27.22 W or 44.35 dBm. The Effective Radiated Power (ERP) Limit according to FCC §25.50(b) is 1000 W or 60 dBm Therefore, the maximum allowed Antenna Gain is G d ≤ 15.65 dBd (relative to halve-wave dipole) or G ≤ 17.8 dBi or G ≤ 60.26 Power Density S = (P × G) / (4×π×D 2 ) (1) Minimum distance D ≥ √ (P × G ) / (4×π×S ) (2) From (2) D ≥ √ (27.22 × 60.26 ) / (4×π×4.91 ) = 5.15 m Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com 2) Upper C (Freq. 751 MHz) MPE = 751 / 1500 = 0.50 mW/cm 2 = 5.0 W/m 2 The following equations determine the distance from the antenna that the Power Density (S) is: S ≤ 5.0 W/m 2 . The Maximum Conducted Transmitter Power (P) is 24.77 W or 43.94 dBm. The Effective Radiated Power (ERP) Limit according to FCC §25.50(b) is 1000 W or 60 dBm Therefore, the maximum allowed Antenna Gain is G d ≤ 16.06 dBd (relative to halve-wave dipole) or G ≤ 18.2 dBi or G ≤ 60.22 From (2) D ≥ √ (24.77 × 60.22 ) / (4×π×5.0 ) = 4.87 m In addition, the following statement will be added to our installation/operation manual: To comply with Maximum Permissible Exposure (MPE) requirements, the maximum composite output from the antenna cannot exceed 1000 Watts ERP and the antenna must be permanently installed in a fixed location that provides at least 6 meters (20 feet) of separation from all persons. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

M N 1 3 1 1 2 0 _ P r i s m _ 7 0 0 M H z _ H D M _ L o w e r _ A B C _ U p p e r _ C Page 1 Test Report Summary FCC CFR 47, Part 27:2009 Wireless Communications Service Manufacturer: ADC Telecommunications Name of Equipment: FlexWave™ Prism – 700MHz HDM Lower ABC Upper C Model Number(s): FWP-L4MTU4MMOD Manufacturer’s Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Report Number: MN120328 Prism 700MHz HDM Lower ABC Upper C Test Date(s): 8 November, 2013 (Intertek) 21, 22, 23, 26 March, 2012 (ADC) According to testing performed at Intertek, the above-mentioned unit is in accordance with the applicable electromagnetic compatibility (EMC) portions of the requirements defined in FCC Part 27. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. All testing was done in accordance with the Federal Communications Commission’s CFR 47 Part 27 and the EUT fulfills the requirements of the Federal Communications Commission’s CFR 47 Part 27. Date: 28 March, 2012 Location: Intertek Testing Services (INTERTEK) ADC Telecommunications 7250 Hudson Blvd., Suite 100 1187 Park Place Oakdale, MN 55128 Shakopee, MN 55379 Phone: (651) 730-1188 Phone: (952) 403-8322 Fax: (651) 730-1282 Testing Conducted by (ADC): And Report Written by: Joshua J. Wittman Compliance Engineer M N 1 3 1 1 2 0 _ P r i s m _ 7 0 0 M H z _ H D M _ L o w e r _ A B C _ U p p e r _ C Page 2 EMC Emission – T E S T R E P O R T Test Report File Number: MN120328 Prism 700MHz HDM Lower ABC Upper C Date of Issue: 20 November, 2013 Model Number(s): FWP-L4MTU4MMOD Product Name: FlexWave™ Prism – 700MHz HDM Lower ABC Upper C Product Type: Industrial Signal Booster/Repeater Applicant: ADC Telecommunications Manufacturer: ADC Telecommunications License Holder: ADC Telecommunications Address: P.O. Box 1101 Minneapolis, MN 55440-1101 Test Result: ▪ Positive ▫ Negative Test Project Number: 101388141MIN-001 Reference(s) Total pages including Appendices: 59 M N 1 3 1 1 2 0 _ P r i s m _ 7 0 0 M H z _ H D M _ L o w e r _ A B C _ U p p e r _ C Page 3 1.0 TABLE OF CONTENTS 1.0 Table of Contents .................................................................................................... 3 2.0 Revision Description ................................................................................................ 4 3.0 Documentation ....................................................................................................... 4 3.1 Test Regulations .................................................................................................. 4 3.2 Test Operation Mode ............................................................................................. 5 3.3 Configuration of the Device Under Test: .................................................................. 5 3.4 Product Options: .................................................................................................. 5 3.5 EUT Specifications and Requirements: .................................................................... 5 3.6 Cables: ............................................................................................................... 5 3.7 Power Requirements: ........................................................................................... 5 3.8 Typical Installation and/or Operating Environment: .................................................. 5 3.9 Other Special Requirements: ................................................................................. 5 3.10 EUT Software: ................................................................................................... 5 3.11 EUT System Components ................................................................................... 6 3.12 Support Equipment ............................................................................................ 6 3.13 Deviations from Standard: .................................................................................. 6 3.14 General Remarks: ............................................................................................. 6 3.15 Summary: ........................................................................................................ 6 4.0 Test Set-Up Drawings and Photos ............................................................................. 7 4.1 Test Set-up Photo, Radiated Emissions ................................................................... 7 4.2 Test Set-up Drawings ........................................................................................... 8 5.0 Test Results ......................................................................................................... 10 5.1.1 2.1046 Effective Radiated Power Limits ........................................................... 10 5.1.2 2.1055 Frequency Tolerance .......................................................................... 11 5.1.3 2.1047, 2.1049, 2.1051 Emission Limitations 700MHz Lower ABC and Upper C .. 12 6.0 Test Equipment .................................................................................................... 13 7.0 Appendix A .......................................................................................................... 14 7.1 Conducted Emission Limits Test ........................................................................... 15 7.2 Conducted Output Power Test .............................................................................. 33 7.3 Frequency Stability Test ...................................................................................... 34 7.4 Intermodulation Test .......................................................................................... 36 7.5 Occupied Bandwidth Modulation Tes…
