ADC FlexWave ™ Universal Radio Head (URH) Host Unit Installation Instructions ADCP-75-348 • Issue 1 • 04/2008ADCP-75-348 • Issue 1 • 04/2008 1427955 Rev A 22408-A ADCP-75-348 • Issue 1 • 04/2008 • Preface Page ii COPYRIGHT © 2008, ADC Telecommunications, Inc. All Rights Reserved REVISION HISTORY TRADEMARK INFORMATION ADC is a registered trademark of ADC Telecommunications, Inc., FlexWave is a trademark of ADC Telecommunications, Inc. DISCLAIMER OF LIABILITY Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period. This publication may be verified at any time by contacting ADC’s Technical Assistance Center at 1-800-366-3891, extension 73475 (in U.S.A. or Canada) or 952-917-3475 (outside U.S.A. and Canada), or by e-mail to [email protected]. ISSUEDATEREASON FOR CHANGE 104/2008Original ADC Telecommunications, Inc. P.O. Box 1101, Minneapolis, Minnesota 55440-1101 In U.S.A. and Canada: 1-800-366-3891 Outside U.S.A. and Canada: (952) 938-8080 Fax: (952) 917-1717 ADCP-75-348 • Issue 1 • 04/2008 • Preface Page iii © 2008, ADC Telecommunications, Inc. TABLE OF CONTENTS ContentPage About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v Admonishments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v STANDARDS CERTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi List of Acronyms and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii 1GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 2INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 3HOST UNIT DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 3.1Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 3.2SeRF Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 3.2.1Network Interface Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 3.2.2Craft Interface Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 3.2.3Optical Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 3.3DART Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 3.3.1RF Signal Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3.4System Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3.5Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3.6User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 4HOST UNIT ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 4.1Wavelength Division Multiplexer System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 5SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 6INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 6.1Before Starting Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 6.1.1Tools and Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 6.2Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 6.3OSP Fiber Cable Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 6.4WDM Host Module Mounting Shelf and WDM Host Module Installation Procedure . . . . . . . . . . . . . . . . . . . . 12 6.5HU Mounting Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 6.6Chassis Ground Connection. . . . …

Text truncated - open the document above for the full version.

FCC Confidential Authorization 1/14/10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: F8I-SP851970H In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, ADC Telecommunications hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Joshua J. Wittman 1187 Park Place Shakopee, MN 55379 952-403-8322 [email protected]

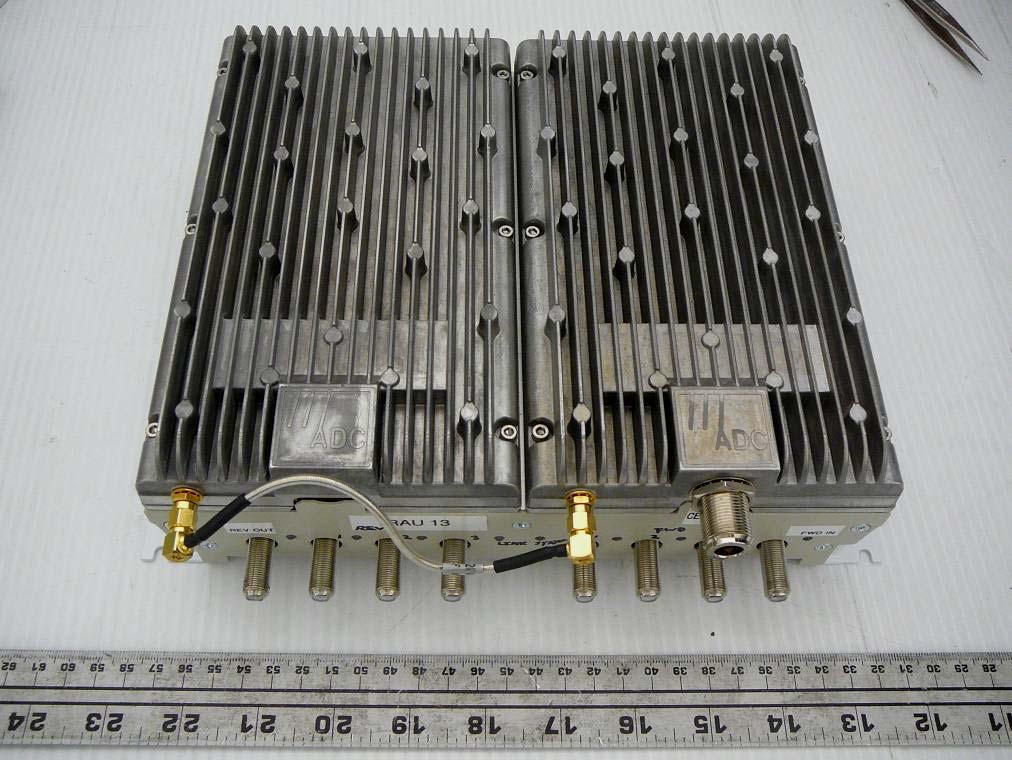

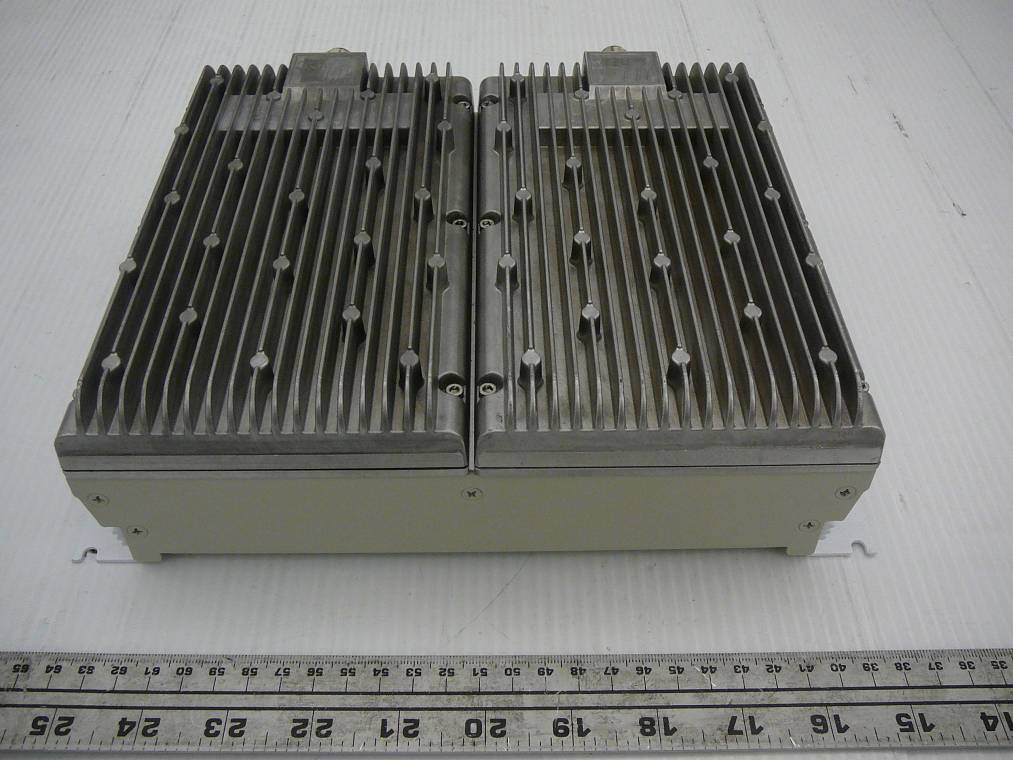

ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 95 of 109 FCC Part 22H, 24E & 27 Test Report 14 EXHIBIT C- EUT PHOTOS 14.1 EUT Top View – URH Host 14.2 EUT Rear View – URH Host ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 96 of 109 FCC Part 22H, 24E & 27 Test Report 14.3 Support Equipment Front View – DRU Host 14.4 Support Equipment Rear View – DRU Host ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 97 of 109 FCC Part 22H, 24E & 27 Test Report 14.5 Support Equipment Front View - SRAU 14.6 Support Equipment Rear View - SRAU ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 98 of 109 FCC Part 22H, 24E & 27 Test Report 14.7 Support Equipment Front View - MRAU 14.8 Support Equipment Rear View - MRAU ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 99 of 109 FCC Part 22H, 24E & 27 Test Report 14.9 Support Equipment Front View – IFEU 14.10 Support Equipment Rear View – IFEU ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 100 of 109 FCC Part 22H, 24E & 27 Test Report 14.11 Support Equipment Power Supplies Front View 14.12 Support Equipment Power Supplies Rear View

INFORMATION ON THIS DOCUMENT IS PROPRIETARY TO ADC AND SHALL NOT BE USED, COPIED, REPRODUCED OR DISCLOSED IN WHOLE OR IN PART WITHOUT WRITTEN CONSENT OF ADC TITLE FlexWave™ URH Host FCC / IC Identification Label Spectrum 850/1900/700 MHz TOLERANCE UNLESS .XX NA OTHERWISE SPECIFIED .XX NA DRAWING NUMBER None A REV DO NOT SCALE DRAWING ENGR. Joshua J. Wittman SIZE A SHEET 1 OF 1 REV ECO DWN DATE A JJW 1-14-2010 XXXX-XXXXXXXX FCC ID: F8I-SP851970H 2 1.500 REF R.075 (4) DIE CUT LABEL .750 REF 1,4 - See Note 4 for Model Number NOTES: 1 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 8 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. 2 PRINTING TYPE: TRANSFER METHOD. COLOR: BLACK TEXT 6 PT ARIAL NON-BOLD LOCATED APPROXIMATELY AS SHOWN. MATERIAL: ADC PART NUMBER 1215140 3 4 FWU-28400000HU

ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 91 of 109 FCC Part 22H, 24E & 27 Test Report 12 EXHIBIT A - FCC ID LABELING REQUIREMENTS 12.1 FCC ID Label Requirement FCC § 2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code 12.2 FCC ID Label 12.3 FCC Label Location on EUT FCC ID: XXX-XXXXXX Label here

ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 101 of 109 FCC Part 22H, 24E & 27 Test Report 14.13 EUT PCB Assembly PCS RF Dart Top View – URH Host 14.14 EUT PCB Assembly PCS RF Dart Bottom View – URH Host ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 102 of 109 FCC Part 22H, 24E & 27 Test Report 14.15 EUT PCB Assembly Cellular RF Dart Top View – URH Host 14.16 EUT PCB Assembly Cellular RF Dart Bottom View – URH Host ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 103 of 109 FCC Part 22H, 24E & 27 Test Report 14.17 EUT PCB Assembly 700UC1 RF Dart Top View – URH Host 14.18 EUT PCB Assembly 700UC1 RF Dart Bottom View – URH Host ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 104 of 109 FCC Part 22H, 24E & 27 Test Report 14.19 EUT PCB Assembly 700ABC1 RF Dart Top View – URH Host 14.20 EUT PCB Assembly 700ABC1 RF Dart Bottom View – URH Host ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 105 of 109 FCC Part 22H, 24E & 27 Test Report 14.21 EUT PCB Assembly 700UC2 RF Dart Top View – URH Host 14.22 EUT PCB Assembly 700UC2 RF Dart Bottom View – URH Host ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 106 of 109 FCC Part 22H, 24E & 27 Test Report 14.23 EUT PCB Assembly 700ABC2 RF Dart Top View – URH Host 14.24 EUT PCB Assembly 700ABC2 RF Dart Bottom View – URH Host ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 107 of 109 FCC Part 22H, 24E & 27 Test Report 14.25 EUT PCB Assembly SERF II Top View – URH Host 14.26 EUT PCB Assembly SERF II Bottom View – URH Host ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 108 of 109 FCC Part 22H, 24E & 27 Test Report 14.27 EUT PCB Assembly System II Top View – URH Host 14.28 EUT PCB Assembly System II Bottom View – URH Host ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 109 of 109 FCC Part 22H, 24E & 27 Test Report 14.29 EUT PCB Assembly DC Power Supply Top View – URH Host 14.30 EUT PCB Assembly System II Bottom View – URH Host ***** END OF REPORT *****

eenr P CC L L L 6 M L P0 P5 L P8 -L CT 11 C5 0WC OC /C /D M 2T E R1 3FN L60 B O P0 6 TC4 NN AR RET ET ET A ET ET 1ET ET 1394072SYSTEM10/24/2007 Item Numb QuantityPart ReferencValueDescriptioManufactuManufacturPart NumbeSpeed 13C1,C7,C1710uFCAP 10uF AVX COR1206YD1061350827 25C2,C4,C8,C9, 0.015UFCAP-0402 MATSUSHECJ0EB11155580 325C3,C5,C10,C10.1UFCAP-0402 KEMET E C0402C1041355907 41C6.01UFCAP-0402 KEMET E C0402C1031393944 51C18100PFCAP-0603 KEMET E C0603C101355874 61C1910ufCAP 0805 XAVX08056D101389602 71C201.0uFCAP-0805 MURATA GRM21BR1352722 83C22,C29,C670.47UFCAP-0805 KEMET E C0805C4741355507 95C25,C27,C28,0.01UFCAP-0603 KemetC0603C10 31342700 102C30,C6622PFCAP-0402 AVX COR04025A221391757 112C31,C652.2UFCAP-0603 AVX COR06036C221377986 121C372.7PFCAP-0402 KEMET E C0402C2791310770 131C383PFTVS 0403 3AVX CORVC04AG11385806 1439C40-C43,C47 NICAP-0402 KEMET EC0402C1041228664 152C69,C7047uFCAP-1210 MurataGRM32ER1394443 161D113VIC, ZEN DION SEMI 1SMA13A1393774 173D2,D3,D12BAV70WT IC-SC70 DON SEMIBAV70WT1394121 181D43WIC, ZEN DION SEMI 1SMB5911393772 193D5-D7MMBD700 DIODE, SON SEMIMMBD70001358886 204D8-D11MMBD914DIODE-S ON SEMIMMBD914L1356197 211DS1LEDLED-TH R KINGBRIGWP130W1348407 221DS2LEDLED-TH R KINGBRIGWP130W1398691 231DWG13940701394070 241J198Fingers for conn_pci_ 1 252J2,J3QMACONN, QHUBER+SU85_QMA-51391389 261J4Conn ra 1 HEADER-Molex39522-10121394102 274K1-K4SPFTREL, SIG, NTYCO EL4-1462037-1392881 283L1-L3FerriteBEAD, FE murataBLM18AG1176788 291L53.3NHIND-0402 COILCRA0402CS-3 1388213 3016L10-L21,L23, FerriteFLTR-120muRataBLM31P51117105 312L22,L25Z600 25% FERRITE FAIR-RITE2506036011172720 321L28700 4ACHOKE-C PulseP04691315815 332LB1,LB21166551LABEL BL A1166551 342P1,P2HDR2x3HDR-Sldr SAMTEC INTSW-103-1094083 351PCB14198481419848 3610PD1-PD10Pad32_01 ThruHole PPTH_32C1 377Q1-Q3,Q6-Q9NPN3904XSTR-SO ON SEMIMMBT3901356245 382Q4,Q5MOSFET_IC-N/CHAFairchild SeNDT3055L_1390876 392R1,R100.025 ohmRES-2512 VISHAY D WSL25121393765 404R2,R11,R40, 10.0OHMRES-0402 KOA SPERK73H1E1350533 416R3,R5,R12,R1100.0RES-0402 KOA SPE RK73H1E1350540 421R459.0KRES-0402 KOA SPERK73H1E1391357 4327R6-R8,R13,R110KRES-0603 VISHAY D CRCW06031340338 441R162.67KRES-0402 KOA SPE RK73H1E1393597 451R21715 ohmRES-0603 KOA SPE RK73H1J1397937 464R22,R23,R850RES-0603 KOA SPERK73ZIJT1351727 473R24,R42,R4664.9RES-0402 KOA SPE RK73H1E1379707 KET A ET OET ET ET ET ET ET ET T ET MET ET MET MET ET ET ET R0 4MC 7PC7 WE GCG CCG NDM C OS 2Qo2 VL T NDA PP O LS E2TE E 481R254.99KRES, 4.99KOA SPERK73H1J1352001 496R26,R27,R30,1KRES-0603 VISHAY D CRCW06031340329 501R281.69kRES 0603 KOA SPE RK73H1J1379789 511R29143RES, 143- KOA SPERK73H1E1404789 521R311MRES 0603 KOA SPE RK73H1J1334193 531R32287OHMRES-0402 KOA SPE RK73H1E1390429 542R34,R4135.7RES-0402 KOA SPE RK73H1E1350535 555R38,R62,R70,51.1KRES-0402 KOA SPE RK73H1E1387872 562R39,R9130.1KRES-0402 KOA SPE RK73H1E1387866 572R51,R554.7KRES-0603 KOA SPE RK73H1J1377332 584R61,R66,R74,5.49kRES-0603 KAORK73H1J 1377349 591R83768 OHMRES-0603 KOA SPE RK73H1J1398233 601R843.24K OH RES-0603 KOA SPERK73H1J1398234 611R853.57MRES-0603 KOA SPE RK73H1J1405913 621R86191K OH RES-0603 KOA SPERK73H1J1398236 631R87182K OH RES-0603 KOA SPERK73H1J1398238 641R9356.2KRES-0402 KOA SPE RK73H1E1401445 654R842-R84510 MEGRES-0805 KOA SPE RK73H2A1355203 663R848-R850100kRES-0603 KOA SPE RK73H1J1352705 671SCH13940691394069 681SPC11317235LABEL SP E1317235 691SPC21317237LABEL SP E1317237 704TP1-TP4TP1CONN HD SAMTECTSW-150-1383210 712U1,U4NTLJS411 IC, PWR, ON SEMINTLJS41141393596 721U15MC74LCX IC - TSSOON SEMIMC74LCX13195512.5Ns 732U2,U5LTC4210-1IC, HOT S LINEAR TLTC4210-11393584 741U3M74VHC1 IC-SC70-5 ON SEMIM74VHC11394109 751U6LM2903IC, VOLT ON SEMILM2903D1359453 761U72_INPUT_ IC TINYLOFAIRCHILNC7SZ021363285 773U8,U13,U16MC74VHCIC, SOT23 ,ON SEMIMC74VHC1329670 781U9TPS78601IC- REG L TEXAS INTPS78601D1356558 791U10MC74LVX IC, MUX, On SemicMC74LVX1403239 801U11IC-LVDS TIC- BUS L NATIONADS92LV011356394 812U12,U24TPS73001REG VOL TITPS73001D1385973 821U19ADT7476IC, FAN C ANALOG ADT74761390290 831U20PCA9535 IC-SMBUSPHILIPS SEPCA95351388720 841U21256x8IC-EEPRO ATMEL CAT24C02B1400959 851U22TPS715IC-VOLT, TEXAS INTPS71501D1398244 861U23MAX3232 IC, RS-23MAXIM INMAX32321329671 871U2740MHzOSC- TCX OVECTRONVTD3-J051401438 RoHSPkg greenSM1206 greenSMT0402 greenSMT0402 greenSMT0402 greenSMT0603 greenSM0805 green0805 greenSMT0805 green0603 SMT greenSMT0402 greenSMT0603 greenSMT0402 green0402 greenSMT0402 green1210 greenSMA green greenSMB greenSmt Sot23 greenSot23 greenTH greenTH green yellow green greenSMT greenSM 0603 greenSMT0402 yellowSmt 1206 green0603 greenSMT 7060_4 green green greenVia Pad greenSot23 greenSOT223 green2512 green0402 greenSMT0402 green0402 greenSMT 0603 green0402 green0603 greenSM0603 greenSMT0402 greenSM0603 green0603 greenSMT0603 yellowSMT0402 greenSM0603 green0402 greenSMT0402 green0402 green0402 yellowSMT0603 greenSMT0603 green0603 green0603 greenSM0603 green0603 green0603 yellowSMT0402 greenSMT0805 greenSMT0603 green green green green greenTSSOP14 green green greenSO8 greenSOT23_5 greenSOT23_5 greenSMT yellowtssop16 greenSmt M08A greenDBV greenQFN12 greenQFN12 green8-TSSOP greenTO-263 greenSO16 green11.0 X 9.0 X 1.8 mm leadless SMT enrr CL P4 9OL P1 L OL C CP5 P MM1 TD 0M4 B M ET ET ET 2ET 9ET ET RrT R ET ET ET ET RET ET RET O DR U CDR OA T PP QuantityPart ReferValueDescriptioManufactuManufactuPart NumbeMountRoHS 12C1 C4 C8 1000PFCAP-0402 KEMET EC0402C1021236099green 6C2 C14 C1.1UFCAP-0402 AVX COR0402ZD101346732green 6C3 C9 C1 .01ufCAPACITKEMET EC0402C1031115157green 2C10 C11220PFCAP-0402 AVX COR04025A221391756green 2C18 C250.1UFCAP-0402 KEMET E C0402C1041267297green 1C310.47UFCAPACIT KEMET EC0805C4741084319green 4C32 C41 15pfCAP CER 01194046yellow 3C33 C36 2.2UFCAP-0603 AVX COR06036C221377986green 2C37 C3810uFCAP 10uF AVX COR1206YD1061350827green 1DWG113798061379806 5FB1 FB2 F1KFILTER- E MURATA BLM18AG1315817green 1J14 CIRCUI CONN, HMOLEX INC90814-30041393606green 1L147FERRITE- MURATA BLM18BB1327591green 2L2 L3Z600 25% FER…

Text truncated - open the document above for the full version.

Mailing Address: P.O. Box 1101, Minneapolis, Minnesota 55440-1101 World Headquarters: Minneapolis, Minnesota USA +1.952.938.8080 www.adc.com January 14, 2010 Attn: Application Examiner, Reviewing Engineer Re: Tune-up Procedure The FlexWave™ URH Host model number FWU-28400000HU employs a solid-state design that does not require a tune-up procedure. Sincerely, Joshua J. Wittman Compliance Engineer Tele: 952 403-8322 Fax: 952 403-8858 Email: [email protected]

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 22H, 24E & 27 TEST AND MEASUREMENT REPORT For ADC Telecommunications Inc. P.O. Box 1101, Minneapolis, MN 55440, USA FCC ID: F8I-SP851970H Report Type: Original Report Product Type: FlexWave™ URH Host Test Engineer: Dennis Huang Report Number: R1001143 Report Date: 2010-01-19 Reviewed By: Boni Baniqued EMC/RF Supervisor Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 2 of 109 FCC Part 22H, 24E & 27 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 6 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 6 1.3 EUT PHOTO....................................................................................................................................................... 6 1.4 OBJECTIVE......................................................................................................................................................... 6 1.5 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 7 1.6 TEST METHODOLOGY........................................................................................................................................ 7 1.7 MEASUREMENT UNCERTAINTY.......................................................................................................................... 7 1.8 TEST FACILITY................................................................................................................................................... 8 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 9 2.1 JUSTIFICATION................................................................................................................................................... 9 2.2 EUT EXERCISE SOFTWARE................................................................................................................................9 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 9 2.4 SUPPORT EQUIPMENT LIST................................................................................................................................9 2.5 LOCAL SUPPORT EQUIPMENT AND SOFTWARE LIST AND DETAILS.................................................................... 9 2.6 INTERNAL CONFIGURATIONS OF EUT.............................................................................................................. 10 2.7 INTERFACE PORTS AND CABLES...................................................................................................................... 10 3 SUMMARY OF TEST RESULTS...................................................................................................................... 11 4 FCC §2.1046, §22.913, §24.232 & §27.50 – RF OUTPUT POWER................................................................. 12 4.1 APPLICABLE STANDARD.................................................................................................................................. 12 4.2 TEST PROCEDURE............................................................................................................................................ 12 4.3 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 12 4.4 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 12 4.5 TEST SETUP BLOCK DIAGRAM (BENCH TESTING)............................................................................................ 13 4.6 SUMMARY OF TEST RESULTS........................................................................................................................... 13 5 FCC §2.1047 - MODULATION CHARACTERISTIC..................................................................................... 15 5.1 APPLICABLE STANDARD.................................................................................................................................. 15 5.2 TEST RESULT................................................................................................................................................... 15 6 FCC §2.1049, §22.917, §24.238 & §27.53 - OCCUPIED BANDWIDTH......................................................... 16 6.1 APPLICABLE STANDARD.................................................................................................................................. 16 6.2 TEST PROCEDURE............................................................................................................................................ 16 6.3 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 16 6.4 TEST EQUIPMENT LIST AND DETAILS.................…

Text truncated - open the document above for the full version.

ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 92 of 109 FCC Part 22H, 24E & 27 Test Report 13 EXHIBIT B - TEST SETUP PHOTOGRAPHS 13.1 Radiated Emissions 30 MHz to 1 GHz - Front View 13.2 Radiated Emissions 30 MHz to 1GHz- Rear View ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 93 of 109 FCC Part 22H, 24E & 27 Test Report 13.3 Radiated Emissions above 1 GHz - Front View 13.4 Radiated Emissions above 1 GHz- Rear View ADC Telecommunications, Inc. FCC ID: F8I-SP851970H Report Number: R1001143 Page 94 of 109 FCC Part 22H, 24E & 27 Test Report 13.5 Conducted Measurement 13.6 Frequency Stability Measurement
