F9R39T07A01B22BAlcatel 7390 LMDS Multiservice Broadband WIreless

3CC12425AAAA TQ BJA Ed. 01 Alcatel 7390 Alcatel 7390Alcatel 7390 Alcatel 7390 Multiservice broadband wireless access solution Terminal Station - release 2.2b (Ex 9900) (Ex 9900)(Ex 9900) (Ex 9900) Cross - Polarized version User Manual 2/70Issue 01 - April 2001 - Draft 033CC12425AAAA TQ BJA 01 4 Status Draft Change Note Short TitleA7390 Terminal Station – release 2.2b All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization from Alcatel. 3CC12425AAAA TQ BJA 01Issue 01 - April 2001 - Draft 033/70 4 Customer Service Support: a Team tuned to your needs for your entire satisfaction Congratulations on having bought your equipment from Alcatel. We hope that it will give you full satisfaction. For any additional information or if you have any questions concerning this equipment, please contact the Technical Assistance Center, (TAC) dedicated to your support whose coordinates have been given to you by the Alcatel Contract Manager or: http://www.cid.alcatel.com/support . You must specify the hardware and software configurations of each item concerned when getting in touch. This service, available on subscription, is free for the duration of the initial waranty period. 4/70Issue 01 - April 2001 - Draft 033CC12425AAAA TQ BJA 01 4 PAGE INTENTIONALLY LEFT BLANK 3CC12425AAAA TQ BJA 01Issue 01 - April 2001 - Draft 035/70 6 Table of contents 1 – Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 1.1 – Structure of the manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 1.2 – Using the manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 1.3 – Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 1.3.1 – General rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 2 – Equipment overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2.1 – Overview of the A7390 system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2.2 – Composition of the A7390 system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2.3 – A7390 System specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.3.1 – Frequency bands used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.3.2 – Radio transmission specifications (typical values) . . . . . . . . . . . . . . . . . . . . . . . . 17 2.3.3 – Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 2.4 – Description of the Terminal Station (7390TS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.5 – Examples of configuration of the Terminal Station (7390TS) . . . . . . . . . . . . . . . . . . . . . . 21 2.5.1 – Mono "NT" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.5.2 – Multi "NT" with passive splitter (2 NT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.6 – Technical specifications of the Terminal Station (7390TS) . . . . . . . . . . . . . . . . . . . . . . . . 22 2.6.1 – X-Pol RT/NT specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 2.6.2 – NT Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 2.7 – Equipment power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 3 – Installation of the X-Pol RT’s A7390 Terminal Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 3.1 – Equipment delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 3.1.1 – Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 3.2 – Installing an X-Pol RT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 3.3 – To install the X-Pol RT on a pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 3.4 – To ground the X-Pol RT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 3.5 – Installation of the Terminal Station X-Pol RT unit with a non integrated antenna . . . . . . . 29 3.6 – Installation of the X-Pol RT/NT link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 3.7 – Installation of the Terminal Station 7390NT (Indoor Unit) . . . . . . . . . . . . . . . . . . . . . . . . . 31 3.7.1 – Installation of the 7390NT unit on a desktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 3.7.2 – Installation of the NT unit on a 19" rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 3.7.3 – Earthing the NT units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 4 – Commissioning the 7390 Terminal Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 4.1 – Commissioning the X-Pol RT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 4.1.1 – X-Pol RT adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 4.2 – Commissioning the NT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 4.3 – Client terminal …

Text truncated - open the document above for the full version.

3CC12425AAAA TQ BJA 01Issue 01 - April 2001 - Draft 0359/70 60 Appendix 2 – Climatic areas world map 60/70Issue 01 - April 2001 - Draft 033CC12425AAAA TQ BJA 01 60 PAGE INTENTIONALLY LEFT BLANK 3CC12425AAAA TQ BJA 01Issue 01 - April 2001 - Draft 0361/70 66 Appendix 3 – Mounting coaxial connectors for 5916 CommScope 62/70Issue 01 - April 2001 - Draft 033CC12425AAAA TQ BJA 01 66 3CC12425AAAA TQ BJA 01Issue 01 - April 2001 - Draft 0363/70 66 A.3.1 – Installing Stirling connectors This section describes how to install a Stirling connector on CommScope RG-type cable. A.3.1.1 – To install a Stirling connector To prevent damage to the center pin of the connector, keep the cap on the connector during installation unless specified otherwise. The following tools and hardware are required: – Stirling cable and connectors: • SPP-6-0 connectors for RG-6/U cable • SPP-59-0 connectors for RG-59/U cable • SPP-11-newbridge connectors for 5916 cable – Stirling stripper/activator tool • SCSA-596 tool for RG-6/U or RG-59/U cable • SCSA-11 tool for 5916 cable 1. Trim one end of the cable using a circular wire cutter. Do not use a side cutter because it will deform the cable. 2. Insert the cable into the stripper/activator tool until the end of the cable is flush with the end of the tool. The SCSA-596 tool has a stop that helps position the cable. The arrow on the tool shows which way to insert the cable; see Figure 30. Figure 30 – Inserting the cable in stripper/activator tool 3. Rotate the tool around the cable several times in one direction. Do not rotate the cable. 4. Grasp the front of the tool firmly and pull the cable from the tool to expose the braided shielding and the center conductor; see Figure 31. Use a fingernail to remove any dielectric material that may be sticking to the center conductor. Do not use a knife or the conductor will be scratched. Caution - Deforming the cable can result in a poor connection that can affect service Arrow 64/70Issue 01 - April 2001 - Draft 033CC12425AAAA TQ BJA 01 66 Figure 31 – Exposing the shield and center conductor 5. Pull the braided shielding back over the jacket and inspect the exposed end. Ensure that it is clean (free of loose pieces of shielding). 6. Attach the Stirling connector. • To attach an SPP-6-0 or SPP-59-0 connector, carefully insert the cable into the connector until you feel the cable click into place. Do not try to remove the connector after it has been put on the cable. • To attach an SPP-11-newbridge connector: • Position the dielectric at the base of the stripper/activator tool and measure the length of the center conductor against the first mark on the activator. Figure 33 identifies the activator base and markings. If necessary, trim the conductor with circular wire cutters. Figure 32 – Measuring the center conductor Caution - A poor connection may result if the connector is removed from the cable once it has clicked into place First line Base of activator 3CC12425AAAA TQ BJA 01Issue 01 - April 2001 - Draft 0365/70 66 • Position the center conductor at the second line on the stripper/activator tool and mark the cable jacket with your thumbnail at the base of the activator; see Figure 33. Figure 33 – Measuring and marking the 5916 cable • Carefully place the connector on the cable and push the connector until it meets the thum- bnail mark. If the connector is pushed too far onto the cable, it may not properly connect to its mate connector. 7. Remove the connector cap and insert the connector into the activator tool (the center conductor fits into the hole in the crank). Turn the handle to tighten the activator until it stops, then back off the activator and remove the connector; see Figure 34. Figure 34 – Fitting the connector 8. Check the installation by pulling on the connector. The connector should not come off. If the connector is not being connected immediately, put the cap back on it. Caution - A poor connection may result if the connector is removed from the cable once it has been pushed onto the cable. Second line Mark jackethere Crank Connector 66/70Issue 01 - April 2001 - Draft 033CC12425AAAA TQ BJA 01 66 3CC12425AAAA TQ BJA 01Issue 01 - April 2001 - Draft 0367/70 68 Appendix 4 – Correspondence between commercial codes and industrial codes relating to the TS Installation item Commercial code Industrial codeComments 7390 NC - commercial NT NT unit NCA 001 (2 Eth + 2 G703) 220V 9900NCA001+ 9900SWA001 3CC 10329 AAxxwithout power cable NGA 001 (2 Eth + G703) 48V 9900NGA001+ 9900SWA001 3CC 10329 BCxxWith cable 48V NGA 004 (2 Eth + 2G703, LEMO) 48V 9900NGA004+ 9900SWA001 3CC 10329 BFxxWith cable 48V NCA 002 (2 Eth + 1G703 + X21) 220V 9900NCA002+ 9900SWA001 3CC 10329ABxxwithout power cable NCD 001 (2 Eth) 220V 9900NCD001+ 9900SWA001 3CC 10329 ACxxwithout power cable NCE 001 (2 Eth + 2 T1 ANSI) 220V 9900NCE001+ 9900SWA001 3CC 10329 AExxwithout power cable 7390 NC - commercial NT NT Lite unit NCG 001 (1 Eth + 1 T1 ANSI) 220V 9900NCG001+ 9900SWA001 3DG 55004 ADxxwithout power cable NCF 001 (1 Eth + 1E1 (G703)) 220V 9900NCF001+ 9900SWA001 3DG 55004 AAxxwithout power cable 24-31 GHz X-Pol RT With 30cm integrated antenna 9900 OTA 00190-6626-01CDN-AB 24-31 GHz X-Pol RT With 30cm integrated antenna 9900 OTA 00190-6626-02 US-A 24-31 GHz X-Pol RT With 30cm integrated antenna 9900 OTA 00190-6626-03 US-B 24-31 GHz X-Pol RT With 30cm integrated antenna 9900 OTA 00190-6626-05 CDN-F 24-31 GHz X-Pol RT With 30cm integrated antenna 9900 OTA 00190-6626-09 CDN-C 38 GHz X-Pol RT With 30cm integrated antenna 9900 OTV 00190-7164-01 38G-1 68/70Issue 01 - April 2001 - Draft 033CC12425AAAA TQ BJA 01 68 IGAU I GAU 5dB 9900 XTX 00690-8709-02 I GAU 7dB 9900 XTX 00790-8709-03 I GAU 9dB 9900 XTX 00890-8709-04 I GAU 11dB 9900 XTX 00990-8709-05 Installation item Commercial code Industrial codeComments 3CC12425AAAA TQ BJA 01Issue 01 - April 2001 - Draft 0369/70 70 Appendix 5 – List of abbreviations MNEMONICENGLISH AALATM Adaptation Layer AISAlarm Indication Signal ALAl…

Text truncated - open the document above for the full version.

Oct. 24th, 2001 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O. Box 358315 Pittsburgh, PA 15251-5315 Reference: Request for FCC Equipment Authorization Certification Alcatel Canada Incorporation is in the process of completing a new product for the Local Multipoint Distribution System (LMDS) band and has requested for a FCC Equipment Authorization Certification. The Form 731 has been completed and submitted to the FCC. These services, assigned to the 39,000 to 39,300 MHz band as Uplink and 39,300 to 40,000 MHz band as Downlink, are covered under Part 101: Fixed Microwave Services of the Federal Communications Commission Rules and Regulations. The product is called Alcatel 7390 Multiservice Broadband Wireless Access Solution, which provides all the advantages of ATM (Asynchronous Transfer Mode). These advantages include the convergence of voice, data and video, scalability; and maintenance & control of quality of services to the customer site using cost effective microwave transmission. Company Name: Alcatel Canada Inc. Product Name:Alcatel 7390 LMDS Multiservice Broadband Wireless Access Solution 38 GHz Cross-Pol Terminal Station Frequency Range:Tx: 39,000 to 39,300 MHz Rx: 39,300 to 40,000 MHz Frequency Stability:± 10 PPM Rated RF Output Power:0.05 Watts BS – Base Station Emission Designator:3M50DXW;7M00DXW FCC ID#F9R39T07A01B22B Confirmation #:EA699515 Address:600 March Road, Kanata, Ontario Canada K2K 2E6 Telephone:1-613-599-3600 Fax:1-613-599-3642 Contact:Frank Li Network / Wireless Approvals Specialist 1-613-784-6694 [email protected] I hereby certify that this application was prepared to the best of my knowledge and belief, and the accompanying information/ exhibits are true & correct. Sincerely, Frank Li

Oct. 24th, 2001 Federal Communications Commission EQUIPMENT APPROVAL SERVICES P.O. Box 358315 Pittsburgh, PA 15251-5315 Reference: Request for Confidentiality Alcatel Canada Inc. is in the process of completing a new product for Local Multipoint Distribution System (LMDS) band and has requested for the FCC to keep certain documents confidential. The list below mentions the documents that need be keep confidential due to non-disclosure agreements with our OEM suppliers. Company Name: Alcatel Canada Incorporation Product Name: Alcatel 7390 LMDS Multiservice Broadband Wireless Access Solution 38GHz Cross-Pol Terminal Station BS – Base Station Emission Designator:3M50DXW;7M00DXW FCC ID#F9R39T07A01B22B Confirmation #:EA699515 Address:600 March Road, Kanata, Ontario Canada K2K 2E6 Contact: Frank Li Network / Wireless Approvals Specialist Telephone:613-784-6694 Fax:613-599-3642 Email: [email protected] Frank Li Network / Wireless Approvals Specialist Alcatel Canada Incorporation 613-784-6694 List of Material to maintain Confidential
All Schematics for the NT, the IGAU, the RT
All Bill of Materials for the NT, the IGAU, the RT

Note: The OEM supplier M/A-Com provides two designs of external casing. Pictures 1 to 3 are design 1, and Picture 4 is the design 2. The thermal resistance with a solar load of design 1 is 1.50 C/W. And the thermal resistance with a solar load of design 2 is 1.24 C/W, representing a 0.26 C/W improvement. By engineering judgement, the frequency stability test was performed with the casing as design 1, which we believe it has the worse test result. 1.Design 1 1.Design 2

Label Location of 7390 LMDS 38GHz Cross-Pol M/A-Com RT Label Design of 7390 LMDS 38GHz Cross-Pol M/A-Com RT Safety Distance Statement attached to 38GHz RT

Alcatel LMDS Solution Technical description 1ALCATEL 7390 LMDS Technical Description ---- System CONTENTS 1 - INTRODUCTION........................................................................................................................ 1 1.1 - MARKET CONSIDERATIONS ............................................................................................. 1 1.2 - ALCATEL LMDS MAIN FEATURES...................................................................................... 2 2 - ARCHITECTURE ........................................................................................................................ 3 2.1 - GENERAL ........................................................................................................................ 3 2.2 - ARCHITECTURE ..............................................................................................................4 1 - INTRODUCTION 1.1 - MARKET CONSIDERATIONS Fixed wireless radio technology offers a cost-effective solution for densely-populated urban and suburban areas. High-capacity wireless local loop systems enable operators to rapidly provide a range of voice and data services to large numbers of customer sites. Point-to-Multipoint (PMP) wireless systems can also provide an attractive solution for mobile network operators seeking to link mobile base stations and controllers in busy downtown areas. What is more, a combined fixed and mobile operator can interconnect both customer sites and cellular base stations using the same fixed broadband wireless system. The Alcatel LMDS range of products meets the need for a broadband PMP wireless system which can be used profitably by both incumbent and new telecom operators, cable TV system operators, and other wireless network providers. Because it is a member of Alcatel’s extensive portfolio of products, it can be deployed as part of a fully integrated network solution which includes: - Synchronous Digital Hierarchy (SDH) / Synchronous Optical Network (SONET) transmission technologies (fiber or radio) and ATM-based services - Narrowband/broadband switches. - Broadband Remote Access Node (RAN). - Cellular/Wireless Local Loop products. - Voice interconnection systems, such as SS7, V5.2 and TR-303 - Fullly integrated Network and Service Management. 1.2 - ALCATEL LMDS MAIN FEATURES The following is a list of the valuable features that the Alcatel LMDS system offers: - Microcellular point-to-multipoint distribution architecture. - Broadband Wireless Network using internal Asynchronous Transfer Mode (ATM) Transport. - Voice, data,IP and integration at very high speeds. - Medium Access Control (MAC) which supports ATM Quality of Service and advanced IP CoS - Efficient packet and voice transport with minimal throughput delay - Dynamic Bandwidth Allocation (DBA) of services “over-the-air” with user definable contracts - Multiple Quality of Service class support - Both single carrier and multiple carrier architecture via cross pole or co-pole radio solutions - Multiple frequency bands, type approved for world-wide use - Sectored base station antennas - High frequency re-use between sectors and cells. - Large global range of downstream channeling: 14 and 28 MHz. - Flexible, high throughput upstream channeling: 3.5 and 7MHz . - Customer site Network Terminations providing: POTS/ISDN switched services, nx64 kbits/s - nxE1/T1 leased lines standard and advanced Ethernet 10BaseT/100BaseT interfaces with Dynamic Bandwidth Allocation - Base Stations, with full redundancy providing network interfaces such as: ATM (OC3/STM1/E3/T3) for data connection and optional n x E1/T1 for services such as telephony orleased lines. - Indoor and outdoor Base Station installations - Advanced support for business-class IP services, for example VLANs, IP service priority, Service Contracts system and support of DiffServ - Advanced Network and Service Management which includes Simple Network Management Protocol (SNMP) based Network Management System (NMS) using HP OpenView and integrated in the advanced Alcatel Management platform. The best interests of both Service Providers and manufacturers are served by implementing well-recognized International standards. Therefore, the system is implemented according to DAVIC standards at the IF level. Alcatel is active in both the ETSI and IEEE working parties for modulation and physical standardization. Future releases of the Broadband Access platform will conform to these standards when harmonized. 2 - ARCHITECTURE 2.1 - GENERAL The Alcatel LMDS is a high capacity, flexible point-to-multipoint broadband wireless solution, designed to meet the requirements of service providers who need to offer a mix of traditional and new exiting high speed services, to a mix of business and residential customers. Broadband wireless is inherently faster to deploy than traditional wireless services and the Alactel LMDS has specifically enhanced features to ensure rapid planning and deployment of both cell sites and customer premises. The advanced Network and Service Management solution offered total end-to-end management with the collection of statistical and billing information. The ability to offer full “flow-through-provisioning” is a key feature in the reduction of operational expense by the service provider, the Alcatel LMDS ensures traditional and new services and applications can be supplied cost effectively, with the minimum of technical and operational staff involved. The Alcatel LMDS has been designed with a highly flexible channel allocation plus supports a wide range of radio frequency variants, either in a cross-polar or co-polar configuration, with very high frequency re-use. This ensures that service providers maximize their investment in the valuable radio spectrum and are assured that initial deployments are cost effective and customer growth can be achieved easily. The Alcatel LMDS enables service providers to cater for the small to medium business user, either in a s…

Text truncated - open the document above for the full version.

Alcatel Canada Inc. 600 March Road, Kanata, Ontario, Canada K2K 2E6 Tel. 613 591 3600 www.alcatel.com RF Radiation Exposure Compliance statement For Alcatel 7390 38GHz Cross-Pol TS Transceiver This equipment ---- Alcatel 7390 38GHz Cross-Pol TS (Terminal Station) Transceiver---- has been tested and calculated in accordance with the requirements of FCC 1.1307(b) and FCC 1.1310. With 35dBi antenna, which is the maximum gain of the antenna supplied with 7390 system cross-pol version, this equipment complies with the FCC RF Radiation Exposure requirement of 5mW/cm 2 (Occupational / Controlled Exposure) and 1 mW/cm 2 (General Population/Uncontrolled Exposure ) at distance of 1meter. Warning statement are provided in the installation Manual, and will be attached on the label of antenna. (For detailed calculation and analysis, please refer to the Appendix). Frank Li Network / Wireless Approvals Specialist Alcatel Canada Inc. Tel: 1-613-7846694 Fax: 1-613-5993642 Email: [email protected] 600 March Road, Kanata OntarioCanadaK2K 2E6 Alcatel Canada Inc. 600 March Road, Kanata, Ontario, Canada K2K 2E6 Tel. 613 591 3600 www.alcatel.com Appendix Analysis of complying with FCC 1.1307(b) ‘Actions that may have a significant environmental effects, for which Environmental Assessments (EAs) must be prepared’ & FCC 1.1310 ‘Radio Frequency Radiation Exposure Limits’ For Alcatel 7390 LMDS 38GHz TS 1. Introduction As per FCC1.1307 (b) table-1, LMDS subscriber transceiver ---- in this case it is Alcatel 7390 LMDS 31GHz TS transceiver ---- shall have a warning label stating minimum safety distance to comply with the RF Radiation Exposure Limit, which is specified in FCC1.1310. In FCC 1.1310, the RF Radiation Exposure Limits of 38GHz are: a).5mW/cm 2 (Occupational / Controlled Exposure) b).1 mW/cm 2 (General Population/Uncontrolled Exposure) And the evaluating method is given in FCC OST/OET Bulletin Number 65---- ‘Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields’ 2.Calculation & Analysis 2.1Near Field (Fresnel Regional) R nf = D 2 / 4
= 0.3  0.3 / 4  0.01 = 2.25 m WhereR nf = extend of near field, D = Maximum dimension of Antenna, 0.3 m (page 22 of Terminal Station user manual)
= Wavelength, 0.01 m @ 38GHz Within Near Field region, the maximum power density is: S nf = 16P / D 2 Alcatel Canada Inc. 600 March Road, Kanata, Ontario, Canada K2K 2E6 Tel. 613 591 3600 www.alcatel.com = 16  0.75  0.05 / 3.14  0.3  0.3 = 2.12 W / m 2 = 0.212 mW/ cm 2 WhereS nf = Maximum near field power density  = Aperture efficiency, typically 0.5 ~ 0.75, 0.75 is the worst case. P = power fed to the antenna. In this case, typical output power of Alcatel 7390 38GHz TS is 17dBm = 0.05 W 2.2Transition Region R ff = 0.6 D 2 /
= 0.6  0.3  0.3 / 0.01 = 5.4 m WhereR ff = distance to beginning of far field D = antenna diameter, 0.3 m
= Wavelength, 0.01 m Within transition region, the power density is: S t = S nf  R nf / R Where S t = power density in the transition region S nf = maximum power density in near field, which is 0.212 mW/ cm 2 . R nf = extent of near field, which is 2.25 m R = distance to point of interest So, the point of interest with maximum power density in transition region will be just at the border of these two regions, where R = R nf Then maximum S t = S nf = 0.212 mW/ cm 2 2.3Far Field Region (Fraunhofer Region) S ff = PG / 4  D 2 WhereS ff = power density in far field region (on axis) P = Power fed to the antenna, which is 0.05 W Alcatel Canada Inc. 600 March Road, Kanata, Ontario, Canada K2K 2E6 Tel. 613 591 3600 www.alcatel.com G = power gain of the antenna in the direction of interest relative to an isotropic radiator, which is 35 dBi = 3162.68 (page 18 of Terminal Station user Manual) D = distance to the point of interest So, in this case, the point of interest with maximum power density in far field region will be at the point where far field region begins (R ff = 5.4m) Then maximum S ff = 0.05  3162.68 / 4  3.14  5.4  5.4 = 0.43 W / m2 = 0.043 mW/cm 2 3.Analysis The above calculation was taken for on axis power density. And because of the highly directional nature of aperture antennas, the likelihood of significant human exposure to RF radiation is considerably reduced. The power densities existing at locations where people may be typically exposed are substantially less than on-axis power density. (Page 26 ~ 27 of Bulletin 65). So, the above-calculated data represents the maximum power density that will be produced by transceiver. 4.Conclusion: Base on the above calculation and analysis, Alcatel 7390 LMDS 38GHz TS complies with the FCC 1.1307(b) and FCC 1.1310. The maximum power density across far field, transition field, near field is 0.212 mW/cm 2 , which is less the Radiofrequency Radiation Exposure Limit of 1 mW / cm 2 and 5 mW / cm 2 . For the safety side, we claim “never pass closer then 1m (3 ft) in front of an operating X-Pol RT’ (page 9 of Terminal Station User Manual). A following warning statement will be included in the label attached to transceiver antenna.

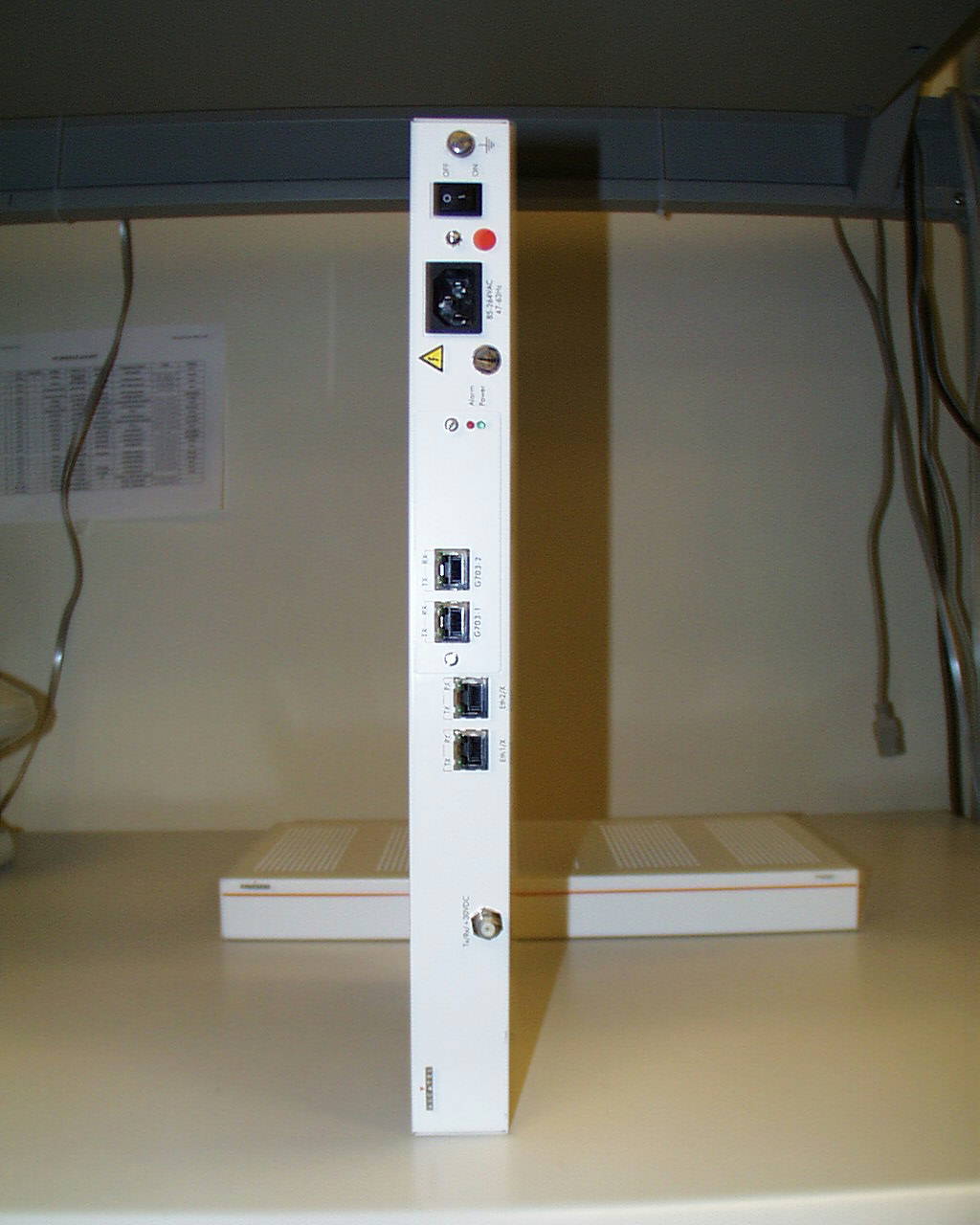

Alcatel Canada Inc.59ET0034 Issued Version 1.0Last Revised: 2001.09.24Page 1 of 65 This document contains Confidential Information of Alcatel. \ Network Approvals Test Report Author:Frank Li Network Attachment Test Report For38GHz Cross-Pol Terminal Station Including 90 –7164 -0138GHz Cross-Pol RT (M/A-Com Radio) 3CC10329 ACxxNT (2 x Ethernet) 3CC10329 AExxNT (2 x Ethernet + 2 x T1) 3CC12568AAAAIGAU Tested in7390 LMDS Release 2.2B Tested toFCC Part 101, Subpart C Test Dated:6 th May 2001 ~ 26 th June 2001 Alcatel Canada Inc.59ET0034 Issued Version 1.0Last Revised: 2001.09.24Page 2 of 65 This document contains Confidential Information of Alcatel. APPROVALS Vito Scaringi Manager, Network & Regional Compliance Group Alcatel Canada Inc.59ET0034 Issued Version 1.0Last Revised: 2001.09.24Page 3 of 65 This document contains Confidential Information of Alcatel. NOTICE The electronically reviewed softcopy is held in Product Development Technical Library. When printed this document is uncontrolled. This document contains confidential information, which is proprietary to Alcatel. No part of its contents may be used, copied, disclosed or conveyed to any party in any manner whatsoever without prior written permission from Alcatel. Alcatel and MainStreet are trademarks of Alcatel. © Copyright 1999-2001 Alcatel, All Rights Reserved Alcatel Canada Inc.59ET0034 Issued Version 1.0Last Revised: 2001.09.24Page 4 of 65 This document contains Confidential Information of Alcatel. MANDATORY REVIEWERS The following people or an authorized delegate must review this document: 1) Manager: Network and Regional Compliance. INTERESTED PARTIES The following people must be notified of the final review of this document but are not required to attend the review; 1) Director of Product Integrity 2) All Approvals Groups' staff Alcatel Canada Inc.59ET0034 Issued Version 1.0Last Revised: 2001.09.24Page 5 of 65 This document contains Confidential Information of Alcatel. ABSTRACT This document provides the test procedure and test report used to fulfill the requirements of the Network Approvals Group personnel and the product designers to 38GHZ CROSS-POL TERMINAL STATION during Network Approvals testing. The test data contained in this report is evidence of compliance to specified Network standards for the units described herein. Alcatel Canada Inc.59ET0034 Issued Version 1.0Last Revised: 2001.09.24Page 6 of 65 This document contains Confidential Information of Alcatel. GLOSSARY AMDATM Modulator Demodulator, ATM modem cards in 7390 base station. ANSAAlcatel Networks SA (Alcatel France) ANSIAmerican National Standards Institute ANTATM Network Termination, OC3/STM-1 interface card in 7390 base station BSBase Station. The Centre office unit, it is the combination of DBS and RBS. CTRCommon Technical Regulation DBSDigital Base Station. The indoor unit of 7390 base station, it is a combination of chassis, TNT, ANT, AMD, IBS etc. ETSEuropean Telecommunications Standard ETSIEuropean Telecommunications Standard Institute FCCFederal Communications Commission EN European Standard EUT Equipment Under Test IBSIntermediate frequency Base Station, IF turner card in 7390 base station ICIndustry Canada (formerly DOC) IEC International Electrotechnical Commission ITUInternational Telecommunications Union ITU-RInternational Telecommunications Union, Ra…

Text truncated - open the document above for the full version.
