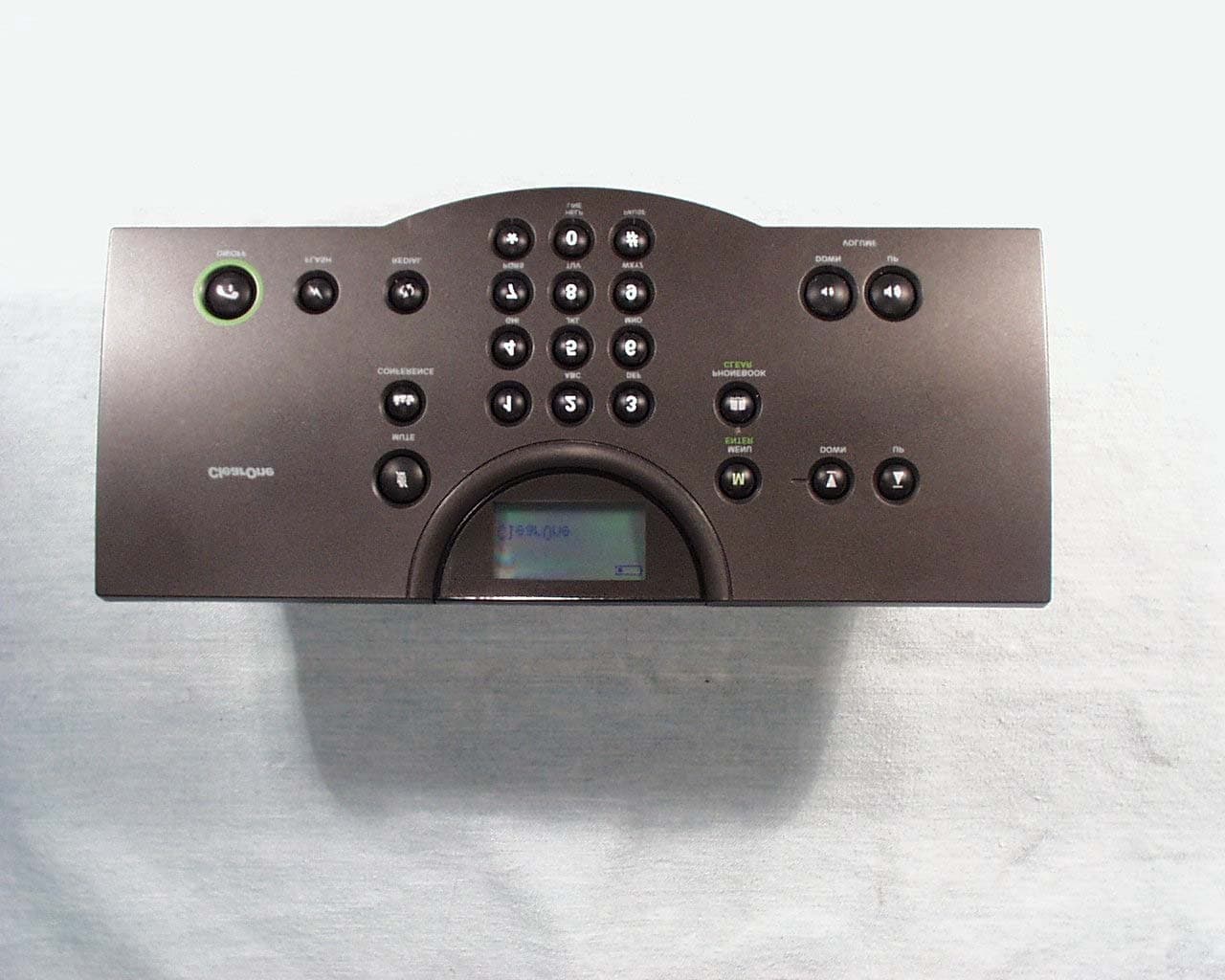

FBIRAV1ClearOne Communications RAV 600/900 Controller

ClearOne Communications, Inc. ~ 1825 Research Way, Salt Lake City, UT 84119 ~ tel 1-800-945-7730 ~ fax 1-800-933-5107 RAV 600/900 User Manual iii Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760 RAV — Table of Contents ii Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii The RAV 600/900 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Basic Room Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Connecting the RAV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13Basic Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Auxiliary Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 RAV-Ware Software Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Configuring System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31Customizing RAV Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35Line Input and Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38Record and Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40Camera Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Dialer and Phonebook Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43Advanced Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46Using the RAV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51Using the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2 Programming Phone Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70 Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74 Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112 © 2004 ClearOne Communications, Inc. All rights reserved. No part of this document may be reproduced in anyform or by any means without written permission from ClearOne Communications. Printed in the United Statesof America. ClearOne Communications reserves specific privileges. Information in this document is subject tochange without notice. RAV 600/900 Installation and Operation ManualClearOne Part No. 800-153-001 November 2004 Table of Contents Introduction 1 Introduction — The RAV 600/900 3 Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760 UnpackingCarefully remove all components of the RAV system from the packaging. Ensure that youreceived the following items:RAV 600/900 Note : Rack mount ears come attached to the Mixer box. Refer to installation instructions for more information. If any parts are missing, please call the Technical Support Group at 1-800-283-5936 (USA) or 1-801-974-3760. Note : ClearOne is not responsible for product damage incurred during shipment. You must make claims directly with the carrier. Inspect your shipment carefully for obvious signs of damage. If the shipment appears damaged, retain the original boxes and packing material forinspection by the carrier. Contact your carrier immediately. Introduction — The RAV 600/900 2 Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760 The RAV product line is the first out-of-the-box room audio conferencing solution with thesound quality and flexibility of a professionally installed system. The RAV includes an audioconferencing mixer that uses distributed acoustical echo cancelling technology to provide themost intelligible full duplex audio conference experience available. Features include:• Audio mixer for high quality audio performance in all acoustical environments.• Internal telephone hybrid with touch-tone dialing capability, call controls including auto-answer, flash duration adjustment, ringer adjustment and phonebook with speed dialcapabilities • Microphone pods provide 360º audio pickup so every participant within the micropho…

Text truncated - open the document above for the full version.

November 5, 2004 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality FCC ID:FBIRAV1 To Whom It May Concern: In accordance with § 0.459 of CFR 47, ClearOne Communictions requests confidentiality for the following items: 1. Block Diagram (Exhibit 4) 2. Schematic Diagrams (Exhibit 5) 3. Technical Description Required for § 2.1033 (c) (Exhibit 12) These items contain detailed system and equipment description and related information about the product which ClearOne Communictions considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, ClearOne Communictions also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best Regards, Roger J. Midgley Project Manager

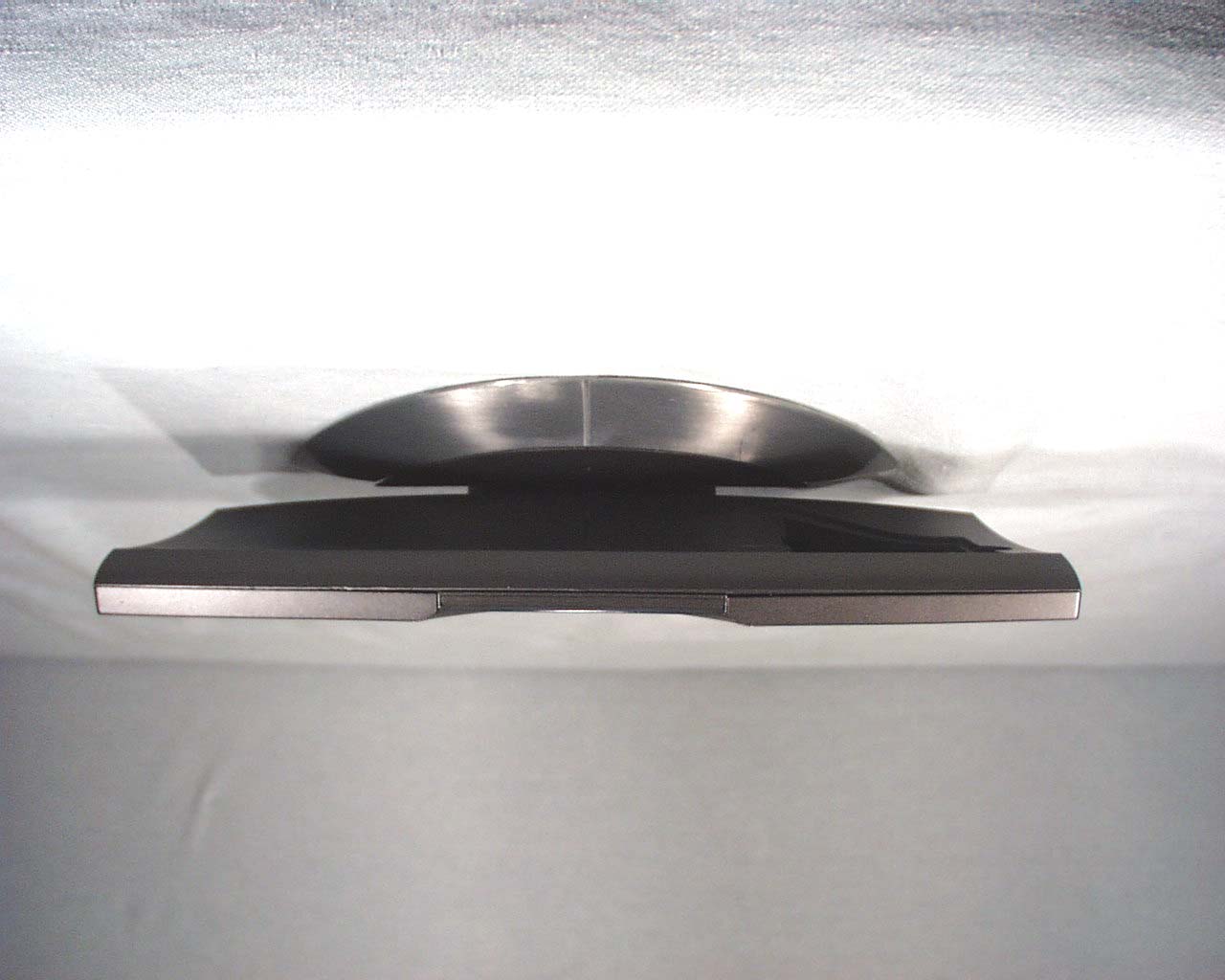

Back View of the EUT

Inside View of the EUT Trace Side of the EUT PC Board

TEST REPORT FROM: COMMUNICATION CERTIFICATION LABORATORY 1940 W. Alexander Street Salt Lake City, Utah 84119-2039 Type of Report: Certification TEST OF: RAV 900 & RAV 600 Controller FCC ID: FBIRAV1 To FCC PART 15, Subpart C Section 15.249 Test Report Serial No: 73-8006 Applicant: ClearOne Communications, Inc. 1825 Research Way Salt Lake City, UT 84119 Date(s) of Test: October 26-27, 2004 Issue Date: November 15, 2004 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8006 FCC ID: FBIRAV1 Page 2 of 28 CERTIFICATION OF ENGINEERING REPORT This report has been prepared by Communication Certification Laboratory to determine compliance of the device described below with the certification requirements of FCC Part 15, Subpart C Sections 15.249. This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. - Applicant: ClearOne Communications, Inc. - Manufacturer: ClearOne Communications, Inc. - Trade Name: ClearOne - Model Number: RAV 900 & RAV 600 Controller - FCC ID: FBIRAV1 On this 15 th day of November 2004, I, individually, and for Communication Certification Laboratory, certify that the statements made in this engineering report are true, complete, and correct to the best of my knowledge, and are made in good faith. Although NVLAP has recognized that the Communication Certification Laboratory EMC testing facilities are in good standing, NVLAP does not endorse the product described in this report. COMMUNICATION CERTIFICATION LABORATORY Tested by: Jeffrey L. Draney EMC Technician COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8006 FCC ID: FBIRAV1 Page 3 of 28 TABLE OF CONTENTS SECTION 1.0 CLIENT INFORMATION ................................................................................4 SECTION 2.0 EQUIPMENT UNDER TEST (EUT)................................................................5 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES ............................6 SECTION 4.0 OPERATION OF EUT DURING TESTING.................................................10 SECTION 5.0 SUMMARY OF TEST RESULTS ..................................................................11 SECTION 6.0 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS ........12 APPENDIX A TEST PROCEDURES AND TEST EQUIPMENT .......................................20 APPENDIX B PHOTOGRAPHS:............................................................................................24 COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8006 FCC ID: FBIRAV1 Page 4 of 28 SECTION 1.0 CLIENT INFORMATION 1.1 Client Information: Company Name: ClearOne Communications, Inc. 1825 Research Way Salt Lake City, UT 84119 Contact Name: Roger Midgley Title: Project Manager 1.2 Manufacturer: Company Name: ClearOne Communications, Inc. 1825 Research Way Salt Lake City, UT 84119 Contact Name: Roger Midgley Title: Project Manager COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8006 FCC ID: FBIRAV1 Page 5 of 28 SECTION 2.0 EQUIPMENT UNDER TEST (EUT) 2.1 Identification of EUT: Trade Name: ClearOne Model Name or Number: RAV 900 & RAV 600 Controller Serial Number: N/A Options Fitted: N/A Country of Manufacture: USA 2.2 Description of EUT: The RAV product line is a complete audio conferencing system that fits a broad range of applications. RAV is available in two models, RAV 600 and RAV 900, and is designed for use in medium to large conference rooms. RAV 600 includes an audio mixer with an integrated telephone interface and amplifier, two RAV microphone pods (comprised of three microphones each), two Bose® ceiling (FreeSpace model 16) or wall-mount speakers (model 161), a wireless control unit for dialing functions (902-928 MHz for North America & 868-870 MHz for Europe) and RAV-Ware software. The RAV 900 adds an extra microphone pod to deliver optimal voice pickup in larger rooms. The RAV 600’s main board is a short stuffed version of the fully populated RAV 900; therefore, the RAV 900 was tested as representative of both units. The RAV 900 uses a TI 6901 RF chipset to communicate between the controller and the mixer. The RAV 900 Controller uses an antenna built into the PC board. This report covers the radio portion of the device only. The digital portion of the EUT is covered under a separate Verification report. 2.3 Modification Incorporated/Special Accessories on EUT: There were no modifications or special accessories required to comply with the specification. Signature: Typed Name: Roger Midgley Title: Project Manager COMMUNICATION CERTIFICATION LABORATORY TEST REPORT: 73-8006 FCC ID: FBIRAV1 Page 6 of 28 SECTION 3.0 TEST SPECIFICATION, METHODS & PROCEDURES 3.1 Test Specification: Title: FCC PART 15, Subpart C (47 CFR 15). Section 15.249 Operation within the bands 902-928 MHz, 2400- 2483.5 MHz, 5725-5875 MHz and 24.0-24.25 GHz. Purpose of Test: The tests were performed to demonstrate Initial compliance. 3.2 Methods & Procedures: 3.2.1 § 15.249 (a) The field strength of emissions from intentional radiators operated within these frequency bands shall comply with the following: Fundamental frequency Field strength of fundamental (millivolts/meter) Field strength of harmonics (microvolts/meter) 902 – 902 MHz 50 500 2400 – 2483.5 MHz 50 500 5725 – 5875 MHz 50 500 24.0 – 24.25 GHz 250 2500 (b) Fixed, point-to-point operation as referred to in this paragraph shall be limited to systems employing a fixed transmitter transmitting to a fixed remote location. Point-to- multipoint systems, omnidirectional applications, and multiple co-located intentional radiators transmitting the same information are not allowed. Fixed, point-to-point operation is permitted in the 24.05-24.25 GHz band subject to the following conditions: (1) The field strength of emissions in this band shall not exceed 2500 millivolts/meter. (2) The frequency tolerance of the carrier signal shall be maintained within [plusmn]0.001% of the operating frequency ov…
