GAFFRS-CS14Family Radio Transceiver

D:\Ready_To_Convert\Doc\151069.DOC TIMCO TIMCOTIMCO TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] 22 May 2001 Mr. Frank Coperich FCC SUBJECT: COLUMBIA TELECOMMUNICATIONS GROUP Inc. FCCID: GAFFRS- CS14 REFERENCE: EA99585 Mr. Coperich, 1. Attached you will find a corrected 731 form that indicates the correct power of 250mW. 2. Also you will find radiated emissions on the transmitter done by the substitution method. 3. Also we have attached a warning statement that will be added to the user manual. If you have any further questions please let us know. Best Regards, Sid Sanders

COLUMBIA TELECOMMUNICATIONS GROUP, INC. FCC ID: GAFFRS-CS14 JOB #: 487ZH0

RF Exposure Safety Statements For Family Radios SAFETY INFORMATION Your wireless handheld portable transceiver contains a low power transmitter. When the Push-to Talk (PTT) button is pushed it sends out radio frequency (RF) signals. This device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. CAUTION: To maintain compliance with the FCC’ s RF exposure guidelines, hold the transmitter and antenna at least 2 inches (5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away from the face. If you wear the handset on your body while using the headset accessory, use only the manufacturers supplied belt clip for this product and ensure that the antenna is at least 2 inches (5 centimeters) from your body when transmitting. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. If body-worn separation distance is less than 2 inches (5 cm):

C_ctcm1.sch-1 - Wed Dec 06 09:36:07 2000

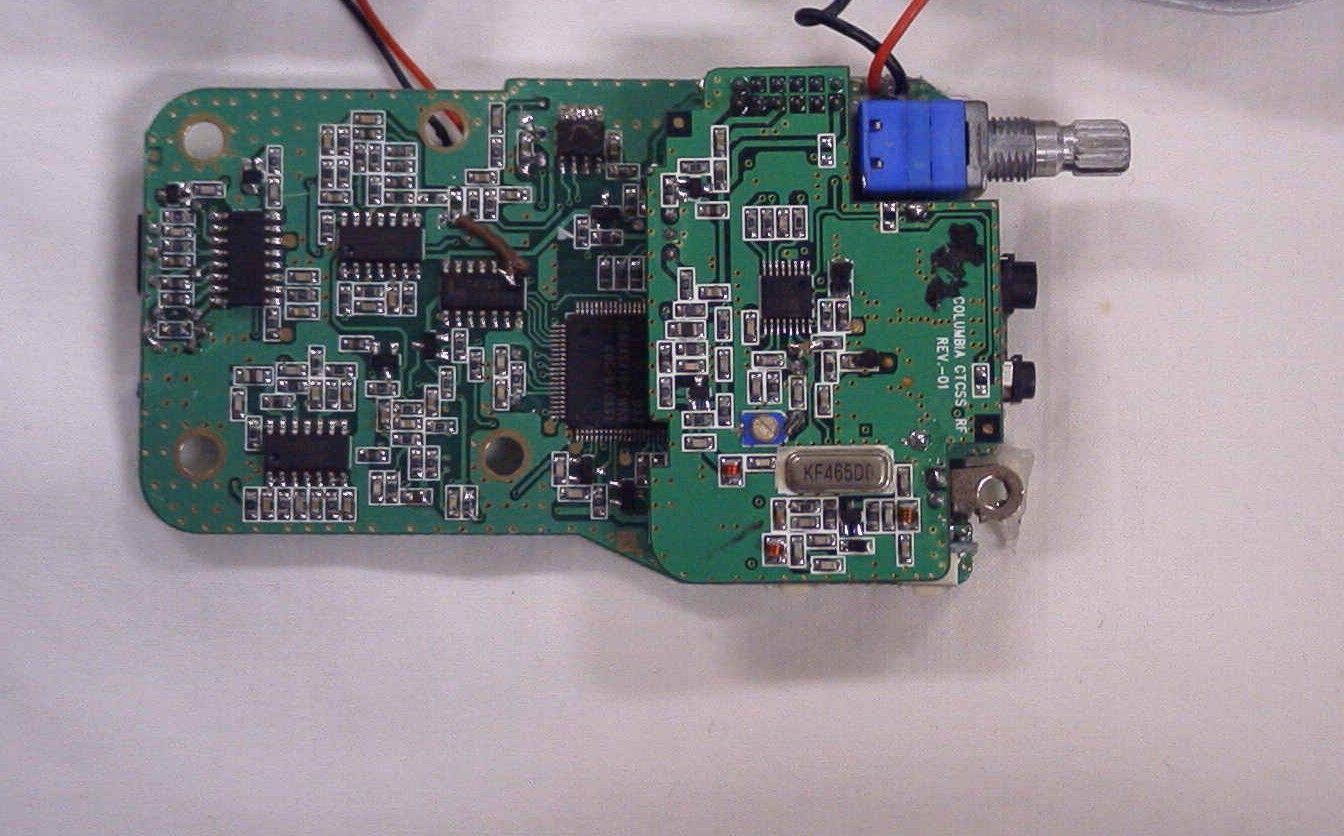

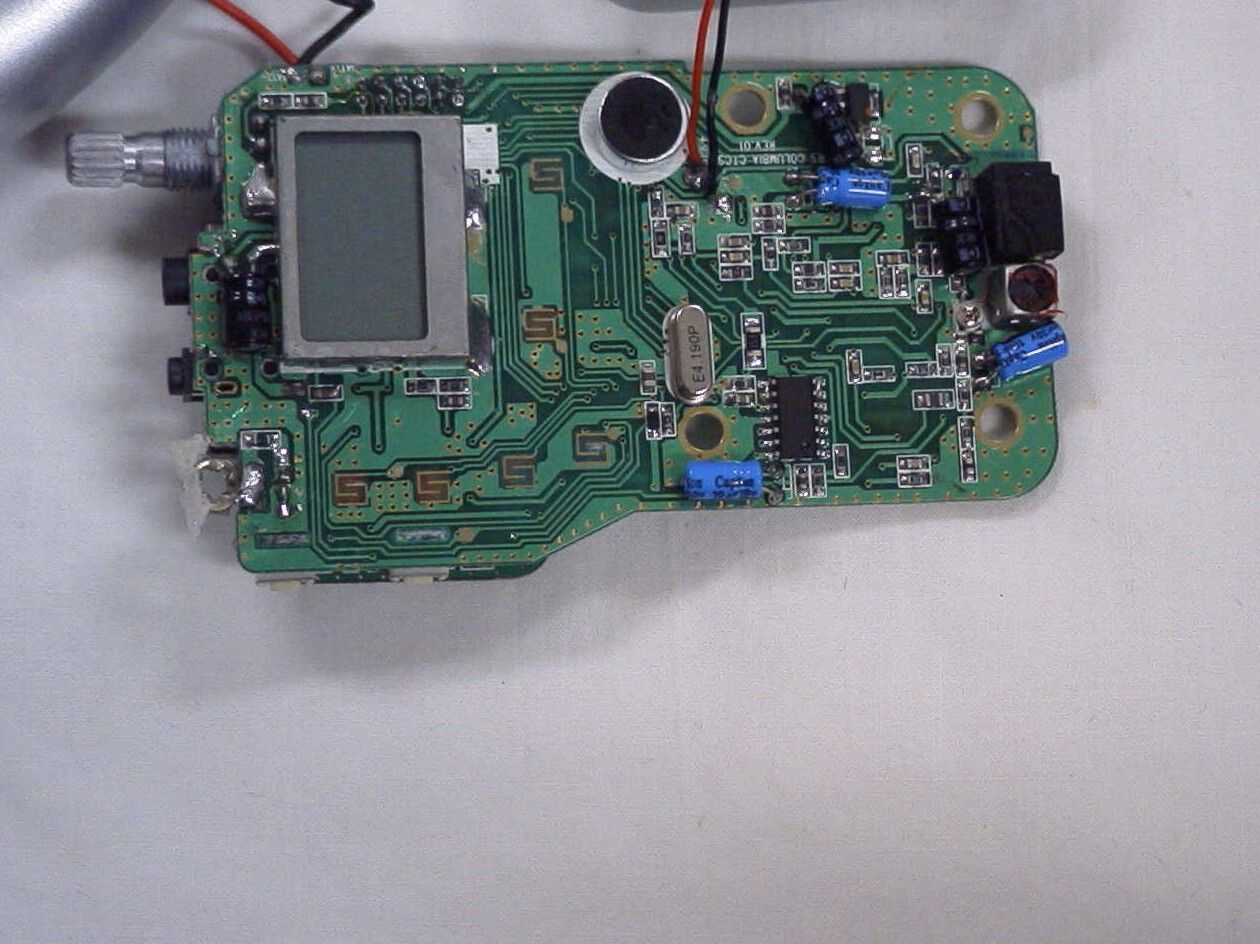

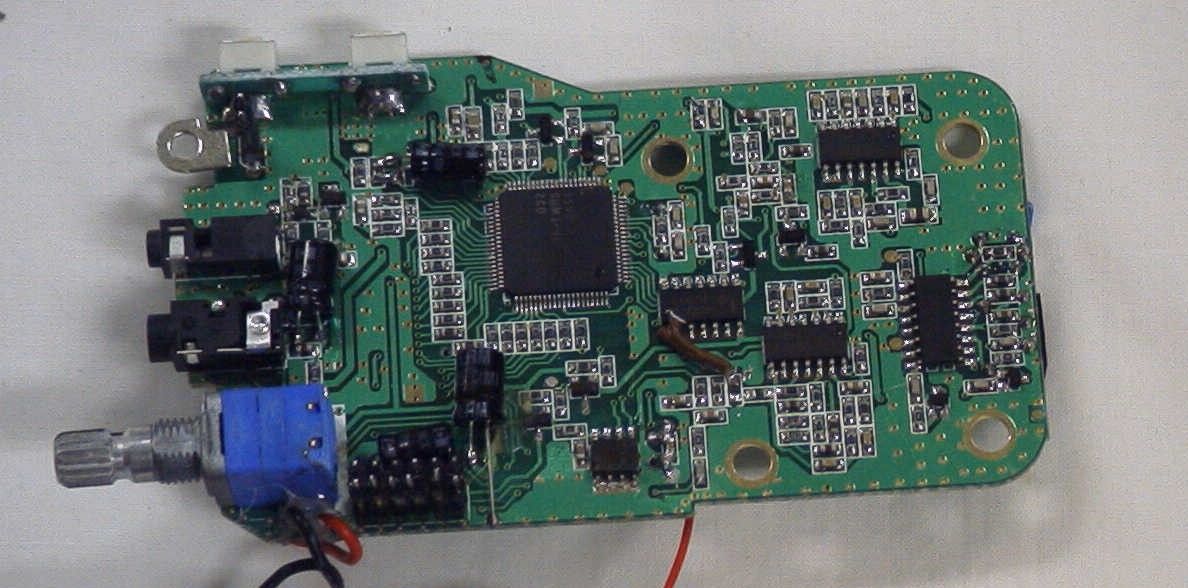

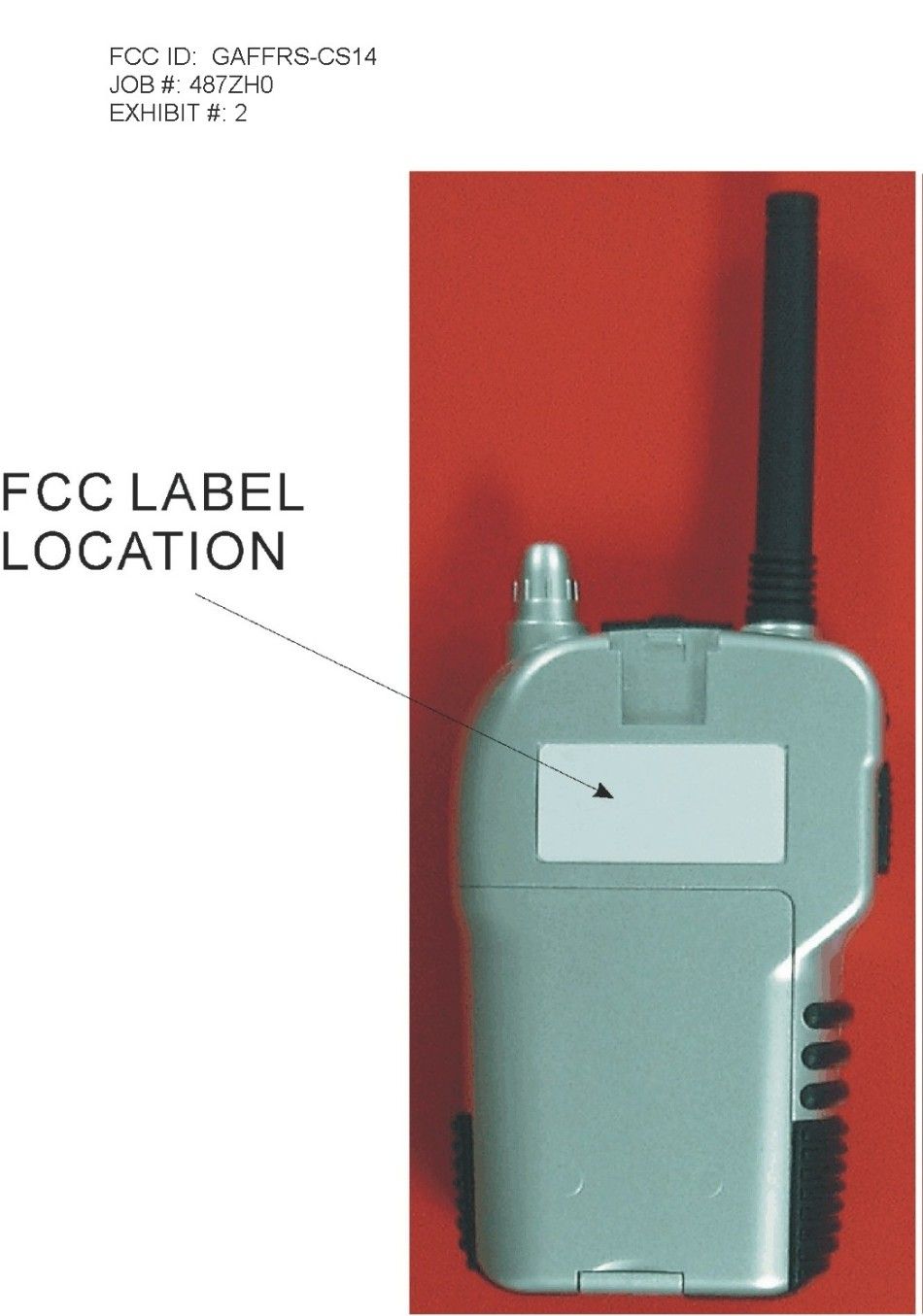

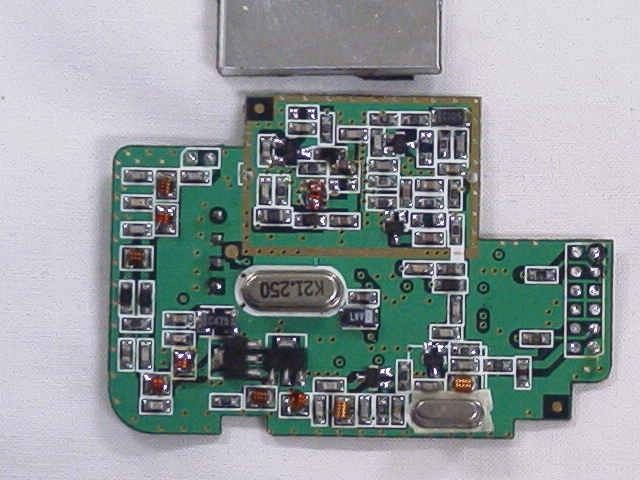

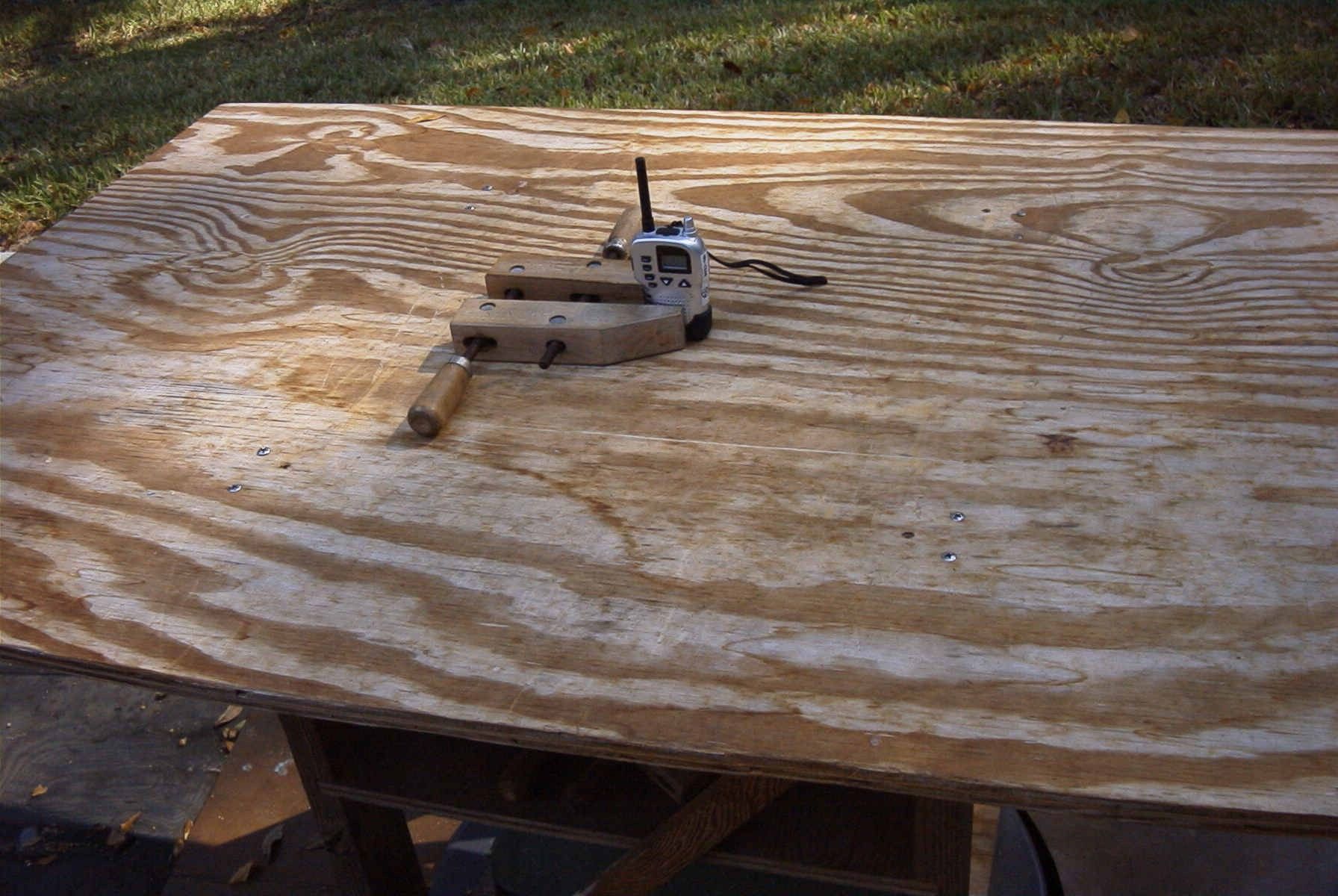

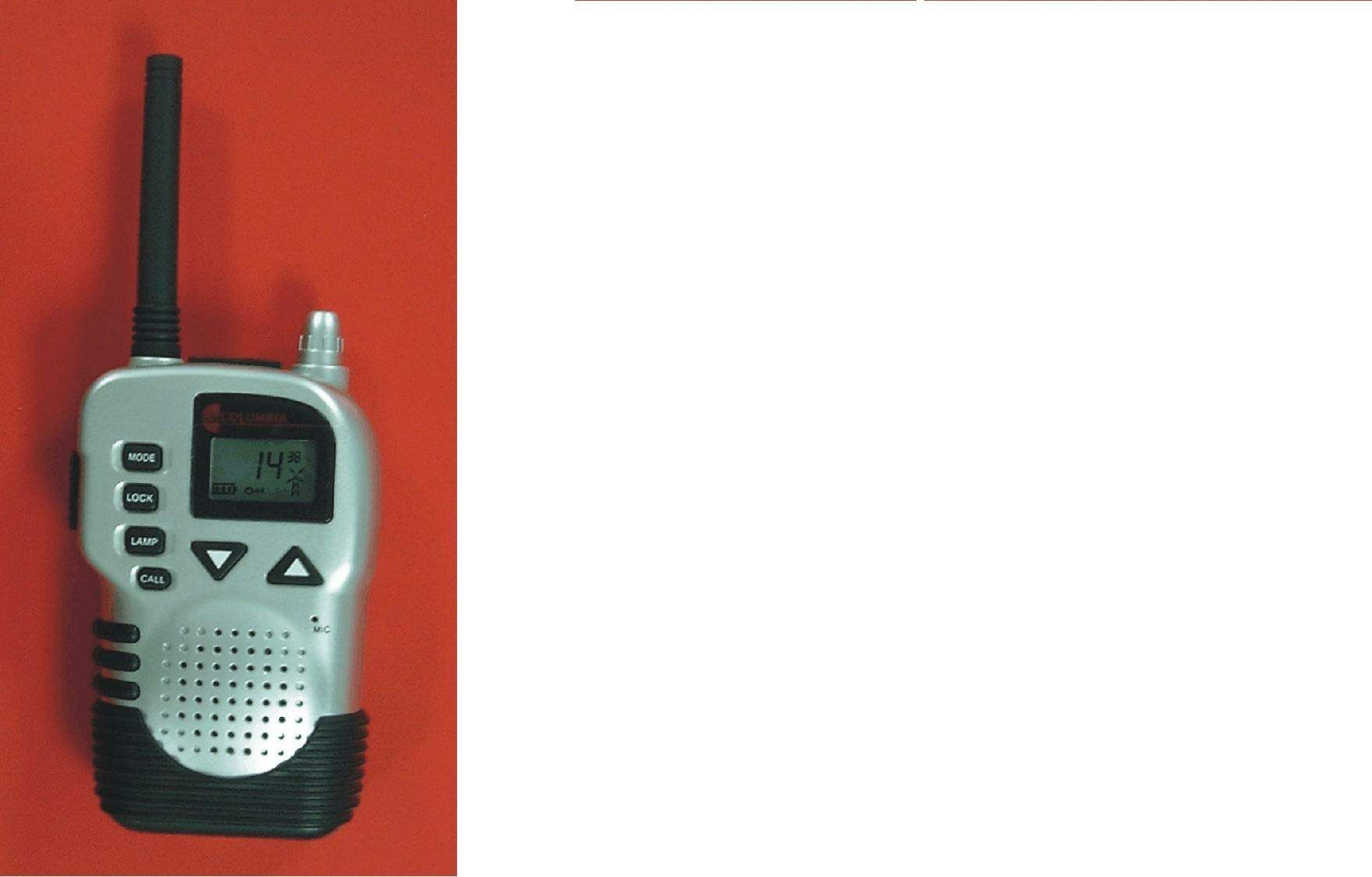

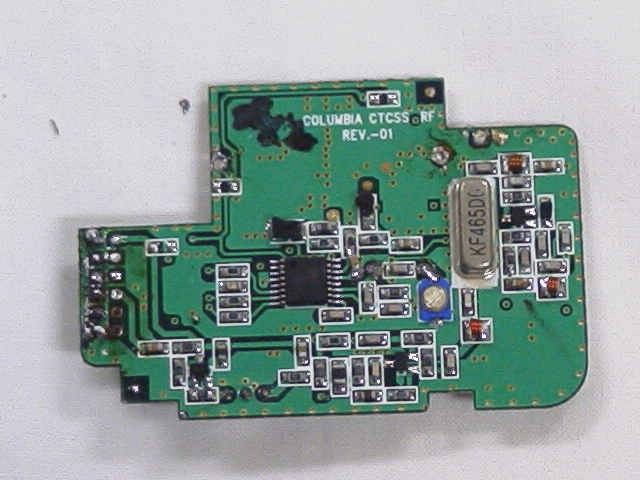

TABLE OF CONTENTS LIST APPLICANT: COLUMBIA TELECOMMUNICATIONS GROUP, INC. FCC ID: GAFFRS-CS14 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS AND OCCUPIED BANDWIDTH PAGE 4......METHOD OF MEASURING OCCUPIED BANDWIDTH PAGE 5......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 5......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 6......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 7......FREQUENCY STABILITY PAGE 8......LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 3A........EXTERNAL PHOTO - FRONT VIEW EXHIBIT 3B........EXTERNAL PHOTO - REAR VIEW EXHIBIT 3C-3D.....INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 3E........INTERNAL PHOTO - SOLDER SIDE EXHIBIT 3F........INTERNAL PHOTO - COMPONENT SIDE - SMALL BOARD EXHIBIT 3G........INTERNAL PHOTO - SOLDER SIDE - SMALL BOARD EXHIBIT 4.........TEST SET UP PHOTO EXHIBIT 5.........BLOCK DIAGRAM EXHIBIT 6A........SCHEMATIC - MAIN EXHIBIT 6B........SCHEMATIC - RF EXHIBIT 7.........USER'S MANUAL EXHIBIT 8.........CIRCUIT DESCRIPTION EXHIBIT 9.........TUNING PROCEDURE EXHIBIT 10........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 11A.......MODULATION LIMITING PLOT - 300 Hz EXHIBIT 11B.......MODULATION LIMITING PLOT - 1000 Hz EXHIBIT 11C.......MODULATION LIMITING PLOT - 3000 Hz EXHIBIT 12........AUDIO LOW PASS FILTER GRAPH EXHIBIT 13........OCCUPIED BANDWIDTH CW PLOT EXHIBIT 14........OCCUPIED BANDWIDTH PLOT - 2500 Hz TONE APPLICANT: COLUMBIA TELECOMMUNICATIONS GROUP, INC. FCC ID: GAFFRS-CS14 REPORT #: T:\CUS\C\COLUMBIA\487ZH0\487zh0rpt.doc PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.1033(c)(1)(2)COLUMBIA TELECOMMUNICATIONS GROUP, INC. will manufacture the FCCID: GAFFRS-CS14 FAMILY RADIO SERVICES 14 CHANNEL TRANSCEIVER in quantity, for use under FCC RULES PART 95. The UUT is a PTT Radio with a maximum duty cycle of 50%. COLUMBIA TELECOMMUNICATIONS GROUP, INC. 395 ATLANTIC AVENUE EAST ROCKAWAY, NY 11518 USA 2.1033 (c) TECHNICAL_DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 7. 2.1033(c) (4) Type of Emission: 10K0F3E 95.629 Bn = 2M + 2DK M = 3000 D = 2.0K Bn = 2(3.0)+2(2.0) = 10.0K Authorized Bandwidth 12.5KHz 2.1033(c)(5) Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.1033(c)(6)(7) Power Output shall not exceed 0.500Watts effective 95.637 radiated power. There can be no provisions for 95.647 increasing the power or varing the power. The Maximum Output Power Rating: 400 milliWatts effective radiated power. 95.645 The antenna is an intergral part to the unit, it cannot be removed without rendering the unit inoperative. In order to remove the antenna the case must unscrewed, then the PCB assemblies must be removed then the antenna can be removed. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 4.5 Volts DC Ice = 0.12A. Pin = 0.54 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included 9. REPORT T:\CUS\C\COLUMBIA\487ZH0\487zh0rpt.doc PAGE #: 1 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6A-6B of this report. The block diagrams are included as EXHIBIT 5 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included as exhibit No. 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields - See EXHIBIT 3A-3G. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046(a) RF_power_output. 95.637 RF power is measured by measuring the radiated power at 3 meters and then replacing the transmitter with a signal generator to determine the effective radiated power. The ERP shall not exceed 0.500 Watts. MEASURED POWER OUTPUT = 400 milliWatts ERP R.F. POWER OUTPUT HP TEST SET UP Spectrum Analyzer /-------\ /-----------------\ | | | | TRANSMITTER | | | | | UNDER TEST WITH | \--| | | INTERNAL ANTENNA| | | | \-----------------/ | | | | | \-------/ | | |<-- 3.0 meters-->| /-------------\ | SIGNAL | DIPOLE | Tuned, Calibrated | GENERATOR | ANTENNA | Antenna which may | |----------/ be raised from 1 \-------------/ to 4 meters above ground and changed in polarization Equipment placed 1 meter above ground on a rotatable platform. APPLICANT: COLUMBIA TELECOMMUNICATIONS GROUP, INC. FCC ID: GAFFRS-CS14 REPORT #: T:\CUS\C\COLUMBIA\487ZH0\487zh0rpt.doc PAGE #: 2 2.1047(a)(b) Modulation_characteristics: AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See Exhibit 10. 2.1047(b) Audio_input_versus_modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 3000 Hz. See Exhibit 11A-11C. 95.635(b) Post Limiter Filter The filter must be between the modulation limiter and the modulated stage. At any frequency between 3 & 20KHz the filter must have an attenuation of 60log (f/3) greater that the attenuation at 1KHz. See Exhibit 12. 2.989(c) EMISSION BANDWIDTH: 95.633(b)(1)(3)(7) Data in the plots shows that the sidebands from greater than 50% to 100% of the authorized bandwidth must be attenuated…

Text truncated - open the document above for the full version.

Columbia Telecommunications Group, Inc. FRS-CS14 0 2 4 6 8 10 12 14 16 18 20 100100010000 Frequency rms mVolts audio response COLUMBIA TELECOMMUNICATIONS GROUP, INC. FCC ID: GAFFRS-CS14 JOB #: 487ZH0 EXHIBIT #: 10

Modulation Limiting Columbia Telecommunications Group, Inc. FRS-CS14 0 500 1000 1500 2000 0 20406080100 rms mVolts Deviation 300 Hz COLUMBIA TELECOMMUNICATIONS GROUP, INC. FCC ID: GAFFRS-CS14 JOB #: 487ZH0 EXHIBIT #: 11A

Modulation Limiting Columbia Telecommunications Group, Inc. FRS-CS14 0 500 1000 1500 2000 05101520 rms mVolts Deviation 1000 Hz COLUMBIA TELECOMMUNICATIONS GROUP, INC. FCC ID: GAFFRS-CS14 JOB #: 487ZH0 EXHIBIT #: 11B

Modulation Limiting Columbia Telecommunications Group, Inc.gy Co., LTD. FRS-CS14 0 500 1000 1500 2000 051015 rms mVolts Deviation 3000 Hz COLUMBIA TELECOMMUNICATIONS GROUP, INC. FCC ID: GAFFRS-CS14 JOB #: 487ZH0 EXHIBIT #: 11C

                  !" # # $%& '( )* $+ ,- . / 0 12 3 45 6 78 9 :; < => ? @A B CDDCD EF GH IJ KL MN OP QR ST UV WX YZ [\ ]^ _` ab cd ef g f h f i f j f ek f e i f g k f lm no p nq rs tu v w x yz{ | }~  € ‚ƒ„ … „ † ‡ˆ‰ ‰ Š‹ŒŽ  ‘ ’“ ”•– —˜™ š –› ™ ˜

Timco Engineering, Inc. TCB Application Form 731 Rev 001201 Shaded areas are REQUIRED Item 1. Applicant’s complete, legal business name: Columbia Telecommunications Group, Inc. Applicant’s FCC Registration Number (FRN): Item 2. Applicant’s mailing address: fill in fields, as appropriate Line 1: 395 Atlantic Avenue Line 2: P.O. Box: City: East Rockwaway State: NY Country (if foreign address): Zip/Postal Code: 11518 Item 3. FCC ID, consisting of: Grantee Code: GAF Equip. Product Code (14 characters maximum): FRS-CS14 Item 4. Person to receive grant: fill in fields, as appropriate First Name: Mario Mail Stop: Last Name: de AranzetaTelephone: 888-472-2424 Title: EngineerFax No.: 352-472-2030 E-mail: [email protected] Item 5. Test Firm Contact (if different then applicant): fill in fields, as appropriate Firm Name: Timco Engineering, Inc. Telephone: 888-472- 2424 Ext: Fax: No.: 352-472-2030 First Name: Mario Middle Initial: R Last Name: de Aranzeta Address Line 1: 849 N.W. State Road 45P.O. Box: P.O. Box 370 Address Line 2: City: NewberryState: FL Country (if foreign address): Zip/Postal Code: 32669 E-mail: [email protected] Item 6a. Name of Test Firm and Contact Person on file with the FCC: Timco Engineering, Inc. Item 6b. * If application is for Part 15 or 18 then FCC Registered Test site number is required: 95517 Item 7. Non-Technical Contact if Different: Firm Name: Timco Engineering, Inc. Telephone: 888-472- 2424 Ext.: Fax No.: 352-472-2030 First Name: Sharon Middle Initial:A Last Name: Hoffman Address Line 1: 849 N.W. State Road 45P.O. Box: P.O. Box 370 Address Line 2: City: NewberryState:FL Country (if foreign address): Zip/Postal Code: 32669 E-mail: [email protected] Item 8 . * Does this application include a request for confidentiality for any portion(s) of the date contained in this application pursuant to 47 CFR 0.459 of the Commission Rules? Yes No For Timco Use Only Job Number Scope Date Filed Conf. # Grant Note Item 9. Equipment Class: 3-digits required FRF Description of Product as it is marketed: Family Radio Transceiver Item 10. *Application is for: Original Equipment Change in identification of presently authorized equipment: Original FCC ID Grant Date (MM/DD/YYYY) Class II permissive change or modification of presently authorized equipment Item 11. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marked with, another device that requires an equipment authorization? If either of the above questions is answered “Yes” complete section 11 (c). Yes No Yes No (c) The related application: has been granted under the FCC ID listed to the right is in the process of being filed under the FCC ID listed to the right is pending with the FCC under the FCC ID listed to the right FCC ID * Equipment will be operated under FCC Rule Part(s): 95 Item 12. EQUIPMENT SPECIFICATIONS: Where applicable Frequency range in MHzRated RF power output IN WATTS Frequency tolerance %, Hz, ppm Emission Designator (See 47 CFR 2.201 and 2.202) Microprocessor model number 462.5625467.7125.250.00025%10KOF3E Read each certification carefully before answering and signing this application WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND/OR IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTRUCTION PERMIT (U.S. CODE, TITLE 47, SECTION 312 (a) (1)), AND/OR FORFEITURE ( U.S. TITLE 47, SECTION 503). Item 13. SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a “party” for these purposes. Does this applicant or authorized agent so certify? Yes No Item 14. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization issued by the TCB, under the authority of the FCC, as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. Authorizing an agent to sign this application, is done solely at the applicant’s discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above Section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. *Signature of Authorized Applicant: Mario R. de Aranzeta Title of Authorized Signature: Engineer Complete items below if an agent signs the application Firm Name: Timco Engineering, Inc. Telephone: 888-472-2424 Ext.: Fax No.: 352-472-2030 First Name: MarioMiddle Initial: RLast Name: de Aranzeta Address Line 1: 849 N.W. State Road 45P.O. Box: 370 Address Line 2: City: Newberry State: FL Country (if foreign address): Zip/Postal Code: 32669 NOTE: An asterisk ‘*’ preceding a field indicates…

Text truncated - open the document above for the full version.

2.1051 Not Applicable, no antenna terminal allowed. 2.1053 UNWANTED_RADIATION: 95.635(b)(7) REQUIREMENTS: Emissions must be attenuated by at least the following below the output of the transmitter. 43 + 10log(TP) = 43 + 10log(0.5) = 40.00dB TEST DATA: EMISSION FREQ. ATT. MARGIN MHz dB dB 462.0 0.00 925.20 44.44 1387.80 47.29 1850.0 55.71 2313.0 46.08 2775.60 61.05 3238.80 65.73 3700.80 52.50 4163.40 49.30 4626.00 58.88 MARGIN = (Field strength of Fund - 40dB) - FS OF EMISSION METHOD OF MEASUREMENT: The procedure used was TIA/EIA STANDARD 603 using the substitution method. The spectrum was scanned from 30 to at least the tenth harmonic of the fundamental using a HP model 8566B spectrum analyzer, and an appropriate antenna - see the equipment list. Meas- urements were made at the open field test site of TIMCO ENGINEERING INC. located at 849 N.W. State Road 45, Newberry, FL 32669. APPLICANT: COLUMBIA TELECOMMUNICATIONS GROUP, INC. FCC ID: GAFFRS-CS14 REPORT #: T:\CUS\C\COLUMBIA\487ZH0\487zh0rpt.doc PAGE #: 5 2.1053 UNWANTED_RADIATION: 95.631(b)(8)(9) Method of Measuring Radiated Spurious Emissions Hewlett Packard Spectrum Analyzer HP8566B /-----------\ /----------------\ /----\ | | | | | | | |TRANSMITTER|-------|INTEGRAL ANTENNA| \-----| | | UNDER TEST| | | | | \-----------/ \----------------/ \----/ | | | | | | | |<- 3.0m ----->| | | Tuned, Calibrated | Antenna which may /--------------\ be raised from 4 | | to 20' above ground |POWER SUPPLY | and changed | | in polarization \--------------/ Equipment placed 4' above ground on a rotatable platform. APPLICANT: COLUMBIA TELECOMMUNICATIONS GROUP, INC. FCC ID: GAFFRS-CS14 REPORT #: T:\CUS\C\COLUMBIA\487ZH0\487zh0rpt.doc PAGE #: 6
