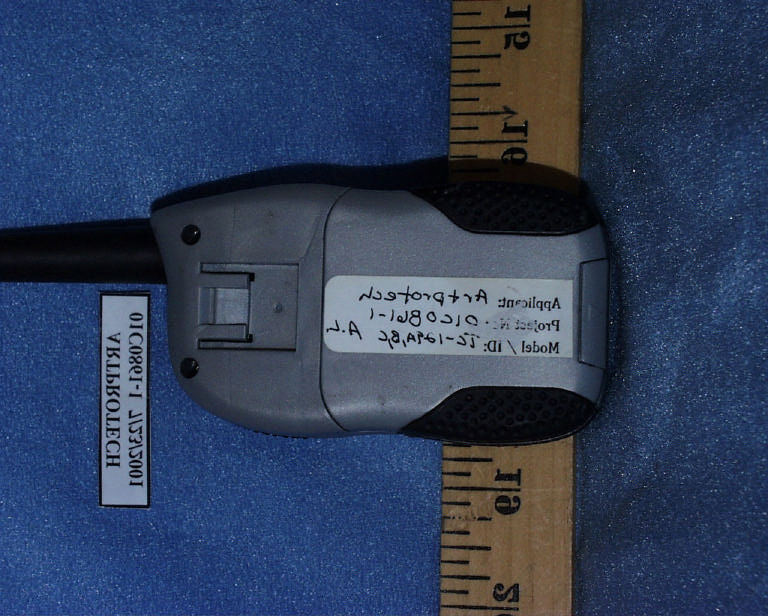

GAFFRS14KWalkie Talkie

FCC warning statement CAUTION: * To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter and antenna at least 2 inches (5 cm) from your face, and speak in a normal voice. Point the antenna up and away from your face. * Use only the supplied antenna. Unauthorized antennas, modifications, or attachments may damage the transmitter and any changes or modifications not expressly approved by the party responsible for the compliance could void the user’s authority to operate the device.

TCB RF Exposure Review Procedure Statement FCC ID: GAFFRS14K Transmitter Category Device Type Product Category Approval and Review Procedures Used Specific Procedures: VIII(b) Family Radio Transceiver All Other Categorically Excluded Portable Transmitters Section S SP(2), SP(4) with xx=2.5, SP(5), SP(7), SP(8) and SP(9) Grant Condition : This device and its antenna(s) must operate with a separation distance of at least 2.5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.End-users must be provided with specific operating instructions for satisfying RF exposure compliance. SP2 95.639(d) output power for FRS is ERP. The max. ERP per page 11 of test report is 11.55dBm (0.014W). Antenna is attached to the device. Not removable. Noantenna installation is allowed by End User. SP4 Contained in prototype user manual. SP 5 Transmitting in FRS frequency band. SP7 Contained in prototype user manual . Device is held to face transm itter. SP8 Contained in prototype user manual . SP 9 Grant condition has been verified. Reviewed by Barbara L. JudgeCompliance Certification ServicesAugust 29,2001

From:Pete Krebill Sent:Tuesday, August 28, 2001 1:58 PM To:Barbara Judge Cc:Thu Tran; Anne Liang Subject:FW: FCC ID's: GAFFRS14K (Columbia Telecommunications Group) & OL4APT129210619 (Artprotech) Barbara, Response to question 1. Thu will be providing the revised users manual with the necessary exposure statement. Response to question 2. Necessary bandwidth = 9.02KHz, Emission designator = 9K02F3E. Calculation: 2M + 2DK, M = 2.6KHz, D = 1.91KHz, K = 1. Response to question 3. Measured less than 3 seconds. Page 4 section 7. of the product specification has been amended to state that the tone alert will last for 3 seconds. Regards, Pete Krebill -----Original Message----- From: Thu Tran Sent:Monday, August 27, 2001 7:18 PM To:Pete Krebill Subject:FW: FCC ID's: GAFFRS14K (Columbia Telecommunications Group) & OL4APT129210619 (Artprotech) -----Original Message----- From: Barbara Judge Sent:Monday, August 27, 2001 6:22 PM To:Steve Cheng; Thu Tran Cc:Mike Kuo Subject:FCC ID's: GAFFRS14K (Columbia Telecommunications Group) & OL4APT129210619 (Artprotech) Thank you for your recent applications for equipment authorization. The following issues must be addressed before processing can continue. 1.Please provide a Users Manual with the required FCC statements. It must also have a "Caution Statement" to alert users that specific conditions are necessary to satisfy the FCC RF Exposure warning requirements. Suggested wording: CA UTI O N: * To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter and antenna at least 2 inches (5 cm) from your face, and speak in a normal voice. Point the antenna up and away from your face. * Use only the supplied antenna. Unauthorized antennas, modifications, or attachments may damage the transmitter and any changes or modifications not expressly approved by the party responsible for the compliance could void the user’s authority to operate the device. 2.Please provide necessary bandwidth information by using Carson's rule ( 2M+2D ). 3.The Product Description indicates that the device may be set to generate a Call Alert Tone. Per 95.193(b) The FRS unit may transmit tones to make contact or to continue communications with a particular FRS unit. If the tone is audible (more than 300Hz), it must last no longer than 15 seconds at one time. Please provide evidence that the tone lasts less than 15 seconds or that it is subaudible (300Hz or less). Please provide the above detailed items so that processing on your application may proceed. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best Regards, Barbara _______________________________________ Barbara L. Judge Vice President Compliance Certification Services Designated TCB and CAB 561F Monterey Road Morgan Hill, CA 95037 408-463-0885 ext.104 Fax: 408-463-0888 e-mail: [email protected] http://www.ccsemc.com

PROPOSED FCC ID LABEL AND LOCATION COLUMBIA TELECOMMUNICATIONS GROUP, INC. This device complies with Part 95 of the FCC Rules. FCC ID: GAFFRS14K FCC ID LABEL

. FCC CFR47 PART 95 REQUIREMENT CERTIFICATION REPORT FOR 462-467MHz WALKIE TALKIE MODEL: FRS14K FCC ID: GAFFRS14K REPORT NUMBER: 01C0861-1 ISSUE DATE: JULY 23, 2001 Prepared for COLUMBIA TELECOMMUNICATIONS GROUP, INC. 174 MILBAR BLVD. FARMINGDALE, NY 11735 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 01C0861-1 DATE: JULY 23, 2001 FCC ID: GAFFRS14K EUT: 462-467MHz WALKIE TALKIE Page 2 of 37 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE................................................................................3 2. GENERAL INFORMATION..............................................................................................4 2.1. PRODUCT DESCRIPTION..........................................................................................4 2.2. MEASURED CHARACTERISTICS OF EUT................................................................4 2.3. TEST METHODOLOGY..............................................................................................5 2.4. TEST FACILITY..........................................................................................................5 2.5. ACCREDITATION AND LISTING..............................................................................5 2.6. MEASURING INSTRUMENT CALIBRATION............................................................5 3. REQUIREMENTS OF PROVISION..................................................................................6 3.1. GENERAL TECHNICAL REQUIMENTS.....................................................................6 3.2. LABELING REQUIREMENT.......................................................................................6 3.3. USER INFORMATION................................................................................................6 4. OUTPUT POWER MEASUREMENT................................................................................7 4.1. PROVISION APPLICABLE.........................................................................................7 4.2. MEASUREMENT PROCEDURE.................................................................................7 4.3. OUTPUT POWER TEST EQUIPMENT.......................................................................11 4.4. MEASUREMENT RESULT........................................................................................11 5. MODULATION CHARACTERISTICS...........................................................................12 5.1. PROVISIONS APPLICABLE......................................................................................12 5.2. MEASUREMENT METHOD.......................................................................................12 5.3. MEASUREMENT INSTRUMENT...............................................................................13 5.4. MEASUREMENT RESULT........................................................................................13 6. EMISSION BANDWIDTH...............................................................................................20 6.1. PROVISIONS APPLICABLE......................................................................................20 6.2. MEASUREMENT METHOD.......................................................................................20 6.3. MEASUREMENT INSTRUMENT...............................................................................20 6.4. MEASUREMENT RESULT........................................................................................20 7. FIELD STRENTH OF SPURIOUS EMISSION................................................................22 7.1 PROVISIONS APPLICABLE......................................................................................22 7.2 MEASUREMENT PROCEDURE................................................................................22 7.3 MEASUREMENT INSTRUMENT...............................................................................23 7.4 MEASUREMENT RESULT........................................................................................24 8 FREQUENCY STABILITY MEASUREMENT................................................................34 8.1 PROVISIONS APPLICABLE......................................................................................34 8.2 MEASUREMENT METHOD.......................................................................................34 8.3 MEASUREMENT INSTRUMENT...............................................................................35 8.4 MEASUREMENT RESULT........................................................................................35 9. APPENDIX.......................................................................................................................37 REPORT NO: 01C0861-1 DATE: JULY 23, 2001 FCC ID: GAFFRS14K EUT: 462-467MHz WALKIE TALKIE Page 3 of 37 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031C 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE Inspection Institution: COMPLIANCE ENGINEERING SERVICES INC. 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (604) 463-0888 Applicant: COLUMBIA TELECOMMUNICATIONS GROUP, INC. Manufacturer: ARTPROTECH CO., LTD Brand Name: N/A Model No/Name: FRS14K Serial No: N/A ITEM TESTING ITEM APPLIED SPECIFICATION TESTING RESULTS TES…
