COLUMBIA OPERATIONS MANUAL GM22-SVP General Mobile Radio Service 22 Channel 2-Way Radios With CTCSS security GMRS/FRS Frequencies Voice-Activated Earpiece Included Owners Manual and Instructions 2 GMRS LICENSEUSE OF THIS RADIO WITHIN THE UNITED STATES REQUIRESAN FCC GMRS LICENSE . AN INDIVIDUAL 18 YEARS OF AGEOR OLDER , WHO IS NOT A REPRESENTATIVE OF A FOREIGNGOVERNMENT , IS ELIGIBLE TO APPLY FOR A GMRS SYSTEMLICENSE . YOU WILL NEED TWO FORMS FROM THE FCC; FCCFORM 159 AND FCC FORM 605 MAIN FORM AND SCHEDULE F.YOU CAN FIND THE FORMS ONLINEAT:HTTP// WWW.FCC.GOV/FORMPAGE.HTWL ,OR CALL 1-800-418-3676.To maintain compliance with the FCC`s RF exposure guidelines,hold the transmitter at least 1 inch (2.5 centimeters) from your faceand speak in a normal voice, with the antenna pointed up andaway. If you wear the handset on your body while using theheadset accessory, DO NOT TRANSMIT.The GM-22 supplied belt clip is for storage purposes ONLY. Useonly the supplied antenna.Unauthorized antennas, modifications, or attachments coulddamage the transmitter and may violate FCC regulations.Normal Position :Hold the transmitter approximately 1” from your face and speak in a normal voice, with the antenna pointed up .MODIFICATIONS OR CHANGES NOT EXPRESSLY APPROVEDBY COLUMBIA TELECOMMUNICATIONS, INC. COULD VOID THEUSER`S AUTHORITY TO OPERATE THE EQUIPMENT. CAUTONS 3 Your radio generates RF electromagnetic energy during transmit mode . This radiois designed for and classified as “ Occupational Use Only “ ,meaning it must beused only during the course of employment by individuals aware of the hazards ,and the ways to minimize such hazards . This radio is NOT Intended for use by theGeneral Population in an uncontrolled environment .This radio is not designed for use by the general population and is restricted tooccupational users only, where the operator has control of his or RF exposure .Safety Information For GMRS UNITYour wireless handheld portable transceiver contains a low power transmitter. Whenthe TALK button is pushed it sends out radio frequency (RF) signals . This device isauthorized to operate at a duty factor not to exceed 50% In August 1996,the FederalCommunications Commission (FCC) adopted RF exposure guidelines with safetylevels for handheld wireless devices.To ensure that your exposure to RF electromagnetic energy is within the FCCallowable limits for occupational use ,always adhere to the following guldeilnes:. DO NOT operate the radio without a proper antenna attached , as this maydamage the radio and also cause you to exceed FCC RF exposure limits . A properantenna is the antenna supplied with this radio by the manufacturer or an antennaspecifically authorized by the manufacturer for use with this radio.. DO NOT transmit for more than 50% of total radio use time (50% duty cycle)Transmitting more than 50% of the time can cause FCC RF exposure compliancerequirements to be exceeded..ALWAYS use authorized accessories antennas, batteries,belt clips, speaker/mic,etc). Use of unauthorized accessories can cause the FCC RF exposurecompliance requirements to be exceeded.ALWAYS keep the antenna at least 2.5cm (1 inch) away from the body whentransmitting ,If you wear the handset on your body while using the headsetaccessory, DO NOT TRANSMIT. The GM-22 supplied belt clip is for storagepurposes ONLY. This is to ensure FCC RF exposure compliance requirements arenot exceeded. To provide the recipients of your transmission the best sound quality,hold the antenna at least 5cm(2 inches) from the mouth, and slightly off to one side. SAFETY TRAINING INFORMATION 4 ADJUSTMENT: REPLACEMENT or substitution of transistors,regular diodes or other parts of a unique nature, with parts otherthan those recommended by Columbia, may cause a violation ofthe technical regulations of part 95 of the FCC Rules, or violation ofType Acceptance requirements of Part 2 of the Rules.NOTE: This equipment has been tested and found to comply withthe limits for a Class B digital device, pursuant to Part 15 of theFCC Rules These limits are designed to provide reasonableprotection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequencyenergy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interferencewill not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of thefollowing measures:• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation issubject to the following condition: this device must accept anyinterference received, including interference that may causeundesired operation. FCC Warnings 5 Contents FCC Warnings ..................................................... 4 Contents .............................................................. 5 Introduction ......................................................... 6 Controls and displays ....................................... 6 Component Guide ............................................... 7 Setting Up Your GMRS/FRS Radio .................... 8 Battery Installation ............................................ 8 Battery Meter ................................................... 9 Low Battery Indicator ....................................... 9 Operation .......................................................... 11 Turning on your GMRS/FRS .......................... 11 Communication .............................................. 11 Receiving communications ............................. 11 Respond prompt tone .....................................…

Text truncated - open the document above for the full version.

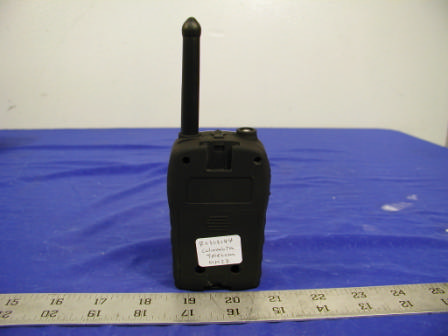

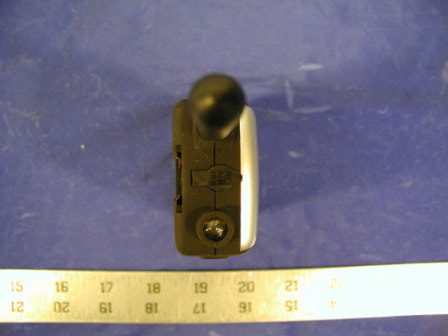

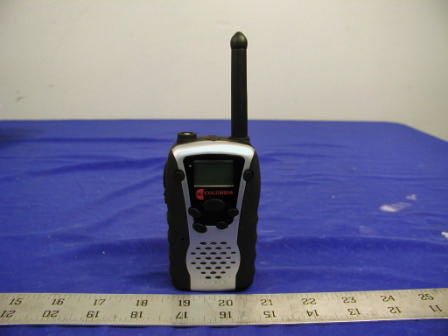

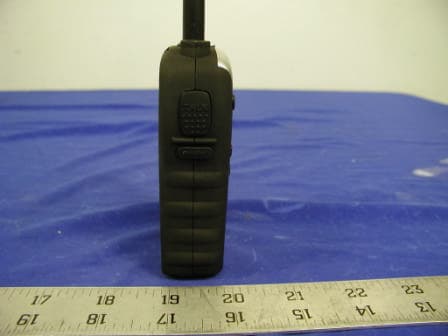

Columbia Telecommunications Group Inc. FCC ID: GAFGM22 APPENDIX C - EUT PHOTOGRAPHS Chassis - Front View Chassis – Rear View Columbia Telecommunications Group Inc. FCC ID: GAFGM22 Chassis - Side View Chassis - Top View

APPENDIX A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location Rear Side of EUT / Proposed Label Location FCC ID: GAFGM22 FCC ID: O632225LD02

Columbia Telecommunications Group Inc. FCC ID: GAFGM22 Chassis – Cover Off View EUT – Component View Columbia Telecommunications Group Inc. FCC ID: GAFGM22 EUT - Solder View EUT – Battery Housing View Columbia Telecommunications Group Inc. FCC ID: GAFGM22 EUT – Antenna Connection View

CIRCIUT DESCRIPTION MODEL: 1. Receiver Section Radio Signal received by the Antenna, passing through the band pass filter T5 T3 and T8.The RF amplified by Q1 and T6 via 3361CP with XTAL1 three times Self-oscillator signal formed interval frequency, to get intermediate-frequency signals 455Hz. The signal is amplified restrictedly and demodulated by volume control and audio amplifiers Q8 Q7. the sound is then produced by speaker. 2.Transimtter Section In the transmitter section audio signal amplified by Mic Q2 and Q3, and then demodulated with circuit of crystal that formed by Q4 and D2 The signal amplified threefold by Q5. That via low pass filter and is connected the antenna output. 4.POWER SUPPLY Supply voltage of 9v dc is needed to power onwhole circuitry by a 9v battery.

- 1 - CIRCUIT DESCRIPTION 1. RECEIVER SECTION Radio Frequency signal received by the antenna (ANT1), passing through the Low Pass Filter (L1, L2, L22, C2-C4, C153). The RF signal is then amplified by Low Noise Amplifier Q1 and passes through a Band Pass Filter (FL1 = 465MHz). The filtered signal within the range of 462 MHz – 467 MHz is then mixed with the first local oscillator signal from the Voltage Controlled Oscillator (VCO) circuit (Q9,Q10, D4, L16) through Q8, a portion of VCO signal is then feedback to the PLL IC (IC2) for phase comparison generating a stable RX frequency, the output signal is filtered by FL2 (21.7 MHz) which is the first Intermediate Frequency (IF) and is then amplified by Q3. The IF signal is fed to the discriminator IC1 pin 16 which is then mixed with the second local oscillator supplied by crystal X1 (21.25 MHz) to produced a reduced second IF signal which is then filtered by FL3 (KTM450HTW). Demodulated signal is recovered through correct adjustment of IF tank coil (IFT1) and the internal discriminator circuit of IC1. The recovered Audio signal is outputted at pin 9 of IC1 and then processed through filtering done by IC7 circuit, the fully recovered audio signal is then further amplified by Power Amplifier IC3. An audible sound is therefore produce by the speaker SPK100, which can be varied digitally from the CPU pins 76 – 79 and the corresponding series of resistors R31 – R34. 2. TRANSMITTER SECTION PTT switch (SW7) when pushed triggers the Transmitter Circuit “ON”, the voice signal generates by the surrounding noise passes through the microphone MIC100 where mechanical to electrical transformation occurs, the electrical transformed signal is then filtered by a Band Pass Filter IC6, and Q23. The output signal is Modulated by a modulator circuit with a varactor diode D4 and L16. The external components from Q9,Q10 form a VCO Circuit which generates the required oscillating frequency for transmission, a portion of this signal is feedback to the PLL IC2 pin 14 for phase comparison in order to produce a stabilized TX frequency. The modulated signal is then amplified by a Cascaded Amplifier Circuit Q6,Q17 and Q7 and again amplified by Q4 and Q5 to produce a sufficient Radio Frequency signal emitted by the Antenna (ANT1). 3. CALL TRANSMISSION By pushing the CALL key, a signal is detected by the CPU (IC8), a CALL data is then produced by the CPU. This data passes through the Band Pass Filter IC6C and modulated by the varactor diode D4 and L16. The signal follows it’s conventional transmission section path through the antenna. - 2 - 4. BATTERY LOW DETECTION Battery Low Detection is controlled by the CPU pin 43 as detected on the LCD 1, however a voltage divider circuit R64 and R65 serve as the stabilize reference voltage for the CPU to process its detection. 5. SQUELCH DETECTION Supported by the linear IC circuit (IC1), a resistor R12 sets the level of detection and Diode D5 acts as a comparator circuit interface with the CPU. 6. POWER SUPPLY Supply voltage of 6.0 Volts dc is needed to power “ON” the whole circuitry, by four (4) batteries “AAA” size. - 3 - FREQUENCY CHART CHANNEL FREQUENCY (MHz) CHANNEL FREQUENCY (MHz) 1 462.5625 12 467.6625 2 462.5875 13 467.6875 3 462.6125 14 467.7125 4 462.6375 15 462.5500 5 462.6625 16 462.5750 6 462.6875 17 462.6000 7 462.7125 18 462.6250 8 467.5625 19 462.6500 9 467.5875 20 462.6750 10 467.6125 21 462.7000 11 467.6375 22 462.7250 CTCSS CODE FREQUENCY CHART CODE FREQUENCY (Hz) CODE FREQUENCY (Hz) 1 67.0 20 131.8 2 71.9 21 136.5 3 74.4 22 141.3 4 77.0 23 146.2 5 79.7 24 151.4 6 82.5 25 156.7 7 85.4 26 162.2 8 88.5 27 167.9 9 91.5 28 173.8 10 94.8 29 179.9 11 97.4 30 186.2 12 100.0 31 192.8 13 103.5 32 203.5 14 107.2 33 210.7 15 110.9 34 218.1 16 114.8 35 225.7 17 118.8 36 233.6 18 123.0 37 241.8 19 127.3 38 250.3

slc_npart descrip quantity reference SDD-1207-001A DIODE_SW LL4148/MM4148 MELF 8 D5,D6,D7,D9,D10,D11,D12,D13 SZD-0204-8R2A DIODE_ZEN. BZX55C8V2(8.2V/0.5W) 1 Z1 STR-2306-003A TR_RF 2SC4901 (SOT-23) HFE:120-250 7 Q1,Q2,Q6,Q7,Q8,Q9,Q17 STR-1106-001A TR_SS KST2907TF/KTN2907S/AS /MMBT2907LT1(SOT-23) 5 Q13,Q14,Q21,Q24,Q26 STR-1306-001B TR_SS KTC3875Y (SOT-23) 8 Q11,Q12,Q16,Q18,Q20,Q22,Q23,Q25 STR-2306-001A TR_RF KTC3880Y SOT23 1 Q3 STR-1206-002A TR_SW KTA1298(SOT-23) 3 Q15,Q19,Q27 STR-2213-002A TR_RF POWER 2SK3078(SOT-89) 2 Q4,Q5 SDD-1109-001A DIODE_SW KDS114(URP) 5 D1,D2,D3,D4,D16 STR-1206-003A TR_SW KRC103SY(SOT-23) 1 Q10 ECS-1211-030A CAP_C_CHIP 3PF/B(CH)(0603) A:COG150L 2 C60,C65 ECS-1211-040A CAP_C_CHIP 4PF/B(CH)(0603) A:COG150L 1 C51 ECS-1211-050A CAP_C_CHIP 5PF/B(CH)(0603) A:COG150L 2 C64 ECS-1212-060A CAP_C_CHIP 6PF/C(CH)(0603) A:COG150L 1 C5 ECS-1212-070A CAP_C_CHIP 7PF/C(CH)(0603) A:COG150L 3 C2,C52,C71 ECS-1212-080A CAP_C_CHIP 8PF/C(CH)(0603) A:COG150L 2 C153,C67 ECS-1213-100A CAP_C_CHIP 10PF/D/(CH)/(0603) A:COG150L 8 C8,C12,C58,C61,C70,C73,C74,C75 ECS-1216-120A CAP_C_CHIP 12PF/J(CH)(0603) A:COG150L 1 C72 ECS-1216-150A CAP_C_CHIP 15PF/J(CH)(0603) A:COG150L 4 C3,C4,C130,C131 ECS-1216-180A CAP_C_CHIP 18PF/J(CH)(0603) A:COG150L 1 C16 ECS-1216-220A CAP_C_CHIP 22PF/J(CH)(0603) A:COG150L 6 C63,C69,C86,C6,C147,C148 ECS-1216-270A QCAP_C_CHIP 27PF/J(CH)(0603) A:COG150L 1 C57 ECS-1216-101A CAP_C_CHIP 100PF/J(CH)(0603) A:COG150L 13 C18,C21,C56,C59,C119,C129,C149,C150,C158 ECS-1216-101A CAP_C_CHIP 100PF/J(CH)(0603) A:COG150L 0 C84,C537,C538,C539 ECS-1216-221A CAP_C_CHIP 220PF/J(CH)(0603) A:COG150L 7 C41,C77,C88,C103,C110,C112,C523 ECS-1216-471A CAP_C_CHIP 470PF/J(CH)(0603) A:COG150L 6 C1,C10,C24,C66,C76,C90 ECS-1216-681A CAP_C_CHIP 680PF/J(CH)(0603) A:COG150L 1 C527 ECS-2297-102A CAP_C_C.H.D. B0.001uF/K(0603) X:X7R282L 19 C25,C53,C62,C78,C91,C92,C93,C94,C95,C96,C97,C98 ECS-2297-102A CAP_C_C.H.D. B0.001uF/K(0603) X:X7R282L 0 C102,C105,C128,C157,C531,C532,C535 ECS-2297-122A CAP_C_C.H.D. B0.0012uF/K(0603) X:X7R282L 1 C47 ECS-2297-222A CAP_C_C.H.D. B0.0022uF/K(0603) X:X7R282L 1 C28 ECS-2297-472A CAP_C_C.H.D. B0.0047uF/K(0603) X:X7R282L 1 C524 ECS-2297-682A CAP_C_C.H.D. B0.0068uF/K(0603) X:X7R282L 1 C33 ECS-2297-103A CAP_C_C.H.D. B0.01uF/K(0603) X:X7R282L 13 C9,C13,C40,C54,C100,C106,C118,C126,C132,C133 ECS-2297-103A CAP_C_C.H.D. B0.01uF/K(0603) X:X7R282L 0 C154,C160,C162 ECS-2297-223A CAP_C_C.H.D. B0.022uF/K(0603) X:X7R282L 4 C30,C36,C89,C530 ECS-2297-333A CAP_C_C.H.D. B0.033uF/K(0603) X:X7R282L 5 C50,C109,C124,C520,C521 ECS-2297-473A CAP_C_C.H.D. B0.047uF/K(0603) X:X7R282L 7 C29,C31,C32,C34,C37,C107,C121 ECS-22A8-823A CAP_C_C.H.D. F0.082uF/M(0603) Y:YF153L 1 C529 ECS-22A8-104A CAP_C_C.H.D. F0.1uF/M(0603) Y:YF153L 32 C14,C15,C17,C20,C23,C26,C27,C35,C39,C43,C46,C49 ECS-22A8-104A CAP_C_C.H.D. F0.1uF/M(0603) Y:YF153L 0 C79,C80,C82,C99,C104,C115,C117,C120,C123,C127,C134 ECS-22A8-104A CAP_C_C.H.D. F0.1uF/M(0603) Y:YF153L 0 C137,C139,C140,C142,C145,C146,C155,C528,C38 ECS-22A9-474A CAP_C_C.H.D. F0.47uF/Z(0603) Y:YF153L 4 C87,C101,C108,C136 ECS-22A9-105A CAP_C_C.H.D. F1uF/Z(0603) Y:YF153L 6 C22,C55,C68,C141,C152,C534 ECC-6300-060A CAP_C_TRIMMER 6PF 1 CV1 ECT-1143-010A CAP_T_CHIP 1uF/M/16V(3.2X1.6) 1 C81 ECT-1133-100A CAP_T_CHIP 10uF/M/10V(3.2X1.6) 2 C83,C122 ECE-2112-101A CAP_E_MINI 100uF/6.3V(D4XL7) 5 C45,C19,C125,C135,C138 EHS-0250-001A CHIP COIL SPRING 0.32-1.2-3T 4 L1,L2,L8,L22 EHS-0250-002A CHIP COIL SPRING 0.32-1.2-4T 1 L16 EHS-0250-003A CHIP COIL SPRING 0.32-1.2-5T 2 L3,L9 EHS-0122-5R6A CHIP COIL SQUARE 5.6nH/J(0603) 1 L11 EHS-0122-100A CHIP COIL SQUARE 10nH/J(0603) 1 L4 EHS-0122-180A CHIP COIL SQUARE 18nH/J(0603) 1 L15 EHS-0122-220A CHIP COIL SQUARE 22nH/J(0603) 4 L5,L12,L13,L14 EHS-0122-390A CHIP COIL SQUARE 39nH/J(0603) 1 L6 EHS-0123-560A CHIP COIL SQUARE 56nH/K(0603) 1 L10 EHS-0122-680A CHIP COIL SQUARE 68nH/J(0603) 1 L23 EHS-0123-222A CHIP COIL SQUARE 2.2uH/K(0603) 2 L7,L17 ERS-0224-000A RES_(0603)-10 0 OHM 2 R25,R66 ERS-0224-100A RES_(0603)-10 10 OHM 1 R38 ERS-0224-330A RES_(0603)-10 33 OHM 5 R3,R48,R76,R81,R205 ERS-0224-390A RES_(0603)-10 39 OHM 1 R5 ERS-0224-470A RES_(0603)-10 47 OHM 3 R39,R75,R92 ERS-0224-560A RES_(0603)-10 56 OHM 2 R37,R125 ERS-0224-820A RES_(0603)-10 82 OHM 2 R62,R151 ERS-0224-101A RES_(0603)-10 100 OHM 1 R69 ERS-0224-121A RES_(0603)-10 120 OHM 1 R152 ERS-0224-151A RES_(0603)-10 150 OHM 1 R2 ERS-0224-471A RES_(0603)-10 470 OHM 2 R6,R7 ERS-0224-561A RES_(0603)-10 560 OHM 2 R23,R131 ERS-0224-681A RES_(0603)-10 680 OHM 1 R33 ERS-0224-102A RES_(0603)-10 1 KOHM 7 R105,R106,R107,R129,R133,R155,R520 ERS-0224-152A RES_(0603)-10 1.5 KOHM 1 R32 ERS-0224-182A RES_(0603)-10 1.8 KOHM 2 R16,R77 ERS-0224-222A RES_(0603)-10 2.2 KOHM 5 R9,R43,R79,R86,R87 ERS-0224-332A RES_(0603)-10 3.3 KOHM 4 R31,R46,R138,R144 ERS-0224-392A RES_(0603)-10 3.9 KOHM 2 R44,R130 ERS-0224-472A RES_(0603)-10 4.7 KOHM 9 R29,R41,R49,R51,R53,R55,R123,R150,R153 ERS-0224-562A RES_(0603)-10 5.6 KOHM 1 R45 ERS-0224-682A RES_(0603)-10 6.8 KOHM 6 R17,R63,R82,R83,R521,R522 ERS-0224-822A RES_(0603)-10 8.2 KOHM 3 R88,R121,R126 ERS-0224-912A RES_(0603)-10 9.1 KOHM 1 R142 ERS-0224-103A RES_(0603)-10 10 KOHM 21 R18,R28,R42,R61,R71,R78,R80,R84,R93,R94,R95 ERS-0224-103A RES_(0603)-10 10 KOHM 0 R67,R68,R97,R104,R116,R118,R122,R135,R524,R525 ERS-0224-153A RES_(0603)-10 15 KOHM 3 R22,R89,R91 ERS-0224-183A RES_(0603)-10 18 KOHM 2 R1,R12 ERS-0224-2231 A RES_(0603)-10 220 OHM 1 R446 ERS-0224-223A RES_(0603)-10 22 KOHM 10 R19,R35,R47,R74,R85,R103,R136,R163,R444,R149 ERS-0224-243A RES_(0603)-10 24 KOHM 1 R128 ERS-0224-273A RES_(0603)-10 27 KOHM 3 R90,R124,R523 ERS-0224-333A RES_(0603)-10 33 KOHM 2 R24,R111 ERS-0224-393A RES_(0603)-10 39 KOHM 3 R60,R101,R112 ERS-0224-473A RES_(0603)-10 47 KOHM 19 R11,R15,R40,R50,R52,R54,R58,R72,R73,R100,R108 ERS-0224-473A RES_(0603)-10 47 KOHM 0 R119,R120,R127,R132,R141,R146,R148,R154 ERS-0224-683A RES_(0603)-10 68 KOHM 3 R36,R96,R102 ERS-0224-823A RES_(0603)-10 82 KOHM 2 R8,R10 ERS-0224-104A RES_(0603)-1…

Text truncated - open the document above for the full version.

TUNE-UP PROCEDURE 1. TRANSMITTING 1.1 TX VCO ADJUSTMENT a) Connect the DC voltmeter to the test point 1 (TP1). b) Press the PTT Button. c) Adjust L16. d) Specification: 0.8Vdc +/- 0.3 V @ CH 7 1.2 FREQUENCY ADJUSTMENT a) Connect the frequency counter to ANT point. b) Adjust CV1. c) Specification: Tx Frequency +/- 200Hz 1.3 TX POWER CHECK a) Connect the RF level meter to the ANT point (RF impedance: 50Ω) b) Press the PTT button. c) Check the TX Power d) Specification: Power : < 246 mW 1.4 MAX. DEVIATION CHECK a) Connect the deviation meter to the ANT point. b) Apply the audio signal 1KHz, -20 dBm to the test point 19 ( MIC input) c) Observe the clipped signal on the scope. d) Specification: 1.7KHz Dev +/- 0.1KHz 1.5 MODULATION SENSITIVITY CHECK a) Connect the deviation meter to the ANT point. b) Apply the audio signal 1KHz, 10mVrms to the test point (TP19 - MIC input). c) Specification: 1.0KHz Dev +/- 0.15KHz 1.6 TONE DEVIATION CHECK a) Connect the deviation meter to the ANT point. b) Setting the CTCSS codes to channel 38 c) Press the PTT Button. d) Specification: 0.5KHz Dev +/- 0.1KHz 1.7 CALL DATA MODULATION SENSITIVITY CHECK a) Press the Call Button and observe the deviation meter to check the deviation. b) Specification: 1.3KHz +/- 0.3KHz 2. RECEIVING 2.1 RX VCO CHECK a) Connect the DC voltmeter to test point 1 (TP1). b) Check the DC voltage. c) Specification: 0.8Vdc +/- 0.4V @ CH 7 2.2 QUAD COIL ADJUSTMENT a) Connect the DC voltmeter to the test point 23. b) Adjust the IFT1. c) Specification: 1.5Vdc +/- 0.2V 2.3 SENSITIVITY CHECK a) Connect the Sinnader meter to test point 10,11. b) Reduce the RF output level of signal generator to get the 12dB of Sinnader. c) Specification: <-116dBm 2.4 SQUELCH THRESHOLD POINT ADJUSTMENT a) Connect the DC voltmeter to test point 10,11. b) Same setup as the Sensitivity Check. c) Specification: 7dB +/- 1dB 2.5 SPEAKER OUTPUT LEVEL CHECK a) Connect the Audio level meter to test point 10,11. b) Connect the 8Ω load to test point 10,11. c) Press the volume button till its maximum level. d) Adjust the modulation deviation of RF signal generator. e) Check the clipping start deviation & level. f) Specification: Clipping start deviation = 0.8 +/- 0.2 KHz Level = 0 +/- 2 dBm NOTE: 1. Press PTT button continuously when checking TRANSMITTING parameters. 2. Press the Monitor button to disable the RX power saving when the RX is not stable. 3. OTHER PARAMETER CHECKING 3.1 LOW BATTERY DETECT VOLTAGE CHECK a) Change the voltage until the Battery Cell is dispear on the LCD. b) Check the voltage. c) Specification: 4.3Vdc +/- 0.15V
