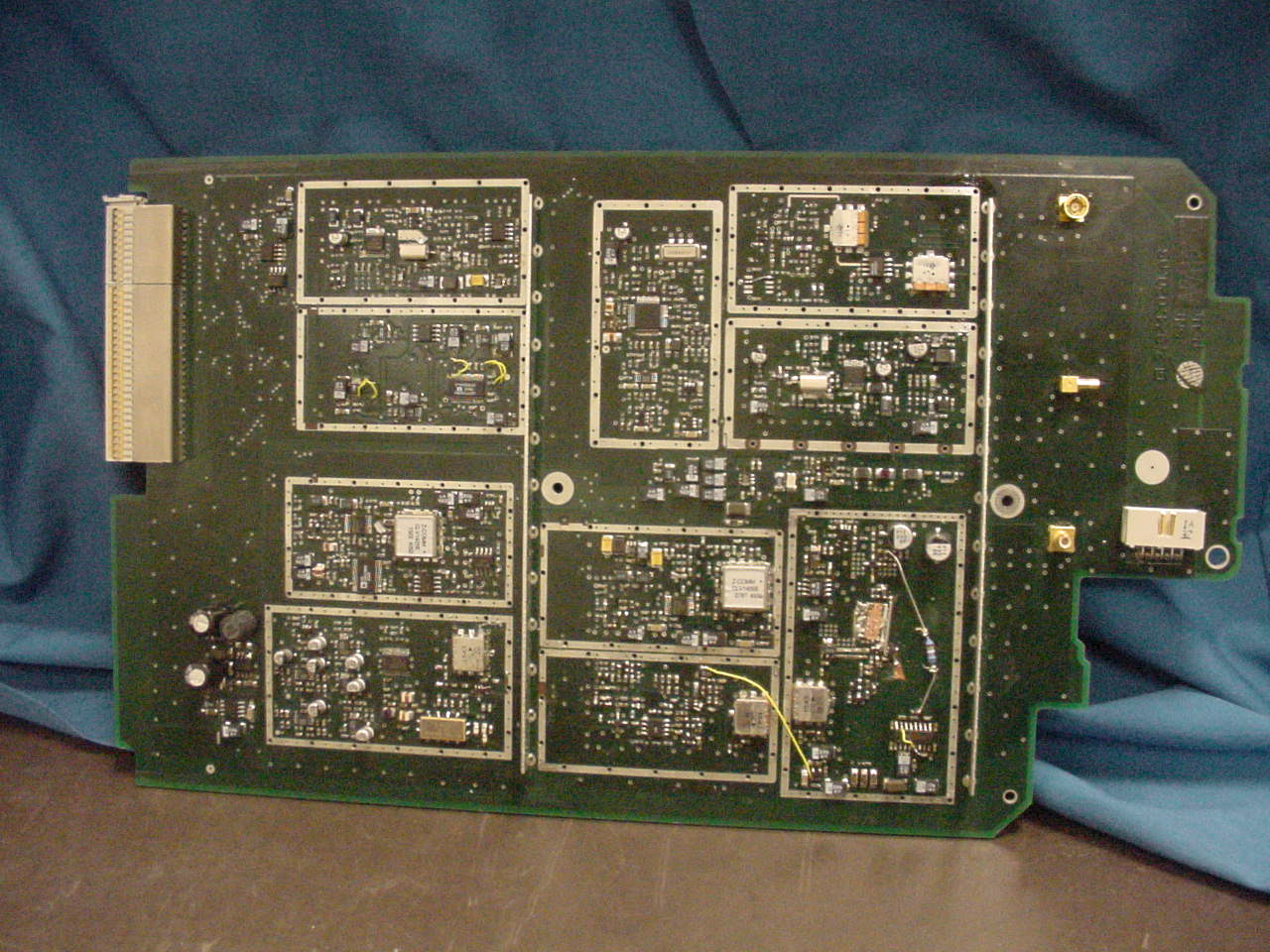

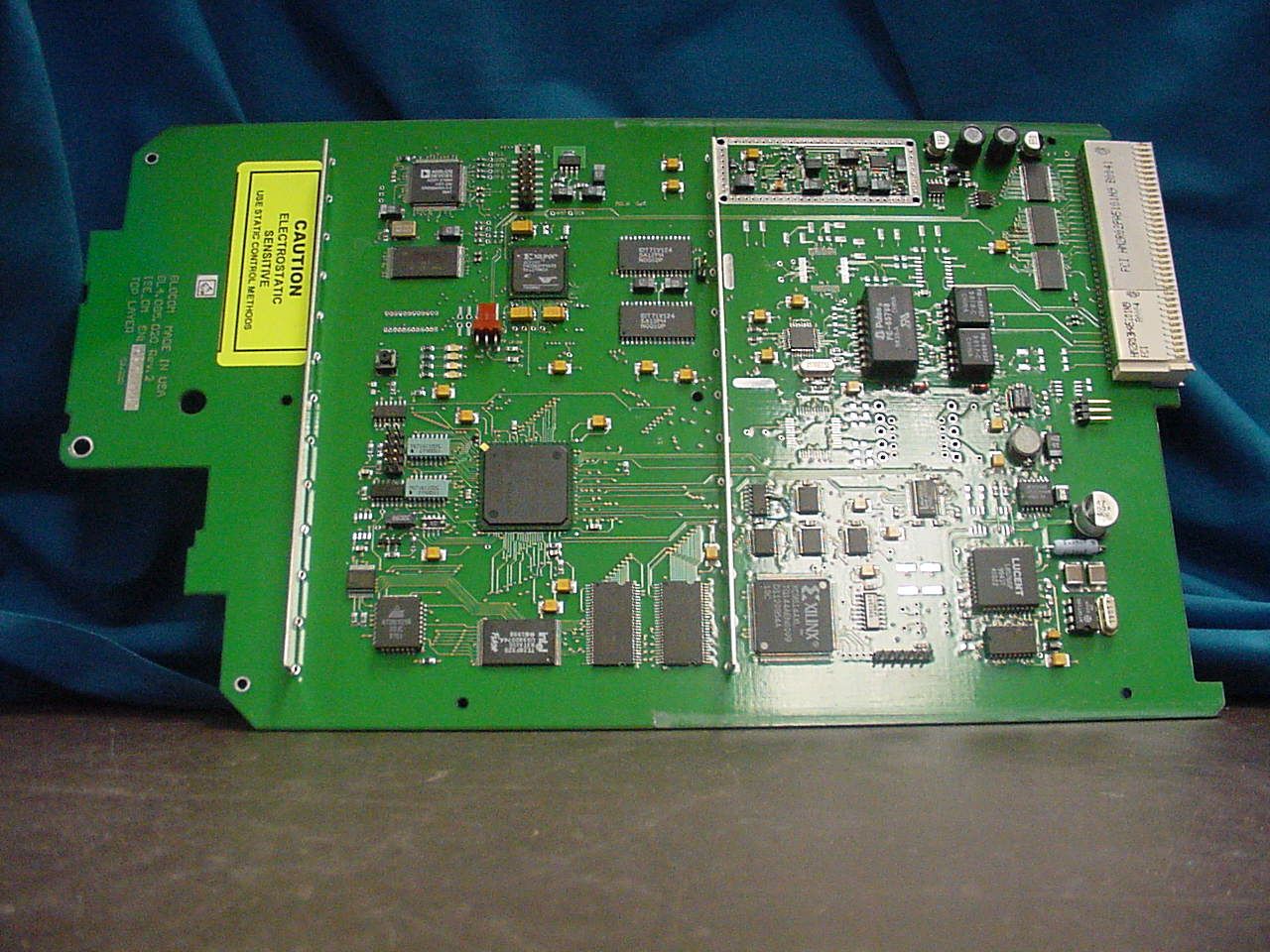

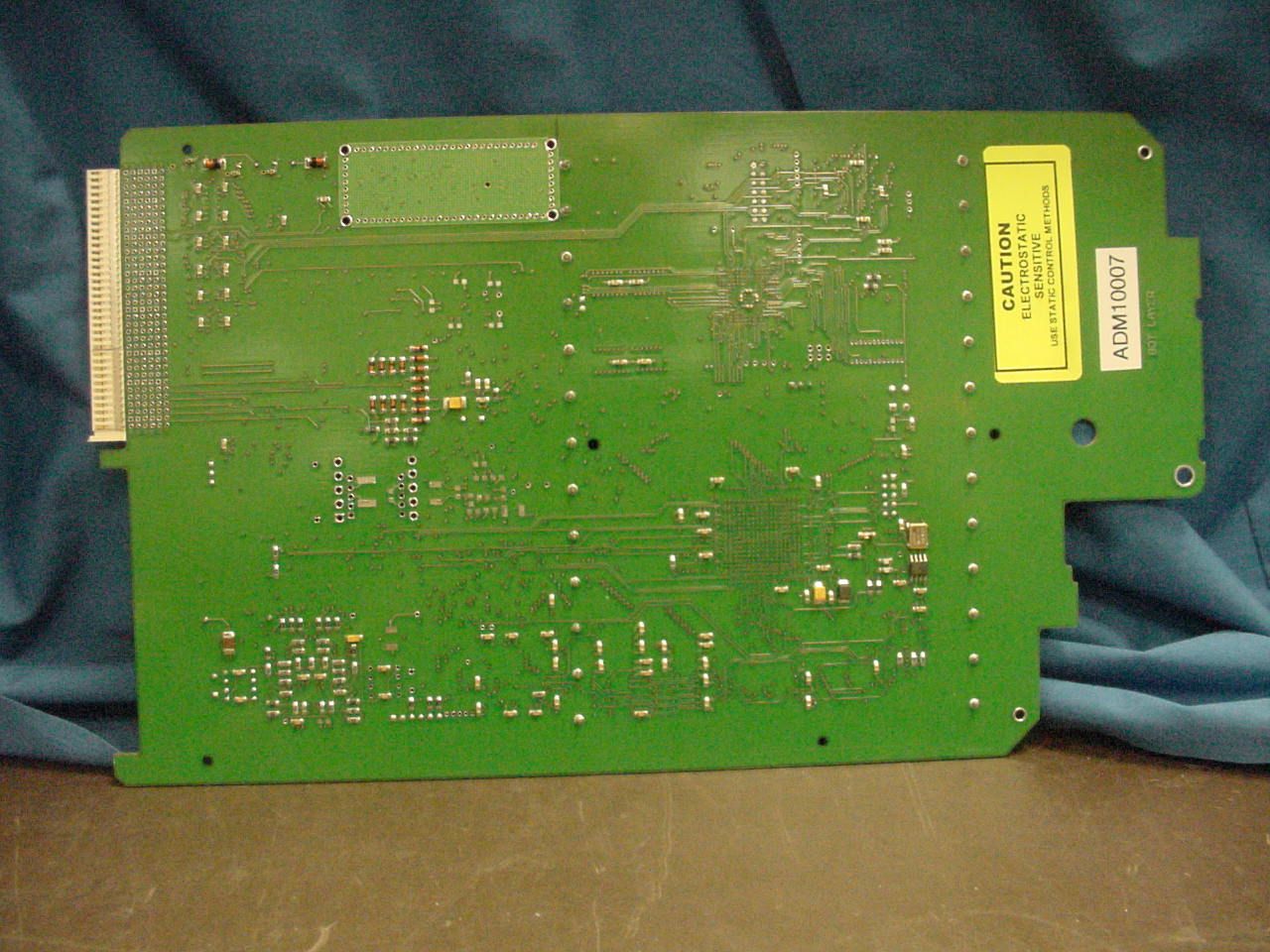

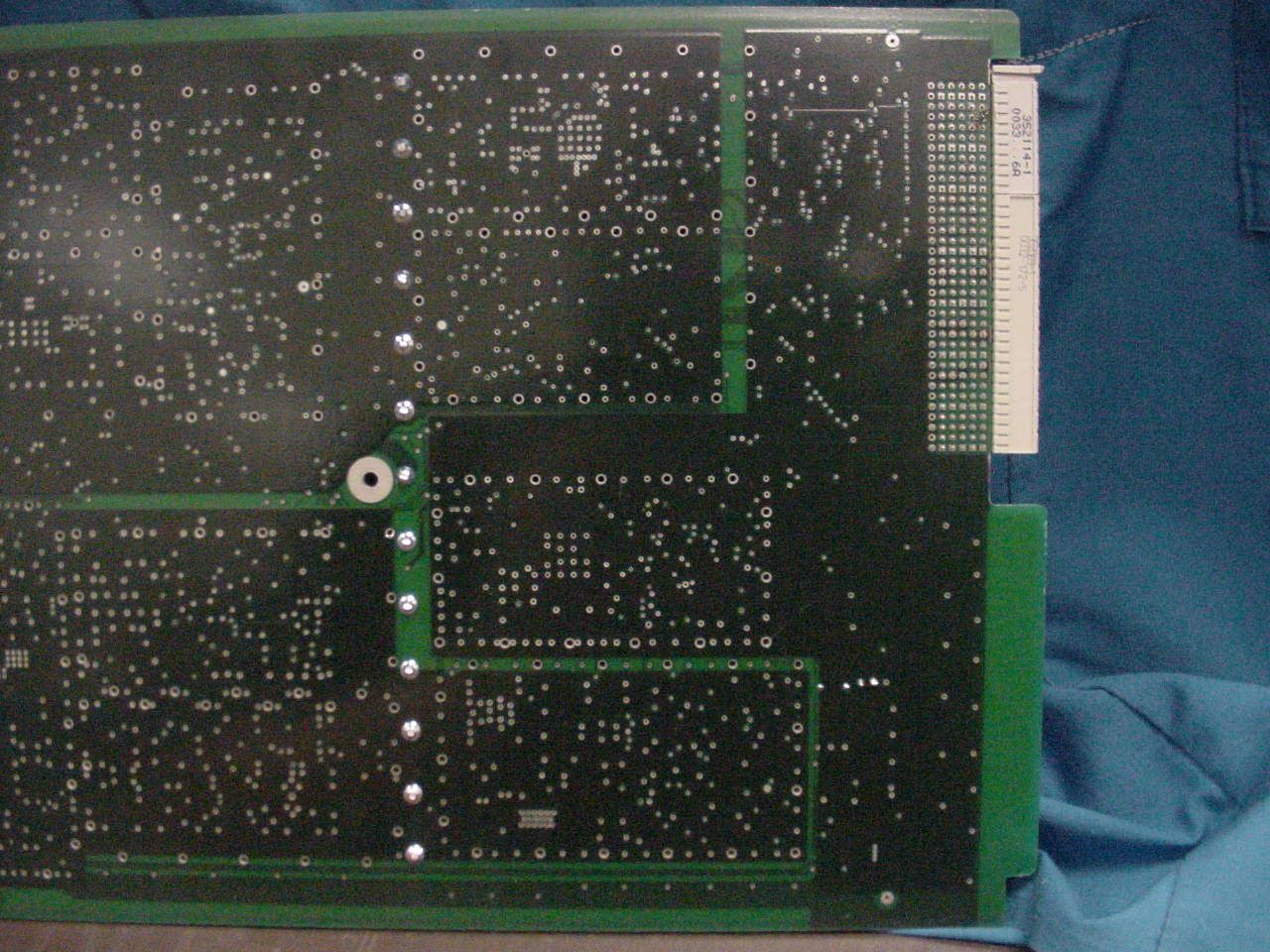

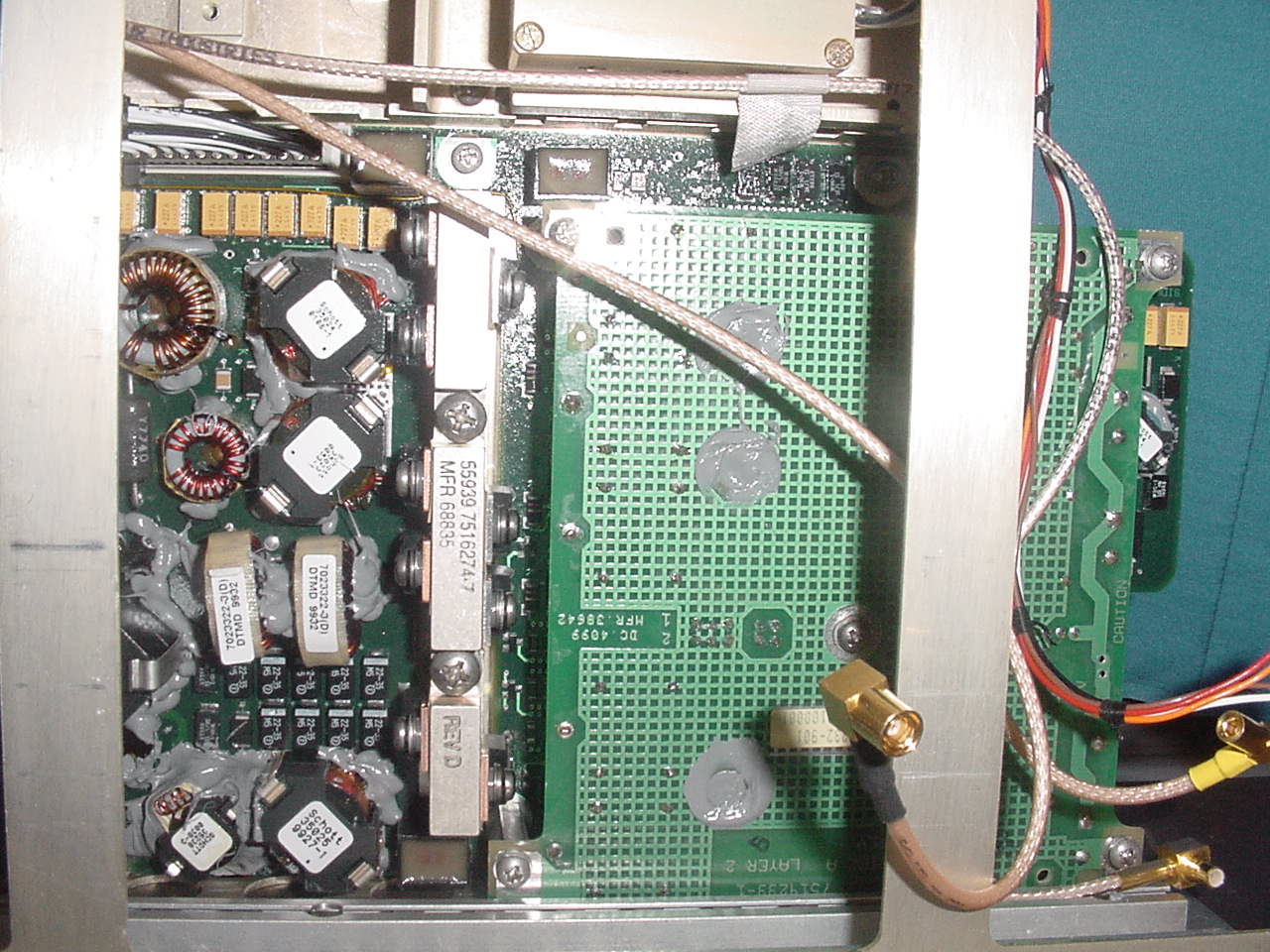

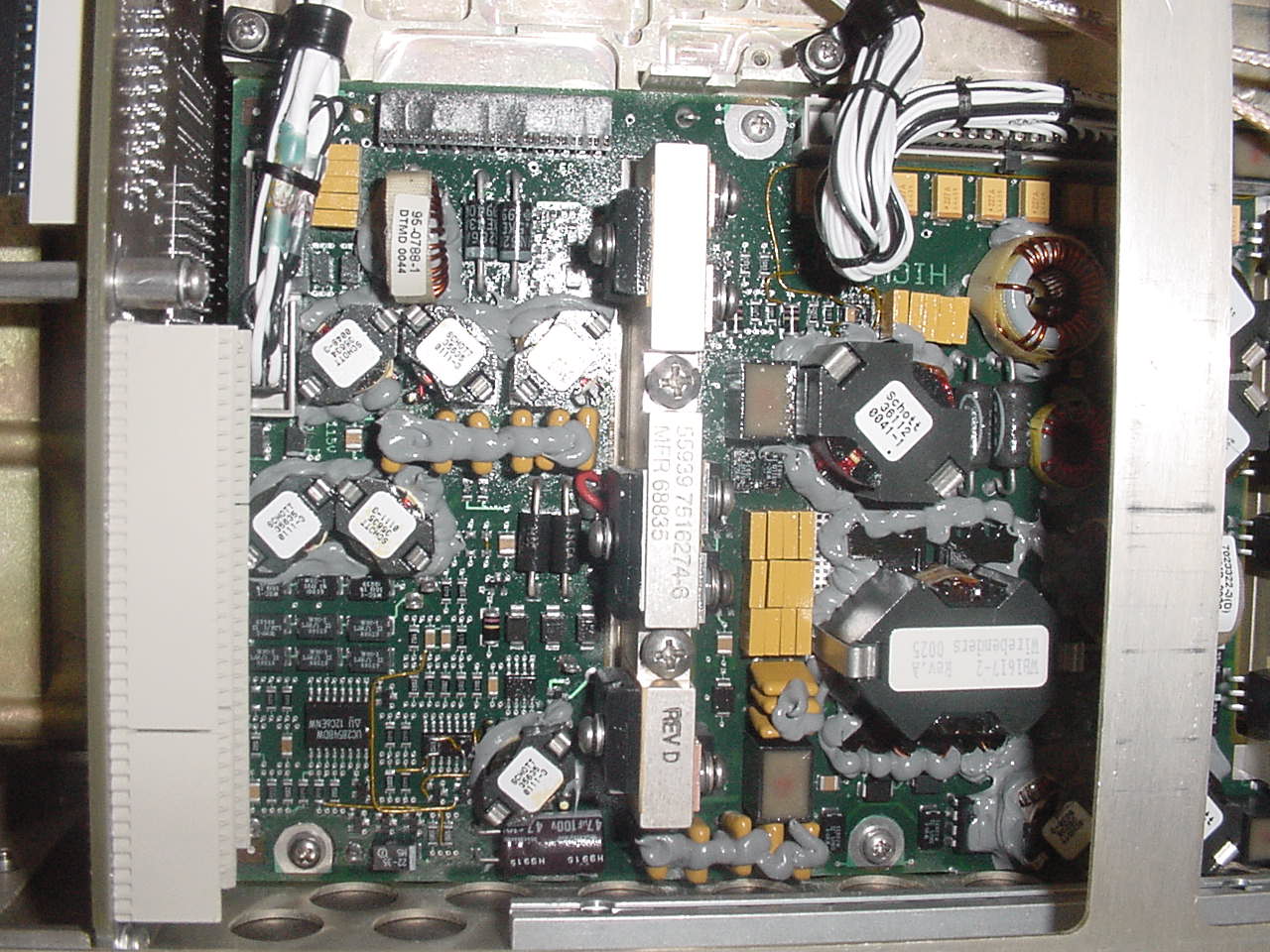

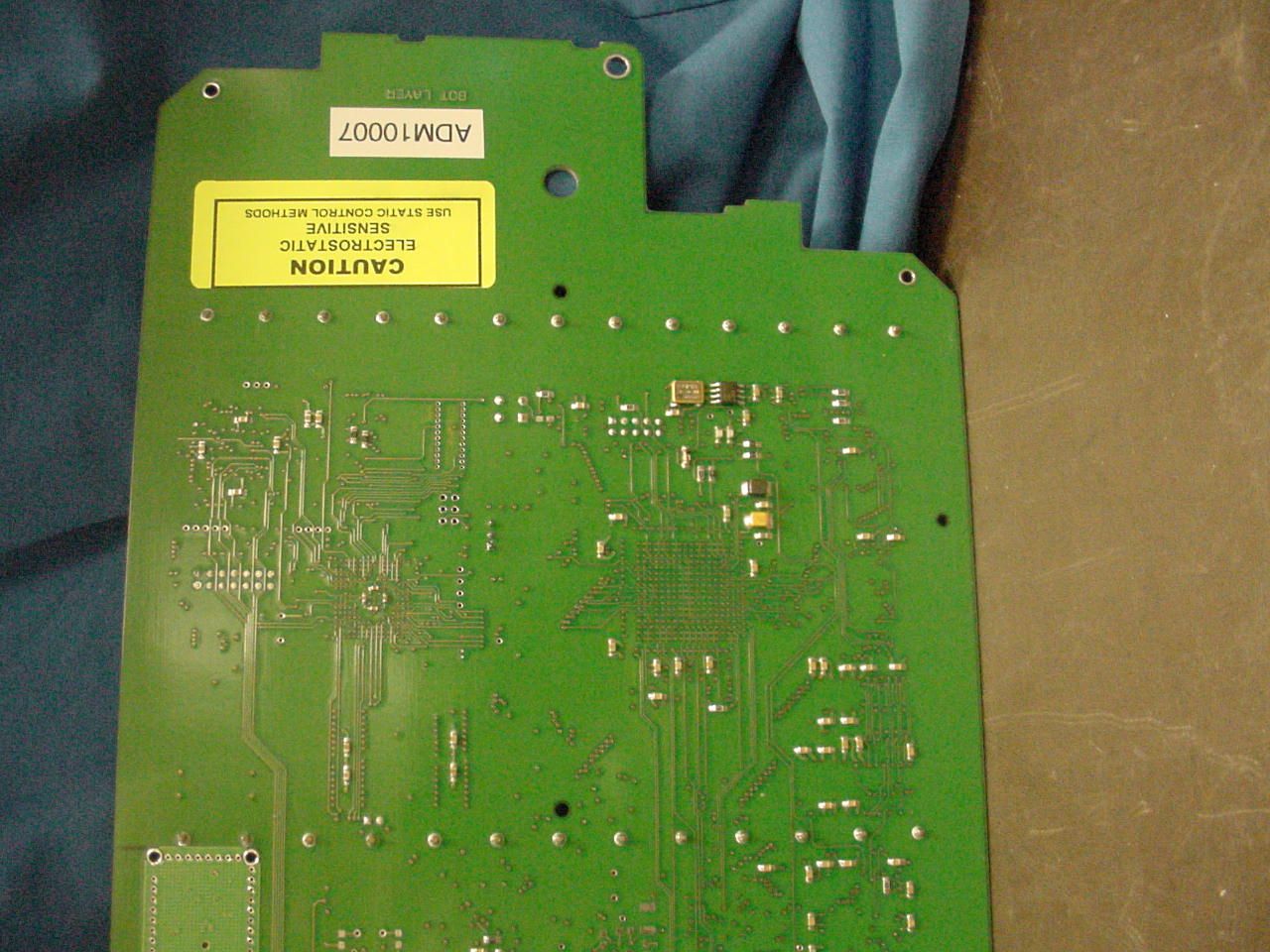

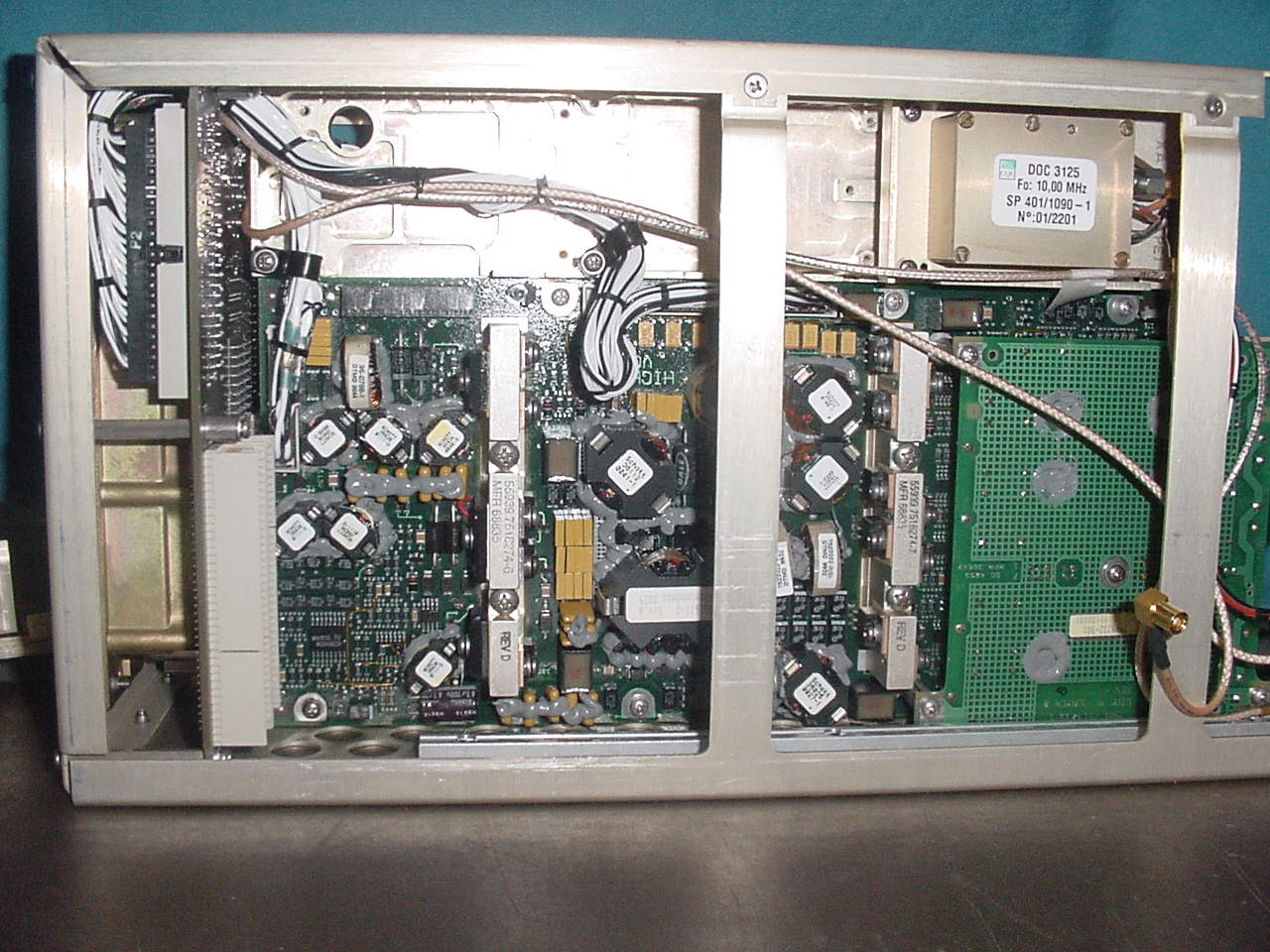

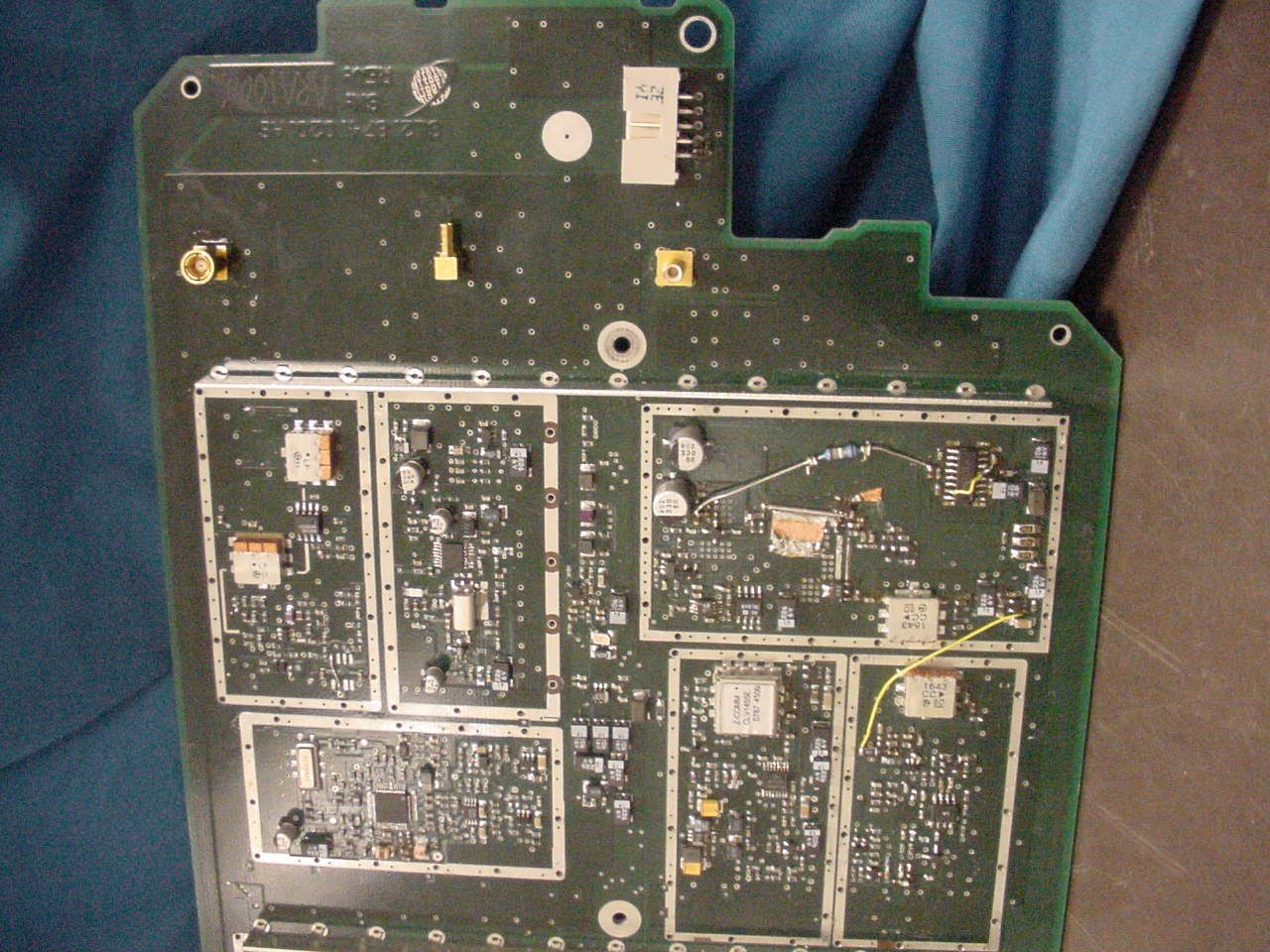

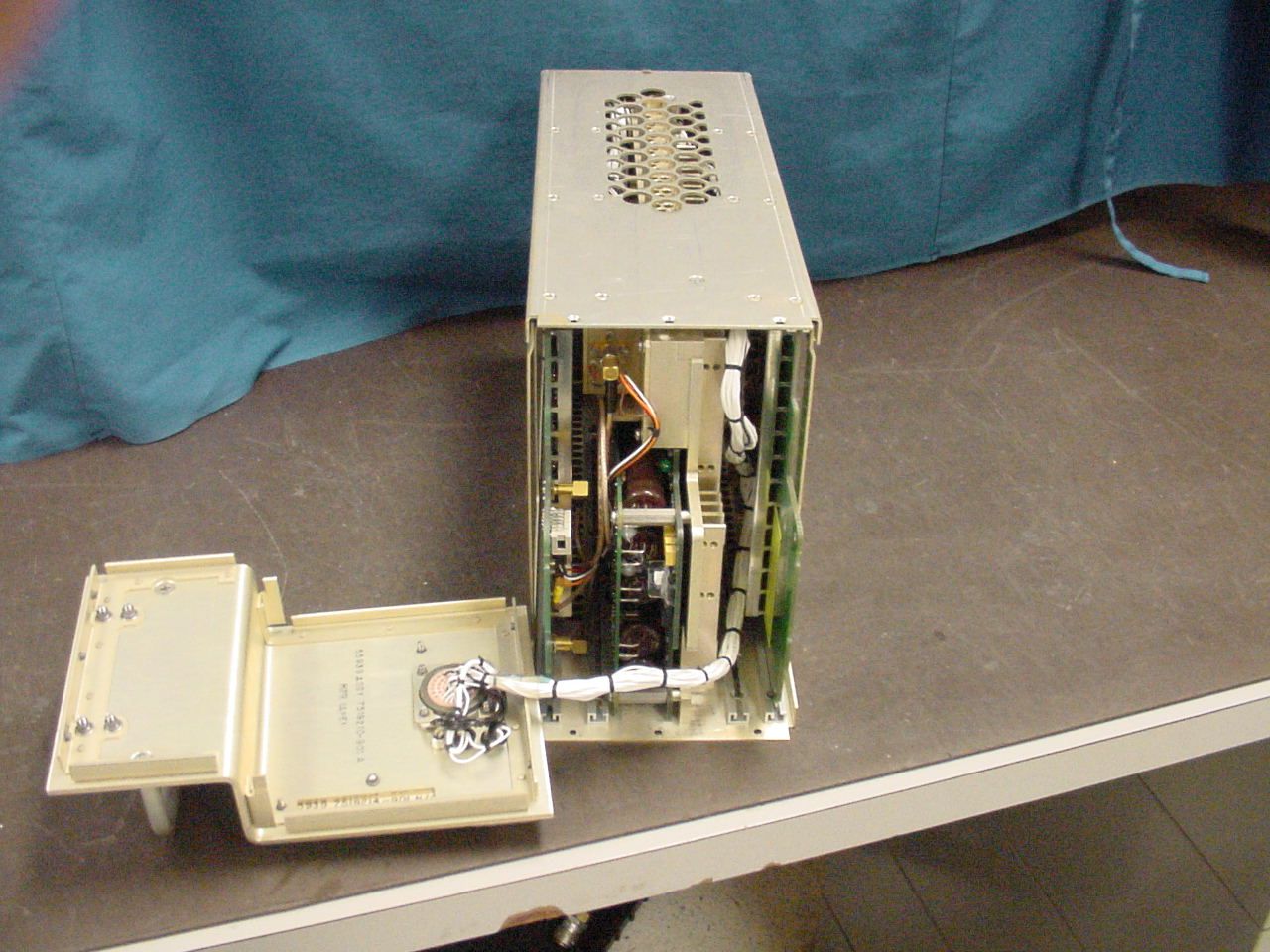

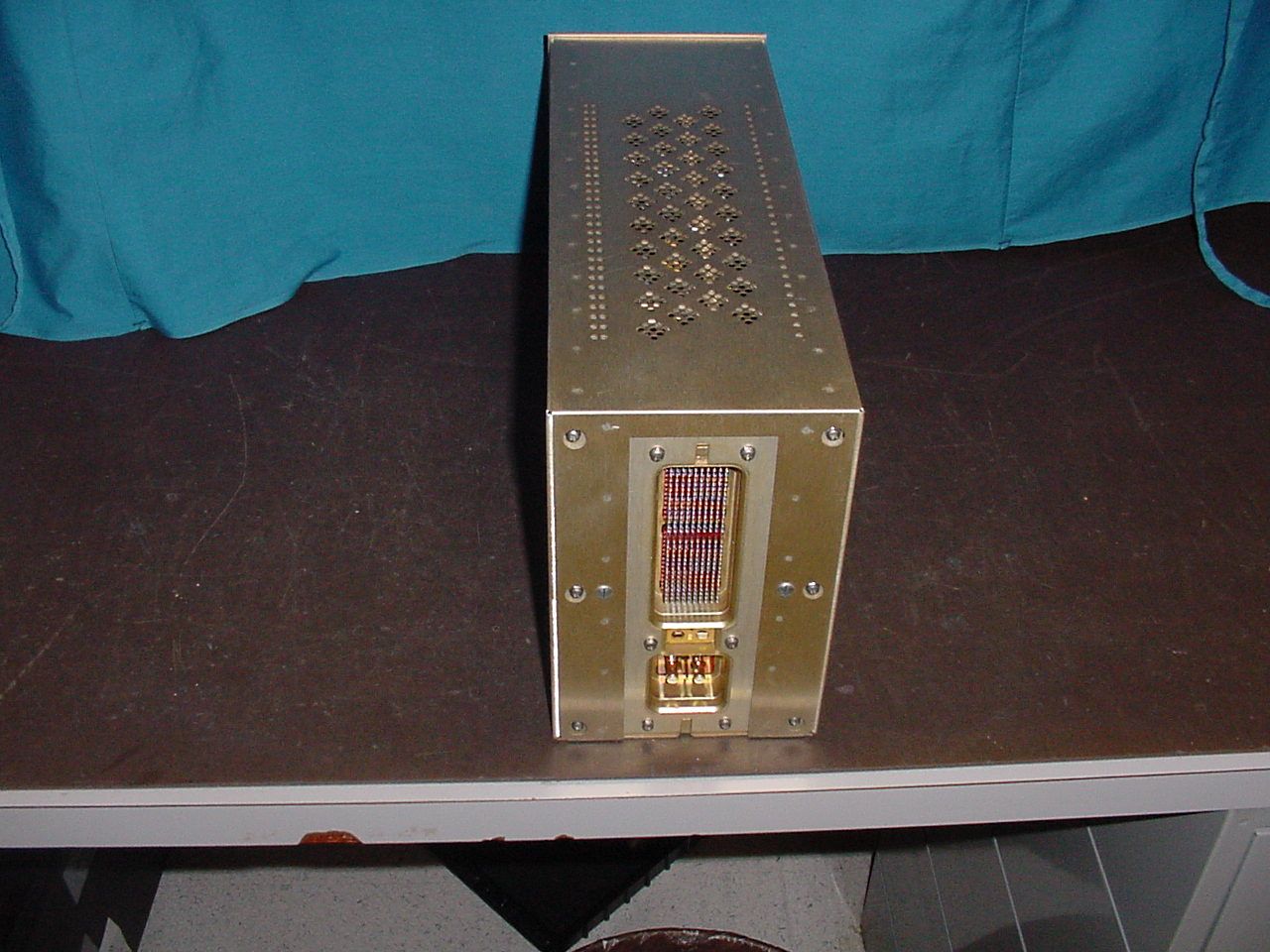

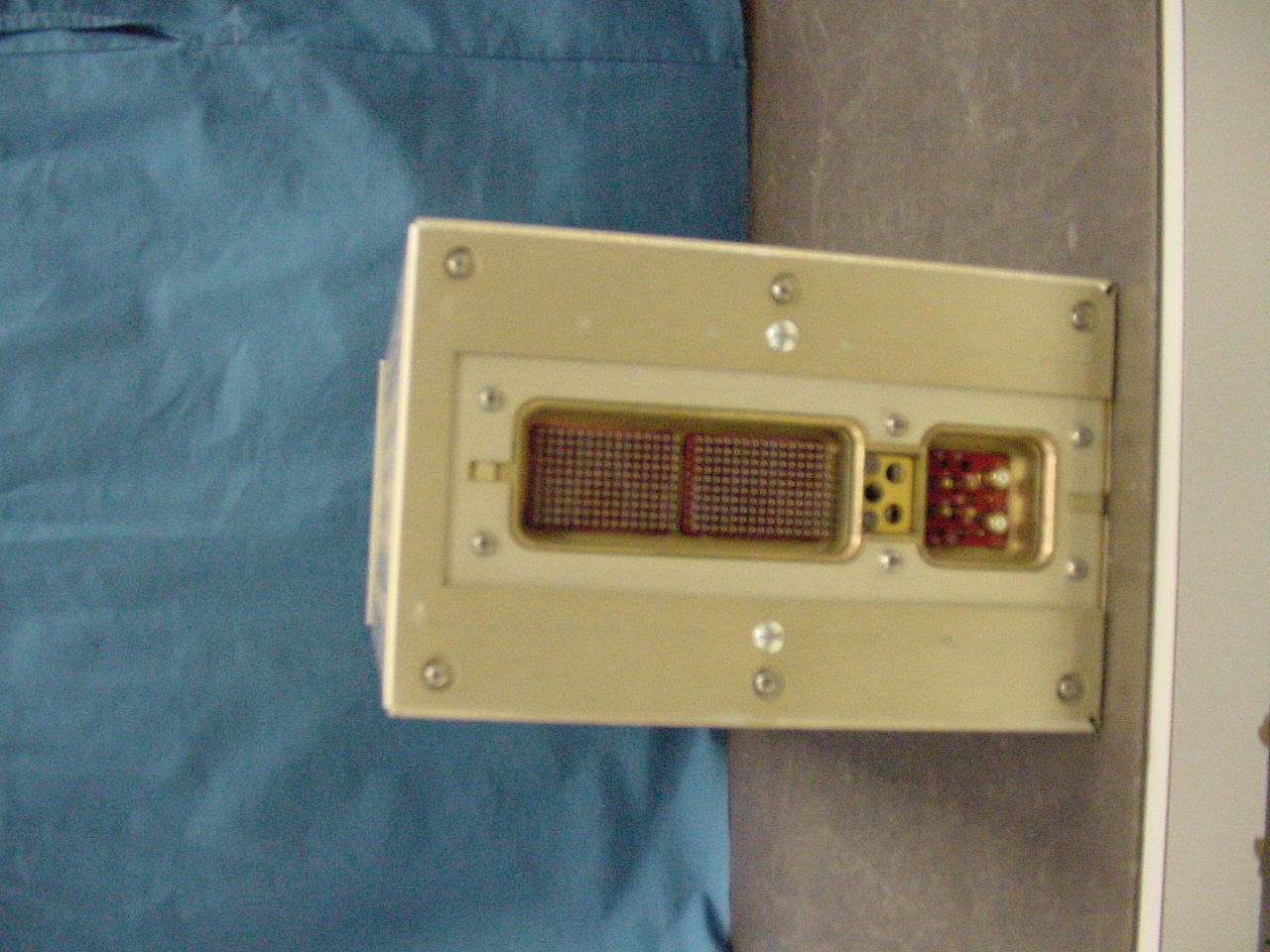

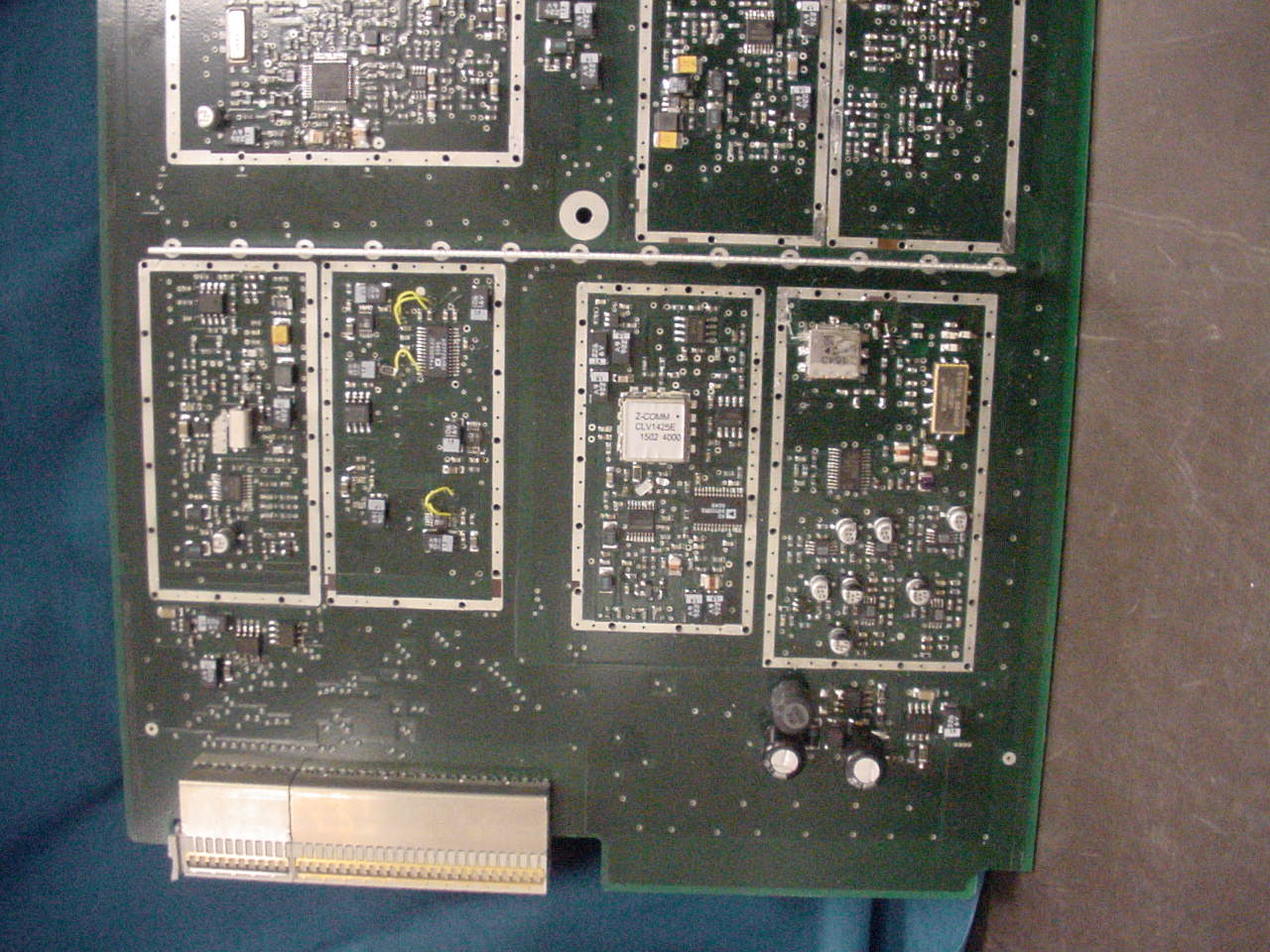

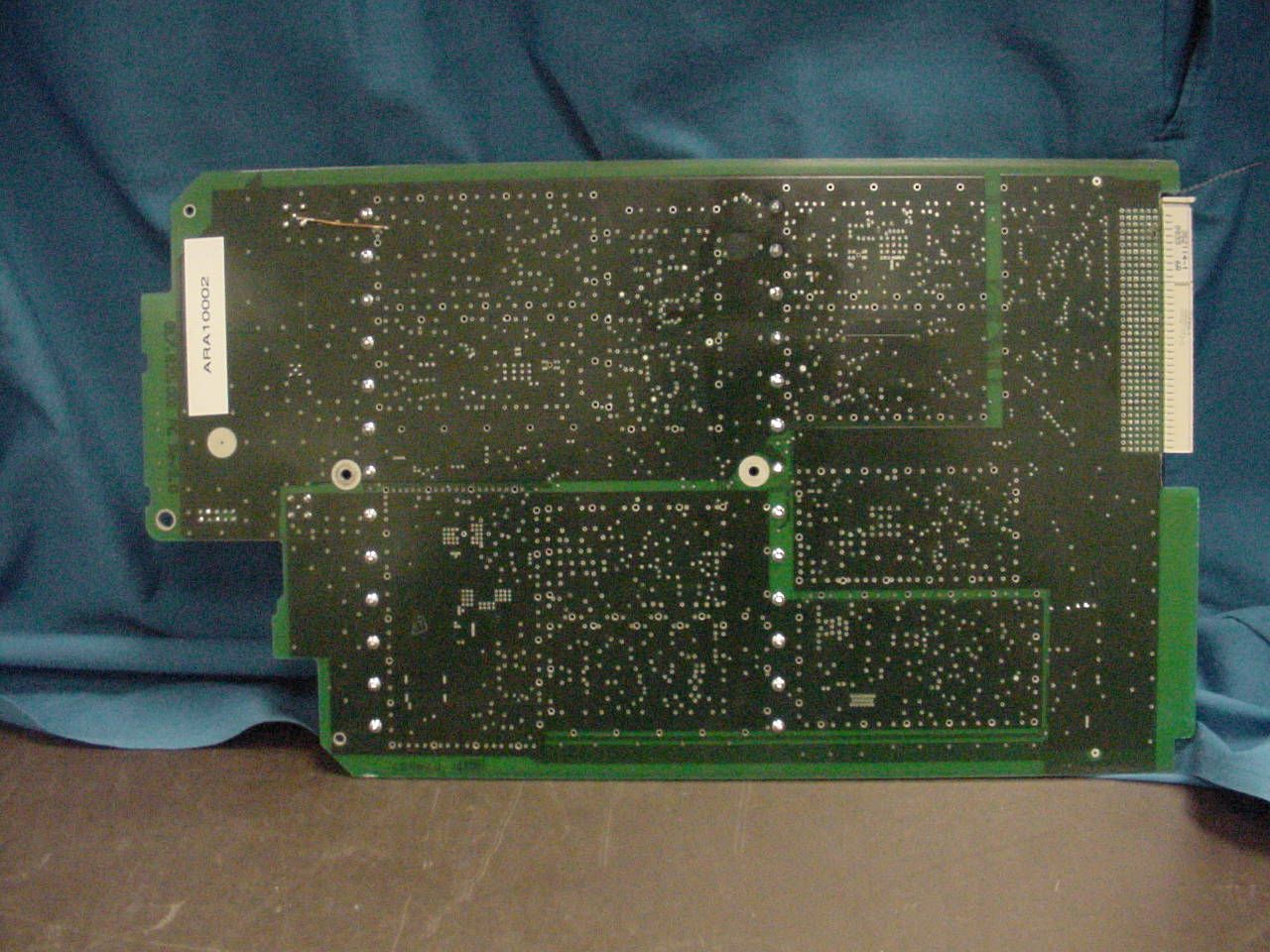

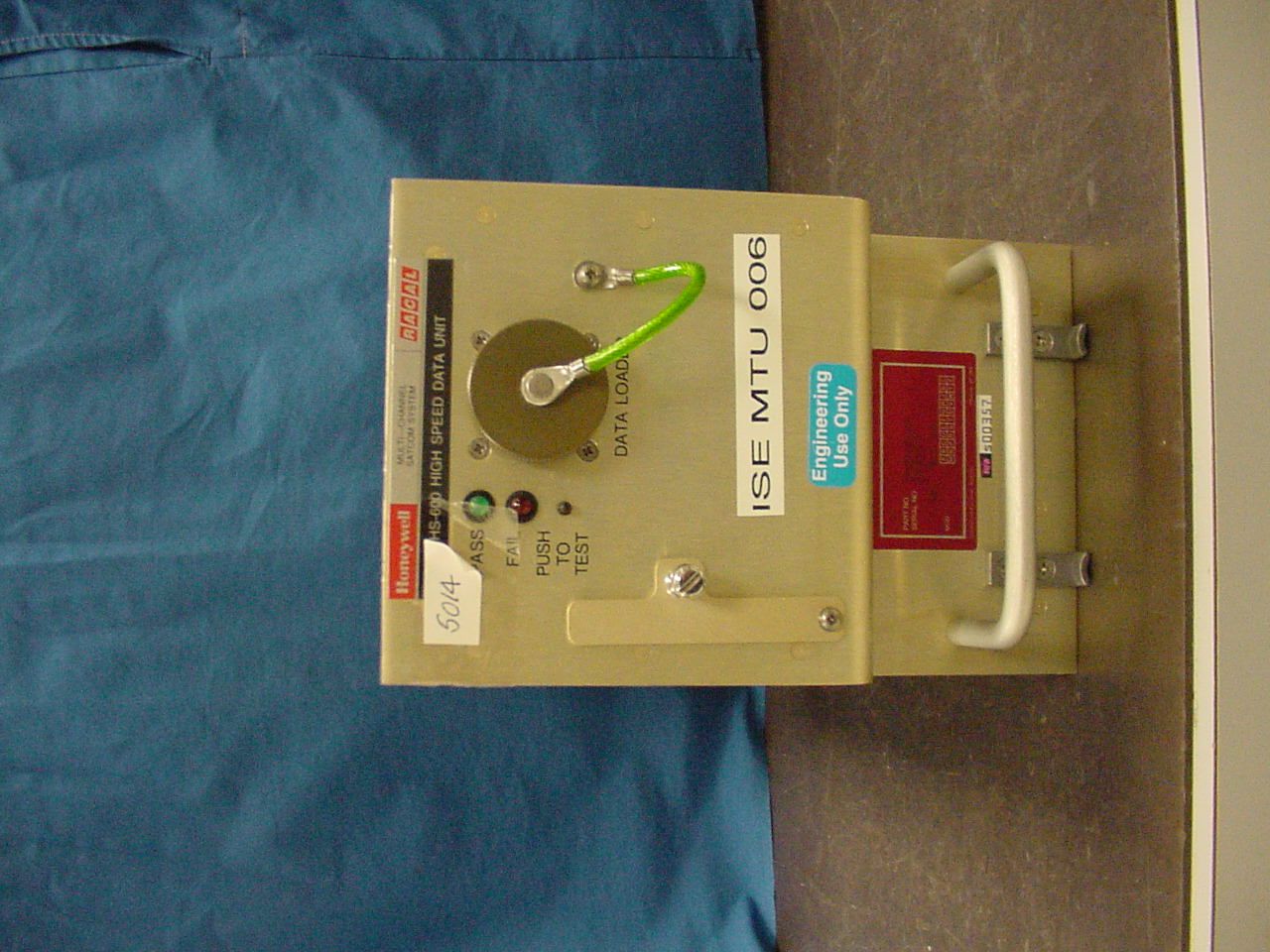

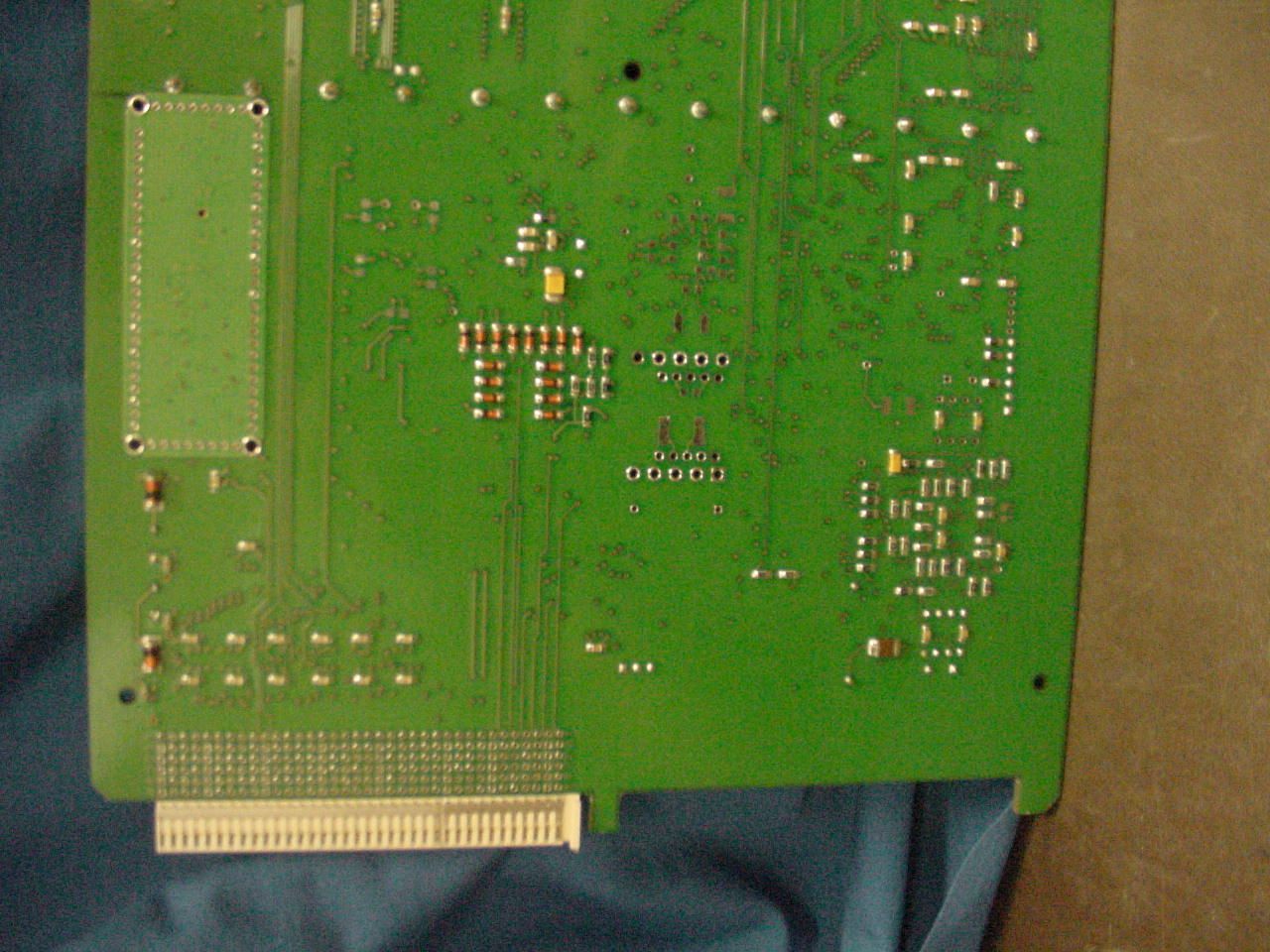

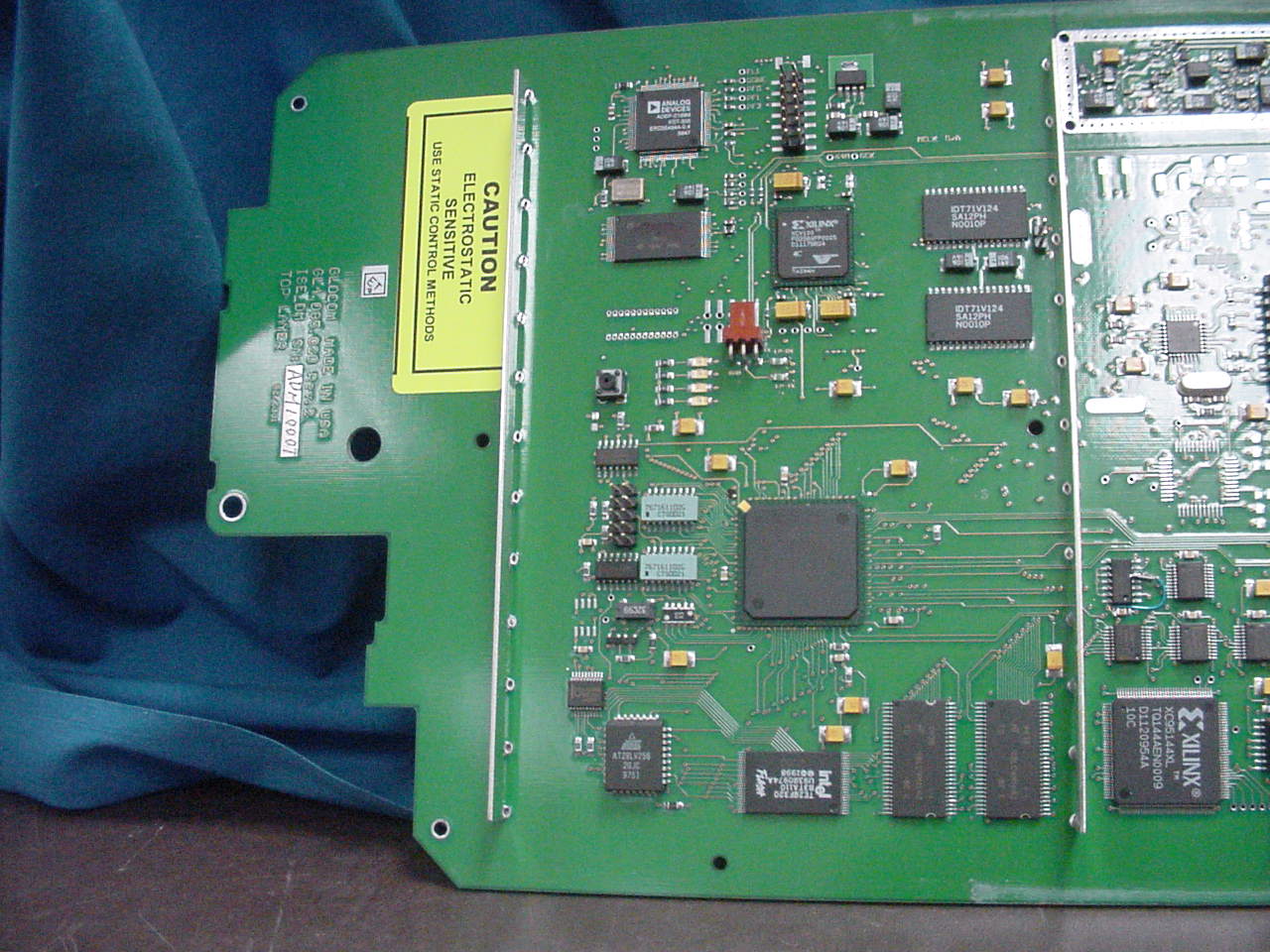

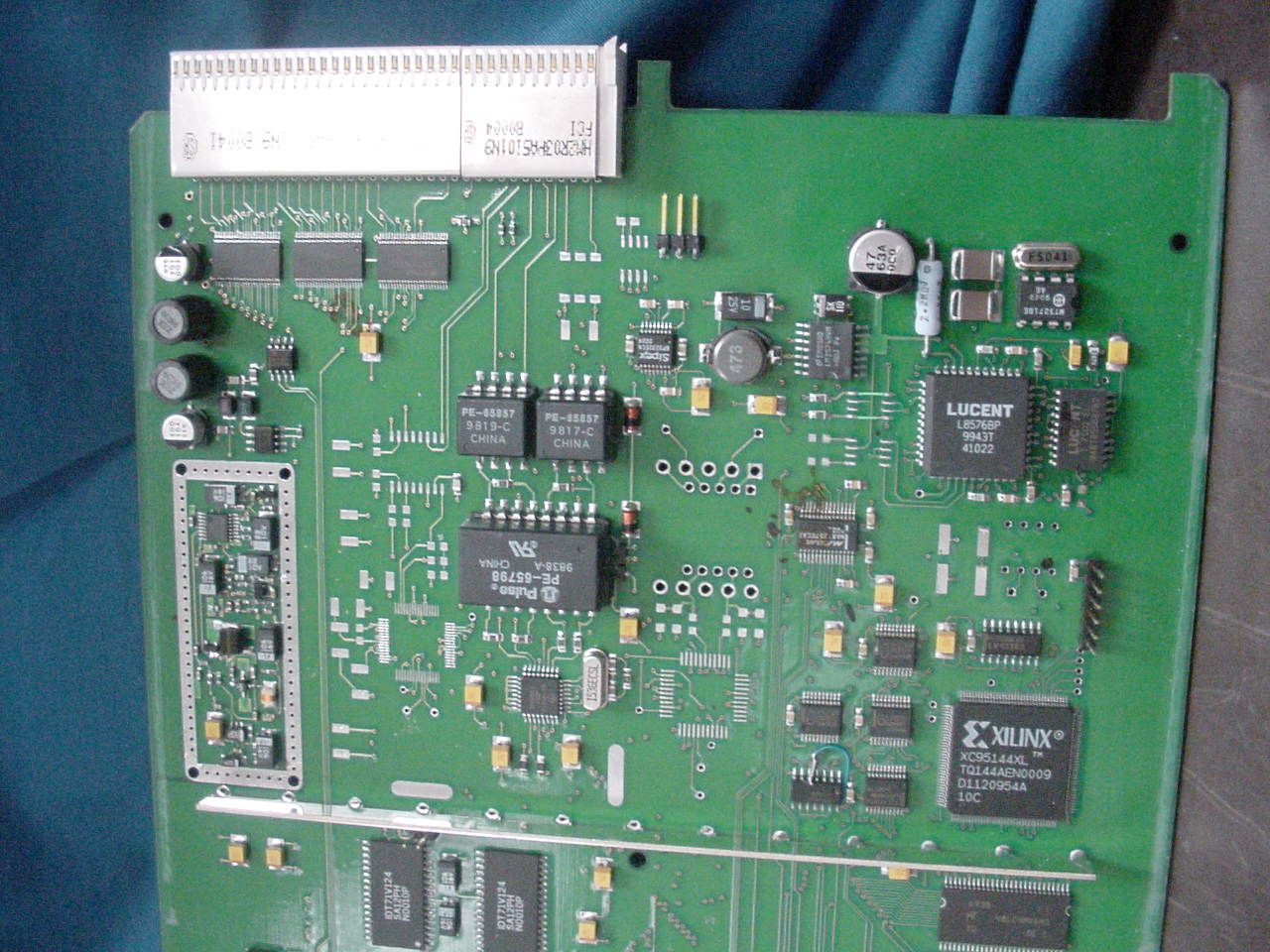

GB8HS-600Inmarsat Aircraft Telecommunications Systems

This document contains technical data and is subject to U.S. export regulations. These commodities, technology, or software were exported from the United States in accordance with the export administration regulations. Diversion contrary to U.S. law is prohibited. Honeywell Aerospace Electronic Systems CES--Phoenix P.O. Box 21111 Phoenix, Arizona 85036-1111 U.S.A. Printed in U.S.A. Pub. No. A15--5111--006 23--20--31 Title Page T--1 30 May 2002 System Description and Installation Manual HS--600 High Speed Data System SYSTEM DESCRIPTION AND INSTALLATION MANUAL HS--600 High Speed Data System PROPRIETARY NOTICE This document and the information disclosed herein are proprietary data of Honeywell. Neither this document nor the information contained herein shall be used, reproduced, or disclosed to others without the written authorization of Honeywell, except to the extent required for installation or maintenance of the recipientís equipment. NOTICE -- FREEDOM OF INFORMATION ACT (5 USC 552) AND DISCLOSURE OF CONFIDENTIAL INFORMATION GENERALLY (18 USC 1905) This document is being furnished in confidence by Honeywell. The information disclosed herein fall within exemption (b) (4) of 5 USC 552 and the prohibitions of 18 USC 1905. S2002 Honeywell is a U.S. registered trademark of Honeywell. All other marks are owned by their respective companies. Copyright 2002 Honeywell All Rights Reserved 23--20--31 Title Page T--2 30 May 2002 Please cut along the dotted line. Please cut along the dotted line. REPORT OF POSSIBLE DATA ERROR FOR HONEYWELL USE ONLY CONTROL NO. DATE RECEIVED Please mail or FAX completed form to Technical Publications Quality Administrator. If returning by mail, please tape this form closed (U.S. postal regulations prohibit the use of staples). If sending by FAX, the Technical Publicationsí U.S. FAX No. is (602 - 436 - 3900). If sending by email, the email address is [email protected]. Local reproduction of this form is encouraged.This form is based on electronic form INF--300, Revision 0 To help us improve the quality of our publication, Honeywell encourages any report of a possible data error. PUBLICATION INFORMATION Publication Number A15--5111--006 Volume No. (Book, or Addendum) ATA Number 23--20--31 Latest Issue Date From Title Page Publication Title High Speed Data Unit Document Type System Description and Installation Manual READER INFORMATION Please check all that apply: hTrainerhTechnicianhLibrarianhEngineerhOther(Please specify) Your Name (optional)Company Name Street Address City, State (Province), Zip Code, Country Telephone No.FAX No. POSSIBLE DATA ERROR Page No. Paragraph Figure No.Table No.Description of Possible Data Error HONEYWELL REPLY DO NOT STAPLE DO NOT STAPLE BUSINESS REPLY MAIL FIRST CLASS PERMIT NO. 3532, PHOENIX, AZ FOLD FOLD POSTAGE WILL BE PAID BY ADDRESSEE Honeywell Aerospace Electronic Systems CES--Phoenix P.O. Box 21111 Phoenix, Arizona 85036-1111 U.S.A. ATTN: Technical Publications Quality Administrator NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES Please cut along the dotted line. Please cut along the dotted line. CUSTOMER RESPONSE FOR HONEYWELL USE ONLY CONTROL NO. DATE RECEIVED Please mail or FAX completed form to Technical Publications Quality Administrator. If returning by mail, please tape closed (U.S. postal regulations prohibit the use of staples). If sending by FAX, the Technical Publicationsí U.S. FAX No. is (602 - 436 - 3900). If sending by email, the email address is [email protected]. Local reproduction of this form is encouraged. To help us improve the quality of our publications, Honeywell encourages readers to provide input to the customer--satisfaction survey below. We welcome all comments and recommendations. PUBLICATION INFORMATION Publication Number A15--5111--006 Volume No. (Book, or Addendum) ATA Number 23--20--31 Latest Issue Date From Title Page Publication Title High Speed Data Unit Document Type System Description and Installation Manual READER INFORMATION Please check all that apply: hTrainerhTechnicianhLibrarianhEngineerhOther(Please specify) Your Name (optional)Company Name StreetAddress City,State(Province), StreetAddress City,State(Province), Zip Code, Country Telephone No.FAX No. CUSTOMER--SATISFACTION SURVEY Please check the yes or no box to answer the following questions:YesNo 1. Is the Publication technically accurate? jj 2. Is information easy to find? jj 3. Is information complete? jj 4. Are figures easy to use? jj 5. Are tables easy to use jj 6. Is the Publication used for training? jj 7. Do you or your organization wish to remain on distribution for this publication? jj Please rate this publication in comparison to other documents you use. GoodFairPoor jjj Please provide comments, recommendations and/or improvements that you would like to see in this publication. DO NOT STAPLE DO NOT STAPLE BUSINESS REPLY MAIL FIRST CLASS PERMIT NO. 3532, PHOENIX, AZ FOLD FOLD POSTAGE WILL BE PAID BY ADDRESSEE Honeywell Aerospace Electronic Systems CES--Phoenix P.O. Box 21111 Phoenix, Arizona 85036-1111 U.S.A. ATTN: Technical Publications Quality Administrator NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES SYSTEM DESCRIPTION AND INSTALLATION MANUAL HS--600 High Speed Data System 23--20--3130 May 2002 Use or disclosure of information on this page is subject to the restrictions in the proprietary notice of this document. Page RR--1 RECORD OF REVISIONS For each revision, put the revised pages in your manual and discard the superseded pages. Write the revision number and date, date put in manual, and the incorporatorís initials in the applicable columns on the Record of Revisions. The initial H shows Honeywell is the incorporator. Revision Number Revision Date Date Put In Manual By Revision Number Revision Date Date Put In Manual By SYSTEM DESCRIPTION AND INSTALLATION MANUAL HS--600 High Speed Data System 23--20--3130 May 2002 Use or disclosure of information on this page is subject to the restrictions in the proprietary n…

Text truncated - open the document above for the full version.

Honeywell Sales Bulletin 02-07o – Honeywell/Thales Swift64 SATCOM System HS-600 Page 3 of 5 1.3 HP-600 High Power Amplifier (HPA) The 40 W HPA is identical to the unit already in use with the existing MCS system. It is an 8 MCU LRU that will be dedicated for exclusive use with the HSU. 1.4 RF Combiner and Splitter These devices facilitate the ability of the HSU and HPA to share the HGA with the existing MCS system. The RF Combiner attributes are: • Size ¾ 3.53” (89.66mm) height ¾ 5.04” (128.02 mm) width ¾ 10.91” (277.11mm) length • Weight: < 5 pounds (2.27 kg) The Splitter attributes are: • Size ¾ 1.00” (25.40mm) height ¾ 1.75” (44.45 mm) width ¾ 2.00” (50.80mm) length • Weight: < 1 pound (0.45 kg) 1.5 System Block Diagram COMBINER (High Power) D/LNA HGA SD700 SDU (6 MCU) HP600 40W HPA (8 MCU) HS600 Swift64 ( 4 MCU) RF RF RF RF RF RF HP600 40W HPA (8 MCU) RF Splitter R232

FCC ID: GB8HS-600 MFA p0240002, d0250043 Date: May 16, 2002 Federal Aviation Administration Spectrum Engineering Division ASR-1 800 Independence Ave. S.W. Washington, D.C. 20591 Attention: George Sakat Applicant: Honeywell International Inc. Commercial Electronic Systems Inc. – Phoenix Equipment: HS-600 FCC Rules: 87 Gentlemen: As required under FCC Rule Part 87.147(d) please consider this letter, sent on behalf of the Applicant, as notification of the filing of an application Form 731 for the certification of the referenced equipment. Attached for your records, please find: 1. copy of the FCC Application Form 731 and full Test Data Report 2. copy of the proof of electronic filing to FCC with EA# 3. copy of the covering letter to the Commission 4. copy of the Agent Authorization letter for the writer to act on behalf of the Applicant. 5. LIST OF INFORMATION as requested by you, duly completed We trust the enclosed complies with your requirements. Should you need any further clarification, kindly contact the writer. Sincerely yours, Morton Flom, P. Eng. MF/cvr enclosure(s) cc: Applicant cc: FCC via Electronic Filing cc: Industry Canada VIA CERTIFIED MAIL

> -----Original Message----- > From: Bailey, Peter (AZ77) > Sent: Thursday, August 01, 2002 1:41 PM > To: Dosdall, Charlie (AZ77) > Subject: RE: [Fwd: 16-QAM]FCC ID; GB8HS-600 EA23544 > > Charlie, > > In the designation 38K0D1W, 38K0 identifies the occupied bandwidth as 38.0 > kHz (the position of the K denotes the decimal point); D identifies the > modulation type; 1 indicates that a single channel is involved; W > identifies the type of information to be transmitted (in our case a > combination of stuff like data, telephony, etc.). > > When trying to determine the correct emissions designation for HS-600, I > was unable to find anything in part 87 that pertained directly to 16QAM. > The table in 87.137, for instance, which does contain the designations for > AES equipment, does not mention Quadrature/Amplitude Modulation. However, > in part 2, para. 2.201 which assigns the letter designation for the > modulation type, the letter "D" is used for an "Emission in which the main > carrier is amplitude and angle-modulated either simultaneously or in a > pre-established sequence." This seemed to apply pretty well. Changing > the modulation type to G, which is phase modulation, is not entirely > accurate. > > Pete

With regard to the FCC concerns over the Swift64 Aero HSD service with respect to Part 87 of the FCC Regulations, as these apply to the airborne equipment (i.e., the HS-600 system) providing this service, the following can be said: Inmarsat has filed the appropriate Swift 64 Aero HSD technical parameters with the ITU, which include the following items: Class of Emission Emission Designator Authorized Bandwidth G1D 5K60G1D 25 kHz D1D 40K0D1D 45 kHz D1E 40K0D1E 45 kHz D1W 40K0D1W 45 kHz Figure 11 of Version 1.2 (CN3) to the Inmarsat Min-M SDM is included (with Inmarsat’s permission) to provide additional information regarding the spectral content of the Aero HSD signal. The adjacent channel interference developed by the Swift64 service (as realized in the HS-600 system) complies with the relevant ITU recommendations, which were developed in consultation with other users of this spectrum. The Swift64 Aero HSD service and its maritime equivalent (Fleet77) are already approved and commercially available from Telenor; specifically, the Swift64 Aero HSD service is available through Telenor’s GESs at Southbury, CT; Santa Paula, CA; and Kuantan, Malaysia. If there are any further questions, please do not hesitate to ask.
