KE-30 Installation Instructions Battery Operated Two-Way Wireless Keypad 1 0706-0960254+00 1. Introduction The KE-30 is a wireless keypad for use with Rosslare wireless panels. The KE-30 features include: • Fully featured keypad, including: LED indicators, function buttons (arm-away, arm-home, disarm), numeric pad, buzzer, and emergency triggering. • RFID proximity reader for arming and disarming; The range varies according to the type of card used, and is up to a maximum of 2.5 cm. • LED indications of the system status, including: Alarm In Memory, Trouble and Bypass, and system status (armed away / armed home / disarmed). • Wall keypad tamper-protection mechanism. • Low-power consumption; its internal batteries are designed to last for years, under normal operation. Figure 1: KE-30 Wireless Keypad 2. Technical Specifications 2.1 Electrical Characteristics Power Supply Voltage: 4 batteries - CR123A 3V 1300mAh Current Consumption: Standby - 17 uA ; Transmit 14 mA Battery life – 1 year 2.2 Environmental Characteristics Operating Environment: Indoor use Operating Temperature: -10°C to 50°C (14°F to 122°F) Operating Humidity: 0 to 95% (Non-Condensing) 2.3 Physical Characteristics Dimensions HxWxD: 140x100x28 mm (5.51x3.94x1.10 inch) Weight: 99g (0.218lb) RFID Proximity Reader: Read-compatible with Wiegand 26-bit EM4102 card (or compatible standard) Read range: Maximum of 2.5 cm (using Rosslare's AT-R14) Frequencies: G-Band (433.92 MHz), H-Band (868.35 MHz) 3. Install the KE-30 3.1 Mounting the KE-30 Open the KE-30 and mount the back cover of the KE-30 flush to the wall. To mount the keypad on the wall: 1. Locate and release the screws at the bottom of the keypad, and open the cover. 2. Place the back plate at the desired location. (The keypad should be installed at eye level.) 3. Use the dimensions given in the figure to the right, or use the back cover as a template. 4. Drill four holes in the wall and insert the anchors provided. 5. Mount and fasten the back plate with the screws provided, and assure that the back plate is level. 6. Secure the back plate with the screws referred to in Step 1. Figure 2: Mounting Dimensions 3.2 Replacing the Batteries To replace the CR123A batteries: 1. Remove the used batteries and re place them . 2. Close the cover and the system is up and running. 3.3 Enrolling the Keypad Please refer to the Keypad Enrolling section of the HomeLogiX wireless panel manual or refer to any Rosslare wireless panel manual that supports the relevant keypad. 3.4 Enrolling Proximity Cards Please refer to the Proximity Card Enrolling section of the HomeLogiX wireless panel manual or refer to any Rosslare wireless panel manual that supports the relevant proximity cards. Figure 3: Battery Placement 2 0706-0960254+00 4. Tamper The KE-30 is secured to the wall with a screw (see Mounting the KE-30). Tamper control is implemented via a knock-out hole as soon as the KE-30 has been installed. Any attempt to tamper with the system will set off an alarm. Figure 4: Tamper Knock-Out 5. Utilizing the KE-30 Wireless keypad The KE-30 functions as both an Arming/Disarming unit and as a Status Viewing unit. 5.1 Arm/Disarm and Basic Operations Below are instructions on how to arm the system using the various options. Basic Arming Using the keypad • Press the ARM AWAY key, and enter the user code. The system will beep, and the ARM AWAY LED indicator will flash. • Press the ARM HOME key, and enter the user code. The system will beep, and the ARM HOME LED indicator will flash. • Press the DISARM key, and enter the user code. The DISARM LED indicator will flash. The QUICK AWAY and QUICK HOME functions: • Press the AWAY button for 2 seconds. The system will beep, and will be Armed AWAY. • Press the HOME button for 2 seconds. The system will beep, and will be Armed HOME. Emergency Alarm Activation: • Press on 1 and 3 simultaneously for 3 seconds to activate the emergency alarm. 5.2 Status Viewing Note: The ARM HOME LED indicator, the ARM AWAY LED indicator, and the DISARM LED indicator flash, but they do not remain on continuously. The KE-30 indicates a panel's status by flashing the relevant LED indicator, and displays one of the following statuses: • Armed Away • Armed Home • Disarmed • In Memory and Trouble • By-pass When a new KE-30 unit is turned on, a flashing TROUBLE LED indicator indicates that the unit must be enrolled. Once it has been enrolled, the Disarm LED indicator will flash. If the system is experiencing trouble, the TROUBLE LED indicator (!) will flash. If there is an Alarm in Memory in the System, the ALARM LED indicator (M) will flash. If the System is by-passed, the BYPASS LED indicator (Z) will flash. 5.3 RFID Function Note: The RFID function is deactivated by default, since if it is activated, battery life will be significantly shortened. Enabling the RFID Function: Press both on the * key and the # key for 3 seconds until the system beeps twice. After the system beeps twice, press 1, and then press #. When the RFID is activated, the system will beep once. Cancelling the RFID function: Press both on the * key and the # key for 3 seconds until the system beeps twice. After the system beeps twice, press 0, and then press #. The RFID is now deactivated. Enrolling proximity cards: Please refer to the Proximity Card Enrolling section of the HomeLogiX wireless panel manual or refer to any Rosslare wireless panel manual that supports the relevant proximity cards. Using a Proximity Card to ARM or DISARM the System: Note: First activate the RFID function. Press on the Away, Home, or Disarm button. then place the card directly above the keypad. The system will activate th e desired function (Arm Aw ay/Home or Disarm). Caution: Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Rosslare Ltd.) could void the user’s authority to operate the equipment. 3 0706-0960254+00 6. Limited Warranty ROSSLARE ENTERPRISES LIMITED S (Rosslare) TWO YEAR…
Text truncated - open the document above for the full version.
RF_160, Issue 02 Declaration of Authorization We Name: Rosslare Enterprises Ltd. Address: Flat 12, 9 Floor, Wing Fat Ind. Bldg., 12 Wang Tai Road City: Kowloon Bay, Kowloon Country: Hong Kong ............................................................................ Declare that: Name Representative of agent: ............. (1) Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 30500 Country Israel is authorized to apply for Certification of the following product(s): Product description: ...Keypad ....... Type designation: ...KE-30G ................... Trademark: ...Rosslare........................................ on our behalf. Date: November 30, 2010 Name: Joe LeKostaj .......................... (2) Function: Engineering Manager Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.
FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Rosslare Enterprises Ltd. Address: Flat 12, 9 Floor, Wing Fat Ind. Bldg., 12 Wang Tai Road City: Kowloon Bay, Kowloon Country: Hong Kong To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: GCD-KE-30G Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: November 30, 2010 Name and signature of applicant: Mr. Joe LeKostaj Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

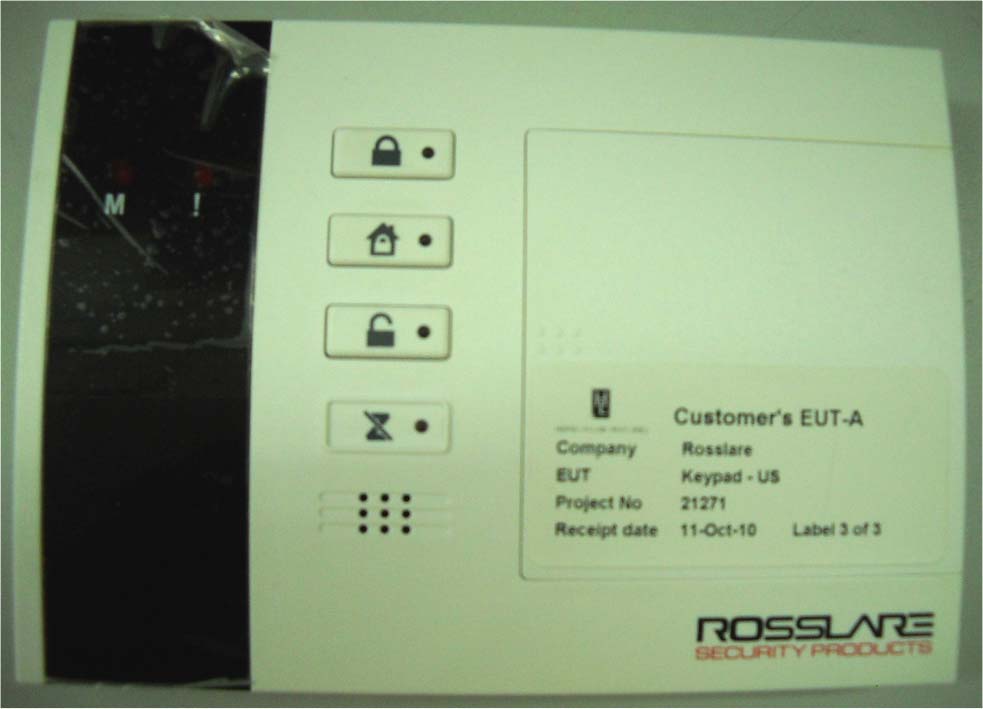

Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 1 of 4 EXTERNAL PHOTOGRAPHS This document contains 3 photographs Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 2 of 4 Photograph No.1 KE-30G keypad front view Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 3 of 4 Photograph No.2 KE-30G keypad front view with open cover Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 4 of 4 Photograph No.3 KE-30G keypad rear side view
CONTROLLED DRAWING This drawing is the property of RESL and can not be copied or loaned without written permission. DETAIL NAME DATE APPROVALDATE VER REV PROJECT MATERIAL QUANTITY DRAWN DATE DATE DATE UNIT DWG SIZE SHEET OF CHECKED APPROVED SCALE CAD FILE DWG NO. MODEL DESCRIPTION PART NO. FINISH UNLESS OTHERWISE SPECIFIED OPTION DECIMAL XX XX.X XX.XX XX.XXX 1.00 0.30 0.10 0.01 0.50 0.10 0.05 0.01 0.002 0.10 0.02 0.005 RADIUS CHAMFERS ANGLE R05 = 0.050 R1 = 0.100 R2 = 0.200 R5 = 0.500 XR = R MAX. C01 = 0.10 X 45 C02 = 0.20 X 45 C05 = 0.50 X 45 C1 = 1.00 X 45 S = STONE 0 - 30’ EDM (VDI) 27 - 30 SURFACE: A B B A 4 4 3 2 1 1 2 3 SAFETY ALARM SYSTEM KE-30G DONNA 1 : 1 KE-30G FCC Label.cdr 72051 MM A4 1 1 0604-0000000+00 N/A 1 FILM LABEL, FCC A0 THE FIRST ISSUE Donna 25 NOV 10 25 Nov 10 PLACE ALL 1. Font - Arial 2. Material: Synthetic paper FASSON# BW9664 with back adhesive 3. Foreground: Black Background: White 4. Part must be RoHS compliant. Rosslare Electronics (Shenzhen) Ltd. Model: KE-30G Wireless Keypad Made in China 433.92 MHz Wireless Keypad KE-30G FCC ID: GCD-KE-30G 433.92 MHz This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, 2) This device must accept any interference received, including interference that may cause undesired operation. 2 2 . 0 0 37.00 4XR1.00 Alarm Control Panel HLX-40BGE 433.92 MHz FCC ID: GCD-HLX-40BGE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Made in China HomeLog Power: 13.8VDC,800mA
Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 1 of 1 Label location The label is affixed on the rear side of the wireless keypad as shown below. The label material is PVC with a permanent adhesive. The label with FCC ID:GCD-KE-30G will be located here. FCC ID:GCD-KE-30G
Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 1 of 9 INTERNAL PHOTOGRAPHS This document contains 8 photographs Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 2 of 9 Photograph No.1 KE-30G keypad internal view Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 3 of 9 Photograph No.2 KE-30G keypad internal view Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 4 of 9 Photograph No.3 KE-30G keypad PCB top view Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 5 of 9 Photograph No.4 KE-30G keypad PCB second side view Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 6 of 9 Photograph No.5 KE-30G keypad PCB side view Transceiver printed antenna (433.92 MHz) Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 7 of 9 Photograph No.6 KE-30G keypad RFID antenna Transceiver printed antenna (433.92 MHz) RFID antenna (125 kHz) Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 8 of 9 Photograph No.7 PCB without shielding Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 9 of 9 Photograph No.8 PCB without shielding
Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 34 Report ID: ROSRAD_FCC.21271_15.231.doc Date of Issue: 10/27/2010 Electrical 839.01 TEST REPORT ACCORDING TO: FCC CFR 47 PART 15 subpart C, section 15.231(a) FOR: Rosslare Enterprises Ltd. Wireless keypad Model: KE-30G This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: ROSRAD_FCC.21271_15.231.doc Date of Issue: 10/27/2010 Page 2 of 34 Table of contents 1 Applicant information .........................................................................................................................................................3 2 Equipment under test attributes ........................................................................................................................................3 3 Manufacturer information ..................................................................................................................................................3 4 Test details ........................................................................................................................................................................3 5 Tests summary ..................................................................................................................................................................4 6 EUT description .................................................................................................................................................................5 6.1 General information ...........................................................................................................................................................5 6.2 Operating frequencies .......................................................................................................................................................5 6.3 Changes made in EUT ......................................................................................................................................................5 6.4 Test configuration ..............................................................................................................................................................5 6.5 Transmitter characteristics ................................................................................................................................................6 7 Transmitter tests according to 47CFR part 15 subpart C requirements...........................................................................7 7.1 Periodic operation requirements .......................................................................................................................................7 7.2 Field strength of emissions..............................................................................................................................................11 7.3 Occupied bandwidth test .................................................................................................................................................22 7.4 Antenna requirements .....................................................................................................................................................25 8 APPENDIX A Test equipment and ancillaries used for tests..........................................................................................26 9 APPENDIX B Measurement uncertainties ......................................................................................................................27 10 APPENDIX C Test laboratory description .......................................................................................................................28 11 APPENDIX D Specification references ...........................................................................................................................28 12 APPENDIX E Test equipment correction factors ............................................................................................................29 13 APPENDIX F Abbreviations and acronyms ....................................................................................................................34 Report ID: ROSRAD_FCC.21271_15.231.doc Date of Issue: 10/27/2010 Page 3 of 34 1 Applicant information Client name: Rosslare Enterprises Ltd. Address: Flat 12, 9 Floor, Wing Fat Ind. Bldg., 12 Wang Tai Road, Kowloon Bay, Kowloon, Hong Kong Telephone: +852 2795 5630 Fax: +852 2795 1508 E-mail: [email protected] Contact name: Mr. Leonid Beckman 2 Equipment under test attributes Product name: Wireless keypad Product type: Transceiver Model(s): KE-30G Serial number: 010247 Hardware version: 0101-2090069+05 Software release: KE30G_WLKEYPAD_FW_001 Receipt date 10/10/2010 3 Manufacturer information Manufacturer name: Rosslare Enterprises Ltd. Address: Flat 12, 9 Floor, Wing Fat Ind. Bldg., 12 Wang Tai Road, Kowloon Bay, Kowloon, Hong Kong Telephone: +852 2795 5630 Fax: +852 2795 1508 E-Mail: [email protected] Contact name: Mr. Leonid Beckman 4 Test details Project ID: 21271 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Test started: 10/11/2010 Test completed: 10/26/2010 Test specification(s): FCC Part 15, subpart C, §15.231 Report ID: ROSRAD_FCC.21271_15.231.doc Date of Issue: 10/27/2010 Page 4 of 34 5 Tests summary Test Status Transmitter characteristics Section 15.231(a), Periodic operation requirements Pass Section 15.231(b), Field strength of emissions Pass Section 15.231(c), Occupied ba…
Text truncated - open the document above for the full version.
Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 1 of 7 SETUP PHOTOGRAPHS This document contains 6 photographs Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 2 of 7 Photograph No.1 Setup for spurious emission measurements in the anechoic chamber below 30 MHz Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 3 of 7 Photograph No.2 Setup for radiated emission measurements in the anechoic chamber from 30 to 1000 MHz Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 4 of 7 Photograph No.3 Setup for radiated emission measurements in the anechoic chamber above 1000 MHz Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 5 of 7 Photograph No.4 Setup for radiated emission measurements in the anechoic chamber, EUT close view Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 6 of 7 Photograph No.5 Setup for occupied bandwidth measurements Rosslare Enterprises Ltd. FCC ID:GCD-KE-30G Page 7 of 7 Photograph No.6 Setup for periodic operation measurements
