GCD-SA-01PGPet immune PIR detector

SA-01P Installation Instructions Digital Wireless Pet Immune Passive Infrared Motion Detector 1 0706-0960212+00 1. Introduction The SA-01P Digital Wireless Pet Immune Passive Infrared (PIR) Motion Detector is a high-performance ultra low power intrusion sensor made with the highest level of SMD components and microprocessor technologies, making it ideal for both residential and commercial usage. This unit works with Rosslare's control panels. The PIR senses slight motion within a coverage pattern by detecting infrared energy with a pyroelectric sensor. Serving as an anti-intrusion sensor, the PIR can monitor open space within line of sight while ignoring house pets and other small animals, thus reducing false alarms significantly. The SA-01P uses a pet lens with fuzzy logic implementing a special algorithm to improve human detection while at the same time ignoring pets and other small animals thus reducing false alarms. It also provides digital temperature compensation and self-test capability. For high-security, the SA-01P is supplied with a back and cover tamper which detects tampering with the sensor if the case is opened or an attempt is made to remove it from the wall. As a wireless device, the SA-01P includes a supervision mechanism as well as features such as walk and RF transmission test functions, movement and speed spectrum analysis, selectable pulse counting, ultra-bright LED, cover and wall tamper detection, ultra-low current consumption, APS (Auto Power Save) technology, and automatic low battery detection. The SA-01P also has an optional mount bracket. Caution: Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Rosslare Ltd.) could void the user’s authority to operate the equipment. 2. Technical Specifications 2.1 Optical Characteristics Lens Type: Pet immune multi-zone, high density polytilan type Optical Filter: White light protection Maximum Coverage: 14 x 14 m (45.9 x 45.9 ft ) 88° Vertical Adjustment: By slot (+/- 2°) 2.2 Electrical Characteristics Battery type: CR123 (3V/1300mAh) Current consumptions: Standby 15μA, 10mA transmission. Battery life (nominal): 3 years (150tr/day) Detector Type: Dual pyro IR element (IR filter 5um÷14um) Alarm Signaling: Red LED 2 seconds on event transmission: alarm, tamper, low battery. Sensitivity: 2 levels fuzzy logic (jumper setting) Speed Detect: 0.2M/s÷5M/s∆t=1.1°C (0.66 ft/s÷16.4 ft/s∆t=2° F) Pet Immune: Up to 25Kg. Temperature Compensation: Digital dual slope (+/- 1°C) Tamper Switches: Back & cover tamper Supervisory Signals: Electronic malfunction or temperature out of range is indicated by a flashing LED. Arming types: Normal: 2 minutes sleep following last alarm Dynamic: 2 minutes following last movement (retriggerable). Test modes: walk test (no sleep) 1 min, radio test (10 transmission) by push button. RF Characteristics RF Frequency: G=433.92MHz and H=868.35MHz RFI Protection: >20 V/m up to 1000 MHz 2.3 Environmental Characteristics Operating Environment: Indoor use Operating Temperature: -10 to 60°C (14 to 140°F) Operating Humidity: 0 to 95% (non-condensing) 2.4 Physical Characteristics Dimensions: 90mm x 65mm x 52mm (3.5 in. x 2.5 in. x 2.2 in.) Weight: 84.2 grams (2.97 oz) Note: The SA-01P is an indoor PIR, and should not be used in outdoor applications. Figure 1: Lens Top and Side View 3. SA-01P General Features These are the main features of the SA-01P: • Advanced micro-controller electronics: 10-bit A-to-D and advanced algorithms for superior movement speed spectrum analysis. • Shielded dual-element pyro: Inside a dust-proof chamber designed to reduce thermal changes and insect protection. • Two levels of sensitivity: Normal and harsh environments, by jumper selection. • Adjustable height calibration of PCB: The detector may be adjusted and placed at any height from 1.8 meters to 2.3 meters. • Back and cover tamper switch: Protection against opening the cover or wall removal. • Power saving: Two transmission modes set by jumper. • Walk and radio tests: Both can be checked quickly, using LED indication and without opening the case. • Energy detection system: By using fuzzy logic algorithms, detection is improved and false alarms are reduced. • Power level discriminator: Special lens combined with a power algorithm ignores small to medium sized animals while maintaining a high level of human detection. 2 0706-0960212+00 • Environment temperature compensation: Maintains constant detection capability. • Adaptive filter: Compensates for changes in a detected object’s speed. • Continuous monitoring: Sends visual alerts in case of malfunction (digital and analog) and temperature alerts if the environment temperature is out of range. • Silent monitoring: Low battery, tamper, and periodic beacon 4. Pet Immune Feature The SP-01P is immune from the following interferences: • One dog up to 25kg • Two dogs no more than 20kg each • Several cats • Unlimited number of small animals such as hamsters, birds, rodents, etc. These are only guide lines, there may be some tolerance regarding the size and weight of the animals monitored. For example a short haired, dark colored canine will appear bigger than a long haired, light colored canine. As a rule of thumb please add 2-3 kg for each attribute to calculate their weight when installing the detector. 5. Installation 5.1 False Alarm Reduction Effort To reduce false alarms caused by detector installation: • AVOID: Placing the PIR facing windows, or in direct sunlight as this heat energy can cause false alarms. • AVOID: Wiring of the SA-01P in such a way that it is parallel to and sitting close to 110V AC or 220V AC transmission equipment or mains power line. • AVOID: Placing near or over heat and air ducts, ovens, heat sources, radiators, and air conditioners as this may cause a false detection. • AVOID: Placing near PL lamps, electrical ballasts, above cookers, and ovens, and above steam sources. • AVOID: Placing the detector where th…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Rosslare Enterprises Ltd. Address: Flat 12, 9 Floor, Wing Fat Ind. Bldg., 12 Wang Tai Road City: Kowloon Bay, Kowloon Country: Hong Kong ............................................................................ Declare that: Name Representative of agent: ............. (1) Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 30500 Country Israel is authorized to apply for Certification of the following product(s): Product description: ... Wireless pet immune PIR detector ....... Type designation: ... SA-01PG ................... Trademark: ... Rosslare........................................ on our behalf. Date: January 17, 2011 Name: Joe LeKostaj .......................... (2) Function: Engineering Manager Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Rosslare Enterprises Ltd. Address: Flat 12, 9 Floor, Wing Fat Ind. Bldg., 12 Wang Tai Road City: Kowloon Bay, Kowloon Country: Hong Kong To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: GCD-SA-01PG Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: January 17, 2011 Name and signature of applicant: Mr. Joe LeKostaj Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

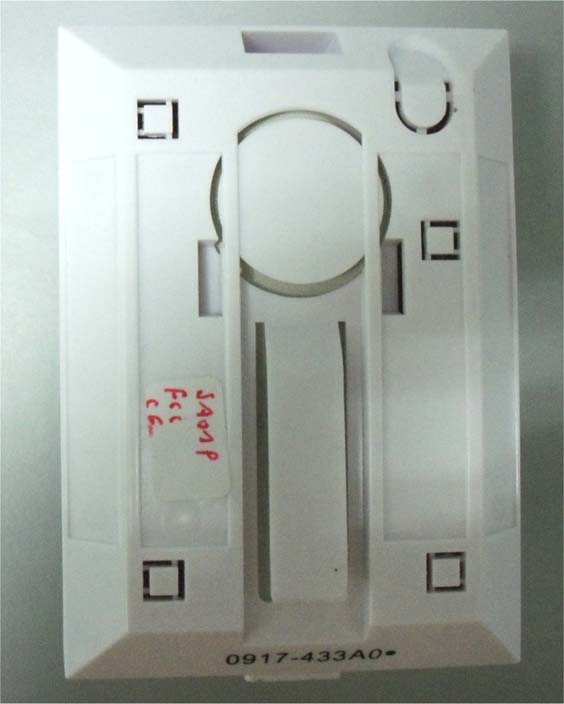

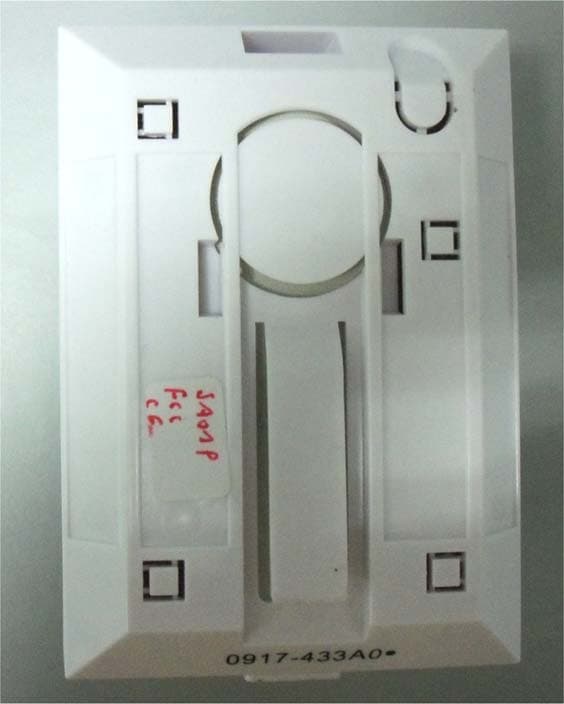

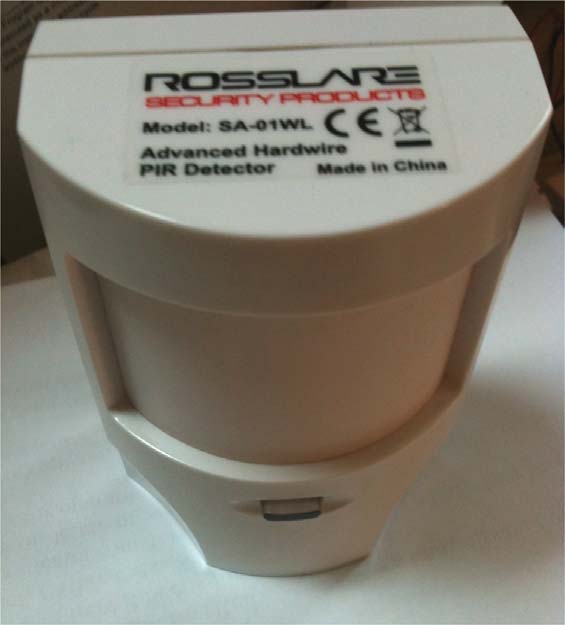

Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 1 of 4 EXTERNAL PHOTOGRAPHS This document contains 3 photographs Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 2 of 4 Photograph No.1 SA-01PG PIR detector front view Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 3 of 4 Photograph No.2 SA-01PG PIR detector rear side view Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 4 of 4 Photograph No.3 SA-01PG PIR detector top view

SECURITY PRODUCT N/A SA-01PG Label, product CONTROLLED DRAWING This drawing is the property of RESL and can not be copied or loaned without written permission. DETAIL NAME DATE APPROVALDATE VER REV PROJECT MATERIAL QUANTITY DRAWN DATE DATE DATE UNIT DWG SIZE SHEET OF CHECKED APPROVED SCALE CAD FILE DWG NO. MODEL DESCRIPTION PART NO. FINISH UNLESS OTHERWISE SPECIFIED OPTION DECIMAL XX XX.X XX.XX XX.XXX 1.00 0.30 0.10 0.01 0.50 0.10 0.05 0.01 0.002 0.10 0.02 0.005 RADIUS CHAMFERS ANGLE R05 = 0.050 R1 = 0.100 R2 = 0.200 R5 = 0.500 XR = R MAX. C01 = 0.10 X 45 C02 = 0.20 X 45 C05 = 0.50 X 45 C1 = 1.00 X 45 S = STONE 0 - 30’ EDM (VDI) 27 - 30 SURFACE: A B B A 4 4 3 2 1 1 2 3 1 DONNA 1 : 1 MM A4 1 1 SA01PG LABEL.cdr 70922 11 Sept 07 Transparent PP Donna14 May 09 1. Material: Transparent pp with back adhesive 2. Color - Background : Transparent Foreground : Black; Pantone 485C 3. Font - Arial 4. Part must be RoHS compliant A0 The first issue 2 2 . 0 0 37.00 Model: SA-01PG Wireless Pet Immune PIR Detector 0604-0960234+01 Made in China 433.92MHz 4XR1.00 Rosslare Electronics (Shenzhen) Ltd. Donna2 Dec 10 A1 Add FCC ID FCC ID: GCD-SA-01PG

Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 1 of 1 Label location The label is affixed on the top side of the PIR detector as shown below. The label material is PVC with a permanent adhesive. The label with FCC ID:GCD-SA-01PG will be located here. The statement according to FCC part 15 §15.19(a)(3) is placed in Installation Instructions, page 4 (Application exhibit User_manual_21364). FCC ID:GCD-SA-01PG

Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 1 of 7 INTERNAL PHOTOGRAPHS This document contains 6 photographs Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 2 of 7 Photograph No.1 SA-01PG PIR detector internal view Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 3 of 7 Photograph No.2 SA-01PG PIR detector internal view Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 4 of 7 Photograph No.3 SA-01PG PIR detector internal view Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 5 of 7 Photograph No.4 PCB top view Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 6 of 7 Photograph No.5 PCB second side view Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 7 of 7 Photograph No.6 Antenna close view

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Page 1 of 41 Report ID: ROSRAD_FCC.21364.doc Date of Issue: 1/13/2011 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC CFR 47 PART 15 subpart C, section 15.231(a) and subpart B FOR: Rosslare Enterprises Ltd. Wireless Pet Immune PIR Detector Model: SA-01PG This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: ROSRAD_FCC.21364.doc Date of Issue: 1/13/2011 Page 2 of 41 Table of contents 1 Applicant information .........................................................................................................................................................3 2 Equipment under test attributes ........................................................................................................................................3 3 Manufacturer information ..................................................................................................................................................3 4 Test details ........................................................................................................................................................................3 5 Tests summary ..................................................................................................................................................................4 6 EUT description .................................................................................................................................................................5 6.1 General information ...........................................................................................................................................................5 6.2 Operating frequencies .......................................................................................................................................................5 6.3 Changes made in EUT ......................................................................................................................................................5 6.4 Test configuration ..............................................................................................................................................................5 6.5 Transmitter characteristics ................................................................................................................................................6 7 Transmitter tests according to 47CFR part 15 subpart C requirements...........................................................................7 7.1 Periodic operation requirements .......................................................................................................................................7 7.2 Field strength of emissions..............................................................................................................................................12 7.3 Occupied bandwidth test .................................................................................................................................................24 7.4 Antenna requirements .....................................................................................................................................................27 8 Emission tests according to 47CFR part 15 subpart B requirements.............................................................................28 8.1 Radiated emission measurements ..................................................................................................................................28 9 APPENDIX A Test equipment and ancillaries used for tests..........................................................................................32 10 APPENDIX B Measurement uncertainties ......................................................................................................................33 11 APPENDIX C Test laboratory description .......................................................................................................................34 12 APPENDIX D Specification references ...........................................................................................................................34 13 APPENDIX E Test equipment correction factors ............................................................................................................35 14 APPENDIX F Abbreviations and acronyms ....................................................................................................................41 Report ID: ROSRAD_FCC.21364.doc Date of Issue: 1/13/2011 Page 3 of 41 1 Applicant information Client name: Rosslare Enterprises Ltd. Address: Flat 12, 9 Floor, Wing Fat Ind. Bldg., 12 Wang Tai Road, Kowloon Bay, Kowloon, Hong Kong Telephone: +852 2795 5630 Fax: +852 2795 1508 E-mail: [email protected] Contact name: Mr. Leonid Beckman 2 Equipment under test attributes Product name: Wireless pet immune PIR detector Product type: Transmitter Model(s): SA-01PG Part number: 0917-433A0 Serial number: 000271 Hardware version: 0101-2000060+02 Software release: SA01PH_G_V01 Receipt date 11/15/2010 3 Manufacturer information Manufacturer name: Rosslare Enterprises Ltd. Address: Flat 12, 9 Floor, Wing Fat Ind. Bldg., 12 Wang Tai Road, Kowloon Bay, Kowloon, Hong Kong Telephone: +852 2795 5630 Fax: +852 2795 1508 E-Mail: [email protected] Contact name: Mr. Leonid Beckman 4 Test details Project ID: 21364 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Test started: …

Text truncated - open the document above for the full version.

Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 1 of 6 SETUP PHOTOGRAPHS This document contains 5 photographs Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 2 of 6 Photograph No.1 Setup for spurious emission measurements in the anechoic chamber below 30 MHz Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 3 of 6 Photograph No.2 Setup for radiated emission measurements in the anechoic chamber from 30 to 1000 MHz Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 4 of 6 Photograph No.3 Setup for radiated emission measurements in the anechoic chamber, EUT close view Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 5 of 6 Photograph No.4 Setup for spurious emission measurements in the anechoic chamber above 1000 GHz Rosslare Enterprises Ltd. FCC ID:GCD-SA-01PG Page 6 of 6 Photograph No.5 Setup for occupied bandwidth measurements
