GCD-SA01GPassive InfraRed (PIR) detector

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

CONFIDENTIALITY LETTER Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. ROSSLARE Ltd. would like the following documents regarding this submission for FCC ID: GCD- SA01G to be kept confidential. 1. Pages 1 of 1 of document SA-01G_Radio_Scheme 2. Pages 1 of 1 document SA-01G_Clock_Tree 3. Pages 1 of 1 document SA-01G_Power_Tree. The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Company Name: ROSSLARE ENTERPRISES Ltd. Technical Contact: Alan Green Phone: 972-3-9386838 Fax: 972-4-9386830 Email: [email protected] Address: FLAT 12, 9/F WING FAT IND BLDG. 12 WANG TAI RD., KOWLOON BAY. KOWLOON HONG KONG 1/1

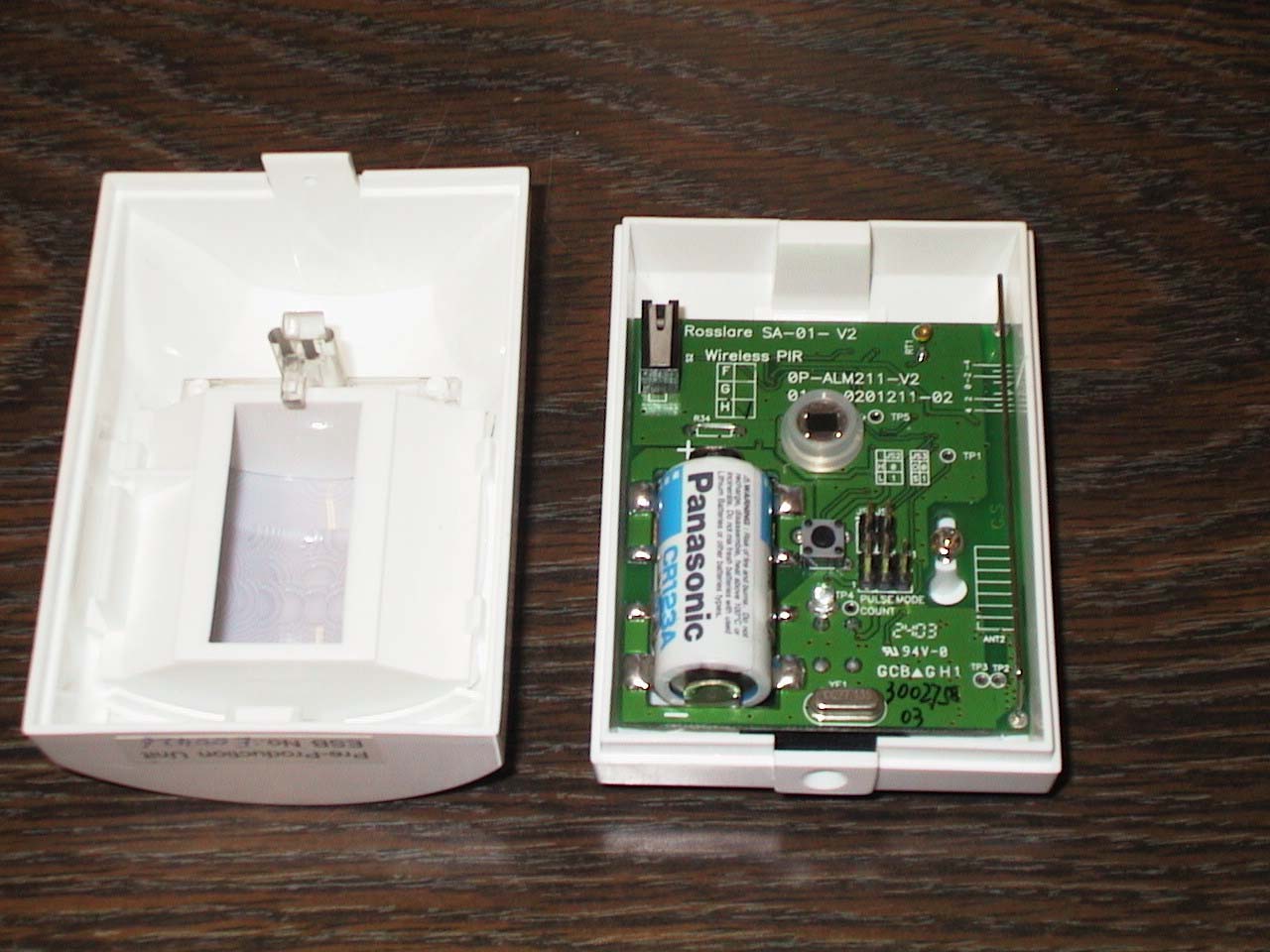

FCC ID: GCD-SA01G Subject: INTERNAL AND EXTERNAL PICTURES for SA-01G FCC ID:GCD-SA01G SA-01-G-PIR ROSSLARE EMI Test Report EMC/30020FC04038 2/ 4

Rosslare Security Products FCC product label guide PIR Detector SA-01G 433.92MHz FCC ID: GCD-SA01G This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. The label is located on the bottom of the device

FCC ID: GCD-SA01G Subject: INTERNAL AND EXTERNAL PICTURES for SA-01G FCC ID:GCD-SA01G SA-01-G-PIR ROSSLARE EMI Test Report EMC/30020FC04038 2/ 4 SA-01-G-PIR ROSSLARE EMI Test Report EMC/30020FC04038 3/ 4 SA-01-G-PIR ROSSLARE EMI Test Report EMC/30020FC04038 4/ 4

FCC ID: GCD-SA01G OPERATIONAL DESCRIPTION 1.operational description The RF section of the SA01 G is based on a Melexis chip and a one transistor- based PA. The Melexis chip is a fixed medullas (32) PLL. Thus the 13.56 MHz Xtal is multiplied by 32 giving the 433.92 MHz carrier frequency. A balanced output is matched by a passive network to a one transistor PA that can deliver up to +8 dBm into 50 OHM. This device is followed by a passive antenna matching network. A printed F type antenna is used. The u-Controller provides two signals. Namely a chip enable line that activates the Melexis and the PA and a data line that is used to OOK modulate both the Melexis device and the PA 2. Timming Requirements When the PIR sensor detects activity 4 identical transmissions are sent. The time between the end of one transmission and the start of the subsequent one being random. This time interval varies between 105ms and 400 ms. However, the total TX period is always less than 1 s. In addition 3 times per hour a similar supervisory transmission is sent even if there was no PIR activity 1/2 1. START BIT 312uS 1248uS 624uS 312uS 1. PREAMBLE 1. DATA Company Name: ROSSLARE ENTERPRISES Ltd. 208uS ID2ID3 FAMILY CRC DATA 208uS ID1 4 BIT 0 1 MOST 4BIT RESERVED TOTAL BITS PER SUB FRAME: 48 TOTAL SUB FRAME DATA TIME: 19.968mS TOTAL SUB FRAME TIME: 21.842Ms RANDOM SUB FRAMES 4 TIME SLOTS TOTAL SUB FRAMES IN SUPER FRAME: 5 208uS 208uS Technical Contact: Alan Green Phone: 972-3-9386838 Fax: 972-4-9386830 Email: [email protected] Address: FLAT 12, 9/F WING FAT IND BLDG. 12 WANG TAI RD., KOWLOON BAY. KOWLOON HONG KONG 2/2

REV ∆ Description Sheet Effected Date Drawn Checked A 17.03.04 D.Lanuel S.Cohen B 07.03.05 D.Lanuel S.Cohen EMC Laboratory FCCID: GCD-SA01G Manufactured by Rosslare Ltd. EMC Test Report According FCC Part 15 Requirements Feb 2005 Function/Title Name Signature Date Prepared by Test Engineer D.Lanuel 07.03.05 Checked by Test Engineer D.Lanuel 07.03.05 Approved by EMC Lab. Manager S.Cohen 07.03.05 SA-01-G-PIR ROSSLARE EMI Test Report Table of Contents Para Page 1 INTRODUCTION...............................................................................................................................3 2 TEST SUMMARY AND SIGNATURES...................................................................................................4 3 E.U.T INFORMATION........................................................................................................................5 4 BANDWIDTH OF THE EMISSION PART 15.231—TEST RESULTS...........................................................6 5 FIELD STRENGTH OF FUNDAMENTAL PART 15.231-TEST RESULTS.....................................................7 6 RADIATED EMISSION PART 15.231 & 15.205-TEST RESULTS..............................................................9 7 RADIATED EMISSION PART 15.109-TEST RESULTS..........................................................................13 8 PLOTS...........................................................................................................................................15 9 CORRECTION FACTORS..................................................................................................................25 10 ABBREVIATIONS AND ACRONYMS...................................................................................................27 11 PHOTOS........................................................................................................................................28 EMC/30020FC04038 2/30 SA-01-G-PIR ROSSLARE EMI Test Report 1 INTRODUCTION a. Scope This document describes the measurement procedures and tests for FCC part 15 of the SA- 01-G-PIR Manufactured by Rosslare Ltd. b. Description of equipment Under Test Equipment Under Test: SA-01-G-PIR FCCID GCD-SA01G Manufacturer: Rosslare Ltd. Serial Numbers: 3004276 Mode of Operation: TX MODE Receiver operating frequency: 433.92MHZ Year of Manufacture: 2004 c. Applicant Information: Applicant: Rosslare Enterpriser Ltd. Applicant Address FLAT 12, 9/F WING FAT IND BLDG. 12 WANG TAI RD., KOWLOON BAY. KOWLOON HONG KONG Telephone: +972-3-9386838 FAX: +972-3-9386830 The testing was observed by: ALAN GREEN Following applicant's personnel: d. Test Performance: Date of reception for testing: 10.03.04 Dates of testing 11.03.04 Test Laboratory Location TADIRAN EMC LAB , Hashoftim 26 Holon 58102 ISRAEL Tel: 972-3-5574476 Fax: 972-3-5575320 Applicable EMC Specification: Federal Communication Commission (FCC), Code of Federal Regulations 47, FCC Docket 89-103,Part 15: Radio Frequency Devices, Sections 15.109, 15.209 & 15.231. EMC/30020FC04038 3/30 SA-01-G-PIR ROSSLARE EMI Test Report 2 TEST SUMMARY AND SIGNATURES. TADIRAN EMC Laboratory has completed testing of E.U.T in accordance with the requirements of the FCC Part 15 Regulations for Class B equipment. The E.U.T was found to comply with the requirements of the FCC Part 15 Regulations given below Test Test Description Section PASS/FAIL 1 Bandwidth of the emission 15.231 PASS 2 Field strength of fundamental 15.231 PASS 3 Radiation emission 15.109 PASS 4 Radiation emission 15.231 & 15.205 PASS a. Test performed by: Mr. D. Lanuel Test Engineer b. Test Report prepared by: Mr. D. Lanuel Test Engineer c. Test Report Approved by: Mr. Samuel Cohen EMC Lab. Manager EMC/30020FC04038 4/30 SA-01-G-PIR ROSSLARE EMI Test Report 3 E.U.T INFORMATION a. E.U.T description 1.1 The SA-01 Passive InfraRed (PIR) detector is a small wall-mounted security device – to be installed in residential and small commercial establishments. 1.2 The SA-01 is a stand-alone unit, operating only on internal battery power supply. The unit consists of one (1) PCB, one (1) microcontroller – which controls the detector operation, and a RF transmitter section. The unit does not have a RF receiver section. 1.3 The SA-01 PIR has one RF channel, at 433.92 Mhz carriers with OOK modulation. 1.4 The SA-01 PIR in active mode transmits identification and status signals in 100ms. A supervisory transmission from the SA-01 to the control panel occurs for the same time of one transmission (100 ms), every 20 minutes per hour. 1.5 The battery used is 3vdc lithium, CR123A - replaceable. b. E.U.T Test Configuration E.UT. test configuration is shown in figure bellow Internal Battery Integral Antenna E.U.T c. E.U.T Mode of Operation description (1) 433.92MHz TX Mode operated by battery EMC/30020FC04038 5/30 SA-01-G-PIR ROSSLARE EMI Test Report 4 BANDWIDTH OF THE EMISSION PART 15.231—TEST RESULTS E.U.T: SA-01-G-PIR S/N 3004276 Test Method: ANSI 63.4 Date: 02/06/03 Relative Humidity: 29% Ambient Temperature: 21c Air Pressure: 1053hpa Test Setup: Figure 11 Testing Engineer: D.Lanuel Date 11/03/04 a. Test Results Summary & Conclusions The E.U.T was found in compliance with Bandwidth of Radiated Emission fundamental frequency requirement b. Limits of bandwidth The test unit shall meet the limits of Table 1 Table- 1 Limits For Bandwidth Frequency (MHz) Bandwidth Max Limits (%) Bandwidth Max Limits (KHz) 433.92 0.25 1085 c. Test Instrumentation and Equipment Table- 2 Test Instrumentation and Equipment Item Model Manufacturer Next Date Calibration Spectrum Analyzer 8593E HP 31/01/05 Broadband Antenna BTA-L FRANKONIA 10.04.06 d. Test Results Table- 3 Bandwidth Test Result Frequency (MHz) Bandwidth (KHz) Bandwidth Max Limit(KHz) Plot No PASS/FAIL 433.92 81.445 1085 Plot-1 PASS e. Procedure The Bandwidth is determined at the point 20db down from the modulated carrier, while the spectrum analyzer was set to “max hold” and R.BW –10KHz. EMC/30020FC04038 6/30 SA-01-G-PIR ROS…

Text truncated - open the document above for the full version.

FCC ID: GCD-SA01G Subject: SETUP PICTURES for SA-01G FCC ID:GCD-SA01G Radiated Emission Test Setup Radiated Emission Test Setup
