GCDSA-23HWIRELESS REMOTE CONTROL 868.35 MHz

AY-L23 G/H and SA-23 G/H Outdoor Long-Range RF Reader and Remote Control May 2013 Installation and Operation Manual 1 1. Introduction The AYL-23G/H is an outdoor long-range RF reader that acts as a receiver. It is compatible with Rosslare’s SA-23 wireless remote control transmitter. The AY-L23 G works with the SA-23 G (433.92 MHz) and the AY-L23 H works with the SA-23 H (868.35 MHz). When the AY-L23 receives the a command signal from the SA-23 wireless transmitter, the AY-L23 outputs the ID to A_DATA0,A_DATA1 or B_DATA0,B_DATA1 to the attached controller and controls the function of the relay (open drain FET) A or B according to the SA-23 remote’s command. The command signal consists of 3 parts:  ID (in Wiegand format)  ID output to A or B Wiegand Output according to the command in SA-23  Relay Function A or B according to command in the SA-23 Figure 1: AY-L23 G/H and SA-23 G/H AY-L23 G/H SA-23 G/H 2. Technical Specifications 2.1 AY-L23 G/H Input Voltage 7 to 24 VDC Standby Current 26 mA (12 VDC) Maximum Operating Current 65 mA (12 VDC) Relay (FET, Open Drain) Current 200 mA (max voltage 40 V) Tamper Output Open collector, active Open, max. sink current is 16 mA Maximum Cable Distance to Controller 500 ft. (152.4 m) Wiegand Output Format Wiegand xbit (Wiegand xbit<=Wiegand 40- Bit, decided by remote Frequencies G: 433.92 MHz H: 868.35MHz Read Range 164 ft (50 m) Operating Temp. Range -31°C to 63°C (-25°F to 145°F) Operating Humidity 0 to 95% (non condensing) Dimensions (L x W x D) 5.7 x 1.7 x 0.8 in. (145 x 43 x 20 mm) 2.2 SA-23 G/H Input Voltage 3 V Battery (CR 2450) Standby Current < 1 uA Max Operation Current 10 mA ID Format Programmed to Wiegand 26-Bit Frequencies G: 433.92 MHz (ASK) H: 868.35 MHz (ASK) Operating Temp. Range -31°C to 63°C (-25°F to 145°F) Operating Humidity 0 to 95% (non condensing) Dimensions (L x W x D) 2.28 x 1.61 x 0.53 in. (58 x 41 x 13.4 mm) 3. Mounting Instructions Determine an appropriate mounting position for the receiver. Do not mount the receiver near any source of wireless interference or on any metal surface. To mount the receiver: 1. Peel off the back of the self-stick mounting label template included with the unit and place at the desired mounting position. 2. Using the template as a guide, drill two holes (hole size is indicated on mounting template) for mounting the receiver to the surface. 3. Drill a 7/16” (10-mm) hole for the cable. 4. Remove the front case from the receiver. 5. Attach the receiver to the controller. (See wiring instructions) 6. Screw the receiver’s rear case onto its mounting location and return the front case onto the mounted rear case. The receiver is to be used with control panels whose power supply is UL Listed Class 2 or equivalent. 2 4. Wiring Instructions To connect the receiver to the controller: 1. Prepare the receiver cable by cutting the cable jacket back 1¼ inches and strip the wires ½ inch. 2. Prepare the controller cable by cutting the cable jacket back 1¼ inches and strip the wires ½ inch. 3. Splice the receiver’s pigtail wires to the corresponding controller wires and cover each connection (see Table 1). • The individual wires coming out of the receiver are color coded according to the recommended Wiegand standard. • When using a separate power supply for the receiver, this supply and the controller’s power supply must have a common ground. • The cable shield wire on the receiver should be attached to an Earth ground (best) or signal ground connection at the panel or power supply end of the cable. This configuration is best for shielding the receiver cable from external interference. Table 1: Wiring Color Functionality Red VIN (7–24 VDC) Black GND Dark Green A_Data0 White A_Data1 Orange A_LEDCTL (green LED) Blue A-OUTPUT (FET, Open Drain) Light Green B-DATA0 Gray B-DATA1 Brown B_LEDCTL (orange LED) Yellow B-OUTPUT (FET, Open Drain) Purple TAMPER 5. 4BOperation The AY-L23 works with any SA-23 remote and can operate two Wiegand data outputs connected to the reader’s inputs at the access control panel. 5.1 8BReader Mode When pressing 1 on the SA-23, the AY-L23 sends Wiegand data-A. The LED changes to green for a short time with a beep. When pressing 2 on the SA-23, the AY-L23 sends Wiegand data-B. The LED changes to orange for a short time with a beep. The AY-L23 LED is red in Operation mode. 5.2 9BController and Reader Mode The AY-L23 can register up to 48 IDs for an SA-23 remote control and can operate two OC outputs A/B. When pressing 1 on the SA-23, the AY-L23 sends Wiegand data-A and activates out-A for 5 seconds. The LED changes to green for a short time with a beep. When pressing 2 on the SA-23, the AY-L23 sends Wiegand data-B and activates out-B for 5 seconds. The LED changes to orange for a short time with a beep. The AY-L23 LED is red in Operation mode. To activate the relay, the remote button’s ID should be registered first. 5.3 10BRegistering an ID To register an ID: 1. Connect the orange and brown wires to GND. 2. Power on at Vin and GND. After buzzer sounds 3 times, the LED turns green. The AY-L23 is now in Register mode for 15 seconds. 3. Press 1 on the SA-23 remote.  If the registration is successful, you hear 2 short beeps.  If the ID was previously registered, you hear 2 long beeps.  If the limit of IDs (48) is reached, you hear have 3 long beeps. 4. Press 2 on the SA-23 remote.  If the registration is successful, you hear 2 short beeps.  If the ID was previously registered, you hear 2 long beeps.  If the limit of IDs (48) is reached, you hear have 3 long beeps. After the time register (10 to 15 seconds), you hear a long beep. 5.4 11BDeleting all IDs To delete all IDs: 1. Connect the orange wire to GND. 2. Power on at Vin and GND. After buzzer sounds 3 times, the LED turns orange for 2 seconds and then turns green. The AY-L23 is now in Delete mode for 5 seconds. 3. When the LED turns green, disconnect the orange wire from GND. The LED changes from green to orange. 4. Re-connect the orange wi…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A PROJECT MODEL DESCRIPTION SCHP/N: PCBP/N: CONTROLLEDDRAWING ThisdrawingisthepropertyofRE S withoutwrittenpermission DRAWN: DATE: CHECKED: DATE:DATE: APPROVED: DWG.SIZE: SHEET OF ACESS CONTROL SA-23/AY-L23 Diagram <PCB P/N> <SCH P/N> BEN 2013.04.23 ?? AX PROJECT MODEL DESCRIPTION SCHP/N: PCBP/N: CONTROLLEDDRAWING ThisdrawingisthepropertyofRE S withoutwrittenpermission DRAWN: DATE: CHECKED: DATE:DATE: APPROVED: DWG.SIZE: SHEET OF ACESS CONTROL SA-23/AY-L23 Diagram <PCB P/N> <SCH P/N> BEN 2013.04.23 ?? AX PROJECT MODEL DESCRIPTION SCHP/N: PCBP/N: CONTROLLEDDRAWING ThisdrawingisthepropertyofRE S withoutwrittenpermission DRAWN: DATE: CHECKED: DATE:DATE: APPROVED: DWG.SIZE: SHEET OF ACESS CONTROL SA-23/AY-L23 Diagram <PCB P/N> <SCH P/N> BEN 2013.04.23 ?? AX Driver:A7302 MCU:PIC16LF1828 Receiver IC:A7201 MCU:PIC16F886 RF ReceiverAY-L23H Access controller SA-23H Carrie frequency is 868.35MHZ(ASK)AY-L23H Carrie frequency is 868.35MHZ(ASK) +12VGND A_OUTPUTB_OUTPUTB_LEDCTLA_DATA1A_LEDCTLA_DATA0TAMPERB_DATA0B_DATA1 SA-23H 2 Button /4 Button Remote Y1 Y1 Y2 LED8greenLED8green LED7redLED7red S10S10 BT33VBT33V S12S12 12 11.9993MHZ(AYL23H)11.9993MHZ(AYL23H) 12 13.56796MHZ(SA23H)13.56796MHZ(SA23H) - 2 + 1 PZ3BUZZERPZ3BUZZER S9S9 1 2 20MHZ20MHZ S11S11 LEDLED

Rosslare Enterprises Ltd FCC ID: GCDSA-23H POWER OF ATTORNEY March 15,2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on March 14,2014. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Rosslare Enterprises Ltd, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Rosslare Enterprises Ltd ---------------------------------- Joe LeKostaj / Engineering Manager

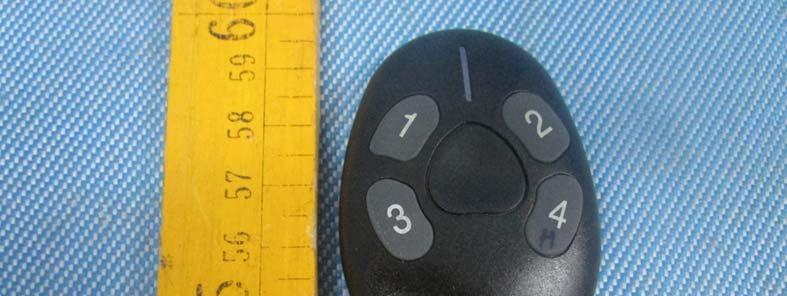

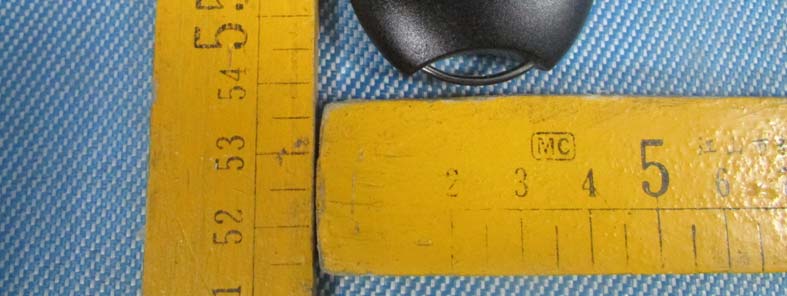

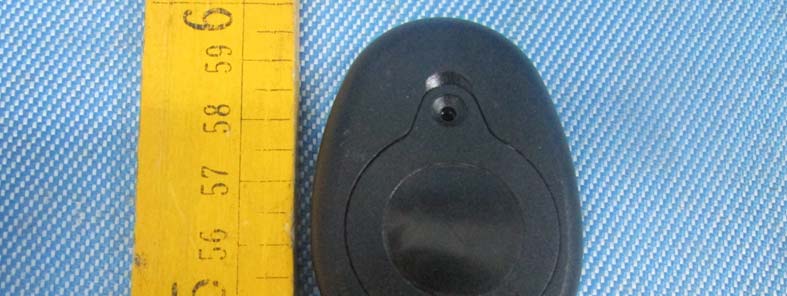

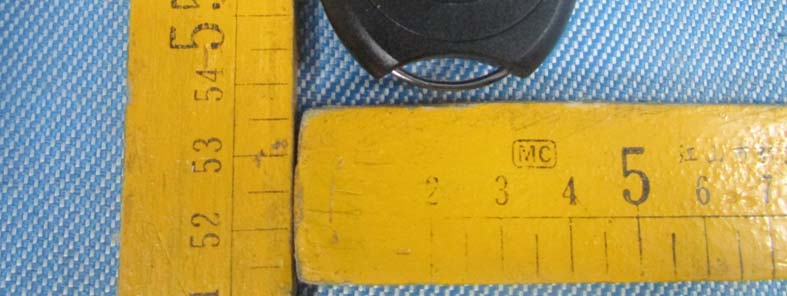

Reference No. WTS13S0301705E Page 22 of 29 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 12 Photographs - Constructional Details 12.1 EUT - Appearance View Model: SA23B2H Reference No. WTS13S0301705E Page 23 of 29 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Reference No. WTS13S0301705E Page 24 of 29 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Reference No. WTS13S0301705E Page 25 of 29 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Model: SA23B4H Reference No. WTS13S0301705E Page 26 of 29 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Reference No. WTS13S0301705E Page 27 of 29 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location for model: SA-23H The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. There is no enough place to stick the FCC note. FCC ID: GCDSA-23H

FCC Label Sample for model: SA-23H FCC ID: GCDSA-23H This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Reference No. WTS13S0301705E Page 28 of 29 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 12.2 EUT- Internal View Reference No. WTS13S0301705E Page 29 of 29 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn =End of test report==

55 44 33 22 11 D D C C B B A A PROJECT MODEL DESCRIPTION SCHP/N: PCBP/N: CONTROLLEDDRAWING ThisdrawingisthepropertyofRE S withoutwrittenpermission DRAWN: DATE: CHECKED: DATE:DATE: APPROVED: DWG.SIZE: SHEET OF ACESS CONTROL SA-23H AY-L23H <PCB P/N> <SCH P/N> ben 2013.04.23 ?? AX PROJECT MODEL DESCRIPTION SCHP/N: PCBP/N: CONTROLLEDDRAWING ThisdrawingisthepropertyofRE S withoutwrittenpermission DRAWN: DATE: CHECKED: DATE:DATE: APPROVED: DWG.SIZE: SHEET OF ACESS CONTROL SA-23H AY-L23H <PCB P/N> <SCH P/N> ben 2013.04.23 ?? AX PROJECT MODEL DESCRIPTION SCHP/N: PCBP/N: CONTROLLEDDRAWING ThisdrawingisthepropertyofRE S withoutwrittenpermission DRAWN: DATE: CHECKED: DATE:DATE: APPROVED: DWG.SIZE: SHEET OF ACESS CONTROL SA-23H AY-L23H <PCB P/N> <SCH P/N> ben 2013.04.23 ?? AX RF Receiver AY-L23H Access controller SA-23H Carrie frequency is 868.35MHZ(ASK)AY-L23H Carrie frequency is 868.35MHZ(ASK) +12VGND A_OUTPUTB_OUTPUTB_LEDCTLA_DATA1A_LEDCTLA_DATA0TAMPERB_DATA0B_DATA1 SA-23H 2 Button /4 Button Remote SA23 AYLR23 operating description Driver:A7302 MCU:PIC16LF1828 Receiver IC:A7201 MCU:PIC16F886 Y1 SA-23H is a remote and AY-L23H is a receiver, they must used together. when press the key on SA-23H (include 2key and 4 key remote), the SA-23H check which key already pressed, . when AY-L23H got the signal from remote and then demodulate the ID out and forward it to MCU, and also active the FET relay in AY-L23H( open Drain FET,A_OUPUT ,B_ouput) then get the ID of the key , and turn on the drive IC A7302, then encode the ID to manchester code and send it to A7302 with a CRC code , A7302 modulate the the code to 868.35MHZ ASK. then send it out.MCU decode the ID from machester code and check the CRC if correct, if the code correct,then send it to A_DATA0,A_DATA1 OR B_DATA0,B_DATA1 decide by ID command - 2 + 1 PZ2BUZZERPZ2BUZZER S8S8S6S6 S5S5S7S7 12 13.56796MHZ(SA23H)13.56796MHZ(SA23H) LEDLED LED5greenLED5green LED4redLED4red 12 Y2 11.9993MHZ(AYL23H) Y2 11.9993MHZ(AYL23H) 1 2 Y1 20MHZ Y1 20MHZ BT23VBT23V

Rosslare Enterprises Ltd. HF05.01A Rosslare Electronic (Shenzhen)Ltd . COVER PAGE Title: ELECTRICAL SCHEMATIC SA23H Document: 6F-0100340HA+02 Effective Date: 05 Dec 12 Version: 02 Revision: - Document Category: Quality Procedure Working Instruction Other Bill of Material REVISION HISTORY Ver. Rev. Change Prepared by Date 02 - ESB #00-12041 RESL 05 Dec 12 APPROVED SIGNATURE DATE R & D ENGINEERING Meili ADM PMC PURCHASING S & M STO Q. A. For Control Stamp Distribution list ( for WI and other use only ) R & D ENG ADM PMC PUR S & M STO QA OTHER________ 55 44 33 22 11 D D C C B B A A GH GH LED LED ICSPDATICSPCLK ICSPDATICSPCLKVPP VPP VCC VCC VCCVCC VCC VCC VCC PROJECT MODEL DESCRIPTION SCH P/N: PCB P/N: CONTROLLED DRAWING This drawing is the property of RE S without written permission DRAWN: DATE: CHECKED: DATE:DATE: APPROVED: DWG.SIZE: SHEET OF ACESS CONTROL SA23H 0101-2000340+02 <SCH P/N> B e n 2012.11.15 11 AX PROJECT MODEL DESCRIPTION SCH P/N: PCB P/N: CONTROLLED DRAWING This drawing is the property of RE S without written permission DRAWN: DATE: CHECKED: DATE:DATE: APPROVED: DWG.SIZE: SHEET OF ACESS CONTROL SA23H 0101-2000340+02 <SCH P/N> B e n 2012.11.15 11 AX PROJECT MODEL DESCRIPTION SCH P/N: PCB P/N: CONTROLLED DRAWING This drawing is the property of RE S without written permission DRAWN: DATE: CHECKED: DATE:DATE: APPROVED: DWG.SIZE: SHEET OF ACESS CONTROL SA23H 0101-2000340+02 <SCH P/N> B e n 2012.11.15 11 AX ANT ON PCB NOTE: SW0,SW1,SW6 for backup.the firmware already have the function SW0SW1SW6 CR2450 SW2SW3SW4SW5 REV NAME DATA DETAIL 00 RELEASE TO ESB Ben 2012.11.15 For 2 key button:SW4,SW5 NC C1610UFC1610UF C52.7PFC52.7PF C4 1PF C4 1PF C14100PFC14100PF R1NCR1NC C1127PFC1127PF R10300RR10300R 1 1 2 2 3 3 4 4 SW4SW4 C12NCC12NC + 1 - 2 B1 BAT B1 BAT TP1TP1 1 2 L27.5NHL27.5NH 1 1 2 2 3 3 4 4 SW2SW2 R3NCR3NC R210kR210k VDD 1 RA5 2 RA4/AN3 3 RA3/MCLR/VPP 4 RC5 5 RC4 6 RC3/AN7 7 RC6/AN8 8 RC7/AN9/SDO 9 RB7 10 RB6/SCL 11 RB5 12 RB4/SDA 13 RC2 14 RC1 15 RC0 16 RA2 17 RA1/ICSPCLK 18 RA0/ICSPDAT 19 VSS 20 U1 PIC16LF1828 U1 PIC16LF1828 C2 0R C2 0R C310PFC310PF C815PFC815PF C10.1UFC10.1UF R14 OR R14 OR 1 1 2 2 3 3 4 4 SW5SW5 R1110kR1110k C15NCC15NC R6 1k R6 1k C7 2.7PF C7 2.7PF 12 Y1 13.56796MHZ Y1 13.56796MHZ 1 1 2 2 3 3 4 4 SW3SW3 R13NCR13NC SPI_STB 1 SPI_DATA 2 SPI_CLK 3 VDD_D 4 VDD_A 5 PAOUT 6 GND 7 XI 8 FSK_SW 9 SPIS 10 U2 A7302D U2 A7302D R5 1k R5 1k R9 15R R9 15R R1210KR1210K C104.7PFC104.7PF D1LEDD1LED C1382PFC1382PF R8 68R R8 68R 1 2 3 Q1 LP2301LT1G Q1 LP2301LT1G R7 1k R7 1k TP2TP2 1 2 L1 7.5NHL1 7.5NH R4 1k R4 1k 12 L3 9.1NH L3 9.1NH C92.7PFC92.7PF 2012.11.1908:27:55+08'00'

Reference No.: WTS13S0301705E Page 1 of 29 FCC TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn FCC ID : GCDSA-23H Applicant : Rosslare Enterprises Limited Address : Flat 12,9/F., Wing Fat lnd. Bldg.,12 Wang Tai Road , Kowloon Bay, Kowloon, Hong Kong Manufacturer : Rosslare Electronics(Shenzhen) Co.,Ltd. Address : Block 2, No.A-1 Baiwangxin Industrial Park, Xili Town, Shenzhen, China Equipment Under Test (EUT) : Product Name : Wireless Remote Control 868.35 MHz Model No. : SA-23H Brand : ROSSALRE Rules : FCC CFR47 Part 15 Subpart C: 2010 Date of Test : March 28~30, 2013 Date of Issue : April 07, 2013 Test Result : PASS* Remark: * The sample described above has been tested to be in compliance with the requirements of ANSI C63.4:2003. The test results have been reviewed and comply with the rules listed above and found to meet their essential requirements. PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West of Baima Road., Songgang Street, Bao’an District, Shenzhen, China Tel: +86-755-83551033 Fax: +86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No. WTS13S0301705E Page 2 of 29 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 PASS Radiated Spurious Emissions 15.205(a) 15.209 15.231(b) PASS Periodic Operation 15.231(a) PASS 20dB Bandwidth 15.231(c) PASS Antenna Requirement 15.203 PASS Reference No. WTS13S0301705E Page 3 of 29 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................... 2 3 CONTENTS .............................................................................................................................................................. 3 4 GENERAL INFORMATION .................................................................................................................................... 4 4.1 GENERAL DESCRIPTION OF E.U.T. ............................................................................................................. 4 4.2 DETAILS OF E.U.T. ...................................................................................................................................... 4 4.3 TEST FACILITY .............................................................................................................................................. 4 4.4 TEST LOCATION ........................................................................................................................................... 4 4.5 GENERAL CONDITION ................................................................................................................................... 4 4.5.1 Environmental condition of test site ............................................................................................................. 5 4.5.2 Test Mode ..................................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST .................................................................................................................... 6 5.1 EQUIPMENTS LIST ........................................................................................................................................ 6 5.2 MEASUREMENT UNCERTAINTY .................................................................................................................... 6 5.3 TEST EQUIPMENT CALIBRATION .................................................................................................................. 6 6 CONDUCTED EMISSION TEST ........................................................................................................................... 7 7 RADIATION EMISSION TEST .............................................................................................................................. 8 7.1 EUT OPERATION: ........................................................................................................................................ 9 7.2 TEST SETUP ................................................................................................................................................. 9 7.3 SPECTRUM ANALYZER SETUP ................................................................................................................... 11 7.4 TEST PROCEDURE ..................................................................................................................................... 11 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION .................................................................................. 11 7.6 SUMMARY OF TEST RESULTS .................................................................................................................... 12 8 PERIODIC OPERATION ...................................................................................................................................... 15 9 20DB BANDWIDTH .............................................................................................................................................. 18 9.1 TEST PROCEDURE ..................................................................................................................................... 18 9.2 TEST RESULT ............................................................................................................................................. 18 10 ANTENNA REQUIREMENT ................................................................................................................................ 19 11 PHOTOGRAPHS OF T…
