GCDSA-61HWireless Smoke Detector

SA-61 Wireless Smoke Detector September 2012 Installation Manual 1 1. Introduction The SA-61 is a battery-operated Wireless Smoke Detector. 433.92 MHz or 868.35 MHz. The smoke sensor unit can easily be plugged into or detached from the wireless base unit (AS-60) for cleaning and maintenance purposes. A mechanical key on the sensor is designed to avoid mismatching or incorrect installation of the sensor and base. The sensor chamber is engineered to sense smoke from a wide range of combustion sources. The chamber is well protected from insects and dust contamination. A LED indicator on the sensor unit shows the operating status and Alarm mode, while an RF LED is located in the base unit and indicates RF transmissions, such as alarms and tamper. The SA-61 smoke detector has a low profile, as well as a professional and trendy appearance. Figure 1: SA-61 2. Technical Specifications 2.1 Electrical Characteristics Power Supply Voltage CR123 3 V 1300 mAh Battery Life Three years with regular use Avg. Standby Current 30 μA Max. Alarm Current 75 mA Siren Output 85 dB at 1 m (built-in) Sensitivity 2.5%/ ft nominal (0.5~4%/ft) Frequency G (433.92 MHz), H (868.35 MHz) 2.2 Environmental Characteristics Environment Indoor Operating Temperature 0°C to 35.8°C (32°F to 100°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Operating Humidity 0 to 95% RH (non-condensing) 2.3 Physical Characteristics Weight 120 g (4.23 oz) Dimensions (L x W x H) 121.9 x 121.9 x 34 mm (4.8 x 4.8 x 1.34 in.) 2.4 Modes of Operation Normal Mode The indicated LED flashes once every 344 seconds (to save battery life) to show it is working. Alarm Mode The detector goes into Alarm mode if it detects smoke. In Alarm mode, the indicated LED and the RF LED quickly flashes and the Piezoelectric sounder is activated. Low Battery Mode When the battery voltage is low, the detector beeps every 43 seconds. 2.5 Signaling and Events Tamper Event When the sensor is disconnected from the base or the base unit from the ceiling. Signaling Type Red LED on detector, red LED in base unit Report Types Alarm, Tamper, Low Battery Alarm Report: • Every 20 seconds during first 3 min • Every 3 min from 3 min till 30 min • Alarm event is no longer sent after 30 min or immediately upon Alarm Restore (When the am- 3. Installation 3.1 Choosing a Mounting Location A smoke detector should be installed according to NFPA (National Fire Protection Association) Standard 72. For complete coverage in residential units, smoke detectors should be installed in all rooms, halls, storage areas, and basements. At the least, one detector should be placed on each floor and in each sleeping area. Install smoke detectors as close to the center of the ceiling as possible or at least 10 cm (4 inches) away from any wall or corner. Do NOT locate smoke detectors at the top of peaked or gabled ceilings; the dead air space in these locations may prevent the unit from detecting smoke. Avoid areas with turbulent air flow such as near doors, fans or windows. Rapid air movement around the detector may prevent smoke from entering the unit and affected the accuracy. 3.2 Smoke Detector Limitations  Smoke detectors will not sense a fire if the smoke does not reach the sensor.  Smoke detectors may not be heard. Be sure to locate the smoke detector within hearing distance.  Smoke from a slow fire rises slowly and may not reach the smoke detector until the fire gets bigger.  To keep your smoke detectors working properly, be sure to maintain the unit according to manufacturer’s recommendations and UL and NFPA standards. It is available in two frequencies: bient environment somke concetration is lower than the alarm level for a zone) 2 3.3 Disassembly The unit arrives assembled, so you must disassemble the unit into its three pieces before you can mount it. To disassemble: 1. Turn the sensor counter-clockwise to the “Loose” position as shown in Figure 2 and gently remove the sensor. Figure 2: Loose and Lock Positions 2. Gently separate the top part of the base unit from the lower part. 3.4 Mounting the Base Unit The AS-60 base unit provides different punch out options for different gang box standards for mounting to 3 1/2-inch and 4-inch octagonal, single-gang, and 4-inch square back boxes (Figure 3). Figure 3: Punch Out Options for Various Gang Box Standards To mount the base unit: 1. Mark two mounting points in the wall. 2. Drill into the marked points and insert wall plugs/gang box. 3. Screw and fix the base unit. 3.5 Inserting the Battery The battery compartment is designed to meet UL requirement. A lever has been inserted to avoid attaching the sensor unit without the battery being inserted. To insert the battery: 1. Load the battery into the base compartment as shown in Figure 4. Figure 4: Battery Installation 3.6 Assembly Once you have mounted the base unit and inserted the battery, you are ready to close the unit. To assemble the unit: 1. Replace the top part of the base unit with its bottom part that has been mounted by lining up the two lines as shown in Figure 5. Figure 5: Base Cover Insertion 2. Attach the sensor unit onto the base unit as shown in Figure 6 and turn the sensor clockwise to the Lock position (Figure 2). Figure 6: Sensor Insertion 3 4. Testing Once the detector is installed, you should test the unit. 4.1 General Testing To test the unit: 1. Press and hold the Test button on the sensor. The following occurs:  Both LEDs flash quickly  The Piezoelectric sounder is activated  The smoke detector transmits an alarm to the wireless alarm panel Release the Test button to return to Normal mode. 4.2 RF Testing To test the RF connection: 1. Remove the sensor. 2. Remove the top cover of the base unit. 3. Press the S3 button (Figure 7) for more than 5 seconds. Figure 7: S3 Button The unit sends 10 RF messages to the system every four seconds and then returns to Normal mode . 5. Maintenance 5.1 Cleaning The unit runs a self-check for cleanliness every 43 seconds. If three co…

Text truncated - open the document above for the full version.

Rosslare Enterprises Ltd FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Rosslare Enterprises Ltd Addresss Flat 12, 9/F Wing Fat Industrial Bldg. 12 Wang Tai Rd. City Kowloon Bay, Kowloon Country Hong Kong request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: GCD SA-61H of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation:

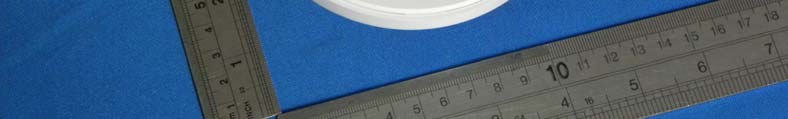

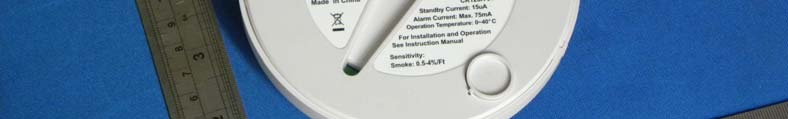

General Appearance of the EUT

SMOKE ALARM SYSTEM N/A SA-61H Label, product CONTROLLED DRAWING This drawing is the property of RESL and can not be copied or loaned without written permission. DETAIL NAME DATE APPROVALDATE VER REV PROJECT MATERIAL QUANTITY DRAWN DATE DATE DATE UNIT DWG SIZE SHEET OF CHECKED APPROVED SCALE CAD FILE DWG NO. MODEL DESCRIPTION PART NO. FINISH UNLESS OTHERWISE SPECIFIED OPTION DECIMAL XX XX.X XX.XX XX.XXX 1.00 0.30 0.10 0.01 0.50 0.10 0.05 0.01 0.002 0.10 0.02 0.005 RADIUS CHAMFERS ANGLE R05 = 0.050 R1 = 0.100 R2 = 0.200 R5 = 0.500 XR = R MAX. C01 = 0.10 X 45 C02 = 0.20 X 45 C05 = 0.50 X 45 C1 = 1.00 X 45 S = STONE 0 - 30’ EDM (VDI) 27 - 30 SURFACE: A B B A 4 4 3 2 1 1 2 3 1 1 : 1 MM A4 1 1 SA-61H LABEL.cdr 72219 Synthetic Paper+PP coating 0604-0960445+01 Donna20 June 12 1. Color - Background : white Foreground : Black; Pantone 485C--Red 2. Font - Arial 3. Part must be RoHS compliant A0 The first issue DONNA 20 June 12 PLACE ALL Rosslare Electronics (Shenzhen) Ltd. Donna20 Sept 12 A Add CE mark ALL R38.25 R4.50 12.89 9 . 0 0 Made in China Model: SA-61H Battery: Lithium Battery CR123A 3V See Instruction Manual For Installation and Operation Sensitivity: Smoke: 0.5-4%/Ft Operation Temperature: 0~40 C Alarm Current: Max. 75mA Standby Current: 15uA Wireless Smoke Detector 868.35MHz Base: AS-60-H Sensor: AS-61-R 1 FCC ID: GCDSA-61H

DONGGUAN EMTEK Co., Ltd. REPORT NO.:KAD120911024E FCC ID:GCDSA-61H DATE: 09/28/2012 Page 1 of 26 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Wireless Smoke Detector MODEL No.: SA-61H (Base: AS-60-H, Sensor: AS-61-R) Trade mark: ROSSLARE FCC ID: GCDSA-61H REPORT NO: KAD120911024E ISSUE DATE: September 28, 2012 Prepared for Rosslare Enterprises Ltd Flat 12, 9/F Wing Fat Industrial Bldg. 12 Wang Tai Rd. Kowloon Bay, Kowloon, Hong Kong Prepared by DONGGUAN EMTEK CO., LTD. No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 DONGGUAN EMTEK Co., Ltd. REPORT NO.:KAD120911024E FCC ID:GCDSA-61H DATE: 09/28/2012 Page 2 of 26 VERIFICATION OF COMPLIANCE Applicant: Rosslare Enterprises Ltd Flat 12, 9/F Wing Fat Industrial Bldg. 12 Wang Tai Rd. Kowloon Bay, Kowloon, Hong Kong Manufacturer: Rosslare Electronics(Shenzhen) Co.,Ltd Block 2, No.A-1 Baiwangxin Industrial Park, Xili Town, Shenzhen, China Product Description: Wireless Smoke Detector Model Number: SA-61H (Base: AS-60-H, Sensor: AS-61-R) Serial Number: N/A Modulation: ASK File Number: KAD120911024E Date of Test: September 11, 2012 to September 28, 2012 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved By Sam Lv / Q.A. Manager DONGGUAN EMTEK CO., LTD. DONGGUAN EMTEK Co., Ltd. REPORT NO.:KAD120911024E FCC ID:GCDSA-61H DATE: 09/28/2012 Page 3 of 26 Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................. 5 1.1 PRODUCT DESCRIPTION........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) ..................................................................................................... 5 1.3 TEST METHODOLOGY.............................................................................................................................. 5 1.4 SPECIAL ACCESSORIES............................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS.................................................................................................................. 5 1.6 TEST FACILITY........................................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT CONFIGURATION............................................................................................................................. 7 2.2 EUT EXERCISE........................................................................................................................................ 7 2.3 TEST PROCEDURE.................................................................................................................................... 7 2.4 LIMITATION............................................................................................................................................. 8 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................... 9 3. SUMMARY OF TEST RESULTS ....................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................... 10 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT).......... 11 5.1 MEASUREMENT PROCEDURE:................................................................................................................ 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 11 5.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 11 5.4 MEASUREMENT RESULT:....................................................................................................................... 11 5.5 CONDUCTED MEASUREMENT PHOTOS: .................................................................................................. 11 6. RADIATED EMISSION TEST ............................................................................................ 12 6.1 MEASUREMENT PROCEDURE................................................................................................................. 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 13 6.3 MEASUREMENT EQUIPMENT USED: ...................................................................................................... 14 6.4 MEASUREMENT RESULT........................................................................................................................ 15 7. CEASE TRANSMISSION TESTING.................................................................................. 19 7.1 REQUIREMENT....................................................................................................................................... 19 7.2 TEST SET-UP ......................................................................................................................................... 19 7.3 MEASUREMENT EQUIPMENT USED: .........................................................…

Text truncated - open the document above for the full version.

Setup Photos
