GLE60153RWIRELESS REMOTE CONTROL RECEIVER

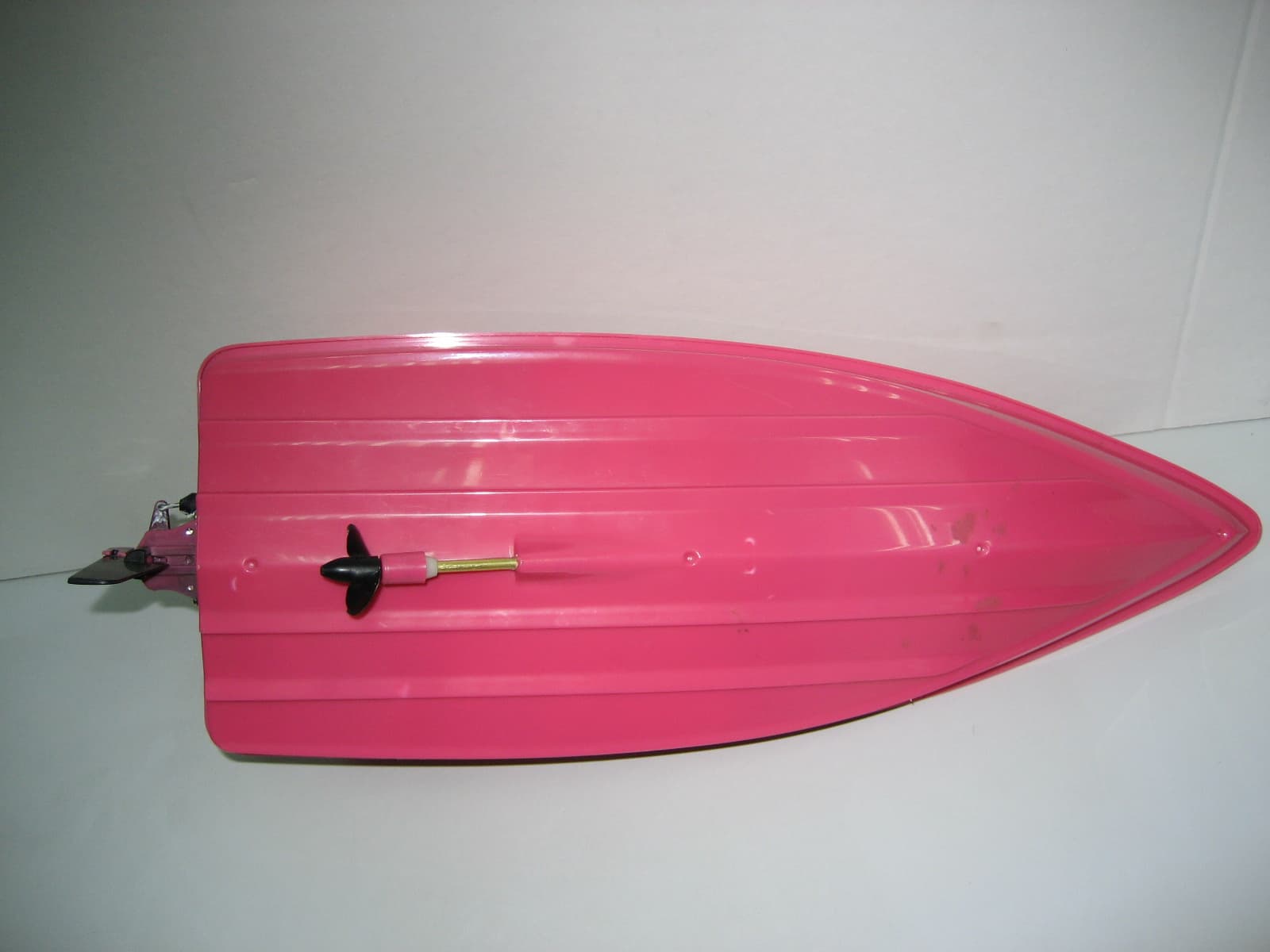

RC Boat Boat Antenna Tube Transmitter Transmitter Antenna Battery Tray User’s Guide Please read this user’s guide before installing, setting up and using your new product www.radioshack.com what’s included Antenna Tube Holder Insert your boat’s antenna tube here. Latches Turn to open the battery compartment. The power switch is located in the battery compartment. Thank you for purchasing your RC Jet race Boat from RadioShack. Your boat comes in two frequencies (27MHz and 49MHz), so you and your friends can race together. The boat is equipped with a fan for cooling the motor. The automatic speed regulator enables smooth steering. This vessel sails at high speeds. Avoid using it where people are swimming. Caution: Immediately after recharging, the boat runs at a higher speed than normal, which can cause your boat to capsize on choppy water. Maneuver your boat carefully immediately after replacing the battery.  Attach the antenna to your transmitter.  Thread the boat’s antenna wire through the supplied antenna tube. Then, insert the tube into the antenna tube holder.  Turn the latches on the boat to open the battery compartment and turn on the boat.  Place your boat in the water and use the transmitter’s controls to operate it. Your transmitter’s LED lights when in use. • Your transmitter does not have a power switch. It turns on when you move either lever. • Your transmitter is not waterproof. Do not submerge it in water. • The boat decreases its speed when turning to make sharper turns. • When you finish playing, remove your boat from the water and shake excess water from your boat through the two drain holes. sailing your boat NOTES • Do not use your boat near devices with transmitters using the same frequency (27 or 49 MHz). • Running your boat continuously for long periods generates high heat levels, which cause wear and tear on the motor. To help keep heat levels down, let the boat cool at least 25 minutes before installing a fresh battery pack. • Keep your boat away from grass and debris that could cause propeller damage. • If your boat does not respond, drives slowly, or the range reduces, recharge your battery pack. • If your boat doesn’t respond after recharging, replace the transmitter battery and check for propeller debris. • If your boat slows down due to loss of battery power, guide it to shore immediately so it won’t drift away. • If your boat goes outside the transmitter’s range, it stops. Hold your transmitter high above your head to re-establish contact. If this doesn’t work, move closer and try again. Do not wade into deep water. • Never touch the propellers while they are spinning. • Children must be supervised by adults when playing with toys around water. • Do not operate the transmitter with the battery compartment open. The cooling fan in the boat starts when you operate the transmitter. safety information LED Release to stop Left Release to go straight Forward Right Reverse 60-153 RC Jet Race Boat Direct Alignment If you can not drive the boat forward in a straight line, you can adjust the switch to left or right to adjust the boat forward. ON/OFF 60-153.indd 112/7/2006 11:15:15 AM ©2006. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. 60-153 12A06 Printed in China This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. For complete warranty details and exclusions, check with your local RadioShack store. RadioShack Customer Relations 300 RadioShack Circle, Fort Worth, TX 76102 04/04 limited 90-day warranty This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your boat. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Carries frequency ......................................................49.860MHz, 27.145MHz Field strength ...................................................................<80 dBμV/m at 3m This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. rf emission information in your transmitter Your transmitter requires one 9V alkaline battery (not supplied). When your transmitter’s control range decreases, …

Text truncated - open the document above for the full version.

FCCID: GLE60153R BLOCK DIAGRAM CODER OSC. AND MOD. TRANSMITTER RF. AMP. DECODER AUDIO AMP. AND DETECTOR DRIVER STEERING MOTOR DRIVER DRIVING MOTOR RECEIVER (49.860 MHz)

Applicant : Suncon Toys Industry Ltd. FCC ID: GLE60153R Technical Description The brief circuit description listed as follows. -Q1 and associated circuit act as Super regenerative Receiver -ICRS-6 and associated circuit act as Decoder -Q4 to Q9, and associated circuit act as Motor #1 Driver -Q10 to Q17 and associated circuit act as Motor # 2 Driver -Q18 to Q24 and associated circuit act as Motor #3 Driver Antenna Used : A permanent wire antenna has been used

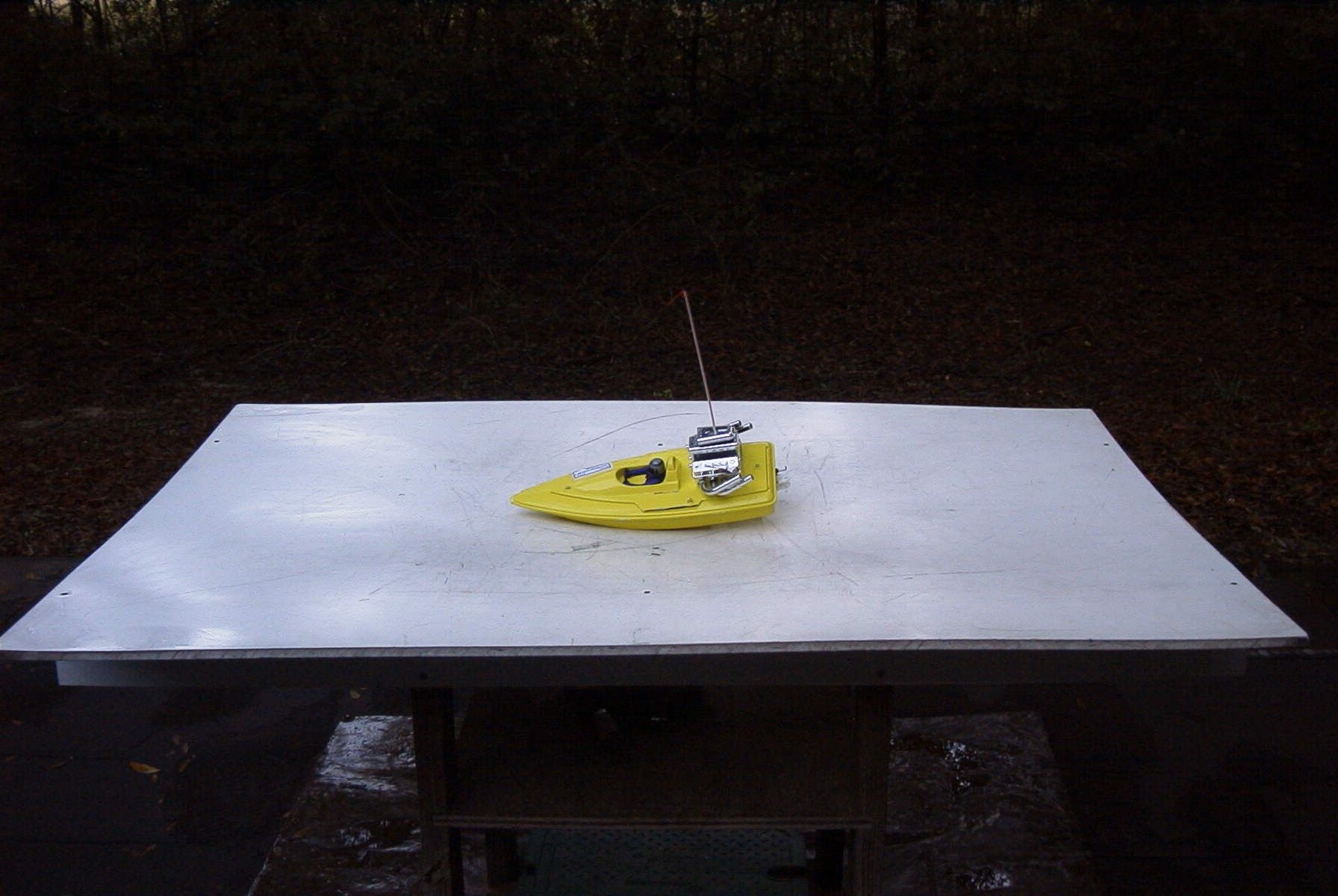

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60153R REPORT #: S\SUNCONGLE\3452HT6\3452HT6TestReport.doc COVER SHEET Test Report Product Name: WIRELESS RECEIVER FCC ID: GLE60153R Applicant: SUNCON TOYS INDUSTRY LTD. 11/F, KAI TAK FACTORY BUILDING 99 KING FUK STREET SANPOKONG, KOWLOON HONG KONG Date Receipt: 12/20/2006 Date Tested: 1/4/2007 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60153R REPORT #: S\SUNCONGLE\3452HT6\3452HT6TestReport.doc Page 1 of 4 TABLE OF CONTENTS LIST APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60153R TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURES PAGE 3...............RADIATION INTERFERENCE TEST DATA EXHIBITS CONTAINING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS CIRCUIT DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60153R REPORT #: S\SUNCONGLE\3452HT6\3452HT6TestReport.doc Page 1 of 4 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro- Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Antenna: Log- Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60153R REPORT #: S\SUNCONGLE\3452HT6\3452HT6TestReport.doc Page 2 of 4 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI standard C63.4-2003 using a spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºF with a humidity of 70%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + CL + ACF= FS 33 20 dBuV +1.2 + 10.36 dB = 31.56 dBuV/m @ 3m ANSI STANDARD C63.4-2003 12.1.1.1 SUPERREGENERATIVE RECEIVER: A Signal Generator was set to the unit under test operating frequency. An un-Modulated continuous wave (CW) signal was radiated at the super-regenerative receiver operating frequency to cohere the characteristic broadband emissions from the receiver. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60153R REPORT #: S\SUNCONGLE\3452HT6\3452HT6TestReport.doc Page 3 of 4 APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60153R NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.109 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 49.9 47.78 21.6 V 0.95 11.04 33.59 6.41 49.9 47.82 17.0 H 0.95 12.02 29.97 10.03 49.9 49.05 21.7 V 0.96 10.79 33.45 6.55 49.9 50.50 18.1 H 0.98 11.33 30.41 9.59 49.9 50.80 19.8 V 0.98 10.39 31.17 8.83 49.9 51.90 18.0 V 0.99 10.11 29.10 10.90 49.9 52.66 19.2 V 0.99 9.91 30.10 9.90 49.9 53.56 18.0 V 1.00 9.67 28.67 11.33 49.9 54.16 18.6 V 1.01 9.52 29.13 10.87 SAMPLE CALCULATION: FSdBuV/m = MR (dBuV) + ACFdB. Emissions attenuated more than 20 dB below the permissible value are not reported. PERFORMED BY: RICHARD BLOCK DATE: 1/4/2007 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60153R REPORT #: S\SUNCONGLE\3452HT6\3452HT6TestReport.doc Page 4 of 4
