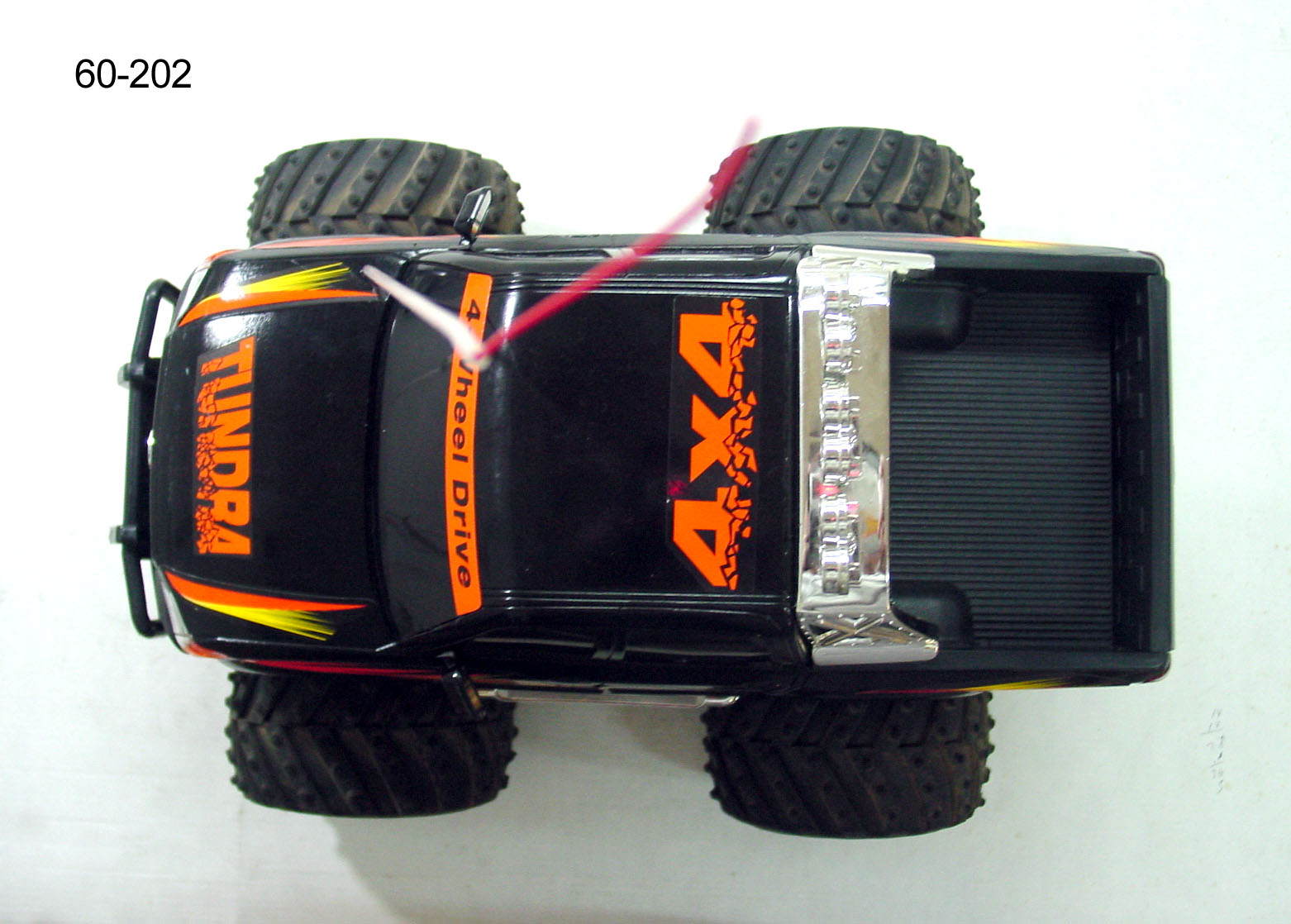

GLE60202RWireless Remote Control Toy Receiver

Actual product may vary from the images found in this document. Toyota Tundra ©2007. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. 60-155A 05A07 Printed in China Installing Batteries 1. Turn off your truck. 2. Insert one 9V battery (not supplied) in the transmitter battery compartment matching the polarity symbols (+ and -) marked inside. 3. On the truck, turn the latches to open the battery compartment. 4. Load six AA batteries (not supplied) with correct polarity into the supplied battery compartment tray OR Load and connect a fully-charged 9.6V battery pack (not supplied). The connectorThe connector fits only one way. Do not force it. 5. Replace the battery door and secure the latches. Battery Notes: • Use only fresh batteries of the required size and recommended type. Do not mix batteries of different types, capacities, or chemistries. • Do not burn or bury batteries. • To keep motor heat levels down, let the truck cool at least ten minutes between battery exchanges. • If you do not plan to use the truck for a week or longer, remove the batteries from both the truck and transmitter. • Position the battery connectors and wires so they do not touch any moving parts. Thank you for purchasing your 1:14 7F Dual Power 4WD Toyota Tundra from RadioShack. Built to 1:14 scale, it can reach speeds of 570 feet per minute and comes in one of two frequencies (27 MHz or 49 MHz), so you can race with a friend. Please read this user’s guide before installing, setting up and using your truck. What’s Included 4WD Toyota Transmitter Truck Antenna Tube AA Battery Tray User’s Guide Safety and Care • Do not use your truck near transmitters with the same frequency (27 MHz or 49 MHz). • A nearby CB can interfere with your truck’s control. If this happens, move the truck away from the CB. • Never play with your truck in the street. • Avoid high-impact collisions with people and objects. RF Emissions Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your truck. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. limited 90-day Warranty This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from RadioShack company- owned stores and authorized RadioShack franchisees and dealers. For complete warranty details and exclusions, check with your local RadioShack store. RadioShack Customer Relations 300 RadioShack Circle Fort Worth, TX 76102 04/04 www.radioshack.com Forward Stop Reverse Left Straight Right Battery compartment Latches R / L – Turn toward R if the truck pulls to the left, or toward L if it pulls to the right. L / H – Switch to L when driving on rough terrain, or to H when driving on smooth terrain. Band ABC Make sure the transmmitter andd the vechicle are on the samme band. lights when you turn on the truck. ON/OFF ON/OFF Band ABC Driving Your Truck 1. Thread the truck’s antenna wire through the supplied antenna tube. Then, insert the tube into the antenna tube holder on the truck’s body. 2. Make sure the transmitter and the truck are on the same band. Turn on the truck and transmitter. Your truck comes in 3 frequencies(ABC) so you can play with friends. Set your truck and transmitter to a frequency different to your friend’s. 3. Use the transmitter’s control levers to steer your truck. 4. Turn off the truck when you finish driving. 60-155A.indd 105/24/2007 17:46:00

Cat. No. 60202 BLOCK DIAGRAM (49.860 MHz) RF. AMP. DECODER AUDIO AMP. AND DETECTOR DRIVER STEERING MOTOR DRIVER Driving Motor RECEIVER

Applicant : Suncon Toys Industry Ltd. FCC ID: GLE60202R Technical Description : The brief circuit description is listed as below. Q1 and associated circuit act as Super regenerative Receiver. Q2, Q3, Q4, Q5, perform as Amplify IC1 and associated circuit act as Decoder Q6, 7, 8, 9, 10 and 11 and associated circuit act as Motor 2 Driver. Antenna Used : A permanent wire antenna has been used.

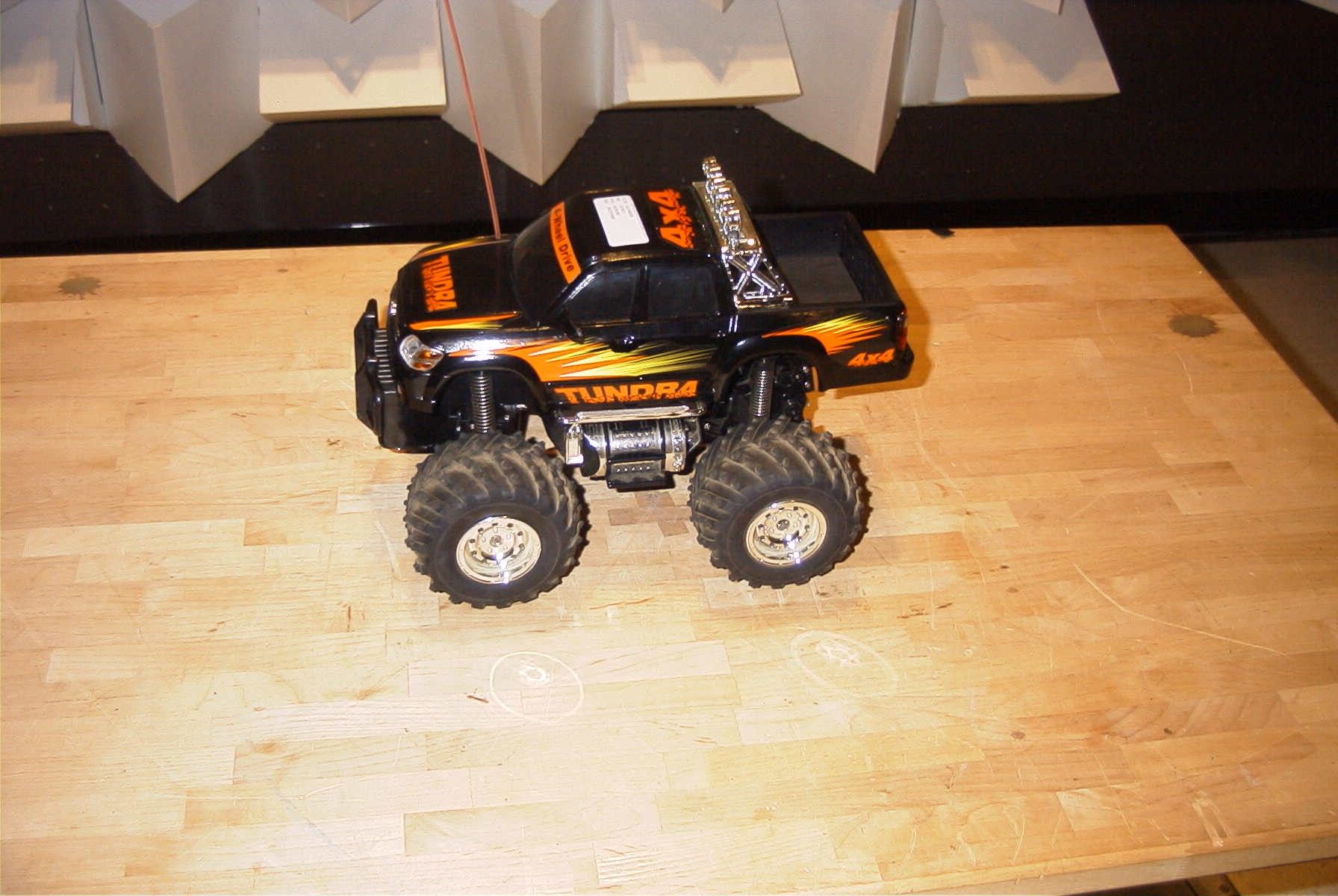

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60202R REPORT #: S\SUNCONGLE\2173HT7\2173HT7TestReport.doc COVER SHEET Test Report Product Name: WIRELESS REMOTE CONTROL TOY RECEIVER FCC ID: GLE60202R Applicant: SUNCON TOYS INDUSTRY LTD. 11/F, KAI TAK FACTORY BUILDING 99 KING FUK STREET SANPOKONG, KOWLOON HONG KONG Date Receipt: 5/28/2007 Date Tested: 6/4/2007 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60202R REPORT #: S\SUNCONGLE\2173HT7\2173HT7TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60202R TEST REPORT CONTAINING: PAGE 1...............TEST EQUIPMENT LIST PAGE 2...............TEST PROCEDURES PAGE 3...............RADIATION INTERFERENCE TEST DATA EXHIBITS CONTAINING: BLOCK DIAGRAM SCHEMATIC INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS CIRCUIT DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60202R REPORT #: S\SUNCONGLE\2173HT7\2173HT7TestReport.doc Page 1 of 6 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/20/07 3/19/10 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 out for cal Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 out for cal Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 out for cal LISN Electro- Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Antenna: Log- Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60202R REPORT #: S\SUNCONGLE\2173HT7\2173HT7TestReport.doc Page 2 of 6 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI standard C63.4-2003 using a spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 80ºF with a humidity of 70%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + CL + ACF= FS 33 20 dBuV +1.2 + 10.36 dB = 31.56 dBuV/m @ 3m POWER LINE CONDUCTED EMISSIONS: ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. If the DUT requires powerline conducted emissions testing, the situation was similar for the measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-2003 with the EUT 40 cm from the vertical ground wall. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60202R REPORT #: S\SUNCONGLE\2173HT7\2173HT7TestReport.doc Page 3 of 6 APPLICANT: SUNCON TOYS INDUSTRY LTD. FCC ID: GLE60202R NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.109 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: Tuned Frequenc y MHz Emission Frequenc y MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correcti on Factor dB Field Strength dBuV/m Margin dB 49.8 47.10 23.9 H 0.49 11.20 35.59 4.41 49.8 47.10 28.3 V 0.49 10.52 39.31 0.69 49.8 50.10 23.3 H 0.50 11.20 35.00 5.00 49.8 50.10 26.3 V 0.50 11.11 37.91 2.09 49.8 52.00 21.2 H 0.51 11.20 32.91 7.09 49.8 52.00 24.3 V 0.51 11.38 36.19 3.81 49.8 53.50 18.9 H 0.51 11.20 30.61 9.39 49.8 53.50 19.4 V 0.51 11.59 31.50 8.50 49.8 92.20 15.1 V 0.63 10.03 25.76 17.74 49.8 92.20 15.4 H 0.63 8.73 24.76 18.74 49.8 97.00 13.6 H 0.64 10.24 24.48 19.02 49.8 97.00 14.5 V 0.64 11.06 26.20 17.30 49.8 99.90 12.2 H 0.65 11.46 24.31 19.19 49.8 99.90 12.5 V 0.65 11.58 24.73 18.77 49.8 101.70 11.4 H 0.65 11.53 23.58 19.92 49.8 101.70 13.2 V 0.65 11.67 25.52 17.98 49.8 103.40 10.5 H 0.65 11.57 22.72 20.78 49.8 103.40 11.0 V 0.65 11.74 23.39 20.11 49.8 105.10 7.6 H 0.66 11.62 19.88 23.62 49.8 105.10 7.7 V 0.66 11.82 20.18 23.32 49.8 139.50 16.4 H 0.69 13.10 30.19 13.31 49.8 139.50 20.1 V 0.69 12.82 33.61 9.89 49.8 143.50 12.0 H 0.69 13.38 26.07 17.43 TIMCO EN…
