GMLNHP-2FXPCS Band CDMA Cellular Transceiver

User Guide for Nokia 6370 Phone Manufactured or sold under one or more of the following US patents: QuestionAnswerWhere to get info My numberWireless service provider Number to call for voice mail Wireless service provider Wireless provider’s numberWireless service provider Provider’s customer careWireless service provider Model number 6370Label on back of phone (under battery) Phone typeNHP-2FXBack of title page Electronic serial number (ESN) Chapter 2 "Welcome", "Find information about your phone" D405445 5444816573732358218915990740 6055264 6154455Others D40658354917185754976 5854978 5991627607278761670834558302 D41418955965715758278 5859843 6005889607618162053254901307 D4057845642377 5790957 5887250 6009129607857062530755056109 D4235155699482 5793744 5887252 6025802608447162924745101501 496919257013925796757 5889770 6029065 60883425109390 54405975708656 5802465 5929813604707161482905265119 RE32580 The wireless phone described in this guide is approved for use in CDMA networks. LEGAL INFORMATION Part No. 9354439 Issue No. 1 Copyright © 2002 Nokia. All rights reserved. Nokia is a registered trademark of Nokia Corporation. Nokia, Nokia Connecting People, Original Accessories logos, Snake II, Pass ‘n Rush, Space Impact, Bumper, and Racket are trademarks of Nokia Corporation and/or its affiliates. Printed in Canada March, 2002.PDF created in US March 22, 2002. US Patent No 5818437 and other pending patents. T9 text input software Copyright ©1999-2001. Tegic Communications, Inc. All rights reserved. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. The information contained in this user guide was written for Nokia 6370 phone. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. EXPORT CONTROLS This product contains commodities, technology or software exported from the United States in accordance with the Export Administration regulations. Diversion contrary to U.S. law is prohibited. FCC/INDUSTRY CANADA NOTICE Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. [ iii ] Table of contents For your safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Quick guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Menu shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Get the most out of this guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Understand wireless network services. . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Learn about Accessibility solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Contact Nokia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 REGISTER YOUR PHONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 E-NEWSLETTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Contact your service provider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2About your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Your Nokia phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 About the antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 About the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Switch your phone on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Check the Start screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Learn about the keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Make and answer calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Review phone symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Use the selection keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 View your phone’s help system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Browse phone menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Menu and menu shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Phone book menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 3Phone setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Learn about your headset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 Adjust the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Adjust screen…

Text truncated - open the document above for the full version.

NOKIA MOBILE PHONES, Inc. 12278 Scripps Summit Drive San Diego, CA 92131 Tel (858) 831 5000 February 5, 2002 Federal Communications Commission, Authorisation & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Attention: Equipment Authorisation Branch COMPLIANCE STATEMENT OF NOKIA Model 6370, FCC ID: GMLNHP-2FX The compliance statement can be seen in user guide of NOKIA Model 6370 because the size of the hand-portable NOKIA Model 6370 and its identification label are so small that the compliance statement can not be printed visible enough. Sincerely, Darin C. Yeoman Product Project Manager Product Development NOKIA MOBILE PHONES

NOKIA MOBILE PHONES, Inc. 12278 Scripps Summit Drive San Diego, CA 92131 Tel. (858) 831 5000 February 5, 2002 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID:GMLNHP-2FX and as outlined below: - block diagram - schematic diagrams - descriptions of circuitry / theory of operation - list of active devices - tune-up procedures These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA MOBILE PHONES, Inc. Darin C. Yeoman Product Program Manager, Product Development, San Diego

March 18, 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Ave. McLean, VA 22101 Attn: Mr. William H. Graff SUBJECT: Nokia Mobile Phones, Inc. FCC ID: GMLNHP-2FX Request for Tech. Info.: 03/15/02 Dear William: Transmitted herewith, on behalf of Nokia Mobile Phones, Inc. is an amendment provided in response to the request for technical information dated March 15, 2002. 1. Please find the attached EMC test report in response to questions 1, 2, and 6. 2. In response to questions 3, yes, the transmitter was allowed to sit in a “power off” configuration during stabilization at each 10-degree temperature increment. 3. In response to question 5, yes, the forward and reflected power was taken into account during the EIRP substitution test of section 5.2 of the test report. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 15, 2002 RE: Nokia Mobile Phones FCC ID: GMLNHP-2FX I have a few comments on this Application. 1.) The Occupied Bandwidth procedure specified in Section 4.3 of the EMC Test Report is irrelevant and not applicable to any constant envelope digital emissions. Please revise. 2.) The Spurious and Harmonic Emissions description in Section 4.4 of the EMC test report applies to analog Part 22 devices and not Part 24 PCS band transceivers. Please revise. 3.) Section 5.0 of the EMC report: Was the transmitter allowed to sit in a “power off” configuration during stabilization at each 10 degree temperature increment? 4.) Power Output for PCS band Part 24 devices must be reported in EIRP. Please submit revised Form 731. 5.) Was forward and reflected power taken into account during the EIRP substitution test of Section 5.2 of the test report? FYI: It is also advisable to test much higher than the standard .8M table used for EMC testing (I assume a .8M table was used per Test Setup photos) to reduce the effect of ground reflections. Was this done? 6.) Section 6.2, 6.3, and 6.4 shows what appears to be passing data, but it is confusing. Using the Level (dBm) from Section 5.2 and the Level (dBm) in Section 6.2, 6.3 and 6.4, I would expect to derive the dBc values. This is just not happening. If I am incorrect, please show me where I went astray. FYI: Even using your sample calculation in 10.1 (B) I remained confused. 7.) Frequency Stability limits in Section 7.2 does not correspond with specifications quoted in Section 5.0 of the Test Report. Please review. 8.) Please provide x-axis plots at the highest head and highest body worn SAR position. I am unable to determine extrapolation to the phantom surface. 9.) Plots provided in the Amendment to SAR Compliance Test Report provides very little information on each plot, especially powerdrift, probe used, conversion factors, liquid parameters, etc. Since the date of the amendment is five weeks different from the original SAR Compliance Test Report, we feel these it is appropriate to address these concerns. 10.) There are five different files of ~1.7MB uploaded to the ATCB site. Please identify which one should be used for the manual? Please be aware that my sifting through multi manuals will increase my review time and should be avoided. Please upload only final versions of all Exhibits. 11.) Tuning instructions does not identify the maximum target RF power output. It would be helpful if identified. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

NOKIA MOBILE PHONES, Inc. 12278 Scripps Summit Drive San Diego, CA 92131 Tel. (858) 831 5000 February 5, 2002 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Attention: Equipment Authorization Branch PER: 47 CFR 22.919 RE: FCC ID: GMLNHP-2FX, Model 6370 The Electronic Serial Number (ESN) for each transceiver is unique. The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit’s operating software is not alterable. The ESN is isolated from fraudulent contact and tampering. ® The host component does not contain other information, it is not removable and its electrical connections are not accessible. ̨ The host component does contain other information, and the ESN information is encoded using: ® (1) Multiplication or division by a polynomial. ̨ (2) Cyclic coding. ̨ (3) The spreading of ESN bits over various non-sequential memory locations. The ESN is factory set and is not alterable, transferable, removable, or otherwise able to be manipulated. Cellular mobile equipment is designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Darin C. Yeoman Product Project Manager Product Development NOKIA MOBILE PHONES

NOKIA MOBILE PHONES, Inc. 12278 Scripps Summit Drive San Diego, CA 92131 Tel. (858) 831 5000 Febraury 5, 2002 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Attention: Equipment Authorisation Branch I hereby certify that the tranceiver FCC ID: GMLNHP-2FX, model 6370, complies with OET Bulletin No. 53 as referenced in Section 22.915 of the Commission’s rules and with TIA/EIA/IS-95-A Mobile Station-Base Station Compatibility Standard for Dual-Mode Wideband Spread Spectrum Cellular System, ANSI J-STD-008-1996 Personal Station-Base Station Compatibility Requirements for 1.8 to 2.0 GHz Code Division Multiple Access (CDMA) Personal Communications Systems, and IS2000 1XRTT requirements. Compliance was determined by testing appropriate parameters according to standards. Extensive field-testing has been performed in several locations in the USA to verify the compatibility against different systems. NOKIA MOBILE PHONES, Inc. Darin C. Yeoman Product Project Manager, Product Development, San Diego

Nokia Mobile Phones (USA) Inc. 12278 Scripps Summit Drive San Diego, CA 92131 To: FCC Application Processing Branch Re: FCC ID GMLNHP-2FX Applicant: Nokia Mobile Phones Inc. Date: February 5, 2002 Nokia Mobile Phones model 6370, with FCC Identifier GMLNHP-2FXcomplies with the provisions of Section 22.921 in CFR 47, concerning 911 Call Processing Modes. Sincerely, Darin C. Yeoman Product Project Manager Product Development NOKIA MOBILE PHONES

Nokia Responses to FCC Correspondence 3932: -----Original Message----- From: ext [email protected] [<mailto:[email protected]>] Sent: Wednesday, April 24, 2002 12:58 PM To: Hanni Jorma (NMP/SanDiego) Subject: Request for additional information To: Jorma Hanni From:Martin Perrine [email protected] FCC Equipment Authorization Branch Re: FCC ID: GMLNHP-2FX Applicant: Nokia Inc Correspondence Reference Number: 3932 731 Confirmation Number: TC213019 Date of Original Email: 04/24/2002 Subject: Request for additional information In regards to your recent application referenced above we kindly request that you address the following matter(s). Please remove any outdated exhibits from the EAS system. Several duplicate or unnecessary items are on exhibit. Please note that there is an item titled "revised SAR report" which contains an EMC report. In regards to your recent application referenced above we kindly request that you provide the following additional information New table corresponding to that on page 11 of 22 summarizing all the various liquid dielectric parameters relevant to this testing. The 1880 MHZ head liquid measured values stated differ from those on the test SAR plots; however, the 1880 MHZ values appear to agree with the values on the dipole validation SAR plots taken at 1800 MHZ. Please clarify and justify any discrepancies. Please find attached table with corrected liquid parameters in file GMLNHP- 2FX_Corrected_Liquid_Parameters.pdf. Strong justification for the probe conversion factor used for muscle testing. No calibration certificate could be found. Updated page for the Calibration Certificate from SPEAG is enclosed as file GMLNHP-2FX_Updated_Page_for_ET1431_Calibration_Certificate.pdf. 1 gm SAR values corresponding to all dipole validation plots included in the test report. Also, please justify the measured value 38.08 reported on page 10 of 22. No corresponding SAR plot could be located. One dipole SAR plot reporting 10.1 w/KG SAR was found for 250 mW of forward power. This differs from expected. Please clarify. Please find attached corrected table and validation SAR plots in files GMLNHP- 2FX_Table_of_Validation_Results.pdf and GMLNHP-2FX_Validation_Plots.pdf. Confirmation that the device outline drawn on the body-worn SAR plots is correctly located. The SAR hotspot is in an unexpected location. Also, please provide SAR values for both hotspots. The equipment scans the hot spot having highest SAR. We do not have additional data for the other spot. Scannings from the two other channels support conclusion that the highest SAR has been on left hot spot as reported in the original SAR report. Device position has been corrected to the SAR plots. The SAR plots from the three channels are enclosed in file GMLNHP- 2FX_Corrected_Body_Plots.pdf. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal pursuant to Section 2.917(c). DO NOT Reply to this email by using the Reply button. In order for your response to be processed expeditiously, you must upload your response via the Internet at www.fcc.gov, E-Filing, OET TCB Electronic Filing, TCB Login. If the response is submitted through Add Attachments, a message which informs the processing staff that a new exhibit has been submitted must also be submitted via Submit Correspondence. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

© 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA)

© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) Material Sheet 1 of 1 Original Scale Original Size A4 1:1 NMP Code Item Name Document Number Doc. Vers. Name / Date Change Ref. Approved / Date Original Designer FUNCTIONAL CHARACTERISTICS KEY MAIN FUNCTIONAL CHARACTERISTIC MAIN FUNCTIONAL CHARACTERISTIC ( Proof of Process Capability Required ) Copyright c Nokia Mobile Phones. All rights reserved THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED WORK UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED THIS DRAWING CONTAINS PROPRIETARY AND CONFIDENTIAL INFORMATION This document is the property of Nokia Mobile Phones 1.0 Rcrotty 07nov01 Rcrotty 07nov01 Jrytkonen 07nov01 FCC Type Label On D-Cover None Type: NHP-2FX Model: 6370 ANATEL: FCC ID: GMLNHP-2FX CAN: 1234567891 Code: 12345678MYDDFL ESN HEX: 235/14004992 MADE IN KOREA ESN: 1234567891234567891 See User Manual for Patent Numbers Type: Model: ANATEL: FCC ID: CAN: Code: ESN HEX: ESN: Type: Model: ANATEL: FCC ID: CAN: Code: ESN HEX: ESN: Property of NOKIA PROTO Type: Model: HW ID: FCC ID: PSN: Code: ESN: Printing File Generic With CTIA Logo Scale 1:1 Printing File Generic Without CTIA Logo Scale 1:1 Printing File Proto Scale 1:1 Sample Label 1 Factory - Reynosa, Sales - USA Scale 1:1 Sample Label 5 Factory - Manaus, Sales - Brazil Scale 1:1 Sample Label 7 Factory - Manaus, Sales - LSA Scale 1:1 Sample Proto Label Scale 1:1 Sample Label 6 Factory - Manaus, Sales - USA Scale 1:1 Sample Label 3 Factory - TMC, Sales - USA Scale 1:1 Sample Label 2 Factory - Reynosa, Sales - LSA Scale 1:1 Sample Label 4 Factory - TMC, Sales - LSA Scale 1:1 PROTO B1.2 Type: NHP-2AX Model: 1234XXXX HW ID: 1234 FCC ID: GMLNHP-2AX PSN: XX123456 Code: 12345678MYDDFL Property of NOKIA MADE IN KOREA ESN: 1234567891234567891 Type: NHP-2AX Model: 1234XXXX ANATEL: 049099-AMS1234 FCC ID: GMLNHP-2AX CAN: 1234567891 Code: 12345678MYDDFL ESN HEX: 123456789123 MADE IN MEXICO HECHO EN MEXICO ESN: 1234567891234567891 Ver Manual de Usuario para Números de Patentes Type: NHP-2AX Model: 1234XXXX ANATEL: 049099-AMS1234 FCC ID: GMLNHP-2AX CAN: 1234567891 Code: 12345678MYDDFL ESN HEX: 123456789123 MADE IN KOREA HECHO EN KOREA ESN: 1234567891234567891 Ver Manual de Usuario para Números de Patentes Type: NHP-2AX Model: 1234XXXX ANATEL: 049099-AMS1234 FCC ID: GMLNHP-2AX CAN: 1234567891 Code: 12345678MYDDFL ESN HEX: 123456789123 INDUSTRIA BRAZILEIRA HECHO EN BRAZIL ESN: 1234567891234567891 Ver Manual de Usuario para Números de Patentes Type: NHP-2AX Model: 1234XXXX ANATEL: 049099-AMS1234 FCC ID: GMLNHP-2AX CAN: 1234567891 Code: 12345678MYDDFL ESN HEX: 123456789123 INDUSTRIA BRAZILEIRA MADE IN BRAZIL ESN: 1234567891234567891 See User Manual for Patent Numbers Type: NHP-2AX Model: 1234XXXX ANATEL: 049099-AMS1234 FCC ID: GMLNHP-2AX CAN: 1234567891 Code: 12345678MYDDFL ESN HEX: 123456789123 INDUSTRIA BRAZILEIRA Produzido no Pólo Indústrial de Manaus ESN: 1234567891234567891 Ver Manual do Usuário para Números de Patentes Type: NHP-2AX Model: 1234XXXX ANATEL: 049099-AMS1234 FCC ID: GMLNHP-2AX CAN: 1234567891 Code: 12345678MYDDFL ESN HEX: 123456789123 MADE IN KOREA ESN: 1234567891234567891 See User Manual for Patent Numbers Type: NHP-2AX Model: 1234XXXX ANATEL: 049099-AMS1234 FCC ID: GMLNHP-2AX CAN: 1234567891 Code: 12345678MYDDFL ESN HEX: 123456789123 MADE IN MEXICO HECHO EN MEXICO ESN: 1234567891234567891 See User Manual for Patent Numbers Layout and Dimensions 2:1 Type: NHP-2FX Model: 6370 ANATEL: FCC ID: GMLNHP-2FX CAN: 1234567891 Code: 12345678MYDDFL ESN HEX: 235/14004992 MADE IN MEXICO HECHO EN MEXICO ESN: 1234567891234567891 See User Manual for Patent Numbers 1.5 0.2 CTIA Marking To Be Added After CTIA Approval Date Code (See Table Below) See Table Below for Models and Types Data Matrix (IMEI Number, EESN Number, Product Code, Date and Factory) Typical Minimum Clearance to Label Outline Boxes Represent Bar Codes MODEL TYPE FCC ID GMLNHD-2GX GMLNHP-2FX GMLNHP-2AX 6385 NHP-2AX NHD-2GX NHP-2FX 6370 6380 PRINTING FILEDESCRIPTION WITH CTIA LOGO (300dpi)wctia3.pcx WITH CTIA LOGO (600dpi)wctia6.pcx WITHOUT CTIA LOGO (300dpi)woctia3.pcx WITHOUT CTIA LOGO (600dpi)woctia6.pcx PROTO (300dpi)proto3.pcx PROTO (600dpi)proto6.pcx To be printed in NMP production using Thermal Transfer Printer 600Dpi and Thermal Transfer Ribbon 5095 NMP CODE 9730000 color black. NOTE: Artwork pictures are only examples; in production the correct data is read from transceiver/production database. JANUARY FEBRUARY MARCH APRIL MAY JUNE JULY AUGUST SEPTEMBER OCTOBER NOVEMBER DECEMBER A B C D E F G H I J K L MEXICO BRAZIL A...Z A...Z A...Z 01 ... 31 R G 2001 I 2002 J 2003 K 2004 L 2005 M MONTH (M) LETTERDATE (DD) FACTORY (F) LETTER LINE (L) LETTER YEAR (Y) KOREA M DMC03884 Code: 9370588 BLANK TYPE LABEL ROLL 2 1 TYPE LABEL (HDAA3) Item Name Document Number Doc. Vers. Name / Date Change Ref. Approved / Date Sheetof Original Scale Original Size Original Designer Material NMP code 11 DMP05971 Flexcon TC-200V-156 & 5095 Zebra Ribbon 1.0 A3 1:1 - A. Whittemore, 09NOV01 R. Crotty, 09NOV01 Part nameQtyDrw no. Note 1 PRINTING FILE SEE TABLE FOR PRINTING FILE 1 A. Whittemore, 09NOV01 MOBILE PHONES FUNCTIONAL CHARACTERISTICS KEY MAIN FUNCTIONAL CHARACTERISTIC MAIN FUNCTIONAL CHARACTERISTIC (Proof of Process Capability Required) Copyright Nokia Mobile Phones. All rights reserved THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED WORK UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED THIS DRAWING CONTAINS PROPRIETARY AND CONFIDENTIAL INFORMATION This document is the property of Nokia Mobile Phones

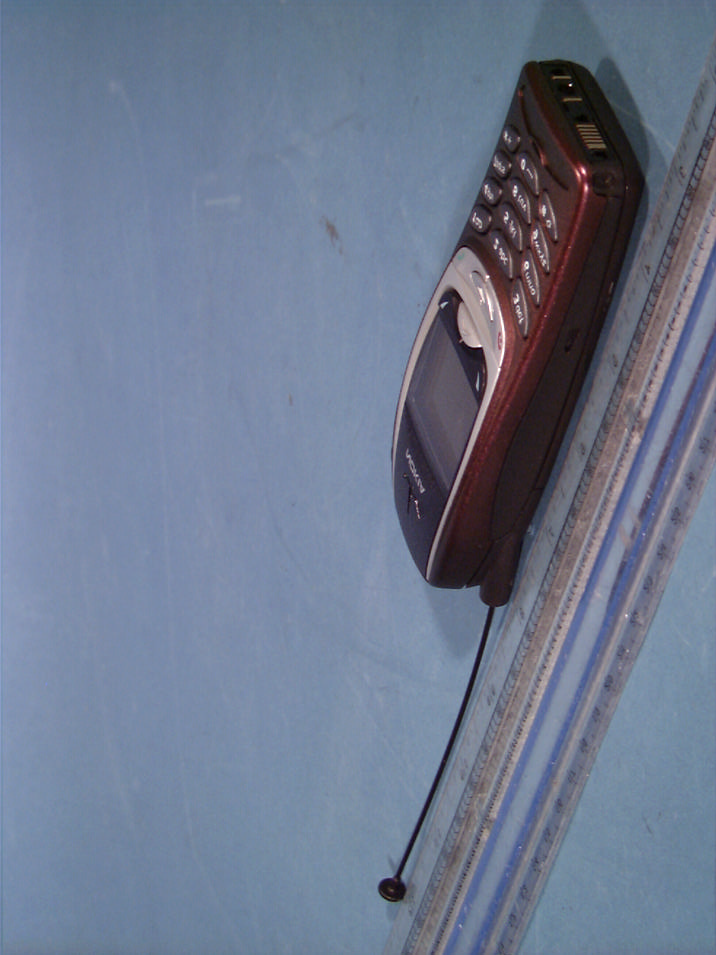

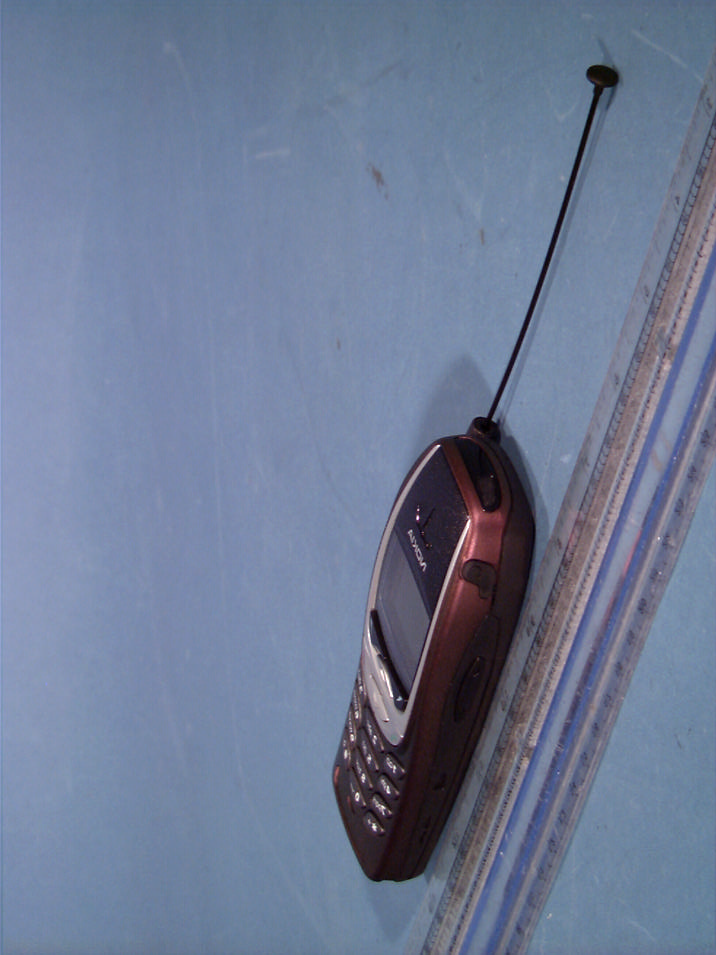

© 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA) © 2002 PCTEST Lab FCC ID: GMLNHP-2FX (Model: 6370) NVLAP Lab Code: 100431-0 NOKIA Single-Mode PCS Phone (PCS CDMA)

Columbia SAM Phantom; Flat Section; Position: (90°,90°); Frequency: 1880 MHz ; SAM Body, CH 25, Pos; Probe: ET3DV6R - SN1431; ConvF(4.52,4.52,4.52); Crest factor: 1.0; Body 1800-2000 MHz (SAM): σ = 1.50 mho/m ε r = 53.0 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.244 mW/g, SAR (10g): 0.154 mW/g, (Worst-case extrapolation) Cube 7x7x7: Dx = 5.0, Dy = 5.0, Dz = 5.0 01/21/02 Temp = 23° C ± 1° TCC, Copenhagen 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.22 0.24 0.26 010203040 SAR tot [mW/g] [mm]

Columbia SAM Phantom; Left Hand Section; Position: (90°,59°); Frequency: 1880 MHz ; SAM touch left CH 25, Antenna in; Probe: ET3DV6R - SN1431; ConvF(4.95,4.95,4.95); Crest factor: 1.0; Brain 1900 MHz (SAM): σ = 1.46 mho/m ε r = 38.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.888 mW/g, SAR (10g): 0.525 mW/g, (Worst-case extrapolation) Cube 7x7x7: Dx = 5.0, Dy = 5.0, Dz = 5.0 01/17/02 Temp = 23° C ± 1° TCC, Copenhagen 0.0 0.1 0.2 0.3 0.4 0.5 0.6 010203040 SAR tot [mW/g] [mm]

NOKIA MOBILE PHONES, Inc. 12278 Scripps Summit Drive San Diego, CA 92131 Tel. (858) 831 5000 February 5, 2002 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Attention: Equipment Authorization Branch I hereby certify that the transceiver FCC ID:GMLNHP-2FX Nokia model 6370, complies with ANSI/IEEE C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3kHz to 300 GHz. Compliance was determined by testing appropriate parameters according to standard. Sincerely, Darin, C. Yeoman Product Project Manager Product Development NOKIA MOBILE PHONES

[ 141 ] 16 off before you can make an emergency call. Consult this user guide and your local cellular service provider. •When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your wireless phone may be the only means of communication at the scene of an accident - do not end the call until given permission to do so. •CERTIFICATION INFORMATION (SAR) THIS MODEL PHONE MEETS THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. 16 [ 142 ] Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the…
