GMLNPD-4AWDual Band, Tri-Mode Cellular Telephone

Nokia 3585i User Guide What information is needed? NumbersWhere is the number? My number Wireless service provider Voice mail number Wireless service provider Wireless provider’s number Wireless service provider Provider’s customer care Wireless service provider Model number Nokia 3585iSee “About your phone” on page 12. Phone type GMLNPD-4AWBack of title page Electronic serial number (ESN) See “Have the right information available” on page 10. The wireless phone described in this guide is approved for use in CDMA networks. LEGAL INFORMATION Part No.9355672, Issue No. 1 Copyright ©2002 Nokia. All rights reserved. Nokia, Nokia Connecting People, Nokia 3585i, and the Nokia Original Accessories logos, Snake II, Kart Racing, Space Impact II, and Bumper are trademarks or registered trademarks of Nokia Corporation. All other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Printed in Canada 1/2003 US Patent No 5818437 and other pending patents. T9 text input software Copyright ©1999-2003. Tegic Communications, Inc. All rights reserved. Includes RSA BSAFE cryptographic or security protocol software from RSA Security. Java is a trademark of Sun Microsystems, Inc. The information in this user guide was written for the Nokia 3585i phone. Nokia operates a policy of on-going development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED “AS IS.” EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. EXPORT CONTROLS This product contains commodities, technology or software exported from the United States in accordance with the Export Administration regulations. Diversion contrary to U.S. law is prohibited. FCC/INDUSTRY CANADA NOTICE Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. The term “IC:” before the certification/registration number only signifies that Industry Canada technical specifications were met. i Table of contents 1 For your safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Quick guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Menu shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2 Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Get the most out of this guide. . . . . . . . . . . . . . . . . . . 5 Understand wireless network services. . . . . . . . . . . . . 7 Learn about accessibility solutions . . . . . . . . . . . . . . . 8 Contact Nokia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Register your phone . . . . . . . . . . . . . . . . . . . . . . . . . . 11 E-newsletters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Contact your service provider . . . . . . . . . . . . . . . . . . 11 3 About your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 About the antennas . . . . . . . . . . . . . . . . . . . . . . . . . .13 About the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Switch your phone on or off . . . . . . . . . . . . . . . . . . .17 Check the Start screen . . . . . . . . . . . . . . . . . . . . . . . .17 Learn about the keys. . . . . . . . . . . . . . . . . . . . . . . . . .18 Make and answer calls . . . . . . . . . . . . . . . . . . . . . . . .20 Review phone symbols . . . . . . . . . . . . . . . . . . . . . . . . 21 Memory use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Use the selection keys. . . . . . . . . . . . . . . . . . . . . . . . .23 View your phone’s help system . . . . . . . . . . . . . . . . .23 ii Browse phone menus . . . . . . . . . . . . . . . . . . . . . . . . . 24 Menu and menu shortcuts. . . . . . . . . . . . . . . . . . . . . 26 Phone book menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 4 Phone setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Learn about your headset . . . . . . . . . . . . . . . . . . . . . 35 5 Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Enter letters and numbers . . . . . . . . . . . . . . . . . . . . . 37 Write using ABC and 123 modes . . . . . . . . . . . . . . . 38 Write with predictive text . . . . . . . . . . . . . . . . . . . . . 41 Tips for predictive text . . . . . . . . . . . . . . . . . . . . . . . . 44 6 Phone book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Saving names and numbers . . . . . . . . . . . . . . . . . . . . 46 Recall names and numbers . . . . . . . . . . . . . . . . . . . . 47 Use phone book menus . . . . . . . . . . . . . . . . . . . . . . . 47 Edit a name or number . . . . . . . . . . . . . . . . . . . . . . . 48 Add a number to a phone book entry . . . . . . . . . . . . 49 Delete stored names and numbers . . . . . . . . . . . . . . 51 Add other information to a phone book entry . . . . . 51 Use caller groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Check memory status . . . . . . . . . . . . . . . . . . . . . . . . . 53 7 Call log . . . …

Text truncated - open the document above for the full version.

Nokia Mobile Phones (USA) Inc. 12278 Scripps Summit Drive San Diego, CA 92131 To: FCC Application Processing Branch Re: FCC ID GMLNPD-4AW Applicant: Nokia Mobile Phones Inc. Date: November 1, 2002 Nokia Mobile Phones model 3585i, with FCC Identifier GMLNPD-4AW complies with the provisions of Section 22.921 in CFR 47, concerning 911 Call Processing Modes. Sincerely, Weite Huang R&D Technical Manager Product Development NOKIA MOBILE PHONES

NOKIA MOBILE PHONES, Inc. 12278 Scripps Summit Drive San Diego, CA 92131 Tel. (858) 831 5000 November 1, 2002 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Attention: Equipment Authorization Branch PER: 47 CFR 22.919 RE: FCC ID: GMLNPD-4AW, Model 3585i The Electronic Serial Number (ESN) for each transceiver is unique. The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit’s operating software is not alterable. The ESN is isolated from fraudulent contact and tampering. … The host component does not contain other information, it is not removable and its electrical connections are not accessible. ; The host component does contain other information, and the ESN information is encoded using: … (1) Multiplication or division by a polynomial. ; (2) Cyclic coding. ; (3) The spreading of ESN bits over various non-sequential memory locations. The ESN is factory set and is not alterable, transferable, removable, or otherwise able to be manipulated. Cellular mobile equipment is designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Weite Huang R&D Technical Manager Product Development NOKIA MOBILE PHONES

NOKIA MOBILE PHONES, Inc. 12278 Scripps Summit Drive San Diego, CA 92131 Tel. (858) 831 5000 November 1, 2002 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Attention: Equipment Authorisation Branch I hereby certify that the transceiver FCC ID: GMLNPD-4AW, model 3585i, complies with OET Bulletin No. 53 as referenced in Section 22.915 of the Commission’s rules and with TIA/EIA/IS-95-A Mobile Station-Base Station Compatibility Standard for Dual-Mode Wideband Spread Spectrum Cellular System and ANSI J-STD-008-1996 Personal Station-Base Station Compatibility Requirements for 1.8 to 2.0 GHz Code Division Multiple Access (CDMA) Personal Communications Systems and IS 2000. Compliance was determined by testing appropriate parameters according to standards. Extensive field-testing has been performed in several locations in the USA to verify the compatibility against different systems. NOKIA MOBILE PHONES, Inc. Weite Huang R&D Technical Manager, Product Development, San Diego

Nokia Mobile Phones (USA) Inc. 12278 Scripps Summit Drive San Diego, CA 92131 Tel (858) 831 5000 December 12, 2002 Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 To: Office of Engineering and Technology Laboratory Re: FCC ID: GMLNPD-4AW Applicant: Nokia Mobile Phones Inc. REQUEST FOR CONFIDENTIALITY Pursuant to Section 0.457 (d) (1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment so some of the information accompanying this Application of FCC ID: GMLNPD-4AW and as outlined below: - block diagrams - schematic diagrams - operational description (contains theory of operation, active circuit devices, description of circuits determining frequency, circuitry suppressing spurious emission, and frequency alignment/tuning procedure) - parts list These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands the pursuant to Rule 0.457 (d) (1) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Weite Huang R&D Technical Manager Product Development, San Diego NOKIA MOBILE PHONES

RESPONSES FOR FCC APPLICATION 1 (1) Nokia Inc. – San Diego Klaus Kettunen January 15, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue McLean, VA 22101 Re: Nokia Inc. FCC ID: GMLNPD-4AW Dear Mr. Johnson, Following is our response to your correspondence dated January 08, 2003: SAR Report: The shape of the Z-axis plots show, that there were no harmful reflections from upper surface of the liquid in the depth where the actual cube scanning took place. We confirm that the liquid depth was 15cm +/-5mm during all measurements as stated in paragraph 5.2 in the SAR report. We hope that the above response is sufficient to complete review of this application. Klaus Kettunen, Product Certification Officer Nokia Mobile Phones, San Diego

RESPONSES FOR FCC APPLICATION 1 (1) Nokia Mobile Phones – San Diego Klaus Kettunen December 18, 2002 December 18, 2002 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue McLean, VA 22101 Re: Nokia Mobile Phones FCC ID: GMLNPD-4AW Dear Mr. Johnson, Following are our responses to your correspondence dated December 11, 2002: EMC Report/ General: (1) Revised Modulation Limiting plot with color coding description for the three traces has been uploaded to ATCB website. (2) Revised ‘Letter of Confidentiality’ has been uploaded to ATCB website. (3) Exhibit that shows compliance with 22.919 (Electronic Serial Numbers) has been uploaded to ATCB website. SAR Report: (4) The User Guide has been corrected and uploaded to ACTB website. (5) The validation SAR results in the table are from the plots; but these two measurement files mentioned in your comment were unintentionally deleted before completion of the report. (6) It is obvious from the shape of the hot spot in the plot, that the max SAR has been scanned. Additionally, the result 0.90 is 20 % below the maximum SAR (1.13) found for this product. (7) Z-axis plots are from SAR measurements with regular cover and can be found in the report. (8) Device positioning photos have been uploaded to ATCB website. (9) Device positioning photos have been uploaded to ATCB website. (10) The plots list liquid temperature. The range of ambient temperature (22 +/- 2 degrees centigrade) is informed in the report. (11) Optical surface detection was used in the SAR measurements for low band with 1.4 +/- 0.2 mm distance and mechanical surface detection as used for high band with 2 mm distance. (12) The measured volume of 32x32x35 mm (cube 5x5x57 contains about 35g of tissue. The first procedure is an extrapolation (include. Boundary correction) to get the points between the lowest measured plan and the surface. The next step uses 3D interpolation to get all points within the measured volume in a 1mm grid (3500 points). In the last step, a 1 g cube is placed numerically into the volume and its averaged SAR is calculated. This cube is then moved around until the highest averaged SAR is found. We hope that the above responses are sufficient to complete review of this application. Klaus Kettunen, Product Certification Officer Nokia Mobile Phones, San Diego

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 8, 2003 RE: Nokia Mobile Phones, Inc. FCC ID: GMLNPD-4AW After a review of the submitted information, I have a few comments on the above referenced Application. SAR Report: 1) The Z-axis plots provided in the report only confirm a 3-4 cm liquid depth. The FCC likes to be able to confirm that the 15 cm liquid depth was present by supporting photographs or Z-axis data which shows this depth. This was not provided for the actual test. Please confirm that the liquid depth was at least 15 cm. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 11, 2002 RE: Nokia Mobile Phones, Inc. FCC ID: GMLNPD-4AW After a review of the submitted information, I have a few comments on the above referenced Application. EMC Report/General: 1) Please provide the color coding description for the 3 traces in the Modulation Limiting plot. 2) The description of circuitry suppressing spurious and harmonics emissions, description of circuits determining frequency, theory of operation, list of active devices, and tune up procedure are all found in a single file uploaded as a single file referenced as the "operational description". Please modify the confidentiality letter to list "operational description". Additionally, a separate parts list was uploaded without confidentiality requested in the cover letter. Please comment or add to the confidentiality letter. 3) Please provide an exhibit that shows compliance with 22.919 (Electronic Serial Numbers). SAR Report: 4) The maximum measured SAR values given in the users manual page 149 of 194 do not match the values specified on page 4 of 22 in the SAR report. Please correct the users manual. 5) Dipole verification plots appear to be missing for the following: a) 835 MHz, October 9, Head Tissue b) 835 MHz, October 7, Muscle Tissue 6) The plot for GMLNPD-4AW, CDMA 800, Channel 777, Erica Cover, Antenna Extended, Left Tilt Position, appears to show a "clipped" peak. The entire hot spot must be captured. Please comment. 7) The FCC likes to be able to confirm that the 15 cm liquid depth was present by supporting photographs or Z-axis data. This supplemental information was not provided for the actual test. Please confirm that the liquid depth was at least 15 cm, and if available please provide the photograph. 8) From the photographs it can not be determined if the device holder surrounded, enclosed, covered, or obstructed the internal antenna. Please explain and provide additional photographs if possible. 9) If available, please provide larger and clearer test photographs. The photographs should clearly depict positioning and surrounding holder. 10) Plots should list both liquid and ambient temperatures. 11) For course scans, what was the probe tip distance to phantom inner surface? 12) Please provide a description of averaging (integration) procedures to get 1-g SAR from final interpolated grid during the cube scan. 13) FYI, for body SAR the FCC prefers the use of 1.5 cm. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. z Page 2December 11, 2002 Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

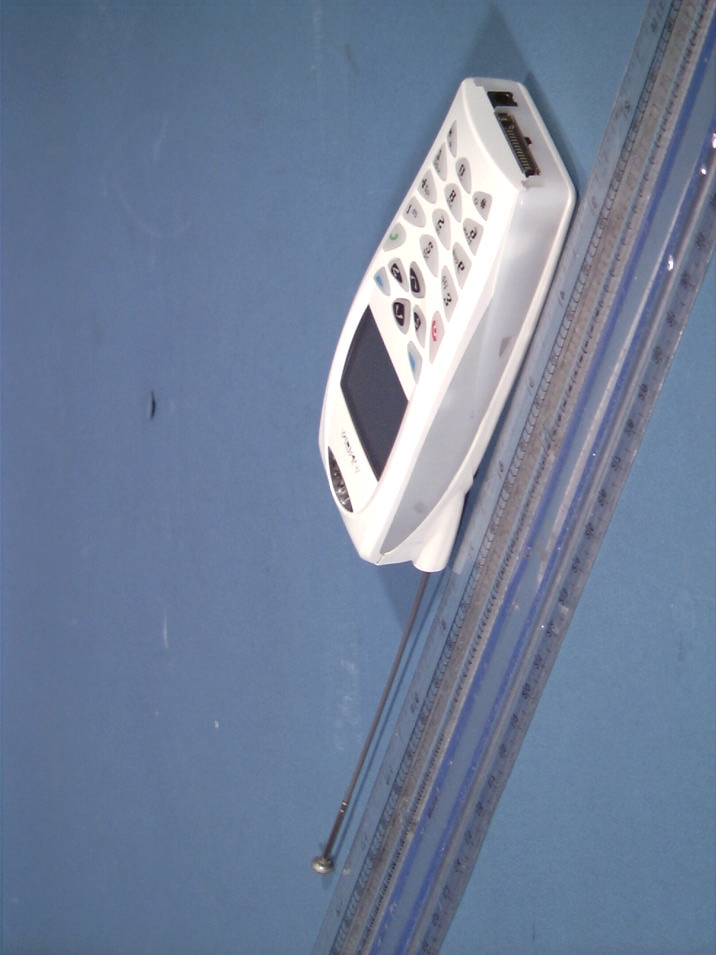

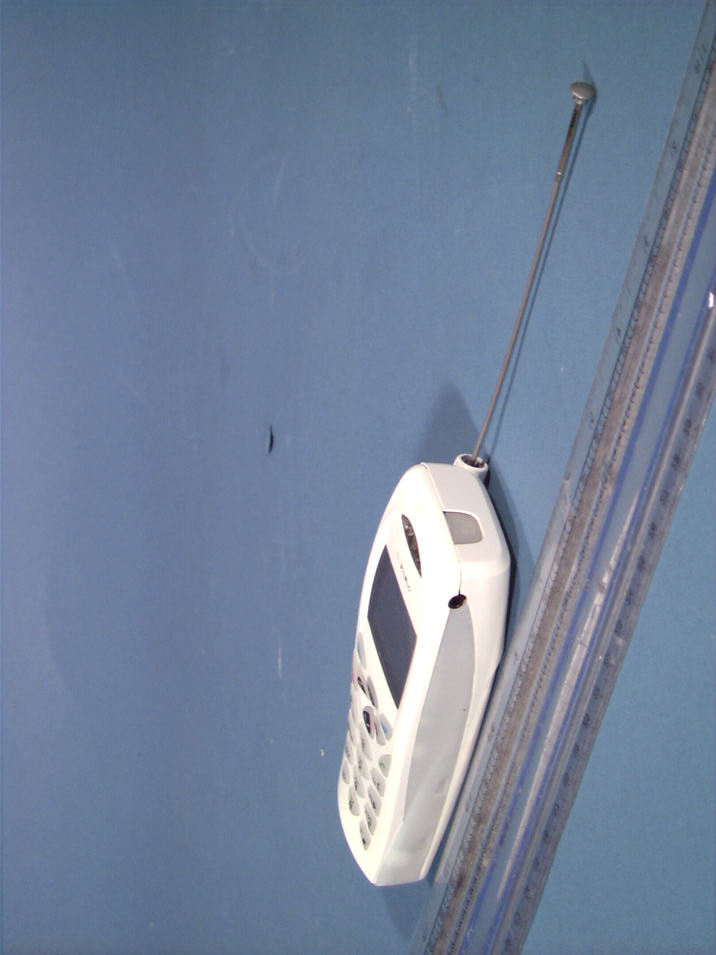

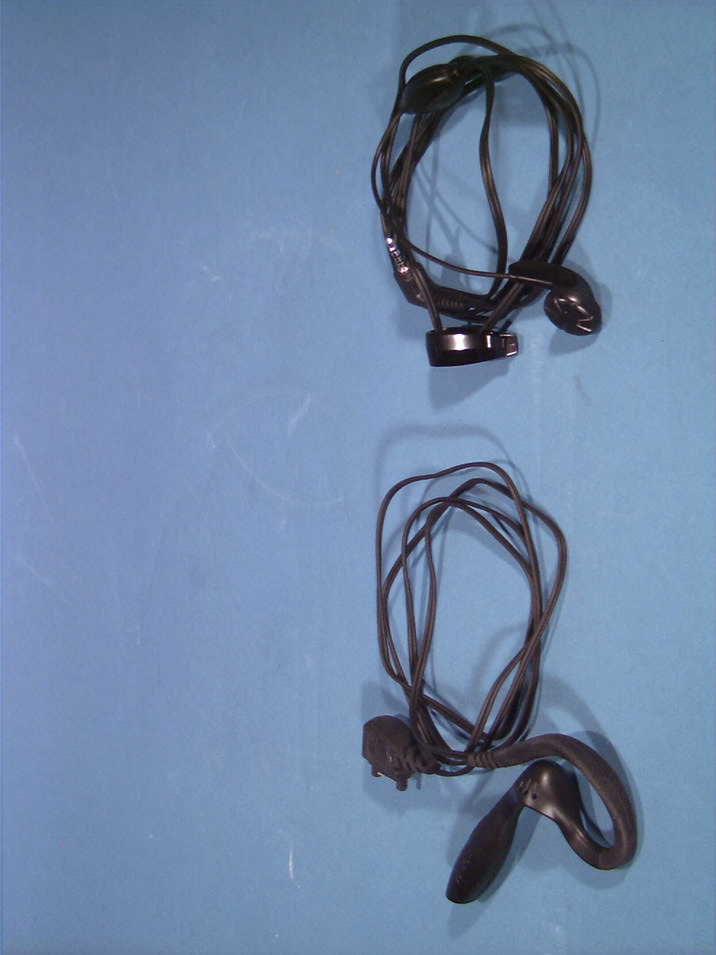

© 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

NOKIA MOBILE PHONES, Inc. 12278 Scripps Summit Drive San Diego, CA 92131 Tel (858) 831 5000 November 1, 2002 Federal Communications Commission, Authorisation & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Attention: Equipment Authorisation Branch COMPLIANCE STATEMENT OF NOKIA Model 3585i, FCC ID: GMLNPD-4AW. The compliance statement can be seen in user guide of NOKIA Model 3585i because the size of the hand-portable NOKIA Model 3585i and its identification label are so small that the compliance statement can not be printed visible enough. Sincerely, Weite Huang R&D Technical Manager Product Development NOKIA MOBILE PHONES

Material Sheet 1 of 1 Original Scale Original Size A4 1:1 NMP Code Item Name Document Number Doc. Vers. Name / Date Change Ref. Approved / Date Original Designer FUNCTIONAL CHARACTERISTICS KEY MAIN FUNCTIONAL CHARACTERISTIC MAIN FUNCTIONAL CHARACTERISTIC ( Proof of Process Capability Required ) Copyright c Nokia Mobile Phones. All rights reserved THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED WORK UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED THIS DRAWING CONTAINS PROPRIETARY AND CONFIDENTIAL INFORMATION This document is the property of Nokia Mobile Phones HDDA2 Type Label On D-Cover 0.2 DMD10848 ------ Avancena 061202 ESN: 1234567891234567891 Code: 12345678MYDDFL Type: NPD-4AW Model: 3585i ESN HEX: 123456789123 See User Manual for Patent Numbers MADE IN KOREA HW ID: 049099-AMS1234 FCC ID: GMLNPD-4AW IC ID: 661X-NPD4AW 0.1 Avancena 211102

© 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab NOKIA FCC ID: GMLNPD-4AW Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 12/5/02 FCC ID: GMLNPD– 4AW Expedition Model 3585i Nokia, Inc. Type Label: NPD-4AW Title: Internal Photos Addendum with Duplexer Shield Unsoldered and Removed

[ 140 ] off before you can make an emergency call. Consult this user guide and your local cellular service provider. •When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your wireless phone may be the only means of communication at the scene of an accident - do not end the call until given permission to do so. • CERTIFICATION INFORMATION (SAR) THIS MODEL PHONE MEETS THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. [ 141 ] Reference information Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (for example, at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone as reported to the FCC when tested for use at the ear is 1.13 W/kg and when worn on the body, as described in this user guide, is 1.03 W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID GMLNPD-4AW. For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and that positions the handset a minimum of 0.86 inch (2.2 cm) from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. If you do not use a body worn accessory, and are not holding the phone at the ear, position the handset a minimum of 0.86 inch (2.2 cm) from your body when the phone is switched on. *In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. SAR values may vary depending on national reporting requirements and the network band. For SAR information in other regions please look under product information at: http://www.nokia.com.

APPENDIX B: VALIDATION TEST PRINTOUTS Dipole 835 MHz, Validation for Head TissueSAM 1 (Cellular - Brain Tissue) PhantomFrequency: 835 MHz; Crest factor: 1.0Validation 835MHz - Brain Tissue:
= 0.89 mho/m  r = 40.7  = 1.00 g/cm 3 Probe: ET3DV6 - SN1504; ConvF(6.50,6.50,6.50)Cubes (2): SAR (1g): 2.70 mW/g ± 0.05 dB, SAR (10g): 1.72 mW/g ± 0.05 dB, (Worst-case extrapolation)Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0Powerdrift: -0.02 dBLiquid Temperature: 20.8°C SAR Tot [mW/g] 2.81E-15.63E-18.45E-11.13E+01.41E+01.69E+01.97E+02.25E+02.53E+02.81E+0 09/16/02TCC Dallas Dipole 835 MHz, Validation for Head TissueSAM 1 (Cellular - Brain Tissue)Frequency: 835 MHz; Crest factor: 1.0Validation 835MHz - Brain Tissue:
= 0.91 mho/m  r = 40.3  = 1.00 g/cm 3 Probe: ET3DV6 - SN1504; ConvF(6.50,6.50,6.50)Cubes (2): Peak: 4.39 mW/g ± 0.04 dB, SAR (1g): 2.74 mW/g ± 0.05 dB, SAR (10g): 1.74 mW/g ± 0.05 dB, (Worst-case extrapol ation) Penetration depth: 11.7 (10.5, 13.3) [mm]Powerdrift: -0.05 dBLiquid Temperature: 21.2°C SAR Tot [mW/g] 2.83E-15.66E-18.49E-11.13E+01.42E+01.70E+01.98E+02.26E+02.55E+02.83E+0 09/18/02TCC Dallas Dipole 835 MHz, Validation for Head TissueSAM 1 (Cellular - Brain Tissue)Frequency: 835 MHz; Crest factor: 1.0Validation 835MHz - Brain Tissue:
= 0.91 mho/m  r = 40.5  = 1.00 g/cm 3 Probe: ET3DV6 - SN1504; ConvF(6.50,6.50,6.50)Cubes (2): Peak: 4.39 mW/g ± 0.04 dB, SAR (1g): 2.75 mW/g ± 0.04 dB, SAR (10g): 1.75 mW/g ± 0.05 dB, (Worst-case extrapol ation) Penetration depth: 11.7 (10.5, 13.4) [mm]Powerdrift: 0.02 dBLiquid Temperature: 20.7°C SAR Tot [mW/g] 2.79E-15.58E-18.38E-11.12E+01.40E+01.68E+01.95E+02.23E+02.51E+02.79E+0 09/19/02TCC Dallas Dipole 835 MHz, Validation for Head TissueSAM 1 (Cellular - Brain Tissue)Frequency: 835 MHz; Crest factor: 1.0Validation 835MHz - Brain Tissue:
= 0.91 mho/m  r = 39.9  = 1.00 g/cm 3 Probe: ET3DV6 - SN1504; ConvF(6.50,6.50,6.50)Cubes (2): Peak: 4.39 mW/g ± 0.03 dB, SAR (1g): 2.75 mW/g ± 0.03 dB, SAR (10g): 1.75 mW/g ± 0.03 dB, (Worst-case extrapol ation) Penetration depth: 11.7 (10.5, 13.4) [mm]Powerdrift: -0.06 dBLiquid Temperature: 21.4°C SAR Tot [mW/g] 2.84E-15.68E-18.52E-11.14E+01.42E+01.70E+01.99E+02.27E+02.56E+02.84E+0 09/24/02TCC Dallas Dipole 835 MHz, Validation for Head TissueSAM 1 (Cellular - Brain Tissue)Frequency: 835 MHz; Crest factor: 1.0Validation 835MHz - Brain Tissue:
= 0.91 mho/m  r = 40.3  = 1.00 g/cm 3 Probe: ET3DV6 - SN1504; ConvF(6.50,6.50,6.50)Cubes (2): Peak: 4.37 mW/g ± 0.05 dB, SAR (1g): 2.74 mW/g ± 0.05 dB, SAR (10g): 1.74 mW/g ± 0.05 dB, (Worst-case extrapol ation) Penetration depth: 11.7 (10.5, 13.3) [mm]Powerdrift: -0.07 dBLiquid Temperature: 20.8°C SAR Tot [mW/g] 2.83E-15.65E-18.48E-11.13E+01.41E+01.70E+01.98E+02.26E+02.54E+02.83E+0 09/25/02TCC Dallas Dipole 835 MHz, Validation for Head TissueSAM 1 (Cellular - Brain Tissue)Frequency: 835 MHz; Crest factor: 1.0Validation 835MHz - Brain Tissue:
= 0.91 mho/m  r = 40.2  = 1.00 g/cm 3 Probe: ET3DV6 - SN1504; ConvF(6.50,6.50,6.50)Cubes (2): Peak: 4.38 mW/g ± 0.03 dB, SAR (1g): 2.75 mW/g ± 0.03 dB, SAR (10g): 1.75 mW/g ± 0.04 dB, (Worst-case extrapol ation) Penetration depth: 11.8 (10.5, 13.4) [mm]Powerdrift: -0.06 dBLiquid Temperature: 21.2°C SAR Tot [mW/g] 2.77E-15.53E-18.30E-11.11E+01.38E+01.66E+01.94E+02.21E+02.49E+02.77E+0 09/26/02TCC Dallas Dipole 835 MHz, Validation for Head TissueSAM 1 (Cellular - Brain Tissue)Frequency: 835 MHz; Crest factor: 1.0Validation 835MHz - Brain Tissue:
= 0.92 mho/m  r = 40.9  = 1.00 g/cm 3 Probe: ET3DV6 - SN1504; ConvF(6.50,6.50,6.50)Cubes (2): Peak: 4.42 mW/g ± 0.06 dB, SAR (1g): 2.77 mW/g ± 0.05 dB, SAR (10g): 1.76 mW/g ± 0.05 dB, (Worst-case extrapol ation) Penetration depth: 11.7 (10.5, 13.3) [mm]Powerdrift: -0.06 dBLiquid Temperature: 21.2°C SAR Tot [mW/g] 2.90E-15.80E-18.70E-11.16E+01.45E+01.74E+02.03E+02.32E+02.61E+02.90E+0 10/02/02TCC Dallas Dipole 835 MHz, Validation for Head TissueSAM 1 (Cellular - Brain Tissue) PhantomFrequency: 835 MHz; Crest factor: 1.0Cellular Band - Brain Tissue:
= 0.92 mho/m  r = 40.6  = 1.00 g/cm 3 Probe: ET3DV6 - SN1504; ConvF(6.50,6.50,6.50)Cubes (2): SAR (1g): 2.79 mW/g ± 0.06 dB, SAR (10g): 1.77 mW/g ± 0.06 dB, (Worst-case extrapolation)Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0Powerdrift: -0.06 dBLiquid Temperature: 21.3°C SAR Tot [mW/g] 2.92E-15.84E-18.76E-11.17E+01.46E+01.75E+02.04E+02.34E+02.63E+02.92E+0 10/09/02TCC Dallas Dipole 835 MHz, Validation for Head TissueSAM 1 (Cellular - Brain Tissue)Frequency: 835 MHz; Crest factor: 1.0Cellular Band - Brain Tissue:
= 0.90 mho/m  r = 42.0  = 1.00 g/cm 3 Probe: ET3D…
