GMLNSD-1GWDual Mode AMPS Band CDMA Cellular Transceiver

Microsoft Corporation

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: Sep 27, 2000
Application Purpose: Original Equipment
Date of Application: Jun 15, 2000
Equipment Note: Dual Mode AMPS Band CDMA Cellular Transceiver
Frequency Range: 824.73000000 - 848.19000000
Company: Microsoft Corporation
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Nokia 5180i User Guide (Phase 1 SW) Keys Menu Power key See p. 8. Navi™ key See p. 8. Scroll keys See p. 9. Emergency 9 key See p. 31. Voice mail key See p. 47. Number keys See p. 13. Retractable antenna See p. 17. Earpiece See p. 18. Screen Current function of Navi™ key C key See p. 9. Case key See p. 13. Indicators and icons You are in an active call. You have one or more new voice messages. You have one or more new text messages. Keyguard is on. Your phone will not accept any keypresses. To turn it off, press Unlock, then . The alarm clock is set. Tones are set to Silent. (All tones are turned off.) Digital service is available. Your phone is roaming outside its home system. The phone is ready for you to enter a response. Characters entered will be upper-case letters. Press the key to switch letter case. Characters entered will be lower-case letters. Press the key to switch letter case. Characters entered will be numbers. (When entering letters, switch to numbers by pressing and holding thekey.) Contents 1.For your safety1 FCC/Industry Canada Notice. . . . . . . . . . . . . . . . . . .2 Using this Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 2.Battery installation and charging3 Attaching the battery . . . . . . . . . . . . . . . . . . . . . . . .3 Battery charging . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Removing the battery . . . . . . . . . . . . . . . . . . . . . . . .5 Important battery information. . . . . . . . . . . . . . . . .5 3.About the phone, keys and menu6 Power key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Nokia Navi™ key. . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Ready screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Scroll keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Clear key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 External antenna jack . . . . . . . . . . . . . . . . . . . . . . . .7 Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Entering letters and numbers . . . . . . . . . . . . . . . . .11 Special characters in names . . . . . . . . . . . . . . . .12 Special characters in phone numbers. . . . . . . . .12 Keyguard (locking the keypad) . . . . . . . . . . . . . . . .13 4.Basic functions 15 Turning the phone on . . . . . . . . . . . . . . . . . . . . . . .15 Turning the phone off . . . . . . . . . . . . . . . . . . . . . . .15 About the antenna. . . . . . . . . . . . . . . . . . . . . . . . . .15 Checking signal strength. . . . . . . . . . . . . . . . . . . . .16 Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Volume adjustment (earpiece) . . . . . . . . . . . . . . . .16 Muting the microphone. . . . . . . . . . . . . . . . . . . . . .16 Ending a call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Last number redial. . . . . . . . . . . . . . . . . . . . . . . . . .17 Saving a name and number. . . . . . . . . . . . . . . . . . .17 Finding a name and number . . . . . . . . . . . . . . . . . .17 Answering a call. . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Silencing an incoming call. . . . . . . . . . . . . . . . . . . .18 5.Phone book19 Saving names and numbers. . . . . . . . . . . . . . . . . . .19 Finding names and numbers. . . . . . . . . . . . . . . . . .20 Editing names and numbers . . . . . . . . . . . . . . . . . .20 Erasing names and numbers . . . . . . . . . . . . . . . . . .21 Finding your own number . . . . . . . . . . . . . . . . . . . .21 Scrolling view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Checking available memory. . . . . . . . . . . . . . . . . . .21 6.Settings22 Automatic redial. . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Tones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Quick alert settings. . . . . . . . . . . . . . . . . . . . . . . .25 Voice mailbox number. . . . . . . . . . . . . . . . . . . . . . .26 Welcome note. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 7.Emergency calls28 Emergency key 9. . . . . . . . . . . . . . . . . . . . . . . . . . .29 8.Advanced functions30 Network feature setting. . . . . . . . . . . . . . . . . . . . . .30 Adding feature activation codes to the menu . .30 Adding feature cancellation codes to the menu30 In-call menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Making/receiving multiple calls . . . . . . . . . . . . . . .31 Calling cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Call forwarding. . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 1-touch dialing. . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Choosing your phone number (NAMselection). . .37 Send own number . . . . . . . . . . . . . . . . . . . . . . . . . .37 NAM update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 Anykey answer. . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Automatic answer . . . . . . . . . . . . . . . . . . . . . . . . . .40 Touch tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Restore factory settings. . . . . . . . . . . . . . . . . . . . . .41 9.Call log42 Missed calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Received calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 Dialed calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 Clearing call lists . . . . . . . . . . . . . . . . . . . . . . . . . . .43 Call timers. . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Attestation Statements

NOKIA MOBILE PHONES, Inc. 12278 Scripps Summit Drive San Diego, CA 92131 Tel. (858) 831 5000 19 April, 2000 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Attention: Equipment Authorization Branch PER:47 CFR 22.919 RE:FCC ID: GMLNSD-1GW The Electronic Serial Number (ESN) for each transceiver is unique. The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit’s operating software is not alterable. The ESN is isolated from fraudulent contact and tampering. ! The host component does not contain other information, it is not removable and its electrical connections are not accessible. " The host component does contain other information, and the ESN information is encoded using: ! (1) Multiplication or division by a polynomial. " (2) Cyclic coding. " (3) The spreading of ESN bits over various non-sequential memory locations. The ESN is factory set and is not alterable, transferable, removable, or otherwise able to be manipulated. Cellular mobile equipment is designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. NOKIA MOBILE PHONES Inc. Jari Niemelä Product Program Manager, Product Development, San Diego NOKIA MOBILE PHONES, Inc. 12278 Scripps Summit Drive San Diego, CA 92131 Tel. (858) 831 5000 19 April, 2000 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Attention: Equipment Authorization Branch We hereby certify that the transceiver FCC ID: GMLNSD-1GW complies with OET Bulletin No. 53 as referenced in Section 22.915 of the Commission’s rules and with TIA/EIA/IS-95-A Mobile Station-Base Station Compatibility Standard for Dual-Mode Wideband Spread Spectrum Cellular System. Compliance was determined by testing appropriate parameters according to standards. Extensive field testing has been performed in several locations in the USA to verify the compatibility against different systems. NOKIA MOBILE PHONES, Inc. Jari Niemelä Product Program Manager, Product Development, San Diego

Cover Letter(s)

June 12, 2000 Sincerely yours, Morton Flom, P. Eng.

ID Label/Location Info

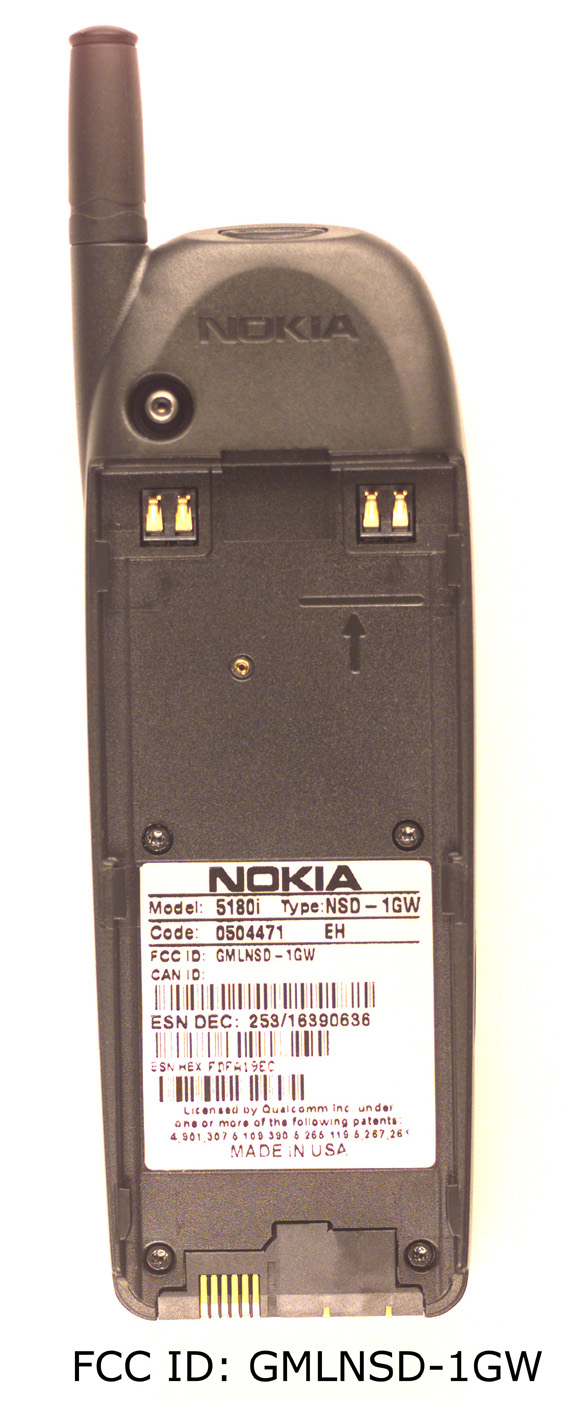

05JUN 00 FCC ID: GMLNSD-1GW Applicant: Nokia Mobile Phones, Inc.Copyright © 2000 Nokia Mobile Phones, Inc. Type: NSD-1GW MADE IN USA FCC ID: GMLNSD-1GW Model:5180i Code: 0501344 MY ESN DEC: 156/10727654 ESN HEX: FFXXXXXX Type: NSD-1GW MADE IN USA FCC ID: GMLNSD-1GW Model:5180i Code: 0501344 MY ESN DEC: 156/10727654 ESN HEX: FFXXXXXX 05JUN 00 FCC ID: GMLNSD-1GW Applicant: Nokia Mobile Phones, Inc.Copyright © 2000 Nokia Mobile Phones, Inc. Type: NSD-1GW MADE IN USA FCC ID: GMLNSD-1GW Model:5180i Code: 0501344 MY ESN DEC: 156/10727654 ESN HEX: FFXXXXXX NOKIA MOBILE PHONES, Inc. 12278 Scripps Summit Drive San Diego, CA 92131 Tel. (858) 831 5000 19 April, 2000 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Attention: Equipment Authorization Branch COMPLIANCE STATEMENT OF NOKIA 5180i, FCC ID: GMLNSD-1GW The compliance statement can be seen in User Guide of NOKIA 5180i because the size of the handportable NOKIA 5180i and its identification label are so small that the compliance statement can not be printed visible enough. NOKIA MOBILE PHONES, Inc. Jari Niemelä Product Program Manager, Product Development, San Diego 4 FCC/Industry Canada Notice Your phone may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. Using this Guide The wireless phone described in this guide is approved for use in CDMA 800 and AMPS networks. Network services A number of features included in this guide are called network services. They are special services provided by wireless service providers. Before you can take advantage of any of these network services, you must subscribe to the service(s) from your home service provider and obtain instructions for their use. Updates The latest version of this Owner’s Manual may be found on Nokia’s World Wide Web site at www.nokia.com.

RF Exposure Info

We have modified our Nokia 5180i User Guide SAR statement to exclude this addressed non-demonstrated situation as follows: Radio frequency (RF) signals Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August, 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for handheld wireless phones. Those guidelines are consistent with safety standards previously set by both U.S. and international standards bodies: ANSI C95.1 (1992)*, NCRP Report 86 (1986)*, ICNIRP (1996)*. Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies and industry reviewed the available body of research to develop the ANSI Standard (C95.1). The design of your phone complies with the FCC guidelines (and those standards). For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only Nokia approved accessories. When carrying the phone while it is on, use the specific Nokia belt-clip that has been tested for compliance. Use of non-Nokia-approved accessories may violate FCC RF exposure guidelines and should be avoided. *American National Standards Institute, National Council on Radiation Protection and Measurements; International Commission on Non-Ionizing Radiation Protection..

RF Exposure Info

BODY SAR REPORT1 (8) NOKIA MOBILE PHONES2000-8-11 Kari Nyyssönen Evaluation of SAR in Body Worn Configuration GMLNSD-1GW. Introduction SAR was measured when phone was placed with body worn accessory against the Flat Phantom. Body worn accessory BCH-12U (Picture 1) was tested. The measurement test equipment and setup was the same as used and referred in SAR TEST REPORT of NOKIA 5180i. Picture 1. Belt Clip BCH-12U. Test method Measurements were done with the Dasy 2 dosimetric assessment system DAE V2, SN: 213 and with the generic Twin Phantom version 3 from Schmid & Partner Engineering Ag. The phone was positioned in body worn accessory against Flat Phantom. Both antenna positions were tested (whip in and whip up). Separation distance for BCH-12U is presented in picture 1. The point of maximum SAR was searched. Then the SAR was measured with a 3-dimensional cube measurement. Picture 2. Separation distance with Belt Clip BCH-12U BODY SAR REPORT2 (8) NOKIA MOBILE PHONES2000-8-11 Kari Nyyssönen The maximum output power level in lowest, middle and highest channel was used (824, 836 and 849 MHz on AMPS mode). Brain equivalent liquid was used. The used conductivity is about 16% lower than FCC recommendation. The SAR results have such big margin that meeting the FCC limit is evident. Results Graphical presentations of test positions with SAR values are presented in the end of this report. Analog mode AMPS, Body worn, Whip in meas. nr: Phone positionFrequency MHz / channel Power DBm SAR (1g)[mW/g] 1 Body Worn, Belt Clip (BCH-12U) against Flat Phantom 824 / 99126.50.49 2 Body Worn, Belt Clip (BCH-12U) against Flat Phantom 836 / 38326.50.78 3 Body Worn, Belt Clip (BCH-12U) against Flat Phantom 849 / 79926.50.65 FCC ID: GMLNSD-1GW MEASURED: 2000-8-11/NMP FCC limit1.60[mW/g] (ANSI/IEEE) Analog mode AMPS, Body worn, Whip up Meas. Nr: Phone positionFrequency MHz / channel Power DBm SAR (1g)[mW/g] 4 Body Worn, Belt Clip (BCH-12U) against Flat Phantom 824 / 99126.50.91 5 Body Worn, Belt Clip (BCH-12U) against Flat Phantom 836 / 38326.51.19 6 Body Worn, Belt Clip (BCH-12U) against Flat Phantom 849 / 79926.51.16 FCC ID: GMLNSD-1GW MEASURED: 2000-8-11/NMP FCC limit1.60[mW/g] (ANSI/IEEE) Summary The SAR values found for the portable cellular phone (FCC ID: GMLNSD-1GW) are below the maximum recommended levels of 1.6 mW/g. BODY SAR REPORT3 (8) NOKIA MOBILE PHONES2000-8-11 Kari Nyyssönen BODY SAR REPORT4 (8) NOKIA MOBILE PHONES2000-8-11 Kari Nyyssönen BODY SAR REPORT5 (8) NOKIA MOBILE PHONES2000-8-11 Kari Nyyssönen BODY SAR REPORT6 (8) NOKIA MOBILE PHONES2000-8-11 Kari Nyyssönen BODY SAR REPORT7 (8) NOKIA MOBILE PHONES2000-8-11 Kari Nyyssönen BODY SAR REPORT8 (8) NOKIA MOBILE PHONES2000-8-11 Kari Nyyssönen

Test Report

FCC ID: GMLNSD-1GW MFA p0020015, d0060015 Date: June 9, 2000 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: Nokia Mobile Phones, Inc. Equipment: 5180i, Type NSD-1GW FCC ID: GMLNSD-1GW FCC Rules: 22, 22.901(d), Confidentiality Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, Morton Flom, P. Eng. enclosure(s) cc: Applicant MF/cvr FCC ID: GMLNSD-1GW MFA p0020015, d0060015 LIST OF EXHIBITS (FCCCERTIFICATION(CELLULAR TRANSMITTERS) - REVISED 9/28/98) APPLICANT: Nokia Mobile Phones, Inc. FCC ID: GMLNSD-1GW BY APPLICANT: 1. LETTER OF AUTHORIZATION 2. IDENTIFICATION DRAWINGS, 2.1033(c)(11) LABEL LOCATION OF LABEL COMPLIANCE STATEMENT LOCATION OF COMPLIANCE STATEMENT 3. PHOTOGRAPHS, 2.1033(c)(12) 4. CONFIDENTIALITY REQUEST: 0.457 and 0.459 5. DOCUMENTATION: 2.1033(c) (3) USER MANUAL (9) TUNE UP INFO (10) SCHEMATIC DIAGRAM (10) CIRCUIT DESCRIPTION BLOCK DIAGRAM PARTS LIST ACTIVE DEVICES 6. ATTESTATION: ESN: Section 22.919 7. ATTESTATION: OET: Section 22.933 BY M.F.A. INC. A. TESTIMONIAL & STATEMENT OF CERTIFICATION B. STATEMENT OF QUALIFICATIONS FCC ID: GMLNSD-1GW MFA p0020015, d0060015 Sub-part 2.1033(c): EQUIPMENT IDENTIFICATION FCC ID: GMLNSD-1GW NAMEPLATE DRAWING ATTACHED, EXHIBIT 1. LOCATION AS PER LABEL DRAWING(S) DATE OF REPORT June 9, 2000 SUPERVISED BY: Morton Flom, P. Eng. FCC ID: GMLNSD-1GW MFA p0020015, d0060015 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21 INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: GMLNSD-1GW MFA p0020015, d0060015 TABLE OF CONTENTS RULE DESCRIPTION PAGE . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 5 . General Information 6 . Standard Test Conditions and Engineering Practices 7 2.1046(a) Carrier Output Power (Conducted) 8 2.1046(a) R. F. Power Output (Radiated) 10 2.1047(a) Audio Frequency Response 16 2.1047(a) Audio Low Pass Filter (Voice Input) 18 2.1047(b) Modulation Limiting 21 . Measurement Of Maximum Deviation 26 2.1049(c)(1), 22 Emission Masks (Occupied Bandwidth) 29 22.917 Emission Requirements - . Worst Case Modulation & Wideband Data 49 2.1053(a) Field Strength of Spurious Radiation 60 2.1055(a)(1) Frequency Stability (Temperature Variation) 64 2.1055(b)(1) Frequency Stability (Voltage Variation) 67 FCC ID: GMLNSD-1GW MFA p0020015, d0060015 PAGE NO.1of67. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0060015 d) Client: Nokia Mobile Phones 12278 Scripps Summit Dr. San Diego, CA 92131 e) Identification: 5180i, Type NSD-1GW FCC ID: GMLNSD-1GW Description: Dual Mode AMPS Band CDMA Cellular Telephone f) EUT Condition: Not required unless specified in individual tests. g) Report Date: June 9, 2000 EUT Received: May 24, 2000 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: GMLNSD-1GW MFA p0020015, d0060015 PAGE NO.2of67. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 22, 22.901(d), Confidentiality Sub-part 2.1033 (c)(1): NAME AND ADDRESS OF APPLICANT: Nokia Mobile Phones, Inc. 6200 Courtney Campbell Causeway, Suite 900 P.O. Box 30730 Tampa, Florida 33630-3730 MANUFACTURER: Nokia Mobile Phones Manufacturing (USA), Inc. 5650 Alliance Gateway Fort Worth, TX 76178 (c)(2): FCC ID: GMLNSD-1GW MODEL NO: 5180i, Type NSD-1GW (c)(3): INSTRUCTION MANUAL(S): PLEASE SEE ATTACHED EXHIBITS (c)(4): TYPE OF EMISSION: 1M25F9W, 40K0F1D, 40K0F9W (c)(5): FREQUENCY RANGE, MHz : 824.04 to 848.97 FM-AMPS 824.73 to 848.19 CDMA-AMPS (c)(6): POWER RATING, Watts: 0.005 to 0.5 ERP S…

Text truncated - open the document above for the full version.

Test Report

FCC ID: GMLNSD-1GW MFA p0020015, d0080080 PAGE NO.10 of 67. AMENDED August 22, 2000 NAME OF TEST: R. F. Power Output (Radiated) SPECIFICATION: 47 CFR 2.1046(a) GUIDE: As indicated on page 7 TEST EQUIPMENT: As per attached page MEASUREMENT PROCEDURE (RADIATED) 1. The EUT was placed on an open-field site and its radiated field strength at a known distance was measured by means of a spectrum analyzer. Equivalent loading was calculated from the equation P t =((E x R) 2 /49.2) watts, whereR=3m. 2. Measurement accuracy is ±1.5 dB. MEASUREMENT RESULTS g0080482: 2000-Aug-16 Wed 09:06:00 STATE: 2:High Power AMPS MODE FREQUENCY TUNED, MHz FREQUENCY EMISSION, MHz METER, dBuV/m CF, dB ERP, dBm ERP, Watts 824.040000 824.040000 95.28 29.58 27.5 0.55 836.400000 836.400000 95.54 29.61 27.8 0.602 848.970000 848.970000 95.24 29.64 27.5 0.55 g0080483: 2000-Aug-16 Wed 09:53:00 STATE: 2:High Power CDMA MODE FREQUENCY TUNED, MHz FREQUENCY EMISSION, MHz METER, dBuV/m CF, dB ERP, dBm ERP, Watts 824.730000 824.748000 93.12 29.57 25.3 0.35 836.400000 836.382000 93.47 29.61 25.7 0.371 848.190000 848.262000 93.02 29.64 25.3 0.35
