GOH-2WALED1Car Alarm Transceiver

BTN 1BTN 2 PressNAFind Press 2XStartNA Press & HoldStopPanic Mopar 2-way HHU Operational Specification 1. HHU button #1 (Start) 1.1. Double-press for start (second press must be within 3 seconds of first press). 1.2. Single press and hold to remote stop (at least 1.6 seconds). 1.3. Single LED (visible through case plastic) must light with each press of the button for visual confirmation that signal was sent from HHU. 2. IVU receives signal and responds 2.1. "Handshake confirmation" - HHU button #1 confirms signal receipt by vehicle via 2.2. "Handshake confirmation" - HHU Piezo buzzer confirms signal receipt by vehicle via 1 beepsimultaneous with LED flashes 2.3. "Engine Start confirmation" - HHU button #1 confirms start via 2 flashes of a green backlit LED. 2.4. "Engine Start confirmation" - HHU Piezo buzzer confirms start via 2 beeps simultaneous with LED flashes. 2.5. Upon remote stop, HHU button #1 confirms stop via 3 long flashes of a backlit green LED. 2.6. Upon remote stop, HHU Piezo buzzer confirms stop via 3 long beeps simultaneous with LED flash. 2.7Engine Stall or Fail to Start 3. HHU button #2 (Find/Panic) 3.1. Single press for Find (5 short horn honks/parking light flashes). There will be no confirmation back to the HHU for this function. 3.2. Single press and hold (at least 1.6 seconds) for Panic (continuous horn honks & parking light flashes) until any button on the transmitter is pushed to stop function. There will be no confirmation back to the HHU for this function. confirmation that signal was sent from HHU. 3.3. Single LED (visible through case plastic) must light with each press of the button for visual Engine Stop Signal receive Engine Start 1 flash of a green backlit LED responsible for compliance could void the user’s authority to operate the equipment. Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part undesired operation. 2) This device must accept any interference received, including interference that may cause 1) This device may not cause harmful interference, and This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 8-Aug-2005 Sheet of File: C:\ddb-work\MOPER(LED).ddb Drawn By:

Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner;

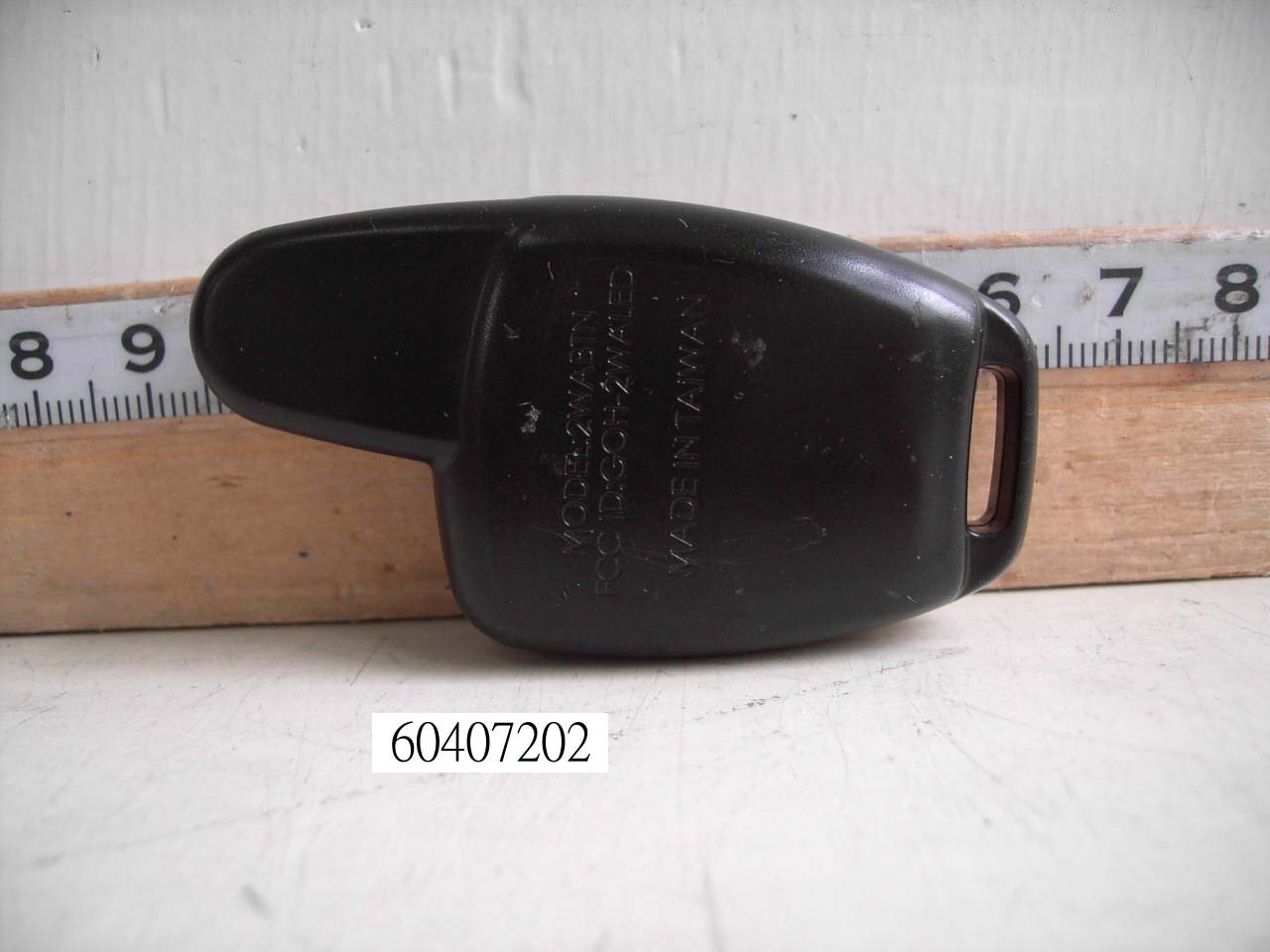

Compliance Certification Services Inc. Report No.: 60407202 Date of Issue: April 17, 2006 Page 1 Total Page: 3 Rev. 00 PHOTOGRAPHS OF EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: CODE SYSTEMS, INC. FCC ID: GOH-2WALED1 FCC ID: GOH-2WALED1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 60407202 Date of Issue: April 17, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 60407202 Date of Issue: April 17, 2006 Page 3 Rev. 00

MOPAR LED Operational Description The car alarm transmitter is a low powered, hand held unit for remote controlling the car locks and other features. See the function descriptions in attached. The transmitter is powered by 3 volt battery. It is designed to operated on a single fixed frequency at 433.92 MHz. See the attached block diagram and schematic. There are 2 buttons trigger the integrated circuit (U1) which produces the digital control signals and will modulate the carrier signal. The carrier signal is generated by a 17.634mhz crystal / ASK transmitter IC circuit composed The modulated output of RF is coupled to the coil. All tuning and verification are performed by the manufacture and there are no adjustments can be made by the user. No external ground is required or used with this transmitter. The module will be transmitting when the RF module data input is Hi; the module will stop transmitting when the RF module data input is Low. The single is controlled by the CPU control data input inside the control unit. Normally the transmitting time is about 0.6 seconds, the maximum is lasting for 4.5seconds. Note: The manufacturer is not responsible for any radio TV interference caused by unauthorized modification to this equipment. Such modifications could void the user’s authority to operate the equipment.

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A2 Date: 20-Mar-2006 Sheet of File: D:\DDB\TRX\MOPAR(LED)-a.ddb Drawn By: R3 10K VDD BZ1 SPEAKER R184K7 R1330R C16105 MOPERLED 1 R222R LNASRC 8 LNAIN 7 AVDD 6 PAOUT 5 TX/RX2 4 TX/RX1 3 ESOUT 2 PAVDD 1 LNAOUT 9 MIXIN+ 10 MIXIN- 11 MIXOUT 12 IF IN- 13 IF IN+ 14 PD- 15 PD+ 16 DS- 17 DS+ 18 OP+ 19 DF 20 RSSI 21 T/R 22 ENABLE 23 DATA 24 N.C 25 DVDD 26 HVIN 27 AGC2 28 AGC1 29 AGC0 30 XTAL1 31 XTAL2 32 U1MAX7030 X1 17.63417MHz C10100P C11100P C22104 VDD L2 22NH C2 220P C1 680P C1810P C7 104 C4220P C12100P L3 22NH VDD L4 22NH C176P8 ANT1ANTENNA L1 21nh C13100P C14 100P L618NH C6 220P VDD C19152 C8104C9104 R10100KR11100K C5220P C20 470P C3 220P C15103 VDD L8 68NH C256P8 Q1 2222 L7 27nh TP1 TP2 DATA VDD IN G NC OUT FL110.7MHZ R41K G O I U3 ELM9721 LED3RED R5 820R SW1 SW 2P SW2SW 2P VDD 1 RA5 2 RA4 3 RA3 4 RC5 5 RC4 6 RC3 7 RC2 8 RC1 9 RC0 10 RA2 11 RA1 12 RA0 13 VSS 14 U2 PIC16F684 LED2RED LED1RED VDD L5150N Q2 BFS520 R71m VDD C2310P L9 22N LED5LED LED4LED R6330R C21102 R2 1k5 Ca18p

Compliance Certification Services Inc. Report No.: 60407202-RP1 FCC ID: GOH-2WALED1 Date of Issue: April 17, 2006 Page 1 of 21 Rev. 00 FCC ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS For INTENTIONAL RADIATOR of Car Alarm Transceiver FCC ID Number : GOH-2WALED1 Trade Name : CODE SYSTEMS, INC. Model Number : 2WABTN Agency Series : N/A Report Number : 60407202-RP1 Date : April 17, 2006 Issued to CODE SYSTEMS, INC. 525 Minnesota Drive Troy, Michigan 48083, USA Issued by Compliance Certification Services Inc. Hsintien Lab. No. 165, Chunghsen Road, Hsintien City Taipei Hsien, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No.: 60407202-RP1 FCC ID: GOH-2WALED1 Date of Issue: April 17, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .............................................................. 3 2. PRODUCT DESCRIPTION ............................................................................... 4 3. TEST FACILITY ................................................................................................. 4 4. MEASUREMENT STANDARDS ...................................................................... 4 5. TEST METHODLOGY....................................................................................... 4 6. MEASUREMENT EQUIPMENT USED.......................................................... 5 7. POWERLINE RFI LIMIT.................................................................................. 5 8. RADIATED EMISSION LIMITS...................................................................... 6 9. SYSTEM TEST CONFIGURATION................................................................ 6 10. TEST PROCEDURE ........................................................................................... 8 11. EQUIPMENT MODIFICATIONS .................................................................... 9 12. TEST RESULT ................................................................................................... 10 12.1. MAXIMUM MODULATION PERCENTAGE (M%).............................. 10 12.2. THE EMISSIONS BANDWIDTH................................................................ 10 APPENDIX I TEST DATA ...................................................................................... 11 Compliance Certification Services Inc. Report No.: 60407202-RP1 FCC ID: GOH-2WALED1 Date of Issue: April 17, 2006 Page 3 Rev. 00 1. VERIFICATION OF COMPLIANCE COMPANY NAME : CODE SYSTEMS, INC. 525 Minnesota Drive Troy, Michigan 48083, USA CONTACT PERSON : MR. SHANE WILSON (RETAIL PROGRAM MANAGER) TELEPHONE NO. : 1-248-583-9620 EUT DESCRIPTION : Car Alarm Transceiver MODEL NAME/NUMBER : 2WABTN FCC ID : GOH-2WALED1 DATE TESTED : April 9, 2006 ~ April 12, 2006 REPORT NUMBER : 60407202-RP1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (INTENTIONAL RADIATOR) EQUIPMENT TYPE 433.92 MHz Car Alarm Transceiver MEASUREMENT PROCEDURE ANSI 63.4 / 2003 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services Inc. and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services Inc. will constitute fraud and shall nullify the document. Approved by: Reviewed by: Compliance Certification Services Inc. Report No.: 60407202-RP1 FCC ID: GOH-2WALED1 Date of Issue: April 17, 2006 Page 4 Rev. 00 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source 3VDC Transmitting Time Periodic < 5 seconds Associated Transceiver FCC ID: GOH-2WAIVU 3. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 165, Chunghsen Road, Hsintien City, Taipei Hsien, Taiwan, R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2003. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) Compliance Certification Services Inc. Report No.: 60407202-RP1 FCC ID: GOH-2WALED1 Date of Issue: April 17, 2006 Page 5 Rev. 00 6. MEASUREMENT EQUIPMENT USED Open Area Test Site # J Name of Equipment ManufacturerModel Serial Number Calibration Due SITE NSA CCS J Site N/A 10/15/2006 MEASURE RECEIVER SCHAFFNER SCR3501 330 06/13/2006 SPECTRUM ANALYZER ADVANTEST R3132 120900003 No Calibration Required ANTENNA SCHAFFNER CBL 6112B 2800 09/24/2006 PRE- AMPLIFIER SCHAFFNER CPA9231A 3629 10/08/2006 CABLE BELDEN 9913 N-TYPE #J2 02/17/2007 ATTENUATOR MCL UNAT-6 AT06-8 12/02/2006 THERMO- HYGRO METER TFA N/A NO.3 11/02/2006 EMC ANALYZER (100Hz-22GHz) HP 8566B 2937A06102 06/30/2006 ANTENNA (1-18GHz) EMCO 3115 00022256 01/12/2007 AMPLIFIER (1-18GHz) HP 8449B 3008A01266 02/06/2007 CABLE (1-18GHz) JYEBAO LL142 SMA#RS1 02/06/2007 CABLE (1-18GHz) HUB…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60407202-RP1 FCC ID: GOH-2WALED1 Date of Issue: April 17, 2006 Page 6 Rev. 00 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 PERIODIC OPERATION IN THE BAND 40.66 -40.70 MHz AND ABOVE 70 MHz. SECTION 15.231 RECEIVER MODE SECTION 15.109 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X, Y and Z axis. To activate continuous transmitting & receiving, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up Compliance Certification Services Inc. Report No.: 60407202-RP1 FCC ID: GOH-2WALED1 Date of Issue: April 17, 2006 Page 7 Rev. 00 Radiated Open Site Test Set-Up (Receiver Mode)
