GQ4-61TTire Pressure Monitoring Transmitter

TRW Automotive Legal name here January 22, 2013 GEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 RE: Certification for Chrysler MY2014 KL/DS Sensor Model #: 68157568AA, 68186572AA, 68186575AA FCC ID: GQ4-61T Canada IC: 1470A-42T User’s Manual and Compliance Statement The TPM Sensor is individually sold by the distributing supplier and as such it will require each module sold to be accompanied with the FCC Statement Part 15. The compliance statement for the Passive Entry will read: FCC ID: GQ4-61T IC: 1470A-42T This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le present appareil est conforme aux CNR d’Industrie Canada applicable aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage. 2. L’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. WARNING: Changes or modifications not expressively approved by TRW Automotive U.S. LLC could void the user’s authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

TRW Automotive January 25, 2013 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Letter of Agency for FCC Compliance Testing Please be advised that TRW Automotive authorizes Dr. Valdis V. Liepa of the University of Michigan, Department of Electrical Engineering and Computer Science, Ann Arbor, Michigan, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification. Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 of CFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988, 21 U.S.C. 853(a). Dated this 25 th day of January, 2013 By: Mark Baker Title: Engineering Director – RF Products email: [email protected] On behalf of: TRW Automotive Telephone: 248-699.4487 Fax: 248-699-4241

Re: Certification for TRW Transmitter FCC ID: GQ4-61T IC: 1470A-42T REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, TRW requests that a part of the subject application be held confidential. TRW has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: TRW requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): TRW requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

March 2, 2013 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for TRW Transmitter Model/PN(s): 68157568AA, 68185575AA, 68186572AA FCC ID: GQ4-61T IC: 1470A-42T Please find enclosed application materials for certification of TRW Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

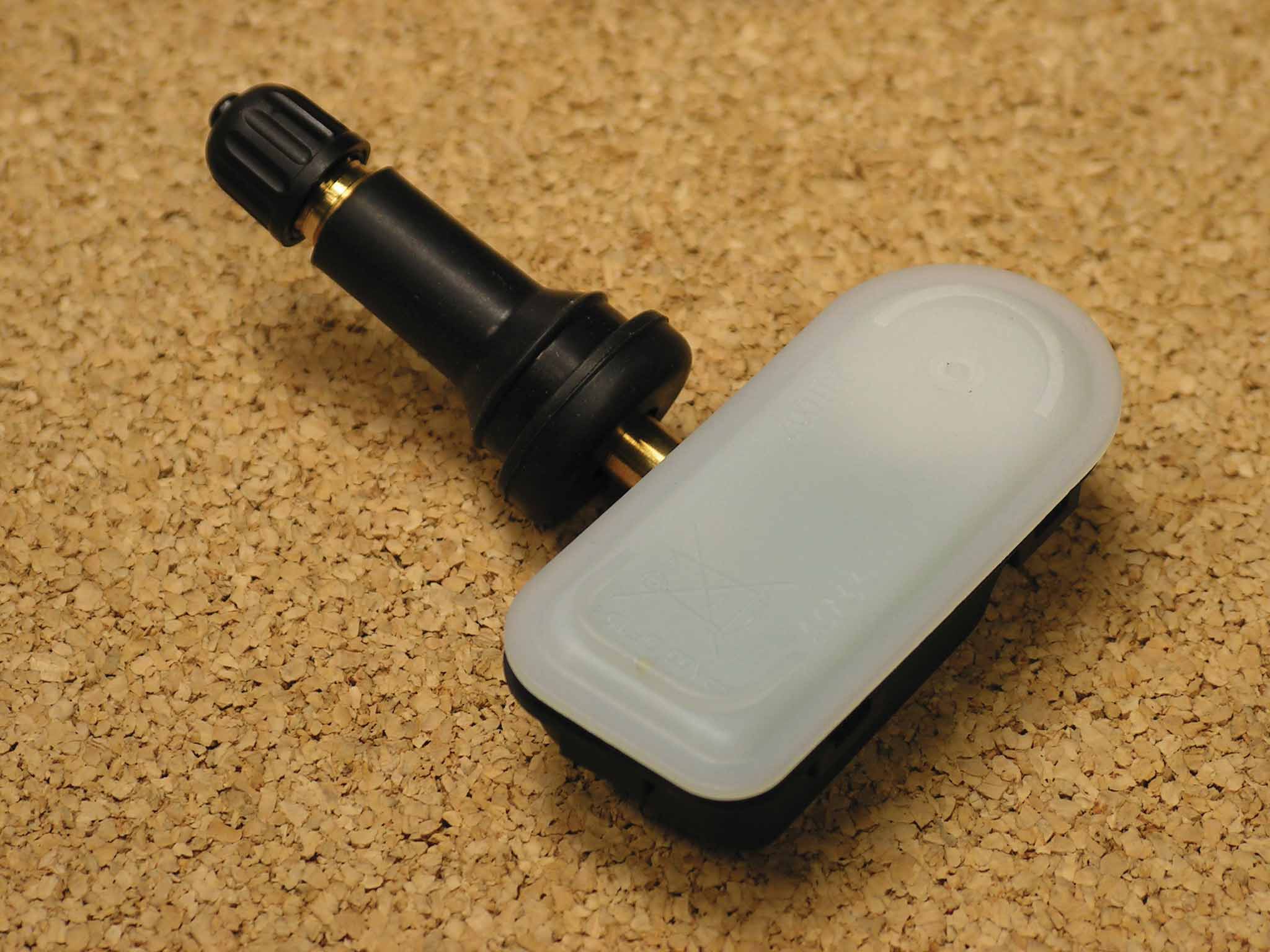

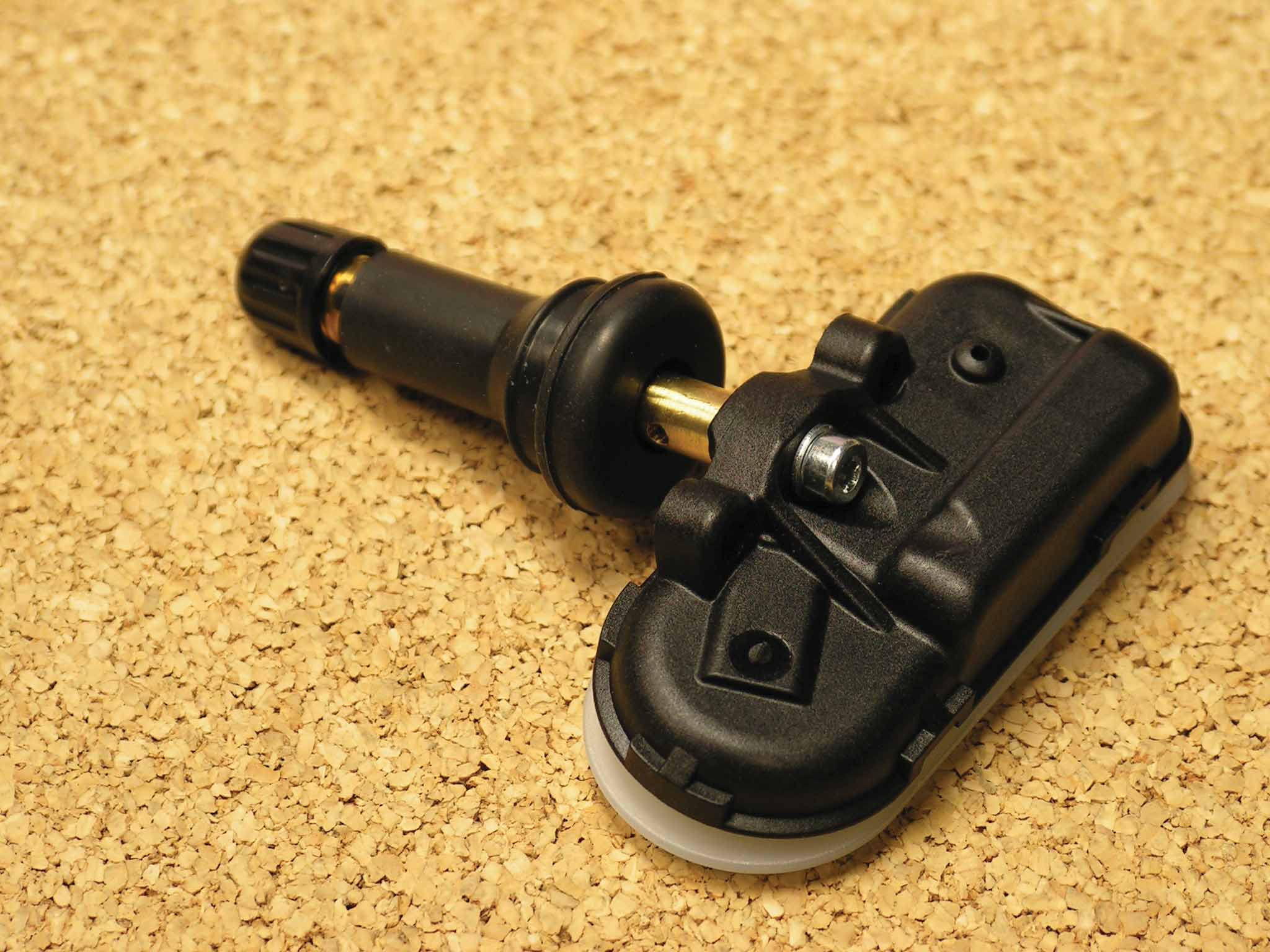

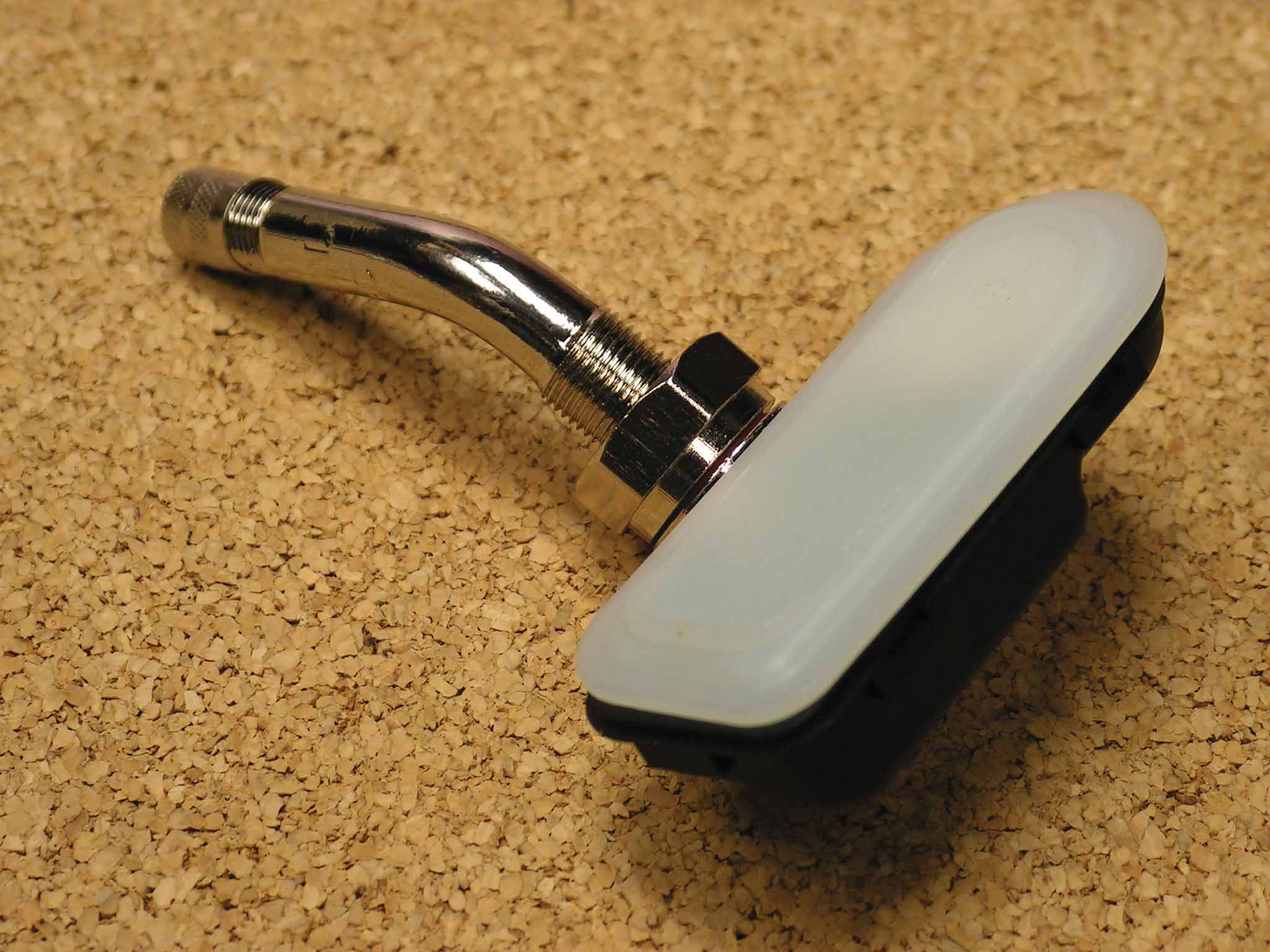

1 OF 3 February 21, 2013 TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 R E: Certification for Chrysler MY2014 KL/DS Sensor FCC ID: GQ4-61T Canada IC: 1470A-42T Model #: 68157568AA, 68186572AA , 68186575AA FC C/IC IDENTIFIER AND MODEL NUMBER Please see Figure 1 for the FCC/IC Identifier location. 2 OF 3 3 OF 3 Figure 1: I dentifier Location For Each Model

TRW Automotive February 06, 2013 TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 RE: Certification for Chrysler MY2014 KL/DS Sensor FCC ID: GQ4-61T Canada IC: 1470A-42T Model #: 68157568AA, 68186572AA, 68186575AA PRINCIPLES OF CIRCUIT OPERATION The sensor incorporates an ASIC to measure the parameters within the tire. The ASIC then outputs the measured data in digital pulses. The digital data is frequency modulated. The transmitted signal uses Frequency Shift Keying (FSK). The carrier frequency of the sensor is 434 MHz typically. The worst case frequency shift of the carrier is 433.8615MHz for the low frequency and 433.9908MHz for the high frequency shift. The receiver bandwidth must be wide enough to pass the transmitter worst case frequency shifts. Reference Block Diagram in Exhibit 04.

Description of Operation Mode of Operation Explanation Frequency of Transmission Off Mode No transmission. Measures pressure, temperature & battery voltage.  Transmit 4 words when activation occurs with TPM diagnostic tool Park Mode Measures pressure, motion. Temperature & battery voltage is measured prior to transmission. Enters this mode/state when 1. Pressure goes above pressure threshold in Off Mode or 2. No motion is detected for 15 minutes in Interim Mode.  Transmit 4 words when activation occurs with TPM diagnostic tool.  Transmit 4 words when delta Pressure is seen. 5 ASK words followed by 2 FSK words Local Z Mode Measures pressure, motion, temperature, battery voltage Enters this mode/state when 1. When Motion is detected while in Park mode. 2. When motion is detected while in Interim mode within 15 minutes and Local Z is not complete.  Transmits 4 words every 12< x <22 sec (36 valid messages).  4 words when activation occurs with TPM diagnostic tool Drive Mode Measures pressure, motion, temperature, battery voltage Enters this state when 1. Local Z has completed. 2. When motion is detected while in Interim mode within 15 minutes  Transmit 4 words every 64 sec.  Transmit 4 words when delta pressure is seen.  Transmit 4 words when activation occurs with TPM diagnostic tool Interim Mode Measures pressure, motion. Temperature & battery voltage is measured prior to transmission. Enters this mode/state when 1. No motion is detected while in Local Z or Drive mode.  Transmit 4 words when activation occurs with TPM diagnostic tool.  Transmit 4 words when delta Pressure is seen.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-655 Page 1 of 13 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647 -2106 Measured Radio Frequency Emissions From TRW Inc. Transmitter FCC ID: GQ4-61T IC: 1470A-42T Test Report No. 417124-655 March 9, 2013 Copyright © 2013 For: TRW Inc. 24175 Research Drive Farmington Hills, MI 48335-2642 Contact: Mark Baker [email protected] Phone: 248 -699 -4487 Fax: 248-699-4241 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a TRW, FCC ID: GQ4 -61T , IC: 1470A-42T . This device under test (DUT) is subject to the rules and regulations as a Transmitter. In testing completed on March 5 , 2013, the DUT tested met the allowed specifications for radiated emissions by 10.5 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 12 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-655 Page 2 of 13 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants & Samples .............................................................................................................. 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 5. Measurement Procedures ................................................................................................................. 6 5.1 Semi -Anechoic Chamber Radiated Emissions ...................................................................... 6 5.2 Outdoor Radiated Emissions ................................................................................................. 6 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 7 6. Test Results ...................................................................................................................................... 7 6.1 Radiated Emissions ............................................................................................................... 7 6.1.1 Correction for Pulse Operation ......................................................................................... 7 6.1.2 Emission Spectrum ........................................................................................................... 7 6.1.3 Emission Bandwidth ......................................................................................................... 7 6.1.4 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.2 Conducted Emissions ............................................................................................................ 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-655 Page 3 of 13 1. Introduction This TRW Transmitter was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen,8. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low -Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Instrument Used Manufacturer/Model Q Number Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8593E, SN: 3412A01131 HP8593E1 Spectrum Analyzer (9kHz-6.5GHz) Hewlett-Packard 8595E, SN: 3543A01546 JDB8595E Power Meter Hewlett-Packard, 432A HP432A…
