TRW Automotive Legal name here August 9, 2013 TEE 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel248.478.7210 Fax248.699.4241 RE:Certification for Honda 315MHz ASK AA Svc. Sensor Long Valve & Short Valve FCC ID:GQ4-67T Canada IC:1470A-48T Model #:209624-125,-126 User’s Manual and Compliance Statement TheDS IGNM isindividually sold by the distributing supplier and as such it will require eachmodulesold to be accompanied with the FCC Statement Part 15. The compliance statement for theDS IGNMwill read: FCC ID: GQ4-67TIC: 1470A-48T This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Le present appareil est conforme aux CNR d’Industrie Canada applicable aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes: 1.L’appareil ne doit pas produire de brouillage. 2.L’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. WARNING: Changes or modifications not expressively approved by TRW Automotive U.S. LLC could void the user’s authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

TRW Automotive January 25, 2013 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.699.4241 Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Letter of Agency for FCC Compliance Testing Please be advised that TRW Automotive authorizes Dr. Valdis V. Liepa of the University of Michigan, Department of Electrical Engineering and Computer Science, Ann Arbor, Michigan, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification. Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 of CFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988, 21 U.S.C. 853(a). Dated this 25 th day of January, 2013 By: Mark Baker Title: Engineering Director – RF Products email: [email protected] On behalf of: TRW Automotive Telephone: 248-699.4487 Fax: 248-699-4241

Re: Certification for TRW Transmitter FCC ID IC: REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, TRW requests that a part of the subject application be held confidential. TRW has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. Permanent Confidentiality: TRW requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): TRW requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan : GQ4-67T 1470A-48T

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Attn.:Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re:Certification for TRW Automotive 209624-125, 209624-126 IC: 1470A-48T Please find enclosed application materials for certification of TRW Automotive 209624-125, 209624-126. We tested it and found it to comply with RSS-210 and RSS-Gen. There are two variants of the EUT. Both variants are electrically identical, but model 209624-125 employs a long valve stem, and model 209624-126 employs a short valve stem. Both variants are fully tested herein. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 9 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for TRW Automotive 209624-125, 209624-126 FCC ID: GQ4-67T Please find enclosed application materials for certification of TRW Automotive 209624-125, 209624-126. We tested it and found it to comply with CFR Title 47, Part 15.231. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 8

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Attn.:American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Re:Certification for TRW Automotive 209624-125, 209624-126 Please find enclosed application materials for certification of TRW Automotive 209624-125, 209624-126. Note that portions of this submittal are filed Confidential. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 10

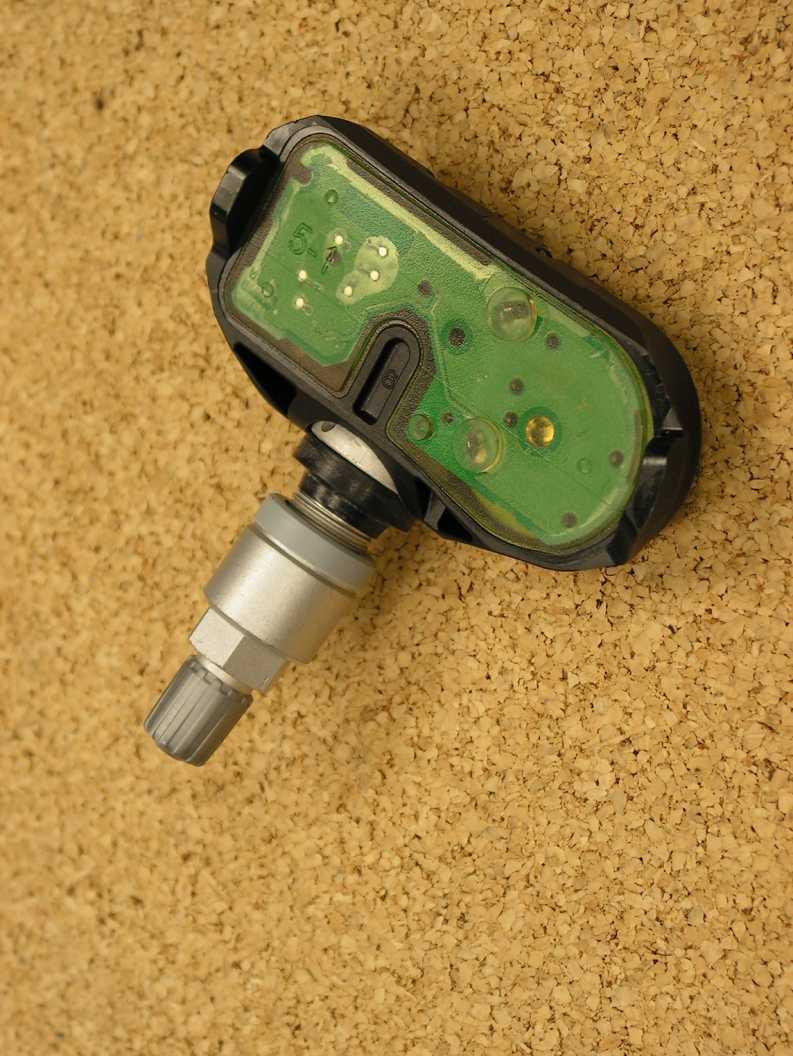

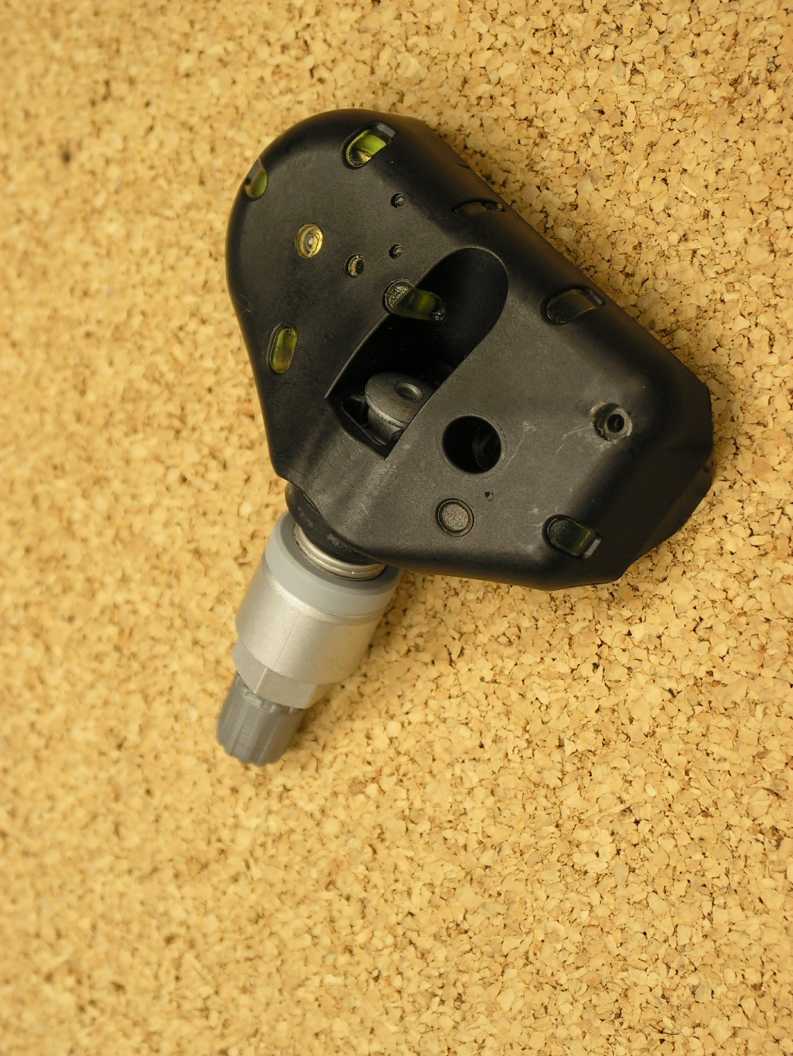

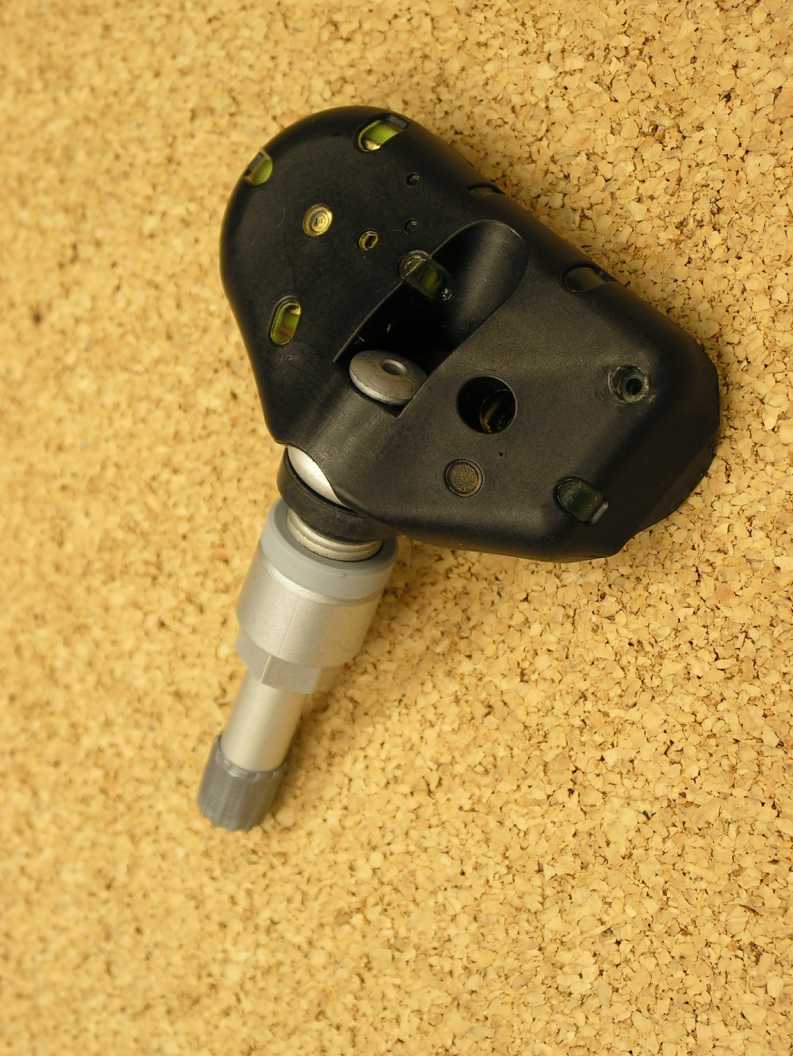

TRW Automotive August 9, 2013 OSS Electronics 24175 Research Dr. Farmington Hills, MI 48335-2642 Tel 248.478.7210 Fax 248.478.7241 RE:Certification for Honda 315MHz ASK AA Svc. Sensor Long Valve & Short Valve FCC ID:GQ4-67T Canada IC:1470A-48T Model #:209624-125, -126 GENERAL DESCRIPTION This transmitter is a transmitter device with tire valve, which is mounted in the valve hole of the wheel rim and transmits the pressure and temperature inside the tire, the battery voltage of the transmitter, and the tire identification code (ID) at normal and abnormal condition with the radio wave (RF) that conforms to the used area. Also this device has a countermeasure function such as the random delay of transmission time so that the RF signal from each tire will not interfere such as due to the simultaneous transmission. Description of Operations P/NConsumer’s Use Mode Mfg. Modes Mode of Operation ExplanationFrequency of Transmission 209624-125 209624-126 X Storage ModeNo transmission. Measures temperature.4 words whenever LF activation occurs 209624-125 209624-126 X Normal Mode Stationary No transmission. Measures temperature and pressure. Enters this mode from storage after a valid LF activation occurs. 4 words whenever LF activation occurs 209624-125 209624-126 X Normal Mode rolling Measures temperature and pressure. Transmits periodically. Enters this mode from Normal Mode Stationary when acceleration goes above threshold. 4 words every 1 minute, 4 words LF activation occurs 209624-125 209624-126 XAlert Mode Transmits when: a) significant pressure delta detected b) high temperature is detected 8 words every 4 seconds for 1 minute

RE:TRWAutomotive FCCID:GQ4-67T IC:1470A-48T ATCB014823 The following is in response to the comments made on the above referenced application. 1)Accordingto15.231(a)(4)–Fordevicesusedforemergenciesforsafetyoflife,thedevice mayTXmorefrequentlybutonlyduringthependencyofthealarmcondition.Thisusually expects sensorstotriggertheset/unsetevents.Pleaseexplainasthealertmodeappears toTXfor 1minute(timedduration–vseventtriggered/untrigged). The DUT is a tire pressure sensor. In the alert mode, the DUT is stated to transmit continuously for 60 seconds if triggered by a severe tire pressure change or high temperature event. In the event of such an emergency, the sensor transmits RF packets which must be received by the in-vehicle receiver. This receiver in turn sends data to the vehicle body control module, and then a warning is passed on to the vehicle driver. The driver must then stop the vehicle, inspect the tire's pressure and temperature, correct the pressure, wait for the tire to cool down, or possibly have the tire replaced in order to end the emergency. Once a potential emergency is detected, the emergency state persists until a human confirms there is no longer an emergency. After 60 seconds, the normal periodic transmission, temperature, and pressure sampling resumes. It is inconceivable that a vehicle operator could perform all the tasks necessary to ensure they have eliminated the emergency condition in less than 60 seconds, the sampling rate of the sensor. 2)Section2.1.2seemstoconflictwith 1)aboveandoperationaldescription (i.e.alertmodes), i.e.citesneverlessthan10seconds. Section 2.1.2 details the two key modes of operation tested, not all the modes of operation for the device. The Description of Operation exhibit details all the operating modes for consumer use.

Date of Issue: October 30, 2013Prepared For: TRW AutomotiveTest Report No.: 417124-665 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Testing of Electromagnetic Emissions per USA: CFR Title 47, Part 15.231 Canada: RSS-210 and RSS-Gen are herein reported for TRW Automotive 209624-125, 209624-126 Test Report No.: 417124-665 Copyright c ©2013 Applicant/Provider: TRW Automotive 24175 Research Drive, Farmington Hills Michigan 4835-2642 USA Phone: +1 (248) 699-4487, Fax: +1 (248) 699-4241 Contact Person: Mark Baker; [email protected] Report by: Report Date of Issue: October 30, 2013 Valdis V. Liepa, Ph.D. Results of testing completed on (or before) October 30, 2013 are as follows. Emissions:The transmitter fundamental emission meets the regulatory limit(s) by no less than 4.8 dB. Transmit chain spurious harmonic emissions comply by no less than 1.2 dB. The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 1 of 14 Date of Issue: October 30, 2013Prepared For: TRW AutomotiveTest Report No.: 417124-665 Contents 1 Test Specifications, General Procedures, and Location3 1.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 1.2 Test Location and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 2 Configuration and Identification of the Equipment Under Test5 2.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.8Declared Exemptions and Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . .6 3 Emissions7 3.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1.2Conducted Emissions Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.2.1Fundamental Emission Pulsed Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.2.2Fundamental Emission Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.3Fundamental Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.3.1Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 List of Tables 1The University of Michigan Radiation Laboratory Equipment List.. . . . . . . . . . . . . . . . . . .4 2EUT Declarations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 3Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 5Fundamental Radiated Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 6Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 List of Figures 1Photos of EUT.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2EUT Test Configuration Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3Radiated Emissions Diagram of the EUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 4Radiated Emissions Test Setup Photograph(s). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 6Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 2 of 14 Date of Issue: October 30, 2013Prepared For: TRW AutomotiveTest Report No.: 417124-665 1 Test Specifications, General Procedures, and Location 1.1 Test Specification and General Procedures The ultimate goal of TRW Automotive is to demonstrate that the Equipment Under Test (EUT) complies with the Rules and/or Directives below. Detailed in this report are the results of testing the TRW Automotive 209624-125, 209624-126 for compliance to: Country/RegionRules or DirectiveReferenced Section(s) United StatesCode of Federal RegulationsCFR Title 47, Part 15.231 CanadaIndustry CanadaRSS-210 and RSS-Gen In association with the rules and directives outlined above, the following specifications and procedures are fol- lowed herein. ANSI C63.4-2003 ”Methods of M…
